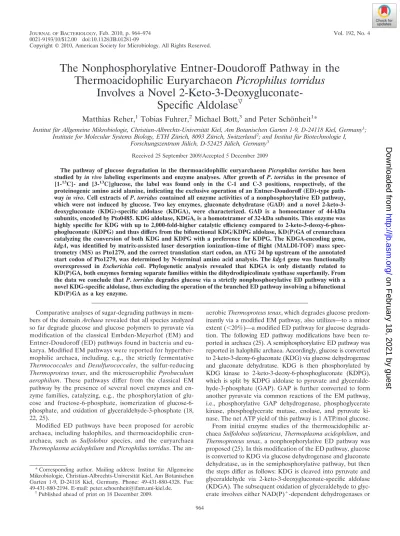

The Nonphosphorylative Entner-Doudoroff Pathway in the
Thermoacidophilic Euryarchaeon Picrophilus torridus
Involves a Novel
2-Keto-3-Deoxygluconate-Specific Aldolase
䌤
Matthias Reher,
1Tobias Fuhrer,
2Michael Bott,
3and Peter Scho
¨nheit
1*
Institut fu¨r Allgemeine Mikrobiologie, Christian-Albrechts-Universita¨t Kiel, Am Botanischen Garten 1-9, D-24118 Kiel, Germany1;
Institute for Molecular Systems Biology, ETH Zu¨rich, 8093 Zu¨rich, Switzerland2; and Institut fu¨r Biotechnologie I,
Forschungszentrum Ju¨lich, D-52425 Ju¨lich, Germany3
Received 25 September 2009/Accepted 5 December 2009
The pathway of glucose degradation in the thermoacidophilic euryarchaeon Picrophilus torridus has been studied by in vivo labeling experiments and enzyme analyses. After growth of P. torridus in the presence of
[1-13C]- and [3-13C]glucose, the label was found only in the C-1 and C-3 positions, respectively, of the
proteinogenic amino acid alanine, indicating the exclusive operation of an Entner-Doudoroff (ED)-type path-way in vivo. Cell extracts of P. torridus contained all enzyme activities of a nonphosphorylative ED pathpath-way, which were not induced by glucose. Two key enzymes, gluconate dehydratase (GAD) and a novel 2-keto-3-deoxygluconate (KDG)-specific aldolase (KDGA), were characterized. GAD is a homooctamer of 44-kDa subunits, encoded by Pto0485. KDG aldolase, KDGA, is a homotetramer of 32-kDa subunits. This enzyme was highly specific for KDG with up to 2,000-fold-higher catalytic efficiency compared to 2-keto-3-deoxy-6-phos-phogluconate (KDPG) and thus differs from the bifunctional KDG/KDPG aldolase, KD(P)GA of crenarchaea catalyzing the conversion of both KDG and KDPG with a preference for KDPG. The KDGA-encoding gene,
kdgA, was identified by matrix-assisted laser desorption ionization–time of flight (MALDI-TOF) mass
spec-trometry (MS) as Pto1279, and the correct translation start codon, an ATG 24 bp upstream of the annotated start codon of Pto1279, was determined by N-terminal amino acid analysis. The kdgA gene was functionally overexpressed in Escherichia coli. Phylogenetic analysis revealed that KDGA is only distantly related to KD(P)GA, both enzymes forming separate families within the dihydrodipicolinate synthase superfamily. From the data we conclude that P. torridus degrades glucose via a strictly nonphosphorylative ED pathway with a novel KDG-specific aldolase, thus excluding the operation of the branched ED pathway involving a bifunctional KD(P)GA as a key enzyme.
Comparative analyses of sugar-degrading pathways in mem-bers of the domain Archaea revealed that all species analyzed so far degrade glucose and glucose polymers to pyruvate via modification of the classical Embden-Meyerhof (EM) and Entner-Doudoroff (ED) pathways found in bacteria and eu-karya. Modified EM pathways were reported for hyperther-mophilic archaea, including, e.g., the strictly fermentative Thermococcales and Desulfurococcales, the sulfur-reducing Thermoproteus tenax, and the microaerophilic Pyrobaculum aerophilum. These pathways differ from the classical EM pathway by the presence of several novel enzymes and en-zyme families, catalyzing, e.g., the phosphorylation of glu-cose and fructose-6-phosphate, isomerization of gluglu-cose-6- glucose-6-phosphate, and oxidation of glyceraldehyde-3-phosphate (18, 22, 25).
Modified ED pathways have been proposed for aerobic archaea, including halophiles, and thermoacidophilic cren-archaea, such as Sulfolobus species, and the euryarchaea Thermoplasma acidophilum and Picrophilus torridus. The
an-aerobic Thermoproteus tenax, which degrades glucose predom-inantly via a modified EM pathway, also utilizes—to a minor extent (⬍20%)—a modified ED pathway for glucose degrada-tion. The following ED pathway modifications have been re-ported in archaea (25). A semiphosphorylative ED pathway was reported in halophilic archaea. Accordingly, glucose is converted to 2-keto-3-deoxy-6-gluconate (KDG) via glucose dehydrogenase and gluconate dehydratase. KDG is then phosphorylated by KDG kinase to 2-keto-3-deoxy-6-phosphogluconate (KDPG), which is split by KDPG aldolase to pyruvate and glyceralde-hyde-3-phosphate (GAP). GAP is further converted to form another pyruvate via common reactions of the EM pathway, i.e., phosphorylative GAP dehydrogenase, phosphoglycerate kinase, phosphoglycerate mutase, enolase, and pyruvate ki-nase. The net ATP yield of this pathway is 1 ATP/mol glucose. From initial enzyme studies of the thermoacidophilic ar-chaea Sulfolobus solfataricus, Thermoplasma acidophilum, and Thermoproteus tenax, a nonphosphorylative ED pathway was proposed (25). In this modification of the ED pathway, glucose is converted to KDG via glucose dehydrogenase and gluconate dehydratase, as in the semiphosphorylative pathway, but then the steps differ as follows: KDG is cleaved into pyruvate and glyceraldehyde via 2-keto-3-deoxygluconate-specific aldolase (KDGA). The subsequent oxidation of glyceraldehyde to glyc-erate involves either NAD(P)⫹-dependent dehydrogenases or
* Corresponding author. Mailing address: Institut fu¨r Allgemeine Mikrobiologie, Christian-Albrechts-Universita¨t Kiel, Am Botanischen Garten 1-9, D-24118 Kiel, Germany. Phone: 49-431-880-4328. Fax: 49-431-880-2194. E-mail: [email protected].
䌤Published ahead of print on 18 December 2009.
964
on February 18, 2021 by guest
http://jb.asm.org/
oxidoreductases. Glycerate is then phosphorylated by a specific kinase to 2-phosphoglycerate, which is finally converted to pyruvate via enolase and pyruvate kinase. This modification of the ED pathway was called “nonphosphorylative” since it is not coupled with net ATP synthesis.
However, recent comparative genomic studies and refined enzyme analyses suggest that the crenarchaea Sulfolobus and Thermoproteus utilize a so-called branched ED pathway, in which a semiphosphorylated route is simultaneously operative in addition to the nonphosphorylative route (25, 32). Accord-ingly, the semiphosphorylated route involves—via KDG ki-nase—the phosphorylation of KDG to KDPG, which is then cleaved to pyruvate and GAP by means of a bifunctional KDG/ KDPG aldolase, KD(P)GA. GAP is then converted to an-other pyruvate via nonphosphorylative GAP dehydrogenase (GAPN), phosphoglycerate mutase, enolase, and pyruvate ki-nase. The net ATP yield of the branched ED pathway is zero. In support of this pathway, the genes encoding gluconate de-hydratase, bifunctional KD(P)GA, KDG kinase, and GAPN were found to be clustered in Sulfolobus solfataricus (see Dis-cussion) and Thermoproteus tenax. The key enzyme of the pro-posed branched ED pathway is the bifunctional KD(P)GA, which catalyzes the cleavage of KDG to pyruvate and glycer-aldehyde and cleavage of KDPG to pyruvate and glyceralde-hyde-3-phosphate. This bifunctional aldolase, which has been characterized from S. solfataricus, was found to be identical to a previously described KDG aldolase of the same organism; however, its catalytic property to also utilize KDPG as a substrate has been recognized only recently. In fact, the bifunctional KD(P)GA showed a higher catalytic efficiency for KDPG than for KDG (1, 14). Crystal structures of bifunctional KD(P)GAs of S. solfataricus and T. tenax have been reported (16, 27, 30; G. Taylor [United Kingdom], unpublished data).
The branched ED pathway in S. solfataricus has been re-ported to be promiscuous and therefore represents an equiv-alent degradation route for both glucose and its C-4 epimer, galactose. Accordingly, glucose dehydrogenase, gluconate de-hydratase, KDG kinase, and bifunctional KD(P)GA were found to catalyze the conversion of both glucose and galactose and the corresponding subsequent intermediates, i.e., gluco-nate/galactonate, KDG/KDGal (KDGal stands for 2-keto-3-deoxygalactonate), and KDPG/KDPGal (KDPGal stands for 2-keto-3-deoxy-6-phosphogalactonate) (4, 12–14).
In contrast to crenarchaea, the modified ED pathway in the thermoacidophilic euryarchaea Thermoplasma acidophilum and Picrophilus torridus has not been studied in detail. Enzyme measurements in cell extracts and the characterization of few enzymes suggest the operation of a nonphosphorylative ED pathway in these organisms (2, 3, 17, 19, 25). However, in vivo evidence for the operation of an ED-type pathway, e.g., by
13C-labeling experiments with growing cultures, has not been
provided yet. Furthermore, the KDG aldolase activity mea-sured in cell extracts of P. torridus and T. acidophilum has not been purified and characterized, in particular with respect to substrate specificity, and the genes encoding these enzymes have not been identified. The biochemical analysis of this al-dolase is crucial to define the enzyme as a KDG-specific aldo-lase, indicative of a nonphosphorylative ED pathway, or as bifunctional KD(P)GA, indicative of the branched ED
path-way as proposed for the crenarchaea Sulfolobus and Thermo-proteus.
In this communication we studied the sugar-degrading path-way in P. torridus by in vivo labeling experiments with [13
C]glu-cose, by enzyme measurements, and by characterization of two key enzymes, gluconate dehydratase and KDG aldolase. The data indicate that P. torridus utilizes a strict nonphosphoryla-tive ED pathway, involving a novel KDG-specific aldolase as a key enzyme, and thus exclude the operation of a branched ED pathway, as in crenarchaea involving a bifunctional KD(P)GA as a key enzyme.
MATERIALS AND METHODS
Growth conditions.Picrophilus torridus (7, 21) was routinely grown aerobically at pH 0.9 and 60°C in 100-ml Erlenmeyer flasks filled with 20 ml medium containing 25 mM glucose and 0.2% yeast extract (19, 24) and shaken at 150 rpm. For mass culturing, cells were grown in a 8-liter fermentor (FairmenTec, Ger-many) (stirred at 200 rpm) filled with 5 liters of medium. Sulfolobus acidocal-darius was grown at 70°C on a synthetic medium with 25 mM glucose as a substrate as described previously (23). Growth was monitored by measuring the optical density at 600 nm (OD600). Glucose consumption was determined
enzy-matically with hexokinase and glucose-6-phosphate dehydrogenase.
13C-labeling experiments.To identify the glucose degradation pathways in
vivo, experiments with [D-13
C]glucose were performed with growing cultures in 100-ml Erlenmeyer flasks filled with 20 ml medium. In the case of P. torridus, the medium contained [1-13
C]- or [3-13
C]glucose (25 mM each) and yeast extract (0.1%). The pH was adjusted to pH 0.3. Cells were harvested in late log phase, when significant amounts of glucose had been consumed. In the case of S. acidocaldarius, the synthetic medium (pH 2.5) contained [1-13C]- or [3-13
C]glu-cose (25 mM each). Cell aliquots were harvested in mid-exponential growth phase. For both P. torridus and S. acidocaldarius, 2-ml portions of culture broth were centrifuged at 8,000⫻ g and 10°C for 10 min. The dry biomass pellet was hydrolyzed in 1.5 ml of 6 M HCl for 24 h at 110°C in a sealed 2-ml Eppendorf tube and desiccated overnight in a heating block at 85°C under a constant air stream. The hydrolysate was dissolved in 50l of 99.8% dimethyl formamide and transferred into a new Eppendorf cup within a few seconds. For derivatization, 30 l of N-methyl-N-(tert-butyldimethylsilyl)-trifluoroacetamide was added, which readily silylates hydroxyl groups, thiols, primary amines, amides, and carboxyl groups (5), and the mixture was incubated at 550 rpm and 85°C for 60 min. One microliter of the derivatized sample was injected into a 6890N Network gas chromatograph (GC) system, combined with a 5975 inert XL mass selective detector (Agilent Technologies) and analyzed as described earlier (6, 31). The GC temperature profile was 160°C for 1 min, increase to 320°C at 20°C per minute, and hold at 320°C for 1 min. The injector temperature was set at 230°C, the split ratio was 1:10, the flow rate was 1.5 ml/min, and the carrier gas was helium in a HP-5MS column (30 m by 0.25 mm; 0.25m coated) (Agilent Technologies). The mass spectra of the derivatized amino acid alanine were corrected for the natural abundance of all stable isotopes and unlabeled biomass from inoculum. The labeling pattern of alanine is a direct and quantitative evidence for metabolic pathways leading from glucose to pyruvate.
Determination of enzyme activities.Enzyme activities were assayed spectro-photometrically in 1 ml of assay mixture containing cell extracts of P. torridus grown on glucose and yeast extract. Cells were harvested in the late exponential growth phase at an OD600of about 1.6 (see Fig. 1). To determine a possible
glucose-specific induction, the specific activities were also measured in cells after growth in the absence of glucose on medium containing yeast extract (0.2%). Exponentially grown cells, harvested at an OD600of 0.9, were used. One unit of
enzyme activity is defined as 1mol substrate consumed or product formed per min. KDG was prepared enzymatically from gluconate with purified gluconate dehydratase from P. torridus. KDG was quantified by the thiobarbituric acid assay (29). Glucose dehydrogenase was tested by the method of Reher and Scho¨nheit (19). Gluconate dehydratase was determined at 60°C by measuring the conversion of gluconate to KDG, which was quantified as described previously (29). The assay mixture contained 50 mM sodium phosphate buffer (pH 6.2), 7.5 mM gluconate, and 20 mM MgCl2. KDG aldolase was tested at 60°C both in the
direction of aldol (KDG) cleavage and aldol (KDG) synthesis: KDG cleavage was analyzed by measuring pyruvate formation from KDG using lactate dehy-drogenase as described previously (12). The assay mixture contained 50 mM sodium phosphate buffer (pH 6.2), 2 to 5 mM KDG, 0.3 mM NADH, and 5.5 U lactate dehydrogenase. The formation of KDG from pyruvate andD/L
on February 18, 2021 by guest
http://jb.asm.org/
dehyde was monitored at 60°C over a period of 20 min and quantified in the thiobarbituric acid assay at 546 nm (29). The assay mixture contained 50 mM sodium phosphate buffer (pH 6.2), 20 mM pyruvate, and 20 mM glyceraldehyde. KDPG aldolase was determined as described above for KDG aldolase, except that KDG was replaced by KDPG in the cleavage direction and glyceraldehyde was replaced by glyceraldehyde-3-phosphate in the direction of aldol synthesis. KDG aldolase and KDPG aldolase activities were also determined with cell extracts of glucose-grown T. acidophilum and S. solfataricus. Glyceraldehyde dehydrogenase, enolase, and pyruvate kinase were determined as described in reference 19.
Purification of GAD from P. torridus. For gluconate dehydratase (GAD) purification, fermentor-grown cells (18 g [wet weight]) were harvested in the late exponential growth phase by centrifugation, suspended in 50 mM Tris-HCl (pH 8.1) and 10 mM MgCl2, and disrupted by passage through a French
pressure cell at 1.3⫻ 108Pa. Cell debris was removed by centrifugation for
90 min at 50,000⫻ g. The supernatant was adjusted to 3 M (NH4)2SO4and
incubated at 4 to 8°C for 17 h. The precipitate was removed by centrifugation at 50,000⫻ g for 90 min. The supernatant was adjusted to a pH of 8 and to 2 M (NH4)2SO4and applied to a phenyl-Sepharose 26/10 column equilibrated with
100 mM Tris-HCl adjusted to a pH of 8.1 with 2 M (NH4)2SO4and 10 mM
MgCl2. Protein was desorbed by a linear gradient from 2 M to 0 M (NH4)2SO4.
The fractions with the highest GAD activity eluting at 1.3 to 0.7 M (NH4)2SO4
were pooled, dialyzed against 100 mM Tris-HCl (pH 8) and 10 mM MgCl2, and
applied to a UnoQ1 column equilibrated with the same buffer. The protein was eluted with a increasing gradient from 0 to 2 M NaCl. The fractions containing the highest GAD activity (0.2 to 0.4 M NaCl) were pooled and concentrated to 1,000l by ultrafiltration (cutoff, 10 kDa). The concentrated protein solution was applied to a Superdex 200 HiLoad 16/60 column equilibrated with 50 mM Tris-HCl (pH 7.1) and 150 mM NaCl. The protein was eluted at a flow rate of 1 ml/min. At this stage, GAD was essentially pure as judged by SDS-PAGE.
Identification of the gene encoding GAD and characterization of GAD.The gene encoding GAD was identified by matrix-assisted laser desorption ioniza-tion–time of flight (MALDI-TOF) mass spectrometry (MS) of the purified pro-tein (44-kDa band by SDS-PAGE) as reported previously (17, 20). The pH dependence of gluconate dehydratase was measured at 60°C between pH 4.0 and pH 7.5 using either 0.1 M sodium acetate (pH 4.0 to 6.0) or 0.1 M sodium phosphate (pH 6.2 to 7.5) as a buffer. The temperature dependence was deter-mined between 49°C and 83°C. The long-term thermostability was tested in sealed vials containing 6g protein in 100 l sodium phosphate buffer (pH 6.2) with 50 mM MgCl2, which were incubated at 60°C, 70°C, 80°C, and 90°C for up
to 120 min. The vials were cooled for 10 min, and the remaining activity was tested. The substrate specificity was tested at 60°C in 50 mM sodium phosphate buffer (pH 6.2). Kinetic constants were determined for gluconate and galacto-nate in the presence of 20 mM MgCl2, and kinetic constants for MgCl2were
deternined in the presence of 10 mM gluconate.
Purification of 2-keto-3-deoxygluconate aldolase (KDGA) from P. torridus and identification of the gene encoding KDGA.For KDGA purification, glucose-grown cells were harvested in the late exponential growth phase by centrifuga-tion. The cells (15 g [wet weight]) were suspended in 50 mM Tris-HCl (pH 8.1) and disrupted by passage through a French pressure cell. Cell debris was re-moved by centrifugation at 50,000⫻ g for 90 min. The supernatant was adjusted to 1 M (NH4)2SO4and applied to a phenyl-Sepharose 26/10 column equilibrated
with 100 mM Tris-HCl (pH 8) and 1 M (NH4)2SO4. Protein was eluted by a
linear gradient from 1 M to 0 M (NH4)2SO4. Fractions containing the highest
KDGA activity [eluting at 0.3 to 0.1 M (NH4)2SO4] were diluted 30-fold in 50
mM Tris-HCl (pH 7.6), and applied to a UnoQ5 column (5 ml), which was equilibrated with the same buffer. Bound protein was eluted with a linear gra-dient up to 1 M NaCl. Fractions containing the KDGA activity (eluting at 0.05 to 0.15 M NaCl) were concentrated by ultrafiltration (cutoff, 10 kDa) and applied to a Superdex 200 HiLoad 16/60 column equilibrated with 50 mM Tris-HCl (pH 7.1) containing 150 mM NaCl. The protein was eluted with the same buffer. Fractions containing the highest KDGA activity were diluted in 0.1 M Tris-HCl (pH 8.0) and applied to a UnoQ1 column equilibrated with 100 mM Tris-HCl (pH 8). KDGA was eluted with an increasing gradient up to 0.5 M NaCl. At this stage, KDGA was essentially pure as judged by SDS-PAGE, yielding a single protein band at 32 kDa. After in-gel digestion of this band with trypsin, the eluted peptides were analyzed by MALDI-TOF mass spectrometry and used to identify the KDGA-encoding gene as described previously (17, 20). In addition, N-terminal amino acid sequencing of the purified enzyme was performed by the method of Meyer et al. (15).
Characterization of KDGA from P. torridus.The pH dependence and temper-ature dependence of KDGA were determined using the same assay conditions as described for GAD. KDGA activity was analyzed in the direction of KDG
formation. The substrate specificity of KDG aldolase was tested at 60°C in 50 mM sodium phosphate buffer (pH 6.2). Kinetic constants for KDG and KDPG were determined using substrate concentrations up to 1 mM and 32 mM, re-spectively. In the direction of aldol formation, apparent Kmand Vmaxvalues were
determined for glyceraldehyde and glyceraldehyde-3-phosphate with 25 mM pyruvate, and the values were determined for pyruvate at 10 mM glyceraldehyde. Other aldehyde substrates, i.e., glycolaldehyde,D-ribose,D-xylose,L-arabinose,
D-arabinose, acetaldehyde, and crotonaldehyde, were each tested at 25 mM in the presence of 25 mM pyruvate. The (aldol) condensation product formed by KDGA fromD- orL-glyceraldehyde and pyruvate was identified by the method of Lamble et al. (12), with the following modifications: 80 mM (each)D -glycer-aldehyde orL-glyceraldehyde was mixed with 160 mM sodium pyruvate in 250l of water containing 5g P. torridus KDGA. The reaction mixture was heated at 50°C overnight in a shaking incubator. Samples were analyzed by high-perfor-mance liquid chromatography (HPLC) using an Aminex HPX-87H column (Bio-Rad) using 1 M formic acid as the eluent and linked to a refractive index detector.
Cloning and expression of KDGA from P. torridus in E. coli and purification of the recombinant enzyme.On the basis of MALDI-TOF MS analysis and of the N-terminal amino acid sequence, a single open reading frame (ORF), Pto1279 (see Results), was identified in the sequenced genome of P. torridus. The ORF was characterized as the kdgA gene, encoding 2-keto-3-deoxygluconate aldolase, by its functional overexpression in E. coli as follows. The gene was amplified from genomic DNA of P. torridus by PCR and cloned into pET19b via two restriction sites (NdeI and BamHI) created with the primers 5⬘-GAATTCATATGTACA AGGGTATAGTATG-3⬘ and 5⬘-GAT TAGGATCCAAAATATTAATTTATA TTTCAA-3⬘ (restriction sites are underlined). The recombinant plasmid pET19b-kdgA was transferred into E. coli BL21 CodonPlus (DE3)-RIL cells. Transformed cells were grown in Luria-Bertani medium at 37°C, and kdgA expression was induced by the addition of 1 mM isopropyl-1-thio--D -galacto-pyranoside (IPTG). After 4 h, cells were harvested by centrifugation, followed by resuspension in 50 mM Tris-HCl (pH 8.2) containing 300 mM NaCl and 5 mM imidazole. Cells were disrupted by passage through a French pressure cell. After centrifugation, the supernatant was incubated at 58°C for 45 min and centrifuged at 100,000⫻ g for 1 h. The supernatant, exhibiting KDG aldolase activity, was applied to a Ni-nitrilotriacetic acid (Ni-NTA) column equilibrated with 50 mM Tris-HCl (pH 8.2) containing 300 mM NaCl and 5 mM imidazole. Bound protein was specifically eluted with increasing imidazole concentrations, yielding pure KDGA as judged by a single protein band at 33 kDa on SDS-polyacrylamide gels.
RESULTS
Growth of P. torridus on glucose.Growth of P. torridus on
glucose requires low concentrations of yeast extract. With 25 mM glucose and 0.2% yeast extract and at pH 0.9, the cells grew with a doubling time of about 10 h up to a final cell density with an OD600of 1.6. In the absence of glucose, the
cells grew on yeast extract with a similar doubling time to a cell density with an OD600 of 1. As shown in Fig. 1, significant
glucose consumption occurred only in the later growth phase. This indicates that initial growth was based almost exclusively on components of the yeast extract which apparently prevented glucose consumption.
In vivo operation of the ED pathway in P. torridus and S.
acidocaldarius.To analyze the sugar-degrading pathway of P. torridus by in vivo 13C-labeling experiments (31), cells were
grown on 13C-labeled glucose at pH 0.3 at a reduced yeast
extract concentration of 0.1%. Under these conditions, the cells grew on yeast extract up to an OD600of 0.3 followed by
the phase of glucose consumption up to an OD600of 0.8 (not shown). Cells were harvested in the late exponential phase at an OD600of 0.8, i.e., when significant amounts of glucose have been consumed.L-Alanine obtained by protein hydrolysis after growth on natural, [1-13C]- or [3-13C]glucose was analyzed by
GC-MS. When [1-13C]- or [3-13C]glucose was used,13C label
was found exclusively in the C-1 or C-3 position of alanine, respectively, derived directly from pyruvate, while
on February 18, 2021 by guest
http://jb.asm.org/
phoenolpyruvate (PEP) was unlabeled (not shown). These la-beling patterns clearly show that glucose was exclusively catab-olized through an ED-like pathway in vivo. The activity of an Embden-Meyerhof pathway was excluded due to the absence of13C label at the C-1 or C-3 position of alanine when [1-13
C]-or [3-13C]glucose was used as the carbon source, respectively
(Table 1). From the fact that about 30% of the alanine con-tained13C label, it is concluded that about 40% of the alanine
is taken up by the cell from the yeast extract in the medium and 60% (two times 30% due to the unlabeled PEP) originates from glucose with pyruvate as the immediate precursor (Table 1).
For comparison, similar in vivo 13C-labeling experiments
were performed with S. acidocaldarius, for which a branched ED pathway was proposed. The labeling distribution in pro-tein-derivedL-alanine was analyzed after growth of S. acido-caldarius in a minimal medium with [1-13C]- or [3-13C]glucose
as the sole carbon source. Similar to P. torridus, the labeling pattern indicates the exclusive operation of an ED pathway in vivo with more than 50% alanine containing13C label (Table
1). Assuming that alanine was produced from pyruvate origi-nating exclusively from the ED pathway, a fractional label of maximally 50% can be expected with the other 50% synthe-sized from unlabeled PEP. The slightly higher observed 60% label might be due to additional label introduced by other pathways, presumably tricarboxylic acid (TCA) cycle and glu-coneogenesis.
Enzyme activities of nonphosphorylative ED pathway in P.
torridus.In accordance with previous data (19), extracts of P. torridus grown on glucose and yeast extract contained activities of enzymes of a nonphosphorylative ED pathway, including glucose dehydrogenase, gluconate dehydratase, KDG aldolase, glyceraldehyde dehydrogenase, glycerate kinase, (2-phospho-glycerate-forming) enolase, and pyruvate kinase. To test the possible induction of these enzymes by glucose, the activities were also measured in cells after growth with yeast extract in the absence of glucose. The specific activities of all ED en-zymes were similar both in the presence and absence of glucose (Table 2), suggesting that the enzymes were not inducible by glucose but constitutively expressed. Accordingly, the activities of ED enzymes did not change in growing cultures after tran-sition from growth on yeast extract components to growth on glucose (data not shown).
FIG. 1. Growth of P. torridus on 25 mM glucose and 0.2% yeast extract. The cultures were incubated at pH 0.9 and 60°C in a 8,000-ml fermentor filled with 5,000 ml medium and stirred at 200 rpm. Growth on glucose and yeast extract (f), growth on yeast extract in the absence of glucose (F), and glucose consumption (䡺) are shown.
TABLE 1. Mass isotopomer distribution in alanine in P. torridus and S. acidocaldariusa
Species Glucose label Fractional label m0
b
m1 m2 m3
P. torridus 100%关1-13C兴glucose Alanine (M-57)⫹c 0.719 0.272 0.005 0.000
Alanine (M-85)⫹ 0.965 0.032 0.000
100%关3-13C兴glucose Alanine (M-57)⫹ 0.683 0.301 0.010 0.002
Alanine (M-85)⫹ 0.698 0.292 0.007
S. acidocaldarius 100%关1-13C兴glucose Alanine (M-57)⫹ 0.389 0.604 0.008 0.000
Alanine (M-85)⫹ 0.984 0.017 0.000
100%关3-13C兴glucose Alanine (M-57)⫹ 0.307 0.655 0.036 0.003
Alanine (M-85)⫹ 0.317 0.663 0.020
a
The data are from 100%关1-13C兴- and 关3-13C兴glucose growth experiments. b
m0is the fractional abundance of the fragments with the lowest mass, and m1to m3(mi⬎ 0) are the abundances of molecules with higher masses. c
Cracking of the derivatized alanine leads to the following fragments: (M-57)⫹with loss of a tert-butyl group; (M-85)⫹with loss of the CO of alanine (C-1 position) and a tert-butyl group. Thus, (M-57)⫹and (M-85)⫹correspond to the 1-3 fragment and the 2-3 fragment of alanine, respectively.
TABLE 2. Specific activities of enzymes of the nonphosphorylative Entner-Doudoroff pathway in the presence and absence of glucosea
Enzyme activity Sp act (U mg
⫺1) ⫹ Glucose ⫺ Glucose Glucose dehydrogenase 0.49 0.42 Gluconate dehydratase 0.03 0.04 KDG aldolase 0.07 0.07 Glyceraldehyde dehydrogenase 0.14 0.10 Glycerate kinase 0.10 0.09 Enolase 0.04 0.04 Pyruvate kinase 0.03 0.03 a
The enzymes were from cell extracts of P. torridus cells grown on 25 mM glucose and 0.2% yeast extract or 0.2% yeast extract in the absence of glucose. Enzyme assays were as described in Materials and Methods. KDG aldolase was assayed in the direction of KDG cleavage.
on February 18, 2021 by guest
http://jb.asm.org/
KDG and KDPG aldolase activities in cell extracts of P.
torridus, T. acidophilum, and S. acidocaldarius.Cell extracts of P. torridus exhibited aldolase activity catalyzing the cleavage of KDG (0.07 U/mg; Km of 0.4 mM) at a 25-fold-higher rate
compared to the cleavage of KDPG (0.003 U/mg). This high preference for KDG over KDPG suggests that in P. torridus, a KDG-specific aldolase (KDGA) is the relevant aldolase for glucose degradation in vivo as part of the nonphosphorylated ED pathway. Similar results were obtained with the thermoacido-philic euryarchaeon Thermoplasma acidophilum. Extracts of glucose-grown cells converted KDG (0.26 U/mg; Km0.28 mM) at 130-fold-higher activities compared to KDPG (0.002 U/mg), indicating that as in P. torridus, a KDG-specific aldolase is operative in vivo in T. acidophilum.
For comparison, aldolase activities were also measured in the thermoacidophilic crenarchaeon Sulfolobus acidocaldarius, for which a branched ED pathway was proposed with a bifunc-tional KD(P)G aldolase as a key enzyme. Extracts of glucose-grown cells of S. acidocaldarius catalyzed the cleavage of KDG (0.18 U/mg; Kmof 2.6 mM) and KDPG (0.2 U/mg; Kmof 0.19
mM) at similar rates, which is in accordance with an in vivo function of a bifunctional KD(P)G aldolase.
Characterization of key enzymes of the nonphosphorylative
ED pathway in P. torridus.The enzyme activities in cell extracts
of P. torridus, in particular the unusual KDG-specific aldolase, suggest the operation of a nonphosphorylative ED pathway in this euryarchaeon. To further characterize the key enzymes of this pathway, the first euryarchaeal gluconate dehydratase and the KDG-specific aldolase activity were purified and charac-terized, and the genes encoding them were identified.
GAD.Gluconate dehydratase (GAD) was purified 190-fold to apparent homogeneity involving five purification steps (Ta-ble 3). SDS-PAGE of the purified enzyme revealed one sub-unit at 44 kDa (Fig. 2A). The molecular mass as estimated by gel filtration was 340 kDa, indicating a homooctameric struc-ture of the native enzyme. By peptide mass fingerprinting of the purified enzyme, a single ORF, Pto0485, was identified in the genome of P. torridus; the matched peptides cover 34% of the protein. Thus, Pto0485 represents the gad gene encoding gluconate dehydratase in P. torridus. GAD catalyzed the con-version of gluconate to KDG following Michaelis-Menten ki-netics with Vmax and Km values of 15 U/mg and 2.5 mM,
respectively. Gluconate dehydratase also catalyzed dehydra-tion of theD-galactonate at about 1 U/mg with a Kmfor
ga-lactonate of 2 mM. Xylonate (10 mM) was not utilized. The enzyme required Mg2⫹with an apparent Kmof 4.2 mM. The
pH optimum of GAD was at pH 6, and the enzyme showed 50% of activity at pH 8.1 and at pH 4.5, which corresponds to
the measured internal pH of P. torridus of pH 4.6 (28). GAD showed moderately thermophilic properties with a tempera-ture optimum at 70°C and a substantial thermostability at 60°C, not losing activity upon incubation for 2 h. At 70°C, its half-life was about 15 min.
KDGA.2-Keto-3-deoxygluconate aldolase (KDGA) activity
from P. torridus was purified 340-fold to apparent homogeneity by four chromatographic steps (Table 4). SDS-PAGE of the purified enzyme revealed one subunit at 32 kDa (Fig. 2B). The molecular mass as estimated by gel filtration was 120 kDa, indicating a homotetrameric structure of the native enzyme. The pH optimum of KDGA was at pH 5.5, and 50% of activity was found at pH 4.5 and 7.5. The enzyme has a temperature optimum at 65°C and showed high thermostability. At 70°C, the enzyme did not lose activity upon incubation for 2 h. The half-lives of the enzyme at 80°C and 90°C were 20 min and 15 min, respectively.
Kinetic properties. KDGA catalyzed the cleavage of KDG
to pyruvate and glyceraldehyde with apparent Vmax and Km
values of 50 U/mg and 0.3 mM, respectively. The enzyme also catalyzed the conversion of KDPG to pyruvate and glyceral-dehyde-3-phosphate with apparent Vmaxand Kmof 0.63 U/mg and 8 mM, respectively. Thus, the catalytic efficiency (kcat/Km)
for KDG was almost 2,000-fold higher than that for KDPG, indicating that KDGA from P. torridus is highly specific for KDG, making the use of KDPG as a physiological substrate highly unlikely (Table 5).
KDGA catalyzed the aldol condensation reaction, i.e., KDG formation fromD- orL-glyceraldehyde and pyruvate with
ap-TABLE 3. Purification of gluconate dehydratase from P. torridus
Fraction Total activity (U) Total protein (mg) Sp act (U/mg) Purification factor (fold) Yield (%) Cell extract 67.6 2,464 0.027 1 100 (NH4)2SO4 precipitation 90.3 816 0.11 4.1 130 Phenyl Sepharose 47.5 24.5 1.9 72.3 70 UnoQ1 1.7 0.46 3.6 133 2.5 Gel filtration 0.93 0.182 5.1 189 1.4
FIG. 2. SDS-PAGE of purified gluconate dehydratase (A) and KDG aldolase (B). Lane 1, molecular mass markers, lane 2, purified enzyme. The positions of molecular mass markers (in kilodaltons) are shown to the left of each gel.
TABLE 4. Purification of KDG aldolase from P. torridus
Fraction Total activity (U) Total protein (mg) Sp act (U/mg) Purification factor (fold) Yield (%) Cell extract 164 1,179 0.14 1 100 Phenyl Sepharose 47 42 1.1 7.8 29 UnoQ5 37 9.1 4.1 29 23 Gel filtration 6.2 0.2 31 221 3.8 UnoQ1 6.0 0.125 48 343 3.6
on February 18, 2021 by guest
http://jb.asm.org/
Downloaded from
parent Vmaxvalues of 67 U/mg (Dform) and 59 U/mg (Lform) and apparent Kmvalues of 4.6 mM (glyceraldehyde) and 2.7 mM (pyruvate). HPLC analysis of the aldol formed fromD -glyceraldehyde and pyruvate revealed the formation of both KDG and its C-4 epimer 2-keto-3-deoxygalactonate (KDGal) at a ratio of 60% and 40%, respectively. Almost identical data were obtained withL-glyceraldehyde and pyruvate. The data indicate that KDGA from P. torridus lacks facial stereoselec-tivity of aldol formation as has been reported previously for the bifunctional KD(P)G aldolase from Sulfolobus solfataricus (12). Besides glyceraldehyde (100%), glycolaldehyde (13%), D-ribose (4%), andD-xylose (4%) were accepted as aldehyde substrates with pyruvate. KDGA enzyme also catalyzed at low activity the condensation of glyceraldehyde-3-phosphate and pyruvate. The reaction showed a pronounced substrate inhibi-tion above 4 mM GAP. No activity was found at 15 mM GAP. At 4 mM GAP and 20 mM pyruvate, the specific activity was 7 U/mg.
Identification of the KDGA-encoding gene.The gene
encod-ing KDGA, kdgA, was identified in the genome of P. torridus by peptide mass fingerprinting of the purified enzyme. A single ORF, Pto1279, was detected with matching peptides covering 51% of the encoded protein. This ORF, previously annotated as dihydrodipicolinate synthase, codes for a protein of 266 amino acids with a calculated molecular mass of 30.2 kDa. The determination of N-terminal amino acid sequence (MYKGIV CPMITPLDAHGNIDYNATN) of KDGA purified from P. torridus revealed that the translation start codon was an ATG 24 bp upstream of the annotated ATG start codon of Pto1279. Thus, the corrected ORF Pto1279 encodes a larger protein (274 amino acids, 31.3 kDa) containing eight additional amino acids at the N terminus.
Recombinant KDGA. The function encoded by Pto1279
(kdgA gene) was determined by its functional overexpression in E. coli. The ORF was cloned into a pET vector and expressed in E. coli as a His-tagged fusion protein, which was purified by a heat step and Ni-NTA affinity chromatography. The purified recombinant KDGA was characterized as a 120-kDa homotet-ramer showing catalytic properties similar to those of the en-zyme purified from P. torridus (Table 5).
DISCUSSION
In the present communication, the glucose degradation pathway in P. torridus was analyzed by in vivo labeling experi-ments and by detailed enzyme studies. The data indicate that P. torridus utilizes a strictly nonphosphorylative
Entner-Dou-doroff pathway with a novel KDG-specific aldolase as a key enzyme. The nonphosphorylative ED pathway of P. torridus and its key enzymes, gluconate dehydratase (GAD) and KDGA, will be discussed in comparison with the branched ED pathway of Sulfolobus.
The nonphosphorylative ED pathway in P. torridus.The in vivo
13C-labeling pattern of protein-derivedL-alanine after growth of
P. torridus with specifically13C-labeled glucose clearly indicates
the exclusive operation of an ED-like pathway. Cell extracts con-tained all enzyme activities of a nonphosphorylative ED pathway. The two key enzymes, gluconate dehydratase (GAD) and a KDG-specific aldolase (KDGA), were characterized, and the KDGA-encoding genes were identified (see below).
The enzymes of the nonphosphorylative ED pathway in P. torridus were found not to be regulated by glucose. This con-stitutive expression might be explained since the organism uses different pathways for glucose degradation and gluconeo-genesis, i.e., modified ED pathway and reversed EM path-way, respectively. Theses pathways do not share common intermediates and reactions which might cause a futile cycle, and thus, they can exist in parallel without being regulated. In accordance, we measured several enzymes of the reversed EM pathway in P. torridus, i.e., phosphoglycerate mutase (0.07), phosphoglycerate kinase (0.03), glyceraldehyde-3-phosphate dehydrogenase (0.03), trioseglyceraldehyde-3-phosphate isomerase (0.64), and phosphoglucose isomerase (0.03) and found that the specific activities (given in U/mg at 55°C) were also con-stitutive and not regulated by glucose. Despite the concon-stitutive formation of ED enzymes in P. torridus, glucose was not sig-nificantly metabolized in the first growth phase (Fig. 1). This indicates that components of the yeast extract are used as carbon sources in this phase and that the presence of these components apparently prevents glucose utilization, e.g., by inhibition of glucose transport into the cell.
Gluconate dehydratase. GAD was characterized as a
340-kDa homooctameric protein encoded by Pto0485. The enzyme showed high sequence identity (44%) to GAD (SSO3198) from S. solfataricus. Both GADs share a similar subunit size and an octameric oligomeric structure (11). However, a mo-nomeric structure of the S. solfataricus GAD has also been reported (13). GADs from both organisms showed similar cat-alytic properties, including Mg2⫹dependence of activity and the utilization of galactonate in addition to gluconate, indicat-ing substrate promiscuity. The ratio of catalytic efficiency for gluconate and galactonate utilization was about 10 to 1, which is on the order of that reported for the promiscuous GAD from S. solfataricus (ratio of 6:1) (13).
Orthologs of P. torridus GAD with high sequence identity were also found in Thermoplasma species and in the crenar-chaeon Thermoproteus tenax (1). GAD from P. torridus and other archaeal GADs belong to the mandelate racemase (MR) subfamily of the enolase superfamily; they contain the charac-teristic signature patterns of this family, including conserved glutamate residues as ligands for Mg2⫹and conserved arginine and aspartate residues involved in general acid base cataly-sis in the dehydration mechanism (8, 14). The archaeal GADs do not show similarities to the bacterial GAD from Achromobacter xylosoxidans (10) and to 6-phosphogluconate dehydratases of the classical ED pathway in bacteria; these
TABLE 5. Kinetic properties of KDGA from P. torridus Parameter Substrate P. torridusa S. solfataricusb
kcat(s⫺1) KDG 26.7 (24.2) 28.3 KDPG 0.34 (0.36) 64.3 Km(mM) KDG 0.3 (0.4) 25.7 KDPG 8 (2.5) 0.1 kcat/Kmratio KDG 89 (52) 1.1 KDPG 0.04 (0.14) 643
aValues in parentheses were determined with recombinant KDGA. bFor comparison, kinetic data from bifunctional KD(P)GA from S.
solfatari-cus (14) were included.
on February 18, 2021 by guest
http://jb.asm.org/
bacterial enzymes belong to the dihydroxyacid dehydratase/6-phosphogluconate dehydratase (ILVD/EDD) superfamily.
KDG aldolase.Cell extracts of P. torridus contained an
al-dolase activity which shows a high preference for KDG over KDPG, giving the first indication of a KDG-specific aldolase to be operative in glucose degradation in vivo. The purified KDG aldolase (KDGA) from P. torridus was characterized as a novel KDG-specific aldolase. KDGA is a homotetrameric protein composed of 32-kDa subunits. This molecular composition was also reported for bifunctional KD(P)GA from Sulfolobus spe-cies and Thermoproteus tenax. However, KDGA differs from KD(P)GA with respect to substrate specificity for KDG and KDPG and to phylogenetic affiliation.
Substrate specificity.KDGA from P. torridus cleaved KDG
at a 1,000- to 2,000-fold-higher catalytic efficiency compared to that of the phosphorylated aldol KDPG. Thus, KDGA repre-sents an aldolase with a novel substrate specificity being highly specific for (nonphosphorylated) KDG. Also, in the direction of aldol synthesis, KDGA catalyzed the formation of KDG from pyruvate and glyceraldehyde with high preference over KDPG synthesis from pyruvate and glyceraldehyde-3-phos-phate.
In contrast, KD(P)GA from S. solfataricus cleaves both KDPG and KDG; however, it has a high preference for KDPG (14) (Table 5). In the direction of aldol formation, KD(P)GA
from S. acidocaldarius and from Thermoproteus tenax showed a preferred formation of KDPG over KDG (1, 30).
KDGA from P. torridus showed substrate promiscuity, as measured in the direction of aldol synthesis. The enzyme cat-alyzed the formation of both KDG and its C-4 epimer 2-keto-3-deoxygalactonate (KDGal) fromD- orL-glyceraldehyde and pyruvate at a similar ratio, indicating lack of stereospecific control in formation and cleavage of KDG and KDGal. In this respect, KDGA from P. torridus is similar to KD(P)GA from Sulfolobus solfataricus.
Phylogenetic affiliation. By mass spectrometry analysis of
purified P. torridus KDGA, a single ORF, Pto1279, originally annotated as dihydrodipicolinate synthase, was identified as the gene (kdgA) encoding KDGA. The start codon of Pto1279 was incorrectly annotated as identified by N-terminal amino acid sequencing of the enzyme purified from P. torridus. The correct Pto1279 gene encodes a protein that is 8 amino acids longer. Heterologous overexpression of Pto1279 yielded a re-combinant KDGA with kinetic properties similar to those of the KDGA purified from P. torridus.
KDGA from P. torridus (Pto1279) showed about 50% se-quence identity to putative homologs from Thermoplasma spe-cies, T. acidophilum (Ta1157), and T. volcanium (TVN1228), suggesting the presence of functional KDG-specific aldolases in these euryarchaea. This is supported by enzymatic
measure-FIG. 3. Multiple amino acid sequence alignment of KDGA from P. torridus and its homologs in T. acidophilum and T. volcanii with archaeal bifunctional KD(P)GA, NAL of E. coli, and DHDPS of E. coli. The alignment was generated with ClustalX using the gonnet matrix. Consensus patterns (DHDPS_1 and DHDPS_2) are boxed. The dihydrodipicolinate synthetase family signature 1 consensus pattern is [GSA]-[LIVM]-[LIVMFY]-x(2)-G-[ST]-[TG]-G-E-[GASNF]-x(6)-[EQ] (PS00665), and the dihydrodipicolinate synthetase family signature 2 consensus pattern is Y-[DNSAH]-[LIVMFAN]-P-x(2)-[STAV]-x(2,3)-[LIVMFT]-x(13,14)-[LIVMCF]-x-[SGA]-[LIVMFNS]-K-[DEQAFYH]-[STACI] (PS00666). Signature 2 consensus pattern includes a lysine (marked by an arrow) which is involved in Schiff base formation. Catalytic residues () and residues forming a putative phosphate-binding motif (#) for KDP according to references 16, 27, and 30 are indicated. Pto-KDGA, KDGA of P. torridus; Tac-KDGA and Tvo-KDGA, homologs of Pto-KDGA in T. acidophilum and T. volcanii Ta1157 and TVN1228; Sso-KD(P)GA, S. solfataricus gi:2879782; Tte-KD(P)GA, T. tenax gi:41033593; Eco-NAL, gi:128526; Eco-DHDPS, gi:145708.
on February 18, 2021 by guest
http://jb.asm.org/
ments in T. acidophilum (this paper), showing aldolase activity in vivo with high preference for KDG over KDPG, suggesting the operation of a KDG-specific aldolase encoded by Ta1157. KDGA from P. torridus showed only low sequence identities (20 to 25%) to characterized bifunctional KD(P)GA from Sul-folobus species and T. tenax. Both types of aldolases, KDGA and KD(P)GA, are class I aldolases, which belong to the di-hydropicolinate synthase (DHPDS)-like superfamily, which also include DHPDSs and N-acetylneuraminate lyases (NAL). A multiple-sequence alignment of KDGA from P. torridus and putative homologs from Thermoplasma species, from charac-terized bifunctional KD(P)GAs from Sulfolobus species and T. tenax, and from selected members of DHPDS and NAL fam-ilies is given in Fig. 3. Both KDGA and KD(P)GA contain several conserved amino acids typical of enzymes in the DHPDS-like family, including conserved lysine residues indica-tive of class I aldolases forming a Schiff base intermediate in
the catalytic cycle. On the basis of crystal structures of Sulfolo-bus and Thermoproteus KD(P)GAs, amino acids for substrate binding were identified, including two conserved arginines and a conserved tyrosine (Fig. 3), which were proposed to form a putative phosphate binding pocket (16, 30; Gary Taylor [United Kingdom], unpublished results). These conserved amino acids are absent in KDGA from P. torridus, which might reflect its preference for nonphosphorylated substrate KDG.
The phylogenetic relationships of KDGA from P. torridus, characterized bifunctional KDG/KDPG aldolases, KD(P)GA, and other families (dihydrodipicolinate synthase [DHDPS] and N-acetylneuraminate lyase [NAL]) of the DHDPS superfamily are shown in Fig. 4. In accordance with its unique substrate specificity being highly specific for KDG, KDGA from P. torridus (Pto1279) and putative homologs from Thermoplasma volcanium (TVN1228), and T. acidophilum (Ta1157), form a distinct family within the DHDPS superfamily. The KDGA family is largely
FIG. 4. Phylogenetic relationship of KDGA with selected members of the DHDPS-like protein family from bacteria and archaea. Characterized enzymes are underlined. The numbers at the nodes are bootstrapping values according to neighbor joining (generated by using the neighbor-joining algorithm of ClustalX). Accession numbers for the proteins and enzymes from the different species are shown in parentheses as follows: for KDGA,
Picrophilus torridus Pto1279, Thermoplasma volcanium GSS1 (gi:13542059) TVN1228, and Thermoplasma acidophilum DSM 1728 (gi:16082170)
Ta1157; for NAL, Homo sapiens (gi:13540533), Haemophilus influenzae (Swiss Prot P44539), and Escherichia coli (Swiss Prot P06995); for KD(P)GA, Sulfolobus solfataricus (gi:2879782), Sulfolobus tokodaii strain 7 (gi:15922811), Sulfolobus acidocaldarius DSM 639 (gi:70606067),
Thermoproteus tenax (gi:41033593), Pyrobaculum arsenaticum DSM 13514 (gi:145591599), and Metallosphaera sedula DSM 5348 (gi:146304062); for
DHDPS, Methanocaldococcus jannaschii DSM 2661 (gi:15668419), Methanobrevibacter smithii ATCC 35061 (gi:148642891), Haloarcula
marismor-tui ATCC 43049 (gi:55377124), Natronomonas pharaonis DSM 2160 (gi:76801395), Halorubrum lacusprofundi ATCC 49239 (gi:153895122), Haloquadratum walsbyi DSM 16790 (gi:110667468), Thermotoga maritima (gi:7531088), Escherichia coli (gi:145708), Nicotiana sylvestris (gi:
14575543), and Mycobacterium tuberculosis AF2122/97 (gi:31793927); for proteins/enzymes not shown in groups, Halobacterium sp. NRC-1 (gi:15789685), Picrophilus torridus DSM 9790 (gi:48478098) Pto1026, Thermoplasma acidophilum DSM 1728 (gi:16081713) Ta0619, Thermoplasma
volcanium GSS1 (gi:14324884), TVG0663048, and Ferroplasma acidarmanus Fer1 (gi:69268899). The scale bar corresponds to 0.1 substitution per
site.
on February 18, 2021 by guest
http://jb.asm.org/
separated by strong bootstrap support from bifunctional KD(P)GA, which also form a distinct cluster. Besides character-ized KD(P)GAs (underlined), the cluster contained putative homologs in Pyrobaculum and Methanosphaera. Distant homologs with less sequence identity were found in Ferroplasma acidarmanus, P. torridus (Pto1026), T. acidophilum (Ta0619), and T. volcanii (TVN0669). The function of the encoded pro-teins is not known. A functional involvement in glucose deg-radation appears unlikely as concluded from a proteomic study of soluble proteins in glucose-grown Thermoplasma acidophi-lum (26). In this study, no gene product of ORF Ta0619 was detected, whereas the Ta1157-encoded gene product, which is a close homolog to P. torridus KDGA, was present. The data suggest that in T. acidophilum, a KDG-specific aldolase
en-coded by Ta1157 is operative in glucose degradation, which is in accordance with the KDG-specific aldolase activity, mea-sured in cell extracts (see above).
Nonphosphorylative ED pathway versus branched ED
path-way in archaea. In summary, the data reported here and in
previous work for P. torridus (2, 17, 19) present the first compre-hensive description of a strictly nonphosphorylative ED pathway in archaea. A similar pathway is probably operative in closely related Thermoplasma species based on enzyme and genomic studies. A comparison of the nonphosphorylative ED pathway in P. torridus and the branched ED pathway of S. solfataricus is given in Fig. 5. For a recent article on the branched ED pathway in Thermoproteus tenax, see reference 32.
In both the nonphosphorylative ED pathway and branched
FIG. 5. Proposed nonphosphorylative Doudoroff pathway in Picrophilus torridus in comparison to the proposed branched Entner-Doudoroff pathway in Sulfolobus solfataricus. Enzymes and the genes encoding these enzymes and the promiscuous activities of GDH, GAD, KDGA, KDGK, and KD(P)GA are indicated. Abbreviations: GDH, glucose dehydrogenase; GAD, gluconate dehydratase; KDG, 2-keto-3-deoxygluconate; KDGal, 2-keto-3-deoxygalactonate; KDGA, KDG-specific aldolase; GADH, glyceraldehyde dehydrogenase, GLK, glycerate kinase (2-phosphoglycerate forming); ENO, enolase; PYK, pyruvate kinase; KDGK, KDG kinase; KDPG, 2-keto-3-deoxy-6-phosphogluconate; KDPGal, 2-keto-3-deoxy-6-phosphogalactonate; KD(P)GA, bifunctional KDGKDPG aldolase; GAPN, nonphosphorylative glyceraldehyde dehy-drogenase; GAOR, glyceraldehyde oxidoreductase; PGM, phosphoglycerate mutase.
on February 18, 2021 by guest
http://jb.asm.org/
ED pathway in Picrophilus and Sulfolobus, the formation of KDG is catalyzed by homologous glucose dehydrogenases and gluconate dehydratases. However, the subsequent routes of gluconate degradation to 2-phosphoglycerate differ as follows. In the nonphosphorylative ED pathway of Picrophilus, KDG is cleaved by the novel KDG-specific aldolase to pyruvate and glyceraldehyde, which in turn is oxidized to glycerate via NADP-specific glyceraldehyde dehydrogenase, a novel enzyme of the aldehyde dehydrogenase superfamily (19). Glycerate is then phosphorylated by a specific 2-phosphoglycerate-forming ki-nase (17).
In the branched ED pathway, two routes of KDG conversion to 2-phosphoglycerate have been proposed (25). In the non-phosphorylative route, KDG is split to glyceraldehyde and pyruvate via bifunctional KDGA. The oxidation of glyceralde-hyde is catalyzed by an oxidoreductase (9), rather than by the NADP⫹-dependent glyceraldehyde dehydrogenase as in P. tor-ridus. Glycerate phosphorylation to 2-phosphoglycerate is cat-alyzed by a specific kinase homologous to the P. torridus en-zyme. The semiphosphorylated route involves phosphorylation of KDG—via KDG kinase—to KDPG, which is cleaved to pyruvate and glyceraldehyde-3-phosphate (GAP) by bifunc-tional KDPGA. GAP is then oxidized by nonphosphorylative GAPN, forming 3-phosphoglycerate, which is converted to 2-phosphoglycerate by means of a phosphoglycerate mutase. Finally, the conversion of 2-phosphoglycerate to pyruvate in both the nonphosphorylative and branched ED pathways is catalyzed by conventional enolase and pyruvate kinase.
Pathway promiscuity.The nonphosphorylative ED pathway in
P. torridus contained promiscuous glucose/galactose dehydroge-nase (2), gluconate/galactonate dehydratase, and KDG/KDGal aldolase (this work). These data suggest that the nonphosphory-lative ED pathway in P. torridus provides an equivalent route for the degradation of both glucose and galactose, as first proposed for the branched ED pathway (Fig. 5) in S. solfataricus (4).
Gene organization.The genes encoding all enzymes of the
nonphosphorylative ED pathway in Picrophilus were found to be scattered along the chromosome, whereas several genes encoding enzymes of the branched ED pathway in Sulfolobus (and also in Thermoproteus), i.e., GAD, KD(P)GA, KDG ki-nase, and GAPN, are clustered (see the ORF numbers in Fig. 5). The latter finding is in accordance with the in vivo operation of the branched ED pathway in the crenarchaea. Furthermore, in the P. torridus genome, homologous genes encoding KDG kinase and GAPN were absent, which is in accordance with the proposed strict nonphosphorylative ED pathway in P. torridus.
ACKNOWLEDGMENTS
We thank U. Sauer for financial support of T. Fuhrer.
We thank U. Sauer for use of GC-MS. Further, we thank R. Schmid (Osnabru¨ck, Germany) for N-terminal amino acid analyses, S. Anemu¨ller (Lu¨beck, Germany) for providing cell mass of T.
aci-dophilum and H. Preidl and A. Brandenburger for expert technical
assistance. KDPG was a gift from E. Toone (Durham, NC). The analysis of KDG and KDGal formation by KDGA from P. torridus was performed by D. Hough and M. Danson (Bath, United Kingdom). Finally, we thank U. Johnsen for measuring the kinetic constants of GAD and for help preparing the manuscript.
REFERENCES
1. Ahmed, H., T. J. Ettema, B. Tjaden, A. C. Geerling, J. van der Oost, and B.
Siebers.2005. The semi-phosphorylative Entner-Doudoroff pathway in hy-perthermophilic archaea: a re-evaluation. Biochem. J. 390:529–540.
2. Angelov, A., O. Fu¨tterer, O. Valerius, G. H. Braus, and W. Liebl.2005. Properties of the recombinant glucose/galactose dehydrogenase from the extreme thermoacidophile, Picrophilus torridus. FEBS J. 272:1054–1062. 3. Budgen, N., and M. J. Danson. 1986. Metabolism of glucose via a modified
Entner-Doudoroff pathway in the thermoacidophilic archaebacterium Ther-moplasma acidophilum. FEBS Lett. 196:207–210.
4. Danson, M. J., and D. W. Hough. 2005. Promiscuity in the Archaea. The enzymology of metabolic pathways. The Biochemist 27:17–21.
5. Dauner, M., T. Storni, and U. Sauer. 2001. Bacillus subtilis metabolism and energetics in carbon-limited and excess-carbon chemostat culture. J. Bacte-riol. 183:7308–7317.
6. Fischer, E., and U. Sauer. 2003. Metabolic flux profiling of Escherichia coli mutants in central carbon metabolism using GC-MS. Eur. J. Biochem. 270: 880–891.
7. Fu¨tterer, O., A. Angelov, H. Liesegang, G. Gottschalk, C. Schleper, B. Schep-ers, C. Dock, G. Antranikian, and W. Liebl.2004. Genome sequence of Picrophilus torridus and its implications for life around pH 0. Proc. Natl. Acad. Sci. U. S. A. 101:9091–9096.
8. Gerlt, J. A., P. C. Babbitt, and I. Rayment. 2005. Divergent evolution in the enolase superfamily: the interplay of mechanism and specificity. Arch. Bio-chem. Biophys. 433:59–70.
9. Kardinahl, S., C. L. Schmidt, T. Hansen, S. Anemu¨ller, A. Petersen, and G. Scha¨fer.1999. The strict molybdate-dependence of glucose-degradation by the thermoacidophile Sulfolobus acidocaldarius reveals the first crenarchae-otic molybdenum containing enzyme–an aldehyde oxidoreductase. Eur. J. Biochem. 260:540–548.
10. Kim, S., and S. B. Lee. 2008. Identification and characterization of the bacterial D-gluconate dehydratase in Achromobacter xylosoxidans. Biotech-nol. Bioprocess Eng. 13:436–444.
11. Kim, S., and S. B. Lee. 2005. Identification and characterization of Sulfolobus solfataricus D-gluconate dehydratase: a key enzyme in the non-phosphory-lated Entner-Doudoroff pathway. Biochem. J. 387:271–280.
12. Lamble, H. J., N. I. Heyer, S. D. Bull, D. W. Hough, and M. J. Danson. 2003. Metabolic pathway promiscuity in the archaeon Sulfolobus solfataricus re-vealed by studies on glucose dehydrogenase and 2-keto-3-deoxygluconate aldolase. J. Biol. Chem. 278:34066–34072.
13. Lamble, H. J., C. C. Milburn, G. L. Taylor, D. W. Hough, and M. J. Danson. 2004. Gluconate dehydratase from the promiscuous Entner-Doudoroff path-way in Sulfolobus solfataricus. FEBS Lett. 576:133–136.
14. Lamble, H. J., A. Theodossis, C. C. Milburn, G. L. Taylor, S. D. Bull, D. W.
Hough, and M. J. Danson.2005. Promiscuity in the part-phosphorylative Entner-Doudoroff pathway of the archaeon Sulfolobus solfataricus. FEBS Lett. 579:6865–6869.
15. Meyer, C., R. Schmid, P. C. Scriba, and M. Wehling. 1996. Purification and partial sequencing of high-affinity progesterone-binding site(s) from porcine liver membranes. Eur. J. Biochem. 239:726–731.
16. Pauluhn, A., H. Ahmed, E. Lorentzen, S. Buchinger, D. Schomburg, B.
Siebers, and E. Pohl.2008. Crystal structure and stereochemical studies of KD(P)G aldolase from Thermoproteus tenax. Proteins 72:35–43.
17. Reher, M., M. Bott, and P. Scho¨nheit.2006. Characterization of glycerate kinase (2-phosphoglycerate forming), a key enzyme of the nonphosphoryla-tive Entner-Doudoroff pathway, from the thermoacidophilic euryarchaeon Picrophilus torridus. FEMS Microbiol. Lett. 259:113–119.
18. Reher, M., S. Gebhard, and P. Scho¨nheit.2007. Glyceraldehyde-3-phosphate ferredoxin oxidoreductase (GAPOR) and nonphosphorylating glyceralde-hyde-3-phosphate dehydrogenase (GAPN), key enzymes of the respective modified Embden-Meyerhof pathways in the hyperthermophilic crenarcha-eota Pyrobaculum aerophilum and Aeropyrum pernix. FEMS Microbiol. Lett.
273:196–205.
19. Reher, M., and P. Scho¨nheit.2006. Glyceraldehyde dehydrogenases from the thermoacidophilic euryarchaeota Picrophilus torridus and Thermoplasma aci-dophilum, key enzymes of the non-phosphorylative Entner-Doudoroff path-way, constitute a novel enzyme family within the aldehyde dehydrogenase superfamily. FEBS Lett. 580:1198–1204.
20. Schaffer, S., B. Weil, V. D. Nguyen, G. Dongmann, K. Gunther, M.
Nicko-laus, T. Hermann, and M. Bott.2001. A high-resolution reference map for cytoplasmic and membrane-associated proteins of Corynebacterium glutami-cum. Electrophoresis 22:4404–4422.
21. Schleper, C., G. Puehler, I. Holz, A. Gambacorta, D. Janekovic, U.
San-tarius, H. P. Klenk, and W. Zillig.1995. Picrophilus gen. nov., fam. nov.: a novel aerobic, heterotrophic, thermoacidophilic genus and family comprising archaea capable of growth around pH 0. J. Bacteriol. 177:7050–7059. 22. Scho¨nheit, P.2008. Glycolysis in hyperthermophiles, p. 99–112. In F. Robb,
G. Antranikian, D. Grogan, and A. Driessen (ed.), Thermophiles. Biotech-nology and techBiotech-nology at high temperatures. CRC Press, Boca Raton, FL. 23. Selig, M., K. B. Xavier, H. Santos, and P. Scho¨nheit.1997. Comparative
analysis of Embden-Meyerhof and Entner-Doudoroff glycolytic pathways in hyperthermophilic archaea and the bacterium Thermotoga. Arch. Microbiol.
167:217–232.
24. Serour, E., and G. Antranikian. 2002. Novel thermoactive glucoamylases from the thermoacidophilic Archaea Thermoplasma acidophilum, Picrophilus torridus and Picrophilus oshimae. Antonie Van Leeuwenhoek 81:73–83.
on February 18, 2021 by guest
http://jb.asm.org/
25. Siebers, B., and P. Scho¨nheit.2005. Unusual pathways and enzymes of central carbohydrate metabolism in Archaea. Curr. Opin. Microbiol. 8:695–705. 26. Sun, N., F. Beck, R. W. Knispel, F. Siedler, B. Scheffer, S. Nickell, W.
Baumeis-ter, and I. Nagy.2007. Proteomics analysis of Thermoplasma acidophilum with a focus on protein complexes. Mol. Cell. Proteomics 6:492–502.
27. Theodossis, A., H. Walden, E. J. Westwick, H. Connaris, H. J. Lamble, D. W.
Hough, M. J. Danson, and G. L. Taylor. 2004. The structural basis for substrate promiscuity in 2-keto-3-deoxygluconate aldolase from the Entner-Doudoroff pathway in Sulfolobus solfataricus. J. Biol. Chem. 279:43886– 43892.
28. van de Vossenberg, J. L., A. J. Driessen, W. Zillig, and W. N. Konings. 1998. Bioenergetics and cytoplasmic membrane stability of the extremely acido-philic, thermophilic archaeon Picrophilus oshimae. Extremophiles 2:67–74.
29. Weissbach, A., and J. Hurwitz. 1959. The formation of 2-keto-3-deoxyhep-tonic acid in extracts of Escherichia coli B. I. Identification. J. Biol. Chem.
234:705–709.
30. Wolterink-van Loo, S., A. van Eeerde, M. A. Siemerink, J. Akerboom, B. W.
Dijkstra, and J. van der Oost.2007. Biochemical and structural exploration of the catalytic capacity of Sulfolobus KDG aldolases. Biochem. J. 403:421– 430.
31. Zamboni, N., S. M. Fendt, M. Ruhl, and U. Sauer. 2009. (13)C-based met-abolic flux analysis. Nat. Protoc. 4:878–892.
32. Zaparty, M., B. Tjaden, R. Hensel, and B. Siebers. 2008. The central car-bohydrate metabolism of the hyperthermophilic crenarchaeote Thermopro-teus tenax: pathways and insights into their regulation. Arch. Microbiol.
190:231–245.
