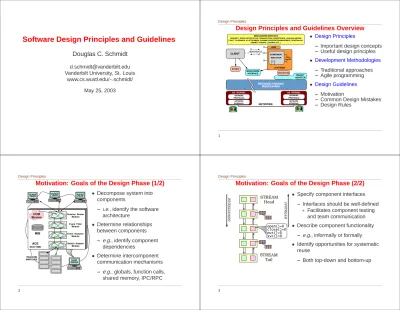

Software Design Principles and Guidelines

(1)

Software Design Principles and Guidelines

Douglas C. Schmidt

[email protected] Vanderbilt University, St. Louis

www.cs.wustl.edu/schmidt/

May 25, 2003

Design Principles

Design Principles and Guidelines Overview

NETWORK STUBS OS KERNEL NETWORK INTERFACE MESSAGE-PASSING MIDDLEWARE HOME MIDDLEWARE SERVICES

(SECURITY,EVENTNOTIFICATION,TRANSACTIONS,PERSISTENCE,LOADBALANCING,

FAULTTOLERANCE,A/VSTREAMING,DYNAMICRESOURCEMANAGEMENT,SCHEDULING,

NAMING,TRADING,LOGGING,ETC...)

CALL BACKS CONTAINER operation() MIDDLEWARE INTERFACE _OBJECT ADAPTER CLIENT OS KERNEL NETWORK INTERFACE COMPONENT EXECUTOR SKELETONS NETWORK

PROTOCOLS PROTOCOLSNETWORK

Design Principles

– Important design concepts – Useful design principles

Development Methodologies

– Traditional approaches – Agile programming

Design Guidelines

– Motivation

– Common Design Mistakes – Design Rules

1

Design Principles

Motivation: Goals of the Design Phase (1/2)

EVENT SERVER SUPER VISOR CCM Stream ACE RUN-TIME TELECOM SWITCHES Session Router Module Event Filter Module Switch Adapter Module Event Analyzer Module SUPER VISOR SUPER VISOR MIB

Decompose system into

components

– i.e., identify the software

architecture

Determine relationships

between components

– e.g., identify component

dependencies

Determine intercomponent

communication mechanisms

– e.g., globals, function calls,

shared memory, IPC/RPC 2

Design Principles

Motivation: Goals of the Design Phase (2/2)

UPST REAM DOWNST REAM open()=0 close()=0 put()=0 svc()=0 STREAM Head STREAM Tail

Specify component interfaces

– Interfaces should be well-defined

Facilitates component testing

and team communication

Describe component functionality

– e.g., informally or formally

Identify opportunities for systematic

reuse

– Both top-down and bottom-up

(2)

Macro Steps in the Design Process

In the design process the orientation moves from

– Customer to developer – What to how

Macro steps include:

1. Preliminary Design

– External design describes the real-world model

– Architectural design decomposes the requirement specification

into software subsystems 2. Detailed Design

– Specify each subsystem

– Further decomposed subsystems, if necessary

4 De sig n Pr in cip le s

Micr

o

Steps

in

the

Design

Pr

ocess

Giv e n a requirements s pec , design is an iter ativ e decision p rocess with the follo wing gener al steps: 1. List the hard decisions and decisions lik ely to change 2. Design a c omponent specification to hide each s uch decision – Mak e decisions that apply to w hole p rog ram fa mily first – Modular iz e most lik ely changes first – Then modular iz e remaining difficult decisions and decisions lik ely to c hange – Design the uses hier arch y a s y ou do this (include reuse decisions) 3. T reat each h igher-le v el component as a specification and apply abo v e process to each 4. Contin ue refining until all design decisions are: – hidden in a c omponent – contain easily comprehensib le components – pro vide individual, independent, lo w -le v el implementation a ssignments 5 Design Principles

Example: Designing a Web Server

WWW WWW SERVER SERVER 2: index.html 2: index.html 1: GET ~schmidt 1: GET ~schmidt HTTP/1.0 HTTP/1.0 COMMUNICATION PROTOCOL COMMUNICATION PROTOCOL ((EE..GG.,., HTTP HTTP)) GUI GUI HTML HTML PARSER PARSER REQUESTER REQUESTER GRAPHICS GRAPHICS ADAPTER ADAPTER NETWORK OS KERNEL OS I/O SUBSYSTEM NETWORK ADAPTERS OS KERNEL OS I/O SUBSYSTEM NETWORK ADAPTERS DISPATCHER PROTOCOL HANDLERS WWW CLIENT CLIENT www.cs.wustl.edu/˜jxh/ research/

Web server design

decisions

– Portability issues – I/O demuxing and

concurrency – HTTP protocol processing – File access Web server components – Event dispatcher – Protocol handler – Cached virtual filesystem 6 Design Principles

Key Design Concepts and Principles

Key design concepts and design principles include:

1. Decomposition

2. Abstraction and information hiding

3. Component modularity

4. Extensibility

5. Virtual machine architectures

6. Hierarchical relationships

7. Program families and subsets

Main goal of these

concepts and principles is to:

Manage software

system complexity

Improve software quality

factors

Facilitate systematic

reuse

Resolve common design

challenges

(3)

Design Principles

Challenge 1: Determining the Web Server Architecture

Context: A large and complex production web server

Problems:

– Designing the web server as a large monolithic entity is tedious

and error-prone

– Web server developers must work concurrently to improve

productivity

– Portability and resuability are important quality factors

8

Design Principles

Solution: Decomposition

Decomposition handles complexity by splitting large problems into

smaller problems

This “divide and conquer” concept is common to all life-cycle

processes and design techniques

Basic methodology:

1. Select a piece of the problem (initially, the whole problem)

2. Determine the components in this piece using a design paradigm,

e.g., functional, structured, object-oriented, generic, etc.

3. Describe the components interactions

4. Repeat steps 1 through 3 until some termination criteria is met

– e.g., customer is satisfied, run out of time/money, etc. ;-)

9

Design Principles

Decomposition Example: Web Server Framework

Pipes and filters

Component configurator Com p o nent co nfi gu rat o r ~ /home/... Protocol handler Protocol filter Protocol pipeline framework Concurrency strategy framework Tilde expander Cached virtual filesystem I/O strategy framework A dapter

Active object Strategy

S tate A cc ept o r

Asynchronous completion token

M

e

m

ent

o

Reactor/Proactor Strategy Singleton

S tate Event dispatcher Features – High-performance – Flexible concurrency,

demuxing, and caching mechanisms

– Uses frameworks based

on ACE

www.cs.wustl.edu/schmidt/PDF/JAWS.pdf

10

Design Principles

Object-Oriented Decomposition Principles

1. Don’t design components to correspond to execution steps

Since design decisions usually transcend execution time

2. Decompose so as to limit the effect of any one design decision on the rest of the system

Anything that permeates the system will be expensive to change

3. Components should be specified by all information needed to use the component

andnothing more!

(4)

Challenge 2: Implementing a Flexible Web Server

Context: The requirements that a production web server must meet

will change over time,e.g.:

– New platforms – New compilers – New functionality – New performance goals

Problems:

– If the web server is “hard coded” using low-level system calls it will

be hard to port

– If web server developers write software that’s tightly coupled with

internal implementation details the software will be hard to evolve

12

Solution: Abstraction

IMPLEMENTATION IMPLEMENTATION ESSENTIAL CHARACTERISTICS UNESSENTIAL DETAILS INTERFACE INTERFACE

Abstraction manages complexity

by emphasizingessential

characteristics and suppressing implementation details

Allows postponement of certain

design decisions that occur at

various levels of analysis,e.g.,

– Representational and

algorithmic considerations

– Architectural and structural

considerations

– External environment and

platform considerations 13 De sig n Pr in cip le s

Common

T

ypes

of

Abstraction

1. Procedur al abstr action e. g ., closed s ubroutines 2. Data abstr action e. g ., A DT classes and component models 3. Control abstr action e. g ., loops , iter a tors , fr a me w o rk s , and m u ltitasking ACE Streams ACE Reactor

EVENT LOOP EVENT LOOP

APPLI CAT IO N -SPECI FI C EVENT HANDLER FUNCT IONALI TY CALL _BACKS LOCAL INVOCAT IONS IP C CLASSES ADT CLASSES ACE T ask EVENT LOOP CALLBACKS CALLBACKS 14 Design Principles

Information Hiding

Information hiding is an important means of achieving abstraction

– i.e., design decisions that are subject to change should be hidden

behind abstract interfaces

Application software should communicate only through well-defined

interfaces

Each interface should be specified by as little information as possible

If internal details change, clients should be minimally affected

– May not even require recompilation and relinking...

(5)

Design Principles

Typical Information to be Hidden

Data representations

– i.e., using abstract

data types

Algorithms

– e.g., sorting or

searching techniques

Input and Output

Formats – Machine dependencies,e.g., byte-ordering, character codes Lower-level interfaces

– e.g., ordering of low-level operations, i.e., process sequence

Separating policy and mechanism

– Multiple policies can be implemented

by same mechanisms

e.g., OS scheduling and virtual memory paging

– Same policy can be implemented by

multiple mechanisms

e.g., reliable communication service can be provided by multiple protocols

16

Design Principles

Information Hiding Example: Message Queueing

Message Block Message Queue head_ tail_ SYNCH STRATEGY Message Block next() prev() cont() Message Block next() prev() cont() Message Block next() prev() cont() Data_Block Data_Block Data_Block Data_Block next() prev() cont() AMessage_Queueis a list of ACE_Message_Blocks – Efficiently handles arbitrarily-large message payloads

Design encapsulates and

parameterizes various aspects

– e.g., synchronization, memory

allocators, and reference counting can be added transparently 17 De sig n Pr in cip le s

The

ACE_Message_Block

Class

ACE_Data_Block _{# base_ : char *} _{# refcnt_ : int}

ACE_Message_Block

+ init (size : size_t) : int + msg_type (type : ACE_Message_Type) + msg_type () : ACE_Message_Type + msg_priority (prio : u_long) + msg_priority () : u_long + clone () : ACE_Message_Block * + duplicate () : ACE_Message_Block * + release () : ACE_Message_Block * + set_flags (flags : u_long) : u_long + clr_flags (flags : u_long) : u_long + copy (buf : const char *,n : size_t) : int + rd_ptr (n : size_t) + rd_ptr () : char * + wr_ptr (n : size_t) + wr_ptr () : char * + length () : size_t + total_length () : size_t + size () : size_t # rd_ptr_ : size_t # wr_ptr_ : size_t # cont_ : ACE_Message_Block * # next_ : ACE_Message_Block * # prev_ : ACE_Message_Block * # data_block_ : ACE_Data_Block *

* 1 Class c h aracteristics Hide messaging implementations from clients ACE_Message _Block cont() data_block() wr_ptr() rd_ptr() PAYLOAD ACE_Data _Block ACE_Message _Block cont() data_block() wr_ptr() rd_ptr() ACE_Data_Block ACE_Message _Block cont() data_block() rd_ptr() wr_ptr() reference_count() = 2 ((11 )) SS IIMM PPLL EE MMEE SSSS AAGG EE SSTT RRUU CCTT UURR EE ((22 )) CC OOMM PPOO SSII TTEE MM EESS SSAA GGEE SS TTRR UUCC TTUU RREE 18 De sig n Pr in cip le s

The

ACE_Message_Queue

Class

+ ACE_Message_Queue (high_water_mark : size_t = DEFAULT_HWM, low_water_mark : size_t = DEFAULT_LWM, notify : ACE_Notification_Strategy * = 0) +

open (high_water_mark : size_t = DEFAULT_HWM,

low_water_mark : size_t = DEFAULT_LWM, notify : ACE_Notification_Strategy * = 0) : int +

flush () : int

+

notification_strategy (s : ACE_Notification_Strategy *) : void

+

is_empty () : int

+

is_full () : int

+

enqueue_tail (item : ACE_Message_Block *,

timeout : ACE_Time_Value * = 0) : int +

enqueue_head (item : ACE_Message_Block *,

enqueue_prio (item : ACE_Message_Block *,

dequeue_head (item : ACE_Message_Block *&,

dequeue_tail (item : ACE_Message_Block *&,

high_water_mark (new_hwm : size_t) : void

+

high_water_mark (void) : size_t

+

low_water_mark (new_lwm : size_t) : void

+

low_water_mark (void) : size_t

+ close () : int + deactivate () : int + activate () : int + pulse () : int + state () : int

# head_ : ACE_Message_Block * # tail_ : ACE_Message_Block * # high_water_mark_ : size_t # low_water_mark_ : size_t

ACE_Message_Queue SYNCH_STRATEGY Class c h aracteristics Note ho w the synchronization aspect c an be str a tegiz ed! 19

(6)

Challenge 3: Determining the Units of Web Server

Decomposition

Context: A production web server that uses abstraction and

information hiding

Problems:

– Need to determine the appropriate units of decomposition, which

should

Possess well-specifiedabstract interfaces and

Have highcohesion and low coupling

20

Solution: Component Modularity

NAMING TRADING LOCKING EVENT LOOP APPLICATION -SPECIFIC GLUE CODE LOGGING TIME

Amodular system is one that’s structured into identifiable abstractions called

components

– A software entity that represents an

abstraction

– A “work” assignment for developers – A unit of code that

has one or more names

has identifiable boundaries

can be (re-)used by other components

encapsulates data

hides unnecessary details

can be separately compiled

21

Design Principles

Designing Component Interfaces

A component interface consists of

several types of ports:

– Exports

Services provided to other

components,e.g., facets and

event sources

– Imports

Services requested from

other components,e.g.,

receptacles and event sinks

– Access Control

Not all clients are equal,e.g.,

protected/private/public CALL BACKS CONTAINER COMPONENT EXECUTOR HOME FACETS RECEPTACLES

EVENT SINK EVENT SOURCE

Define components that

provide multiple interfaces and implementations

Anticipate change

22

Design Principles

Component Modularity Example: Stream Processing

NETWORK INTERFACE OR PSEUDO-DEVICES STREAM Tail Multiplexor APPLICATION Stream STREAM Head APPLICATION Stream UPSTREAM DOW N STREAM MESSAGE WRITE

TASK READTASK

MODULE

open()=0 close()=0 put()=0 svc()=0

A Stream allows flexible

configuration of layered processing modules

AStreamcomponent contains

a stack ofModulecomponents

EachModulecontains two

Taskcomponents

– i.e., read and writeTasks

EachTaskcontains a

Message Queuecomponent

and aThread Manager

component

(7)

Design Principles

Benefits of Component Modularity

Modularity facilitates software

quality factors,e.g.,:

Extensibility!well-defined, abstract interfaces Reusability!low-coupling, high-cohesion Compatibility!design “bridging” interfaces

Portability!hide machine

dependencies

Modularity is important for good designs since it:

Enhances forseparation of

concerns

Enables developers to

reduce overall system

complexity viadecentralized

software architectures

Increasesscalability by

supporting independent and concurrent development by multiple personnel

24

Design Principles

Criteria for Evaluating Modular Designs

Component decomposability

Are larger components

decomposed into smaller components?

Component composability

Are larger components

composed from existing smaller components?

Component understandability

Are components separately

understandable?

Component continuity

Do small changes to the

specification affect a

localized and limited number of components?

Component protection

Are the effects of run-time

abnormalities confined to a small number of related components?

25

Design Principles

Principles for Ensuring Modular Designs

Language support for components

Components should correspond to

syntactic units in the language

Few interfaces

Every component should

communicate with as few others as possible

Small interfaces (weak coupling)

If any two components communicate

at all, they should exchange as little information as possible

Explicit Interfaces

Whenever two

components A and B communicate, this must be obvious from the text of A or B or both

Information Hiding

All information about a

component should be private unless it’s specifically declared public

26

Design Principles

Challenge 4: “Future Proofing” the Web Server

Context: A production web server whose requirements will change

over time

Problems:

– Certain design aspects seem constant until they are examined in

the overall structure of an application

– Developers must be able to easily refactor the web server to

account for new sources of variation

(8)

Solution: Extensibility

Extensible software is important to support successions of quick

updates and additions to address new requirements and take advantage of emerging opportunities/markets

Extensible components must beboth open and closed, i.e., the

“open/closed” principle:

– Open component!still available for extension

This is necessary since the requirements and specifications are

rarely completely understood from the system’s inception

– Closed component!available for use by other components

This is necessary since code sharing becomes unmanageable

when reopening a component triggers many changes

28

Extensibility Example: Active Object Tasks

Event Handler handle_input() handle_output() handle_exception() handle_signal() handle_timeout () handle_close() get_handle()=0 Shared Object init()=0 fini ()=0 info()=0 Svc Handler Service Object A APPLICATION -SPECIFIC APPLICATION -INDEPENDENT Message Queue SYNCH_STRATEGY PEER_STREAM suspend()=0 resume()=0 SYNCH STRATEGY A A Task open()=0 close()=0 put()=0 svc()=0 SYNCH STRATEGY A Features

– Taskscan register with a

Reactor

– They can be dynamically

linked

– They can queue data – They can run as “active

objects”

JAWS uses inheritance and

dynamic binding to produce task components that are

both open and closed

29

Design Principles

Challenge 5: Separating Concerns for Layered

Systems

over time

Problems:

– To enhance reuse and flexibility, it is often necessary to

decompose a web server into smaller, more manageable units

that arelayered in order to

Enhance reuse,e.g., multiple higher-layer services can share

lower-layer services

Transparently and incrementally enhancement functionality

Improve performance by allowing the selective omission of

unnecessary service functionality

Improve implementations, testing, and maintenance

Solution:

Vir

tual

M

ac

hine

Ar

c

hitectures

A vir tual machine p ro vides an e x tended “softw are instr uction set” – Extensions pro vide additional data types and associated “softw are instr uctions” – Modeled after hardw are instr uction set pr imitiv es that w o rk on a limited set o f data types A vir tual machine la y er pro vides a s et of oper ations that are u seful in d e v eloping a fa mily of similar systems

APPLICATION PRESENTATION SESSION TRANSPORT NETWORK DATA LINK PHYSICAL

APPLICATION _PRESENTATION SESSION TRANSPORT NETWORK DATA LINK PHYSICAL

NETWORK DATA LINK PHYSICAL NETWORK DATA LINK PHYSICAL NETWORK DATA LINK PHYSICAL NETWORK DATA LINK PHYSICAL

HH OST OST AA HH OST OST BB GG ATEWAY ATEWAY AA GG ATEWAY ATEWAY BB

VIRTUAL LINK PHYSICAL LINK

(9)

Design Principles

Virtual Machine Layers for the ACE Toolkit

PROCESSES/ THREADS DYNAMIC LINKING SHARED MEMORY SELECT/ IO COMP FILE SYS APIS WIN32 NAMED

PIPES & UNIX

STREAM PIPES

UNIX FIFOS

C

APIS SOCKETSTLI /

COMMUNICATION SUBSYSTEM

VIRTUAL MEMORY & FILE SUBSYSTEM

GENERAL OPERATING SYSTEM SERVICES

PROCESS/THREAD SUBSYSTEM FRAMEWORK LAYER ACCEPTOR CONNECTOR NETWORKED SERVICE COMPONENTS LAYER NAME SERVER TOKEN SERVER LOGGING SERVER GATEWAY SERVER SOCK SAP/ TLI SAP FIFO SAP LOG MSG SERVICE HANDLER TIME SERVER C++ WRAPPER FACADE LAYER SPIPE SAP CORBA HANDLER FILE SAP SHARED MALLOC

THE ACE ORB

(TAO)

JAWS ADAPTIVE

WEB SERVER STANDARDS-BASED MIDDLEWARE

REACTOR/ PROACTOR PROCESS/ THREAD MANAGERS STREAMS SERVICE CONFIG -URATOR SYNCH WRAPPERS MEM MAP OS ADAPTATION LAYER www.cs.wustl.edu/schmidt/ACE.html 32 De sig n Pr in cip le s

Other

Examples

o

f

V

ir

tual

Mac

hines

Computer architectures e. g ., c ompiler ! assemb ler ! obj code ! microcode ! gates , tr ansistors , signals , etc. Oper ating systems e. g .,L in u x Har d ware Mac hine Software Vir tual Mac hine instr uction set set of system calls restar tab le instr uctions restar tab le system calls interr upts/tr aps signals interr upt/tr ap handlers signal handlers b loc king interr upts masking signals interr upt stac k signal stac k J a v a Vir tual Machine (JVM) Abstr a cts a w a y from details of the under lying O S 33 Design Principles

Challenge 6: Separating Concerns for Hierarchical

Systems

over time

Problems:

– Developers need to program components at different levels of

abstraction independently

– Changes to one set of components should be isolated as much

as possible from other components

– Need to be able to “visualize” the structure of the web server

design

34

Design Principles

Solution: Hierarchical Relationships

Hierarchies reduce component interactions by restricting the

topology of relationships

A relation defines a hierarchy if it partitions units into levels (note

connection tovirtual machine architectures)

– Level 0 is the set of all units that use no other units

– Leveliis the set of all units that use at least one unit at level<i

and no unit at leveli.

Hierarchies form the basis ofarchitectures and designs

– Facilitates independent development – Isolates ramifications of change – Allows rapid prototyping

(10)

Design Principles

Hierarchy Example: JAWS Architecture

svc_run

REQUEST PROCESSING LAYER

Options

s

HTTP

Handler Handler HTTP Handler HTTP

HTTP Acceptor Reactor HTTP Processor Msg Queue s svc_run svc_run svc_run QUEUEING LAYER I/O DEMUXING LAYER 36 Design Principles

Defining Hierarchies

Relations that define hierarchies include:

– Uses

– Is-Composed-Of

– Is-A

– Has-A

The first two are general to all design methods, the latter two are more particular to OO design and programming ACE_IPC_SAP ACE_Addr ACE_SOCK_IO ACE_SOCK ACE_SOCK_Acceptor ACE_INET_Addr ACE_SOCK_Stream ACE_SOCK_Connector 37 sig n Pr in cip le s

The

Uses

Relation

(1/3)

C lass X C lass Y X Uses Y if the c orrect functioning of X depends on the a v a ilability o f a correct implementation o f Y Note , uses is not necessar ily the s ame a s in v o k e s : – Some in v o cations are not uses e. g ., e rror logging – Some uses don’t in v olv e in v o cations e. g ., m essage passing, interr upts , shared memor y access A uses relation does not necessar ily yield a hier arch y (a v oid cycles ...) Design Principles

The Uses Relation (2/3)

AllowX to use Y when:

– X is simpler because it uses Y

e.g., Standard C++ library classes

– Y is not substantially more complex because

it is not allowed to useX

– There is a useful subset containingY and not

X

i.e., allows sharing and reuse of Y

– There is no conceivably useful subset containingX but not Y

i.e., Y is necessary for X to function

correctly

Uses relationships can exist between classes, frameworks, subsystems, etc.

Acceptor-Connector Reactor Proactor

Service

Configurator Streams Task

(11)

De sig n Pr in cip le s

The

Uses

Relation

(3/3)

A h ier a rch y in the uses relation is essential for designing reusab le softw are systems Ho w e v e r, cer tain s oftw are systems require controlled violation of a uses hier arch y – e. g ., a synchronous comm unication protocols , OO callbac ks in fr ame w or ks , signal handling, etc. – Upcalls are one w a y to c ontrol these non-hier archical dependencies Rule of thumb : – Star t w ith a n in v ocation h ier a rch y and eliminate those in v ocations (i.e ., “calls”) that are not uses relationships 40 Design Principles

The Is-Composed-Of Relation

Theis-composed-of relationship shows how the

system is broken down in components

Xis-composed-offx

i

gif X is a group of

componentsx

ithat share some common

purpose

The following diagram illustrates some of the is-composed-of relationships in JAWS

HTTP Handler Sock Stream HTTP Handler Sock Stream HTTP Handler Sock Stream HTTP Acceptor Sock Acceptor Reactor 41 De sig n Pr in cip le s

The

Is-Composed-Of

R

elation

Man y prog ra mming languages suppor t the is-composed-of relation via some higher-le v el component or record str u ctur ing technique Ho w e v e r, the follo wing are not equiv a lent: – le v e l (vir tual machine) – component (an entity that hides one or more “secrets”) – a s ubprog ra m (a c ode unit) Components and le v e ls need not be identical, as a c omponent ma y appear in se v e ra l le v els o f a uses hier arch y 42 Design Principles

The Is-A Relation

This “ancestor/descendant” relationship is associated with object-oriented design and programming languages that possess inheritance and dynamic binding

class X possessesIs-A relationship with class Y if instances of class X are specialization of class Y.

– e.g., anHTTP_1_0_HandlerIs-A

ACE_Event_Handlerthat is specialized for

processing HTTP 1.0 requests

ACE_Event_Handler

handle_input()

get_handle()

HTTP_1_0

Handler

HTTP_1_1

Handler

43

(12)

The

Has-A

R

elation

This “client” relationship is a ssociated w ith object-or iented design and prog ra mming languages that possess classes and objects class X possesses a Has-A relationship w ith class Y if instances of class X c ontain a n instance(s) of class Y . – e. g ., the J A WS w e b s er v e r Has-A Reactor , HTTP_Acceptor , and CV_Filesytem

JA

WS

We

b

Serv

er

HTTP

A

ccept

or

R eact or C V _Filesy st em 44

Challenge 7: Enabling Expansion and Contraction of

Software

over time

Problems:

– It may be necessary to reduce the overall functionality of the

server to run in resource-constrained environments

– To meet externally imposed schedules, it may be necessary to

release the server without all the features enabled

45

Design Principles

Solution: Program Families and Subsets

This principle should be applied to facilitateextension and

contraction of large-scale software systems, particularly reusable

middleware infrastructure

– e.g., JAWS, ACE, etc.

Program families are natural way to detect and implementsubsets

– Minimize footprints for embedded systems – Promotes system reusability

– Anticipates potential changes

Heuristics for identifying subsets:

– Analyze requirements to identify minimally useful subsets – Also identify minimal increments to subsets

Example

of

Pr

ogram

F

amilies:

J

A

WS

and

T

A

O

(1) THE A CE ORB (T A O ) NETW ORK

REAL-TIME ORB CORE

A

CE components

IOP

PLUGGABLEORB & XPOR

T

PR

O

T

OCOLS

PLUGGABLEORB & XPOR

T

PR

O

TOCOLS

REAL-TIME I/OSUBSYSTEM HIGH-SPEED

NETW ORK INTERF A C E OS KERNEL

REAL-TIME I/OSUBSYSTEM HIGH-SPEED

NETW ORK INTERF A C E OS KERNEL ORB R UN-TIME SCHEDULER IDL SKELET ON IDLSTUBS oper ation ()

out args + retur

n v alue OBJECT(SER V ANT) in args REAL-TIMEOBJECT AD APTER CLIENT OBJREF (2) The J A WS W eb Ser v er F rame w o rk Service Configurator Strategy Strategy Singleton State State Acceptor

Pipes and Filter

s Active Object Adapter Ser vice Configurator Event Dispatc her Concurrenc y StrategyFrame w ork Pr otocol

Handler Protocol Filter Tilde Expander /home/... ~ Reactor/Pr oactor Memento I/O StrategyFrame

w ork Cac hed Vir tual Filesystem Pr otocol Pipeline Frame w ork Async hr onous Completon Token T A O is a high-perf o rm ance , real-time implementation o f the CORBA s pecification J A WS is a h igh-perf o rm ance , adaptiv e W eb ser v er that implements the HTTP specification J A WS and T A O w ere d e v eloped using the wr apper fa cades and fr ame w or ks pro vided b y the A CE toolkit 47

(13)

Other

Examples

o

f

P

rogram

F

amilies

and

S

ubsets

Diff erent ser vices for diff erent mar k ets – e. g ., d iff e rent alphabets , diff erent v e rt ical applications , d iff e rent I/O fo rm ats Diff erent hardw are o r s oftw are p latf or ms – e. g ., c ompilers or OSs Diff erent resource tr ade-offs – e. g ., s peed vs space Diff erent inter nal resources – e. g ., s hared data s tr uctures and libr a ry routines Diff erent e x ter nal e v ents – e. g ., UNIX I/O de vice interf ace Bac k w a rd compatibility – e. g ., s ometimes it is impor tant to retain b ugs! 48 Design Principles

Conventional Development Processes

Waterfall Model

– Specify, analyze, implement, test (in sequence) – Assumes that requirements can be specified up front

Spiral Model

– Supports iterative development – Attempts to assess risks of changes

Rapid Application Development

– Build a prototype – Ship it :-)

49

Design Principles

Agile Processes

Stresses customer satisfaction, and therefore, involvement

– Provide what the customer wants, as quickly as possible

– Provideonly what the customer wants

Encourages changes in requirements

Relies on testing

For example,eXtreme Programmingpractices

– Planning, designing, coding, testing

50

Design Principles

eXtreme Programming: Planning

Technology

Spike

System

Prototype

User

Story

Planning

Game

Iteration

Commitment Schedule

Change in Requirements, Risk, or Developement Environment

Risk Estimates

Time

Requirements

based on http://www.extremeprogramming.org/rules/planninggame.html

Start withuser stories

– Written by customers, to

specify system requirements

– Minimal detail, typically

just a few sentences on a card

– Expected development

time: 1 to 3 weeks each, roughly

Planning game creates

commitment schedule for entire project

Each iteration should take

2-3 weeks

(14)

eXtreme Programming: Designing

Defer design decisions as long as possible

Advantages:

– Simplifies current task (just build what is needed) – You don’t need to maintain what you haven’t built

– Time is on your side: you’re likely to learn something useful by the

time you need to decide

– Tomorrow may never come: if a feature isn’t needed now, it might

never be needed

Disadvantages:

– Future design decisions may require rework of existing

implementation

– Ramp-up time will probably be longer later

Therefore, always try to keep designs as simple as possible

52

eXtreme Programming: Coding

Pair programming

– Always code with a partner

– Always test as you code

Pair programming pays off by supporting good implementation,

reducing mistakes, and exposing more than one programmer to the design/implementation

If any deficiencies in existing implementation are noticed, either fix

them or note that they need to be fixed

53

Design Principles

eXtreme Programming: Testing

Unit tests are writtenbefore code

Code must pass both its unit test and all regression tests before

committing

In effect, the test suite defines the system requirements

– Significant difference from other development approaches – If a bug is found, a test for it must be added

– If a feature isn’t tested, it can be removed

54

Design Principles

Agile Processes: Information Sources

Kent Beck,Extreme Programming Explained: Embrace Change,

Addison-Wesley, ISBN 0201616416, 1999

Kent Beck, “Extreme Programming”,C++ Report 11:5, May 1999,

pp. 26–29+

John Vlissides, “XP”, interview with Kent Beck in the Pattern

Hatching Column,C++ Report 11:6, June 1999, pp. 44-52+

Kent Beck, “Embracing Change with Extreme Programming”,IEEE

Computer 32:10, October 1999, pp. 70-77

http://www.extremeprogramming.org/ http://www.xprogramming.com/

http://c2.com/cgi/wiki?ExtremeProgrammingRoadmap

(15)

Design Principles

Design Guidelines: Motivation

Design is the process of organizing structured solutions to tasks

from a problem domain

This process is carried out in many disciplines, in many ways

– There are many similarities and commonalities among design

processes

– There are also many common design mistakes . . .

The following pages provide a number of “design rules.”

– Remember, these rules are simply suggestions on how to better

organize your design process,not a recipe for success!

56

Design Principles

Common Design Mistakes (1/2)

Depth-first design

– only partially satisfy the requirements – experience is best cure for this problem . . .

Directly refining requirements specification

– leads to overly constrained, inefficient designs

Failure to consider potential changes

– always design for extension and contraction

Making the design too detailed

– this overconstrains the implementation

57

Design Principles

Common Design Mistakes (2/2)

Ambiguously stated design

– misinterpreted at implementation

Undocumented design decisions

– designers become essential to implementation

Inconsistent design

– results in a non-integratable system, because separately

developed modules don’t fit together

58

Design Principles

Rules of Design (1/8)

Make sure that the problem is well-defined

– All design criteria, requirements, and constraints, should be

enumerated before a design is started

– This may require a “spiral model” approach

What comes before how

– i.e., define the service to be performed at every level of

abstraction before deciding which structures should be used to realize the services

Separate orthogonal concerns

– Do not connect what is independent – Important at many levels and phases . . .

(16)

Rules of Design (2/8)

Design external functionality before internal functionality.

– First consider the solution as a black-box and decide how it

should interact with its environment

– Then decide how the black-box can be internally organized. Likely

it consists of smaller black-boxes that can be refined in a similar fashion

Keep it simple.

– Fancy designs are buggier than simple ones; they are harder to

implement, harder to verify, and often less efficient

– Problems that appear complex are often just simple problems

huddled together

– Our job as designers is to identify the simpler problems, separate

them, and then solve them individually

60

Rules of Design (3/8)

Work at multiple levels of abstraction

– Good designers must be able to move between various levels of

abstraction quickly and easily Design for extensibility

– A good design is “open-ended,”i.e., easily extendible

– A good design solves a class of problems rather than a single

instance

– Do not introduce what is immaterial – Do not restrict what is irrelevant

Use rapid prototyping when applicable

– Before implementing a design, build a high-level prototype and

verify that the design criteria are met

61

Design Principles

Rules of Design (4/8)

Details should depend upon abstractions

– Abstractions should not depend upon details – Principle of Dependency Inversion

The granule of reuse is the same as the granule of release

– Only components that are released through a tracking system can

be effectively reused

Classes within a released component should share common closure

– That is, if one needs to be changed, they all are likely to need to

be changed

– i.e., what affects one, affects all

62

Design Principles

Rules of Design (5/8)

Classes within a released component should be reused together

– That is, it is impossible to separate the components from each

other in order to reuse less than the total

The dependency structure for released components must be a DAG

– There can be no cycles

Dependencies between released components must run in the

direction of stability

– The dependee must be more stable than the depender

The more stable a released component is, the more it must consist

of abstract classes

– A completely stable component should consist of nothing but

abstract classes 63

(17)

Design Principles

Rules of Design (6/8)

Where possible, use proven patterns to solve design problems

When crossing between two different paradigms, build an interface

layer that separates the two

– Don’t pollute one side with the paradigm of the other

64

Design Principles

Rules of Design (7/8)

Software entities (classes, modules, etc) should be open for

extension, but closed for modification

– The Open/Closed principle – Bertrand Meyer

Derived classes must usable through the base class interface

without the need for the user to know the difference

– The Liskov Substitution Principle

65

Design Principles

Rules of Design (8/8)

Make it work correctly, then make it work fast

– Implement the design, measure its performance, and if

necessary, optimize it

Maintain consistency between representations

– e.g., check that the final optimized implementation is equivalent to

the high-level design that was verified

– Also important for documentation . . .

Don’t skip the preceding rules!

– Clearly, this is the most frequently violated rule!!! ;-)

66

Design Principles

Concluding Remarks

Good designs can generally be distilled into a few key principles:

– Separate interface from implementation

– Determine what iscommon and what is variable with an interface

and an implementation

– Allow substitution ofvariable implementations via a common

interface

i.e., the “open/closed” principle

– Dividingcommonality from variability should be goal-oriented

rather than exhaustive

Design is not simply the act of drawing a picture using a CASE tool

or using graphical UML notation!!!

– Design is a fundamentallycreative activity
