Compact Tractor Grapple Rake Attachment

(1)

Worksaver.

Designed.

Engineered.

Remarkable

Value.

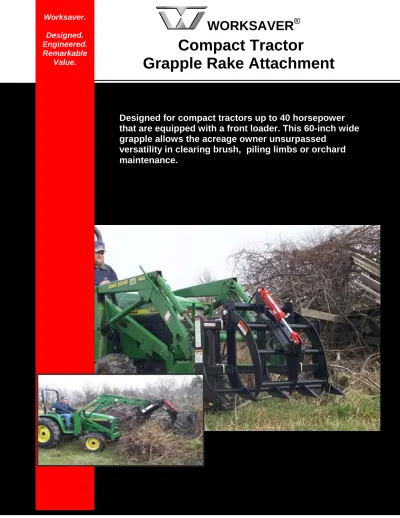

Compact Tractor

Grapple Rake Attachment

Designed for compact tractors up to 40 horsepower

that are equipped with a front loader. This 60-inch wide

grapple allows the acreage owner unsurpassed

versatility in clearing brush, piling limbs or orchard

maintenance.

(2)

Worksaver.

Designed.

Engineered.

Remarkable

Value.

Worksaver, Inc.

P.O. Box 100, Litchfield, IL 62056-0100 Phone: 217-324-5973 • Fax: 217-324-3356 E-mail: [email protected]

Web: www.worksaver.com

Worksaver Inc. has a corporate policy of continuous product improvement and development; therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this publication and the actual equipment.

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

Information Provided By:

COMPACT GRAPPLE RAKE SPECIFICATIONS

Designed for Tractors up to 40 HP Only

Overall width (in/mm) ... 60/ ( 1524 mm) Overall depth (in/mm) ... 23/ ( 584.2 mm) Overall height (closed) (in/mm) ... 38.77 / (984.75 mm) Tine spacing (in/mm) ... 15 / (381 mm) Grapple opening (in/mm) ... 27 / (685.8 mm) Number of lower tines ... 5

Width of upper grapple (in/mm)... 34 / (836.6) Reinforcing tubes between lower tines ... Yes Number of cylinders ... 1 Cylinder Specifications

Bore (in/mm) ... 2 / (50.8 mm) Stroke (in/mm) ... 8 / (203.2 mm) Rod diameter (in/mm) ... 1.125 / (28.57 mm) Pressure (psi/bar) ... 2500 / (172.4)

Model FLGR-4062

Mounting Tractor Loader ... Mgt Brt available * Weight Skid Steer (lb./kg) ... 359 / (180.98 kg) Product Computer Number Tractor Loader ... 811460

Model FLGR-4062S

For Loaders with Skid Steer Mount ... “Universal” Skid Steer+ Weight Skid Steer (lb./kg) ... 364/ (180.98 kg) Product Computer Number Skid Steer ... 811480

Be sure tractor is properly counterbalanced. *Optional Quick Attach brackets available

+ Not for use on skid steer loaders

•

Ideal for loading limbs, orchard prunings, raking and piling brush and other hard to handle materials.

•

Unique upper grapple design provides

clamping force to hold material securely.

•

Design to be used with compact tractors of 40 HP or less.

•

Design allows brush and other

materials to be picked up while leaving the dirt.

•

Great for picking up / piling cut limbs and treetops when clearing land.

•

Size compatible with the lift capacity

of most small loader tractors.

•

Good forward visibility for easy

control in close quarters for increased productivity.

•

Simple efficient design with few moving parts for long life.

•

Upper grapple is 34-inches wide for excellent material retention, controlled by single 2 x 8 cylinder.

•

Pivot points have lubrication

capabilities.

•

Tractor front loader model allow use of standard pin-on bracket or select interfacing quick attach brackets for John Deere, AGCO, CNH, Kubota and other brands.

•

Model FLGR-4062S is designed for compact tractor front loaders that are quipped with the “Universal” skid steer quick attach system.

It is not

designed to be fit to a skid steer

loader.

Worksaver

®

(3)

Worksaver.

Designed.

Engineered.

Remarkable

Value.

_{Split-Top Grapple Rake Attachment}

Designed for today’s modern skid steer and tractor

front loaders. Available in 62” or 77” width, the split

top design provides dual upper grapples for picking up

brush and other debris while leaving the dirt behind.

(4)

Worksaver.

Designed.

Engineered.

Remarkable

Value.

Worksaver, Inc.

P.O. Box 100, Litchfield, IL 62056-0100 Phone: 217-324-5973 • Fax: 217-324-3356 E-mail: [email protected]

Web: www.worksaver.com

Worksaver Inc. has a corporate policy of continuous product improvement and development; therefore, specifications are subject to change without any advance notice. Worksaver Inc. is not responsible for differences between specifications or illustrations contained in this publication and the actual equipment.

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

Information Provided By:

SPLIT-TOP GRAPPLE RAKE SPECIFICATIONS

FLGR-262 / SSGR-262 FLGR-277 / SSGR-277

Overall width (in/mm) 62 / 1575 77 / 1956

Overall depth (in/mm) 25 / 635 25 / 635

Overall height closed (in/mm) 54 / 1372 54 / 1372

Grapple opening (in/mm) 50 / 1270 50 / 1270

Upper grapple widths (in/mm) 19.25 / 489 19.25 / 489

Tine Spacing (in/mm) 15 / 381 15 / 381

Number of tines / grapples (lower / upper) 5 / 4 6 / 4

Reinforcing tubes between lower tines Yes Yes

Number of hydraulic cylinders 2 2

Cylinder bore (in/mm) 2 / 50.8 2 / 50.8

Cylinder stroke (in/mm) 10 / 254 10 / 254

Cylinder rod diameter (in/mm) 1.125 / 28.57 1.125 / 28.57

Cylinder pressure rating (psi/bar) 2500 / 172.4 2500 / 172.4

Mounting for Tractor Loader (FLGR) Std. Pin Type * Std. Pin Type *

Weight FLGR model (lb/kg) 790 / 358 970 / 440

Mounting for Skid Steer (SSGR) “Universal” Skid Steer “Universal” Skid Steer

Weight SSGR model (lb/mm) 786 / 784 966 / 964

Horse power rating (maximum) 95 PTO HP 150 PTO HP

Product No. FLGR models (loader) 811380 811400

Product No. SSGR models (skid steer) 811435 811440

Be sure tractor / skid steer is properly counterbalanced.

*Optional Interfacing Quick Attach brackets available for most popular loaders.

•

Ideal for loading logs, orchard

prunings, raking and piling brush and other hard to handle materials.

•

Unique tine design with replaceable

weld-on tine points.

•

Tine points allow operator to go under logs / brush for easy clean pick up.

•

Interfacing quick-attach brackets available for most tractor loader models including John Deere, AGCO, CNH, Bush Hog and others.

•

Greaseable pivot points on upper clamps for long service life.

•

Shield Plate in upper clamps provides protection for hydraulic cylinders.

Worksaver

®

(5)

NEWS

WORKSAVER, Inc.

9 Worksaver Trail

P.O. Box 100

Litchfield, Illinois 62056

Web:

http://www.worksaver.com

(217) 324-5973 Fax (217) 324-3356

E-Mail:

[email protected]

Date: April 20, 2015

Contact: Sales Dept.

Euro / Global to John Deere 400 / 500 Series

The new 835075 adapter allows owners of loaders that utilize the Euro / Global attaching

method to use their John Deere 400 /500 loader series attachments. The all welded design

provides ease of attachment mounting and un-mounting.

This adapter provides greater versatility to your customers’ choice of attachments. In

addition, the customer can easily switch attachments between a John Deere tractor

equipped with a 400 / 500 series loader and a Euro / Global loader equipped with this

(835075) adapter.

Available: After May 22

nd

.

Item #

Description

Weight

835075

Interfaces with Euro / Global loaders,

allowing the use of John Deere

400 / 500 series attachments

(6)

NEWS

WORKSAVER, Inc.

9 Worksaver Trail

P.O. Box 100

Litchfield, Illinois 62056

Web:

http://www.worksaver.com

(217) 324-5973 Fax (217) 324-3356

E-Mail:

[email protected]

Date: April 20, 2015

Contact: Sales Dept.

Skid Steer to John Deere 400 / 500 Series

The new 835070 adapter allows owners of loaders that utilize the “universal” Skid Steer

attaching method to use their John Deere 400 /500 loader series attachments. The straight

forward design provides ease of attachment mounting and un-mounting.

All welded design provides strength to handle the tough jobs. This adapter provides

greater versatility to your customers’ choice of attachments. In addition, the customer can

easily switch attachments between a John Deere tractor equipped with a 400 / 500 series

loader and a skid steer loader equipped with this (835070) adapter.

Available: After May 22

nd

_.

Item #

Description

Weight

835070

attach, allowing the use of John Deere

Interfaces with “universal” skid steer

(7)

Designed. Engineered. Remarkable Value.

www.worksaver.com

Engineered, Designed and Manufactured in the USA

Adapter Brackets

(8)

Worksaver

* Note: Maximum capacity is that of the adapter bracket. Do not exceed it or loader/tractor operating lift capacity. These are attachment carriers only. Do not use for back dragging.

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

2 3

Interfaces with agricultural loaders that use the

Euro/Global attaching system to allow the use of

skid steer type attachments.

Weight 110 lbs.

Item # 832550

Maximum Capacity 4,000 lbs.*

Interfaces with IH loaders models 2250 & 2255

with pin-on buckets retained by 1-1/8” pins. Allows use

of skid steer attachments (shipped less pins).

Weight 120 lbs.

Item # 832820

Maximum Capacity 3,000 lbs.*

Adapter Brackets

Euro/Global

to

Skid Steer

Elevate your tractor’s productivity by converting its loader (depending on model)

to either the “Universal” Skid Steer quick attach system or the Euro/Global standard.

Worksaver Adapter Brackets feature all welded frames for durability, plated latch

components for long service life plus the ability to help you get more done.

Skid Steer

to

Euro/Global

IH 2250 & 2255 Loader

to

Skid Steer Adapter

Interfaces with skid steer or agricultural loaders that use the

“universal” skid steer attaching method to allow them to use

attachments that mount to the Euro/Global tool carrier.

Weight 145 lbs.

Item # 835020

Maximum Capacity 4,000 lbs.*

Interfaces with John Deere 240/245/260/265 loaders

with JD attachment system to allow them to use

skid steer type attachments.

Weight 165 lbs.

Item # 831980

Maximum Capacity 3,000 lbs.*

John Deere 240/245/260/265 Series

(9)

Worksaver

Adapter Brackets

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

2 3

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

Interfaces with John Deere loader models 145/146/148/158

with pin-on buckets retained by 1-1/8” pins. Allows the use

of skid steer type attachments (shipped less pins).

Weight 125 lbs.

Item # 831875

Maximum Capacity 3,000 lbs.*

Interfaces with John Deere 300/400/500

(also 200X, 200CX) series loaders with JD quick attach

to allow the use of skid steer type attachments.

Weight 132 lbs.

Item # 832620

Maximum Capacity 4,000 lbs.*

John Deere 145/146/148/158 Series

to Skid Steer

John Deere 300/400/500 Series

to Skid Steer

Interfaces with Global/Euro agricultural loaders allowing

the use of John Deere 600/700 series attachments.

Weight 140 lbs.

Item # 832631

Maximum Capacity 5,000 lbs.*

Euro/Global

to

John Deere 600/700

Interfaces with John Deere 400/500 series loaders

with the JD quick attach to allow them to use

attachments that mount to the Euro/Global tool carrier.

Weight 140 lbs.

Item # 835030

Maximum Capacity 4,000 lbs.*

John Deere 400/500 Series

(10)

Worksaver

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

4 5

Interfaces with John Deere 600/700 series loaders

with JD quick attach to allow them to use attachments

that mount to the Euro/Global tool carrier.

Weight 174 lbs.

Item # 835040

Maximum Capacity 5,000 lbs.*

John Deere 600/700 Series

to Euro/Global

Interfaces with John Deere loader models 48 and 58 with

buckets retained by 1-1/4” pins with single center tilt cylinder.

Allows use of skid steer type attachments (shipped less pins).

Weight 148 lbs.

Item # 832815

Maximum Capacity 3,000 lbs.*

John Deere 48 & 58

Loader Skid Steer Adapter

Interfaces with John Deere 600/700 series loaders with JD

quick attach to allow the use of skid steer type attachments.

Weight 140 lbs.

Item # 832650

Maximum Capacity 5,000 lbs.*

John Deere 600/700 Series

to Skid Steer

Interfaces with Kubota loader model LA852 with

pin-on bucket retained by 1” pins. Allowing the use of

skid steer type attachments (shipped less pins).

Weight 105 lbs.

Item # 832915

Maximum Capacity 3,500 lbs.*

Kubota LA852

(11)

Worksaver

Adapter Brackets

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

4 5

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

Interfaces with Kubota LA1251, LA1301, LA1601 series

loaders with semi quick attach to allow the use of

skid steer type attachments (shipped less pins).

Weight 150 lbs.

Item # 831725

Maximum Capacity 3,500 lbs.*

Interfaces with Massey Ferguson loader models 232, 236,

832, 838, 1032, 1040, 1050 with pin-on buckets retained

by 1” pins. Allows the use of skid steer type attachments

(shipped less pins).

Weight 148 lbs.

Item # 831895

Maximum Capacity 3,500 lbs.*

If mounting pins are bushed to 1-1/4” (requires pin kit

831893 & bushing kit 830368) this unit can be used on

Massey Ferguson loader models 238, 246, 848, 938, 948,

1036, 1038, 1048 to allow the use of skid steer type

attachments (shipped less pins).

Weight 148 lbs.

Item # 831895

Maximum Capacity 3,500 lbs.*

Kubota LA1251, LA1301, LA1601

to Skid Steer

Massey Ferguson 232, 236, 832, 838,

1032

to Skid Steer

Massey Ferguson 238, 246, 848, 938,

948, 1036, 1048

to Skid Steer

Interfaces with Kubota loader models LA350, LA401, LA402,

LA450, LA452, LA480, LA481, LA482, LA680, LA681, LA682

LB402, LB552, LB702, with pin-on buckets retained by 1”

pins. Allowing the use of skid steer type attachments

(shipped less pins).

Weight 110 lbs.

Item # 832810

Maximum Capacity 3,500 lbs.*

Kubota LA350, LA401, LA452

(12)

Worksaver

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

6 7

Interfaces with New Holland loader 7308, 7108 & Case

IH L130 with pin-on buckets retained by 1” pins. Allows

use of skid steer attachments (shipped less pins).

Weight 117 lbs.

Item # 832830

Maximum Capacity 3,500 lbs. *

Interfaces with New Holland loader models 14LA, 15LA,

16LA, 17LA, 18LA and Case IH models L160, LX114,

LX116, LX118 with buckets retained by 1-1/4” pins.

Vertical ctc distance between pins is 8.25”. Allows use

of skid steer attachments (shipped less pins).

Weight 120 lbs.

Item # 832890

Maximum Capacity 3,500 lbs.*

Interfaces with New Holland loader models 2109,

7109, 7209, 7210, 7309, 7310, 7410 with pin-on buckets

retained by 1-1/4” pins. Vertical ctc distance between

pins is 10.125”. Allows use of skid steer attachments

(shipped less pins).

Weight 120 lbs.

Item # 832885

Maximum Capacity 3,500 lbs.*

New Holland

7308/7108

& Case IH

L130 to Skid Steer

New Holland

14LA, 15LA, 16LA,

17LA,18LA,

Case IH

L160, LX114, LX116, LX118

New Holland

2109, 7109, 7209, 7210,

7309, 7310, 7410

to Skid Steer

(13)

Worksaver

Adapter Brackets

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

6 7

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE OPERATION.

Heavy duty weld-on plate of 3/8” material simply

welds to any existing attachment, added cutout provides

increased welding surface. Converts attachments to

“universal” skid steer mount interface.

Weight 96 lbs.

Item # 832790

Maximum Capacity 5,000 lbs.*

WSP-HD

– Weld-on Plate

Standard duty weld-on plate of ¼” material simply

welds to any existing attachment to convert it to the

“universal” skid steer mount interface.

Weight 46 lbs.

Item # 832540

Maximum Capacity 3,500 lbs.*

WSP

– Weld-on Plate

Heavy-duty weld-on plate of 5/16” material simply welds

to any existing attachment to convert to the Euro/Global

interface, allowing their use with Euro/Global tool carrier.

Weight 95 lbs.

Item # 832625

Maximum Capacity 5,000 lbs.*

Euro/Global

– Heavy-Duty Weld-on Plate

Weld-on kit provides left / right hand brackets to convert

attachments to the Euro/Global mount interface, allowing

their use with Euro/Global tool carrier.

Weight 36 lbs.

Item # 832630

Maximum Capacity 3,500 lbs.*

Euro/Global

– Two (2) Piece Weld-on Kit

Weld-on Attachment Brackets

Easily convert your bucket or other attachments to be used with one of our adapters.

These weld-on items are engineered to fit, allowing you to get more done.

(14)

NEWS

WORKSAVER, Inc.

9 Worksaver Trail

P.O. Box 100

Litchfield, Illinois 62056

Web:

(217) 324-5973 Fax (217) 324-3356

E-Ma

Date: July 20, 2015

Contact: Sales Dept.

Weld-on Plate for John Deere 300 /400 Series

Worksaver, Inc. announces the addition of a John Deere 300 / 400 series Weld-on Plate

to complement our lineup of weld-on plates and kits. Formed from 5/16” steel for

durability this plate offers the customer versatility when converting attachments.

Designed to be welded to existing attachments, this allows them to be used with John

Deere 300 / 400 series loaders that use the JD attaching system. The JD 300/400 Plate

features steel cast upper hooks, welded locking pins spaced to OEM specifications to

assure proper fit when welded to buckets or other attachments.

Production starts: July 2015

Note: JD 300/400 Plate will ship UPS

Item #

Description

Weight

835060

JD 300/400 series weld-on plate unit

measurements are 49.38” x 19.40”

70 lbs.

(15)

NEWS

WORKSAVER, Inc.

9 Worksaver Trail

P.O. Box 100

Litchfield, Illinois 62056

Web:

http://www.worksaver.com

(217) 324-5973 Fax (217) 324-3356

E-Mail:

[email protected]

Date: July 20, 2015

Contact: Sales Dept.

Weld-on Plate for John Deere 500 Series

Worksaver, Inc. announces the addition of a Weld-on Plate for John Deere 500 series

loaders to complement our lineup of weld-on plates and kits. Formed from 5/16” steel for

durability this plate offers owners’ of 500 series loaders a reliable and easier method for

converting attachments. Designed to be welded to existing attachments, the plate will

interface with John Deere 500 series loaders that use the JD 500 series attaching system.

The JD 500 Plate features steel cast upper hooks, welded locking pins spaced to OEM

specifications to assure proper fit when welded to buckets or other attachments.

Production starts: July 2015

Note: JD 500 Plate will ship UPS

Item #

Description

Weight

835065

JD 500 series weld-on plate unit

measurements are 49.38” x 22.85”

83 lbs.

(16)

Designed. Engineered. Remarkable Value.

Worksaver, Inc.

P.O. Box 100, Litchfield, IL 62056-0100

Phone: 217-324-5973 • Fax: 217-324-3356

www.worksaver.com • E-mail: [email protected]

When paired with a set of pin-on brackets (811235, 811220,

811240, 811245, 811250), it is designed to interface with

compact pin-on type loaders to allow the use of skid steer

type attachments. Unit width 54” and 17.75” in height.

Weight 138 lbs.

Item # 832655

Maximum Capacity 3,000 lbs.*

When paired with standard pin-on brackets (830345)

unit is designed to interface with pin-on type loaders

that use 1” pins. Allows the use of skid steer type

attachments. Unit width is 54” and height is 21.50”

Weight 144 lbs.

Item # 832660

Maximum Capacity 3,500 lbs.*

Universal Skid Steer Adapter

for Compact

Pin-on Loaders

Universal Skid Steer Adapter

for Standard

Pin-on Loaders

When paired with standard pin-on brackets (830345)

this unit will interface with pin-on type loaders that

use 1” pins. This will allow the use of attachments that

mount to the Euro/Global tool carrier.

Weight 146 lbs.

Item # 835045

Maximum Capacity 3,500 lbs.*

Universal Euro/Global Adapter

for Standard

Pin-on Loaders

Distributed by:

Caution — A heavy load can cause your tractor to tip over. When moving heavy loads, keep the load as close to the ground as possible, go slowly around turns, and be sure the front or rear of tractor is properly counterbalanced with weights.

Caution — Operators must read & understand operator’s manual, particularly the safety warnings and instructions.

The operator is responsible for safety of themselves and others when operating equipment.

WORKSAVER, INC. has a corporate policy of continuous product improvement and development; therefore, specifications are subject to change without any advance notice.

WORKSAVER, INC. is not responsible for differences between specifications or illustrations contained in this publication and the actual equipment.

(17)

NEWS

WORKSAVER, Inc.

9 Worksaver Trail

P.O. Box 100

Litchfield, Illinois 62056

Web:

http://www.worksaver.com

(217) 324-5973 Fax (217) 324-3356

E-Mail:

[email protected]

Date: November 1, 2013

Contact: Sales Dept.

JDPF-H48048 / JDPF-H48060

Worksaver, Inc. announces Pallet Forks designed for the John Deere H480 loader with

the Global Series II tool carrier. These forks are the logical choice for the producer who

is looking to get more done. Rated at 7,500 lbs. they are offered with Class III tines that

are either 48” in length or 60” in length.

Production starts: February 10, 2014

Item #

Description

Weight

List Price

834130

JDPF-H48048, pallet forks for Global

Series II tool carrier. Rated at 7,500 lbs.

Class III Forks 1.75” x 4.25” x 48”

785 lbs.

$1,995.00

834140

JDPF-H48060, pallet forks for Global

Series II tool carrier. Rated at 7,500 lbs.

Class III Forks 1.75” x 4.25” x 60”

(18)

Adapters to use Skid Steer Attachments

All welded design, features plated handles, springs and locking pins. Allows selected loader models to be converted

to use skid steer type attachments.

OEM Manufacturer

Item #

Description

LBS.

List

Euro to Skid Steer

832550

Interfaces w/loaders that use the Euro/Global

attaching system to allow the use of skid steer type

attachments. Max Cap. 4,000 lbs.

110

665.00 JD 300/400/500 to

Skid Steer

832620

Interfaces w/JD 300/400/500 series loaders allowing

use of skid steer type attachments Max Cap. 4,000 lbs.

132

680.00 JD 200CX to Skid Steer

835135

Interfaces with JD 200X, 200CX, H120, H130, H160,

D120, D160 to skid steer Max. Cap. 1,200 lbs.

615.00 JD 600/700 to Skid Steer

832650

Interfaces w/ JD 600/700 series loaders allowing

use of skid steer type attachments.

Max Cap. 5,500 lbs.

140

725.00 JD 146/148/158 to Skid

Steer

831875

Interfaces w/ JD 146/148/158 loaders with pin-on

buckets retained by 1-1/8” pins, allowing the use

of skid steer type attachments(shipped less pins)

Max Cap. 3,000 lbs.

125

690.00 John Deere 48/58 to

Skid Steer

832815

Interfaces w/JD 48/58 pin type (1-1/4” pins)

loaders with single center cylinder, allowing the

use of skid steer type attachments

(shipped less pins)

Max. Cap. 3,000 lbs.

148

755.00 JD 240/245/260/265 to

Skid Steer

831980

Interfaces with JD 240/245/260/265 loaders,

allows the use of skid steer type attachments.

(shipped less pins)

Max Cap 3,500 lbs.

165

785.00 Kubota LA852 to Skid

Steer

832915

Interfaces with Kubota LA852 with pin-on bucket

retained by 1-3/16” pins. Allows the use of skid

steer type attachments (shipped less pins) Max

Cap 3,500 lbs.

105

755.00 Kubota LA1251,

LA1301, LA1601 to

Skid Steer

831725

Interfaces with Kubota LA1251, LA1301,

LA1601 Loaders equipped with semi-quick attach.

Allows the use of skid steer type attachments.

(shipped less pins) Max Cap. 3,500 lbs.

150

785.00 Kubota to Skid Steer

832810

Interfaces w/ Kubota LA350, LA401,LA402, LA450, LA452, LA480, LA481, LA482, LA680, LA681, LB402, LB552, LB702, allowing the use of skid steer

type attachments (shipped less pins) Max cap. 3,500 lbs.

110

755.00 Kubota LA504, LA534

to Skid Steer

835150

Interfaces with Kubota LA504, LA534 allowing

use of skid steer attachments. (shipped less pins)

685.00 Kubota LA524, LA525

to Skid Steer

835160

Interfaces with Kubota LA524, LA525 allowing

use of skid steer attachments. (shipped less pins)

725.00 McCormick 125C,

Branson SL100, Kioti

KL2510, LS-LL2101 to

skid steer

835140

Interfaces with McCormick 125C, Branson

SL100, Kioti KL2510, LS LL2101 allowing use of

skid steer attachments includes 25mm x127mm

Greaseable pins

725.00 MF

232/236/832/838/1032 to

Skid Steer

831895

Interfaces w/Massey Ferguson 232, 236, 832, 838,

1032 Loaders retained by 1” pins. Allows the use

of skid steer type attachments (shipped less pins)

Max Cap. 3,500 lbs.

148

755.00

Effective 3-1-16

(19)

Adapters to use Skid Steer Attachments

All welded design, features plated handles, springs and locking pins. Allows selected loader models to be converted

to use skid steer type attachments.

OEM Manufacturer

Item #

Description

LBS.

List

MF to Skid Steer

831895

If pins are bushed to 1-1/4” ( Requires Pin Kit 831893 & Bushing Kit 830368) this unit can be used on MF238/938/948/1036/1048 to allow the use of skid steer type attachments (shipped less pins) Max Cap.

3,500 lbs.

148

755.00 MF DL95 to Skid Steer

835125

Interfaces with Massey Ferguson model DL95 to

allow the use of Skid Steer Attachments (shipped

less pins) Max. Cap. 1,200 lbs.

525.00 Mahindra Max 24L to

Skid Steer

835145

Interfaces w/ Mahindra Max 24L to allow the use

of Skid Steer Attachments (shipped less pins) Max

Cap 1.200 lbs.

525.00 Mahindra Max 26L to

Skid Steer

835115

Interfaces w/ Mahindra Max 26L to allow the use

of Skid Steer Attachments (shipped less pins) Max

Cap 1.200 lbs.

525.00 New Holland 7308, 7108

& Case IH L130

to Skid Steer

832830

Interfaces w/New Holland Loaders 7308, 7108 &

Case IH L130 loaders attaching system to allow

the use of skid steer type attachments

.(shipped less pins)

Max Cap. 3,500 lbs.

117

755.00 New Holland 2109, 7109,

7209, 7210, 7309, 7310,

7410 to Skid Steer

832885

Interfaces w/New Holland Loaders 2109, 7109,

7209, 7210, 7309, 7310, 7410 with pin-on buckets

retained by 1-1/4” pins. Vertical ctc distance

between pins is10.125”. Allows use of skid steer

attachments (shipped less pins)

120

785.00 New Holland 14LA,

15LA, 16LA, 17LA,

18LA and Case IH

LX114, LX116, LX118

to Skid Steer

832890

Interfaces w/New Holland loader models 14LA, 15LA, 16LA, 17LA, 18LA and Case IH LX114, LX116, LX118 with buckets retained by 1-1/4” pins. Vertical ctc distance between pins is 8.25”. Allows use of skid steer attachments.{May require use of 832897 pin kit if standard loader pins are not long enough} (shipped less

pins)

120

785.00 IH 2250 / 2255 to

Skid Steer

832820

Interfaces w/ IH Loader 2250 / 2255 attaching

system to allow the use of skid steer type

attachments (shipped less pins) Max Cap. 3,500

lbs.

120

755.00 Universal SS Adapter

Standard Loaders

832660

Convert standard tractor loaders to accept skid

steer attachments, pair with 830345 pin-on

brackets or any brackets listed on pages 38-52.

Max. Cap. 3,000 lbs.

140

660.00 Universal SS Adapter

Compact loaders

832655

Convert compact pin-on loader to accept skid steer

type attachments. Requires pin-on brackets see

page 19

Maximum Capacity 3,000 lbs.

138

650.00 Adapters to Use Euro / Global Attachments

Skid Steer to

Euro/Global

835020

Interfaces with “Universal” skid steer attachment,

allowing the use of Euro/Global attachments

145

995.00 JD 400/500 to

Euro/Global

835030

Interfaces with JD 400/500 series loaders,

allowing the use of Euro/Global attachments

140 1,075.00

JD 600/700 to

Euro/Global

835040

Interfaces with JD 600/700 series loaders,

allowing the use of Euro/Global attachments

174 1,195.00

Effective 3-1-16

(20)

Adapters Others

All welded design,

OEM Manufacturer

Item #

Description

LBS.

List

Universal Euro/Global

Adapter Standard

Loaders

835045

Convert standard tractor loaders to accept

Euro/Global attachments. Pair with 830345 pin-on

brackets or any brackets listed on pages 38-52

146 1,095.00

Euro / Global to

JD 400/500

835075

Interfaces with Euro / Global loaders allowing the

use of John Deere 400 / 500 series attachments

Max Cap 4,000 lbs.

86

545.00 Euro / Global to

JD 600/700

832631

Interfaces with Euro/Global loaders allowing the

use of JD 600/700 attachments.

Max Cap. 5,000 lbs.

140

635.00 Skid Steer to John Deere

400/500 series loaders

835070

Interfaces with “Universal” skid steer attach,

allowing the use of JD 400/500 attachments.

Max Cap. 4,000 lbs.

99

565.00 3-pt to Skid Steer

835080

Interfaces with Cat I or Cat II 3-pt hitch (quick

hitch compatible) allows the use of skid steer type

attachments, plated handles, springs and locking

pins. Works best with Hydraulic top link.

(see page 1 for Hydraulic Top Link)

140

625.00 Skid Steer to Cat I

Quick Hitch

835095

“Universal skid steer to Cat I quick hitch allows

the use of Cat I non-PTO powered implements on

a skid steer

148

625.00 Skid Steer to Cat II

Quick Hitch

835100

“Universal” skid steer to Cat II quick hitch allows

the use of Cat II non-PTO powered implements on

a skid steer

785.00 Mini-Universal to

Skid Steer Adapter

835010

Designed for mini skid steer / compact tool carrier

to allow them to use standard “universal”

skid steer attachments

111

625.00 Adapters for Sub-compact loader w/ single center cylinder allows use

of Skid Steer Attachments Max. Capacity 1,200 lbs.

Kioti SL2410 to Skid

Steer

835120

Interfaces with Kioti model SL2410 with center

single lift cylinder to allow the use of skid steer

type attachments (shipped less pins)

495.00 Kubota LA240, LA243

to Skid Steer

835130

Interfaces with Kubota model LA240, LA243

with center single lift cylinder to allow the use of

skid steer type attachments (shipped less pins)

495.00 Mahindra Emax22L 25L

& TYM TX-25 to

Skid Steer

835110

Interfaces with Mahindra model Emax 22L, 25L

& TYM TX-25 with center single lift cylinder to

allow the use of skid steer type attachments

(shipped less pins)

68

495.00

Effective 3-1-16

(21)

Weld-on Plates

Weld-on Plates and Kits

Easily convert your bucket or other attachments to be used with one of our adapters. These weld-on items

are engineered to fit, allowing you to get more done.

Product

Model

Item No.

Description

Lbs.

List

WSP

₈₃₂₅₄₀

Std. Duty weld-on plate of ¼” material simply

welds on to existing attachment to convert it to

“universal” skid steer mount interface

46

140.00 WSP-HD

₈₃₂₇₉₀

Heavy Duty weld-on plate of 3/8” material,

welds to existing attachment, added cutout

provides increased welding surface. Converts

attachment to “universal” skid steer mount

interface

96

245.00 Euro Plate

₈₃₂₆₂₅

Euro/Global Heavy-duty weld-on plate of

5/16” material. Simply welds to any existing

attachment to convert to the Euro/Global

interface, allowing their use with the

Euro/Global tool carrier

95

330.00 Euro Kit

832630

Weld-on kit provides left/right hand brackets

to convert attachments to the Euro/Global

mount interface, allowing their use with

Euro/Global tool carrier

36

170.00 JD 300/400

Plate

835060

Weld-on plate for JD 300/400 series loaders.

Simply welds to any existing attachment to

convert to JD 300/400 interface. Plate is

49.38” x 19.34” with steel cast hooks &

welded locking pins

59

225.00 JD 400/500

Plate

835065

Weld-on plate for JD 400/500 series loaders.

Simply welds to any existing attachment to

convert to JD 400/500 interface. Plate is

49.38” x 22.69” with steel cast hooks &

welded locking pins

70

250.00 Mini Skid

Steer Plate

NTW1001009

Weld-on plate to weld to existing attachments

to convert it to Mini Universal mount interface

to allow use on Toro-Dingo, Boxer, Ramrod

and others

27

135.00

Effective 3-1-16

(22)

Material Handling Attachments

Designed for Use on Tractor Front Loaders

Units are priced less any brackets. Pin-on or quick attach brackets ordered separately. (pgs. 57-71 )

Product

Model

Item #

Description

Lbs.

List

FLGR-262

811380

Front Loader Split Top Grapple Rake. 62”

wide. Two upper grapples handle a variety of

materials. Two 2” x10” hydraulic cylinders.

Optional interfacing brackets available.

811 3,185.00

FLGR-277

811400

Front Loader Split Top Grapple Rake. 77”

wide. Two upper grapples handle a variety of

materials. Two 2” x10” hydraulic cylinders.

Optional interfacing brackets available.

958 3,650.00

Parking

Stand Kit

811395

Grapple Parking Stand Kit. Fits all grapples

except Low Profile models. Allows upright

storage and easy hook up on hard surfaces.

26

175.00 Global / Euro Style Integrated Frame Spilt Top Grapples

Features all welded frame that incorporates the Euro-Style implement hook standard integrated into them

allowing them to easily hook-up to the Euro / Global-Style quick-attach tool carrier.

FLGR-262G

₈₁₁₄₉₅

Front Loader Split Top Integrated Grapple

Rake 62” wide. Two upper grapples handle a

variety of materials. Two 2” x 10” hydraulic

cylinders. Integrated Euro / Global

implement hooks standard

827 3,370.00

FLGR-277G

₈₁₁₄₉₀

Front Loader Split Top Integrated Grapple

Rake 77” wide. Two upper grapples handle a

variety of materials. Two 2” x 10” hydraulic

cylinders. Integrated Euro / Global

implement hooks standard

970 3,835.00

Effective 3-1-16

(23)

Material Handling Attachments

Mini Grapple for Sub-Compact Tractors

Designed for Sub-Compact Tractors equipped with a loader. “Universal” skid steer mount or

John Deere 200/300 series mount

CTMG-48S

“NEW”

811850

48” wide Grapple for Sub-Compact tractors

with loaders that utilize the “universal” skid

steer quick attach mounting. Single 31”

wide grapple provides clamping force.

Shipped Less Hoses & Fittings

320 1,450.00

“NEW”

CTMG-48JD

811855

Mini Grapple for John Deere

Sub-Compacts equipped with loaders that use

the JD 200/300/400 bucket quick attach.

Over width 48”, upper grapple 31”

Shipped Less Hoses and Fittings

1,475.00

ETG-Series Designed to fit John Deere 400/500 Series Loaders

All welded construction that incorporates the John Deere 400/500 series attachment brackets

Product

Model

Item #

Description

Lbs.

List

ETG-5-JD

811080

Low-Profile Tine Grapple with single

upper grapple. For JD 400/500 series

quick attach. Unit is 61” wide

Includes hoses (less couplers)

460 1,825.00

ETG-6-JD

811085

Low-Profile Tine Grapple with single

upper grapple. For JD 400/500 series

quick attach. Unit is 72” wide

Includes hoses (less couplers)

489 1,925.00

“NEW”

ETG-26-JD

811075

Low-Profile Grapple with Dual Upper

Grapples 72” wide.

For JD 400/500 series loaders.

Includes hoses (less couplers)

560 1,975.00

ETG-Series Designed for Use on Euro/Global Loaders

Features all welded frame that incorporates the Euro-Style implement hook standard integrated into it

allowing unit to easily hook-up to the Euro / Global-Style quick-attach tool carrier.

ETG-26G

“NEW”

811095

Low-Profile Tine Grapple with Dual

Upper Grapples. Euro/Global Mount,

72” wide with 8-lower tines spaced 10”

Includes hoses (less couplers)

1,975.00

Effective 3-1-16

(24)

Material Handling Attachments

Grapple Rakes for Compact Tractors up to 40 HP

Model FLGR-4062 is priced less brackets. Brackets must be ordered separately (below).

Model FLGR-4062S design incorporates “universal” quick attach system.

Product

Model

Item #

Description

Lbs.

List

FLGR-4062

811460

Designed for Compact Tractor Front Loaders.

Grapple Rake is 60-inch wide for picking up

hard to handle materials. Single cylinder

controls upper grapple. Optional interfacing

brackets for most compact loaders available.

277 1,825.00

FLGR-4062S

811480

For Compact Tractor Front Loaders w/

“universal” quick attach system. 60-inch wide

for picking up hard to handle materials.

Single cylinder controls upper grapple. Not

for skid steers (ETG Series Grapples page 11)

355 1,955.00

Interfacing Brackets for Compact Tractor Grapple Rake, FLPF-2000 Pallet Fork,

and 5-ft, / 6-ft SBFL Snow Blades.

Model

Item #

Description

Lbs.

List

811235

Designed for pin on Loaders with 1” Pins (pair)

58

205.00 811220

Designed for pin-on loaders with ¾” pins (pair)

58

210.00 811240

Designed for pin-on loaders with 1-1/8” pins (pair)

59

215.00 811245

Designed for pin-on loaders with 1-3/16” pins (pair)

59

215.00 811250

Designed for pin-on loaders with 1-1/4” pins (pair)

60

215.00 Branson

811295

Branson Interfacing Brackets for Models

BL10A, BL20A

45

300.00 Case / IH

811255

Case/IH for LX-132 with 1-1/4” pins with large

offset (pair)

59

250.00 John Deere

811260

John Deere Interfacing Brackets for models

300, 300CX, 410, 420, 430, 440, 460, 400X

when used with FLGR-4062 / ULF-2046

55

360.00 Kubota

811280

Kubota Interfacing Brackets for Model LA1001

when using FLGR-4062 / ULF-2046

55

340.00 Kubota

811285

Kubota Interfacing Brackets for Model LA1251

when using FLGR-4062 / ULF-2046

60

330.00 Kubota

811290

Kubota Interfacing Brackets for Model LA852

when using FLGR-4062 / ULF-2046

62

330.00 Massey

Ferguson

811265

MF Brackets for Models 1462, 1464, 1515,

1520, 1525, for FLGR-4062 / ULF-2046

58

330.00 MF

811220

MF Brackets for DL-100, 1525 loader

210.00 TYM

811265

TYM Interfacing Brackets for Model TL-300

58

330.00 811275

Bolt-on “Universal” Skid Steer Style bracket

for FLGR-4062

90

320.00 NOTE: These interfacing brackets fit only compact tractor attachments.

Interfacing brackets for all other front loader attachments are listed on pages 57-71.

Effective 3-1-16

(25)

Material Handling Attachments

Manure / Silage / Debris Forks Designed for Use on Tractor Loaders

Models are offered to interface with John Deere series Loaders, as well as models that accept our pin-on

or quick attach brackets found on pages 57-74

Product

Model

Item #

Description

Lbs.

List

Manure / Silage / Debris for John Deere Loaders

M/S-50JD

812300

Manure / Silage Fork, 50-inches in width. Unit features 7 -forged cranked

tines. Interfaces with

JD 200 / 300 loaders (Not compatible with 240, 245,260,265).

185

770.00 M/S-60JD

812335

Manure / Silage Fork, 60 inches in width. Unit features 8-forged cranked

tine. Interfaces with JD 400 / 500 series loaders

220 1,010.00

M/S-66JD

812410

Manure / Silage Forks 66-inches in width. 9-forged cranked tine. Interfaces

with JD 400 / 500 series loaders

245 1,045.00

M/S-72JD

812345

Manure / Silage Fork, 72 inches in width. Unit features 10-forged cranked

tine. Interfaces with JD 400 / 500 series loaders

268 1,090.00

M/SG-60JD

812340

Manure / Silage Fork w/ upper grapple, 60-inch. 8-forged ranked tines, 34-inch

upper grapple,. Interfaces with JD 400 / 500 series loaders

Less hoses & couplers

365 2,430.00

M/SG-72JD

812350

Manure / Silage Fork w/ upper grapple, 72-inch 10-forged cranked tines, 34-inch

upper grapple, Interfaces with JD 400 / 500 series loaders

445 2,645.00

Universal Manure / Silage / Debris Forks. Designed to be used with our optional bolt-on brackets shown

on pages 38-52. Brackets are required to complete unit.

M/S-60U

812385

Universal Manure / Silage Fork. 60-inch width, 8-forged cranked tines. Optional

brackets for most quick attach system available

285

990.00 M/S-72U

812390

Universal Manure / Silage Fork. 72-inch width, 10-forged cranked tines. Optional

brackets for most quick attach s ystem available

330 1,070.00

M/SG-60U

812395

Universal Manure / Silage Fork w/ upper grapple, 60-inch, 8-forged cranked tines, 34-inch upper grapple.

Opt. bracket for most quick attach system available.

475 2,015.00

M/SG-72U

812398

Universal Manure / Silage Fork w/ upper grapple, 72-inch, 10-forged cranked tines, 34-inch upper grapple.

Opt. bracket for most quick attach system available.

550 2,245.00

Effective 3-1-16

(26)

Material Handling Attachments

Pallet Forks Designed for Use on Front Loaders

PF-448

831830

at 4,000 lbs. Solid 48” long (1-3/8” x 4”)

forks. Designed to mount to loaders with

center to center between arms up to 50”.

Optional interfacing brackets

Available (pgs. 57-74).

NOT FOR USE ON BI-DIRECTIONAL

438 1,010.00

Integrated Frame Pallet Forks for John Deere 400/500 Series Loaders

JDPF-5442

₈₃₂₄₂₀

Integrated frame pallet forks for John Deere

400/500 series loaders, rated at 4,000 lbs.

Solid forks are 1-3/8”x 4”x 42” long.

359

995.00 JDPF-5448

₈₃₂₄₃₅

Integrated frame pallet forks for John Deere

400/500 series loaders, rated at 4,000 lbs.

Solid forks are 1-3/8”x 4”x 48” long.

345

995.00 Integrated Frame Pallet Forks for John Deere 600 / 700 Series Loaders

JDPF-6748

₈₃₂₄₄₀

Integrated frame pallet forks for John Deere

600/700 series loaders, rated at 5,500 lbs.

Solid forks are 1-1/2” x 4” x 48” long.

405 1,220.00

Integrated Frame Pallet Forks for John Deere H480 Loaders

JDPF-H48048

₈₃₄₁₃₀

Integrated frame pallet forks for John Deere

H480 loaders with Global-Series II

attaching method.

Forks are 1.75” x 4.75” x 48” long

rated at 7,500 lbs.

785 1,995.00

JDPF-H48060

₈₃₄₁₄₀

Integrated frame pallet forks for John Deere

H480 loaders with Global-Series II

attaching method.

Forks are 1.75” x 4.75” x 60” long

rated at 7,500 lbs.

845 2,410.00

Effective 3-1-16

(27)

Material Handling Attachments

Integrated Frame Pallet Forks With Euro / Global Attaching Method

GLPF-442

₈₃₂₄₅₂

Integrated frame pallet forks for loaders

with the Euro / Global attaching method.

Forks are 42” long (1-3/8 “x 4”).

Rated at 4,000 lbs.

335

995.00 GLPF-448

₈₃₂₄₅₈

Integrated frame pallet forks for loaders

with the Euro / Global attaching method.

Forks are 48” long (1-3/8 “x 4”).

Rated at 4,000 lbs.

350

995.00 GLPF-5548

832460

Integrated frame pallet forks for loaders

with the Euro / Global attaching method.

Forks are 48” long (1 -1/2 “x 4”).

Rated at 5,500 lbs.

393 1,105.00

Clamp-On Bucket Pallet Forks – Pair

BF-1000

831950

Clamp-On Bucket Pallet Forks – 1,000 lbs.

capacity. 35”useable tine length. Fits most

loader buckets. Socket for 2x4 backstop.

78

390.00 BF-2000

831930

Clamp-On Bucket Pallet Forks – 2,000 lbs.

capacity. 42”useable tine length. Fits most

loader buckets. Socket for 2x4 backstop.

102

440.00 BF-4000

831960

Clamp-On Bucket Pallet Forks – 4,000 lbs.

capacity. 42”useable tine length. Fits most

loader buckets. Socket for 2x4 backstop.

168

710.00 See Page 21 for Pallet Forks rated at 2,400 lbs. for Compact Tractors

Effective 3-1-16

(28)

Material Handling Attachments

Pallet Forks for Compact Tractors

Units feature Class I forks rated at 2,400 lbs. for the pair.

FLPF-2000

₈₃₂₅₂₅

Rail style pallet forks Rated at 2,400 lbs.

Features solid forks, 1.18” x 3” x 42”, with

spring-loaded toggle latch for positioning.

Optional interfacing brackets for most

quick attach systems on page 14. For

loaders with ctr.-ctr. distance of 42” or less

of the loader arms. Not for 3-pt.

Cannot be used with 811275 brackets.

270

830.00 JDPF-2000

₈₃₂₅₃₀

Integrated frame pallet forks for John Deere

200/300 series loaders (not compatible with

240,245,260,265) . Rail style rated at 2,400

lbs. Solid forks, 1.18”x 3”x 42” with

spring-loaded toggle latch for positioning.

280

875.00 SSPF-242

₈₃₂₅₂₀

Integrated frame pallet forks for compact

tractor loaders that utilize the “universal”

skid steer attachment system. Rail style

rated at 2,400 lbs. Solid forks 1.18”x3”x42”

with spring-loaded toggle latch

for positioning

290

780.00

Effective 3-1-16

(29)

Interfacing Quick Attach Brackets

These Brackets are Designed to Interface with the below listed OEM Quick Attach Systems.

These brackets bolt to Worksaver Front Loader Attachments, or can be welded.

Note: Item No. is one pair of brackets

AGCO / Allis

Allied-Farm King

Loader# w/ Quick Attach Part# LBS List Price Loader# w/ Quick Attach Part# LBS List Price

676 830490 68 205.00 390 831600 51 390.00 680 830490 68 205.00 394 831600 51 390.00 682 830490 68 205.00 395 831650 76 500.00 684 830490 68 205.00 495 831650 76 500.00 780 830492 65 290.00 580 831600 51 390.00 784 830492 65 290.00 584 831600 51 390.00 780SL 830492 65 290.00 590 831600 51 390.00 784SL 830492 65 290.00 594 831600 51 390.00 884SL 830492 65 290.00 FL100 830490 68 205.00 595 831650 76 500.00

FL200A HOOK STYLE 830476 88 340.00 695 831650 76 500.00

FL200A SKID STEER STYLE 831110 95 330.00 795 831650 76 500.00

FL300 830476 88 340.00 895 831720 98 540.00 FL400 830476 88 340.00 FL45 Euro 830120 84 290.00 995 831720 98 540.00 FL500 830476 88 340.00 2495 831730 104 505.00 FL600 830476 88 340.00 2595 831730 104 505.00 FLS200 HOOK STYLE 830476 88 340.00 2596 831730 104 505.00

SL46 Skid Steer Style 831110 95 330.00 2795 831730 104 505.00

SL48 Skid Steer Style 831110 95 330.00 2895 831730 104 505.00

ST35A 831790 62 205.00 2495 Skid Steer Style 831110 95 330.00

ST40A 831790 62 205.00 2495E EURO 830120 84 290.00

2595 Skid Steer Style 831110 95 330.00

AGCO / WHITE

2595E EURO 830120 84 290.00

656 830490 68 205.00 2596E EURO 830120 84 290.00

658 830490 68 205.00 2795E EURO 830120 84 290.00

676 830492 65 290.00 2895S 831730 104 505.00

678 830492 65 290.00 2895SL 831730 104 505.00

686 830492 65 290.00 495 Skid Steer Style 831110 95 330.00

688 830492 65 290.00 594HSL 831600 51 390.00

1165-QA 830330 83 485.00 595 Skid Steer Style 831110 95 330.00

1185-QA 831590 86 330.00 175-QA 831605 95 380.00 676-SL 830492 65 290.00 678-SL 830492 65 290.00 686-SL 830492 65 290.00 688-SL 830492 65 290.00 Effective 3-1-16 Page 12 of 26

(30)

Interfacing Quick Attach Brackets

These Brackets are Designed to Interface with the below listed OEM Quick Attach Systems.

These brackets bolt to Worksaver Front Loader Attachments, or can be welded.

ALO

(cont.)

Loader# w/ Quick Attach Part# LBS List Price Loader# w/ Quick Attach Part# LBS List Price

300 SERIES (new style) 830120 84 290.00 Q61 EURO 830120 84 290.00

Q20 EURO 830120 84 290.00 Q78 EURO 830120 84 290.00

Q20 SKID STEER STYLE 831110 95 330.00 Q85 EURO 830120 84 290.00

Q21 EURO 830120 84 290.00 Q88 EURO 830120 84 290.00

Q21 SKID STEER STYLE 831110 95 330.00 X21 EURO 830120 84 290.00

Q25 EURO 830120 84 290.00 X21 Skid Steer Style 831110 95 330.00

Q25 SKID STEER STYLE 831110 95 330.00 X26 Euro 830120 84 290.00

Q26 SKID STEER STYLE 831110 95 330.00 X31 EURO 830120 84 290.00

Q35 SKID STEER STYLE 831110 95 330.00

Q36 EURO 830120 84 290.00

Bobcat

Q36 SKID STEER STYLE 831110 95 330.00 6TL SKID STEER 831110 95 330.00

Q38 EURO 830120 84 290.00 7TL SKID STTER 831110 95 330.00

Q38 SKID STEER STYLE 831110 95 330.00 8TL SKID STEER 831110 95 330.00

Q40 EURO 830120 84 290.00 9TL SKID STEER 831110 95 330.00

Q40 SKID STEER STYLE 831110 95 330.00 V417 SKID STEER 831110 95 330.00

Q41 EURO 830120 84 290.00 V518 SKID STEER 831110 95 330.00

Q45 EURO 830120 84 290.00 V638 SKID STEER 831110 95 330.00

Q46 EURO 830120 84 290.00

Q46 SKID STEER STYLE 831110 95 330.00

Q48 EURO 830120 84 290.00 Q49 EURO 830120 84 290.00 Q50 EURO 830120 84 290.00 Q51 EURO 830120 84 290.00 Q55 EURO 830120 84 290.00 Q56 EURO 830120 84 290.00 Q58 EURO 830120 84 290.00 Q60 EURO 830120 84 290.00 Effective 3-1-16 Page 13 of 26

(31)

Interfacing Quick Attach Brackets

These Brackets are Designed to Interface with the below listed OEM Quick Attach Systems.

These brackets bolt to Worksaver Front Loader Attachments, or can be welded.

Branson

Bush Hog

Loader# w/ Quick Attach Part# LBS List Price Loader# w/ Quick Attach Part# LBS List Price

BL10 3226 831740 78 550.00

BL10A 831890 320.00 2345 831670 66 400.00

BL205 SKID STEER STYLE 831110 95 330.00 2346 831695 74 510.00

BL20A 831890 320.00 2425 831680 70 270.00

BL25R SKID STEER STYLE 831110 95 330.00 2440 831680 70 270.00

3446 831740 87 550.00

2045 SKID STEER STYLE 831110 95 330.00

2347 SKID STEER STYLE 831110 95 330.00

2427 SKID STEER STYLE 831110 95 330.00

2447 SKID STEER STYLE 831110 95 330.00

246 SKID STEER STYLE 831110 95 330.00

2595STSL SKD STEEL 831110 95 330.00

2847 SKID STEER STYLE 831110 95 330.00

3045 SKID STEER STYLE 831110 95 330.00

3227 SKID STEER STYLE 831110 95 330.00

346 SKID STEER STYLE 831110 95 330.00

3545 SKID STEER STYLE 831110 95 330.00

3860QT 831625 55 300.00

4045 SKID STEER STYLE 831110 95 330.00

446 SKID STEER STYLE 831110 95 330.00

495 SKID STEER STYLE 831110 95 330.00

5045 SKID STEER STYLE 831110 95 330.00

546 SKID STEER STYLE 831110 95 330.00

595 SKID STEER STYLE 831110 95 330.00

6045 SKID STEER STYLE 831110 95 330.00

646 SKID STEER STYLE 831110 95 330.00

M300 SKID STEER STYLE 831110 95 330.00

M346 831695 74 510.00 M446 831695 74 510.00 M546 831695 74 510.00 M646 831695 74 510.00 Effective 3-1-16 Page 14 of 26
