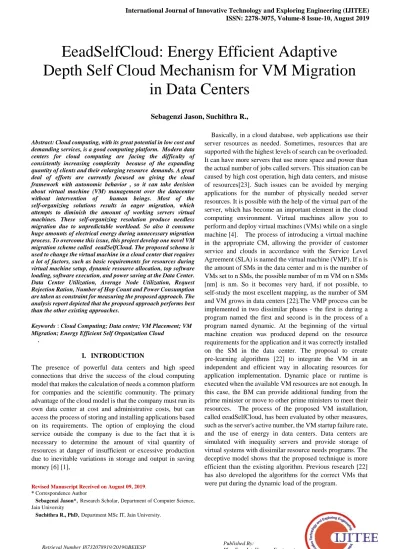

EeadSelfCloud: Energy Efficient Adaptive Depth Self Cloud Mechanism for VM Migration in Data Centers

(1)

International Journal of Innovative Technology and Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-10, August 2019



Abstract:Cloud computing, with its great potential in low cost and demanding services, is a good computing platform. Modern data centers for cloud computing are facing the difficulty of consistently increasing complexity because of the expanding quantity of clients and their enlarging resource demands. A great deal of efforts are currently focused on giving the cloud framework with autonomic behavior , so it can take decision about virtual machine (VM) management over the datacenter without intervention of human beings. Most of the self-organizing solutions results in eager migration, which attempts to diminish the amount of working servers virtual machines. These self-organizing resolution produce needless migration due to unpredictable workload. So also it consume huge amounts of electrical energy during unnecessary migration process. To overcome this issue, this project develop one novel VM migration scheme called eeadSelfCloud. The proposed schema is used to change the virtual machine in a cloud center that requires a lot of factors, such as basic requirements for resources during virtual machine setup, dynamic resource allocation, top software loading, software execution, and power saving at the Data Center. Data Center Utilization, Average Node Utilization, Request Rejection Ration, Number of Hop Count and Power Consumption are taken as constraint for measuring the proposed approach. The analysis report depicted that the proposed approach performs best than the other existing approaches.

Keywords: Cloud Computing; Data centre; VM Placement; VM Migration; Energy Efficient Self Organization Cloud

.

I. INTRODUCTION

The presence of powerful data centers and high speed connections that drive the success of the cloud computing model that makes the calculation of needs a common platform for companies and the scientific community. The primary advantage of the cloud model is that the company must run its own data center at cost and administrative costs, but can access the process of storing and installing applications based on its requirements. The option of employing the cloud service outside the company is due to the fact that it is necessary to determine the amount of vital quantity of resources at danger of insufficient or excessive production due to inevitable variations in storage and output in saving money [6] [1],

Revised Manuscript Received on August 09, 2019.

* Correspondence Author

Sebagenzi Jason*, Research Scholar, Department of Computer Science, Jain University

Suchithra R., PhD, Department MSc IT, Jain University.

Basically, in a cloud database, web applications use their server resources as needed. Sometimes, resources that are supported with the highest levels of search can be overloaded. It can have more servers that use more space and power than the actual number of jobs called servers. This situation can be caused by high cost operation, high data centers, and misuse of resources[23]. Such issues can be avoided by merging applications for the number of physically needed server resources. It is possible with the help of the virtual part of the server, which has become an important element in the cloud computing environment. Virtual machines allow you to perform and deploy virtual machines (VMs) while on a single machine [4]. The process of introducing a virtual machine in the appropriate CM, allowing the provider of customer service and clouds in accordance with the Service Level Agreement (SLA) is named the virtual machine (VMP). If n is the amount of SMs in the data center and m is the number of VMs set to n SMs, the possible number of m m VM on n SMs [nm] is nm. So it becomes very hard, if not possible, to self-study the most excellent mapping, as the number of SM and VM grows in data centers [22].The VMP process can be implemented in two dissimilar phases - the first is during a program named the first and second is in the process of a program named dynamic. At the beginning of the virtual machine creation was produced depend on the resource requirements for the application and it was correctly installed on the SM in the data center. The proposal to create pre-learning algorithms [22] to integrate the VM in an independent and efficient way in allocating resources for application implementation. Dynamic place or runtime is executed when the available VM resources are not enough. In this case, the BM can provide additional funding from the prime minister or move to other prime ministers to meet their resources. The process of the proposed VM installation, called eeadSelfCloud, has been evaluated by other measures, such as the server's active number, the VM startup failure rate, and the use of energy in data centers. Data centers are simulated with inequality servers and provide storage of virtual systems with dissimilar resource needs programs. The deceptive model shows that the proposed technique is more efficient than the existing algorithm. Previous research [22] has also developed the algorithms for the correct VMs that were put during the dynamic load of the program.

EeadSelfCloud: Energy Efficient Adaptive

Depth Self Cloud Mechanism for VM Migration

in Data Centers

(2)

Centers

The randomly generated data set is used to evaluate the simulation model, taking into account the differences in CPU dependence and the memory of the Web site in the data center. The article remains are prepared as follows. Section 2 reviews your work. The rules for initial deployment and time for placing a virtual machine in the data center are projected in Part III. Section IV describes the investigational reports using a model simulation model. The conclusion as well as the future work of this study are offered in Section V.

II. LITERATURE REVIEW

One of the tasks for controlling the initial energy data at the data center level was conducted by Pinheiro et al. [19]. In this work, the author has asked for technical assistance to reduce the use of energy in clusters of computer inequality using numerous web applications. The major method used to reduce energy utilization is to focus on minimizing the node and closing the inactive port. This approach requires energy adaptation / adaptation facilitation that results in performance may decrease due to the combination of storage. Speed requirements and application practices are cleared in the SLA to guarantee trustworthy QoS. Projected algorithms regularly monitor databases (CPUs, disk sizes and network interfaces) and make the decision to open / close a node to reduce total power consumption while delivering expected results. Real balance of storage is not controlled by the system and is supervised by the software. The algorithm is accomplished on the main node that generates the SPF and can be a major constraint to large system processes. In addition, the author notes that the configuration operation takes a long time and that one algorithm adds, adds, or deletes simultaneously, which can cause a slow response in a huge environment. The proposed method can be implemented using a fixed SLA multi-tasking task. Chase et al. [5] Solve the same issues of effective energy management in Internet Hosting Centers. The major confront is to identify resource requirements for each program at the new upload level and to efficiently allocate resources. To solve this problem, the author implements economic framework: an "auction" service for quantitative and qualitative resources. This makes it possible to negotiate SLAs in line with budget and QoS requirements. Balance of capital expenditures (energy costs) and the benefits of using this resource. The server supports the selected set of servers to serve each request for each service. Network switches are configured animatedly to change SERVER's active settings when necessary. Power expenditure is abridged by exchanging the sleep mode server into sleep mode (such as sleep, hours, asleep). The system focuses on online storage as a result of "noise" storage. The authors solve this problem by applying key filters that help reduce the number of distributors and lead to sustainable and well-organized management. The proposed approach is consistent with the environmentally-friendly SLA variable and provides a basis for many studies to utilize energy efficiency at the data center level efficiently. However, unlike [19], this system monitors only the CPU but does not think any other system resources. Satisfaction with shutting / closing is also estimated. The author notes that management algorithms are fast when the workplace is stable, but has been

found to be costly throughout important changes.. In addition, there are no different software configurations that can be resolved by virtue of virtualization. Elnozahy et al. [9] The issue of effective resource management in the web application environment has been identified with fixed SLAs (response times) and a balance of storage. Two energy saving techniques [5] were performed: Power-On and Dynamic Calcium Dynamic Dynamics. The basic policy concept is to calculate the total CPU frequency necessary to offer the required response time, which limits the maximum amount of physical nodes, and determines the proportional frequencies of all nodes. However, the time shift of power supply to the node is not measured. It is assumed that only one application is implemented in the system and [19] the storage balance is expected to be checked by an external system. Algorithms are created that generate SPFs and reduce the possibility of expansion. Despite differing loads, data on unused resources led to ineffective solutions due to variations. Natudji and Schwan [17] are studying energy administration method in the circumstance of a virtualized data center that has not been built. In addition to hardware scaling and merging of virtual machines, the author recommends and implements new power management techniques named "resource scaling". The idea is to follow hardware scaling that gives less time for resources for virtual machines using the VMM VMM capability of the VMM virtual machine. The researchers found that the combination of "hard" and "soft" scales could provide high energy savings because of limited numbers of countries. The author provides an architecture where resource management is alienated into local and global rules. At the normal level, the system uses the operating system's power organization strategy. Even though, such monitoring does not seem to work because the operating system of the client machine may be hereditary or obsolete. Raghavendra et al. [20] Seeks energy management issues for data centers by integrating and coordinating five integrated energy management policies. Researchers found problems in management theory and program responses to cycle management to coordinate the work of the controller. It is said that this method is self-governing of the work category. Just like previous tasks, the system only works with CPU control. The author has found interesting results: Genuine energy savings may differ depending on the burden, but "the benefits of organization are comparable to the size of the whole thing." However, the system does not support strict SLAs as well as the SLA variables for dissimilar applications. This leads to a good corporate environment, but not a cloud supplier that needs extensive support for the SLA. Kusic et al. [16] Identify energy management issues in an unfair environment, then optimize and address it with the help of Limited Companies. The goal is to increase the profits of resource providers by reducing energy use and abuse of SLA. Kalman filters are used to approximation the amount of expectations requests for predicting the future state of the system and creating the necessary divisions. However, unlike the method of using the proposed method, the proposed template requires learning

based on a specific

(3)

Moreover, due to the complexity of the performance model, the performance booster arrive at 30 minutes, even for 15 nodes that are not appropriate for large systems.

On the contrary, this approach is basically one that allows us to reach a reasonable amount, even in large quantities, as shown in our experiments. Srikantaiah et al. [24] Explore the difficulty of time requirements for multiple-order networking applications in virtual imbalances to reduce energy demand while meeting demand. The authors examine the effects of depressive work due to the excessive use of dissimilar resources when the workload is combined. They found that power utilization per operation was the curve "U" and it was able to determine the best point of use. In order to cope with the increased efficiency of resources, the author asked for a study of the problem of multi-dimensional container packaging as a contribution to the work. However, the suggested method is the type of storage and program implications, while our algorithms are independent of the work, and therefore are consistent with the overall cloud context. Cardosa et al. [3] Suggested solutions to solve the issue of efficient energy distribution of virtual machines in a scalable computer environment. They use the maximum maximum parameter and share the VMM representing the maximum maximum and share the CPU schedules to the virtual machine that shares the same resource. [20] This method is suitable for corporate environments because it does not hold up SLAs strictly and needs a priority definition of volume for the partition. The other drawback is that the virtual machine division is not altered during processing (the distribution is static), and there is no other resource except that the CPU is considered during the VB allocation. Verma et al. [27] Developed a problem of dynamic positioning of the application in a practical gap, as subsequently improved: virtualization has been improved at any time to reduce energy utilization and productivity. As in [24], the author carried out research on the issue of packing containers with variable tank size and value. Like [17] changing changes of the virtual machine are used to achieve new locations in each period. Suggested algorithms, contrary to our technique, do not meet strict SLA needs: SLAs can be compromised because of job variations. Gandhi et al. [10] Check the issue of energy budget allocations between servers on virtual ecosystem farms, while reducing the average response time.

With the purpose of examine the belongings of several factors on the reaction time, linear theories were advised to predict the time of the reaction as the function of frequent communication with the high energy spectrum. This representation is employed to establish the perfect power distribution for all of the higher than factors. Contrary to the study we are considering, we have been asked to effectively dynamically distribute virtual machines when they are processed based on current resource usage, cooling changes, and reduced energy utilization. The proposed resolution can be successfully addressed with the strictly SLA, inequality infrastructure and inequality. The algorithm does not depend on a scrupulous kind of storage in addition to does not need the information of software execution on the virtual machine.

Other resources predictable by the research community as key energy users are network infrastructure.

Gupta et al. [12] Sleeping networks introduced the interface, the switches, and the router when it happened to save energy from the spine and the Internet users. Derived from the findings found by Gupta et al. [12] Some studies have been conducted on energy-efficient distribution of ISPs and sleep mode programs and increased network equipment capabilities [26,18]. Chiaraviglio and Matta [7] presents association between Internet service contributor and content supplier that allow efficient computer resources and roads to reduce energy use in emergencies. Koseoglu and Karasan [15] have implemented a comparable technique to the sharing of computer resources and fiber optic networks to reduce downtime. Tomas et al. [25] Investigate the issue of MPI over the network, taking into account the transmission of network data that responds to QoS needs. Dodonov and de Melo [8] proposed a method for planning distribution programs in the network based on the forecast of the event. They asked for a change in the communication process if the migration costs were less than the estimated value of the link in order to reduce the total working time. They showed that this method can be applied effectively in the network. However, it is indisputable for a data center to be effective because the cost of virtual machine exchange is higher than the cost of the current. Gyarmati and Trinh [13] investigate the implications of using the power of the network architecture of the information center. Optimizing network architecture can only be accomplished when designing the data center can not be done vigorously. Guo et al. [11] Proposed and implemented a cluster management system that utilizes resources by delivering speed. This section is characterized by fluency, which reduces the use of normal frequency. The VM volume is set when some virtual machines are split. However, virtual machine distributions do not correspond to dynamics, depending on the current network load. In addition, this method does not reduce the power consumption of the network. Rodero-Merino et al. [21] The requested infrastructure infrastructure management capabilities are capable of automatically installing the service by configuring multiple VMs. The proposed Infrastructure Management System complies with the set of laws set for BM and internal configurations. However, the system does not increase the relationship between the virtual machine. Calheiros et al. [2] Browse for troubleshooting virtual machine nodes that update network connections between virtual machines; However, this issue was not found in the context of energy use.

III. PROPOSED WORK

A. VM Placement

(4)

Centers

However, during the implementation of the virtual machine application, the machine can be switched from machine to machine to reduce the number of servers called operating areas. The intelligent and efficient eeadSelfCloud system seeks to find research issues related to the virtual and virtual premises of the virtual machine. The sequence of execution or flow of eeadSelfCloud is shown in Figure 2. An important part of the power used by the server is reported for the CPU go after by the memory according to the data provided. So, only two basic dimensions of CPU and memory resources are measured for test setup.

For the primary assignment of VM machines, physical systems or host servers in data centre are classified into four different groups Critical, Active, Selfish and Overflow group by using Improved Best Fit Decreasing (IBFD) algorithm. This IBFD organizes all virtual machines in the descending order of their current CPUs, Residual Power and Previous Allotted Count. The four groups are described below. 1) Critical Group: The server uses about 70% of its highest power in the state of the Internet when it is entirely or extremely low down CPU utilization. So this work can remain SMs inactive in the power saving situation using the power provided by virtual monitors (VMMs) or the installer. Windows KVM servers support the S4 (hibernation) and S3 (sleep / standby) power levels. VMware has a sub-system named VMware Distributed Power Management (DPM) to diminish the power utilization of the server pool by shutting down the server. Critical groups include AFs that are in an energy saving situation.

2) Active Group: Virtual machines need a lot of resources throughout first unit to establish the guest operating system and the host software. In the active group, this work remain the amount of inactive servers in the online state of which t is a low value, straight proportional to the frequency of deploying the virtual machine's client. Each virtual machine is initially deployed to the appropriate officer for the active group. When the virtual machine is deployed at the SM, it turns it into a virtual machine and sends it to the corresponding SM of the selfish group.

3) Selfish Group: Any VM can be placed in SM if the status is approved. This means that after the SM resource allocation, it should not exceed previous allotted count . The selfish group has such primers whose resources are not allocated to helmets. If the resource allocation to the SM resource tree is automatically transferred to the overflow group.

4) OverFlow Group: This class contains SMs whose previous allotted count value is exceed the target allocation count. The machine of this class is deemed whole or complete, and no further virtual machines will be located on such SMs.

Algorithm I Initial assignment or Virtual Machines

Input: S - Total Amount of SM on Data Center V - Total Amount of VM to be installed t — threshold value

TAC -Target Allotted Count PAC - Previous Allotted Count

Output: m VMS will be positioned in am'ropriate SMS 1 : for 1 to S do

2: while 1 to V do

3: Seek suitable SM IBFD using in target class 4: if SM not detected then

5: Switch on next SM from critical group 6: end if

7: Install VM on SM 9: if VM is available then

10: Seek suitable SM IBFD using in selfish group 11: if PAC < TAC then

12: Install VM to SM 13: else

14: Shift SM to selfish group 15: end if

16: if PAC < TAC then

17: Shift SM from critical group to active group 18: end if

19: end if 20: end while 21: end for

Fig.1 Architecture Diagram of Proposed eeadSelfCloud

Algorithm 1 demonstrates the process for restarting the virtual systems from eeadSelfCloud. Each VM was first created in the appropriate SM of the active group. VM delivers the necessary resources from SM Pi and adjusts the operating machine and applications. If there is not enough resources in the SM for each of them, then it will find the out-going request who meets the status of the acceptance and sends it to the state of the VM by sending it to the active group. Then VM is inserted into the new SM offset. When VM completes the work of creating the operating system and applications, it changes into a selfish group. However, it is impossible that none of the upper-level cabinet greed faces a welcome state. In this circumstances, the intention group itself will change into greedy people. A greedy machine that has previous allocated count exceeds the

(5)

These fitness of physical machines have been declared complete because the remaining of resources allocation have been saved to increase resources quickly and efficiently in the future. The number of SMs in the active group is always maintained until a certain value to keep time for an critical VM group. Therefore, if the number of SMs in the active groups falls below the low-cost value, one of the critical SMs will be entered and promoted in the active group.

B. VM Allocation

The virtual machine allocation process is divided into two phases: In the primary phase virtual machines are selected to move in the next stage, the selected virtual machine is placed on the machine using Algorithm 1. To determine if the virtual machine needs changes, we can enter two selective levitation rules. The essential thought is to set high and low for machine usage in addition to remain the CPU from all VMs distributed between hosts between these levels. If CPU consumption is lower than the threshold, each and every one virtual systems must be switched from this machine and the machine must be inserted into sleep mode to eliminate battery consumption. If using too high, some virtual machines are switched off from the machine to reduce the usage. The goal is to keep free resources to avoid destruction of the SLA as a result of merging when the virtual machine is growing. The dissimilarity among previous and recent position creates a set of virtual machines that need redistribution. This new location has been achieved through the new Energy Efficient Dynamic Resource Allocation (EEDRA) based on local and global research scheme.

This algorithm is the main detection algorithm that searches for nodes in a set of rules and certificates. Ask for a virtual gas engine on a node search network that meets its resource requirements. We use the terms for requesting an abbreviation for requesting VM space in other files. The request for nodeAgent gets the best nodes potentially having enough VM capability based on locally stored information. If a node chosen as a neighbor and not a node that receives the request, nodeAgent will forward the request to this neighbor to search for the desired resource. NodeAgents sends a request for a better solution when NodeAgent can not find a better solution than it or the application expires. There are six policies that can be used by nodeAgents, and the best virus is selected from the Improved Best Fit Decreasing (IBFD) algorithm. Six initial principles for BM, including

1) Most- Exploitation: Select the most used node with enough capacity from its neighbor (including itself). Using nodes is a proportion of resources used to their total capacity. 2) Least-Exploitation: Select the node that is used at least sufficiently from its neighbor (including itself).

3) First-Fit: Select the first node that is capable enough from its neighbor (including itself).

4) Minimization of Migrations: Immigration Reduction Policy (MM) chooses the smallest amount of virtual systems essential to switch from the machine to reduce the CPU usage under the high bandwidth level if the superior level is desecrated. Allow Mj to be a set of virtual systems that are at this time distributed to host j. Then N (Mj) is the energy of Mj. The MM policy found the set ∈ N (Mj) set in (3).

MM = (3)

Where Ld is the higher limit. Lo is lower than dj, using the current CPU. And are part of the CPU exploitation used for the VM.

5) Highest Potential Growth : At what time the higher level is desecrated, the HPG policy changes the virtual machine that has the lowest CPU usage to the CPU capability definite by the VM constraints to reduce the possible enlargement in host use and prevention official SLA (4).

HCP = (4)

where is the portion of the CPU capability at first demand for the VM m in addition to describes as the VM’s parameter.

6) Random choice: The random option policy (RC) depends on the random selection of virtual machines needed to diminish CPU usage under threshold. According to the uniformly divided randomness (Y), which has the index of the value of Mj, the set of policy choices RCP ∈ N (Mj), as shown in (5).

RCP = (5)

Where Y is the randomly divided random variable employed to pick a subset of .

(6)

Centers

Table1: VM Allocation Policies based on Different Entry and Heuristics

Policies Request Entry Schemes

Dist-Min Distributed Min

Exploitation

Dist-FF Distributed First-Fit

Dist-Max Distributed Max

Exploitation Dist-MM Distributed Minimization of

Migrations

Dist-HPG Distributed Highest

Potential Growth

Dist-RC Distributed Random Choice

Algorithm 2 VM Allocation

Input: Allocation Request [Insist, HMR, ResultantIndex] Output: The place to put the allocation request, ResultantIndex

When receiving the request: if ResultantIndex = false then if HTL > E then

f = detect VM with IBFD if f != Self then

if f== -1 then

f = arbitrary VM from the local of VM end if

HMR=HMR- 1 send the request to f place = f

ResultantIndex = true end if

place = - l

ResultantIndex = true end if

end if

return place and ResultantIndex

IV. RESULT AND ANALYSIS

A. Experimental Setup

This segment illustrates an appraisal of the proposed method implementation by simulating the data center among 2500 physical nodes. This article have faked the model in the middle of CloudSim in addition to construct our eeadSelfCloud. Each node is connected to nodeAgent and is supposed to use a virtual machine of dissimilar categories. The highest ability of every node is limited to 10 PCs, in addition to the carrier provides 10 VMs with 1 to 10 PCs. We've received a total of 20,000 requests for virtual machines that come into the system after Poisson's arrival. Each request has a capacity requirement that is accidentally selected from [1, ..., 10] set and is matched to the VM type.

Virtual machines are deployed and stopped during each experiment. Cloud-based services are of lesser duration, so we have taken the VM's life pattern by using randomly assigned variants to eliminate the potential gap potential associated with a particular type of program and to show a variety of applications, Which can be deployed in a cloud

database. To avoid relaying requests to the environment, we limit the number of hops for HTL = 20 hops. The level of merger again. The burden that resources are supposed to be reunified is determined at 40% of the total node capacity. Experiments are permitted to execute for 20000 units, each moment is 0.1 seconds of testing and 1 hour of resource utilization.

B. Performance Parameters

In this section the proposed approach is evaluated by using the following evaluation metrics:

1) Data Center Utilization: This metric is to use analysis how much data center is utilized. It is determined to be the total capacity used by the VM to divide the time based on the total capacity contained in the data center. Data center usage is found by eq (1),

DCU(t) = (1)

here N is the amount of assignment requests, is the

allowed ability for at time t, T is the full amount of

servers, in addition to is the capacity of each server. 2) Average Node Utilization: This metric is evaluated by using Equation (2),

= (2)

where is the amount of lively nodes in the environment. This meter gives the concept of distribution, distribution, in addition to the way an active server is currently being used. It is straight proportional to the use of energy in the system and related values.

3) Quantity of hops: This is the quantity of hops needed to find the available nodes needed from the VM request. This parameter calculates how fast the approach is correct and responsive to questions and can be evaluated to the calculation period in the collection method.

4) Request Rejection ratio: This is metric is used to find the total no of request is rejected in cloud.

= (3)

Rejections can happen for a variety of reasons, including: • Failure to find appropriate resources within HTML limits. Lack of sufficient resources.

5) Power Consumption:

Themetric is calculated by using the equation (4) Power Consumption = Total Power - Residual Power (4)

C. Result and Discussion

To analysis the performance of the classifier system, it is compared with various techniques by using the performance metrics which are mentioned above. This is shown in the below tables and graphs.

1) Experiment No #1 : Performance Analysis on Force of Request Propagation

In the initial experiment, the force of allocation on the resource allotment mechanism is investigated. To conclude how input policy influences system performance, this article compare the impact of taking on

(7)

machine queries on the system performance.

From the graph, it is shown that the average no of hop count value is lesser in Minimum Migration Policy. As well as the

request rejection value is also lesser in Minimum Migration Policy. Data Center Utilization value is higher for Minimum Migration Policy than the other policies. Minimum Migration Policy utilizes the nodes in higher level. So Minimum Migration Policy is considered as the best VM migration policy than other policies.

2) Experiment No #2 : Performance Analysis of Power Consumption based VM Load

In the second experiment, the energy usage is analysed based on the VM. The utilization of energy at the data center in addition to the failure rate of the VM deployment has been taken into account as a parameter for the study. Energy utilization is the full amount of power utilization in all server data centers after the deployment of the desired virtual machine. The level of failure in the VM deployment is a number that illustrates the number of Prime Minister's unsuccessful choices for deploying the VM. The experimental results obtained from algorithms for using VM for medium power consumption after the deployment of 100 virtual machines are shown in Figure 3.

From the graph, it is shown that the eeadSelfCloud consumes less energy than the other VM allocation mechanism. So it is considered as the best VM allocation mechanism for data center in self organization cloud.

3) Experiment No #3 : Performance Analysis of Power Consumption based Policy

In the third experiment, power consumption based on the various VM engine policies is examined. The experimental results obtained from algorithms for using VM for medium power consumption after the deployment of 100 virtual machines are exposed in Figure 3.

(8)

Centers

So Minimum Migration Policy is considered as the best VM migration policy for data center in self organized cloud.

V. CONCLUSION

The innovative eeadSelfCloud scheme demonstrates an autonomous in addition to energetic resource management solution by deploying virtual machines in a cloud database. This study involves many problems interrelated to the installation of the first virtual machine, dynamic resource management for virtual machines, during execution, in addition to resource management during the substantial server in addition to the shutdown of the virtual machine. The dynamic resource requirements for the top uploader are done by keeping backup resources on each server. Unavailable resources for the application are also released from major virtual machines to avoid human interaction. This method can increase the use of resources as well as application performance, while avoiding the virtual machine changes for the longest. Experimental results are obtained using a simulator representation for a virtual machine initiative. It has been suggested that innovative approaches appear to be more superior than complementary methods. As a future job, experimental models can be expanded to measure the dynamics of the innovative Dynamic Resource Allocation approaches for virtual systems in the data center. The question of resource allocation can also be taken into consideration for the additional growth of the projected algorithm for improved resource exploitation.

REFERENCES

1. Joseph, R. H. Katz, A. Konwinski, G. Lee, D. A. Patterson, A. Rabkin,

I. Stoica, and M. Zaharia, “Above the clouds: A berkeley view of cloud computing,” EECS Department, University of California, Berkeley, Tech. Rep., February 2009.

2. Calheiros. R.N., R. Buyya, C.A.F.D. Rose, A heuristic for mapping virtual machines and links in emulation testbeds, in: Proceedings of the 38th International Conference on Parallel Processing, Vienna, Austria, 2009.

3. Cardosa. M., M. Korupolu, A. Singh, Shares and utilities based power

consolidation in virtualized server environments, in: Proceedings of the 11th IFIP/IEEE Integrated Network Management, IM 2009, Long Island, NY, USA, 2009.

4. Chaisiri. S, B.-S. Lee, and D. Niyato, “Optimal virtual machine

placement across multiple cloud providers,” in Services Computing Conference, 2009. APSCC 2009. IEEE Asia-Pacific. IEEE, 2009, pp. 103– 110.

5. Chase.J.S., D.C. Anderson, P.N. Thakar, A.M. Vahdat, R.P. Doyle,

Managing energy and server resources in hosting centers, in: Proceedings of the 18th ACM Symposium on Operating Systems Principles, ACM, New York, NY, USA, 2001, pp. 103–116.

6. Chen. Y and R. Sion, “To cloud or not to cloud?: musings on costs and

viability,” in Proc. of the 2nd ACM Symposium on Cloud Computing, SOCC ’11, Cascais, Portugal, October 2011, pp. 29:1–29:7.

7. Chiaraviglio. L., I. Matta, GreenCoop: cooperative green routing with

energyefficient servers, in: Proceedings of the 1st ACM International Conference on Energy-Efficient Computing and Networking, e-Energy 2010, Passau, Germany, 2010, pp. 191–194.

8. Dodonov. E., R. de Mell, A novel approach for distributed application

scheduling based on prediction of communication events, Future Generation Computer Systems 26 (5) (2010) 740–752.

9. Elnozahy. E., M. Kistler, R. Rajamony, Energy-efficient server

clusters, PowerAware Computer Systems (2003) 179–197.

10.Gandhi. A., M. Harchol-Balter, R. Das, C. Lefurgy, Optimal power allocation in server farms, in: Proceedings of the 11th International Joint Conference on Measurement and Modeling of Computer Systems, ACM, New York, NY, USA, 2009, pp. 157–168.

11.Guo. C., G. Lu, H. Wang, S. Yang, C. Kong, P. Sun, W. Wu, Y. Zhang,

bandwidth guarantees, in: Proceedings of the 6th International Conference on Emerging Networking EXperiments and Technologies, CoNEXT 2010, Philadelphia, USA, 2010.

12.Gupta. M., S. Singh, Greening of the internet, in: Proceedings of the

ACM Conference on Applications, Technologies, Architectures, and Protocols for Computer Communication, SIGCOMM 2003, New York, NY, USA, 2003, pp. 19–26.

13.Gyarmati. L., T. Trinh, How can architecture help to reduce energy consumption in data center networking? in: Proceedings of the 1st ACM International Conference on Energy-Efficient Computing and Networking, e-Energy 2010, Passau, Germany, 2010, pp. 183–186.

14.Hyser. C, B. McKee, R. Gardner, and B. J. Watson, “Autonomic virtual

machine placement in the data centre,” Hewlett Packard Laboratories, Tech. Rep. HPL-2007-189, vol. 189, 2007.

15.Koseoglu. M., E. Karasan, Joint resource and network scheduling with

adaptive offset determination for optical burst switched grids, Future Generation Computer Systems 26 (4) (2010) 576–589.

16.Kusic. D., J.O. Kephart, J.E. Hanson, N. Kandasamy, G. Jiang, Power

and performancee management of virtualized computing environments via lookahead control, Cluster Computing 12 (1) (2009) 1–15.

17.Nathuji. R, K. Schwan, Virtualpower: coordinated power management

in virtualized enterprise systems, ACM SIGOPS Operating Systems Review 41 (6) (2007) 265–278.

18.Panarello. C., A. Lombardo, G. Schembra, L. Chiaraviglio, M. Mellia,

Energy saving and network performance: a trade-off approach, in: Proceedings of the 1st ACM International Conference on Energy-Efficient Computing and Networking, e-Energy 2010, Passau, Germany, 2010, pp. 41–50.

19.Pinheiro. E, R. Bianchini, E.V. Carrera, T. Heath, Load balancing and

unbalancing for power and performancee in cluster-based systems, in: Proceedings of the Workshop on Compilers and Operating Systems for Low Power, 2001, pp. 182–195.

20.Raghavendra,R., P. Ranganathan, V. Talwar, Z. Wang, X. Zhu, No

‘‘power’’ struggles: coordinated multi-level power management for the data center, SIGARCH Computer Architecture News 36 (1) (2008) 48–59.

21.Rodero-Merino. L., L. Vaquero, V. Gil, F. Galan, J. Fontan, R.

Montero, I. Llorente, From infrastructure delivery to service management in clouds, Future Generation Computer Systems 26 (8) (2010) 1226–1240.

22.Shelar. M, S. Sane, V. Kharat, and R. Jadhav, “Efficient virtual machine placement with energy saving in cloud data centre,” International Journal of Cloud-Computing and Super-Computing, vol. 1, no. 1, pp.15–26, 2014.

23.Speitkamp.B and M. Bichler, “A mathematical programming

approach for server consolidation problems in virtualized data centres,” IEEE Transactions on services computing, vol. 3, no. 4, pp. 266–278, 2010. [3]

24.Srikantaiah S., A. Kansal, F. Zhao, Energy aware consolidation for cloud computing, Cluster Computing 12 (2009) 1–15.

25.Tomas. L., A. Caminero, C. Carrion, B. Caminero, Network-aware

metascheduling in advance with autonomous self-tuning system, Future Generation Computer Systems 27 (5) (2010) 486–497.

26.Vasic. N., D. Kostic, Energy-aware traffic engineering, in: Proceedings

of the 1st ACM International Conference on Energy-Efficient Computing and Networking, e-Energy 2010, Passau, Germany, 2010, pp. 169–178.

(9)

AUTHORS PROFILE

Mr.Jason Sebagenzi is a research

scholar in Jain University ,Bangalore . He has published more than 8 papers in national and international journals . His area of specialisations are Cloud Resource management and Software engineering . He is a java programmer

and give seminar in various

institutions on cloud computing
