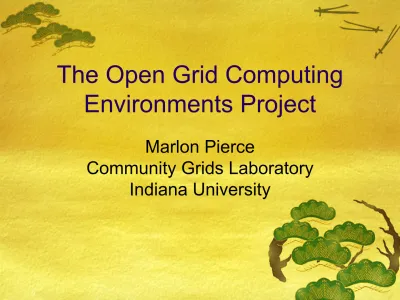

The Open Grid Computing
Environments Project
Marlon Pierce
Acknowledgements
£ Funding from NSF NMI (2003-2007) and OCI
SDCI (2007-2010).
£ Current participants
¤ Indiana University (Pierce, Gannon)
¤ RENCI (Kandaswamy)
¤ RIT(von Laszewski)
¤ SDSC (Wilkins-Diehr)
¤ SDSU (Thomas, Edwards)
Outline
£
Web Portals and Science Gateways
£
OGCE efforts
¤ OGCE Portal Software
¤ Portal tools
¥ Java COG, GTLAB
¤ OGCE Gateway Services
¥ GFAC, GPIR
¤ Software Engineering Issues
OGCE Goals
£
To provide easily installable, well-tested
software for building Web client and service
components that constitute a Grid
Computing Environment.
¤ Science Web Portal --> GCE --> Science Gateway
£
To support developing groups through
training, outreach, and divine intervention.
¤ Gateways have many needs that can’t be
What Is a Web Portal?
£ Aggregate content from
multiple sources into a single display.
£ Typically consume
RSS/Atom news feeds.
£ More powerful versions
these days support Flickr, calendars, games, etc.
¤ Gadgets, widgets
£ Examples: iGoogle,
Science Portals and
Gateways
£ Science portals resemble standard portals, but
must also
¤ Support access to computing and storage
resources.
¤ Allow users remote, Unix-like access to these
resources.
¤ Provide access to science applications and data
sets.
£ So security is crucial.
£ And we must provide value added services as
A Comprehensive Gateway
Architecture
Gateway Services Grid Portal Server Security Services Workflow/ Application Execution Engine Application Resource Catalogs User Data & Metadata Catalogs User’s Browser Workflow Composer User’s Desktop DataServices InformationServices Job MGMT, Resource BrokerAnd Scheduling Services ServicesSecurity
Components for Science
Portals
£ OGCE is founded on the principal that portals
should be built out of reusable parts.
£ Key standard in our first phase: the JSR 168
portlet specification.
£ Portlets can run in multiple containers
¤ uPortal, Sakai, GridSphere, LifeRay, etc.
£ Allows us to build Grid specific components and
deploy along side other goodies: Sakai
OGCE GPIR portlet can interoperate
with TeraGrid and your own GPIR
Manage TeraGrid MyProxy
credentials with the OGCE
OGCE file management client portlets
interact with TeraGrid GridFTP
Dashboard Portlet
14
Coding Portlets
£ Portlets are just servlet-like Java classes.
£ Basic API key methods:
¤ doView(), processAction().
£ These are coupled to JSP pages (typically)
through tag libraries and request dispatchers.
¤ OGCE supports Velocity portlets
£ So we must provide the coding logic for
processAction().
CoG Abstraction Layer
CoG CoG CoG CoG CoG
CoG Data and Task Management Layer CoG Gridfaces Layer
CoG CoG
CoG
G
ridI
DE
GT2 GT3(X) WS-RFGT4 Condor Unicore
Applications
SSH Others
Nano
materials Informatics
Bio-Disaster Managemen
t Portals
CoG Abstraction Layer
CoG CoG CoG CoG CoG
CoG Data and Task Management Layer CoG Gridfaces Layer
CoG CoG CoG G ridI DE Development Support
Task Task Handler Service Task Specificatio n Security Context Service Contact
The class diagram is the
same for all grid tasks (running jobs, modifying files,
moving data).
Task and Specification
Task task=new TaskImpl(“mytask”,
Task.JOB_SUBMISSION); task.setProvider(“GT2”);
JobSpecification spec=
new JobSpecificationImpl(); spec.setExecutable(“rm”);
spec.setBatchJob(true); spec.setArguments(“-r”); …
Service and Security Context
Service service=new
ServiceImpl(Service.JOB_SUBMISSION); service.setProvider(“GT2”);
SecurityContext securityContext=
CoreFactory.newSecurityContext(“GT2”); //Use cred object from ProxyManager
securityContext.setCredentials(cred); service.setSecurityContext(
Service Contact and Submit
ServiceContact serviceContact=
new ServiceContact(“myhost.myorg.org”); service.setServiceContact(serviceContact);
task.setService(
Service.JOB_SUBMISSION_SERVICE, service);
Coupling CoG Tasks
£The COG
abstractions also simplify creating coupled tasks.
£Tasks can be
assembled into task graphs with
dependencies.
¤ “Do Task B after successful Task A”
£Graphs can be
Problems with
Portlet Development
£ Grid portlets typically wrap each single Grid capability in a separate portlet
£ Problem is that Grid portlets need to combine these operations
¤ Portlets are entire web applications, so we need a component model for
portlets: reusable portlet parts
£ Even with the COG Abstraction Layer, we must still do a lot of coding to biuld new applications.
£ To address these problems we have adopted Java Server
Faces
¤ Provides several nice Model-View-Controller features
¤ JSF provides an extensible framework (tag libraries) for making reusable components.
Grid Tag Libraries
and Beans (GTLAB)
£ GTLAB provides common components for building portlets
using tags and reusable parts.
£ The goal of GTLAB to simplify Grid portlet development
¤ Enable rapid development
£ GTLAB capabilities include Grid operations with XML based
tags within Java Server Faces (JSF) framework.
£ Grid tag libraries are built using JSF custom component
development techniques
£ Grid tags are interfaces to backing Grid beans
¤ End users pass values to Grid beans by using tag attributes.
£ We build on Java CoG 4’s abstraction layer.
£ Each backing Grid bean has equal capability with a portlet application in case of Grid portlet approach.
GTLAB Example
<html> <body>
<f:form>
<o:submit id=”test” action=”next_page” />
<o:myproxy id=”pr” hostname=”gf1.ucs.indiana.edu” port=”7512” lifetime=”2” username=“mnacar” password=”***” />
<o:jobsubmit id=”task” hostname=”cobalt.ncsa.teragrid.org” provider=”GT4” executable=”/bin/ls” stdout=”tmp/result stderr=”tmp/error” />
</o:submit>
</f:form> </body> </html>
30
• Grid tags are associated with Grid services via Grid beans
• Grid Beans wrap the Java COG Kit (version 4)
• We show an example JSF page section below.
Grid Tags Associated Grid Beans Features
<submit/> ComponentBuilderBean Creating components, job handlers, submitting jobs
<handler/> MonitorBean Handling monitoring page actions
<multitask/> MultitaskBean Constructing simple workflow
<dependency/> MultitaskBean Defining dependencies among sub jobs
<myproxy/> MyproxyBean Retrieving myproxy credential
<fileoperation/> FileOprationBean Providing Gridftp operations
<jobsubmission/> JobSubmitBean Providing GRAM job submissions
<filetransfer/> FileTransferBean Providing Gridftp file transfer
ResourceBean Describes common properties
How to prepare
application pages
£ Developers embed Grid tags snippet into JSF page
¤ These components are non-visual and are not displayed in
HTML.
£ Resource bean provides bridging with form inputs and GTLAB
framework.
¤ <h:outputText value="Taskname: "/
<h:inputText value="#{resource.taskname}" / <o:multitask id="multi" persistent="true" task name="#{resource.taskname}" />
£ Dynamic values to Grid tag attributes are provided by Resource
bean.
£ Only visual component is <o:submit/> tag that is associated with action method of GTLAB.
GTLAB Dashboard Portle
Example
<o:submit id=”track” action=”list_page” />
<o:multitask id=”dashboard” taskname=”track” persistent=”true” >
<o:myproxy id=”proxy” hostname=”gf1.ucs.indiana.edu” lifetime=”2”
username=”#{resource.username}” password=”#{resource.password}” />
<o:jobsubmit id=”jobA” hostname=”cobalt.ncsa.teragrid.org” provider=”GT4” executable=”/bin/whoami”
stdout=”tmp/result” stderr=”tmp/error” />
<o:jobsubmit id=”jobB” hostname=”cobalt.ncsa.teragrid.org” provider=”GT4” executable=”/bin/showq”
stdin=”tmp/result” stdout=”tmp/list” stderr=”tmp/error” />
<o:dependency id=”depend” task=”jobB” dependsOn=”jobA” /> </o:multitask>
</o:submit>
Tracking and
Managing Jobs
£ GTLAB manages lifecycles of jobs and monitor their status.
£ Grid operations are usually batch processes
¤ We provide callback mechanism to follow up the jobs
¤ GTLAB creates handlers for jobs and persistently stores them.
£ GTLAB handlers manages the job events such as stop, cancel or resuming the running jobs.
£ GTLAB provides archive for job metadata and allows managing the archive
¤ Handler tag helps to organize user’s job repository
¤ <o:handler id=”delete” action="#{monitor.delete}" > <f:param id="task" name="taskname“ value="#{task}"/> </o:handler>
36
Web Services in Scientific
Communities (G. Kandaswamy)
£ Web services are used to “wrap” scientific applications to
¤ Describe, publish, discover and consume scientific applications in a standard way
¤ Compose complex workflows from scientific applications
¤ Run and monitor complex workflows on distributed resources
£ Such web services that “wrap” scientific
37 Application Service Command-line Application Web Service Client Host1 Host2 SOAP Request SOAP Response Command-line Arguments Output Results
38
39
The Problem
£
Application services may not be available
during a workflow execution
¤ Unreliable resources (software, computers,
networks)
¤ Heavy load on service
¤ Does not meet QoS or security requirements
of client
40
GFAC Solution
£
A Generic Application Factory
¤ A persistent web service that knows how to
create instances of any application service
41
Implementation
£
The Generic Application Factory (GFac)
£
The Generic Service Toolkit: A toolkit that
“wraps” any command-line application as
an application service
¤ Without writing any web service code
¤ Without modifying the application in any
42
Creating an Application Service
(1/2)
£
Write “ServiceMap” document to describe
your service
£
Write “Application Deployment
Description” document to describe a
deployment of your application
43
Creating an Application Service
(2/2)
GFac
Generic Web Service 5. Register capabilities
Registry Service
5. Register WSDL 3. Create service
1. Create service request Certificate & Capabilities Vault Generic Service Portlet MyProxy Service Capability Manager Service Portal
2. Get ServiceMap & Host Description
Application Service 4. Configure service
Host1
Host2
44
Invoking an Application Service
Application
Service RegistryService
Certificate & Capabilities Vault Generic Service Portlet MyProxy Service Capability Manager Service Portal
4. Run application
Application 3. Return user interface
4. Invoke Service 7. Return results 2. Access service
5. Get Application Deployment Description and Host Description
6. Send notifications
Host2
Host3
OGCE Code Repository
£
We use SourceForge, SVN
¤ http://sourceforge.net/projects/ogce
£
Other SourceForge tools are useful.
¤ Replaced old OGCE bugzilla with SF
Portal Build System
£ The portal download gives you everything you need to get started except Java.
¤ Includes Tomcat, GridSphere, Ant, and Maven.
¤ Assume you have a Grid somewhere.
£ Build system (recently revised) is designed to build everything in one command.
¤ “mvn clean install”
¤ Also designed to support extensibility (I.e. replace GridSphere with
Sakai) and simple updates of portlets.
£ We use Maven 2 exclusively.
¤ Nice for managing third party jar dependencies.
¤ It can call Ant as necessary
£ Testing portals is another matter
JMeter Test Suite
File Transfer portlet unit tested in JMeter UI: check for valid HTML responseCreate lots of unit tests, run, and see
Some Future Issues
£ Better support for science tools, not just bare grids.
¤ Experiment builder, Xbaya workflow manager,
metadata repository services and clients.
£ Better support for TeraGrid Science
Gateways
¤ Logging, auditing, integration with GridShib
£ JavaScript Grid abstraction layers and agent
services to support non-portlet clients.
What About Web 2.0?
£ This is another talk entirely.
¤ http://grids.ucs.indiana.edu/ptliupages/presentatio ns/Web20Tutorial_CTS.ppt
¤ http://grids.ucs.indiana.edu/ptliupages/publications /Web20ChapterFinal.pdf
£ See also recent OGF 19 and 21 Workshops.
£ Join us at SC07 for the GCE07 Science
Gateway Workshop
¤ ~20 peer-reviewed or invited talks, with focus on
More Information
£
OGCE Web Site:
¤ www.collab-ogce.org
£
An
nouncements Atom Feed
¤ http://collab-ogce.blogspot.com/atom.xml
LEAD Gateway Portal
NSF Large ITR and Teragrid Gateway - Adaptive Response to Mesoscal
weather events
User Portal Sharable Portlets
£Account Management
¤ view projects and allocation usage ¤ view system account usernames ¤ view DNs registered for account ¤ add users to projects
¤ supports >3500 users
£ Resource
¤ view comprehensive list of TG resources and their attributes ¤ view job queues, load, status of
resources
£ Documentation
¤ current User Info documentation
¤ contextual help for all interfaces
£ Consulting
¤ TG help desk information ¤ portal feedback channel
£ Allocation
North Carolina Bioportal
£ Principal collaborators: John McGee
and Lavanya Ramakrishnan
£ Features
¤ access to common bioinformatics tools
¤ extensible toolkit and infrastructure
¥ OGCE and National Middleware Initiative (NMI)
¥ leverages emerging international standards
¤ remotely accessible or locally deployable
¤ packaged and distributed with documentation
£ National reach and community
¤ TeraGrid deployment
¤ Portals hosted at RENCI and NCSA
UNC-Charlotte Visual Grid
Portal
