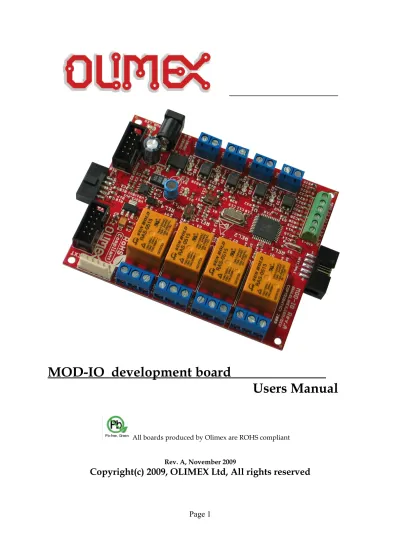

MOD-IO development board Users Manual

(1)

MOD-IO development board

(2)

INTRODUCTION

MOD-IO is a small but powerful development board who let you control 4 optoisolated input and 4 relay outputs - with this features is possible to turn on and off almost any electronic device at home. The board has UEXT_FEMALE connector which allows you to communicate with a PC and UEXT_MALE connector where you can connect other Olimex board with UEXT.

BOARD FEATURES

– Microcontroller: Atmega16L – AVRISP connector – JTAG connector – EXT connector – UEXT_MALE – UEXT_FEMALE – Clock circuit – User button

– Reset circuit and button

– Power Jack

– Power-on led

– Nine status leds

– Four optocoupler isolated inputs

– Four Relays

– PCB: FR-4, 1.5 mm (0,062"), solder mask, silkscreen component print

– Dimensions: 100x80 mm (3.94x3.15")

ELECTROSTATIC WARNING

The MOD-IO board is shipped in protective anti-static packaging. The board must not be subject to high electrostatic potentials. General practice for working with static sensitive devices should be applied when working with this board.

(3)

Hardware: One of Olimex programmers/debuggers – AVR-PG1, AVR-PG2,

AVR-ISP500, AVR-ISP500-TINY, AVR-ISP500-ISO, AVR-JTAG, AVR-USB-JTAG, or other compatible programming/debugging tool.

Software: AVR C Compiler

PROCESSOR FEATURES

MOD-IO use 8-bit AVR Microcontroller with 16K Bytes In-System Programmable Flash, with these features:

– High-performance, Low-power AVR® 8-bit Microcontroller

– Advanced RISC Architecture

– 131 Powerful Instructions – Most Single-clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

– High Endurance Non-volatile Memory segments

– 16K Bytes of In-System Self-programmable Flash program memory

– 512 Bytes EEPROM

– 1K Byte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program True Read-While-Write Operation

– Programming Lock for Software Security

– JTAG (IEEE std. 1149.1 Compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG

Interface

(4)

2 Differential Channels with Programmable Gain at 1x, 10x, or 200x

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down,

Standby and Extended Standby

– I/O and Packages

– 32 Programmable I/O Lines

– Operating Voltages

– 2.7 - 5.5V

– Speed Grades

– 0 - 8 MHz

– Power Consumption @ 1 MHz, 3V, and 25⋅C

– Active: 1.1 mA

– Idle Mode: 0.35 mA

(5)

(6)

(7)

(8)

SCHEMATIC

B H 1 0 S T 1 1 0 7 A (6 x3 .8 x 2 .5 m m ) 4 n 7 1 u F /5 0 v 1 0 0 n 2 2 0 u F /3 5 V 220u/10V/tant 1 0 n 1 0 0 n 1 0 0 n 47uF/6.3V 1 0 0 n N A 3 3 p 3 3 p 1 0 0 n 1 0 0 n 1 0 0 n 1 0 0 n 1 0 0 n 1 0 0 n 3 3 n F 3 3 n F 3 3 n F 3 3 n F 1 N 5 8 1 9 (s m d ) 1 N 4 1 4 8 /S M D 1 N 4 1 4 8 /S M D 1 N 4 1 4 8 /S M D 1 N 4 1 4 8 /S M D W F 6 S D B 1 0 4 (S M D ) 1 0 0 u H /S W 6 8 d d d d g re e n g re e n g re e n g re e n + 5 V +5V +5V +5V +5V Y D J -1 1 3 4 re d 8M H z/ 20 pF 3 2 7 6 8 H z /6 p F 1 5 0 k 1 1 0 k 8 .2 K 2 K 3 9 0 R /1 % 2 4 0 R /1 % 1 K 1 0 0 R 1 0 K 3 3 0 R 4 .7 K 10 0 R N A 4 .7 K N A 4 .7 K 4 .7 K N A _NA N A _NA 4 .7 K 4 .7 K 4 .7 K 4 .7 K 1 K 1 0 K 1 K 1 K 10 K 1 K 1 K 10 K 1 K 1 K 10 K 1 K R A S -0 5 -1 5 R A S -0 5 -1 5 R A S -0 5 -1 5 R A S -0 5 -1 5 T 1 1 0 7 A (6 x3 .8 x 2 .5 m m ) ye llo w B C 8 1 7 B C 8 1 7 B C 8 1 7 B C 8 1 7 A T M E G A 1 6 L M C P 1 3 0 T H 1 1 A 8 1 7 S M D H 1 1 A 8 1 7 S M D H 1 1 A 8 1 7 S M D H 1 1 A 8 1 7 S M D ID C 1 0 S /P C B B H 1 0 S 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3 .3 V 3.3V B D 9 0 0 1 F S O -8 L M 1 1 1 7 IM P X -A D J 8 -3 0 V D C A N [1 .. 4 ] O [1 .. 4 ] O[1..4] O [1 .. 4 ] # S S # S S # S S A N 1 A N 1 A N 2 A N 2 A N 3 A N 3 A N 4 A N 4 B U T B U T I1 I1 I1 I2 I2 I2 I3 I3 I3 I4 I4 I4 L E D M IS O M IS O M IS O M O S I M O S I M O S I O 1 O 1 O 2 O 2 O 3 O 3 O 4 O 4 R S T R S T R S T R X D R X D R X D S C K S C K S C K S C L S C L S C L S D A S D A S D A T C K T C K T D I T D I T D O T D O T M S T M S T X D T X D T X D 1 2 3 4 5 6 7 8 9 1 0 A V R IS P B U T C 1 C 2 C 3 C 4 C 5 C 6 C 7 C 8 C 9 C 1 0 C1 1 C 1 2 C 1 3 C 1 4 C 1 5 C 1 6 C 1 7 C 1 8 C 1 9 C 2 0 C 2 1 C 2 2 C 2 3 D 1 D 6 D 7 D 8 D 9 1 2 3 4 5 6 E X T G 1 G N D 1 2 3 4 5 6 7 8 9 1 0 J T A G L 1 1 2 3 4 O 1 O 2 O 3 O 4 O U T 1 -1 O U T 1 -2 O U T 1 -3 O U T 2 -1 O U T 2 -2 O U T 2 -3 O U T 3 -1 O U T 3 -2 O U T 3 -3 O U T 4 -1 O U T 4 -2 O U T 4 -3 P W R _ J P W R _ L E D Q 1 Q 2 R 1 R 2 R 3 R 4 R 5 R 6 R 7 R 8 R 9 R 1 0 R 1 1 R 1 2 R1 3 R 1 4 R 1 5 R 1 6 R 1 7 R 1 8 R 2 0 R 2 2 R 2 4 R 2 6 R 2 8 R 3 0 R 3 2 R 3 4 R 3 5 R3 6 R 3 7 R 3 8 R3 9 R 4 0 R 4 1 R4 2 R 4 3 R 4 4 R4 5 R 4 6 R E L 1 R E L 1 R E L 2 R E L 2 R E L 3 R E L 3 R E L 4 R E L 4 R S T S T A T T 1 T 2 T 3 T 4 (A D C 0) P A 0 3 7 (A D C 1) P A 1 36 (A D C 2) P A 2 35 (A D C 3) P A 3 34 (A D C 4) P A 4 33 (A D C 5) P A 5 32 (A D C 6 )P A 6 31 (A D C 7) P A 7 30 (A IN 0/ IN T 2) P B 2 42 (A IN 1) P B 3 4 3 (I C P )P D 6 15 (I N T 0) P D 2 11 (I N T 1 )P D 3 12 (M IS O )P B 6 2 (M O S I) P B 5 1 (O C 1A )P D 5 14 (O C 1B )P D 4 1 3 (O C 2) P D 7 1 6 (R X D )P D 0 9 (S C K )P B 7 3 (S S )P B 4 44 (T 0) P B 0 40 (T 1) P B 1 41 (T O S C 1) P C 6 25 (T O S C 2) P C 7 26 (T X D )P D 1 10 A G N D 28 A R E F 2 9 A V C C 27 G N D 6 G N D 1 1 8 G N D 2 39 P C 0 (S C L) 19 P C 1( S D A ) 2 0 P C 2( T C K ) 21 P C 3 (T M S ) 22 P C 4( T D O ) 23 P C 5( T D I) 24 R E S E T 4 V C C 5 V C C 1 17 V C C 2 3 8 X T A L1 8 X T A L2 7 3 1 2 G N D V C C R E S E T U 2 1 2 4 3 U 3 1 2 4 3 U 4 1 2 4 3 U 5 1 2 4 3 U 6 1 2 3 4 5 6 7 8 9 10 U E X T _ F E M A L E 1 2 3 4 5 6 7 8 9 10 U E X T _ M A L E E N 5 F B 3 G N D 7 IN V 4 N .C . 2 R T 6 S W 1 V IN 8 V R 1 (5 V ) A D J /G N D IN O U T V R 2 (3 .3 V )

M

O

D

-I

O

R e v. A C O P Y R IG H T (C ), 2 0 0 9 h tt p :/ /w w w .o lim e x. c o m /d e v + + + G ND 0 R F m a x = 5 0 k H z

(9)

BOARD LAYOUT

POWER SUPPLY CIRCUIT

MOD-IO is typically power supplied with 8-30V DC.

Power consumption when all relays are working is about 310 mA.

CLOCK CIRCUIT

Crystal Quartz 8 MHz connected to Atmega16l pin 7 (XTAL2) and pin 8 (XTAL1). Crystal Quartz 32.768kHz connected to Atmega16L pin 25 ((TOSC1)PC6) and pin 26 ((TOSC2)PC7).

RESET CIRCUIT

MOD-IO reset circuit includes Reset scheme MCP130T (U2), AVRISP connector pin 5, JTAG connector pin 6, Atmega16L pin 4 (RESET), R9 (100Ohm), R10 (10k), C10 (100nF) and RST button.

(10)

CONNECTOR DESCRIPTIONS

AVRISP

Pin # Signal Name

1 MOSI 2 3.3V 3 NC 4 GND 5 RST 6 GND 7 SCK 8 GND 9 MISO 10 GND

JTAG

1 TCK 2 GND 3 TDO 4 3.3V 5 TMS 6 RST 7 3.3V 8 NC 9 TDI 10 GND

EXT

1 PD7

2 PD6

3 PD5

(11)

1 NC 2 GND 3 RXD 4 TXD 5 SCL 6 SDA 7 MISO 8 MOSI 9 SCK 10 #SS

UEXT_FEMALE

1 NC 2 GND 3 RXD 4 TXD 5 SCL 6 SDA 7 MISO 8 MOSI 9 SCK 10 #SS

IN1, IN2 IN3, IN4

Pin # Signal

1

-2 +

(12)

OUT4 connected to (ADC0)PA0 – signal name O1

AIN-1

Pin # Signal Name Connected to

1 3.3V VCC

2 AN1 (ADC7)PA7

3 AN2 (ADC6)PA6

AIN-2

Pin # Signal Name Connected to

1 AN3 (ADC5)PA5

2 AN4 (ADC4)PA4

3 AGND Analog GND

PWR_J

1 Power Input

2 GND

JUMPER DESCRIPTION

There are no jumpers on this board.

INPUT/OUTPUT

User button with name BUT – connected to Atmega16L pin 11 ((INT0)PD2).

Reset button with name RST – connected to Atmega16L pin 4 (RESET).

StatusLED (yellow) with name STAT – connected via R11 (330 Ohm) to Atmega16l pin 43 ((AIN1)PB3).

Status LED (red) with name LED1 – visualize input (IN1) state.

Status LED (green) with name O1 – visualize relay (REL1) state.

Power-on LED (red) with name PWR_LED – shows that +3.3V voltage is applied to the board.

(13)

(14)

AVAILABLE DEMO SOFTWARE

(15)

ORDER CODE

MOD-IO assembled and tested. How to order?

You can order to us directly or by any of our distributors.

Check our web www.olimex.com/dev for more info.
