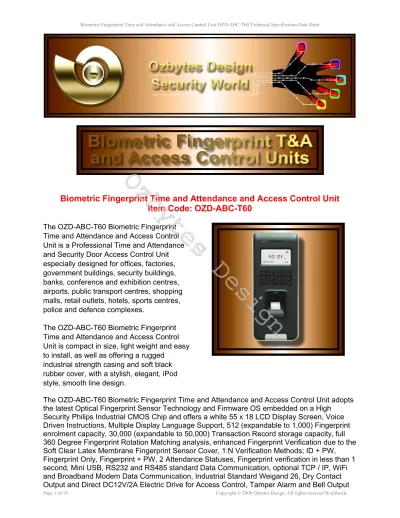

Biometric Fingerprint Time and Attendance and Access Control Unit
Item Code: OZD-ABC-T60
The OZD-ABC-T60 Biometric Fingerprint Time and Attendance and Access Control Unit is a Professional Time and Attendance and Security Door Access Control Unit especially designed for offices, factories, government buildings, security buildings, banks, conference and exhibition centres, airports, public transport centres, shopping malls, retail outlets, hotels, sports centres, police and defence complexes.
The OZD-ABC-T60 Biometric Fingerprint Time and Attendance and Access Control Unit is compact in size, light weight and easy to install, as well as offering a rugged
industrial strength casing and soft black rubber cover, with a stylish, elegant, iPod style, smooth line design.
The OZD-ABC-T60 Biometric Fingerprint Time and Attendance and Access Control Unit adopts the latest Optical Fingerprint Sensor Technology and Firmware OS embedded on a High Security Philips Industrial CMOS Chip and offers a white 55 x 18 LCD Display Screen, Voice Driven Instructions, Multiple Display Language Support, 512 (expandable to 1,000) Fingerprint enrolment capacity, 30,000 (expandable to 50,000) Transaction Record storage capacity, full 360 Degree Fingerprint Rotation Matching analysis, enhanced Fingerprint Verification due to the Soft Clear Latex Membrane Fingerprint Sensor Cover, 1:N Verification Methods; ID + PW, Fingerprint Only, Fingerprint + PW, 2 Attendance Statuses, Fingerprint verification in less than 1 second, Mini USB, RS232 and RS485 standard Data Communication, optional TCP / IP, WiFi and Broadband Modem Data Communication, Industrial Standard Weigand 26, Dry Contact Output and Direct DC12V/2A Electric Drive for Access Control, Tamper Alarm and Bell Output
to interface with Alarm Equipment outside and output the Alarm Card Number to the Access Controller by Industrial Standard Wiegand 26 Output, Black Colour standard (customisable), either Wall or Desk Mounting on a secure Key Lockable Mounting Plate, Time Zone Access Control and Real-time Attendance Record Data Monitoring Functionality, free Software
Development Kit (SDK), optional internet Web Data Query Software, and free bundled Time and Attendance and Access Control Management Software.
The free bundled Time and Attendance and Access Control Management Software included with OZD-ABC-T60 enables the total work time calculation and reporting for one clock-in and one clock-out record per employee per assigned shift day or each set of clock-in / out records per work session for Time and Attendance and / or Door Access Reporting purposes.
This cost effective employee work time calculating can save Companies a lot of money in Administration costs annually as opposed to requiring Employees to manually fill-in Weekly Work Timesheets, which must be approved by Supervisors and then manually input into the Companies Payroll System by Administration Employees.
The OZD-ABC-T60 Biometric Fingerprint Unit is a high technology Biometric Fingerprint Time and Attendance and Access Control Unit. The OZD-ABC-T60 Unit operates in the following manner:
Up to 512 (expandable to 1,000) Employees Fingerprints, Identification Numbers and Passwords can be enrolled directly on the OZD-ABC-T60 Hardware Unit or via the Time and Attendance and Access Control Management Software.
The OZD-ABC-T60 Unit's Firmware Operating System is embedded on a Security Chip seated on the OZD-ABC-T60 Unit's Computer Motherboard. This Security Chip cannot be accessed, nor can the data stored on the Security Chip be edited, deleted or
otherwise tampered with.
Employees Fingerprints are captured by the Fingerprint Sensor. When enrolling an Employee on the OZD-ABC-T60 Unit, the Employees Fingerprint must be successfully scanned twice before it is saved to the database system embedded on the Security Chip. The Employees Fingerprint image is broken up into segments, edited by morphing
(transformation), converted to digital binary code, encrypted, and saved as a Fingerprint Profile Template to the Security Chip using a proprietary Pattern Matching Algorithm. The Employee Fingerprint Profile Templates cannot be accessed, re-created, edited, deleted or otherwise tampered with, except by an authorised System Administrator who has logged onto the OZD-ABC-T60 Unit. The authorised System Administrator can then only add or delete Employee Fingerprint Profiles.
The Fingerprint Sensor is covered with a thin layer of clear latex. This aids in the efficiency of capturing Fingerprint Images by completely reducing the possibility of residual fingerprint smears being left behind by the previous Employee using their finger to enrol or clock-in / out of the system. It also enables grease, oil or other foreign
materials to be easily removed from the Fingerprint Sensor. Finally, it also assists with the efficient reading of Fingerprints from Employees who have dry fingers or have recently received a scar on their finger after an accident.
The Fingerprint Sensor also detects pressure and a pulse, to ensure a “sign of life” is registered along with the captured Fingerprint Image.
OZD-ABC-T60 also performs a full 360 degree Matching analysis of Fingerprint Image captured by the Fingerprint Sensor and compares it by rotating the captured Fingerprint Image a full 360 degrees, comparing it against the data stored in the enrolled Fingerprint Template files at each interval of the Image Rotation Processing.
OZD-ABC-T60 can be used as a Time and Attendance Unit only by registering Employees Clock-in and Clock-out records as they arrive at or leave work and also deduct times for breaks and lunch if required, as a Door Opening Access Control Unit only by allowing authorised Employees to open office doors to high-security restricted access office areas, or as dual Time and Attendance and Access Control Unit.
ABC-T60 interfaces with our compatible Access Controllers ::: Model No’s.: ABC-AMJ601 and ABC-AMJ602, Electronic Bolt Door Lock ::: Model No.: OZD-ABC-EC235, Magnetic Door Lock ::: Model No.: OZD-ABC-MC270L233, Door Exit Switch ::: Model No.: OZD-ABC-DOS100 and 240V AC Uninterruptable Power Supply ::: Model No.: OZD-SAN-BLA1000 to establish Door Access Control using Industrial
Standard Weigand 26, Dry Contact Output or Direct DC12V/2A Electric Drive Control. Access Control Operation: 2 OZD-ABC-T60 Units can be connected to the chosen Door
Lock to enable compilation of employee Entry and Exit Door Opening records. Alternatively, 1 OZD-ABC-T60 Unit and a Door Exit Switch can be connected to the chosen Door Lock to enable compilation of employee Entry Door Opening records.
The OZD-ABC-T60 Unit can be connected to a computer or laptop by using USB,
RS232, RS485 or TCP / IP (optional) or WiFi (optional) Data Communication or a LAN or WAN Server using Broadband Modem (optional) Data Communication. This enables Fingerprint Profile Templates, Employee Passwords / ID Numbers and Time and
Attendance and Access Control Door Opening Records to be downloaded from the OZD-ABC-T60 Unit to the computer or laptop. These same Fingerprint Profile Templates, Employee Passwords / ID Numbers can then be uploaded to other OZD-ABC-T60 Units so that all Employee Data can be synchronised on all the OZD-ABC-T60 Units within the enterprise.
OZD-ABC-T60 also offers Time Zone Access Control and Real-Time Attendance Record Data Monitoring; enable access to high security areas to be restricted to authorised personnel during pre-configured time periods only. Different time periods can be
configured individually for authorised personnel and all activity can be monitored in real-time.
The optional Software Development Kit available for OZD-ABC-T60 enables the development of high-level application software enabling full management of the OZD-ABC-T60, including real-time attendance record capturing and a vast array of other features. The SDK can also be used to interface the OZD-ABC-T60 Unit with existing Payroll Applications, etc.
The optional internet Web Data Query Software enables internet based device data automatic real-time synchronisation, online attendance record viewing, analysing and report generation and a host of other features.
The OZD-ABC-T60 Biometric Fingerprint Time and Attendance and Access Control Unit has successfully been installed in the following Industry sectors:
Commercial Offices Banks
Manufacturers Hospitals
Management Systems for Contractor Employees Restaurant Management Systems
School / Student Management Systems Laboratories
Restricted Access Offices / Rooms Parking Lots
Warehouses
Public Institutions
Membership and Fitness Centres Hotels
Our Time and Attendance and Access Control Units have successfully used for the following range of Applications:
Government Departments Systems Banking Systems
Prison Systems Museum Systems Finance Systems
Military Facility Systems
High-tech R&D Centre Systems
Warehousing Systems for Treasure and Valuable Goods Security Entrance and Exit Systems
Data Centre Systems Elevator Hall Systems Mining Systems Engineering Systems
Core Applications:
Employee Time and Attendance. Employee Job Costing.
Security Door Access.
Local PC, LAN, WAN and WLAN Hardware Remote Control.
Key Features:
Light Weight, Rugged, Industrial Strength Casing. Compact Size with Comprehensive Features. Optical Fingerprint Sensor.
Improved Philips Industrial CMOS Core Embedded Chip Module. Voice Leading Instructions.
Multiple Display Language Support. 55 x 18 White LCD Display Screen.
512 (expandable to 1,000) Fingerprint enrolment capacity.
30,000 (expandable to 50,000) Transaction Record storage capacity. Full 360 degree Fingerprint Matching analysis.
Excellent Identification.
Enhanced Fingerprint Identification due to soft, clear latex membrane fingerprint sensor cover (removes potential for residual fingerprint image duplication which is possible with glass fingerprint sensor covers).
Fingerprint Sensor Scan Area: 15.00 mm x 16.00 mm.
1:N Verification Methods; ID + PW, Fingerprint Only, Fingerprint + PW. False Rejection Rate (FRR): < 0.001 %.
False Acceptance Rate (FAR): < 0.00001 %. ESD Tolerance: > 15,000 V.
Fingerprint verification in less than 1 second.
Employee ID Number displayed on LCD Display Screen upon Fingerprint verification. USB, RS232 and RS485 standard Data Communication.
Optional TCP / IP Data Communication. Optional WiFi Data Communication.
Optional Broadband Modem Data Communication.
Industrial Standard Weigand 26, Dry Contact Output or Direct DC12V/2A Electric Drive for Access Control.
Tamper Alarm and Bell Output to interface with Alarm Equipment outside and output the Alarm Card Number to the Access Controller by Industrial Standard Wiegand 26 Output. Black Colour standard (customisable).
Wall or Desk Mounting on a secure Key Lockable Mounting Plate.
Time Zone Access Control and Real-time Attendance Record Data Monitoring Functionality.
Time and Attendance and Access Control Management Application.
Web Data Query - Internet Database Record Viewing / Printing Application (optional). Software Development Kit (SDK) available.
Windows 98 / ME / NT / 2000 / XP / Vista supported.
Accessories include RS232 cable, Time and Attendance and Access Control Management Software Installation CD, User's guide, (12V DC Power Adaptor not included), Installation Accessories, and Locking Key.
Manufactured to CE, ISO9001 and FCC Quality Assurance and International Accreditation Standards.
Full 12 Month “New-for old” Return-to-base Warranty included.
Ozbytes Design
Technical Specifications
Casing: Light Weight, Durable, Industrial Strength Hard Plastic Casing. System Type: High technology Biometric Fingerprint Time and Attendance and
Access Control Unit.
Security Chip Module: Improved Philips Industrial CMOS Core Embedded Chip Module. Fingerprint Sensor Type: Optical Fingerprint Sensor.
Fingerprint Matching: Full 360 degree Fingerprint Matching analysis. Display Type: 55 x 18 White LCD Display Screen.
Enrolment Capacity: 512 (expandable to 1,000) Fingerprint storage capacity. Record Capacity: 30,000 (expandable to 50,000) Transaction Record storage
capacity.
Verification Methods: 1:N; ID + PW, Fingerprint Only, Fingerprint + PW Verification Time: < 1 Second.
Sensor Scan Area: 15.00 x 16.00 mm. Sensor Image Resolution: 500 DPI - Greyscale. False Rejection Rate
(FRR): < 0.001 %. False Acceptance Rate
(FAR):
< 0.000001 %. ESD Tolerance: > 15,000 V.
Sensor Characteristics: Excellent Identification. Enhanced Fingerprint Identification due to soft, clear latex membrane fingerprint sensor cover (removes potential for residual fingerprint image duplication which is possible with glass fingerprint sensor covers).
Communication Speed: 57,600 bps. USB. RS232. RS485.
TCP/IP (optional).
Optional Broadband Modem (optional). Optional 2.4 GHz 802.11 b / g WiFi (optional). Communication Types:
Optional 2.4 GHz 802.11 b / g Wireless LAN Card (by negotiation).
USB / RS232 - 300 Metres maximum. RS485 / LAN – 1,200 Metres maximum. Communication Distance:
WAN / WLAN – Limited by infrastructure only.
Access Control Standard: Industrial Standard Weigand 26, Dry Contact Output or Direct DC12V/2A Electric Drive Control for Access Control.
Alarm Capabilities: Tamper Alarm and Bell Output to interface with Alarm Equipment outside and output the Alarm Card Number to the Access
Controller by Industrial Standard Wiegand 26 Output.
Ozbytes Design
Technical Specifications Continued
Operating Power: 12V DC, 1 Amp. Operating Current: < 200 mA. Hibernation Current: < 50 uA.
Colour: Black Colour standard (customisable). Operating Temperature /
Humidity:
-10 – 60 ºC / 20 – 80% (Non Condensing)
USB cable, Time and Attendance and Access Control
Management Software Installation CD, User's guide, (12V DC Power Adaptor not included), Installation Accessories, Locking Key.
Time Zone Access Control Functionality.
Real-time Attendance Record Data Monitoring Functionality. Web Data Query - Internet Database Record Viewing / Printing Application (optional).
Accessories Included:
Software Development Kit S.D.K. (optional).
Warranty: Full 12 Month “New-for old” Return-to-base Warranty included. Accreditation Standards: Manufactured to CE, ISO9001 and FCC Quality Assurance and
International Accreditation Standards. Unit Dimensions: 9.00 cm x 20.00 cm x 3.50 cm.
Unit Weight: 1.10 kg.
Shipping Dimensions: 20.00 cm x 25.00 cm x 10.50 cm. Shipping Weight: 2.00 kg.
Compatible Accessories: Access Control - Direct DC12V/2A Electric Drive Control
OZD-ABC-EC235 – Electronic Bolt Door Lock. OZD-ABC-MC270L235 – Magnetic Door Lock. OZD-ABC-DOS100 – Door Exit Switch.
OZD-SAN-BLA1000 – 240V AC Uninterruptable Power Supply.
Access Control – Dry Contact Output
OZD-ABC-EC235 – Electronic Bolt Door Lock OZD-ABC-MC270L235 – Magnetic Door Lock
OZD-ABC-PS100 – 200 to 250V AC to 12V DC Power Supply Converter Box.
OZD-ABC-DOS100 – Door Exit Switch.
OZD-SAN-BLA1000 – 240V AC Uninterruptable Power Supply.
Ozbytes Design
Technical Specifications Continued Access Control – Weigand 26
OZD-ABC-AMJ601 – Access Controller. OZD-ABC-AMJ602 – Access Controller. OZD-ABC-EC235 – Electronic Bolt Door Lock. OZD-ABC-MC270L235 – Magnetic Door Lock. OZD-ABC-DOS100 – Door Exit Switch.
OZD-SAN-BLA1000 – 240V AC Uninterruptable Power Supply.
Alarm Control
OZD-REL-RP208CN – 8 Zone Alarm Controller. OZD-REL-RP208KCL – Alarm Control Keypad.
OZD-REL-RP208CNWM – Alarm Controller Wireless Module. OZD-REL-AD103 – Mini Strobe Siren.
OZD-REL-ES626 – Siren without Light. OZD-REL-HC05 – Strobe Light.
OZD-SAN-BLA1000 – 240V AC Uninterruptable Power Supply.
Data Communication
OZD-ABC-RS232LAN – RS232 to TCP / IP Data Converter Plug. OZD-ABC-RS485LAN – RS485 to TCP / IP Data Converter Plug. OZD-ABC-RS232MODEM – RS232 to Modem Data Converter Module.
OZD-ABC-RS232WIFI – RS232 to WiFi Data Converter Module. OZD-ABC-RSC100 – RS485 to RS232 Data Converter Plug
OZD-ABC-T60 Unit Connection Interface Diagram
Ozbytes Design
ACCESS CONTROL ELECTRICAL WIRING DIAGRAMS – DRY CONTACT OUTPUT
ACCESS CONTROL ELECTRICAL WIRING DIAGRAMS – 12V DC/2A DIRECT DRIVE
ACCESS CONTROL ELECTRICAL WIRING DIAGRAMS – WEIGAND 26 OUTPUT 1
ACCESS CONTROL ELECTRICAL WIRING DIAGRAMS – WEIGAND 26 OUTPUT 2
DATA COMMUNICATION SCHEMATIC DIAGRAM
WAN DATA COMMUNICATION SCHEMATIC DIAGRAM
MIXED LAN / WIRELESS LAN DATA COMMUNICATION SCHEMATIC DIAGRAM
FULL DATA COMMUNICATION OPTIONS SCHEMATIC DIAGRAM
Your OZD-ABC-T60 Biometric Fingerprint Time and Attendance and Access Control Unit has been manufactured and quality assurance tested to ISO9001, FCC and CE Standards.
Your OZD-ABC-T60 Biometric Fingerprint Time and Attendance and Access Control Unit comes with a full 12 month return-to-base Warranty. Any faulty products will be immediately replaced with a new OZD-ABC-T60 Biometric Fingerprint Time and Attendance and Access Control Unit. For all Customer Care issues, contact your Local Reseller in the first instance, or the Australian / International Distributors whose contact details appear below:
