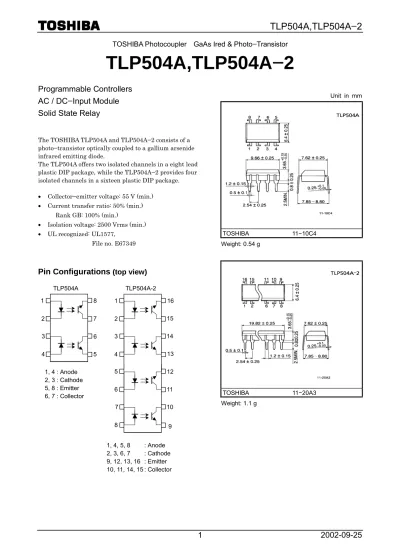

TLP504A,TLP504A 2. Programmable Controllers AC / DC Input Module Solid State Relay. Pin Configurations (top view)

2002-09-25

1

TOSHIBA Photocoupler GaAs Ired & Photo−Transistor

TLP504A,TLP504A−

−−

−2

Programmable Controllers

AC / DC−Input Module

Solid State Relay

The TOSHIBA TLP504A and TLP504A−2 consists of a photo−transistor optically coupled to a gallium arsenide infrared emitting diode.

The TLP504A offers two isolated channels in a eight lead plastic DIP package, while the TLP504A−2 provides four isolated channels in a sixteen plastic DIP package. · Collector−emitter voltage: 55 V (min.)

· Current transfer ratio: 50% (min.) Rank GB: 100% (min.)

· Isolation voltage: 2500 Vrms (min.) · UL recognized: UL1577,

File no. E67349

Pin Configurations (top view)

1, 4 : Anode 2, 3 : Cathode 5, 8 : Emitter 6, 7 : Collector TLP504A TLP504A-2 1 2 7 8 3 4 5 6 5 6 11 12 7 8 ₉ 10 1 2 15 16 3 4 13 14 1, 4, 5, 8 2, 3, 6, 7 9, 12, 13, 16 10, 11, 14, 15 : Anode : Cathode : Emitter : Collector Unit in mm TOSHIBA 11−10C4 Weight: 0.54 g TOSHIBA 11−20A3 Weight: 1.1 g

Maximum Ratings (Ta = 25°C)

Rating Characteristic Symbol

TLP504A TLP504A-2 Unit

Forward current I_F 60 50 mA

Forward current derating ∆IF / °C -0.7 (Ta ≥ 39°C) -0.5 (Ta ≥ 25°C) mA /°C

Pulse forward current I_FP 1 (100µs pulse, 100pps) A

Reverse voltage V_R 5 V

LE

D

Junction temperature T_j 125 °C

Collector_{-emitter voltage} V_CEO 55 V

Emitter-collector voltage V_ECO 7 V

Collector current I_C 50 mA

Collector power dissipation

(1 circuit) PC 150 100 mW

Collector power dissipation

derating (1 circuit Ta ≥ 25°C) ∆PC / °C -1.5 -1.0 mW /°C

Det

ec

tor

Junction temperature T_j 125 °C

Storage temperature range T_stg -55~150 °C

Operating temperature range T_{opr -55~100 °C}

Lead soldering temperature T_sol 260 (10 s) °C

Total package power dissipation R_T 250 150 mW

Total package power dissipation

derating (Ta ≥ 25°C) ∆PT / °C -2.5 -1.5 mW / °C

Isolation voltage BV_S 2500 (AC, 1min., R.H.≤ 60%) (Note 1) Vrms

(Note 1) Device considered a two terminal device: LED side pins shorted together and detector side pins shorted together.

Recommended Operating Conditions

Characteristics Symbol Min. Typ. Max. Unit

Supply voltage V_CC ― 5 24 V

Forward current I_F ― 16 20 mA

Collector current I_C ― 1 10 mA

2002-09-25

3

Individual Electrical Characteristics (Ta = 25°C)

Characteristic Symbol Test Condition Min. Typ. Max. Unit

Forward voltage VF IF = 10 mA 1.0 1.15 1.3 V

Reverse current I_R V_R = 5 V — — 10 µA

LE

D

Capacitance C_T V = 0, f = 1 MHz — 30 — pF

Collector_-emitter

breakdown voltage V(BR) CEO IC = 0.5 mA 55 — — V

Emitter_-collector

breakdown voltage V(BR) ECO IE = 0.1 mA 7 — — V

V_CE = 24 V — 10 100 nA

Collector dark current I_CEO

V_CE = 24 V, Ta = 85°C — 2 50 µA Det ec tor Capacitance collector to emitter CCE V = 0, f = 1 MHz — 10 — pF

Coupled Electrical Characteristics (Ta = 25°C)

Characteristic Symbol Test Condition Min. Typ. Max. Unit 50 — 600

Current transfer ratio IC / IF IF = 5 mA, V_{Rank GB} CE = 5 V

100 — 600 %

— 60 — Saturated CTR I_C / I_{F (sat)} IF = 1 mA, V_{Rank GB} CE = 0.4 V

30 — — %

I_C = 2.4 mA, I_F = 8 mA — — 0.4 — 0.2 — Collector-emitter

saturation voltage VCE (sat) I_C = 0.2 mA, I_F = 1 mA

Rank GB _{— — 0.4}

V

Isolation Characteristics (Ta = 25°C)

Characteristic Symbol Test Condition Min. Typ. Max. Unit Capacitance input to output C_S V_S = 0, f = 1 MHz — 0.8 — pF

Isolation resistance R_S V_S = 500 V 5×1010 ₁₀14 _{— Ω}

AC, 1 minute 2500 — —

AC, 1 second, in oil — 5000 — Vrms

Isolation voltage BVS

Switching Characteristics (Ta = 25°C)

Characteristic Symbol Test Condition Min. Typ. Max. Unit

Rise time tr — 2 —

Fall time t_f — 3 —

Turn-on time ton — 3 —

Turn_{-off time} t_off

V_CC = 10 V, I_C = 2 mA RL = 100Ω

— 3 — µs

Turn-on time t_ON — 2 —

Storage time t_s — 15 —

Turn_{-off time} t_OFF

R_L = 1.9 kΩ (Fig.1) V_CC = 5 V, I_F = 16 mA

— 25 — µs

Fig. 1 Switching time test circuit

VCC VCE IF RL IF VCE VCC

t

ON 4.5V 0.5V

t

OFF

t

S

2002-09-25

5

Fo rw ar d v ol tag e t em per atu re coef fici en t Δ VF /Δ Ta (m R V / ℃ ) ΔV_F/ΔTa – I_F 0.1 -2.0 -2.4 -2.8 -0.4 0.3 -1.6 -1.2 -0.8 1 3 10 30

Forward current I_F (mA)

IFP – VFP P ul se f orw ar d c ur ren t I FP ( m A )

Pulse forward voltage VFP (V)

1000 500 0 3 50 5 300 30 10 100 1 0.4 0.8 1.0 1.2 1.4 1.6 Pulse width ≤ 10µs Repetitive frequency=100Hz Ta = 25℃ Forward voltage VF (V) IF – VF Fo rw ar d c ur re nt I F ( m A ) 100 50 0.4 0.3 5 0.5 30 3 1 10 0.1 0.6 0.8 1.0 1.2 1.4 1.6 Ta = 25℃ A llo w abl e p ul se fo rw a rd cur ren t I FP (m A )

Duty cycle ratio DR

IFP – DR 5000 3000 3 3 10-3 3 10 1000 500 30 100 50 300 10-1 10-2 _{3 10}0 Pulse width ≤ 100µs Ta = 25℃ PC – Ta A llo w abl e c ol le ct or pow er di ssi pati o n P C (m W ) Ambient temperature Ta (℃) 240 160 -20 0 120 80 40 120 100 80 60 20 40 0 200 TLP504A TLP504A-2 IF – Ta A llo w abl e f orw ard cu rr ent I F ( m A ) Ambient temperature Ta (℃) 100 80 -20 0 60 40 20 120 120 100 80 60 20 40 0 TLP504A TLP504A-2

ICEO – Ta C ol le ct or da rk cu rr en t I CE O ( μ A) Ambient temperature Ta (℃) 101 100 10-1 80 60 40 20 0 100 10-2 10-3 120 10-4 IC – IF Co lle ct or cu rr en t IC (mA )

Forward current IF (mA)

0.3 100 50 10 5 0.3 0.5 0.1 3 1 1 3 10 30 100 30 0.05 0.03 Ta = 25°C VCE = 5V VCE = 0.4V SAMPLE A SAMPLE B Collector-emitter voltage VCE (V) Co lle ct or cu rr e nt IC ( m A ) IC – VCE 50mA 80 10 8 4 6 0 2 60 40 20 0 Ta = 25℃ 20mA 15mA P_C(MAX.) IF=5mA 30mA 10mA Collector-emitter voltage VCE (V) Co lle ct or cu rr e nt IC ( m A ) IC – VCE 25 1.0 0.8 0.4 0.6 0.2 20 15 10 0 0 5 1.2 1.4 50mA _40mA 30mA 20mA 10mA 5mA IF=2mA Ta = 25℃ IC / IF – IF C urr en t tr an sf er ra tio I C / IF (% )

Forward current IF (mA)

5 500 300 50 30 1 0.3 10 100 10 30 100 3 Ta = 25°C VCE = 5V VCE = 0.4V SAMPLE A SAMPLE B VCE = 24V 5V 10V

2002-09-25

7

IF = 5mA IC = 1mA Ambient temperature Ta (℃) C ol le ct or -e mi tte r s atu rati on vol ta ge VCE(sat) (V ) VCE (sat) – Ta 100 80 60 20 40 0 -20 0.20 0.16 0.12 0.08 0.04 0 80 60 20 40 0 -20 0.3 0.1 100 10 5 30 100 50 3 1 0.5 VCE = 5V Ambient temperature Ta (℃) Co lle ct or cu rr e nt I C (m A ) IC – Ta IF = 0.5mA 1mA 5mA 10mA 25mA Load resistance RL (kΩ) RL – Switching Time Switch in g ti m e ( μ s) 1 tON 1000 500 300 100 50 30 10 5 3 3 10 30 100 300 1 Ta = 25°C IF = 16mA VCC = 5V ts tOFF
