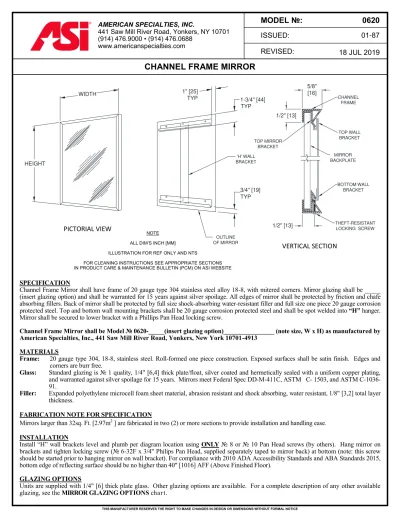

CHANNEL FRAME MIRROR

(1)

(914) 476.9000 • (914) 476.0688 www.americanspecialties.com

ISSUED:

REVISED:

01-87 18 JUL 2019

CHANNEL FRAME MIRROR

SPECIFICATION

Channel Frame Mirror shall have frame of 20 gauge type 304 stainless steel alloy 18-8, with mitered corners. Mirror glazing shall be _____

(insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be 20 gauge corrosion protected steel and shall be spot welded into “H” hanger.

Mirror shall be secured to lower bracket with a Phillips Pan Head locking screw.

Channel Frame Mirror shall be Model № 0620-_____(insert glazing option)________________ (note size, W x H) as manufactured by American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

MATERIALS

Frame: 20 gauge type 304, 18-8, stainless steel. Roll-formed one piece construction. Exposed surfaces shall be satin finish. Edges and corners are burr free.

Glass: Standard glazing is № 1 quality, 1/4" [6,4] thick plate/float, silver coated and hermetically sealed with a uniform copper plating, and warranted against silver spoilage for 15 years. Mirrors meet Federal Spec DD-M-411C, ASTM C- 1503, and ASTM C-1036- Filler: 91. Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8" [3,2] total layer

thickness.

FABRICATION NOTE FOR SPECIFICATION

Mirrors larger than 32sq. Ft. [2.97m² ] are fabricated in two (2) or more sections to provide installation and handling ease.

INSTALLATION

Install “H” wall brackets level and plumb per diagram location using ONLY № 8 or № 10 Pan Head screws (by others). Hang mirror on brackets and tighten locking screw (№ 6-32F x 3/4" Philips Pan Head, supplied separately taped to mirror back) at bottom (note: this screw should be started prior to hanging mirror on wall bracket). For compliance with 2010 ADA Accessibility Standards and ABA Standards 2015, bottom edge of reflecting surface should be no higher than 40" [1016] AFF (Above Finished Floor).

GLAZING OPTIONS

Units are supplied with 1/4" [6] thick plate glass. Other glazing options are available. For a complete description of any other available glazing, see the MIRROR GLAZING OPTIONS chart.

HEIGHT

WIDTH

5/8"

[16]

1/2" [13]

TOP MIRROR BRACKET

1/2" [13]

CHANNEL FRAME

TOP WALL BRACKET

MIRROR BACKPLATE

BOTTOM WALL BRACKET

THEFT-RESISTANT LOCKING SCREW 'H' WALL

BRACKET

OUTLINE OF MIRROR

3/4" [19]

TYP 1-3/4" [44]

TYP 1" [25]

TYP

VERTICAL SECTION PICTORIAL VIEW _NOTE

ALL DIM’S INCH [MM]

ILLUSTRATION FOR REF ONLY AND NTS

FOR CLEANING INSTRUCTIONS SEE APPROPRIATE SECTIONS IN PRODUCT CARE & MAINTENANCE BULLETIN (PCM) ON ASI WEBSITE

(2)

AMERICAN SPECIALTIES, INC.

441 Saw Mill River Road, Yonkers, NY 10701 (914) 476.9000 • (914) 476.0688

www.americanspecialties.com

MODEL №:

ISSUED:

REVISED:

THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE

0347 07-05 21 MAY 2020

3/4" [19]

3-15/16" [100]

3" [76]

4-13/16" [122]

8-3/16"

[208]

1-1/4" [32]

WALL PLATE MOUNT

SIGHT GAUGE 1-9/16"

[40]

1/2" [13]

ALL PURPOSE LOW SILHOUETTE LIQUID SOAP VALVE

WALL MOUNTING PLATE FINISHED WALL HINGED REFILL

DOOR

CL

SURFACE MOUNTED VERTICAL SOAP DISPENSER

SPECIFICATION

Surface Mounted Vertical Soap Dispenser shall have a capacity of 40 oz (1.2 L) of liquid soaps having a pH in range 7 ± 1.5 and viscosity in range 100-3500 cP (mPa•s). Soaps containing reportable salts, chlorides and alcohols should be avoided. Dispenser shall be fabricated of 20 gauge type 304 stainless steel, alloy 18-8. All exposed surfaces shall be satin finish. Valve shall be a plastic valve body and push button with stainless steel and plastic internal parts. Valve operation shall comply with 2010 ADA Accessibility Standards and ANSI A.117.1 by requiring no more than 5 lbsf (22.2 N) pressure to actuate and require no grasping or twisting by operator. A tamper resistant sight gauge shall be provided. Unit shall have a hinged stainless steel refill door on top of unit, which is opened with special key pro-vided.

Surface Mounted Vertical Soap Dispenser shall be Model № 0347 of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

INSTALLATION

Unit is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door. Recommended installation for general utility is 42" [1066] AFF (Above Finished Floor) or 6" [152] min above washbasin. For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, install unit with cen- terline of valve button no higher than 48" [1219] AFF.

OPERATION

Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open.

Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manu- ally on cycle determined by maintenance needs.

NOTE ALL DIM’S INCH [MM]

ILLUSTRATION FOR REF ONLY AND NTS

SEE SOAP DISPENSER CARE & MAINTENANCE DOCUMENT ONLINE FOR CLEANING

(3)

REVISED:

Accessory Specialties AMERICAN DISPENSER Desert Ray Products ,INC.

SURFACE MOUNTED PAPER TOWEL DISPENSER

5-07

SPECIFICATION

Surface Mounted Paper Towel Dispenser shall hold and dispense 525 standard multi-fold or 400 standard C-fold paper towels and shall be fabricated 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall have a N^o 4 satin finish and shall be protected during shipment with PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed- in rolled edge for snag-free dispensing and user safety. Dispenser door shall be attached to the bottom of unit with a concealed full length 3/16" diameter (Ø4.8) heavy duty stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of body and door components shall be of welded construction. Unit shall be provided with refill viewer slots on each side. Unit shall have internal towel stack guides. Wall below unit shall be protected against accidental door drop by self-limiting body and hinge construction. Dispenser shall enable simplified installation by hanging on pre-installed screw pattern (by others).

Surface Mounted Paper Towel Dispenser shall be Model N^o 0210 as manufactured by American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

INSTALLATION

Unit is surface mounted on wall or partition using five N^o 10 self-tapping screws (by others) through concealed mounting holes provided. Four mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Center top mounting hole is horizontal slot for ease of adjustment and vandal resistant locking. For compliance with ADA Accessibility Guidelines, install unit so that towel dispenser slot is 48" (1219) maximum AFF if clear floor access is provided or 46" (1168) maximum AFF if side reach over an obstruction (vanity) is only provided.

OPERATION

Towels are self-feeding as withdrawn by hand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Low level of towel supply is indicated from 25% capacity to empty. Locking door prevents unauthorized access or removal.

Note:

Dimensions are in inches and (millimeters) www.americanspecialties.com

(4)

441 Saw Mill River Road, Yonkers, NY 10701 (914) 476.9000 • (914) 476.0688

www.americanspecialties.com

1-1/2" DIAMETER [Ø38] GRAB BAR SERIES WITH SNAP-ON FLANGE COVERS MODEL №: 3800

ISSUED: 01/87

REVISED: 7 MAR 2017

SPECIFICATION

1-1/2" Diameter [Ø38] Grab Bar with Snap-On Flange Covers for concealed mounting shall be type 304 stainless steel alloy 18-8. Tubing shall be 1-1/2" diameter [Ø38] x 18 gauge (0.048") [1.2]. Snap-on cover shall be 22 gauge (0.03") [0.8]. Flange shall be 1/8" [3] thick and shall be heliarc welded to tubing with a continuous concealed bead. End flanges shall have two (2) 5/16" diameter [Ø7.5] mounting holes. Center posts (if any) shall have (2) keyhole slots to ease installation access. All exposed surfaces shall have a satin finish and shall be protected during shipment with a plastic bag. For optional non-slip surface add suffix –P (peened).

1-1/2" Diameter [Ø38] Grab bar with Snap-On Flange Covers shall be Series № 3800 of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701- 4913

STRENGTH

ASI Grab Bars are designed to meet and exceed ADA requirements as published in CABO/ANSI A117.1 and 2010 ADA Accessibility Standards. Mounting to the wall is a critical part of the system to meet this requirement.

To withstand the shear, tension or pullout, and torsion loads generated by the maximum loading, the fastener system must be adequately sized.

INSTALLATION

Use grab bar as template to mark mounting holes locations and pre-drill holes. Install bar using two (2) № 10 self- tapping pan head screws and flat washers (by others) or other fastener system (by others) to suit conditions for each flange. Appropriate anchoring and backing must be provided in accordance with local building codes or as specified on Architects Plans prior to wall finishing. For compliance with 2010 ADA Accessibility Standards, install unit so that the top of the grab bar is 33" [840] minimum above finished floor (AFF) to 36" [915] maximum AFF. Anchors are available from ASI and must be specified separately for each grab bar style scheduled (see 3900 series).

(5)

GRAB BAR CONFIGURATIONS (PG 1 OF 3)

REVISED: 02/12

SCHEDULE

QTY. DIM. A QTY. DIM. A

12" [305] 36" [914]

18" [457] 42" [1067]

24" [610] 48" [1219]

30" [762]

SCHEDULE

QTY. DIM. A

52" [1321]

54" [1372]

60" [1524]

72" [1829]

TYPE -01 TYPE -02

TYPE -04 TYPE -15

SCHEDULE QTY. HAND

LH

RH

LH SHOWN RH OPPOSITE

MODEL № MUST SPECIFY -LH OR -RH

33"

[838]

30"

[762]

3" [76] PROJECTION BELOW FINISHED FLOOR

CONTRACTOR TO PROVIDE PROPER SLEEVE IN FLOOR X 3"

LONG TO ACCEPT BAR OD SPECIFIED.

28"

[711]

32"

[813]

16"

[406]

90°

1-1/2"

[38]

ALL DIMS INCH [MM]

A

23 FEB 2015

(6)

441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com

MODEL №: GRABBAR CONFIG ISSUED: 09/96

REVISED: 02/12

18" [457]

27"

[686]

6"

[152]

33"

[838]

FINISHED FLOOR

FINISHED WALL

SCHEDULE

QTY. DIM. A QTY. DIM. A

12" [305]* 36" [914]

18" [457]* 42" [1067]

24" [610] 48" [1219]

30" [762] 54" [1372]

* No center support

TYPE -24 TYPE –33

TYPE -34 TYPE –75

SCHEDULE

QTY. HAND

LH

RH

RH SHOWN LH OPPOSITE

MODEL № MUST SPECIFY LH OR -RH 1-1/2"

[38]

ALL DIMS INCH [MM]

30"

[762]

33"

[838]

12"

[305]

5"

[127]

FOR BEDPAN FLUSH VALVE USE

24"

[610]

24"

[610]

18"

[456]

5"

[127]

5"

[127]

1"

[25]

23 FEB 2015

(7)

REVISED: 02/12

SCHEDULE

QTY TYPE A B C

50 24" [610] 36" [914] 29-3/4" [756]

56 36" [914] 54" [1372] 47-3/4" [1213]

57 42" [1069] 54" [1372] 47-3/4" [1213]

60 18" [457 ] 30" [762 ] 23-3/4" [603]

74 18-1/8" [460] 33-1/8" [841] 26-7/8" [683]

Option -25 Toilet Paper Holder is welded on to Grab Bars of the Swing Up or Swing Away configurations 3413, 3451, 3454 and Fixed Types -15, -33

OPTION –25

A

C B 6-1/4"

[159]

1-1/2"

[38]

FACE OF WALLS

SEE GRAB BAR

SEE GRAB BAR 3-3/4" [95]

FOR TYPES -15 & -33 2-3/4" [70]

FOR TYPES -13, -14, -51 & -54

4-3/4"

[121]

12"

[305]

TOILET PAPER HOLDER FORMED OF ¹4" DIA [Ø6.4]

SOLID SS 304 ROD WELDED TO GRAB BAR

23 FEB 2015
