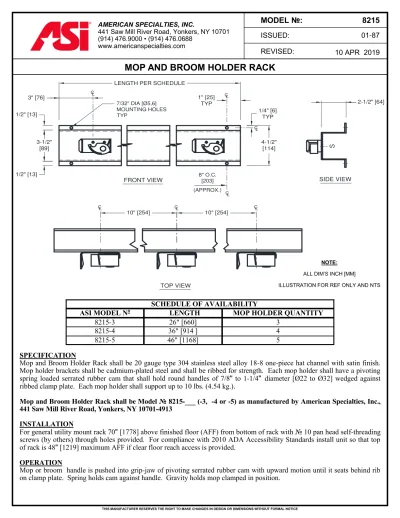

MOP AND BROOM HOLDER RACK

(1)

AMERICAN SPECIALTIES, INC.

441 Saw Mill River Road, Yonkers, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com

MODEL №:

ISSUED: REVISED: SCHEDULE OF AVAILABILITY

ASI MODEL No _LENGTH _{MOP HOLDER QUANTITY}

8215-3 26" [660] 3

8215-4 36" [914 ] 4

8215-5 46" [1168] 5

SPECIFICATION

Mop and Broom Holder Rack shall be 20 gauge type 304 stainless steel alloy 18-8 one-piece hat channel with satin finish. Mop holder brackets shall be cadmium-plated steel and shall be ribbed for strength. Each mop holder shall have a pivoting spring loaded serrated rubber cam that shall hold round handles of 7/8" to 1-1/4" diameter [Ø22 to Ø32] wedged against ribbed clamp plate. Each mop holder shall support up to 10 lbs. (4.54 kg.).

Mop and Broom Holder Rack shall be Model № 8215-___ (-3, -4 or -5) as manufactured by American Specialties, Inc., 441 Saw Mill River Road, Yonkers, NY 10701-4913

INSTALLATION

For general utility mount rack 70" [1778] above finished floor (AFF) from bottom of rack with № 10 pan head self-threading screws (by others) through holes provided. For compliance with 2010 ADA Accessibility Standards install unit so that top of rack is 48" [1219] maximum AFF if clear floor reach access is provided.

OPERATION

Mop or broom handle is pushed into grip-jaw of pivoting serrated rubber cam with upward motion until it seats behind rib on clamp plate. Spring holds cam against handle. Gravity holds mop clamped in position.

MOP AND BROOM HOLDER RACK

8215

01-87 10 APR 2019

S

FRONT VIEW SIDE VIEW

TOP VIEW 3-1/2" [89] 1/2" [13] 1/2" [13] 3" [76]

LENGTH PER SCHEDULE

1" [25] TYP 1/4" [6] TYP 4-1/2" [114] 2-1/2" [64] 10" [254] 10" [254] 7/32" DIA [Ø5,6] MOUNTING HOLES TYP 8" O.C. [203] (APPROX.) C_L C_L C_L C_L C_L C_L C_L NOTE:

ALL DIM’S INCH [MM]

(2)

441 Saw Mill River Road, Yonkers, NY 10701 (914) 476.9000 • (914) 476.0688

www.americanspecialties.com

1-1/2" DIAMETER [Ø38] GRAB BAR SERIES WITH SNAP-ON FLANGE COVERS

ISSUED: 01/87

REVISED: 7 MAR 2017

SPECIFICATION

1-1/2" Diameter [Ø38] Grab Bar with Snap-On Flange Covers for concealed mounting shall be type 304 stainless

steel alloy 18-8. Tubing shall be 1-1/2" diameter [Ø38] x 18 gauge (0.048") [1.2]. Snap-on cover shall be 22 gauge

(0.03") [0.8]. Flange shall be 1/8" [3] thick and shall be heliarc welded to tubing with a continuous concealed

bead. End flanges shall have two (2) 5/16" diameter [Ø7.5] mounting holes. Center posts (if any) shall have (2)

keyhole slots to ease installation access. All exposed surfaces shall have a satin finish and shall be protected

during shipment with a plastic bag. For optional non-slip surface add suffix –P (peened).

1-1/2" Diameter [Ø38] Grab bar with Snap-On Flange Covers shall be Series № 3800 of American

Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701- 4913

STRENGTH

ASI Grab Bars are designed to meet and exceed ADA requirements as published in CABO/ANSI A117.1 and

2010 ADA Accessibility Standards. Mounting to the wall is a critical part of the system to meet this requirement.

To withstand the shear, tension or pullout, and torsion loads generated by the maximum loading, the fastener

system must be adequately sized.

INSTALLATION

Use grab bar as template to mark mounting holes locations and pre-drill holes. Install bar using two (2) № 10

self-tapping pan head screws and flat washers (by others) or other fastener system (by others) to suit conditions for

each flange. Appropriate anchoring and backing must be provided in accordance with local building codes or as

specified on Architects Plans prior to wall finishing. For compliance with 2010 ADA Accessibility Standards,

install unit so that the top of the grab bar is 33" [840] minimum above finished floor (AFF) to 36" [915] maximum

AFF. Anchors are available from ASI and must be specified separately for each grab bar style scheduled (see 3900

series).

(3)

441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com

GRAB BAR CONFIGURATIONS (PG 1 OF 3)

MODEL

№:

GRABBAR CONFIG

ISSUED: 09/96

REVISED: 02/12

SCHEDULE

QTY. DIM. A QTY. DIM. A

12" [305] 36" [914] 18" [457] 42" [1067] 24" [610] 48" [1219] 30" [762] SCHEDULE QTY. DIM. A 52" [1321] 54" [1372] 60" [1524] 72" [1829]

TYPE -01

TYPE -02

TYPE -04

TYPE -15

SCHEDULE QTY. HAND LH RH LH SHOWN RH OPPOSITE

MODEL № MUST SPECIFY -LH OR -RH 33" [838] 30" [762] 3" [76] PROJECTION BELOW FINISHED FLOOR

CONTRACTOR TO PROVIDE PROPER SLEEVE IN FLOOR X 3" LONG TO ACCEPT BAR OD SPECIFIED. 28" [711] 32" [813] 16" [406] 90° 1-1/2" [38] ALL DIMS INCH [MM] A 23 FEB 2015

(4)

(914) 476.9000 • (914) 476.0688 www.americanspecialties.com

GRAB BAR CONFIGURATIONS (PG 2 OF 3)

REVISED: 02/12 18" [457] 27" [686] 6" [152] 33" [838] FINISHED FLOOR FINISHED WALL SCHEDULE

QTY. DIM. A QTY. DIM. A

12" [305]* 36" [914] 18" [457]* 42" [1067] 24" [610] 48" [1219] 30" [762] 54" [1372] * No center support

TYPE -24

TYPE –33

TYPE -34

TYPE –75

SCHEDULE QTY. HAND LH RH RH SHOWN LH OPPOSITE

MODEL № MUST SPECIFY LH OR -RH

1-1/2" [38] ALL DIMS INCH [MM] 30" [762] 33" [838] 12" [305] 5" [127]

FOR BEDPAN FLUSH VALVE USE

24" [610] 24" [610] 18" [456] 5" [127] 5" [127] 1" [25] 23 FEB 2015

(5)

441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com

GRAB BAR CONFIGURATIONS (PG 3 OF 3)

MODEL

№:

GRABBAR CONFIG

ISSUED: 09/96 REVISED: 02/12 SCHEDULE QTY TYPE A B C 50 24" [610] 36" [914] 29-3/4" [756] 56 36" [914] 54" [1372] 47-3/4" [1213] 57 42" [1069] 54" [1372] 47-3/4" [1213] 60 18" [457 ] 30" [762 ] 23-3/4" [603] 74 18-1/8" [460] 33-1/8" [841] 26-7/8" [683]

Option -25 Toilet Paper Holder is welded on to Grab Bars of the Swing Up or Swing Away configurations 3413, 3451, 3454 and Fixed Types -15, -33

OPTION –25

A C B 6-1/4" [159] 1-1/2" [38] FACE OF WALLS SEE GR AB BA R SEE G RAB B

AR 3-3/4" [95]_{FOR TYPES -15 & -33}

2-3/4" [70] FOR TYPES -13, -14, -51 & -54 4-3/4" [121] 12" [305]

TOILET PAPER HOLDER

FORMED OF 1

4" DIA [Ø6.4]

SOLID SS 304 ROD WELDED TO GRAB BAR

(6)

(914) 476.9000 • (914) 476.0688 www.americanspecialties.com

SURFACE MOUNTED DUAL SANITARY NAPKIN AND TAMPON DISPENSER (PAGE 1/2)

ISSUED: 01/87

REVISED: 02/12

SPECIFICATION

Surface Mounted Dual Sanitary Napkin & Tampon Dispenser shall hold 30 napkins and 27 tampons of specified

sizes. Door shall be 18 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be

protected during shipment with PVC film easily removable after installation. Cabinet shall be 22 gauge same grade

stainless steel. Door shall be attached with a full length 3/16" diameter (Ø4.8) stainless steel multi-staked piano

hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Internal

coin-box shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to

provide ability to change mechanisms for coinage denomination. Structural assembly of body and door components

shall be of welded construction and have no exposed fasteners or welded seams. Weights for each feed track shall be

supplied. Factory installed coin operation denomination shall be ______. (Please fill in 25¢ or 50¢; or FREE and add

denomination as suffix to model N

o

(e.g. 0864-25)).

Surface Mounted Dual Sanitary Napkin and Tampon Dispenser shall be Model

№ 0864 of American

Spe-cialties Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

INSTALLATION

Mount unit on wall using four (4)

№ 10 self-tapping screws (by others) through concealed holes provided in

cabi-net rear wall. For maximum usability and compliance with ADA Accessibility Guidelines, install unit so that coin slot

is between 48" (1219) maximum above finished floor (MAX AFF) and 38" (965) minimum AFF. Note that coin slot

is 7" (178) above bottom of cabinet. Installer must provide adequate wall anchoring for screw mounting.

DIMENSIONS INCH (mm)

(7)

AMERICAN SPECIALTIES, INC. 441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com

SURFACE MOUNTED DUAL SANITARY NAPKIN AND TAMPON DISPENSER (PAGE 2/2)

MODEL

№:

0864

ISSUED: 01/87

REVISED: 02/12

NAPKINS, SINGLES, CARDBOARD-BOXED, SEMIGLOSS FINISH; CAPACITY: 30 BOX SIZE: 4-1/4" x 3" x 1-1/8" (108 x 76 x 29) Stayfree № 4 Gards №'s 247, or 147 Kotex №'s 704, 707, 07010, 07040, 07045, 07300, 07320 Pure-Nat № M-4 Modess № 4

TAMPONS, CYLINDER, CARDBOARD, SEMIGLOSS, CRIMPED ENDS; CAPACITY: 27 TUBE SIZE: 3/4" diameter x 5-1/4" (Ø19 x 134)

Tampax

Modess Tampons

OPERATION

Deposit of specified coin allows operation of dispenser. Napkin and tampon dispensers operate independently.

Se-lected product drops into vending opening after operator actuation. Indicator displays empty condition and blocks

coin slot when vend product is depleted. Unit vend product supply is replenished on cycle determined by

mainte-nance needs by opening door and manually reloading product into dispenser supply tracks. Empty indicator

automati-cally resets upon refill. Track weights MUST BE USED to provide positive feed. Coins are retrieved from cash

drawer opened using different key than is used to open door for service.

(8)

10" [253] 7-1 4" [185] 3-1 2" [89] 3-1 2" [89] 8-5 8" [219] 7-1 4" [185] 4" [101] TOP VIEW

FRONT VIEW SIDE VIEW

NOTE: ALL DIMS INCH [MM]

www.americanspecialties.com

ROVAL™ SURFACE MOUNTED SANITARY WASTE RECEPTACLE

REVISED:

SPECIFICATION

Roval™ Collection Surface Mounted Sanitary Waste Receptacle shall hold 1 gallon (3.8 liters) of waste mate-rial. Cabinet full top cover shall be drawn seamless and receptacle body shall be formed seamless and shall have bowed front face and gently radiused front vertical edges to provide added strength and complimentary appearance for modern washroom aesthetics. Full top door shall be 22 gauge type 304 stainless steel alloy 18-8 with satin finish and shall be attached to the cabinet at back with a concealed full-width 9/64" diameter (Ø3.5) heavy-duty stainless steel multi-staked piano hinge. Structural assembly of body and door components shall be of welded construction. Unit shall be 22 gauge type 304 stainless steel alloy 18-8 with satin finish and shall have contoured cover finger lift relief and be protected during shipment with PVC film that is easily removable after installation. Receptacle full top edge is hemmed with return to inside for user and service safety. Recep-tacle shall have no exposed fastening devices or spot-welded seams. RecepRecep-tacle shall be screw mounted to wall or partition through concealed keyhole slots provided through rear panel.

Roval™ Collection Surface Mounted Sanitary Waste Receptacle shall be Model № 20852 of American

Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913 INSTALLATION

For general utility mount the receptacle 28" to 40" (711 to 1016) above finished floor (AFF) from top of unit.

For compliance with ADA Accessibility Guidelines install unit so that top cover is no higher than 48" (1219) above finished floor. Hang unit on wall with two (2) pre-installed № 10 x 1-1/4" (32) self-tapping pan head screws (by others) through the mounting keyhole slots provided into suitable wall reinforcements (by others) or two (2) pre-installed № 10 x 3/4" (19) self-tapping pan head screws (by others) through the mounting keyhole slots provided into metal partition.

OPERATION

User lifts lid to deposit waste material. Maintenance schedule determines trash removal cycle. Unload unit by ei-ther removing the disposable wax paper liner bag (by oei-thers) or unhooking the unit from the mounting screws and inverting to empty into appropriate bulk collection container.

(9)

441 Saw Mill River Road, Yonkers, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com 14" [356] 3-1 4" [83] 13-1 4" [337] 16" [406] 3-1 4" [83] 3-3 4" [95] 6-1 4" [159] 9-1 2" [241] T U M B LE R LO C K C O N TIN U O U S P IA N O H IN G E S LO T M O U N TIN G H O LE S LE V E R 10" [254] FIN IS H E D W A LL FR O N T V IE W S ID E V IE W

SURFACE MOUNTED ROLL PAPER TOWEL DISPENSER

MODEL

№: 8522

ISSUED: 01/87

REVISED: 5 MAR 2014

SPECIFICATION

Surface Mounted Roll Paper Towel Dispenser shall hold and dispense one 8" or 9" (203 or 229) wide up to 800 ft (244m) long standard towel roll up to 8-5/8" diameter [Ø219] and one stub roll up to 4" diameter (Ø102). Automatic transfer mechanism shall dispense towels from stub roll before starting new roll. Lever shall operate unit and shall adjust to dispense 2-1/2", 4", or 5" (64, 102, and 127) preset length of towel. Unit frame and cabinet shall be 22 gauge stainless steel type 304 alloy 18-8. Door shall be 18 gauge. Towel dispensing slot shall be smooth and burr-free for snag-free dispensing and user safety. Roll paper towel mecha-nism shall be enamel painted steel. Door shall be attached to cabinet at side with a full length 3/16" diameter (Ø5) multi-staked stainless steel piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of all components shall be of welded construction. All exposed surfaces shall be satin finish and shall be protected during shipment with PVC film easily removable after installation. Towel loading and operation instructions are provided on label inside unit.

Surfaced Mounted Roll Paper Towel Dispenser shall be Model 8522 as manufactured by American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

INSTALLATION

Surface mount unit to wall using No10 fasteners (by others) through concealed mounting holes provided. For compliance with ADA Accessibility Guidelines, install unit so that towel dispenser lever is 48" [1219] maximum AFF.

OPERATION

Towels are fed by lever action until supply is depleted. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length by owner. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll. Locking door prevents unauthorized access or removal.
