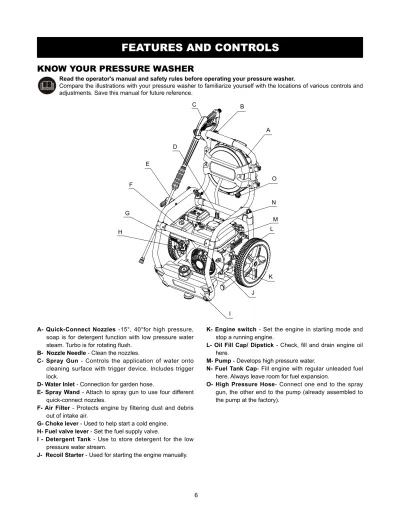

FEATURES AND CONTROLS
KNOW YOUR PRESSURE WASHER
Read the operator's manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.
A- Quick-Connect Nozzles -15°, 40°for high pressure, soap is for detergent function with low pressure water steam. Turbo is for rotating flush.
B- Nozzle Needle - Clean the nozzles.
C- Spray Gun - Controls the application of water onto cleaning surface with trigger device. Includes trigger lock.
D- Water Inlet - Connection for garden hose.
E- Spray Wand - Attach to spray gun to use four different quick-connect nozzles.
F- Air Filter - Protects engine by filtering dust and debris out of intake air.
G- Choke lever - Used to help start a cold engine.
H- Fuel valve lever - Set the fuel supply valve.
I - Detergent Tank - Use to store detergent for the low pressure water stream.
J- Recoil Starter - Used for starting the engine manually.
K- Engine switch - Set the engine in starting mode and stop a running engine.
L- Oil Fill Cap/ Dipstick - Check, fill and drain engine oil here.
M- Pump - Develops high pressure water.
N- Fuel Tank Cap- Fill engine with regular unleaded fuel here. Always leave room for fuel expansion.
O- High Pressure Hose- Connect one end to the spray gun, the other end to the pump (already assembled to the pump at the factory).
A C B
D E
F
G H
I
J K
L M N O
Unfold Fold
Pull
ASSEMBLY
Your pressure washer requires some assembly and is ready for use only after it has been properly serviced with the recommended oil and fuel.
If you have any problems with the assembly of your pressure washer, please call the pressure washer help line at 1-866-902-9690.
IMPORTANT: Any attempt to run the engine before it has been serviced with the recommended oil will result in an engine failure.
UNPACK THE PRESSURE WASHER
• Remove everything from carton except the pressure washer.
• Open carton completely by cutting each corner from top to bottom.
• Remove pressure washer from carton.
CARTON CONTENTS
Check all contents. If any parts are parts are missing or damaged, call the pressure washer helpline at
1-866-902-9690.
● A- Main unit
● B- Quick-connect nozzles (4)
● C- Nozzle needle
D- High pressure hose
● E- Spray gun
● F- Spray wand
● G- Operator's Manual
● H- Hand crack
● I- Funnel
● J- Spark Wrench
● K- Oil bottle
● L- Detergent tank
Become familiar with each piece before assembling the pressure washer. Check all contents against the illustration.
If any parts are missing or damaged, call the pressure washer helpline at 1-866-902-9690.
ASSEMBLING YOUR PRESSURE WASHER
Your Craftsman high pressure washer was mostly assembled at the factory. However, you will need to perform these tasks before you can operate your pressure washer:
1.Handle position adjustment.
2.Connect hand crank onto hose reel.
3.Add oil to engine crankcase.
4.Add fuel to fuel tank.
5.Lubricate O-rings.
6.Connect hose and water supply to pump.
7.Connect spray wand and quick-connect nozzles.
1. Handle Position Adjustment
Turn the handle ② upward around 100°, until the locking/
releasing pin ① engages into the corresponding hole on each using.
To fold the handle. Pull the locking/releasing pin ① outward on the right side of the pressure washer, and turn the handle
② downward to fold the handle.
2. Connect Hand Crank onto Hose Reel
Attach hand crank onto the hose reel. Insert in the hole and snap into place by hand. No tools required.
A
BC D
E F
G H
I J
K L
●
3. Add Oil to Engine Crankcase
CAUTION! DO NOT attempt to crank or start the engine before it has been properly serviced with the recommended oil. This may result in an engine failure.
1. Place pressure washer on a flat, level surface.
2.Clean area around oil fill and remove yellow oil fill cap / dipstick.
3.Using oil funnel (provided), slowly pour contents of supplied oil into oil fill opening, checking oil level frequently, fill to FULL mark (top hole) on dipstick.
NOTICE: Pause to permit oil to settle. Wipe dipstick clean each time oil level is checked. DO NOT Overfill.
4.Replace oil fill cap/ dipstick and fully tighten.
4. Add Fuel to Fuel Tank
Fuel must meet these requirements:
• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/ 87 AKI (91 RON). For high altitude use, see “High Altitude”.
• Gasoline with up to 10% ethanol (gasohol) is acceptable.
NOTICE: Use of unapproved fuels could damage the engine and voids warranty.
• DO NOT use unapproved gasoline such as E15 and E85.
• DO NOT mix oil in gasoline or modify engine to run on alternate fuels.
WARNING! Fuel and its vapors are extremely
flammable and explosive which could cause burns, fire or explosion resulting in death or serious injure.
WHEN ADDING FUEL
• Turn pressure washer engine OFF and let it cool at least 2 minutes before removing fuel cap.
Loosen cap slowly to relieve pressure in tank.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for cracks or leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
0.15 LITERS
To protect the fuel system from gum formation, mix in a fuel stabilizer when adding fuel. See “Storage”. All fuel is not the same. If you experience starting or performance problems after using fuel, switch to a different fuel provider or change brands, This engine is certified to operate on gasoline.
The emission control system for the engine is EM (Engine Modifications).
1.Clean area around fuel fill cap, remove cap.
2.Slowly add regular unleaded fuel (A) to fuel tank (B). Be careful not to overfill. To allow for fuel expansion, do not fill above the bottom of the fuel tank neck.
3.Install fuel cap and wait for any spilled fuel to evaporate.
CAUTION! Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture,
which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.
To avoid engine problems, the fuel system should be treated with fuel preserver or emptied before storage of 30 days or longer. If adding a fuel preserver, fill the fuel tank with fresh fuel. If only partially filled, air in the tank will promote fuel deterioration during storage. If fuel preserver is not used, drain the fuel tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See “Storage” for additional information.
NEVER use engine or carburetor cleaner products in the fuel tank as permanent damage may occur.
High Altitude
At altitude over 5,000 ft. (1524 m), a minimum 85 octane / 85 AKI (89 RON) gasoline is acceptable. To remain emission compliant, high altitude adjustment is required. Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. See a qualified CRAFTSMAN dealer for high altitude adjustment information. Operation of the engine at altitudes below 2,500 ft. (762m) with the high altitude kit is not recommended.
5.Lubricate O-Rings
Lubrication of o-rings is extremely important for installation and operation. The use of lubricant (petroleum or synthetic grease) during assembly helps seat o-rings properly and provides and improved seal. It also helps protect the o-rings from damage by abrasion, pinching or cutting and extends the life of the o-rings.
A B
NOTICE: ALWAYS apply a small amount of lubricant on o-rings prior to assembling the garden hose to the pump (C), high pressure hose (D), spray gun (E), and spray wand (F).
Lubricate all connections shown below, following these instructions:
1) Inspect and clean connecting surfaces prior to lubrication and assembly.
2) Use lubricants sparingly during assembly; a light film is all that is required.
3) Use a small brush or cotton swab to apply grease directly to o-rings where they are not accessible(QC fitting, M22 fitting).
6.Connect Hose and Water Supply to Pump
IMPORTANT! DO NOT run the pump without the water supply connected and turned on.
• Damage to pressure washer resulting from failure to follow this instruction will void warranty.
NOTICE: Remove and discard the shipping caps from the pump’s high pressure outlet and water inlet before attaching hoses.
1) Uncoil high pressure hose when handle folded, and attach one end of hose to the base of the spray gun.
Tighten by hand. The other end already assembled to the pump at the factory.
NOTICE: The hose only can be uncoiled from the bottom of the hose reel, it’s recommended to keep the handle folded for easy unwinding and winding the hose.
WARNING! The high pressure stream of water that the pressure washer produces could cut through skin and its underlying tissues, resulting in serious injury and possible amputation.
• NEVER connect high pressure hose to spray wand.
• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• Always be certain spray gun, wand, nozzles and other accessories are correctly attached.
2) Before you connect your garden hose to the water inlet, inspect the inlet screen. Clean the screen if it contains debris or have it replaced if damaged. Do Not run the pressure washer if the inlet screen is damaged or missing.
IMPORTANT! NEVER siphon standing water for the water supply. Use only cold water (less than 100 °F).
CAUTION! Using a One Way Valve (vacuum breaker or check valve) at pump inlet could cause pump or inlet connector damage.
1) There must be at least 10 ft. (3 m) of unrestricted garden hose between pressure washer inlet and any device, such as a vacuum breaker or check valve.
2) Damage to pressure washer resulting from failure to follow this instruction will void warranty.
3) Run water through garden hose for 30 seconds to flush it of debris. Turn off water.
4) Connect garden hose (not to exceed 50 ft. in length) to water inlet. Tighten by hand.
WARNING! Risk of eye injury!
Spray could splash back or propel objects resulting in serious injure.
• Always wear indirect vented (chemical splash) safety goggles marked to comply with ANSI Z87.1 when using or in vicinity of the pressure washer.
• NEVER substitute safety glasses or dry-condition goggles for indirect vented safety goggles.
E
F
C D
Inspect inlet screen. Do Not use if damaged, clean if dirty
5) Turn ON the water, point the spray gun at a safe direction, release the red trigger lock, then squeeze trigger to purge the pump system of air and impurities.
7.Connect Spray Wand and Quick-Connect Nozzles 1)Attach the spray wand into spray gun. Tighten by hand.
2) Turn OFF the water and release trigger. Point the spray gun at a safety direction and make sure trigger is locked and can’t be squeezed.
3) Choose the quick-connect nozzle you want to use, pull back on collar of spray wand , insert the nozzle and release collar. Tug on the nozzle to make sure it is securely in place. More information please see “How to Use Quick-Connect Nozzles” section.
CHECK LIST BEFORE STARTING ENGINE
Review the assembly to ensure you have performed all of the following:
• Be sure to read "Safety Rules" and "Operation" sections before using the pressure washer.
• Make sure handle is in place and secure.
• Check that oil has been added to proper level in engine crankcase.
• Add proper gasoline to fuel tank.
• Check for properly tightened hose connections (high pressure and water supply) and for tight connections and that there are no kinks, cuts, or damage to the high pressure hose.
• Provide proper water supply (not to exceed 100°F).
• If starting pressure washer after storage, see "Storage"
section below.
