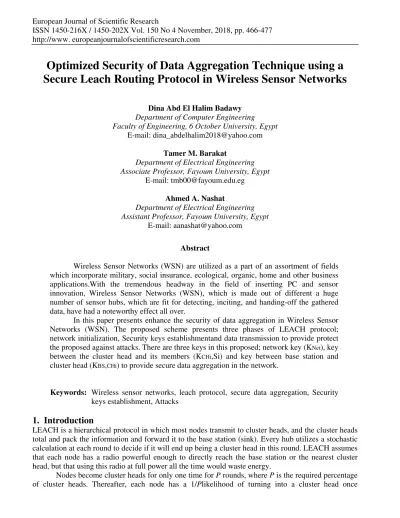

Optimized Security of Data Aggregation Technique using a Secure Leach Routing Protocol in Wireless Sensor Networks

(1)

ISSN 1450-216X / 1450-202X Vol. 150 No 4 November, 2018, pp. 466-477 http://www. europeanjournalofscientificresearch.com

Optimized Security of Data Aggregation Technique using a Secure Leach Routing Protocol in Wireless Sensor Networks

Dina Abd El Halim Badawy Department of Computer Engineering Faculty of Engineering, 6 October University, Egypt

E-mail: [email protected] Tamer M. Barakat

Department of Electrical Engineering Associate Professor, Fayoum University, Egypt

E-mail: [email protected] Ahmed A. Nashat

Department of Electrical Engineering Assistant Professor, Fayoum University, Egypt

E-mail: [email protected]

Abstract

Wireless Sensor Networks (WSN) are utilized as a part of an assortment of fields which incorporate military, social insurance, ecological, organic, home and other business applications.With the tremendous headway in the field of inserting PC and sensor innovation, Wireless Sensor Networks (WSN), which is made out of different a huge number of sensor hubs, which are fit for detecting, inciting, and handing-off the gathered data, have had a noteworthy effect all over.

In this paper presents enhance the security of data aggregation in Wireless Sensor Networks (WSN). The proposed scheme presents three phases of LEACH protocol;

network initialization, Security keys establishmentand data transmission to provide protect the proposed against attacks. There are three keys in this proposed; network key (KNet), key between the cluster head and its members (KCHi,Si) and key between base station and cluster head (KBS,CHi) to provide secure data aggregation in the network.

Keywords: Wireless sensor networks, leach protocol, secure data aggregation, Security keys establishment, Attacks

1. Introduction

LEACH is a hierarchical protocol in which most nodes transmit to cluster heads, and the cluster heads total and pack the information and forward it to the base station (sink). Every hub utilizes a stochastic calculation at each round to decide if it will end up being a cluster head in this round. LEACH assumes that each node has a radio powerful enough to directly reach the base station or the nearest cluster head, but that using this radio at full power all the time would waste energy.

Nodes become cluster heads for only one time for P rounds, where P is the required percentage of cluster heads. Thereafter, each node has a 1/Plikelihood of turning into a cluster head once

(2)

Optimized Security of Data Aggregation Technique using a Secure

Leach Routing Protocol in Wireless Sensor Networks 467

more.Toward the end of each round, each non-cluster head node chooses the nearest cluster head and joins that cluster.

Then, the cluster head makes a transmission schedule for the member nodes in its cluster to transmit its data in the determined time schedule.

The reminder of this paper is organized as follows. Section 2 describes the previous research in the field. Our motivations and contributions are given in Section 3.Section 4presents the network key (KNet).The preliminaries and assumptions are given in section 5. In Section 6 we present system model.

Section 7 describes the proposed protocol. Section 8 presents a flow chart for the proposed model.

Proof of security against the mentioned attacks are given in section 9.Section 10 presents simulation and performance evaluations. Finally, the conclusion is presented in Section 11.

2. Previous Research

Here a concise review of LEACH convention and security of data aggregation and inadequacies is portrayed.

To the best of our knowledge, only the works of T. Mugia and S. Leeincorporates secure routing into the secure data aggregation schemes. They utilized ESPDA conventions witha leach-based security protocol to secure information collected from any gatecrasher.They likewise think about the vitality effective for security. Their fundamental favorable position is that keep any obstruction with the proposed convention [1].

In [2] they proposed an Efficient and Secure Key Management Scheme (ESKMS) for the Hierarchical Wireless Sensor Network. Through execution assessment, they find that the overhead, which the ESKMS convention prompts being adequate, and reduces the memory overhead.

In [3] they proposed Trust Management scheme for clustered WSNs. Given the cancellation of criticism between nodes, it can incredibly enhance framework proficiency while diminishing the impact of pernicious nodes. By utilizing constancy upgraded trust assessing the approach ofparticipation's between CHs, the proposed framework can successfully distinguish and counteract pernicious, egotistical, and flawed CHs.

In [4] they presented an improved version of LEACH protocol, K-LEACH, to extend the lifetime of a sensor network by uniform clustering through a k-medoids algorithm and balancing the load of the entire networkbetween all active nodes. It guarantees uniform clustering of nodes and gives the best possible area of CH.It utilizes the mix of clustering, greatest lingering vitality standard and an arbitrary choice of CHs simply after a right around 50 % of rounds of activities of the system gets over, while the LEACH protocol does absolutely irregular choice of CHs,which prompts an exceptionally poor choice of CHs and accordingly prompts very wasteful lifetime and vitality maintenance of the network.

3. Motivations and Contributions 3.1. Motivations

At the point when Wireless Sensor Networks are conveyed for the most part for military and health applications. There is a decent requirement for secure correspondence between sensor hubs. There are different strategies to secure system information transmissions.Leach includes two phases (set up and steady state) but this phases not sufficient to secure the network and data transfer. Leach protocol does not take the security aspect into consideration.The main motivation of this paper is protected the data aggregation against any intrusion.

(3)

3.2. Contributions

The principle contribution of this paper is to present enhanced security of data aggregation.Our proposed conspire appreciates the accompanying properties:

a. Set up a protection key between Base Station (BS) and Cluster Heads (CHs).

b. Set up a protection key between each Cluster heads and its member nodes.

c. Set up a protection key between Base Station (BS) and sensor nodes.

d. Division the Leach protocol into many phases to secure the data aggregation.

e. Protect the network from any intrusion.

4. Network Key (K)

This is a globally shared key that is used by all nodes and the BS for encrypting messages that are broadcasted to all nodes in the sensor network. All messages transmitted by the base station are encrypted through the network key. This key is also used in cluster formation [5].

5. Preliminaries

Before we present the proposed scheme, the following assumptions and notations must be considered.

5.1. Security Assumptions

We made the following reasonable assumptions as already employed in most of the current sensor network security schemes:

1) Each sensor has a unique id with enough length to distinguish between them.

2) All sensor nodes have the same initial energy (homogeneous), same data communication and processing capabilities.

3) The BS is located in a secured location and it has unlimited computational and memory storage.

4) BS has a node member table of node id. If a node adds to network, its id adds to the node member table.

5) BS has an authentication system for any node in the network.

6) The BS can communicate directly with each sensor if the corresponding CH is compromised.

7) All CHs in the network can reach the BS.

8) Each exchanged message has a timestamp called “N” that guarantee the freshness of information.

5.2. Descriptions of the Notations used in the Proposed Key Management Technique are Listed in Table 1

Table 1: Notation Description

Notation Description

K Shared key by the base station, embedded in each sensor node before deployment Idsi Identification Number of node I

IdCHi Identification Cluster Head I IDBS Identification Base Station

N Random number used once) Nonce)

E Encryption of message M with key

Adv. Advertisement message

L Location of a Sensor node / Cluster head in the network

Si Sensor node

Sm Malicious node

CHm Malicious cluster head

(4)

Optimized Security of Data Aggregation Technique using a Secure Leach Routing Protocol in Wireless Sensor Networks

Notation Msg_Req Sched_Msg IDlist_sensor H()

KCHi, Si

KBS, CHi

E0 ETX ERX

Hello_Msg Msg_code Pattern code Msg_data

6. System Model 6.1. Leach Protocol LEACH is a kind of cluster

randomly selects a few sensor nodes as cluster heads (CHs) and rotates this role to evenly distribute the energy load

LEACH, the Cluster Heads compress data arriving from member nodes and send an aggregated packet to the BS in order to reduce the amount of information that must be tr

reduce inter &

MAC [6], [7].

6.2. Leach a) Set up Phase

Set-up phase has three fundamental steps:

i. Cluster head advertisement ii. Cluster setup

iii. Creation of transmission schedule

timized Security of Data Aggregation Technique using a Secure Leach Routing Protocol in Wireless Sensor Networks

Notation

Request message

Sched_Msg Containing TDMA time slots to their cluster members IDlist_sensor An array of the sensor node

One

Pairwise key

Pairwise key shared between the Base Station (BS) and the Cluster Heads (CH) The initial energy of sensor nodes

Energy for Transmission Energy for Reception Broadcast

Unicast

Hello_Msg Each member sensor node informs the cluster head that it has data to send by hello message.

Cluster head requests a code for each data .

Pattern code The sensor node sends code for each data to cluster head.

After cluster head aggregates the data, forwards it to the Base Station.

System Model Leach Protocol (Low LEACH is a kind of cluster

randomly selects a few sensor nodes as cluster heads (CHs) and rotates this role to evenly distribute the energy load among the sensors in the network. The thought is to form clusters of the sensor nodes. In LEACH, the Cluster Heads compress data arriving from member nodes and send an aggregated packet to the BS in order to reduce the amount of information that must be tr

reduce inter &intra cluster interference LEACH uses a TDMA/code [6], [7].

Leach Protocol Contains Two Phases Phase

up phase has three fundamental steps:

Cluster head advertisement Cluster setup

Creation of transmission schedule

Request message

Containing TDMA time slots to their cluster members An array of the sensor node

One-way hash function

Pairwise key shared between sensor nodes and the CH that form the same cluster Pairwise key shared between the Base Station (BS) and the Cluster Heads (CH) The initial energy of sensor nodes

Energy for Transmission Energy for Reception Broadcast

Unicast

Each member sensor node informs the cluster head that it has data to send by hello message.

The sensor node sends code for each data to cluster head.

(Low Energy Adaptive Clustering Hierarchy)

LEACH is a kind of cluster-based routing protocols, which uses distributed cluster formation. LEACH randomly selects a few sensor nodes as cluster heads (CHs) and rotates this role to evenly distribute the among the sensors in the network. The thought is to form clusters of the sensor nodes. In LEACH, the Cluster Heads compress data arriving from member nodes and send an aggregated packet to the BS in order to reduce the amount of information that must be tr

cluster interference LEACH uses a TDMA/code

Contains Two Phases

Cluster head advertisement Creation of transmission schedule

Containing TDMA time slots to their cluster members An array of the sensor node

way hash function

shared between sensor nodes and the CH that form the same cluster Pairwise key shared between the Base Station (BS) and the Cluster Heads (CH) The initial energy of sensor nodes

Energy for Transmission Energy for Reception

Energy Adaptive Clustering Hierarchy)

based routing protocols, which uses distributed cluster formation. LEACH randomly selects a few sensor nodes as cluster heads (CHs) and rotates this role to evenly distribute the among the sensors in the network. The thought is to form clusters of the sensor nodes. In LEACH, the Cluster Heads compress data arriving from member nodes and send an aggregated packet to the BS in order to reduce the amount of information that must be tr

Figure 1:

Contains Two Phases

Cluster head advertisement Creation of transmission schedule

Description Containing TDMA time slots to their cluster members

shared between sensor nodes and the CH that form the same cluster Pairwise key shared between the Base Station (BS) and the Cluster Heads (CH) The initial energy of sensor nodes

Figure 1: Leach Protocol timized Security of Data Aggregation Technique using a Secure

Description Containing TDMA time slots to their cluster members

shared between sensor nodes and the CH that form the same cluster Pairwise key shared between the Base Station (BS) and the Cluster Heads (CH)

cluster interference LEACH uses a TDMA/code-division multiple access (CDMA)

Leach Protocol

based routing protocols, which uses distributed cluster formation. LEACH randomly selects a few sensor nodes as cluster heads (CHs) and rotates this role to evenly distribute the among the sensors in the network. The thought is to form clusters of the sensor nodes. In LEACH, the Cluster Heads compress data arriving from member nodes and send an aggregated packet to the BS in order to reduce the amount of information that must be transmitted to the BS. In order to division multiple access (CDMA)

based routing protocols, which uses distributed cluster formation. LEACH randomly selects a few sensor nodes as cluster heads (CHs) and rotates this role to evenly distribute the among the sensors in the network. The thought is to form clusters of the sensor nodes. In LEACH, the Cluster Heads compress data arriving from member nodes and send an aggregated packet ansmitted to the BS. In order to division multiple access (CDMA) 469

based routing protocols, which uses distributed cluster formation. LEACH randomly selects a few sensor nodes as cluster heads (CHs) and rotates this role to evenly distribute the among the sensors in the network. The thought is to form clusters of the sensor nodes. In LEACH, the Cluster Heads compress data arriving from member nodes and send an aggregated packet ansmitted to the BS. In order to division multiple access (CDMA)

(5)

LEACH protocol comprises of numerous rounds.Each round contains five stages. The whole sensor system will be apportioned into various clusters. Each cluster comprises of one cluster-head and various sensors.All sensor nodes are situated in the network have personality number and shared key (K) by the base station (BS). Every sensor node chooses an irregular number in the vicinity of 0 and 1 (0<random no.<1) to wind up the cluster head. There is a pre-defined threshold T (n) in a sensor network. The node turns into a CH for the current round if the number is not as much as the threshold value[8], [9].

T (n) = ൝ [ଵି୔ቀ୰ ୫୭ୢ^୔ ^భ_ౌቁ] ݂݅ ݊ € ܩ 0 ݋ݐℎ݁ݎݓ݅ݏ݁ Where:

• P is the desired percentage of CHs,

• R is the current round

• G is the set of nodes that have not been selected as cluster heads in the last 1/p rounds.

b). Steady State phase

Figure 2: Leach protocol process

• TDMA schedule is used to send data from node to cluster head.

• Cluster head aggregates the data received from nodes in the cluster.

• Data is sent from the cluster head nodes to the BS.

7. The Proposed Protocol 7.1. Steps of the Proposed Protocol

Table 2: Proposed Protocol

a. Network Initialization phase 1. CH BS EK (IDCHi || NCH || Adv.)

2. Si BS EK (IDS || NS || L || ordinary_node) 3. BS CH This message contains an array of IDs

EK (IDBS || NBS || (IDS||….. || IDSn)) 4.CH Si EK (IDCHi || Adv. || L)

5. Si CH EK (IDS || IDCH || Msg_Req)

6. CH Verify the IDs, if IDs don't exist in the array, the cluster head will inform the base station and it does not add this node in the cluster.

7. CH Si EK (NCHi || Msg_Accept || Sched_Msg) b. Security keys establishment phase 8. CHi BS EK(IDCHi || NCHi || Msg_MK)

9. BS BS calculates secure key KBS, CHi

KBS, CHi= H݇^௟(idCHi || idBS || NBS || NCHi )

(6)

10. BS CHi EK (idBS,idCHi || NCHi || KBS,CHi) , macKBS,CHi(NBS) 11. CHi BS KBS, CHi(IDCHi || Ids1………. Idsn|| NCHi)

12. BS BS calculates secure key KCHi,S

KCHi, S= H݇^௟(idCHi|| idSi ||……. || idSn|| idBS || NBS) 13. BS CHi KBS, CHi(idBS, idCHi || NBS || KCHi, S), macKBS,CHi(NBS) 14. CHi S EK = ( idCHi|| NCHi || KCHi,S), mack (NCHi)

c. Data transmissionphase

15. Si CH EKCHi, S= (idSi ||idCHi || NS || Hello_Msg) 16. CHi Si EKCHi, S = (idCHi || idSi || NCHi || Msg_code)

17.CHi BS EKBS,CHi= (idCHi || idBS || NCHi || Aggregation_data) 18. Si CHi SigKCHi, S = (idCH || idS || NS || Pattern_code)

19. CHi Once CH receives a pattern code message, transmit an acknowledgment to the non-CH node.

20. CHi S EKBS,CHi= (idCHi || (idSi,…….., idsn) || NCHi || Selected_node) 21. S CHi SigKCHi, S= (idCHi || ids || Nsi|| Data)

22. CHi CH aggregates all the collected data and forwards data to the base station (BS) directly

23. CHi BS SigKBS,CHi= (idCHi || idBS || NCHi || (…….., <ids, Pattern code>,……..), Msg_data)

The proposed model is divided into three phases to secure data aggregation:

a. Network Initialization b. Security keys establishment c. Data transmission phase

7.2. Phases of the Proposed Model are as Follows a) Network Initialization Phase

At that point each cluster head transmits a scrambled message to the base station contain to the ID number of cluster head, arbitrary number to securean advertisement message to the base stationthat this sensor hub moved toward becoming cluster head: EK (IDCH || NCH || Adv.).At the same time, the normal node is sent to the base station encryption MSG. (Include its ID number, Nonce, Location,and message to the base station that this sensor node is a normal node,not cluster head:EK (IDS || NS || L ||

ordinary_node).

Base station reactions to all cluster head and send them encrypted message communicate incorporate a variety of sensor hub numbers situated in all the network:EK (IDBS || NBS || (IDS||….. ||

IDSn)). Then each cluster head begins to know itself to all non-CH nodes by broadcasting encrypted message include cluster number, advertisement message to all sensor nodes that it's becoming cluster head and location of cluster head in the networkEK (IDCH || Adv. || L).All non-CH nodes select their CHs based onthe closest location it. Any node wants to join to the specific cluster will send to the cluster encryption message contain to the ID number of the non-CH node,the ID number of cluster head that linked to it and message request:EK (IDS || IDCH || Msg_Req).Non-CH nodes use one-hop communications to reach the CH.Cluster head checks this ID number of the non-CH node from the array to ensure if this node is a normal or malicious node. If this ID number is found in the array, the cluster head will add a non-CH node in the clusterEK (NCH || Msg_Accept || Sched_Msg), but if this id number didn't find in the array, the cluster head will inform the base station and it does not add this node in the cluster.

b). Security Keys Establishment

Subsequently,each cluster head begins to establish security key between it and base station.EK(IDCHi ||

NCHi|| Msg_MK). Base station computes security key and send it to CHi:EK (idBS,idCHi || NCH ||

KBS,CHi), macKBS,CHi(NBS)

Where: KBS, CHi= H࢑^࢒(idCHi|| idBS || NBS || NCHi)

(7)

Base station begins to compute secure key between each CH and member nodes (KCHi, S) by using a keyed one-way hash function Hk ().Each cluster head communicates with base station to establish secure key between the cluster head and its member KBS, CHi(IDCHi || Ids1………. Idsn||

NCHi). Base station begins computes secure key KCHi, Sand shares to the cluster head KBS, CHi (idBS,idCH|| NBS || KCHi, S), macKBS,CHi(NBS)

Where: KCHi, S= H࢑^࢒(idCH||idSi||……. || idSn|| idBS || NBS)

From that point onward, the CHs transmits the intra-cluster pairwise key to sensors nodes. All communication between cluster head and member node is scrambled by new key to keep data aggregation and achieve communication security.

EK = ( idCH || NCH || KCHi,S)

c). Data Transmission Phase

In this phase, each member informs the cluster head that it has data to send:EKCHi, S= (idsi ||idCHi || NS

|| Hello_Msg).If the cluster head is available, it transmits a message by new key to non-CH node to send the code of data: EKCHi, Si = (idCHi || idSi || NCH || Msg_Code).

Each cluster head starts to aggregate the data and sends a message to the base station to see that data is collected in this cluster head EKBS,CHi= (idBS ||idCHi || NS || Aggregation_msg).

Non-CH node begins transmitting a pattern code of data by using digital signatures to CH:SigKCHi, S= (idCH || idS || NS || Pattern_code).Once CH receives a pattern code message, transmit an acknowledgment to the non-CH node.

Thereafter, all non-CH node sent a pattern code of data to CH, Begin CH selects the non-CH node that they send the data to it by using broadcast message: EKBS, CHi= (idCH || (idSi,…….., idsn) ||

NCH || Selected_node). Selected non-CH node sends the data to CH by using digital signatures:SigKCHi,S= (idCH || ids|| Nsi || Data).

Then Cluster head (CH) aggregates all the collected data and forwards data to the base station (BS) directly:SigKBS, CHi= (idCH || idBS || NCH || (…….., <ids,Pattern code>,……..),Msg_data).

Cluster Heads (CHs) use one-hop communications to reach the Base station (BS).

(8)

8. Flowchart for Proposed Model

(9)

9. Proof of Security against the Mentioned Attacks 9.1. Selective Forwarding Attack

This attack is sometimes called Gray Hole attack. In a simple form of selective forwarding attack, malignant hubs are halting or dropping any bundles going through them in the network.There are distinctive types of selective forwarding attack. In one form of the selective forwarding attack, the malicious node can selectively drop the packets coming from a particular node or a group of nodes [10].

The proposed modelprevents this attack from compromises the proposed algorithm. In the phase data transmission between the CH and non-CH nodes when the CH detections that certain node from selected nodes does not any message. CH transmits the report packet broadcast to the non-CH nodes in the same cluster and transmits the alarm packet to the base station. Base station deletes this node from the network and it will update the network with new information.Also, the non-CH nodes transmit to the base station the report packet if CH does not send any messages.

EKCHi, S = (idS ||idCH || NS || Hello_Msg) 1. Sm CHi

EKCHi, S = (idCHi || idSi || NCH || Msg_code) 2. CHi Sm

EKBS, CHi= (idCHi || idBS || NCHi || Aggregation_data) 3. CHi BS

The sensor node drops pattern code message and don’t send any message to the cluster head.

4. Sm x

Cluster head sends report message to this node and waiting for a period of time to receive a message from this node.

5. CHi Sm

If this node doesn’t send any message, cluster head informs the base station that has a malicious node in the clusterof alarm message.

6. CHi BS

Base station deletes this malicious node from the network and broadcasting messages to all the network.

7. BS

9.2. Black Hole Attack

In black hole attack, an interloper catch and change programs for a gathering of nodes to prevent receiving any packets and also prevent forwarding these packets to the base station. Thus, any data that enters the black hole locale is caught and not able to reach the destination causing high end-to-end delay and low throughput [11].

This attack fails to compromise the proposed model. In the phase data transmission base station waits for data from cluster head by using them to live (TTL) if no data delivered, the base station sends alarm packet to this cluster head. If the cluster head doesn’t replay and sends the data, the base station sends report packet to this cluster head and deletes this cluster head of the network.

c. Data transmission phase

1. Si CHm EKCHi, S = (idS ||idCH || NS || Hello_Msg) 2. CHm Si EKCHi, S = (idCHi || idSi || NCH || Msg_code)

3. CHi BS EKBS, CHi= (idCHi || idBS || NCHi || Aggregation_data) 4. Si CHi SigKCHi, S = (idCH || idS || NS || Pattern_code)

5. BS Sm Base station waits (TTL) aggregation data from cluster head (CHi)

If a cluster head does not send any messages to the base station through TTL, Base station will send the alarm packet to this cluster head (CHi) asking for aggregation data.

Then the base station waits another TTL may CHi sends any message,

If this cluster head does not send any message, Base station deletes this cluster head and sends broadcast message to alert the network that there are malicious cluster head and that shouldbe deleted.

(10)

Table 3: Possible attacks addressed, in comparison with other secure data aggregation protocols

Possible Attacks Observed SLEACH SecLEACH MS-LEACH Proposed Protocol

Eavesdropping No No Yes Yes

Message tampering No No Yes Yes

Replay Yes Yes Yes Yes

Ordinary nodes impersonation No Yes No Yes

CHs impersonation Yes No Yes Yes

Schedule disruption No No Yes Yes

Selective Forwarding No No No Yes

Black Hole No No No Yes

10. Simulation and Performance Evaluations 10.1 Simulation Results

The numerical investigation was additionally checked utilizing simulations on MATLAB in which the following parameters were set and a variety of graphs were plotted.The nodes are arbitrarily appropriated between x=0, y=0 and x=100, y=100 with the base station (BS) at location x=50, y=50.

The quantity of nodes in the proposed convention is thought to be 100.

10.2. Simulation Parameters

Table 4: Simulation Parameters

Network Parameter Values

Network Size 100*100

Number of Nodes 100

CH Probability 0.1

Eo 0.5 Joule

Packet Size (K bits) 4000

ETX 50*0.000000000001 Joule

ERX 50*0.000000000001 Joule

EDA 50*0.000000000001 Joule

Nodes Distribution Nodes are randomly uniformly distributed

Field Dimensions

Xm 100

Ym 100

BS is located (50,50)

10.3. The Network Initialization of Leach Protocol

Figure 2 shows the wireless sensor network initialization. Here all the available wireless sensor nodes are having an equal amount of initial energy E0 = 0.5J. Here 100 nodes are distributed in 100*100 metersregion. BS is located at the (50, 50). O indicates Normal nodes. X (red) indicates BS at (50, 50).

(11)

Figure 3: Initialization of the wireless sensor network

10.4. Elections of Cluster Head in Wireless Sensor Network

Figure 3 shows the cluster head selection. Here 100 nodes are distributed in 100*100 metersregion. BS is located at the (50, 50). 'O'demonstrates Ordinary nodes and dark 'o'shows CHs. 'X' red indicates BS at (50, 50).

Figure 4: Elections of Cluster Head

(12)

11. Conclusion

In this paper, we propose key protection between each CH and its member nodes, between BS and each CH to secure the network against any interruption.The proposed presents three phases to leach protocol instead of two phases to keep data aggregation. We additionally division leaches protocol into numerous stages to ensure secure the wireless sensor networks against any attack. Also security keys establishment for algorithm to secure data transmission from phase to other. In addition to that we test the algorithm on some attacks to ensure that it failed to compromises the proposed algorithm. We design the algorithm to give enhanced security of data aggregation.

Reference

[1] T.Mugia, S. Lee and H. Lee,“A Secure Routing Protocol for Wireless Sensor Networks Considering Secure Data Aggregation,” PMC Journals, Vol. 15, No.7, pp.

[2] 15127– 15158, 2015.

[3] A. Diop, Yue Qi, Qin Wang, and Sh. Hussain, “An Efficient and Secure Key Management Scheme for Hierarchical Wireless Sensor Networks,”International Journal of Computer and Communication Engineering, Vol. 1, No. 4, 2012.

[4] Hemalatha, M. Shyamalan,“A Trust-Based Mechanism for Preventing Noncooperative Eavesdropping in WSN,” International Journal of Innovative Research in Computer and Communication Engineering,Vol.2, No. 1, pp. 2320-9801, 2014.

[5] P. Bakaraniya, Sh. Mehta, “K-LEACH: An improved LEACH Protocol for Lifetime Improvement in WSN, ”International Journal of Engineering Trends and Technology (IJETT), Vol.4, No. 5, 2013.

[6] T. Barakat,“An Efficient Secure Key Management Scheme based on Secret Sharing for Hierarchical Wireless Sensor Networks,”European Journal of Scientific Research, Vol. 133 No.4, pp. 369-385,2015.

[7] Deepika and Manpreet, “A Review of Various Key Management Techniques for Security Enhancement in WSN,”International Journal of Engineering Trends and Technology (IJETT), Vol. 34 No.4, 2016.

[8] N. Sharma and Monika, “Security Enhancement in Leach Protocol, ”International Journal of Emerging Research in Management &Technology,Vol.4, No.6, pp. 2278-9359,2015.

[9] N. Sharma, V. Verma, “Energy Efficient LEACH Protocol for Wireless Sensor Network,”

International Journal of Information & Network Security (IJINS), Vol.2, No.4, pp. 333-338, 2013.

[10] N. Sharma and V. Verma, “Heterogeneous LEACH Protocol for Wireless Sensor Networks,”

Int. J. Advanced Networking and Applications, Vol.05, No.01, pp1825-1829,2013.

[11] W. Khana, Y. Xiang, M. Y Aalsalema and Q. Arshada, “The Selective Forwarding Attack in Sensor Networks: Detections and Countermeasures,” I.J. Wireless and Microwave Technologies,No. 2, pp. 33-44,2012.

[12] M.Wazid, A.Katal, R.Sachan, R H Goudar and D P Singh “ Detection and prevention mechanism for Blackhole attack in Wireless Sensor Network,” IEEE Communications Magazine, 2013.
