Managing Complex Augmented Reality Models

(1)

Professor Horst Cerjak, 19.12.2005

1

Dieter Schmalstieg Managing Complex Augmented Reality Models

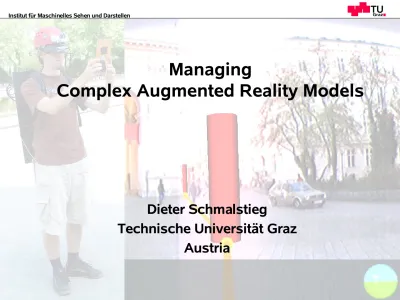

Managing

Complex Augmented Reality Models

Dieter Schmalstieg

Technische Universität Graz Austria

(2)

Introduction

• Summarizes research work in the STUDIERSTUBE project 2000-2006

• Main focus: Making mobile AR practical • Overcome the „Demo Data Dillema“

…you never know what it‘s really worth until you have tried it in real life…

(3)

3

Comparison VR – AR Models

Virtual Reality

• Often architectural models • Visual fidelity very important • Geometry used for rendering

• No real world

• Often no semantic data

Augmented Reality

• Often architectural models • Visual fidelity not so important • Geometry used for handling occlusions real-virtual, shadows, interaction, vision-based tracking, and also stylized rendering

•Registration with real world required

• Semantic metadata very important

(4)

AR Modeling Pipeline

Acquisition (Tier 0) Storage (Tier 1) Delivery (Tier 2) Use (Tier 3) XML Database View Generation / Context sensitive scene graph Legacy database conversion Authoring Surveying Tracking Navigation Visualization

(5)

5

Hardware and Platform

(6)

Muddleware: Database/Collaboration Server

• XML database server

• Persistent storage for models

• Communication similar to tuplespace/blackboard • Non-relational, hierarchical, loosely typed

Database File (XML)

Clients [1..n] Server

Muddleware Client

Application Persistence_Service

XML Database XML Queries

Script Queries Query Results

(7)

7

Data Management

• 3-tier architecture

• Model schema defined as XML Schema

• Storage in Muddleware or Tamino

• XSLT transformations provide data (scene graph) for individual applications Muddleware Application Transformation Processor Model Schema XSLT

(8)

(9)

9

(10)

User Interface for Cultural Heritage Browsing

• Attributed features are highlighted

• Picking with gaze to trigger content

• Content displayed in HUD may consist of text,

images, 3D models

(11)

11

User Interface for Navigation

• Network of paths

• Leading to address points • Waypoints as cylinders

and edges as arrows between them

• Dynamically updates according to user’s position

• Re-compute shortest path • Additional UI elements to

guide in the right direction • Clipping on real buildings

(12)

Context Sensitive Scene Graphs (1)

• Scene graphs (SG) are an established tool for interactive 3D applications

• Encapsulates behavior

• Once created, cannot easily modify behavior of objects “hidden” in SG • Defeats multi-purpose SG

• Our solution: parameterized SG with user-defined parameters

• (Sub-)SGs as parameters(!)

(13)

13

Example: Signpost SG for Cultural Heritage

Render highlight Context of vis_type = highlight Raypick Context of vis_type = picking Context switch on item Item A Context switch on vis_type

Highlight Picking Highlight Picking Render Overlay Context of vis_type = picking Overlay Overlay Item B Context switch on vis_type overlay

(14)

Signpost Modeling Pipeline

Muddleware

Transformation

Processor XSLT

Context-Sensitive Scene Graph Dataset from Location Query

GIS Stadt Wien Mehrzweckkarte

Foothpath Network Generator

Guide Book

(15)

15

Indoor Signpost

• Cell/portal model • Marker based tracking + inertial tracking

(16)

Runtime Visualization Processing

Generic model

World in Miniature (WIM)

Heads-Up Display (HUD)

Multiple ways to use

visual model

(17)

17

Indoor Context Sensitive Scene Graph

WIM Context of floor = green Context of wall = yellow Navigation Context of floor = skip Context of wall = z-only Context of wall = wireframe Room Floor Style =

context floor Geometry

Wall

Style =

(18)

Indoor Model: Generation

Surveying with a mobile robot

(19)

19

Animated Tour Guide

• Authoring Platform APRIL (Augmented Presentation and Interaction Language)

• XML dialect for scripting the Studierstube system • State machine concept

• Hardware platform independence

• Component concept (Indoor Signpost, Animated Agents) • Used to script a guided tour through

(20)

Indoor Signpost Modeling Pipeline

Muddleware XSLT XSLT Indoor Model data CSSG rules for Signpost Mobile AR APRIL Script for Tour Guide APRIL rules APRILscene graph APRIL state machine

APRIL I/O configuration files Indoor

Signpost scene graph

Surveying + authoring

(21)

21

Ongoing Work

• Self-surveying building

– Manfred Klopschitz

• UbiTrack (autoconfigure for multi-system tracking)

– Eduardo Veas, Alex Bornik, Joe Newman (Cambridge)

• Interactive reconstruction for outdoors

– Bernhard Reitinger, Christopher Zach (VRVis)

• Subsurface Visualization

– Erick Mendez, Gerhard Schall – SEE NEXT TALK!

Credits:

Gerhard Reitmayr (Cambridge) Joe Newman (Cambridge)

Gerhard Schall

Florian Ledermann (Vienna) Istvan Barakonyi
