Malware Analysis Report

(1)

2014. 02. 20

[ Xtreme RAT ]

A server program of ‘Xtreme RAT’, a type of RAT (Remote Administration Tool), is distributed recently. The system which is infected with the server program becomes a client of attacker who control the system by remote control. The attacker can steal the information of the infected system such as inputting data from keyboard, MSN E-mail, and clipboard data. In the system that is suspected to be infected, countermeasures according to the action and treatment through A/V are required.

Information Service about a new vulnerability

Malware Analysis Report

(2)

Index

1. Malware Stub ...3

2. Technical Details ...6

3. Red Alert of Opinion ... 12

4. Removal Recommendations ... 12

(3)

Confidentiality Agreements

This report was written from the Red Alert team. There is no problem user for research purpose, but we don’t care about Legal responsibility. This code is a living document and will be updated from time to time. Please refer to the Red Alert SNS Page to download updates.

(https://www.facebook.com/nshc.redalert)

Analysis reports that are updated on Facebook, including other materials and article, sample can offer premium services the ISAC on the page. (https://isac.nshc.net).

(4)

1. Malware Stub

Malware Name pdfviewer.exe

File Size 133,624 bytes MD5 50f7368f4b81d4c2891d7a890e8d5b44

Compiled Date 2012.01.18 12:35:52 Etc N/A Table 1. File Info-1

Malware Name dmw.exe

File Size 59,823 bytes MD5 c674a56b67332c033d1a041f32f0daac

Compiled Date 1992.06.19 22:22:17 Etc N/A Table 2. File Info-2

- dl.**********rcontent.com/s/pn*********5zhh/pdfviewer.exe

Index Description

OS Windows XP SP3 KR

Browser Windows Internet Explorer 8

Table 3. Analysis Environment

The malware runs by injecting its’ module to ‘svchost.exe’ and ‘explorer.exe’. A ‘dwm.exe’ is registered on ‘Windows Auto-startup’ that it can the malware resides on the system.

(5)

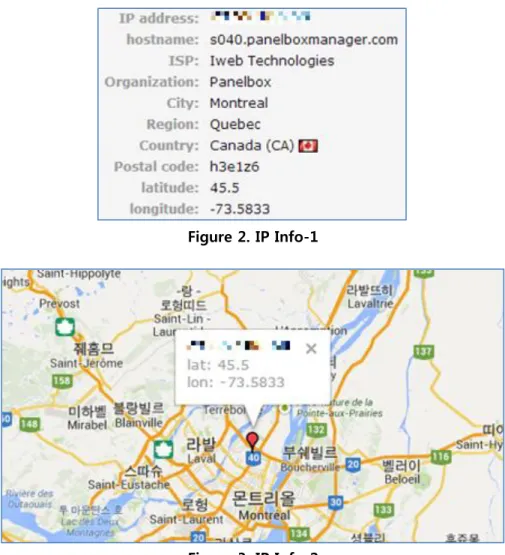

This is a server which is connected with the malware information.

Figure 2. IP Info-1

Figure 3. IP Info-2

The data of malware and ‘Keylogging’ are stored in the specific folder.

(6)

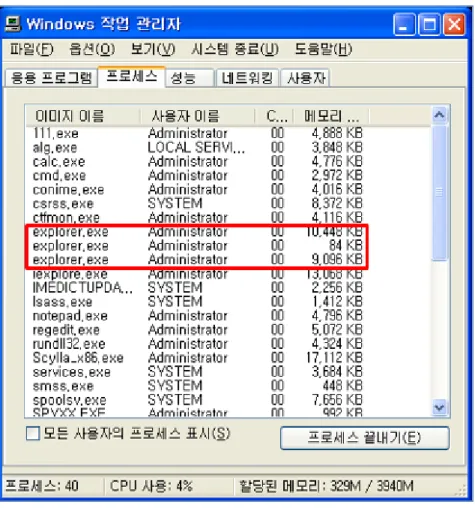

Also, users can see that ‘explorer.exe’ is running more than one because the malware injects the module of ‘explorer.exe’.

Figure 5. Injected Process

When the infected ‘explorer.exe’ is running, Windows that have the objects symbolizing the ‘Xtreme RAT’ are created.

(7)

2. Technical Details

The ‘XtremeKeylogger’ created by the infected ‘explorer.exe’ is registered as a clipboard viewer.

Figure 7. Set Clipboard Viewer

In ‘XtremeKeylogger’ procedure, the routine exists that handling the message of ‘WM_DRAWCLIPBOARD’. The ‘WM_DRAWCLIPBOARD’ occurs if the new data is generated to the clipboard. The data of clipboard can be checked in the Windows that is registered as the clipboard viewer.

Figure 8. Branches 'WM_DRAWCLIPBOARD'

In the routine of ‘WM_DRAWCLIPBOARD’ message handling, it stores the ‘Unicode text’ in the buffer.

Figure 9. Get Clipboard Data

The stored data is recorded separately in the file, and the file is as follows:

- %APPDATA%\Microsoft\Windows\((Mutex)).dat

- %APPDATA%\Microsoft\Windows\gzAdbdgue.dat

(8)

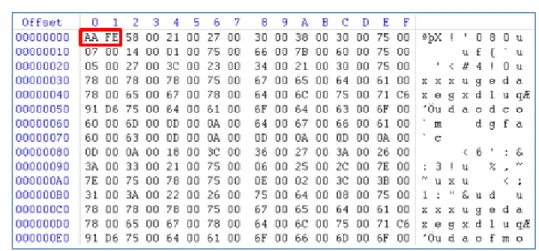

The signatures that ‘0xAA, 0xFE’ is existed on the starting point in the data of file. And it is stored in single-byte encryption(XOR 0x55) an ‘Unicode characters’ excluding CRLF(Carriage Return Lin Feed : 0x0D, 0x0A) and ‘0x00’.

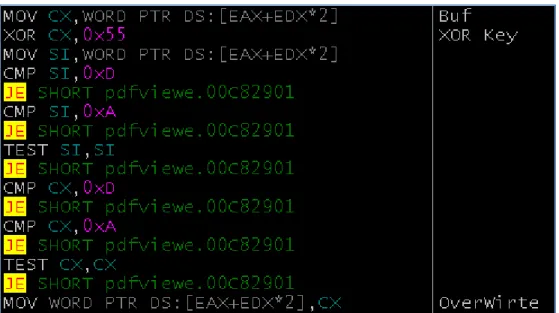

Figure 11. XOR Encode Routine

The decoded data excluding the ‘Unicode Text’ is as follows:

(9)

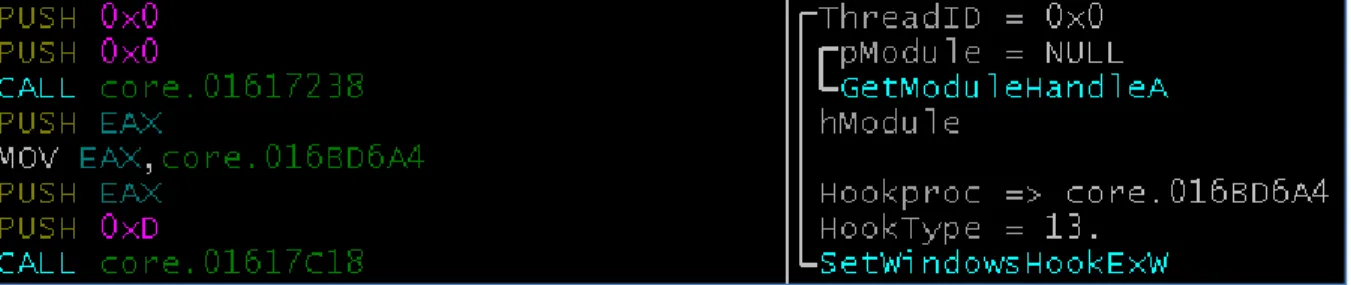

It attempts to hook the system using ‘SetWindowsHookExW’ function on the ‘XremeKeylogger’ windows made by the infected ‘explorer.exe’.

Figure 13. Set Keyboard Hook

A routine that processing of keyboard input message is existed on ‘LowLevelKeyboardProc’ which is executing through ‘global hooking’.

- WM_SYSKEYDOWN : Input ‘System key’

- WM_KEYDOWN : Input ‘Keyboard key’

Figure 14. Branches Key Down Messages

It is divided the windows using ‘Foreground Window’.

(10)

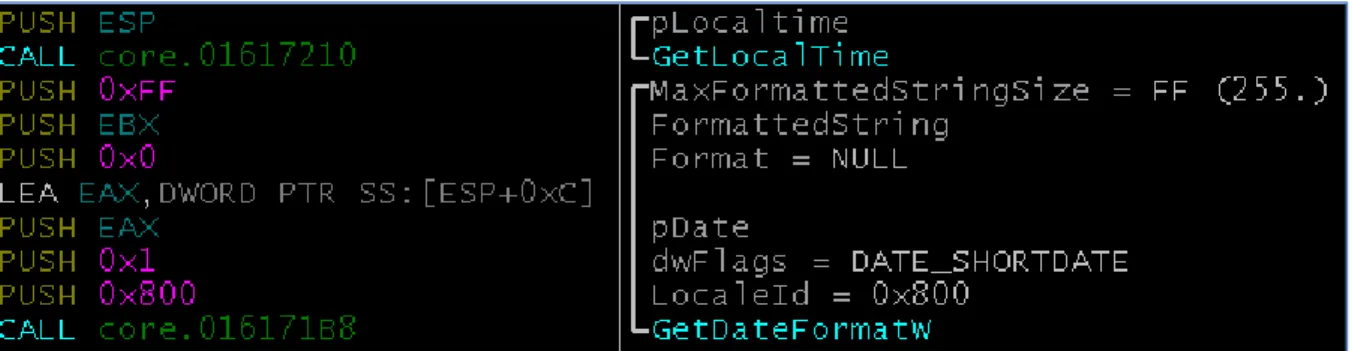

The ‘time information’ is also recorded in the form of ‘DATE_SHORTDATE’ along with the name of ’windows caption’.

Figure 16. Local Time Format

It is saved the contents with ‘single byte encryption (XOR 0x55) in the ‘keylogging data file’ the same way as ‘Clipboard Hooker’. The decoded data excluding the Unicode type is same the below.

Figure 17. Key Logging Data

The ‘keylogging data file’ is sent with the clipboard data to ‘FTP Server’.

(11)

It attempts to hook the system using ‘SetWindowsHookExW’ function on the ‘XremeKeylogger’ windows made by the infected ‘explorer.exe’.

Figure 19. Set Mouse Hook

A routine that processing of mouse input message is existed in ‘LowLevelMouseProc’.

- WM_LBUTTONDOWN : Click the left button of mouse

- WM_RBUTTONDOWN : Click the right button of mouse

- WM_MBUTTONDOWN : Click the wheel of mouse

- WM_LBUTTONDBLCLK : Double click the left button of mouse

- WM_RBUTTONDBLCLK : Double click the right button of mouse

Figure 20. Branches Mouse Click Messages It is also divided the windows using ‘Foreground Window’.

(12)

By using ‘BtiBlt’ function, it captures the screen contents in the memory.

Figure 22. Screen Capture

The captured screen is stored as a ‘.jpg’.

(13)

3. Red Alert of Opinion

The RAT (Remote Administration Tool) can do ‘Capture screen’, ‘Keylogging’, ‘Steal clipboard data’, ’proxy server’, ‘handle process’, ‘handle windows’, and ‘handle registry’. The case to exploit for stealing the personal information is increasing. Please note the damage of ‘RAT’..

4. Removal Recommendations

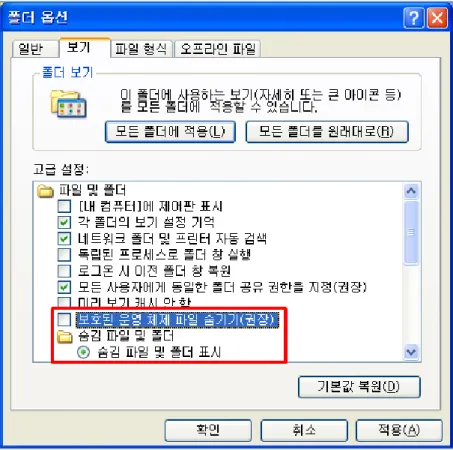

By releasing the check box of ‘Hide protected operation system files (Recommended) and applying ‘Show hidden files and folders’ in the folder option of ‘Windows Explorer’. After this, please delete the files are as follows:

- %APPDATA%\Microsoft\Windows\((Mutex)).cfg - %APPDATA%\Microsoft\Windows\((Mutex)).dat - %APPDATA%\Microsoft\Windows\gzAdbdgue.cfg - %APPDATA%\Microsoft\Windows\gzAdbdgue.dat - %APPDATA%\Microsoft\Windows\gzAdbdgue.xtr - %APPDATA%\System\dmw.exe

(14)

Delete the registry related on the malware.

- HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Run

 Value Name : HKLM

 Value Data : %APPDATA%\System\dmw.exe

- HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run

 Value Name : HKCU

 Value Data : %APPDATA%\System\dmw.exe

- HKLM\SOFTWARE\Microsoft\Active Setup\Installed Components\

{54F31X8D-X7YK-MYWP-XFCM-1M6UNSJ65AWU}

 Name : StubPath

 Value Data : %APPDATA%\System\dmw.exe restart

- HKCU\Software\gzAdbdgue

- HKLM\Software\Microsoft\Windows NT\CurrentVersion\Windows

 Value Name : Load

- HKCU\Software\Microsoft\Windows NT\CurrentVersion\Windows

 Value Name : Load

Please get a thorough system examination by referring ‘Reference. [1] Virus Total’ and treat the malware through A/V.

(15)

5. Reference

[1] Virus Total https://www.virustotal.com/en/file/e6b8a3a8b4df58ad8c656cafada78a2462023acb5c76fda5f7 d4cc62604a6a20/analysis/ [2] Xtreme RAT https://sites.google.com/site/xxtremerat/
