NEW
PR
ODUCTS

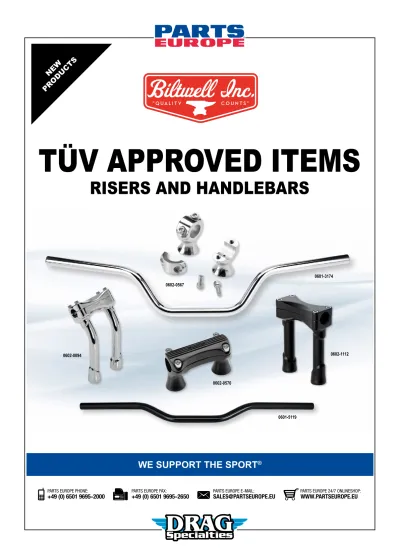

0601-3174 0601-5119 0602-0570 0602-1112 0602-0894 0602-0567TÜV APPROVED ITEMS
RISERS AND HANDLEBARS
1/6
25,4 MM (1") THROTTLE-BY-WIRE HANDLEBARS
Manufactured from 25,4 mm OD x 3,1 mm wall (1" OD x 0,120") seamless 4130
chromoly tubing
CNC-machined slots for internal cable routing All welded joints are precision-mitered and TIG-welded Available in chrome or black electroplated finishes Internal tube tapering on right bar end to accept TBW module
NOTE: If grip sets aren’t installed, bars will be 28,6 mm (1,125") shorter
than listed.
1 29 mm (11/8") OD center section that tapers to 25 mm (1") OD at grip ends.
DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK CHROME
PART # BLACK ELECTROPLATED PART #
Tracker 44 mm (1,75") 77 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-4638 0601-4637
Tracker Mid 76 mm (3") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-4640 0601-4639
Tracker High 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-4642 0601-4641
Tracker O/S 44 mm (1,75") 77 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-4660 0601-4659
Tracker O/S Mid 76 mm (3") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-51541 0601-51531
Tracker O/S High 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-51581 0601-51571
Moto 11 cm (4,25") 79 cm (31") 12 cm (4,75") 70 mm (2,75") 0601-4644 0601-4643 Chump 20,5 cm (8") 77 cm (30,5") 12 cm (4,75") 51 mm (2") 0601-4636 0601-4635 Tyson XL 20,5 cm (8") 20,5 cm (8") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5162 0601-5161 Tyson XL 25,5 cm (10") 25,5 cm (10") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-4648 0601-4647 Tyson XL 30,5 cm (12") 30,5 cm (12") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-4652 0601-4651 Tyson XL 35,5 cm (14") 35,5 cm (14") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-4656 0601-4655 Tyson XL Pullback 20,5 cm (8") 20,5 cm (8") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5166 0601-5165 Tyson XL Pullback 25,5 cm (10") 25,5 cm (10") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5170 0601-5169 Tyson XL Pullback 30,5 cm (12") 30,5 cm (12") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5174 0601-5173 Tyson XL Pullback 35,5 cm (14") 35,5 cm (14") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5178 0601-5177 Apes 30,5 cm (12") 81 cm (32") 12 cm (4,75") 57 mm (2,25") 0601-4634 0601-4633 Zero Drag 0 cm (0") 61 cm (24") 12,5 cm (5") 51 mm (2") 0601-5150 0601-5149 0601‑4633 0601-4635 0601-4638 0601-4639 0601-4642 0601-4644 0601-4648 0601-4655 0601-4659
2/6
DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK CHROME
PART # BLACK ELECTROPLATED PART #
Small Zero Drag 0" 61 cm (24") 12,5 cm (5") 51 mm (2") 0601-5130 0601-5129
Small Zero Drag, slotted 0" 61 cm (24") 12,5 cm (5") 51 mm (2") 0601-5128 0601-5127
Tracker 44 mm (1,75") 77,5 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-2208 0601-2207
Tracker, slotted 44 mm (1,75") 77 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-5120 0601-5119
Tracker Mid 76 mm (3") 77,5 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-4092 0601-4091
Tracker Mid, slotted 76 mm (3") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5122 0601-5121
Tracker High 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-3174 0601-3173
Tracker High, slotted 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5124 0601-5123
25,4 MM (1") HANDLEBARS
Manufactured from 25,4 mm OD x 3,1 mm wall (1" x 0,120") seamless 4130
chromoly tubing
All bends are created with internal mandrels on a CNC bender to reduce flat spots
in the bends
All welded joints are precision-mitered and TIG-welded Available in chrome or black electroplated finishes
Three handlebar options: undimpled for aftermarket hand controls/ custom
applications, slotted or dimpled for stock OEM switches and levers
All T-Bar style bars have 89 mm (3,5") on-center mounting points
NOTE: Not notched for TBW applications.
0601-2208 0601-3174 0601-5119 0601-2163 0601-2179 0601-4398 0601-5115 0601-5141 0601-5146 0601-5167 0601-4658
3/6
25,4 MM (1") HANDLEBARS (CONT.)
DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK CHROME
PART # BLACK ELECTROPLATED PART #
Tracker O/S 44 mm (1,75") 77 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-46582 0601-46572
Tracker O/S Mid, slotted 76 mm (3") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5152 0601-5151
Tracker O/S High, slotted 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5156 0601-5155
Moto 11 cm (4,25") 79 cm (31") 12 cm (4,75") 70 mm (2,75") 0601-2180 0601-2179 Moto, slotted 11 cm (4,25") 79 cm (31") 12 cm (4,75") 70 mm (2,75") 0601-5136 0601-5135 Zed 12,5 cm (5") 61 cm (24") 14 cm (5,5") 89 mm (3,5") 0601-2196 0601-2195 Zed, slotted 12,5 cm (5") 61 cm (24") 14 cm (5,5") 89 mm (3,5") 0601-5126 0601-5125 Window 17 cm (6,75") 68,5 cm (27") 12,5 cm (5") 38 mm (1,5") - 0601-2171 Window, slotted 17 cm (6,75") 68,5 cm (27") 12,5 cm (5") 38 mm (1,5") 0601-5118 0601-5117 Chumps 20,5 cm (8") 77,5 cm (30,5") 12 cm (4,75") 51 mm (2") 0601-2168 0601-2167 Chump, slotted 20,5 cm (8") 77 cm (30,5") 12 cm (4,75") 51 mm (2") 0601-5116 0601-5115 H2, slotted 22 cm (8,625") 63,5 cm (25") 89 mm (3,5") 64 mm (2,5") 0601-5140 0601-5139 Re-bar 23 cm (9") 51 cm (20") 89 mm (3,5") 20,5 cm (8") 0601-3576 -Re-bar, slotted 23 cm (9") 51 cm (20") 89 mm (3,5") 20,5 cm (8") 0601-5138 0601-5137 Tyson 20,5 cm (8"), slotted 20,5 cm (8") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5142 0601-5141 Tyson 25,5 cm (10"), slotted 25,5 cm (10") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5144 0601-5143 Tyson 30,5 cm (12"), slotted 30,5 cm (12") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5146 0601-5145 Tyson 35,5 cm (14"), slotted 35,5 cm (14") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-5148 0601-5147 Tyson XL 20,5 cm (8"), slotted 20,5 cm (8") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-51601 0601-51591 Tyson XL 25,5 cm (10") 25,5 cm (10") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-43981 0601-43971 Tyson XL 30,5 cm (12") 30,5 cm (12") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-44001 0601-43991 Tyson XL 35,5 cm (14"), dimpled 35,5 cm (14") 77 cm (30,5") 89 mm (3,5") 70 mm (2,75") 0601-44021 0601-44011 Tyson XL Pullback 20,5 cm (8") 20,5 cm (8") 76 cm (30") 89 mm (3,5") 70 mm (2,75") 0601-51641,2 0601-51631,2 Tyson XL Pullback 25,5 cm (10") 25,5 cm (10") 76 cm (30") 89 mm (3,5") 70 mm (2,75") 0601-51681,2 0601-51671,2 Tyson XL Pullback 30,5 cm (12") 30,5 cm (12") 76 cm (30") 89 mm (3,5") 70 mm (2,75") 0601-51721,2 0601-51711,2 Tyson XL Pullback 35,5 cm (14") 35,5 cm (14") 76 cm (30") 89 mm (3,5") 70 mm (2,75") 0601-51761,2 0601-51751,2 Apes 24 cm (9,5") 81 cm (32") 12 cm (4,75") 57 mm (2,25") 0601-2164 0601-2163 Apes, slotted 30,5 cm (12") 81 cm (32") 12 cm (4,75") 57 mm (2,25") 0601-5114 0601-5113 1 32 mm (1,25") OD.
2 29 mm (11/8") OD center section that tapers to 25 mm (1") OD at grip ends.
44 MM (1
3/
4") SLIMLINE
RISER KITS
Investment-cast stainless steel construction Fit bars with 25,4 mm (1") diameter in
clamping area
Low profile 44 mm (13/4") rise Bottom clamps accept stock 1/2" x 13
mounting hardware
5/16"-18 stainless-steel Allen cap handlebar
clamp screws
Available in raw polished or black
electroplated finish
Sold in pairs
51 MM (2") THUNDER RISER KITS
Investment-cast stainless steel construction Fits bars with 25,4 mm diameter (1") in clamping area 11 cm (43/8") wide with 51 mm (2") rise
89 cm (31/2") on-center mounting holes accept 1/2" x 13 mounting hardware
Includes stainless top clamp hardware
Available in raw polished or black electroplated finish
DESCRIPTION PART # Raw polished 0602-0569 Black electroplated 0602-0570 0602-0569 0602-0570 DESCRIPTION PART # Raw polished 0602-0567 Black electroplated 0602-0568 0602-0567 0602-0568
4/6
0602-0894
MURDOCK RISER KITS
Investment-cast steel one-piece top clamp Pullback risers feature 51 mm (2") of back sweep
TIG-welded 0,120" wall 4130 chromoly steel uprights with 1/2"-13 threads
Available in satin black electroplated or polished show chrome
Handlebar clamp bolt patterns fit speedo/ tach brackets on many stock year
Harley-Davidson® models
For 25,4 mm (1") bar
DESCRIPTION COLOR PART #
OVERSIZED RISERS 15 cm (6") tall Chrome 0602-1111 Black 0602-1112 20,5 cm (8") tall Chrome 0602-1113 Black 0602-1114 25,5 cm (10") tall Chrome 0602-1115 Black 0602-1116 30,5 cm (12") tall Chrome 0602-1117 Black 0602-1118 33,5 cm (14") tall Chrome 0602-1119 Black 0602-1120 STRAIGHT RISERS 15 cm (6") tall Black 0602-0660 20,5 cm (8") tall Black 0602-0662 25,5 cm (10") tall Black 0602-0664 30,5 cm (12") tall Black 0602-0763
DESCRIPTION COLOR PART #
OVERSIZED PULLBACK RISERS
15 cm (6") tall Chrome 0602-1121 Black 0602-1122 20,5 cm (8") tall Chrome 0602-1123 Black 0602-1124 25,5 cm (10") tall Chrome 0602-1125 Black 0602-1126 30,5 cm (12") tall Chrome 0602-1127 Black 0602-1128 33,5 cm (14") tall Chrome 0602-1129 Black 0602-1130 PULLBACK RISERS 15 cm (6") tall Chrome 0602-1064 Black 0602-1065 20,5 cm (8") tall Chrome 0602-0894 Black 0602-0895 25,5 cm (10") tall Black 0602-0897 0602-1064 0602-1130 0602-1113 0602-0763
5/6
25,4 MM (1") HANDLEBARS
Manufactured from 25,4 mm OD x 3,1 mm wall (1" x 0,120") seamless 4130
chromoly tubing
All bends are created with internal mandrels on a CNC bender to reduce flat spots
in the bends
All welded joints are precision-mitered and TIG-welded Available in chrome or black electroplated finishes
Three handlebar options: undimpled for aftermarket hand controls/ custom
applications, slotted or dimpled for stock OEM switches and levers
All T-Bar style bars have 89 mm (3,5") on-center mounting points
NOTE: Not notched for TBW applications.
0601-2208
0601-3174
0601-2163 0601-2179
0601-4658
DESCRIPTION END RISE WIDTH CENTER WIDTH PULLBACK CHROME
PART # BLACK ELECTROPLATED PART #
Tracker 44 mm (1,75") 77,5 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-2208 0601-2207
Tracker, slotted 44 mm (1,75") 77 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-5120 0601-5119
Tracker Mid 76 mm (3") 77,5 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-4092 0601-4091
Tracker Mid, slotted 76 mm (3") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5122 0601-5121
Tracker High 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-3174 0601-3173
Tracker High, slotted 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5124 0601-5123
Tracker O/S 44 mm (1,75") 77 cm (30,5") 12,5 cm (5") 64 mm (2,5") 0601-46581 0601-46571
Tracker O/S Mid, slotted 76 mm (3") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5152 0601-5151
Tracker O/S High, slotted 10 cm (4") 77 cm (30,5") 12,5 cm (5") 70 mm (2,75") 0601-5156 0601-5155
Moto 11 cm (4,25") 79 cm (31") 12 cm (4,75") 70 mm (2,75") 0601-2180 0601-2179 Moto, slotted 11 cm (4,25") 79 cm (31") 12 cm (4,75") 70 mm (2,75") 0601-5136 0601-5135 Zed 12,5 cm (5") 61 cm (24") 14 cm (5,5") 89 mm (3,5") 0601-2196 0601-2195 Window 17 cm (6,75") 68,5 cm (27") 12,5 cm (5") 38 mm (1,5") - 0601-2171 Chumps 20,5 cm (8") 77,5 cm (30,5") 12 cm (4,75") 51 mm (2") 0601-2168 0601-2167 Apes 24 cm (9,5") 81 cm (32") 12 cm (4,75") 57 mm (2,25") 0601-2164 0601-2163
1 29 mm (11/8") OD center section that tapers to 25 mm (1") OD at grip ends.
0601-5119
0601-4902
0601-5136
0601-2171 0601-5151
6/6
44 MM (1
3/
4") SLIMLINE
RISER KITS
Investment-cast stainless steel construction Fit bars with 25,4 mm (1") diameter in
clamping area
Low profile 44 mm (13/4") rise Bottom clamps accept stock 1/2" x 13
mounting hardware
5/16"-18 stainless-steel Allen cap handlebar
clamp screws
Available in raw polished or black
electroplated finish Sold in pairs DESCRIPTION PART # Raw polished 0602-0567 Black electroplated 0602-0568 0602-0567 0602-0568
