2012 e-catalog POTTER S TOOLS SLAB ROLLER

(1)

since 1978

“WE MECHANISE YOUR ART”

2012

e-CATALOG

ŞAHİNLER MAKİNE

Adress: Kazımpaşa Mahallesi Orman Yolu Mevkii No:11/1 Menemen/İzmir/TURKIYE Tel: +90 232 832 19 42 Fax: +90 232 832 80 42 Web: www.sahinlermakine.com E-mail: [email protected]

kiln

s

PUGMILLS

SLAB ROLLER

POTTER’S TOOLS

Banding wheels

POTTERY

TEMPLATE LATHES

PRESSES

WHEELS

PLASTER

LATHES

(2)

ŞAHİNLER MAKİNE

Index

Pottery Wheels

Pugmills

Kilns

Plaster Lathes

Template Lathes

Slab Rollers

Mixers for Clay and Glaze

Banding wheels

Hydraulic Presses

Tools

ŞAHİNLER MAKİNE

Adress: Kazımpaşa Mahallesi Orman Yolu Mevkii No:11/1 Menemen/İzmir/TURKIYE

Tel:+90 232 832 19 42

Fax:+90 232 833 80 42

Web: www.sahinlermakine.com

E-mail:[email protected]

2012 e-CATALOG

In 2011, we entirely reconstructed our production area

and totaly enlarged to 3200 m

2

_{. We also re-designed}

and standardized our products to achieve high quality

and performance conserdering energy consumptions and

enviroment.

Wellcome to 2012 e-CATALOG.

Mustafa Şahin (CEO)

(3)

Call to order: +90 232 832 1942

Products for Hobby Workshops

I

NDIVIDUAL

WORKS HOPS

Tel:+90 232 832 19 42

Fax:+90 232 832 80 42

E-mail: [email protected]

“WE MECHANISE YOUR ART”

In this catalog, you can easily find your equipments to set up your individual hobby studio at home or work. If you interested in pottery, you may use a group of machine and equipments such as pugmills, wheels, tools..etc.

Maybe you also work on plaster and choice a lathe..Simple tools to large kilns wide range of products may help you to figure your artworks..

G ROUP

WORKSHOPS

In many workshop at different locates (Commercial Workshops, Courses, Universities, Art Centers, Public Places, Prisons), our products are mostly used to achieved desired productions parameters, such as quality, accuracy, etc.. We have experiments over 30 years to design the most utilizable and employable products and know what the needs are to handle undesired problems.

If you plan to set up a new workshop in anywhere in the world, we can help you to figure out needs and to design workshop entirely by consedering job safety, performing, energy usage, enviroment and costs..

(4)

2012 e-CATALOG

design

requirements:

We make design

changes on the products to;



meet customer expectations



achieve greater performance



extend lifetime

D ES I GN C E N TER

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

(5)

Call to order: +90 232 832 1942

POTTER’S WHEEL

HATTI-BC13

Disc Diameter: 300mm, 2-way rotatable Al-Alloy disc. Adjustable Speed Range : 0-300 rpm,

Electrical Equipments: SIEMENS, 550W silence motor (220V). Free pedal for easy control, safety buttons. The table in front of the wide area is very useful to put tools, clay and water. Adjustable speed and constant working speed is another advantage for beginners.

Price:660,00€ Order No: FP/300/50-250 Type: Hobby Workshops

POTTER’S WHEEL

KHEMET-BC31

Disc Diameter: 200mm, 2-way rotatable Al-Alloy disc. Adjustable Speed Range : 50-250 rpm, rotatable disc. Electrical Equipments: SIEMENS, 250W silence motor. 220V). Fixed arm on body for speed control, safety buttons. The Wheel is suitable for Works on desks. (optional)

Price:755,00 €

Order No: FXP/250/50-250 Type: Hobby Workshops

POTTER’S WHEEL

MENEMEN-AC13

Disc Diameter: 300mm, 2-way rotatable Al-Alloy disc. Adjustable Speed Range : 0-300 rpm, rotatable disc. Electrical Equipments: SIEMENS, 550W silence motor. 220V). Fixed pedal on body for speed control, safety buttons. The clay tank is made of polyester and can be removed and washed easily. (optional)

Price: 440,00 € Portable Pedal Price: 70€ Order No: FA/200/50-250 Type: Hobby Workshops

Potter’s Wheels

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

(6)

2012 e-CATALOG

VACUUM PRES (PUGMILL)

IMAT-BC11

Extrusion Diameter: 100mm Extrusion Capacity : 500 kg/h Electric Motors: 2 X1,5 kW (380V) Vacum Pump: 0,37 Kw / Capacity :16 m3_/h

Structure: Al alloy body, 2 stainless stell augers IMAT-BC12 is a new developed design and prototip of our vacum presses. We solved some undesired problem that may occur on proseses after exrusion by using two different helix and vacum effect. The vacum pump effects the filtered clay moved on the second helix just before extrusion edge. To reduce electric energy consumption, many different type and capacity of vacum pump are performed. Also, for the right extrusion capacity and homogen, we use special helix forms and sizes.

Price: 3.655 € Order No: VDHEX-100/500 Type: Hobby Workshops/Industrial

OLDER PUGMILLS

T-Type Vacuum Pugmill

YOUR DESIRE IS OUR DESIGN

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

(7)

2012 e-CATALOG

PUGMILL (STAND TYPE)

IMAT-BC12

Extrusion Diameter: 75mm Extrusion Capacity : 300 kg/h Electric Motors: 1.1 kW (220/380V)

Structure: Al alloy body, stainless stell auger, table type IMAT-BC12 is our standart models performed over than 15 years by workshops. This products are preferred especially smaller workshops instead of the vacum pugmills.

The most efficient workable clay quality obtained with essential and sufficiant wedging and extursion capacity. The forceful motors of augers mecanism allow to fast transport and wedge. Special auger forms protects the clay from scorched effects.

Price: 1.020 € Order No: STP-75/300

Type: Hobby Workshops/Industrial

Price:1.055 € Order No: TTP-75/300

YOUR DESIRE IS OUR DESIGN

PugMills

PUGMILL (TABLE TYPE)

IMAT-BC13

Extrusion Diameter: 75mm Extrusion Capacity : 300 kg/h Electric Motors: 1,1 kW (220/380V)

Structure: Al alloy body, stainless stell auger, stillage type It is considered that maintenance and internal cleaning is possible by operator practically and easly. All the components are stabilized by a few bolt connection for easy disassembly when needed.

For safe operation all pugmills are equipped with emergency stop buttons and safety lock. An amount of distance allows a hand to enter inside the clay tank stop the augers in order the eliminate any risks of accident.

(8)

2012 e-CATALOG

SMH 300 SERAMIC

Price:5630,00€ Order No: MP-294/5 Type: Hobby Workshops

SPECIFICATIONS

Kilns



Maximum temperature is 1350 °C, operation temperature is 1300 °C.



Cabin type , Front-door opens on the right. (right-hinged)



2, 3 and 5 way heating, by elements located at the base and all the walls wrapped on ceramic pipes



Front surface is protected by stainless steel. Door locks are made of chrome.



1430 °C, JM26, light-weight refractory brick with the double-layer insulation



Sheet metal by laser cut and electrostatic paint



20 mm air gap for water vapor and gas discharge on all surfaces and long lifetime.



On the top fiber-board chimney for ventilation



Cordierite plate cover in the stainless steel body



The air inlet damper at the base adjusted manually



PID processor, LCD display, full temperature control by the fifteen-step controller of four programs



S-type termometer



Releases cooling

(9)

2012 e-CATALOG

CERAMIC KILNS

Kiln Selection Chart

FUSION GLASS KILNS

BASIC MODELS

CLASSICS MODELS

COLLECTION MODELS

HIGH MODELS

BASIC MODELS

CLASSICS MODELS

COLLECTION MODELS

MODEL TEMPERATURE INNER DIM. VOLUME POWER VOLT. WEIGHT HEATERS DEPTH WIDTH HEIGHT

SM50 SM100 SM150 SM200 SM300 SM50 SM100 SM150 SM200 SM300 SM50 SM100 SM150 SM200 SM300 SMH50 SMH100 SMH150 SMH200 SMH300 SMC75 SMC100 SMC150 SMC200 SMC300 SMC300 SMC75 SMC100 SMC150 SMC200 SMC300 SMC300 SMC75 SMC100 SMC150 SMC200 SMC300 SMC300

(10)

2012 e-CATALOG

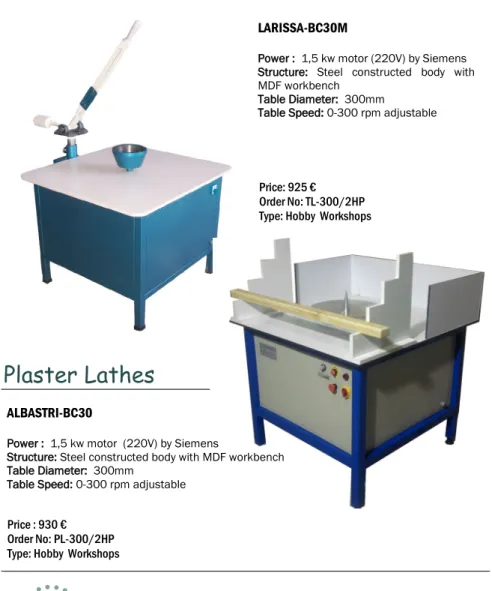

ALBASTRI-BC30

Power : 1,5 kw motor (220V) by Siemens

Structure: Steel constructed body with MDF workbench Table Diameter: 300mm

Table Speed: 0-300 rpm adjustable

Price: 925 € Order No: TL-300/2HP Type: Hobby Workshops

YOUR DESIRE IS OUR DESIGN

Plaster Lathes

Template Lathes

LARISSA-BC30M

Power : 1,5 kw motor (220V) by Siemens Structure: Steel constructed body with MDF workbench

Table Diameter: 300mm

Table Speed: 0-300 rpm adjustable

Price : 930 € Order No: PL-300/2HP Type: Hobby Workshops

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

(11)

2012 e-CATALOG

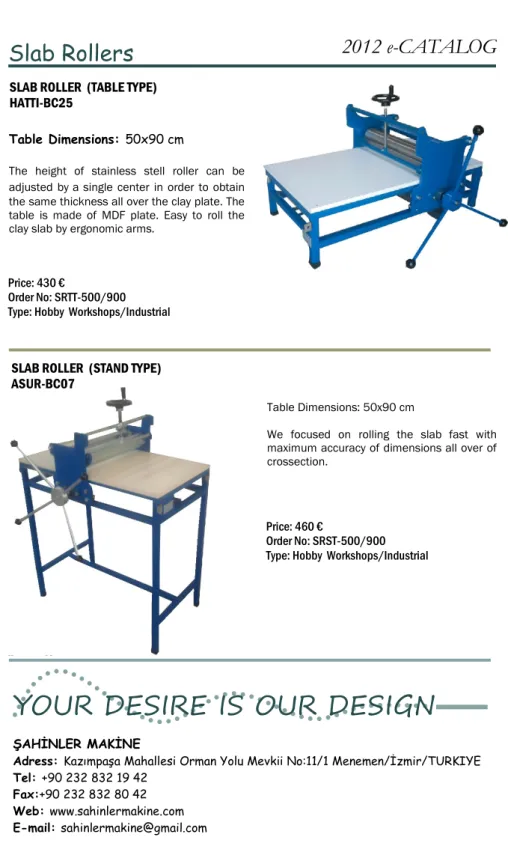

SLAB ROLLER (TABLE TYPE)

HATTI-BC25

Price: 460 €

Order No: SRST-500/900 Type: Hobby Workshops/Industrial

Slab Rollers

Table Dimensions: 50x90 cm

The height of stainless stell roller can be adjusted bya single center in order to obtain the same thickness all over the clay plate. The table is made of MDF plate. Easy to roll the clay slab by ergonomic arms.

SLAB ROLLER (STAND TYPE)

ASUR-BC07

Price: 430 €

Order No: SRTT-500/900 Type: Hobby Workshops/Industrial

Table Dimensions: 50x90 cm

We focused on rolling the slab fast with maximum accuracy of dimensions all over of crossection.

YOUR DESIRE IS OUR DESIGN

Tel: +90 232 832 19 42

Fax:+90 232 832 80 42

(12)

2012 e-CATALOG

CLAY AND GLAZE MIXER

BARREL TYPE

HERMOS-BC10

Mixers for Clay and Glaze

Capacity: 150 lt

Tank: Designed to be more efficient mix by six corner tank that made of stainless chrome against corrosion.

Chorome Rotor: Protected against corrosion effects Power: 1,1 kW (380V)

Easy charge over the tank and decharge by the ball valve at the bottom.

Price: 538 €

Order No: CGMIX/BT-50

CLAY MIXER

CHROME TANK TYPE

EPHESUS-AC10

Capacity: 50 lt

Tank: Designed to be more efficient micing by plastic barrel tank that made of stainless chrome material against corrosion.

Chorome Rotor: Protected against corrosion effects. Easy disassembly

Power: 0,75 kW (220/380V)

Easy charge over the tank and decharge by changing with a new plastic barrel.

Price: 780 €

Order No: CGMIX/CTT-150 Type: Hobby Workshops/Industrial

YOUR DESIRE IS OUR DESIGN

JAR volume: 3,6,10 LT

Suitable for carrying out grinding test or simple wet process mixing test on ceramic glazes and colouring agents, paints and other product. They can also be used for dry process grinding of solid substances such as clays,various minerals, etc.. They can be used for small production runs as well as lab tests.

Works with 0-60h timer.

JAR MILL

KILANDIRAS-BC7

Price: 386 €

Order No: JM-3/6/10-060 Type: Hobby Workshops/Industrial

(13)

Call to order: +90 232 832 1942

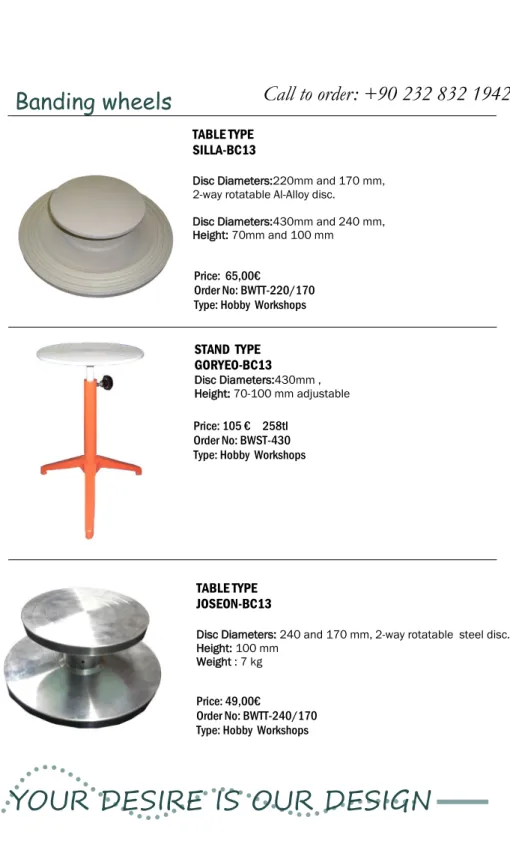

TABLE TYPE

SILLA-BC13

Disc Diameters:220mm and 170 mm, 2-way rotatable Al-Alloy disc.

Disc Diameters:430mm and 240 mm, Height: 70mm and 100 mm

Price: 65,00€ Order No: BWTT-220/170 Type: Hobby Workshops

Banding wheels

Price: 105 € 258tl Order No: BWST-430 Type: Hobby Workshops

STAND TYPE

GORYEO-BC13

Disc Diameters:430mm , Height: 70-100 mm adjustable

TABLE TYPE

JOSEON-BC13

Disc Diameters: 240 and 170 mm, 2-way rotatable steel disc. Height: 100 mm

Weight : 7 kg

Price: 49,00€ Order No: BWTT-240/170 Type: Hobby Workshops

(14)

2012 e-CATALOG

YOUR DESIRE IS OUR DESIGN

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

E-mail: [email protected] “WE MECHANISE YOUR ART”

HYDRAULIC PRESS FOR ROUND PRODUCTS

ANITTA-BC17

Press Capacity: 3 ton Electric Motors:

1,1 kW (380V), 1,5 kW (upper motor 380V) Oil Reservoir: 25 lt

Maximum Product Size: 90 mm Maximum Product Diameter: 130 mm Production Capacity: 300 pieces per hour

Price: 3.760 € Order No: RPHP-3/90-130 Type: Industrial

The molds are made of steel and have changeable forms for different kinds of product and capacity. System can be operated semi-automatically by using foot pedal for plate movement on 2 shafts.

We guarantee that it works in the best way without any misalignment in order to result the best accuracy for product shape.

(15)

2012 e-CATALOG

YOUR DESIRE IS OUR DESIGN

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

HYDRAULIC PRESS FOR PLASTER PRODUCTS

KASHKA-BC20

Press Capacity: 15 ton Electric Motors: 3 kW (380V), Oil Reservoir: 25 lt Maximum Stroke: 400 mm Price: 4.940 € Order No: PHP-15/3-400 Type: Industrial

The molds are made of St-37 steel and able to fixed by the T channels on the plate. System can be operated semi-automatically or manual on 2 shafts. Chrome shafts and bearings are used against to corrosion and abrasion. We guarantee that it works in the best way without any misalignment in order to result the best accuracy for product shape.

(16)

2012 e-CATALOG

HYDRAULIC PRESSES

YOUR DESIRE IS OUR DESIGN

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

HYDRAULIC PRESS FOR PLASTER PRODUCTS

ARSELIS-BC6

Press Capacity: 25 ton Electric Motors: 4 kW (380V), Oil Reservoir: 25 lt Maximum Stroke: 200 mm Price: 5.780 € Order No: PHP-25/4-200 Type: Industrial

The molds are made of St-37 steel and able to fixed by the T channels on the plate. System can be operated semi-automatically or manual. 4 Chrome shafts and bearings are used against to corrosion and abrasion. We guarantee that it works in the best way without any misalignment in order to result the best accuracy for product shape.

All Hydraulic presses include safety equipments such as emergency buttons

.

(17)

2012 e-CATALOG

HYDRAULIC PRESSES

YOUR DESIRE IS OUR DESIGN

Tel :+90 232 832 19 42

Fax:+90 232 832 80 42

HYDRAULIC PRESS

MIDAS-BC7

Press Capacity: 250 ton Working Pressure : 250 bar Maximum Product Size: 400 cm2

Price: 22.186 € Order No: GHP-250/400 Type: Industrial

All Hydraulic presses include safety equipments such as emergency buttons

.

Simple Ejector Mechanism by the ejector

pins powered by bottom hydraulics..

The molds are made of St-37 steel and able to fixed by the T channels on the plate. System can be operated semi-automatically or manual. 4 Chrome shafts and bearings are used against to corrosion and abrasion. We guarantee that it works in the best way without any misalignment in order to result the best accuracy for product shape.

Automatic Mold Filling

It is a hyraulic device that fills molds automatically for high production speed and great repetitiveness

Advantages



Improves the accuracy of the processes



Repetitiveness in volume loaded in each cavity



Minimum product waste

(18)

Call to order: +90 232 832 1942

Tools

ASK for PRICES..!

ŞAHİNLER MAKİNE respond to the needs of all machine and devices in plaster and pottery sectoral market all over the World..
