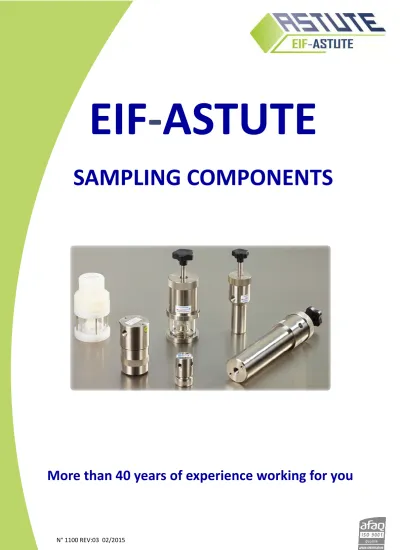

EIF-ASTUTE
SAMPLING COMPONENTS
ABOUT US
We are specialized in sampling online systems, tailored to your speci ic needs mainly for chemical processes, heavy industry, oil and gas.
Our solutions, from the traditional one to the most innovative, are renowned for their re-liability.
Our aim is to minimize the amount of sample extracted from the process, separate the contaminants as soon as possible and return as much of them directly to process and sim-plify the required maintenance of the system. We can taylor solution to suit your speci ic needs and objectives. ♦ Decrease response time ♦ Decrease unavaibility time of analysers ♦ Decrease of emission ♦ Decrease installation cost ♦ Decrease maintenance cost
Our solutions, the answer to your needs
GAS TREATMENT
The treatment of a gas sample consists of eliminating water or other liquids or gases contained in the sample stream ♦Separator The separator allows for separation of liquid and gas phases. ♦Condenser The condenser allows for the cooling of the gas to the point of condensing cer-tain elements which are then removed as a liquid. ♦Deminster The demister stops entrained droplets formed in the condenser but carried over by the gas low. ♦Buffer The buffer serves to eliminating a speci ic component in the stream by an absor-bant installed in the chamber.Separator Condenser Deminster
Data sheet 2092 Data sheet 3031 Data sheet 3026
Vortex Data sheet 2090 The vortex supplies cooling capacity to the condenser using compressed instrument air. Available in ATEX versions. Buffer/ Deminster Data sheet 3033
TREATMENT COLUMN
The column product line allows for the treatment of the gas sample at the take off point, and groups together three elements into a single solution: separation, con-densation, and demisting
The gas can be treated at line conditions regardless of whether it is high pressure or vacuum
With an installation at the take-off point, there are no waste products that must be treated externally to the process; all removed material is returned to the process The column is a modular design, allowing for multiple con igurations which are adapted speci ically to the requirements of the process and the analyzer The vertical conception of the column allows one entrance point and one exit point The column coud be installed in a shelter near the analyser. For the end step of the treatment a coalescer must be put after the column. Modular column in PVDF Data sheet 2316 Modular column in 316 L SS Data sheet 2315 Advantages: ♦ Vertical treatment ♦ Installation at the sample take off ♦ Modular ♦ Use in pressure or in vacuum ♦ Ability to handle changes in the process
FILTRATION
SWL
Data sheet 3001
Housing
The housing were made in 3 sizes (WL, NL et QL). They allows a rapid replace-ment of the ilter element, and a good accessibility to the seal, without tools.The replacement of the ilter element is make by the top of the housing. The design of this housing ilter allows a installation of a bleed very practical.
The ilter housing are available in : stainless steel, PVDF, stainless steel/glass, PVDF/glass The connection (in, out, blend) are in 1/4 NPT female
Filter elements
The ilter elements are selected according to the medium. They are available in several material : ♦Glass iber with a epoxy binder epoxy (110 °C max) or PTFE (180°C max) ♦Mesh stainless steel ♦Sintered stainless steel ♦Mesh nylon Our catalogue of ilter elements contains more than 50 reference with a range to 0.2 to 200µm. TNLA Data sheet 3011 SQL Data sheet 3005 Advantages: ♦Disassemble without tools ♦Good accessibility of the seal ♦Opening under pressure is impossible ♦Reduction of maintenance cost ♦Reduction of exposure to CMRGAS COALESCENCE
Our coalescers equipped with type H or C cartridges permit the separation of droplets within a gas phase and the elimination of liquid in the gas stream. The ef iciency of a coalescers can be as high as 99.97%· · Rapid ilter element replace, without the need for tools · Not necessary to disconnect the purge line to replace the ilter cartridge, · Easy accessibility to the o-ring seals , · Replacement of ilter element occurs from the top of the housing · Limited exposure to hazardous materials · Impossible to open if there is pressure in the housing · Reduced maintenance costs · Available in a variety of materials : 316L SS, PVDF, 316L/Galss, PVDF/Glass. Coalescing consists of 3 phenomena that permit the stoppage of all the droplets of liquid: Separation (for the larger droplets) Interception (for droplets with diameters between 2 and 0.6 µm) Diffusion (for droplets with diameters below 0.6 µm) SWLGL Data sheet 3002 Advantages: ♦Pas de démontage des raccordements ♦Diminution de l’exposition aux CMR ♦Changement de la cartouche facilitée ♦Disassemble without toolsGAS SEPARATION
SEC 470 Data sheet 3102 Maximum low rate 4L/mnStop eau
A veritable inline “fuse” in the sample system, this stops the low when there is water present in a liquid form. This element must be monted with a low switch alarm
The gas/liquid separator eliminates the liquid phase from the gas phase in a sample. It employs a hydrophobic membrane to stop water, or an oleophobic membrane to stop hydrocarbon liquids. The dry gas passes through the mem-brane and the liquid is carried away in the fast loop return.
Our 3 models, on which the replacement of a membrane does not require tools and allow for analyzer low rates between 1 and 8 L/min. SEC 25 Data sheet 3101 Maximum low rate 1L/mn SEC 470 double Data sheet XXXX Maximum low rate 8L/ mn Advantage: ♦Protects that analyzer from expensive repairs at a minimal Advantage: ♦Disassemble without tools 1S5STPE Data sheet 3105
GAS COMPONENTS
Security ilter in sintered stainless steel providing a range of grade ( 0.5 à 20 µm) and interchangeable, iltration surface 12.4 cm2
Buffer in PVC for absorbents: molécular sieves, silica Buffer 1V1XGLP
Data sheet 2111
Security ilter 1S5HK
Data sheet 3104
For cleaning a gas by dissolving in water Gas scrubber Data sheet 2083 Eductor Data sheet 3106 Advantages: ♦Large surface area of 0ilter for a security 0ilter ♦Disassemble without tools Advantage: ♦Treatment for dusty gas with particles or hydrocarbon Advantages: ♦No moving parts ♦Use in ATEX area Te eductor allows to convey a gas in vaccum. Il remplace avantageuse-ment une pompe, notamment en zone ATEX. Design in stainless steel «316L or in PVDF.
Heated double enclosure with demister and coales-cing ilter for treatment of highly polluted gas stream with high levels of humidity
GAS APPLICATIONS
Sample conditioning system constructed in PVDF for the chemical industry Reactor Headspace Analysis Alcat tri-ethyl aluminum co catalyst for Novolen gas phase polypropylene productionLIQUID TREATMENT
LIF mini / LIF GM mini
Data sheet 3202 et 3204
Cross low ilter stainless steel with sintered stainless steel ilter Grade 0.5 to 40 µm Tangential iltration is capable of delivering a clean sample from a liquid stream with a heavy particle load in a single stage. This system permits a continuous iltering of a sample stream from a much larger fast loop. With an automated back lush system this system can operate with a minimum amount of maintenance . We offer two tangential ilter product lines : LIF and TAN LIF / LIF GM Data sheet 3201 et 3203
Cross low ilter stainless steel with sintered stainless steel ilter
Grade 0.5 to 40 µm
Cross
0low 0ilter LIF mini
LIF GM
mini LIF LIF GM TAN SS TAN PP TAN PVC
TAN SS GM TAN PP GM Flow fast loop 150 à 500 L/H 300 à 1200 L/ 400 à 800 L/H 600 à 1200 L/H 1500 L/H 1500 L/H 1500 L/H 1500 L/H 1500 L/H Flow sample maximum 10 L/H 25 L/H 45 L/H 63 L/H 150 L/H 150 L/H 200 L/H 200 L/H 200 L/H
Cross 0low 0ilter type LIF
LIQUID TREATMENT
TAN SS / TAN SS GMData sheet 3205 et 3206
Cross low ilter stainless steel avec un tamis lamellaire inox, sintered stainless steel ilter
Grade 0.5 to 100 µm
TAN PVC
Data sheet 3210
Cross low ilter PVC with a nylon mesh Grade 50 to 800 µm
TAN PP / TAN PP GM
Data sheet 3207 et 3209
Cross low ilter PVDF with a sintered PE, ou un tamis lamellaire inox , sinte-red stainless steel ilter
Grade 20 to 100 µm
Filter element for cross low ilter type TAN
Data sheet 3225 Tamis lamellaire inox Sintered PE/ PTFE Sintered stainless steel Nylon mesh
Cross 0low 0ilter type TAN
BACKFLUSHING
DECLIF
Data sheet 3221
For the LIF and LIF mini tangential ilter series with a fast loop pressure of less than 5 bar.
The reliability of a tangential ilter is reinforced by the use of an inline back lush system that uses the process liquid to clear the ilter. The automation of the system can be done either pneumatically of electrically.
Control cabinets are available in ATEX versions
DECLIF HP
Data sheet 3223
For the LIF and LIF GM tangential ilter series with a fast loop pressure of less than 25 bar.
DECLIF HP mini
Data sheet 3222
For the LIF, LIF GM, and LIF mini tangential ilter se-ries with a fast loop pressure of less than 25 bar.
Advantages:
♦Reduction in the 0ilter size for the fast loop
♦Reduction in maintenance costs
LIQUID/LIQUID COALESCERS
The SEPCO product line in stainless steel of stainless/glass options allows for the separation of two immiscible liquid phases. These housing allow for a treatment of low rates ranging from 10 to 50 L/H with a purge level of on-ly 20% or lower, and with an ef iciency approaching 100 % stoppage of an aqueous phase. 100 % 20 % 80 %Liquid sampling
Advantages: ♦Reduction in purge rate ♦Reduction in the size of 0ilter required on the fast loop ♦Ability to handle changes in the water loading in the sample SEPCO Data sheet 2095LIQUID COMPONENTS
Piège magnétique Data sheet 2110 To installed in housing type SEPCO allows to removing ma-gnetic particles in a luid, in order to increase the useful life of the ilter element. pH pots Data sheet 2085/ 2087 For all sensors with a PG 13,5 thread, in stainless steel or PVDF. It’s possible to customise pH pot including lange for example.Advantage:
♦Adapt to all installation con0igurations
