Feature Subset Selection Using Genetic Algorithm for Named Entity
Recognition
Md. Hasanuzzaman1, Sriparna Saha2and Asif Ekbal2
1
West Bengal Industrial Development Corporation, Kolkata, India Email: [email protected]
2Heidelberg University, 69120 Heidelberg, Germany
Email:[email protected], [email protected]⋆⋆
Abstract. In this paper, genetic algorithm (GA) is utilized to search for the appropriate
fea-ture combination for constructing a maximum entropy (ME) based classifier for named entity recognition (NER). Features are encoded in the chromosomes. The ME classifier is evaluated for the 3-fold cross validation with the features, encoded in a particular chromosome, and its average F-measure value is used as the fitness value of the corresponding chromosome. The proposed technique is evaluated for determining the suitable feature combinations for NER in three resource-constrained languages, namely Bengali, Hindi and Telugu. Evaluation re-sults show the effectiveness of the proposed approach with the overall recall, precision and F-measure values of 71.27%, 83.95% and 77.09%, respectively for Bengali, 74.72%, 87.15% and 80.46%, respectively for Hindi and 60.91%, 94.15% and 73.97%, respectively for Telugu.
Keywords: Genetic algorithm, Feature Selection, Maximum Entropy, Named Entity
Recog-nition.
1 Introduction
Named Entity Recognition (NER) is a well-established task that has immense importance in many Natural Language Processing (NLP) application areas such as Information Retrieval, Information Extraction, Machine Translation, Question Answering and Automatic Summarization (Babych and Hartley, 2003; Nobata et al., 2002) etc. The objective of NER is to identify and classify every word/term in a document into some predefined categories like person name, location name, organization name, miscellaneous name (date, time, percentage and monetary expressions etc.) and “none-of-the-above”.
The main approaches to NER can be grouped into three main categories, namely rule-based, machine learning based and hybrid approach. Rule based approaches focus on extracting names using a number of handcrafted rules that yield better results for restricted domains; and are capa-ble of detecting complex entities that are difficult with learning models. These types of systems are often domain dependent, language specific and do not necessarily adapt well to new domains and languages. Nowadays, researchers are popularly using machine learning approaches for NER because these are easily trainable, adaptable to different domains and languages as well as their maintenance are also less expensive. The main shortcoming of machine learning approach (par-ticularly, supervised systems) is the requirement of large annotated corpus in order to achieve reasonable performance. Thus, building NER systems using machine learning approaches for the resource constrained languages is a great problem. In hybrid systems, the goal is to combine rule-based and machine learning rule-based techniques, and develop new methods using strongest points from each one. Although, hybrid approaches can attain better result than some other approaches, but the weakness of rule-based system still exists when there is a need to change the domain and/or language of data.
⋆⋆
In the literature, a lot of works are available that use any of these techniques. But, the languages covered include English, most of the European languages and some of the Asian languages like Chinese, Japanese and Korean. India is a multilingual country with great linguistic and cultural diversities. People speak in 22 different official languages that are derived from almost all the dominant linguistic families in the world. However, the works related to NER in Indian languages have started to emerge only very recently. Named Entity (NE) identification in Indian languages is more difficult and challenging compared to others due to the lack of capitalization information, appearance of NEs in the dictionary as common nouns, relatively free word order nature of the languages, resource-constrained environment, i.e., non-availability of corpus, annotated corpus, name dictionaries, morphological analyzers, part of speech (POS) taggers etc. Some of the works related to Indian languages can be found in (Ekbal and Bandyopadhyay, 2007; Ekbal and Bandy-opadhyay, 2009a; Ekbal and BandyBandy-opadhyay, 2009b) for Bengali, in (Li and McCallum, 2004) for Hindi and in (Shishtla et al., 2008) for Telugu.
The performance of any classification technique depends on the features of data sets. Feature selection, also known as variable selection, feature reduction, attribute selection or variable subset selection, is the technique, commonly used in machine learning, of selecting a subset of relevant features for building robust learning models. In a machine learning approach, feature selection is an optimization problem that involves choosing an appropriate feature subset. In ME model, appropriate feature selection is a very crucial problem and also a key issue to improve classifier’s performance. However, it does not provide any method for automatic feature selection and heuris-tics are usually used for this task. In this paper, we propose a feature selection technique for ME based NER using the search capability of genetic algorithm (GA) (Goldberg, 1989).
Genetic algorithms (GAs) (Goldberg, 1989) are randomized search and optimization tech-niques guided by the principles of evolution and natural genetics, having a large amount of im-plicit parallelism. GAs perform search in complex, large and multimodal landscapes, and provide near-optimal solutions for objective or fitness function of an optimization problem. In GAs the pa-rameters of the search space are encoded in the form of strings, called chromosomes. A collection of such strings is called a population. Initially, a random population is created, which represents different points in the search space. An objective and fitness function is associated with each string that represents the degree of goodness of the string. Based on the principle of survival of the fittest, a few of the strings are selected and each is assigned a number of copies that go into the mating pool. Biologically inspired operators like crossover and mutation are applied on these strings to yield a new generation of strings. the process of selection, crossover and mutation continues for a fixed number of generations or till a termination condition is satisfied.
In this paper we consider different contextual and orthographic word-level features. These features are language independent in nature, and can be very easily derived for almost all the languages with a very little effort. Thereafter GA is used to search for the appropriate feature selection. Here, features are encoded in the chromosomes with binary encoding scheme. Adap-tive mutation and crossover operators are used to accelerate the convergence of GA. We also use elitism. In order to compute the fitness of each chromosome, ME classifier is evaluated with the features encoded in the particular chromosome and the average F-measure value is calculated for the 3-fold cross validation on training data.
60.91%, 94.15% and 73.97%, respectively for Telugu.
2 Named Entity Features
The main features for the NER task are identified based on the different possible combinations of available word and tag contexts. We use the following features for constructing the various classifiers based on the ME framework. These features are language independent in nature, and can be easily obtained for almost all the languages.
1. Context words: These are the local contexts surrounding the current word. Here, we con-sider context window of size five, i.e. previous two and next two words. We include this feature as the context words carry useful information for NE identification.
2. Word suffix and prefix: Fixed length (say,n) word suffixes and prefixes are very effective to identify NEs and work well for the highly inflective languages like Bengali, Hindi and Telugu. Actually, these are the character sequences stripped from either the rightmost or leftmost positions of the words. For example, the suffixes of length upto 3 characters of the word ”ObAmA” [Obama] are ”A”, ”mA” and ”AmA” whereas, its prefixes of length up to 3 characters are ”ObAmA” [Obama] are ”O”, ”Ob” and ”ObA”.
3. First word: This is a binary valued feature that checks whether the current token is the first word of the sentence or not. Though Indian languages are relatively free word order in nature, NEs generally appear in the first position of the sentence, specifically in the newswire data.
4. Length of the word: This binary valued feature is used to check whether the length of the token is less than a predetermined threshold (here, 3 characters) value and based on the observation that very short words are most probably not the NEs.
5. Infrequent word: A cut off frequency is chosen in order to consider the infrequent words in the training corpus with the observation that very frequent words are rarely NEs. In the present work, we set the threshold values to 7, 10 and 5 for Bengali, Hindi and Telugu, respectively. Then, a binary valued feature is defined that fires for those words, having less occurrences than the cut off frequency.
6. Part of Speech (POS) information: We use POS information of the current word as a feature. We have used a SVM based POS tagger (Ekbal and Bandyopadhyay, 2008a) that was originally developed with a tagset of 27 tags, defined for the Indian languages. In this particular work, we evaluated this tagger with a coarse-grained tagset of only three tags, namely Nominal, PREP (Postpositions) and Other. The coarse-grained POS tagger has been found to perform better compared to a fine-grained one in case of ME based NER.
7. Position of the word: Sometimes, position of the word in a sentence acts as a good indicator for NE identification. In Indian languages, verbs generally appear in the last position of the sentence. We define a binary valued feature that fires if the current word appears in the last position of the sentence.
8. Digit features: Several digit features are defined depending upon the presence and/or the number of digits and/or symbols in a token. These features are digitComma (token contains digit and comma), digitPercentage (token contains digit and percentage), digitPeriod (token contains digit and period), digitSlash (token contains digit and slash), digitHyphen (token contains digit and hyphen) and digitFour (token consists of four digits only). These features are helpful to identify miscellaneous NEs.
3 Proposed Approach
3.1 String Representation and Population Initialization
If the total number of features is F, then the length of the chromosome is F. As an example, the encoding of a particular chromosome is represented in Figure 1. Here F = 12(i.e., total 12 different features are available). The chromosome represents the use of 7 features for constructing a classifier (first, third, fourth, seventh, tenth, eleventh and twelfth features). The entries of each chromosome are randomly initialized to either 0 or 1. Here, if theithposition of a chromosome is 0 then it represents thatithfeature does not participate in constructing the classifier. Else if it is 1 then theithfeature participates in constructing the classifier.
If the population size isPthen all theP number of chromosomes of this population are initial-ized in the above way.
Figure 1: Chromosome representation for GA based feature selection
3.2 Fitness Computation
For the fitness computation, the following procedure is executed.
1. Suppose there areN number of features present in a particular chromosome (i.e., there are totalN number of 1’s in that chromosome).
2. Construct a classifier with only theseN features.
3. Here, initially the training data is divided into 3 parts. The above classifier is trained using 2/3 of the training set with the features encoded in that chromosome and tested with the remaining 1/3 part.
4. Now, the overall F-measure value of this classifier for the 1/3 training data is calculated.
5. Steps 2 and 3 are repeated 3 times to perform 3-fold cross validation.
6. The average F-measure value of this 3-fold cross validation is used as the fitness value of the particular chromosome. The objective is to maximize this fitness value using the search capability of GA.
3.3 Selection
Roulette wheel selection is used to implement the proportional selection strategy.
3.4 Crossover
Here, we use the normal single point crossover (Holland, 1975). As an example, let the two chromosomes be:
P1: 0 1 1 0 0 0 1 1 1 0 1 0 P2: 1 0 1 1 0 0 0 0 0 0 1 0
At first a crossover point has to be selected randomly between 1 to 12 (length of the chromosome) by generating some random number between 1 and 12. Let the crossover point, here, be 4. Then after crossover, the two new offsprings are:
O1: 0 1 1 0 0 0 0 0 0 0 1 0 (taking the first 4 positions fromP1and rest fromP2) O2: 1 0 1 1 0 0 1 1 1 0 1 0 (taking the first 4 positions fromP1and rest fromP2)
Begin 1.t= 0
2. initialize populationP(t) /*P opsize=|P|*/ 3. fori= 1toP opsize
compute fitnessP(t)
4.t=t+ 1
5. if termination criterion achieved go to step 10 6. select (P)
7. crossover (P) 8. mutate (P) 9. go to step 3
10. output best chromosome and stop End
Figure 2: Basic Steps of GA
We use the OpenNLP Java based ME package1. Model parameters are computed with 200 iterations without feature frequency cutoff. We set the following parameter values for GA: population size=100, number of generations=50, probability of mutation=0.2 and probability of crossover=0.9.
4.1 Datasets for NER
Indian languages are resource-constrained in nature. For NER, we use a Bengali news corpus (Ekbal and Bandyopadhyay, 2008b), developed from the archive of a leading Bengali newspaper available in the web. A portion of this corpus containing approximately 250K wordforms is man-ually annotated with a coarse-grained NE tagset of four tags namely, PER (Person name), LOC (Location name), ORG (Organization name) and MISC (Miscellaneous name). The miscellaneous name includes date, time, number, percentages, monetary and measurement expressions. The data is collected mostly from the National, States, Sports domains and the various sub-domains of District of the particular newspaper. This annotation was carried out by one of the authors and verified by an expert. We also use the IJCNLP-08 NER on South and South East Asian Languages (NERSSEAL)2Shared Task data of around 100K wordforms that were originally annotated with a fine-grained tagset of twelve tags. This data is mostly from the agriculture and scientific domains. For Hindi and Telugu, we use the IJCNLP-08 NERSSEAL shared task datasets. The shared task datasets were originally annotated with a fine-grained NE tagset of twelve tags. The underlying reason to adopt this finer NE tagset was to use the NER system in various NLP applications, particularly in machine translation. One important aspect of the shared task was to identify and classify the maximal NEs as well as the nested NEs, i.e. the constituent parts of a larger NE. But, the training data were provided with the type of the maximal NE only. For example, mahatmA gAndhi roDa (Mahatma Gandhi Road) was annotated as location and assigned the tag ’NEL’ even if mahatmA (Mahatma) and gAndhi(Gandhi) are NE title person (NETP) and person name (NEP), respectively. Henceforth, all the Bengali glosses are written using ITRANS notation3. The task was to identify mahatmA gAndhi roDa as a NE and classify it as NEL. In addition, mahatmA and gAndhi were to be recognized as NEs of the categories NETP (Title person) and NEP (Person name), respectively.
In the present work, we consider only the tags that denote person names (NEP), location names (NEL), organization names (NEO), number expressions (NEN), time expressions (NETI) and mea-surement expressions (NEM). The NEN, NETI and NEM tags are mapped to the MISC tag that
1http://maxent.sourceforge.net/ 2http://ltrc.iiit.ac.in/ner-ssea-08 3
denotes miscellaneous entities. Other tags of the shared task are mapped to the ‘other-than-NE’ category denoted by ‘O’. Hence, the tagset mapping now becomes as shown in Table 1.
Table 1: Tagset mapping table
IJCNLP-08 shared task tag Coarse-grained tag Meaning
NEP PER Person name
NEL LOC Location name
NEO ORG Organization name
NEN, NEM, NETI MISC Miscellaneous name NED, NEA, NEB, NETP, NETE O Other than NEs
In order to properly denote the boundaries of NEs, four basic NE tags are further divided into the format I-TYPE (TYPE→PER/LOC/ORG/MISC) which means that the word is inside a NE of type TYPE. Only if two NEs of the same type immediately follow each other, the first word of the second NE will have tag B-TYPE to show that it starts a new NE. For ex-ample, the name mahatmA gAndhi[Mahatma Gandhi] is tagged as mahatmA[Mahatma]/I-PER gAndhi[Gandhi]/I-PER. But, the names mahatmA gAndhi[Mahatma Gandhi] rabIndrAnAth thAkur [Rabindranath Tagore] are to be tagged as: mahatmA[Mahatma]/I-PER gAndhi[Gandhi]/I-PER rabIndrAnAth[Rabindranath]/B-PER thAkur[Tagore]/I-PER, if they appear sequentially in the text. This is the standard IOB format that was followed in the CoNLL-2003 shared task (Tjong Kim Sang and De Meulder, 2003). A portion of each datasets has been used for training and the remaining portion is used to report the evaluation results. Some statistics of training and test sets are presented in Table 2.
Table 2: Statistics of the datasets
Language No. of words in training No. of NEs in training No. of words in test No. of NEs in test
Bengali 312,947 37,009 31,845 4,413
Hindi 496,496 27,650 6,438 461
Telugu 57,179 4,470 6,847 662
5 Discussion of Results
We use various subsets of the following features for constructing the different classifiers based on the ME framework.
(i). Various context word window within the previous three and next three words (ii). Prefixes of length upto three (3 features) or four (4 features) characters (iii). Suffixes of length upto three (3 features) or four (4 features) characters (iv). Part of Speech (POS) information (v). First word of the sentence (vi). Length of the word (vii). Infrequent word (viii). Position of the word and (ix). Various digit features (digitComma, digitPercentage, digitDot, digitSlash, digitHyphen, digitFour and digitTwo).
Initially, we construct following six baseline classifiers based on the ME framework using various randomly selected subsets of the above mentioned feature set. Here, C[−i,+j]denotes the context spanning from the previous ith word to the nextjth word with the current token at position 0; P rei andSufi denote the prefixes and suffixes of character sequences up toiof the
current word, respectively.
1. Baseline 1:C[−2,+2],P re3,Suf3, and the features (iv)-(ix).
2. Baseline 2:C[−2,+2],P re4,Suf4, and the features (iv)-(ix).
4. Baseline 4:C[−3,+3],P re4,Suf4, and the features (iv)-(ix).
5. Baseline 5:C[−1,+1],P re3,Suf3, and the features (iv)-(ix).
6. Baseline 6:C[−1,+1],P re4,Suf4, and the features (iv)-(ix).
Thereafter, we apply our proposed GA based feature selection technique for NER in three Indian languages, namely Bengali, Hindi and Telugu. The proposed approach finally selects the features as shown in Table 3. The ME classifier is then evaluated with the corresponding test set with the best set of features as identified by the proposed technique. Overall evaluation results along with the baseline models are reported in Table 4, Table 5 and Table 6 for Bengali, Hindi and Telugu, respectively. Evaluation of our proposed feature selection algorithm shows the state-of-the-art performance for all the three languages. It yields the overall recall, precision and F-measure values of 71.27%, 83.95% and 77.09%, respectively for Bengali, 74.72%, 87.15% and 80.46%, respectively for Hindi, and 60.91%, 94.15% and 73.97% respectively for Telugu. Results also show that the ME model trained using the feature set automatically identified by the proposed approach performs better than the other six baseline models for all the languages. This shows that appropriate feature selection using GA based technique works better compared to the heuristics based manual feature selection in ME framework.
Table 3: Features identified by the proposed GA based approach
Language Features
Bengali C[−2,+2],P re3,Suf3, POS, digitDot, digitSlash and digitHyphen
Hindi C[−1,+1],Suf4,P re4, POS, Infrequent word, digitComma, digitDot and digitSlash Telegu C[−1,+1],Suf3,P re4, POS, digitDot and digitSlash
Table 4: Overall results for Bengali
Model recall (in %) precision (in %) F-measure (in %) GA based approach 71.27 83.95 77.09
Baseline 1 71.15 81.53 75.99 Baseline 2 69.76 81.75 75.28 Baseline 3 70.28 80.93 75.23 Baseline 4 43.81 73.35 54.86 Baseline 5 70.03 83.08 76.00 Baseline 6 60.65 80.16 69.05
Table 5: Overall results for Hindi
Model recall(in %) precision (in %) F-measure (in %) GA based approach 74.72 87.15 80.46
Baseline 1 62.39 80.63 70.35 Baseline 2 51.93 80.29 63.07 Baseline 3 59.99 81.07 68.95 Baseline 4 48.94 80.05 60.75 Baseline 5 65.32 80.61 72.16 Baseline 6 57.29 80.96 67.10

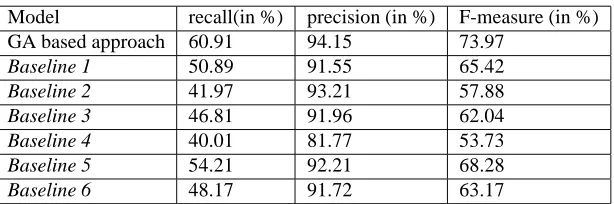

Table 6: Overall results for Telugu
Model recall(in %) precision (in %) F-measure (in %) GA based approach 60.91 94.15 73.97
Baseline 1 50.89 91.55 65.42 Baseline 2 41.97 93.21 57.88 Baseline 3 46.81 91.96 62.04 Baseline 4 40.01 81.77 53.73 Baseline 5 54.21 92.21 68.28 Baseline 6 48.17 91.72 63.17
ensemble techniques. ANOVA tests show that the differences in mean recall, precision and F-measure are statistically significant asp value is less than0.05 in each of the cases. This again justifies our observation that the proposed MOO based feature selection technique performs much better than the several baseline approaches.
It will not be fair to compare the performance of our proposed system with that of the previous proposals (Ekbal and Bandyopadhyay, 2009b; Saha et al., 2008; Srikanth and Murthy, 2008) as these works use either (i). different data sets or, (ii). different experimental set up or, (iii). more complex set of features or, (iv). domain dependent knowledge and/or resources. In contrast, our proposed algorithm is based on a relatively small set of features that can be easily obtained for almost all the languages, does not make use of any domain dependent information, and thus can be replicated for any resource-poor language very easily. Though we use the IJCNLP-08 NERSSEAL shared task data, we convert these fine-grained NE annotated data to the coarse-grained forms. Thus, comparing our proposed system with that of the shared task papers4is also out of scope.
6 Conclusions and Future Works
In this paper, we proposed a GA based feature selection technique for ME based NER. Features have been encoded in a chromosome. The average F-measure value of the ME classifier trained using the feature set encoded in a particular chromosome has been used as the fitness value of that particular chromosome. One most appealing characteristic of our system is that it makes use of the features that are language independent in nature, and can be easily obtained for many languages. Here, we evaluated our proposed technique for three resource-constrained Indian lan-guages, namely Bengali, Hindi and Telugu. Evaluation results the overall recall, precision and F-measure values of 71.27%, 83.95% and 77.09%, respectively for Bengali, 74.27%, 87.15% and 80.46%, respectively for Hindi and 60.91%, 94.15% and 73.97%, respectively for Telugu.
In future we would evaluate the proposed technique by incorporating some more language independent features. We would also include language dependent features, extracted from the language dependent resources and/or tools. Future works also include investigating best feature combinations for some other well-known classifiers like Conditional Random Field and Support Vector Machines.
References
Anderson, T. W. and S.L. Scolve. 1978. Introduction to the Statistical Analysis of Data. Houghton Mifflin.
4
Babych, Bogdan and A. Hartley. 2003. Improving Machine Translation Quality with Automatic Named Entity Recognition. In Proceedings of EAMT/EACL 2003 Workshop on MT and other Language Technology Tools, pp. 1–8.
Ekbal, A. and S. Bandyopadhyay. 2007. Lexical Pattern Learning from Corpus Data for Named Entity Recognition. In Proceedings of the 5th International Conference on Natural Language Processing (ICON), pp. 123–128, India.
Ekbal, A. and S. Bandyopadhyay. 2008a. Web-based Bengali News Corpus for Lexicon Devel-opment and POS Tagging. POLIBITS, ISSN 1870-9044, 37, 20–29.
Ekbal, A. and S. Bandyopadhyay. 2008b. A Web-based Bengali News Corpus for Named Entity Recognition. Language Resources and Evaluation Journal, 42(2), 173–182.
Ekbal, A. and S. Bandyopadhyay. 2009a. A Conditional Random Field Approach for Named Entity Recognition in Bengali and Hindi. Linguistic Issues in Language Technology (LiLT), 2(1), 1–44.
Ekbal, A. and S. Bandyopadhyay. 2009b. Voted NER System using Appropriate Unlabeled Data. Proceedings of the 2009 Named Entities Workshop: Shared Task on Transliteration (NEWS 2009), ACL-IJCNLP 2009, pp. 202–210.
Goldberg, D. E. 1989. Genetic Algorithms in Search, Optimization and Machine Learning. Addison-Wesley, New York.
Holland, J. H. 1975. Adaptation in Natural and Artificial Systems. The University of Michigan Press, AnnArbor.
Li, Wei and Andrew McCallum. 2004. Rapid Development of Hindi Named Entity Recogni-tion using CondiRecogni-tional Random Fields and Feature InducRecogni-tion. ACM TransacRecogni-tions on Asian Languages Information Processing, 2(3), 290–294.
Nobata, C., S. Sekine, H. Isahara, and R. Grishman. 2002. Summarization System Integrated with Named Entity Tagging and IE Pattern Discovery. In Proceedings of Third International Conference on Language Resources and Evaluation (LREC 2002), Spain.
Saha, S., S. Sarkar, and P. Mitra. 2008. A Hybrid Feature Set based Maximum Entropy Hindi Named Entiy Recognition. In Proceedings of the 3rd International Joint Conference in Natural Langauge Processing (IJCNLP 2008), pp. 343–350.
Shishtla, Praneeth M, Prasad Pingali, and Vasudeva Varma. 2008. A Character n-gram Based Approach for Improved Recall in Indian Language NER. In Proceedings of the IJCNLP-08 Workshop on NER for South and South East Asian Languages, pp. 101–108.
Srikanth, P and Kavi Narayana Murthy. 2008. Named Entity Recognition for Telugu. In Pro-ceedings of the IJCNLP-08 Workshop on NER for South and South East Asian Languages, pp. 41–50.
Srinivas, M. and L. M. Patnaik. 1994. Adaptive Probabilities of Crossover and Mutation in Genetic Algorithms. IEEE Transactions on Systems, Man and Cybernatics, 24(4), 656–667.
