Top View Device Schematic

(1)

ACX114EUQ

Document number: DS39044 Rev. 1 - 2

1 of 8 www.diodes.com

September 2017

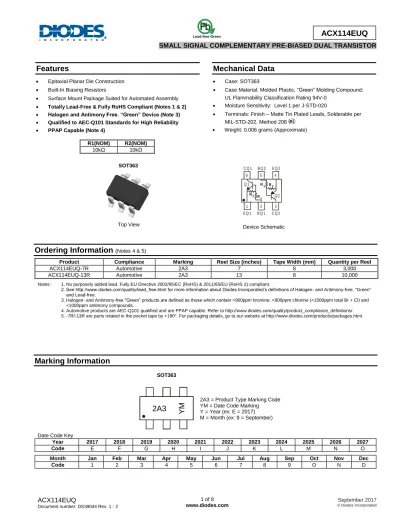

ACX114EUQ

SMALL SIGNAL COMPLEMENTARY PRE-BIASED DUAL TRANSISTOR

Features

 Epitaxial Planar Die Construction

 Built-In Biasing Resistors

 Surface Mount Package Suited for Automated Assembly

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)

 Qualified to AEC-Q101 Standards for High Reliability

 PPAP Capable (Note 4)

R1(NOM) R2(NOM)

10kΩ 10kΩ

Mechanical Data

 Case: SOT363

 Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

 Moisture Sensitivity: Level 1 per J-STD-020

 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208

 Weight: 0.006 grams (Approximate)

Ordering Information

(Notes 4 & 5)

Product Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel

ACX114EUQ-7R Automotive 2A3 7 8 3,000

ACX114EUQ-13R Automotive 2A3 13 8 10,000

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. -7R/-13R are parts rotated in the pocket tape by +180°. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT363

Date Code Key

Year 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027

Code E F G H I J K L M N O

Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Code 1 2 3 4 5 6 7 8 9 O N D

Device Schematic Top View

SOT363

R₁ R₁ B Q 2

B Q 1 C Q 1

C Q 2

1 2 3

4 5 6

E Q 2

E Q 1 R₂

R₂ Q 2 Q 1

2A3 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: E = 2017) M = Month (ex: 9 = September)

CXX YM 2A3 YM

(2)

ACX114EUQ

Absolute Maximum Ratings NPN Section

^(@TA = +25°C, unless otherwise specified.)

Characteristic Symbol Value Unit

Supply Voltage <Pin: (6) to (1)> VCC 50 V

Input Voltage <Pin: (2) to (1)> VIN -10 to +40 V

Output Current IO 50 mA

Output Current IC (Max) 100 mA

Absolute Maximum Ratings PNP Section

Supply Voltage <Pin: (4) to (3)> VCC -50 V

Input Voltage <Pin: (5) to (4)> VIN +10 to -40 V

Output Current IO -50 mA

Output Current IC (Max) -100 mA

Thermal Characteristics

(@TA = +25°C, unless otherwise specified.)

Power Dissipation (Notes 6 & 7) PD 270 mW

Thermal Resistance, Junction to Ambient Air (Note 6) R_JA 450 °C/W

Operating and Storage Temperature Range TJ, TSTG -55 to +150 °C

Notes: 6. Mounted on FR4 PC Board with minimum recommended pad layout 7. 150mW per element must not be exceeded.

(3)

ACX114EUQ

September 2017

ACX114EUQ

Thermal Characteristics and Derating Information

0 20 40 60 80 100 120 140 160

0.0 0.1 0.2 0.3 0.4

Minimum Copper FR4 Board

Derating Curve Temperature (°C)

M a x P o w e r D is s ip a ti o n ( W )

100µ 1m 10m 100m 1 10 100 1k 0

100 200 300 400 500

Single Pulse T_amb=25°C T_amb=25°C

Transient Thermal Impedance

D=0.5

D=0.3

D=0.1 Single Pulse

D=0.05

T he rma l Res is ta nc e (°C/W )

Pulse Width (s)

100µ 1m 10m 100m 1 10 100 1k 0.1

1 10 100

Pulse Power Dissipation

Pulse Width (s)

M a xim u m P o w e r (W )

(4)

ACX114EUQ

Electrical Characteristics NPN Section

Characteristic Symbol Min Typ Max Unit Test Condition

Input Voltage Vl(OFF) (Note 8) 0.5 1.1 

V VCC = 5V, IO = 100μA Vl(ON) (Note 9)  1.9 3.0 VO = 0.3V, IO = 10mA

Output Voltage VO(ON)  0.1 0.3 V IO/Il = 10mA / 0.5mA

Input Current Il   0.88 mA VI = 5V

Output Current IO(OFF)   0.5 μA VCC = 50V, VI = 0V

DC Current Gain Gl 30    VO = 5V, IO = 5mA

Input Resistor (R1) Tolerance R1 -30  +30 % 

Resistance Ratio Tolerance R2/R1 -20  +20  

Gain-Bandwidth Product (Note 10) fT  250  MHz VCE = 10V, IE = 5mA, f = 100MHz

Notes: 8. Guarantees that the device will be switched OFF if the Input Voltage is less than 0.5V.

9. Guarantees that the device will be switched ON if the Input Voltage is more than 3V.

10. Transistor - For Reference Only.

Electrical Characteristics PNP Section

Characteristic Symbol Min Typ Max Unit Test Condition

Input Voltage Vl(OFF) (Note 11) -0.5 -1.1 

V VCC = -5V, IO = -100μA Vl(ON) (Note 12)  -1.9 -3.0 VO = -0.3V, IO = -10mA

Output Voltage VO(ON)  -0.1 -0.3 V IO/Il = -10mA / -0.5mA

Input Current Il   -0.88 mA VI = -5V

Output Current IO(OFF)   -0.5 μA VCC = 50V, VI = 0V

DC Current Gain Gl 30    VO = -5V, IO = -5mA

Input Resistor (R1) Tolerance R1 -30  +30 % 

Resistance Ratio Tolerance R2/R1 -20  +20 % 

Gain-Bandwidth Product (Note 10) fT  250  MHz VCE = -10V, IE = -5mA, f = 100MHz

Notes: 11. Guarantees that the device will be switched OFF if the Input Voltage is less than -0.5V.

12. Guarantees that the device will be switched ON if the Input Voltage is more than -3V.

(5)

ACX114EUQ

September 2017

ACX114EUQ Typical Curves – NPN Section

0 10 20 30 40 50

1m 10m 100m 1

1 10 100

10 100 1000

0.0 5.0 10.0 15.0 20.0 25.0 30.0 0.5

1.0 1.5 2.0 2.5 3.0 3.5

0.0 4.0

0 1 2 3 4 5 6 7 8 9 10

0.001 0.01 0.1 1 10 100 1000

0 10 20 30 40 50

0.1 1 10 100

-25°C 75°C

25°C I_C/I_B=10

h

FE

v Collector Current

V

CE(SAT)

(V )

I

C

Collector Current (mA)

75°C

Collector Current v Input Voltage

V_CE=10V

25°C -25°C

h

FE

DC Cur ren t G ai n

I

C

Collector Current (mA)

Output Capacitance

f =1MHz

C

OBO

( pF)

V

R

Reverse Voltage (V)

-25°C

V

CE(SAT)

v Collector Current

V_O=5V

25°C 75°C

I

C

Col lec to r Curr en t (mA )

V

IN

Input Voltage (V)

Input Voltage v Collector Current

V_O=0.2V

25°C 75°C -25°C

V

IN

In pu t V ol ta ge ( V )

I

C

Collector Current (mA)

(6)

ACX114EUQ

Typical Curves – PNP Section

0 10 20 30 40 50

1m 10m 100m 1

1 10 100

10 100 1000

0.0 5.0 10.0 15.0 20.0 25.0 30.0 1

2 3 4 5 6 7

0 8

0 1 2 3 4 5 6 7 8 9 10

0.001 0.01 0.1 1 10 100 1000

0 10 20 30 40 50

0.1 1 10 100

-25°C 75°C

25°C I_C/I_B=10

h

FE

v Collector Current

V

CE(SAT)

(V )

I

C

Collector Current (mA)

75°C

Collector Current v Input Voltage

V_CE=10V

25°C -25°C

h

FE

DC Cur ren t G ai n

I

C

Collector Current (mA)

Output Capacitance

f =1MHz

C

OBO

( pF)

V

R

Reverse Voltage (V)

-25°C

V

CE(SAT)

v Collector Current

VO=5V

25°C 75°C

I

C

Col lec to r Curr en t (mA )

V

IN

Input Voltage (V)

Input Voltage v Collector Current

V_O=0.2V

75°C 25°C

-25°C

V

IN

In pu t V ol ta ge ( V )

I

C

Collector Current (mA)

(7)

ACX114EUQ

September 2017

ACX114EUQ

Package Outline Dimensions

Please see http://www.diodes.com/package-outlines.html for the latest version.

SOT363

SOT363 Dim Min Max Typ

A1 0.00 0.10 0.05 A2 0.90 1.00 1.00 b 0.10 0.30 0.25 c 0.10 0.22 0.11 D 1.80 2.20 2.15 E 2.00 2.20 2.10 E1 1.15 1.35 1.30

e 0.650 BSC

F 0.40 0.45 0.425 L 0.25 0.40 0.30 a 0° 8° -- All Dimensions in mm

Suggested Pad Layout

Please see http://www.diodes.com/package-outlines.html for the latest version.

SOT363

Dimensions Value (in mm)

C 0.650

G 1.300

X 0.420

Y 0.600

Y1 2.500

e D

L E1

b E

F

A2

A1

c a

Y1 G

Y

X C

(8)
