Benefits. Technical characteristics

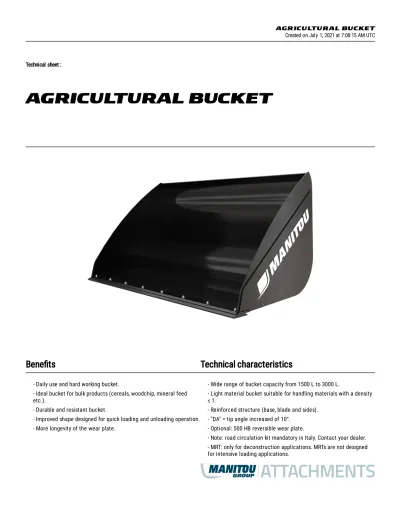

AGRICULTURAL BUCKET

Created on July 1, 2021 at 7:08:15 AM UTC

Technical sheet :

AGRICULTURAL BUCKET

Benefits

- Daily use and hard working bucket.

- Ideal bucket for bulk products (cereals, woodchip, mineral feed

etc.).

- Durable and resistant bucket.

- Improved shape designed for quick loading and unloading operation.

- More longevity of the wear plate.

Technical characteristics

- Wide range of bucket capacity from 1500 L to 3000 L.

- Light material bucket suitable for handling materials with a density

≤ 1.

- Reinforced structure (base, blade and sides).

- "DA" = tip angle increased of 10°.

- Optional: 500 HB reversible wear plate.

- Note: road circulation kit mandatory in Italy. Contact your dealer.

- MRT: only for deconstruction applications. MRTs are not designed

for intensive loading applications.

Agricultural Bucket - Created on July 1, 2021 at 7:08:15 AM UTC

Capacities CBA 1500 /₂₀₅₀ CBA 1700L /₂₁₀₀ CBA 2000L /₂₂₅₀ CBA 900 /₁₅₀₀ CBA 1500 /_{2050 DA} CBA 1500 /₂₄₅₀ CBA 2000 /_{2450 2000 LDR MHT}CBA 2500 / _{4000 LDR MHT}CBA 2500 / CBA 2500L /₂₄₅₀ Heaped Capacity (l) 1500 1703 1970 900 1500 1529 2020 2000 4000 2526

Struck capacity (l) 1101 1271 1456 667 1101 1101 1484 - 3420 1916

Weight and dimensions

Overall height (mm) h17 1082 1103 1137 978 1082 997 1150 1127 1690 1250 Width (mm) 2050 2100 2250 1500 2050 2450 2450 2500 2500 2450 Length (mm) 1231 1314 1422 1060 1231 1170 1204 1212 2053 1368 Overall weight (kg) 509 522 650 367 509 500 567 709 1440 682 Working Parameters Machine Equipement - -

-Other Data for Attachments

Bolted wearplate (LDR) - Not Standard standard - Not Standard standard standard - -

-Wear plate hardness - - 500 - - 500 500 - -

-Machines compatibility CBA 1500 /₂₀₅₀ CBA 1700L /₂₁₀₀ CBA 2000L /₂₂₅₀ CBA 900 /₁₅₀₀ CBA 1500 /_{2050 DA} CBA 1500 /₂₄₅₀ CBA 2000 /_{2450 2000 LDR MHT}CBA 2500 / _{4000 LDR MHT}CBA 2500 / CBA 2500L /₂₄₅₀ Reference number 570546 570549 790540 570543 653035 570547 570551 744046 - 570553

Reference number with bolted wearplate (WP) - - 790541 - 52000489 570548 570552 - - 570554

Reference number Italy - - - - 939391 939388 939389 - - 939390

Skid Steer Carriage reference - - - 52658300 - - -

-MHT-X 860 S2 - - - X - -MLA-T 533-145 V+ - ST5 - - - X - - - -MLT 420-60 H - - - X - - - -MLT 625-75 H X - - - X - - - - -MLT 630-105 ST4 - X X - - - X - - -MLT 630-105 V CP ST4 - X X - - - X - - -MLT 630-105 V ST4 - X X - - - X - - -MLT 730-115 V CP ST4 - X X - - - X - - -MLT 733-115 ST4 - - - X X - - X MLT 737-130 PS+ ST4 - - - X X - - X MLT 840-145 PS+ - - - X - - X MLT 845-100 H - - - X X - - X MLT 845-120 - - - X X - - X MLT 1040-145 PS+ L - - - X - - X MLT-X 625-75 H X - - - X - - - - -MLT-X 732 - - - X X - - -MLT-X 735 T LSU - - - X X - - X MLT-X 737-130 PS+ - - - X X - - X MLT-X 840-140 PS+ - - - X - - X MLT-X 845-120 - - - X X - - X MLT-X 845-120 H - - - X X - - X MLT-X 1040-140 PS+ L - - - X - - X

Reference number E-RECO - - - 939160 52000534

-MHT 10130 - - - X -MHT 10180 - - - X -MHT 10230 - - - X -MHT 790 - - - X - -MHT-X 10130 - - - X -MHT-X 10180 - - - X -MHT-X 10230 - - - X -MHT-X 790 - - - X - -MRT-X 1440 Easy 400° - - - X - - - -MRT-X 1640 Easy 360° - - - X - - - -MRT-X 1640 Easy 400° - - - X - - - -MRT-X 1840 Easy 360° - - - X - - - -MRT-X 1840 Easy 400° - - - X - - - -MRT-X 2145 Easy 360° - - - X - - - -MRT-X 2145 Easy 400° - - - X - - - -MRT-X 2150 Privilege Plus - - - X - - - -MRT-X 2470 Privilege Plus - - - X - - - -MRT-X 2545 Easy 360° - - - X - - - -MRT-X 2545 Easy 400° - - - X - - - -MRT-X 2550 Privilege Plus - - - X - - - -MRT-X 3050 Privilege Plus - - - X - - -

-Capacities CBA 3000 /_{2500 2500 LDR MHT}CBA 3000 / CBA 4000 /_{2500 LDR} Heaped Capacity (l) 3023 3023 4078

Struck capacity (l) 2342 2342 3147

Weight and dimensions

Overall height (mm) h17 1314 1283 1527

Width (mm) 2500 2500 2500

Length (mm) 1504 1492 2075

Working Parameters Working Parameters

Machine Equipement - -

-Other Data for Attachments

Bolted wearplate (LDR) - -

-Wear plate hardness - -

-Machines compatibility CBA 3000 /_{2500 2500 LDR MHT}CBA 3000 / CBA 4000 /_{2500 LDR} Reference number 570555 744047

-Reference number with bolted wearplate (WP) 500701 -

-Reference number Italy 939391 -

-Skid Steer Carriage reference - -

-MHT-X 860 S2 - X -MLA-T 533-145 V+ - ST5 - - -MLT 420-60 H - - -MLT 625-75 H - - -MLT 630-105 ST4 - - -MLT 630-105 V CP ST4 - - -MLT 630-105 V ST4 - - -MLT 730-115 V CP ST4 - - -MLT 733-115 ST4 - - -MLT 737-130 PS+ ST4 - - -MLT 840-145 PS+ X - -MLT 845-100 H X - -MLT 845-120 X - -MLT 1040-145 PS+ L X - -MLT-X 625-75 H - - -MLT-X 732 - - -MLT-X 735 T LSU - - -MLT-X 737-130 PS+ - - -MLT-X 840-140 PS+ X - -MLT-X 845-120 X - -MLT-X 845-120 H X - -MLT-X 1040-140 PS+ L X -

-Reference number E-RECO - 939160 939162

MHT 10130 - - -MHT 10180 - - -MHT 10230 - - -MHT 790 - X X MHT-X 10130 - - -MHT-X 10180 - - -MHT-X 10230 - - -MHT-X 790 - X X MRT-X 1440 Easy 400° - - -MRT-X 1640 Easy 360° - - -MRT-X 1640 Easy 400° - - -MRT-X 1840 Easy 360° - - -MRT-X 1840 Easy 400° - - -MRT-X 2145 Easy 360° - - -MRT-X 2145 Easy 400° - - -MRT-X 2150 Privilege Plus - - -MRT-X 2470 Privilege Plus - - -MRT-X 2545 Easy 360° - - -MRT-X 2545 Easy 400° - - -MRT-X 2550 Privilege Plus - - -MRT-X 3050 Privilege Plus - - -TABLE SYMBOL

No predisposition required Hydraulic line Return piping to hydraulic oil tank Electric predisposition Platform predisposition Tyre handler, cylinder handler_{predisposition}
