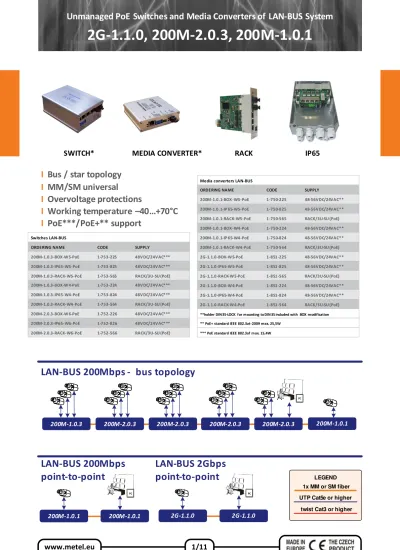

2G-1.1.0, 200M-2.0.3, 200M-1.0.1

SWITCH*

MEDIA CONVERTER*

RACK

IP65

I

Bus / star topology

I

MM/SM universal

I

Overvoltage protections

I

Working temperature –40…+70°C

I

PoE***/PoE+** support

LAN-BUS 200Mbps - bus topology

200M-1.0.3 200M-2.0.3 200M-2.0.3 200M-2.0.3 200M-2.0.3 200M-1.0.1 PC PC

LAN-BUS 200Mbps

LAN-BUS 2Gbps

point-to-point

point-to-point

LEGEND

twist Cat3 or higher

ORDERING NAME CODE SUPPLY

200M-1.0.1-BOX -W5-PoE 1-750-225 48-56VDC/24VAC**

200M-1.0.1-IP 65-W5-PoE 1-750-825 48-56VDC/24VAC**

200M-1.0.1-RACK-W5-PoE 1-750-565 RACK/3U-SU (PoE)

200M-1.0.1-BOX -W4-PoE 1-750-224 48-56VDC/24VAC**

200M-1.0.1-IP 65-W4-PoE 1-750-824 48-56VDC/24VAC**

200M-1.0.1-RACK-W4-PoE 1-750-564 RACK/3U-SU (PoE)

**holder DIN35-LOCK for mounting to DIN 35 included with BOX modification

200M-2.0.3-BOX -W 6-PoE 1-752-226 48VDC/24VAC***

200M-2.0.3-IP65-W6-PoE 1-752-826 48VDC/24VAC***

200M-2.0.3-RACK-W6-PoE 1-752-566 RACK/3U-SU (PoE)

2G-1.1.0-BOX-W 5-PoE 1-851-225 48-56VDC/24VAC**

2G-1.1.0-IP65-W 5-PoE 1-851-825 48-56VDC/24VAC**

2G-1.1.0-RACK-W 5-PoE 1-851-565 RACK/3U-SU (PoE)

2G-1.1.0-BOX-W 4-PoE 1-851-224 48-56VDC/24VAC**

2G-1.1.0-IP65-W 4-PoE 1-851-824 48-56VDC/24VAC**

2G-1.1.0-RACK-W 4-PoE 1-851-564 RACK/3U-SU (PoE)

ORDERING NAME CODE SUPPLY

200M-1.0.3-BOX -W 5-PoE 1-753-225 48VDC/24VAC***

200M-1.0.3-IP65-W5-PoE 1-753-825 48VDC/24VAC***

200M-1.0.3-RACK-W5-PoE 1-753-565 RACK/3U-SU (PoE)

200M-1.0.3-BOX -W 4-PoE 1-753-224 48VDC/24VAC***

200M-1.0.3-IP65-W4-PoE 1-753-824 48VDC/24VAC***

200M-1.0.3-RACK-W4-PoE 1-753-564 RACK/3U-SU (PoE)

** PoE+ standard IEEE 802.3at-2009 max. 25,5W *** PoE standard IEEE 802.3af max. 15,4W

Media converters LAN-BUS

LAN-BUS - use of system

Industrial unmanaged switches and converters LAN-BUS represent an integrated system of devices suitable especially for extensive CCTV and security systems. Overvoltage protections of inputs and outputs enable use of LAN-BUS in both industrial and outdoor environment. When using METEL supply units of SU, ML or TRF series or supplying the switches from 19" racks

RACK/3U there is a 5-year guarantee on switch damage up to the level of printed circuit interruption (see terms and conditions “All Inclusive” Warranty).

MM / SM universal optical ports with WDM

All optical ports on 2G series devices can be universally used for both MM and SM fibers in the range of 9/125µm to 62.5/125µm. Optical ports are equipped with integrated wavelength division multiplexer technology (WDM). The optical ring/connection is then made up of only one SM or MM fiber.

PoE support

All the FE ports of LAN-BUS switches support standard IEEE 802.3af for supplying of end devices up to 15.4W of power.

PoE+ support

FE/GE ports of media converters LAN-BUS support standard IEEE 802.3at-2009 for supplying of end devices up to 25.5W of power.

Overvoltage protections

Every ethernet port and supply input is equipped with overvoltage protection. See the table left below.

Check the table right below whether it is necessary to use additional overvoltage protection of class D according to the IEC 61643-1 standard for all inputs in outdoor environments.

Working temperature –40…+70°C

Every LAN-RING switch is made up of parts with min. temperature range of –40 to +85°C and passive cooling (without ventilators).

Parameter Value Unit Note

Optical power (2G) –9 ... –3 dBm

Sensitivity (2G) –22 dBm

Optical fibers 1x SM 9/125 - SC connectors µm max. 20 km between components 1x MM 50(62.5)/125 - SC con. µm max. 2 km between components Wavelengths 200M-2.0.3-...W6 PORT 4: Tx: 1310 / Rx: 1550 nm

200M-2.0.3-...W6 PORT 5: Tx: 1550 / Rx: 1310 nm

Safety WARNING: converters contain laser sources of class 1 according to EN 60825-1-1 Optical power (200M) –14 to – 8 / –10 to 0 dBm SM / MM Sensitivity (200M) –31 / –28 dBm SM / MM Fast ethernet Optoports G E 230/48VDC 230VAC O V P OVP

+70°C

– 40°C

Type FE-UTP ports GE-UTP ports Supply input

200M-2.0.3 1000A 8/20µs - 2x1500 W (10/1000µs)

200M-1.0.3 1000A 8/20µs - 2x1500 W (10/1000µs)

200M-1.0.1 30A 8/20µs - 2x1500 W (10/1000µs)

2G-1.1.0 - 30A 8/20µs 2x1500 W (10/1000µs)

Type FE-UTP ports GE-UTP ports Supply input

Warranty „ALL INCLUSIVE“

“The warranty applies to all defects and faults of the Device(s) caused by excessive voltage except for destructive damages. The damages are not considered destructive if the Device is in such state that it can be repaired by replacement of one or more parts of the Device. The destructive damages are deemed to be damage to printed circuits (interruption of circuit, burnt soldering pads) disallowing repair of the Device unless replacing the printed circuit or using wire crossovers.

In order to obtain this warranty, the following conditions should be met:

1. The Supplier's employees carry out installation inspection with reference to meeting recommended procedures of mounting and setting of converters. After the inspection and removal of eventual defects the Supplier issues a certificate confirming „60 months ALL INCLUSIVE“ guarantee. In case of impossibility of direct inspection for security reasons (hidden obejcts) or for object's inaccessibility it is possible to issue the certificate confirming „60 months ALL INCLUSIVE“ guarantee based on project documentation. The Supplier retains the right not to issue the certificate in case of impossibility of inspection in the location of installation.

2. When installing the Device(s) in lightning protections zones ZBO 0A, ZBO 0B according to EN 62305, the Device(s) shall be fed from the Supplier's power sources with class D overvoltage protections according to IEC61643-1, i.e. TRF-24....H or SU-230/ 4870H. When installing the Device(s) in lightning protections zones ZBO 1, ZBO 2 according to EN 62305, the Device(s) shall be fed from the Supplier's power sources or 19" racks BREAK.

3. When installing the Device(s), the minimum distances between the power and data cables shall be maintained, according to the applicable standards valid at the time of installation.

4. When installing the Device(s) in the outdoor environment IP56 modifications in original Al covers or BOX modifications placed in steel switchboards shall be used. Therefore, the warranty does not apply to Device(s) installed in outdoor environment in plastic cases. Plastic cases may be used only for indoor installations without direct sun rays at the Device(s) and in underground premises, such as mines, hydroelectric –40...to +50°C.

5. The Device(s) shall be earthed according to the applicable standards.

In case of any complaint about damaging the Device(s) by overvoltage, the Supplier has the right to require the Device(s) to be provided with additional overvoltage protections. If the Buyer fails to provide the Device(s) with such protections, only the standard 60-month warranty applies (i.e. the warranty not including the damage to the Device(s) by overvoltage).”

Electric Parameters

Warranty

5 years incl.

excessive

voltage

MTBF > 1.200.000 Hours

MTBF was calculated on 1stJune 2009 according to the formula: MTBF=H/F

H=total number of running hours of all switches sold F=number of failures

Parameter Value Unit Note

LAN (UTP) Supported formats FE UTP ports: 10BaseT, 100BaseTx

GE UTP ports: 10BaseT, 100BaseTx, 1000BaseTx Overvoltage protection see previous page

Relay output Max. load 1xchange-over contact

(media converters) Max. 60VAC 1A max. 62.5VA

Max. 60VDC 0.4A max. 30W

Loss of supply Loss of redundant supply

Power consumption Max. 4 VA without PoE

Protections overvoltage / current 2x 1.5 kW (10/1000µs)

Environment Operational range –40...+70 ºC temp. of environment

Certification TÜV

The producer retains the right to change any technical parameters without previous announcement.

Activation Loss of optical signal

Max. data flow on 200M LAN-BUS

max. 100* Mbps 1x SM (MM) fiber

*Max. recommended load is 80%

200M-2.0.3

Topology LAN-BUS

Topology LAN-BUS 200Mbps enables, using one MM or SM fiber, interconnection of tens or hundreds of devices (cameras, sensors, PCs,...). When designing a network we recommend:

1. allowing for 20% system reserve, i.e. max. 80Mbps for each direction. The processors used in the devices enable use of LAN-BUS switches and media converters

in systems with video and audio signal transmission (CCTV, VoIP,..).

2. attending to correct interconnection of optical ports. See the pictures below and the table on the following page.

Model connection of one LAN-BUS bus

Model connection of two LAN-BUS buses

Model connection of LAN-BUS media converters in star topology

ORDERING NAME SUPPLY with SUPPLY without PoE

200M-2.0.3-BOX-PoE 48-53 VDC 10-53 VDC / 10-30VAC

200M-2.0.3-RACK-PoE* 48-53 VDC 10-53 VDC / 10-30VAC

200M-2.0.3-IP65-PoE 48-53 VDC 10-53 VDC / 10-30VAC

* supply of RACK cards with PoE only in 19" racks BREAK-RACK/PoE-100, BREAK-RACK/PoE-300, BREAK-RACK/PoE-500

Unmanaged PoE switches 200M-2.0.3

2x FO 200Mbps ♦ 3x FE

PWR – power supply indication LINK - connected fiber detection ACT - activity detection

P5 - optical port 200M LAN-BUS Tx - 1550nm / Rx - 1310nm

P4 - optical port 200M LAN-BUS Tx - 1310nm / Rx - 1550nm

P1...P3 Ethernet 10/100 BASE-T POE ports LED - DUPLEX/COLLISION ACT - LED ACTIVITY

Unmanaged PoE switches 200M-1.0.3

1x FO 200Mbps ♦ 3x FE

ORDERING NAME SUPPLY with PoE SUPPLY without PoE

200M-1.0.3-BOX-PoE 48-53 VDC 10-53 VDC / 10-30VAC

200M-1.0.3-RACK-PoE* 48-53 VDC 10-53 VDC / 10-30VAC

200M-1.0.3-IP65-PoE 48-53 VDC 10-53 VDC / 10-30VAC

* supply of RACK cards with PoE only in 19" racks BREAK-RACK/PoE-100, BREAK-RACK/PoE-300, BREAK-RACK/PoE-500

200M-2.0.3 200M-1.0.3 200M-1.0.1 200M-2.0.3 200M-2.0.3 200M-2.0.3 PC PC W4 W5 1 2 3 4 5 6 O N LED

PWR – power supply indication LINK - connected fiber detection ACT - activity detection

P4 - optical port 200M LAN-BUS W4: Tx - 1310nm / Rx - 1550nm W5: Tx - 1550nm / Rx - 1310nm LED --- spare LED P1...P3 - PoE OK LED DIP switch 6 - reserved 5 - reserved 4 - reserved 3 - PoE activation on P3 2 - PoE activation on P2 1 - PoE activation on P1 P1...P3 Ethernet

Unmanaged PoE+ media converters 200M-1.0.1

1x FO 200Mbps ♦ 1x FE

ORDERING NAME SUPPLY with PoE(+) SUPPLY without PoE

200M-1.0.1-BOX-PoE 48(56) VDC 10-60 VDC/ 10-30VAC

200M-1.0.1-RACK-PoE* 48(56) VDC 10-60 VDC/ 10-30VAC

200M-1.0.1-IP65-PoE 48(56) VDC 10-60 VDC/ 10-30VAC

* supply of RACK cards with PoE only in 19" racks BREAK-RACK/PoE-100, BREAK-RACK/PoE-300, BREAK-RACK/PoE-500

200M-1.0.1 PC PC W4 200M-1.0.1 W5 200M-1.0.1 W4 200M-1.0.1 W5 2G-1.1.0 W4 2G-1.1.0 W5 s w it c h GE 2G-1.1.0 W4 2G-1.1.0 W5 GE GE 1 2 3 4 5 6 O N

PoE LED Indication

ON - DIP5 OFF – POE is off - DIP5 ON – PoE is on OFF - insufficient supply for

PoE

Blinking - 1s interval – searching for PoE device - fast – failure on PoE

device LED

SPEED – indicates transmission speed of optical port

On - 1000Base-X Off- 100Base-FX LINK/ACT – indicates the state of fiber connection, event. by blinking activity of data transmission Optical port 200M LAN-BUS W4: Tx - 1310nm / Rx - 1550nm W5: Tx - 1550nm / Rx - 1310nm

DIP switch (restart needed after any changes)

6 - reserved

5 - switches on/off PoE on UTP port 4 - switches on/off main supply status

check. Relay is activated by drop of the main supply below 10/44V (without/ with PoE).

3 - switches on/off redundant supply status check. Relay is activated by drop of the redundant supply below 10/44V (without/with PoE).

2 - switches on/off optical port connection status check. Relay is activated by loss of connection on optical port.

1 - switches on/off UTP port connection status check. Relay is activated by loss of connection on UTP port.

10/100 BASE-T POE+ port LED - DUPLEX/COLLISION ACT - LED ACTIVITY

ALARM RELAY

COMMON – common contact N.C. - NC contact of output relay N.O. - NO contact of output relay The method of relay activation is set by closing one or more switches DIP1 to 5. When potential free only COM and NO are connected (closed).

When connected to power COM and NC are connected (closed).(inactive state)

When the alarm is activated COM and NO are connected (closed), seed DIP setting.

LED PWR

ON - supply

Blinking - relay activation indication, see DIP COM

Gigabit unmanaged PoE+ media converters 2G-1.1.0

1x FO 200Mbps ♦ 1x GE

ORDERING NAME SUPPLY with PoE(+) SUPPLY without PoE

2G-1.1.0-BOX-PoE 48(56) VDC 10-60 VDC/ 10-30VAC

2G-1.1.0-RACK-PoE* 48(56) VDC 10-60 VDC/ 10-30VAC

2G-1.1.0-IP65-PoE 48(56) VDC 10-60 VDC/ 10-30VAC

* supply of RACK cards with PoE only in 19" racks BREAK-RACK/PoE-100, BREAK-RACK/PoE-300, BREAK-RACK/PoE-500

200M-1.0.1 PC PC W4 200M-1.0.1 W5 200M-1.0.1 W4 200M-1.0.1 W5 2G-1.1.0 W4 2G-1.1.0 W5 s w it c h GE 2G-1.1.0 W4 2G-1.1.0 W5 GE GE 1 2 3 4 5 6 O N

PoE LED Indication

ON - DIP5 OFF – POE is off - DIP5 ON – PoE is on OFF - insufficient supply for

PoE

Blinking - 1s interval – searching for PoE device - fast – failure on PoE

device LED

SPEED - indicates transmission speed of optical port

On - 1000Base-X Off- 100Base-FX LINK/ACT – indicates the state of fiber connection, event. by blinking activity of data transmission Optical port 2G LAN-BUS W4: Tx - 1310nm / Rx - 1550nm W5: Tx - 1550nm / Rx - 1310nm

DIP switch (restart needed after any changes)

6 - reserved

5 - switches on/off PoE on UTP port 4 - switches on/off main supply status

check. Relay is activated by drop of the main supply below 10/44V (without/ with PoE).

3 - switches on/off redundant supply status check. Relay is activated by drop of the redundant supply below 10/44V (without/with PoE).

2 - switches on/off optical port connection status check. Relay is activated by loss of connection on optical port.

1 - switches on/off UTP port connection status check. Relay is activated by loss of connection on UTP port.

10/100/1000 BASE-T POE+ port LED - DUPLEX/COLLISION ACT - LED ACTIVITY

ALARM RELAY

COMMON – common contact N.C. - NC contact of output relay N.O. - NO contact of output relay The method of relay activation is set by closing one or more switches DIP1 to 5. When potential free only COM and NO are connected (closed).

When connected to power COM and NC are connected (closed).(inactive state)

When the alarm is activated COM and NO are connected (closed), seed DIP setting. COM N.C. N.O. LED PWR ON - supply

D

im

e

n

sio

n

s o

f R

A

C

K

m

o

d

ifi

ca

tio

n

s

D

im

e

n

sio

n

s o

f I

P

6

5

m

o

d

ifi

ca

tio

n

s

2 90

159

93

Al casting

3

U

d

3 slots

d

3

U

d

2 slots

d

Switches

Media converters

250

144

84

Switches

1 0 9 .0 0 60.00 1 0 9 .0 0 30.00

Installation of BOX modifications to flat surface and basic dimensions

Media converters

Switches

Installation of BOX modifications to DIN35 rail

Media converters

Switches

REVISIONS: 201101 - new AL boxes
