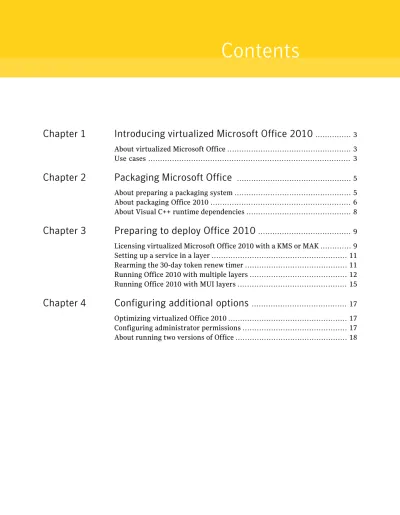

Contents. Chapter 1 Introducing virtualized Microsoft Office Chapter 2 Packaging Microsoft Office... 5

(1)

Chapter 1 Introducing virtualized Microsoft Office 2010

... 3

About virtualized Microsoft Office ... 3

Use cases ... 3

Chapter 2 Packaging Microsoft Office

... 5

About preparing a packaging system ... 5

About packaging Office 2010 ... 6

About Visual C++ runtime dependencies ... 8

Chapter 3 Preparing to deploy Office 2010

... 9

Licensing virtualized Microsoft Office 2010 with a KMS or MAK ... 9

Setting up a service in a layer ... 11

Rearming the 30-day token renew timer ... 11

Running Office 2010 with multiple layers ... 12

Running Office 2010 with MUI layers ... 15

Chapter 4 Configuring additional options

... 17

Optimizing virtualized Office 2010 ... 17

Configuring administrator permissions ... 17

(2)

(3)

Introducing virtualized

Microsoft Office 2010

This chapter includes the following topics:

■ About virtualized Microsoft Office

■ Use cases

About virtualized Microsoft Office

This guide provides a collection of best practices when you virtualize Microsoft Office 2010. Office is one of the most virtualized applications with Symantec Workspace Virtualization. However, certain issues arise due to the diverse ways that customers virtualize Office along with the Microsoft licensing features unique to Office 2010. These instructions help you navigate these realities.

This guide is meant to document specific steps for Office 2010. However, you can also use virtualization to run two versions of Office concurrently.

For information on running Office 2007 and 2010 concurrently: See“About running two versions of Office”on page 18.

Furthermore, this guide is not intended to present all aspects of packaging and deploying in Wise Virtual Composer (WVC). Instead, the guide provides information on the unique aspects and necessary steps for packaging Office 2010.

Use cases

The process that you follow to virtualize Office 2010 depends on your environment and your end use goals. Choose the appropriate virtualization process for your organization based on the most similar use case.

1

(4)

Before beginning the packaging process, you may want to review guidelines of packaging Office:

See“About preparing a packaging system”on page 5. See“About packaging Office 2010”on page 6. Table 1-1 Use cases

Instructions Use cases

To complete this process, do the following: See“About packaging Office 2010” on page 6.

See“Setting up a service in a layer” on page 11.

See“Rearming the 30-day token renew timer”on page 11.

Packaging and Deploying Microsoft Office 2010 in a single layer.

See“Running Office 2010 with multiple layers”on page 12.

Packaging and Deploying Microsoft Office 2010 in multiple layers.

See“Running Office 2010 with MUI layers” on page 15.

Packaging and Deploying Microsoft Offce 2010 with Multiple User Interfaces (MUIs)

Refer to the following for information on virtualizing Office 2010 with a Key Management Server (KMS) or Multiple Activation Key (MAK).

See“Licensing virtualized Microsoft Office 2010 with a KMS or MAK”on page 9. Introducing virtualized Microsoft Office 2010

(5)

Packaging Microsoft Office

■ About preparing a packaging system

■ About packaging Office 2010

■ About Visual C++ runtime dependencies

About preparing a packaging system

Consider the following guidelines to set up a packaging system:

■ Capture on a virtual machine. After your virtual machine is set up, take a snapshot of the entire virtual machine. After you package applications, you can revert to the snapshot and have a clean virtual machine ready for capture.

■ If you use a virtual machine, allocate 1.5 GB of RAM for the image and at least 1 GB for Wise Virtual Composer. In addition, allocate 20 GB for the virtual machine and 15 GB to store captured applications. The 20-GB requirement for the virtual machine includes 4 GB to 5 GB for the operating system.

■ Symantec recommends that you only install a Windows operating system and service pack or patches to your packaging computer. Do not include any other applications such as antivirus scanners or backup utilities. Turn off Automatic Updates, Firewall, Security Notifications, User Access Control, Windows Defender, and similar programs. Do not connect to your production network.

■ Capture on a system where the Office installation program has not executed. If you attempt to capture on a system where an Office installation program has been executed, you might receive a sharing violation with Office 2010.

■ If .NET is not installed on the target endpoints, capture on a computer that does not have .NET installed. Windows Vista and Windows 7 include .NET by default.

2

(6)

■ If you only distribute to a corporate environment, you can use the base desktop image as the packaging computer. The base desktop image has all of the same components and libraries that are installed as the client images. Therefore, even if the installer skips files, no problem results.

■ Use different computers to test packaging.

Refer to the following for information on packaging Microsoft Office 2010. See“About packaging Office 2010”on page 6.

About packaging Office 2010

Symantec Workspace Virtualization uses Wise Virtual Composer to package applications such as Office 2010. Packaging is the process that converts an installation program into a format that can be virtualized on an endpoint. For a complete overview, please refer to the following Wise Virtual Composer 6.1 SP1 User Guide at the following URL:

www.symantec.com/docs/DOC2661

Consider the following unique guidelines when you package Office 2010:

■ The most common capture issue with Office products is the dependency on the Visual C++ runtimes. Typically, this dependency only becomes an issue when you package and deploy on XP computers. By default, the necessary runtimes are automatically installed and active on Vista and Windows 7. See“About Visual C++ runtime dependencies”on page 8.

■ Use Wise Virtual Composer if the package is intended for a streaming environment. Wise Virtual Composer provides better handling of advertised shortcuts and the template feature enables additional packaging options.

■ All Office products that you want to stream should be distributed in a single package. Office products use a number of shared resources that can cause conflicts when accessed by multiple virtualized applications.

■ Symantec Workspace Streaming and Symantec Workspace Virtualization 6.1 SP6 or later provide support for virtualizing and streaming Office 2010.

■ Set up exclude entries for Office, either by location or file type. If you want to set them up by file type, Symantec recommends using LayerExcludeFinder to automatically generate the exclude entries.

■ When you deploy Office 2010 you need to perform the capture on the same operating system on which you plan to deploy. This capture is required due to the significant differences in paths and installed components between Packaging Microsoft Office

(7)

platforms. If you use Workspace Streaming, you can select a preinstallation script to install the Visual C++ runtimes before the application is streamed.

■ If you capture on Windows Vista or Windows 7, ensure that the Visual C++ 2008 SP1 runtime libraries are available on each endpoint. If you use 32-bit Office, install the 32-bit runtimes. If you use 64-bit Office 2010, install the 64-bit runtimes.

For more information on packaging Office with Windows 7, see the article at the following URL:

www.symantec.com/connect/articles/capturing-office-windows-7

Table 2-1 Potential issues

Work around Potential issue

Refresh the desktop or access the file by opening Windows Explorer.

If you save Microsoft Word files in Windows 7 to the desktop, the file does not show until you refresh the desktop.

Install .NET on the endpoint where this error occurs or recapture on a Windows XP computer that does not have .NET installed. For more information, see the article at the following URL:

www.symantec.com/connect/blogs/office-2010-

and-swv- bcssyncexe-unable-locate-component-error-thrown-when-layer-activated You receive an error message BCSSync.exe

- Unable to locate Component Body: This application has failed to start because mscoree.dll was not found.

Use SWVCmd to export a .vsa file, or use SWVAdmin, SWVCmd, or Wise Virtual Composer to export an .xpf file. SWVAdmin displays an error when you

attempt to export a .vsa file of Office 2010 on 64-bit operating systems.

Due to the number of shared resources that different versions of Outlook use, two versions of Microsoft Outlook is an unsupported configuration. Microsoft does not support two versions of

Microsoft Outlook on the same computer. If you have a version of Outlook already installed or virtualized, you might not be able to launch another version.

Refer to the following for information on specific use cases for packaging and deploying Microsoft Office 2010.

See“Use cases”on page 3.

(8)

About Visual C++ runtime dependencies

A common issue that is associated with deployment of Office 2010 is the handling of the dependency on the Microsoft Visual C++ 2008 SP1 runtime.

To successfully capture Office and avoid recurring repair installations, ensure that Visual C++ 2008 SP1 runtime (version 9.0.30729) is installed. This runtime version is installed and active by default on Windows Vista and Windows 7. Additionally, Visual C++ 2008 SP1 runtime is installed with the Wise Virtual Composer (WVC) installation.

Note:More than one version of Visual C++ Runtime can be present simultaneously on a computer, and it is not backward-compatible.

Check the control panel to ensure that the correct version of Microsoft Visual C++ 2008 SPI Redistributable is installed.

During Office installation, if the Visual C++ runtime is not available on the computer, Office installs it.

The correct version of Microsoft Visual C++ 2008 Redistributable can be downloaded directly from Microsoft at the following URL:

http://www.microsoft.com/downloads/en/details.aspx?FamilyID=2051a0c1-c9b5-4b0a-a8f5-770a549fd78c

To avoid this issue, distribute the Visual C++ runtime as part of your base image or as its own virtual layer.

See“Use cases”on page 3. Packaging Microsoft Office

(9)

Preparing to deploy Office

2010

■ Licensing virtualized Microsoft Office 2010 with a KMS or MAK

■ Setting up a service in a layer

■ Rearming the 30-day token renew timer

■ Running Office 2010 with multiple layers

■ Running Office 2010 with MUI layers

Licensing virtualized Microsoft Office 2010 with a

KMS or MAK

When virtualized Microsoft Office 2010 is volume licensed, you can use a Key Management Server (KMS) or Multiple Activation Key (MAK).

3

(10)

To activate the license with a KMS

1

Open the config.xml file in a text editor, such as Notepad.

For information from Microsoft on editing the config.xml please see the following link:

http://technet.microsoft.com/en-us/library/cc179195.aspx

2

Add the following command:

The KMS Port entry is optional and only needed if you are not using the default port.

Sample File:

</Configuration>

3

Capture a command prompt and run something similar to the following command:

setup.exe /config myConfig.xml

To activate the license with a MAK

1

After streaming the package, open a command prompt and browse to the folder:

C:\Program Files\Common Files\Microsoft Shared\OfficeSoftwareProtectionPlatform

2

Execute the prompt: mofcomp.exe OSPPWMI.MOF

3

Manually invoke activation by opening another command prompt.

4

Run the following command:

cscript ospp.vbs /act Preparing to deploy Office 2010

(11)

For more information on the ospp.vbs script reference, please see the following link:

http://technet.microsoft.com/en-us/library/ee624350.aspx

For information from Microsoft on using a KMS or MAK with Office, see the videos at the following URL:

www.microsoft.com/resources/msdn/en-us/office/media/video/officetc.html?uuid= 7fc4bc9a-794b-46c2-833c-265b3be4ed92&from=mscomoffice

Setting up a service in a layer

The different OSPPSvc services can cause issues within the layer, especially when you use KMS or MAK. However, these steps need to be completed regardless of whether you use KMS, MAK, or a single registry code.

To set up services in a layer

1

In the layer, navigate to HKLM\system\osppsvc.

2

Set the Start value to 2.

3

In the base, navigate to

HKLM\system\CurrentControlSet\Services\FSLX\Parameters\FSL\<layer magic number>\Services\FSL_osppsvc.

4

Set the Start value to 2.

Additionally, it may be necessary to rearm the 30 day token renew timer. See“Rearming the 30-day token renew timer”on page 11.

Rearming the 30-day token renew timer

Make sure that you rearm the 30-day token renew timer after packaging. Do not trigger the timer during packaging.

11 Preparing to deploy Office 2010

(12)

To rearm the token renew timer

1

Capture the application.

2

Run therearmcommand.

After you run therearmcommand, do not do anything in the layer. Anything you do in the layer starts the 30-day timer.

For information on running therearmcommand and troubleshooting Key Management Servers, see the video from Microsoft at the following URL:

www.microsoft.com/resources/msdn/en-us/office/media/video/officetc.html?uuid=5f1d87e6-8b49-45c5-acb2-5c89ba722459&from=mscomoffice

3

Package and export the layer.

If you are running Microsoft Office in a single layer, you are ready to deploy or stream the package.

If you are running Microsoft Office in multiple layers, See“Running Office 2010 with multiple layers”on page 12.

Running Office 2010 with multiple layers

If you run virtualized Office 2010 and standalone Microsoft applications in multiple layers, remove the Office Software Protection Platform Services (OSPPSvc) from the layers. Each layer has its own OSPPSvc instance. If this instance is not removed, token key conflicts may occur every time the layer is activated. These conflicts cause the layer to pull a new token from the Key Management Server (KMS) and slow application startup.

To include OSPPSvc without conflicts, use the Microsoft Office 2010 deployment kit for App-V to put OSPPSvc in its own layer. The App-V deployment kit is a licensing component that also creates token keys in advance. You can deploy the App-V deployment kit layer before you deploy your Office layers to shorten application start times. If you deploy this layer in advance, you do not need to use therearmcommand.

Table 3-1describes the process for running Office 2010 with multiple layers. Preparing to deploy Office 2010

(13)

Table 3-1 Process for running Office 2010 with multiple layers Description Task

Step

Prepare your computer by capturing Office 2010 in a layer and by copying files. See“To prepare your computer”on page 13. Prepare your computer.

Step 1

Remove all instances of OSPPSvc from each standalone layer and the Office 2010 layer. See“To remove OSPPSvc from a layer”on page 14. Delete files.

Step 2

Capture the Office 2010 deployment kit for App-V in a layer.

See“To capture the App-V deployment kit”on page 15. Capture the App-V

deployment kit. Step 3

To prepare your computer

1

Capture Office 2010 in a layer and then deactivate the layer.

2

Copy the fileOSPPrun.exefrom MSSharedTools to a convenient location, and then delete the file from MSSharedTools.

You need this file in another procedure.

3

Copy the files from

MSSharedTools\office14\officesoftwareprotectionplatformto a convenient location.

You need these files in another procedure.

(14)

To remove OSPPSvc from a layer

1

Delete the following files:

System/[AllUsersProfile]/Microsoft/officeprotectionplatform

System\currentcontrolset\osppsvc

HKLM\software\microsoft\officesoftwareprotectionplatform

HKUSERS\s-1-5-20(or any similar short GUID)

2

InHKLM\system\currentcontrolset\services, delete any instance of OSPPSvcandCLR_optimization.

3

In the registry, delete any instance ofMUICache.

4

In MSSharedTools, delete the following files:

office14\liclula

office14\officesetup controller,pidgenx.dll, andpkeyconfig officesoftwareprotectionplatform

userprofile\microsoft\officesoftwareprotectionplatform

5

In the program files\Office14 folder, delete the following files: slerror.xml

npspwrap

6

In SWVAdmin, double-click the layer.

7

In the Layer Properties dialog box, click the Delete entries tab.

8

In the Delete Entries tab, clear out all of the deleted entries.

9

Click Start and select Run. Type regedit and click OK.

10

Navigate to

HKLM\system\currentcontrolset\services\fslx\parameters\fsl\1\services.

11

Delete

HKLM\system\currentcontrolset\services\fslx\parameters\fsl\1\services\FSL_osppsvc

12

Go through the following folders and delete any folder that listsosppsvc: HKLM\system\currentcontrolset\services\fslx\parameters\fsl\1\services\Postactivate\x

HKLM\system\currentcontrolset\services\fslx\parameters\fsl\1\services\Postdeactivate\x

HKLM\system\currentcontrolset\services\fslx\parameters\fsl\1\services\Predeactivate\x

HKLM\system\currentcontrolset\services\fslx\parameters\fsl\1\services Preparing to deploy Office 2010

(15)

To capture the App-V deployment kit

1

Download the App-V deployment kit installer from the following location:

www.microsoft.com/downloads/en/details.aspx?displaylang=en&FamilyID= 49f12f2-5678-493e-bce1-682b3ece5431

2

Build anmsiexecstring in a text file with all the token keys that the App-V deployment kit should populate from your KMS.

For information on generating anmsiexecstring, see the article at the following URL:

http://support.microsoft.com/kb/983462

3

On a clean virtual machine with Symantec Workspace Virtualization SP7, capture the App-V Licensing Component using the command line and the msiexecstring.

4

Close the command prompt window to end the capture and then deactivate the layer.

5

Replace the files that you removed when you prepared your computer.

6

In SVSAdmin, right-click the layer.

7

Check Hide other layers from this layer and Keep file changes in layer. Refer to the following for additional information on optimizing virtualized Microsoft Office 2010

See“Optimizing virtualized Office 2010”on page 17.

Running Office 2010 with MUI layers

To support Multilingual User Interfaces (MUIs), you must capture all of the MUI components in a different layer than Office 2010. However, you cannot capture the MUIs from a virtualized version of Office. You must create MUI layers. To run Office 2010 with MUI layers

1

On a clean virtual machine, install Symantec Workspace Virtualization SP7.

2

Install Office 2010 in the base exactly the way that you would in a layer. Make sure that you apply any of the same patches, admin files, or proofing tools.

3

Take a snapshot of your virtual machine. You need to revert to this snapshot

each time you create a new MUI layer.

4

Capture the MUI language installation through the command prompt.

5

Once the setup is finished, use the command prompt to navigate to

C:\program files\microsoft office\Office14.

(16)

6

Runsetlang.exeto configure the language layer. Save the settings as the default.

7

Close the command prompt window to end the capture, and then deactivate the layer.

8

In SWVAdmin, right-click the new layer and then click Properties.

9

On the Layer Properties window, click the Autorun Applications tab.

10

Right-click inside the tab, and then click New Autorun Entry.

11

Type in or browse to the following application paths, and then click OK. C:\program files\microsoft office\office14\clview.exe

C:\program files\microsoft office\office14\setlang.exe

12

Before you export, clear out theOSPPSvcinstances.

See“Running Office 2010 with multiple layers”on page 12. Preparing to deploy Office 2010

(17)

Configuring additional

options

■ Optimizing virtualized Office 2010

■ Configuring administrator permissions

■ About running two versions of Office

Optimizing virtualized Office 2010

After you capture the Office layer or Office Multilingual User Interfaces (MUI) layers, you can optimize virtualized Office by generating an initial HashCache. Generating an initial HashCache decreases the time the layer takes to activate for the first time on a user’s computer.

To optimize virtualized Office 2010

1

Activate the layer.

2

Deactivate the layer.

3

Reset the layer.

See“Use cases”on page 3.

Configuring administrator permissions

You can configure the proper administrator permissions to ensure that users do not experience errors.

4

(18)

For example, an error may occur when you try to launch Office 2010 as a user without administrator privileges. This error occurs because Office writes to an area that needs administrator privileges by default. To work around this issue, set the permissions in the registry to allow users without these privileges to access the files.

To set the permissions in the registry

1

Activate the layer on which you want to set the permissions.

2

Openregeditand navigate toHKEY_LOCAL_MACHINE\_SWV_ LAYER_[number of the read only layer].

3

Navigate to the registry key that needs to be modified.

4

Right-click the registry key and select Permissions.

5

Set the permissions for the keys that you want to modify

About running two versions of Office

Virtualization of Office lets you run two or more versions of Office concurrently. However, this configuration may cause file conflicts since Microsoft files are automatically saved as short names that become indistinguishable when virtualized.

For example, a captured version of Office becomes registered in the layer as MICROS~1, its version 8.3 name. However, every install of Windows XP includes a folder in the Program Files directory named Microsoft Frontpage. This Frontpage folder is registered with the XP system as MICROS~1 by default. Therefore, when you import or capture a layer, a conflict occurs with 8.3 names.

You can avoid this issue by installing Office into a different, non-Microsoft directory that is not named MICROS: for example, Office2007 or MSOffice. For more information about running multiple versions of Office, see the article at the following URL:

http://support.microsoft.com/?scid=kb%3Ben-us%3B928091

Refer to the following for information on running Office 2010 with multiple layers. See“Running Office 2010 with multiple layers”on page 12.
