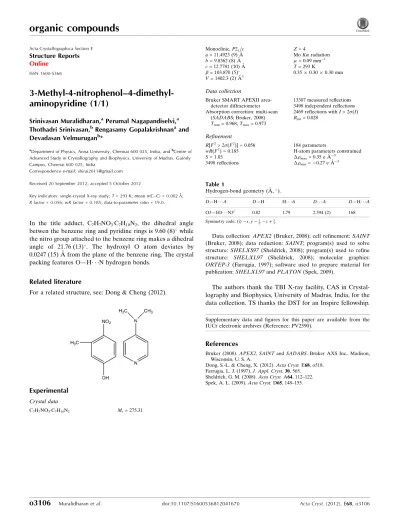

3-Methyl-4-nitrophenol–4-dimethyl-aminopyridine (1/1)
Srinivasan Muralidharan,aPerumal Nagapandiselvi,a Thothadri Srinivasan,bRengasamy Gopalakrishnanaand Devadasan Velmuruganb*
aDepartment of Physics, Anna University, Chennai 600 025, India, andbCentre of
Advanced Study in Crystallography and Biophysics, University of Madras, Guindy Campus, Chennai 600 025, India
Correspondence e-mail: [email protected]
Received 20 September 2012; accepted 5 October 2012
Key indicators: single-crystal X-ray study;T= 293 K; mean(C–C) = 0.002 A˚; Rfactor = 0.056;wRfactor = 0.185; data-to-parameter ratio = 19.0.
In the title adduct, C7H7NO3 .
C7H10N2, the dihedral angle
betwen the benzene ring and pyridine rings is 9.60 (8)while
the nitro group attached to the benzene ring makes a dihedral angle of 21.76 (13). The hydroxyl O atom deviates by 0.0247 (15) A˚ from the plane of the benzene ring. The crystal packing features O—H N hydrogen bonds.
Related literature
For a related structure, see: Dong & Cheng (2012).
Experimental
Crystal data
C7H7NO3C7H10N2 Mr= 275.31
a= 11.4923 (9) A˚ b= 9.8362 (8) A˚ c= 12.7781 (10) A˚
= 103.870 (5)
V= 1402.3 (2) A˚3
MoKradiation
= 0.09 mm1 T= 293 K
0.350.300.30 mm
Data collection
Bruker SMART APEXII area-detector diffractometer Absorption correction: multi-scan
(SADABS; Bruker, 2008) Tmin= 0.968,Tmax= 0.973
13307 measured reflections 3498 independent reflections 2469 reflections withI> 2(I) Rint= 0.028
Refinement
R[F2> 2(F2)] = 0.056 wR(F2) = 0.185 S= 1.03 3498 reflections
184 parameters
H-atom parameters constrained max= 0.35 e A˚
3 min=0.27 e A˚
[image:1.610.48.234.460.630.2]3
Table 1
Hydrogen-bond geometry (A˚ ,).
D—H A D—H H A D A D—H A
O3—H3 N3i 0.82 1.79 2.594 (2) 168
Symmetry code: (i)x;y1 2;zþ
3 2.
Data collection:APEX2(Bruker, 2008); cell refinement:SAINT (Bruker, 2008); data reduction:SAINT; program(s) used to solve structure:SHELXS97(Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: ORTEP-3(Farrugia, 1997); software used to prepare material for publication:SHELXL97andPLATON(Spek, 2009).
The authors thank the TBI X-ray facility, CAS in Crystal-lography and Biophysics, University of Madras, India, for the data collection. TS thanks the DST for an Inspire fellowship.
Supplementary data and figures for this paper are available from the IUCr electronic archives (Reference: PV2590).
References
Bruker (2008).APEX2, SAINTandSADABS. Bruker AXS Inc., Madison, Wisconsin, U. S. A.
Dong, S.-L. & Cheng, X. (2012).Acta Cryst.E68, o518. Farrugia, L. J. (1997).J. Appl. Cryst.30, 565.
Sheldrick, G. M. (2008).Acta Cryst.A64, 112–122. Spek, A. L. (2009).Acta Cryst.D65, 148–155. Structure Reports
Online
supporting information
Acta Cryst. (2012). E68, o3106 [doi:10.1107/S1600536812041670]
3-Methyl-4-nitrophenol
–
4-dimethylaminopyridine (1/1)
Srinivasan Muralidharan, Perumal Nagapandiselvi, Thothadri Srinivasan, Rengasamy
Gopalakrishnan and Devadasan Velmurugan
S1. Comment
In the molecule (fig.1),the pyridine ring (N3/C10/C11/C12/C13/C14) makes a dihedral angle of 9.60 (8)° with the phenyl
ring (C1/C2/C3/C4/C5/C6) system. The oxygen atom O3 deviates by -0.0247 (15)Å from the plane of the phenyl ring.
The carbon atom C7 deviates by deviates by 0.0677 (21)Å from the plane of the phenyl ring.
The nitrogen atom N1 deviates by -0.0285 (18)Å from the plane of the phenyl ring. The nitrogen atom N2 devaites by
-0.0292 (18)Å from the plane of the pyridine ring. The crystal packing is stabilized by intermolecular O—H···N hydrogen
bonds
S2. Experimental
4-Dimethylaminopyridine and 3-methyl-4-nitrophenol were taken in equimolar (1:1) ratio using acetone as solvent. The
solution was filtered in a clean beaker and optimally closed. The prepared solution was kept at room temperature for two
days after which crystals suitable for X-ray diffraction were obtained.
S3. Refinement
The hydrogen atoms were placed in calculated positions with C—H = 0.93 Å to 1.08 Å refined in the riding model with
Figure 1
The molecular structure of the title compound, showing displacement ellipsoids drawn at the 30% probability level. H

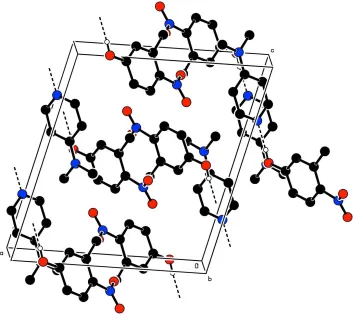

Figure 2
The crystal packing of the title compound viewed down c axis. H-atoms not involved in H-bonds have been excluded for
clarity.
