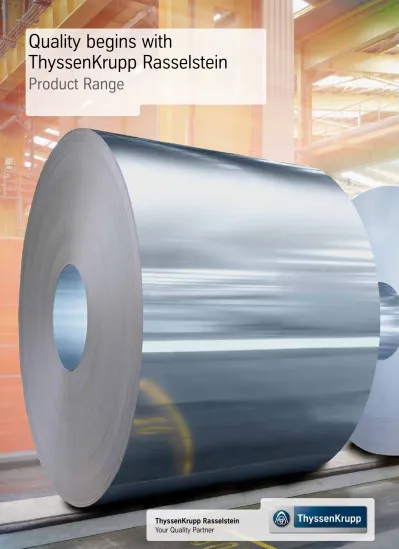

Quality begins with

ThyssenKrupp Rasselstein

Quality

begins with ThyssenKrupp Rasselstein

ThyssenKrupp Rasselstein’s history

goes back to 1760 when the company

was founded by Heinrich Wilhelm

Remy.

Today we are a subsidiary of

ThyssenKrupp Steel Europe and we

operate the world’s largest production

site for packaging steel.

Our aim is to fulfill sophisticated

customer needs. Our claim is to

produce packaging steel of the

highest quality.

To do this, we consistently work on

smart solutions that make our material

even more efficient, thinner, stronger

and more formable.

The quality of our material gives

you the peace of mind you expect

from modern packaging steel.

Grades

Thanks to our special expertise in materials, ThyssenKrupp Rasselstein can supply

exactly the grade you need for your particular application.

Designation TS 230 TS 245 TS 260 TS 275 TS 290 TS 340 TS 480 TS 520 TS 550 TH 330 TH 340 TH 415 TH 435 TH 450 TH 480 TH 520 TH 550 TH 580 TH 620 TH 650 Yield strength 230 +/- 50 245 +/- 50 260 +/- 50 275 +/- 50 290 +/- 50 340 +/- 50 480 +/- 50 520 +/- 50 550 +/- 50 330 +/- 50 on inquiry 415 +/- 50 435 +/- 50 450 +/- 50 480 +/- 50 520 +/- 50 550 +/- 50 580 +/- 50 620 +/- 50 650 +/- 50

EN 10202 – 2001

Designation T 1 T 2 T 3 T 4 T 5 DR 7 DR 7,5 DR 8 DR 8,5 DR 9 DR 9,5

AISI/ASTM 623

Tinplate

EN g/m2 _{one side} 1.00 1.40 2.00 2.80 4.00 5.00 5.60 8.40 11.20

Coating weights for tin

corresponds to Ib/bb two sides

0.089 0.125 0.179 0.250 0.357 0.446 0.500 0.750 1.000 AISI/ASTM Ib/bb two sides

0.05 0.10 0.15 0.20 0.25 0.35 0.50 0.75 1.00 corresponds to g/m2 _{one side} 0.60 1.10 1.70 2.20 2.80 3.90 5.60 8.40 11.20

Coating weights shown at left are possible for equal and differential coating.

Deviations in coating weights from 1.00 to 11.20 g/m2

or 0.100 to 1.000 lb/bb are possible. Other tin coating weights on inquiry.

One-side tin coatings possible in the range 0.50 to 5.60 g/m2_.

Marking of differential coatings in accordance with Euronorm/SEFEL, alternative markings by arrangement.

Dip passivation

Electrochemical passivation Electrochemical passivation

Passivation for tinned grades

Code 300 311 314* Chromium coating mg/m2 _{per side} 1 – 3 3.5 – 9 > 5 * On inquiry

ECCS, Electrolytic zinc-coated steel,

Blackplate

Chromium metal Chromium oxide min. 50 7

Coating weights for ECCS

(electrolytic chromium coated steel)

Average coating weight [mg/m² per side]

max. 140 35

Note:

Total chromium is the sum of metallic chromium and chromium oxide.

Special product: Electrolytic zinc-coated steel

Nominal coating weight:

11.0 g/m² per side (1.5 μm)

Uncoated blackplate

EN 10 205

Oiling

DOS ATBC BSO Alternative oiling Anticorit Tinplate mg/m2 _{per side} 4 +/- 2 7 +/- 3 – 4 +/- 2 – ECCS mg/m2 _{per side} 4 +/- 2 – 4 +/- 2 – – Uncoated blackplate mg/m2 _{per side} – – – – min. 300 +/- 100 Other oiling weights on inquiry.

Finishes

Finish Bright Fine stone Stone Silver matt Matt

Different roughness values per side upon inquiry

Melted Yes Yes Yes Yes No Roughness (Ra) μm ≤ 0.30 0.25 – 0.45 0.30 – 0.75 0.40 – 2.25 0.40 – 2.25

Closer tolerances within the roughness ranges in accordance with the standards or upon inquiry.

Organic coating

Coil coating with lacquer

Lacquer Single-layered lacquer (one side or both sides) Lacquer on both sides Color Clear, Gold Silver, Gold

Other applications on inquiry.

For example for mounting cups.

Coating weights for lacquer or combination options with PP film and base materials available upon inquiry.

For example for tab stock.

Coating weights for lacquer and base material options available upon inquiry.

Colors and coating weights (one or both sides) available upon inquiry.

Lacquered sheets

Combinations of coatings, other film thicknesses or colors and base materials available upon inquiry.

Film PET PET PET PET B* PP PP PE Color Clear Clear White White Clear White Blue

Coatplate – Coil coating with film

Thickness μm 12, 23 15 23 20 40, 100, 200 30, 50 50

* For subsequent painting of the back side and/or printing

Base materials ECCS ECCS ECCS ECCS Tinned/ECCS Tinned/ECCS ECCS

Sheets

0.100 – 0.119 0.120 – 0.129 0.130 – 0.139 0.140 – 0.149 0.150 – 0.179 0.180 – 0.199 0.200 – 0.499 ≥ 0.50* 600 – 950* 600 – 1,000* 600 – 1,000 600 – 1,050 600 – 1,090 600 – 1,140 600 – 1,140 – – – – 6001) _{– 1,090} 6001) _{– 1,140} 6001) _{– 1,140} Thickness mm 600 – 1,000* 600 – 1,090 600 – 1,090 600 – 1,090 600 – 1,120 600 – 1,140 600 – 1,140 * * 6001) _{– 1,090} 6001) _{– 1,090} 6001) _{– 1,090} 6001) _{– 1,140} 6001) _{– 1,140} Sheet length: Straight-cut: 450 – 1,200 mm Scroll-cut: 560 – 1,150 mm Lacquered sheets: min. 660 x 510 mm max. 1,120 x 980 mm 1) _{< 700 mm by arrangement} * On inquiry

Dimensions

Coils

0.100 – 0.119 0.120 – 0.129 0.130 – 0.139 0.140 – 0.149 0.150 – 0.179 0.180 – 0.199 0.200 – 0.499 ≥ 0.50* 600 – 950* 600 – 1,000* 600 – 1,000* 600 – 1,050 600 – 1,090 600 – 1,170 600 – 1,2201) – – – – 6002) _{– 1,090} 6002) _{– 1,170} 6002) _{– 1,220}1) 600 – 1,000* 600 – 1,090 600 – 1,090 600 – 1,090 600 – 1,2201) 600 – 1,2201) 600 – 1,2201) * * 6002) _{– 1,090} 6002) _{– 1,090} 6002) _{– 1,090} 6002) _{– 1,220}1) 6002) _{– 1,220}1)

Max. width for ECCS: 1,085 mm Other dimensions on inquiry.

1) _{Up to 1,230 mm by arrangement} 2) _{< 700 mm by arrangement} * On inquiry Thickness mm

SR BA

Width mm

SR CA

Width mm

DR BA

Width mm

DR CA

Width mm

SR BA

Width mm

SR CA

Width mm

DR BA

Width mm

DR CA

Width mm

Shipping weights and dimensions

Coils Sheets Orientation Vertical axis Horizontal axis – max. packing unit weight 3.0 – 12.7 t 3.0 – 18.0 t 2.5 t Inside diameter 420 mm 508 mm – max. outside diameter 1.630 mm 1.850 mm – Inside diameter on inquiry 450/508 mm 420/450 mm –

Thickness mm 0.100 – 0.149* 0.150 – 0.199 0.200 – 0.499

Dimensions as per EN 10 140

Width mm 20 – 460 20 – 540 20 – 600 Inside diameter mm 400/450/508 400/450/508 400/450/508 Coil weight kg/mm strip width 2 – 10 2 – 10 2 – 10

Maximum width for ECCS: 540 mm * On inquiry

Narrow strip

Blackplate strip

Uncoated

Quality as per EN 10 139

Dimensions as per EN 10 140

DC 01 DC 03 DC 04 DC 05 DC 06* Delivery conditions LC LC LC LC LC

Grades

C290 – C690 C290 – C590 C290 – C590

Anticorit

Oiling weights by arrangement (min. 300 +/- 100 mg/m² – max. 750 +/- 100 mg/m²)

Oiling

Finish

Smooth Stone finish fine Stone finish Matt fine Matt Matt rough Roughness μm < 0.35 0.25 – 0.45 0.35 – 0.60 0.75 – 1.25 1.00 – 2.00 1.75 – 2.25

Finishes

C590 and C690 in stone finish only. * On inquiry

Dimensions

Thickness mm < 0.150 0.150 – 0.199 0.200 – 0.499 mm * 10 – 540 10 – 600 mm * 650 – 1,080 650 – 1,200 Inside diameter mm 400/450/508 400/450/508 400/450/508 Coil weight kg/mm strip width 2 – 10** 2 – 10** 2 – 10** Axis: horizontal/vertical * On inquiry Width

Innovation

begins with ThyssenKrupp Rasselstein

We develop the packaging steel of the future for you –

efficient, highly optimized, and sustainable.

For ever-better steel packaging and maximum resource

conservation.

HCR for improved corrosion resistance

High corrosion resistance (HCR) is particularly important in applications where the

packaging steel remains unpainted. ThyssenKrupp Rasselstein has developed a new

grade of material called HCR whose surface has been specifically optimized for such

applications.

The HCR product owes its high corrosion resistance to a special finishing process resulting in an extremely low-pore tin alloy coating. This makes it possible to reduce the thickness of the tin layer.

Thin, thinner, Thinplate

Thinplate stands for reliable high-end material in thinner thicknesses. Precisely the kind of material that sustainable companies are looking for today when they think of efficient packaging steel. Our top product, the ultrathin packaging steel

“Nulleinhundert” (zero one-hundred) is fully applicable in the grades listed below. It is deep-drawable and weldable. “Nulleinhundert” is the result of joint development work on the part of ThyssenKrupp Rasselstein, its parent company and leading machine manufacturers. Current application areas are three-piece food cans and closures.

Material grades for „Nulleinhundert“

TS 360 TS 550

TS 450 TS 580

TS 480 TH 580

TS 520 Other material grades on inquiry

Available thicknesses: today, down to 0.100 mm

You expect ever-thinner material with the

same good properties and continuous

improvement of packaging steel – in

response, we deliver Thinplate.















The right packaging steel for your

applications

Tensile strength [MPa]

Elongation [%]

Changing markets often demand new material properties.

That’s why we keep on developing our packaging steel further

so that we can meet your needs and those of your customers

even better.

We’ll be happy to help you select the most appropriate packaging steel for your applications. If your focus is on especially formable steel with high expansion rates and very good deep-drawability, High Formability Steel is the ideal material grade for you. Expansion rates of 40 percent are possible.

Our DR Formable grade delivers sufficiently high material expansion even at very high strength levels. Depending on the required material hardness, the elongation is at least 3 percent up to 10 percent higher than with Standard DR material. Another plus: DR Formable is the ideal grade for downgauging.

Coatplate enlarges your performance spectrum

Our R&D people are working on applications that will open up completely new possibilities for you. PET on tin-coated material for particularly bright visual impact. Highly formable PET on packaging steel for applications with high formability requirements. A combination of PET/PP for aggressive filling goods or for lid rings. The future is within reach.

Polymer-coated packaging steels for innovative special applications.

BPA-free.

Innovative grades for easy open ends

The manufacturing of easy open ends makes particularly high

demands on packaging steel. ThyssenKrupp Rasselstein is therefore

working to further develop the grades for easy open lids.

Material grades

TH 550

TH 580 TH 620 TH 650

Under development: Strength > 700 MPa With sufficient elongation > 5 %

Available thicknesses: today, down to 0.16 mm







Our aim:

To supply the ideal material for easy open ends – grades with high strength yet sufficient ductility for rivet forming operations for optimal lid opening behavior.

Thinner material, yet high strength

Improved efficiency for tab stock

Material grades

TH 415 – TH 620 TH 650

Under development: Strength > 700 MPa

Available thicknesses: 0.24 – 0.43 mm

Reducing thicknesses still further presents a special challenge for tab stock in terms of material strength.

Our DR Formable grades are the packaging steels of choice for this application. Our zinc-coated variety (EZ tab stock) delivers exceptional anticorrosive performance.





Thinning potential for food cans

Thin, strong and corrosion resistant – these attributes express in a nutshell

what you can expect from today’s packaging steel for three-piece food cans.

Thinplate from ThyssenKrupp Rasselstein opens up potential for reducing the thickness of your food cans still further. And is, of course, also available as higher-strength packaging steel with heightened corrosion resistance, which can make it possible to reduce the coating weight of the tin.

Material grades

TS 245 – TS 580 TH 520 – TH 650 Available thicknesses: 0.10 – 0.30 mm Tomorrow: thickness < 0.100 mm





High-performance packaging steel for

beverage cans

Material grades

TH 330 – TH 340 Available thicknesses: 0.205 – 0.30 mm



For beverage cans, ThyssenKrupp Rasselstein offers you packaging steel that assures long tool life. This special steel allows you to increase the tool life for wall-ironing rings up to 1,000,000 cans.

Future thickness reductions down to 0.16 mm appear feasible.

Beverage can manufacturing is a highly demanding operation.

So naturally, nothing but the best will do here.
