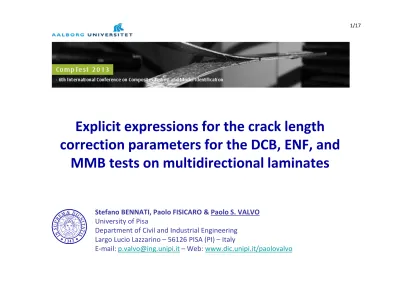

Explicit expressions for the crack length correction parameters for the DCB, ENF, and MMB tests on multidirectional laminates

(1)

Explicit expressions for the crack length

correction parameters for the DCB, ENF, and

MMB tests on multidirectional laminates

Stefano BENNATI, Paolo FISICARO & Paolo S. VALVO University of Pisa

Department of Civil and Industrial Engineering Largo Lucio Lazzarino – 56126 PISA (PI) – Italy

(2)

Standard mode I and mode II delamination tests

AECMA prEN 6033:1995: Determination of

interlaminar fracture toughness energy. Mode I G_Ic. ISO 15024:2001: Determination of mode I

interlaminar fracture toughness, G_Ic, for unidirectionally reinforced materials.

ASTM D5528-01(2007)e3: Standard Test Method for

Mode I Interlaminar Fracture Toughness of Unidirectional Fiber-Reinforced Polymer Matrix Composites.

Double cantilever beam (DCB)

JIS K 7086-1993: Testing methods for interlaminar

fracture toughness of carbon fibre reinforced plastics.

AECMA prEN 6034:1995: Determination of

interlaminar fracture toughness energy. Mode II G_IIc.

End notched flexure (ENF)

(3)

Standard I/II mixed-mode delamination test

ASTM D6671/D6671M-06: Standard Test Method for Mixed

Mode I-Mode II Interlaminar Fracture Toughness of

Unidirectional Fiber Reinforced Polymer Matrix Composites.

(4)

Simple beam theory (SBT) model

2 2 SBT I I 2 3 12 x P a G B E h =

Double cantilever beam (DCB)

End notched flexure (ENF)

2 2 SBT II II 2 3 9 16 _x P a G B E h =

Mode I energy release rate Mode II energy release rate

3 SBT DCB 3 8 x a C BE h = SBT 3 3 ENF 3 3 2 8 _x a C BE h + = ℓ

(5)

Corrected beam theory (CBT) model

2 I [3 2( ) ] 11 1 where 1.18 / x zx x z zx E G E E G χ = − Γ + Γ Γ = 2 CBT I 2 I 2 3 I 12 ( ) x P G a h B E h χ = +

Mode I crack length correction parameter Mode I energy release rate

Double cantilever beam (DCB)

II 0.42 I χ = χ 2 CBT II 2 II 2 3 II 9 ( ) 16 _x P G a h B E h χ = +

Mode II crack length correction parameter Mode II energy release rate

(6)

Laminated specimens

Double cantilever beam (DCB)

End notched flexure (ENF)

2 CBT I 2 I 2 I 1 ( ) P G a h B χ = + D II ? χ = 2 2 CBT II 1 2 II 2 2 II 1 1 1 ( ) 16 4 P h G a h B h χ = + + A D A D I ? χ =

Mode I crack length correction parameter Mode I energy release rate

Mode II crack length correction parameter Mode II energy release rate

(7)

Enhanced beam theory (EBT) model

Mixed-mode bending (MMB)

Hypotheses:

i) specimens split into two sublaminates having same extensional, shear, and bending stiffnesses;

ii) general stacking sequence allowed, but no shear-extension and

no bending-extension coupling;

iii) sublaminates connected by an elastic interface, which transmits both normal and tangential stresses;

iv) negligible non-linear effects.

Results:

i) complete, exact analytical solutionto the differential problem;

ii) simplified, approximate expressions for the specimen’s compliance, energy release rate, and mode mixity;

iii) solutions for the DCB and ENF tests are obtained as special cases.

(8)

Exact analytical solution

Enhanced beam theory (EBT) model

Mode I and II energy release rates

2 2 EBT 0 EBT 0 I , II 2 _z 2 _x G G k k σ τ = = 2 2 I 1 2 1 2 2 1 0 2 2 1 2 1 2 1 2 1 2 1 2 1 2 2 5 II 1 0 2 5 5 1 1 5 2 2 1 2 1 2 1 2 ( )( tanh tanh ) [ ( )(1 sech sech ) 2 tanh tanh ], sinh 1 [ (1 coth ) ], 4 2 sinh where ( ) tanh tanh 2 (1 sech P b b B D b b a D b b a D P h a b Bh h b D b b λ λ λ λ λ λ σ λ λ λ λ λ λ λ λ λ λ λ λ λ τ λ λ λ λ λ λ λ λ λ λ − − = + + − + − = + − + = + + − − ℓ A A D 1bsechλ2b)

(9)

Mode I and II energy release rates 2 EBT I 2 I 2 1 1 2 2 2 EBT II 1 2 II 2 2 1 1 1 5 1 1 ( ) 1 ( ) 16 4 P G a B P h G a B h λ λ λ ≅ + + ≅ + + D A D A D 2 1 1 1 1 2 1 2 1 1 2 5 1 1 2 (1 1 ) 2 (1 1 ) 1 2 ( ) 4 z z z z x k k k k h k λ λ λ = + − = − − = + C C D C C D A D

Roots of the characteristic equations of the governing differential equations

Enhanced beam theory (EBT) model

Approximate expressions

(10)

Enhanced beam theory (EBT) model

Mode I and II energy release rates

2 EBT I 2 I 2 I 1 2 2 EBT II 1 2 II 2 2 II 1 1 1 ( ) ( ) 16 4 P G a h B P h G a h B h χ χ ≅ + ≅ + + D A D A D

Crack length correction parameters

I II ₂ 1 1 1 1 1 1 1 1 2 ( ) 4 1 2 z x h _h k h k χ χ = = + + A D D D C

(11)

Carbon/PEEK composite (Reeder and Crews, 1992)

Specimen sizes

100 mm, 25.4 mm, 2 3 mm

L= B = H = h=

129 GPa, 10.1 GPa, 5.5 GPa

x y z zx

E = E = E = G =

Ply elastic constants

12 12 [0 // 0 ]

Stacking sequence

Crack length correction parameters according to CBT model

I 1.747, II 0.734

χ = χ =

Crack length correction parameters according to EBT model

I 1.731, II 0.541

χ = χ =

Application: unidirectional (UD) specimens

Interface elastic constants

3 3

31550 N/mm , 23150 N/mm

x z

(12)

Application: unidirectional (UD) specimens

Comparison between CBT and EBT models

0 50000 100000 150000 200000 0 1 2 3 4 E x[MPa] χ I , χ II χ I χ II CBT EBT 0 5000 10000 15000 20000 0 1 2 3 4 G zx[MPa] χ I , χ II χ_I χ_II CBT EBT

(13)

0 5000 10000 15000 20000 0 1 2 3 4 E z[MPa] χ I , χ II χ_I χ II CBT EBT

Comparison between CBT and EBT models

(14)

Glass/epoxy composite (Pereira & de Morais, 2006)

Specimen sizes

100 mm, 20 mm, 2 6 mm

L= B= H = h=

33 GPa, 19 GPa, 8 GPa, 4.8 GPa

x y z zx

E = E = E = G =

2 6 2 2 6 2

[(0 /90) /0 //(0 /90) /0 ] Stacking sequence

Sublaminate extensional, shear, and bending stiffnesses

1 =86400 N/mm, 1 =10170 N/mm, 1 =66785 Nmm

A C D

Application: multidirectional (MD) specimens

I 1.153, II 0.541

χ = χ =

3 3

6147 N/mm , 4578 N/mm

x z

(15)

Carbon/epoxy composite (Pereira & de Morais, 2008)

Specimen sizes

100 mm, 20 mm, 2 6 mm

L= B= H = h=

130 GPa, 8.2 GPa, 4.1 GPa

x y z zx

E = E = E = G =

2 6 2 2 6 2

[(0 /90) /0 //(0 /90) /0 ] Stacking sequence

Application: multidirectional (MD) specimens

I 1.903, II 0.569

χ = χ =

Sublaminate extensional, shear, and bending stiffnesses

1 =280380 N/mm, 1 =9130 N/mm, 1 =227550 Nmm

A C D

3 3

12735 N/mm , 7765 N/mm

x z

(16)

Experimental validation (work in progress)

Double cantilever beam (DCB)

End notched flexure (ENF)

Specimen #5 0 50 100 150 200 0 5 10 15 20 25 30 Opening displacement, δ [mm] L o a d , P [ N ] Specimen #5 0.0 0.3 0.5 0.8 1.0 0 20 40 60 80 100 C o m p li an c e , C [ m m /N ] EXP EBT SBT Specimen #5 0.000 0.005 0.010 0.015 0 10 20 30 40 50 C o m p li an ce , C [ m m /N ] EXP SBT EBT Specimen #5 0 250 500 750 0.00 2.00 4.00 6.00 8.00 10.00 12.00 Mid-span deflection, δ [mm] L o ad , P [ N ]

(17)

On the EBT model of the mixed-mode bending test

BENNATI, Stefano; FISICARO, Paolo; VALVO, Paolo Sebastiano (2013): An enhanced beam-theory model of the mixed-mode bending (MMB) test - Part I: literature review and

mechanical model, Meccanica, 48 (2), p. 443-462. URL: http://dx.doi.org/10.1007/s11012-012-9686-3 (Erratum: http://dx.doi.org/10.1007/s11012-013-9697-8).

BENNATI, Stefano; FISICARO, Paolo; VALVO, Paolo Sebastiano (2013): An enhanced beam-theory model of the mixed-mode bending (MMB) test - Part II: applications and results,

Meccanica, 48 (2), p. 465-484. URL: http://dx.doi.org/10.1007/s11012-012-9682-7

(Erratum: http://dx.doi.org/10.1007/s11012-013-9696-9).

References

BENNATI, Stefano; VALVO, Paolo Sebastiano (2013): An experimental compliance calibration strategy for estimating the elastic interface constants of delamination test specimens, AIMETA

2013 – XXI Congresso Nazionale dell’Associazione Italiana di Meccanica Teorica e Applicata

(Turin, Italy, September 17–20, 2013). URL: http://www.aimetatorino2013.it.

VALVO, Paolo Sebastiano; CORNETTI, Pietro (2013): Energetic estimation of the elastic interface constants for delamination modelling, AIMETA 2013 – XXI Congresso Nazionale

dell’Associazione Italiana di Meccanica Teorica e Applicata (Turin, Italy, September 17–20,

2013). URL: http://www.aimetatorino2013.it.
