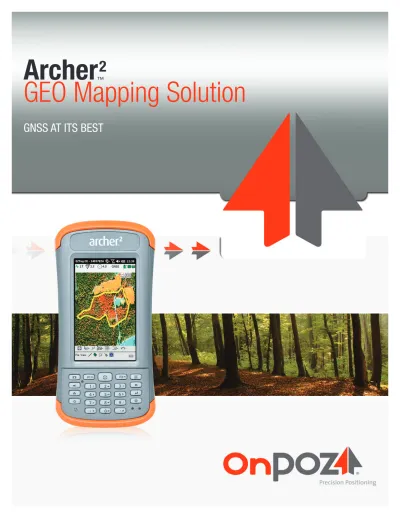

Archer 2 GEO Mapping Solution GNSS AT ITS BEST

(1)

Archer

2

GEO Mapping Solution

GNSS AT ITS BEST

(2)

Archer

2 _{– GEO Mapping Solution}

GNSS AT ITS BEST

02

GNSS AT ITS BEST

Archer2_{- GEO’s sleek design holds a powerful GPS and GLONASS engine, one meant for tracking in dense canopy and into the forest’s}

deepest areas. Bundled with EZTag CE™_{field software and EZSurv}®_{post-processing software it becomes the MUST-HAVE Mapping Solution}

for mission-critical field applications where reliable and accurate geolocated data acquisition is vital to your success.

Top 5 Features

1. Unmatched tracking capability performance allows you to boost productivity without compromising data quality.

2. Small and rugged design operates in the harshest environment. 3. Long battery life guarantees operation for a full field day: summer

or winter.

4. Combines EZTag CE GNSS/GIS professional field software with a powerful GIS viewer.

5. Automatic and highly efficient EZSurv post-processing at the touch of a key to produce remarkable GNSS data quality.

(3)

Archer

– GEO Mapping Solution

GNSS AT ITS BEST

Increase production with reliable results

Archer2 _{- GEO ultra-rugged field PC provides continuous GNSS mapping under the forest’s deepest areas, thanks to its built-in GPS &}

GLONASS receiver.

All in one --> Windows Mobile filed PC with built-in GNSS receiver and camera.

Professional GPS & GLONASS receiver --> Provides sub-meter post-processed accuracy. Performance that’s one step ahead --> 1 GHz processor, 512 MB RAM and 8 GB Flash. Made to endure --> Heavy-duty, ergonomic and lightweight.

Perfect for outdoors --> Bright and easy to read touchscreen.

Works in the field longer --> Provides battery charge for up to 20 hours.

Built to withstand extremes --> Operating temperatures -22ºF (-30ºC) to140ºF (60ºC). Keeps your data safe --> Outstanding reliability and durability help prevent data loss.

EZTag CE easy to use GNSS/GIS field software for quality data

collection.

Efficient GIS Plan View --> Enables users to load multiple background maps layers (vector & raster).

Adaptive navigation tools --> Background maps’ Plan View automatically pans and rotates according to your direction of travel; simple compass mode also available. Professional GNSS field software --> Includes all tools to

perform quality controlled surveys and post-processing. Nested points --> Implements a simple way of nesting

points into lines/polygons.

Match your GIS database --> Supports relational data-bases; works with the most complex database structure. Plenty of extra features --> Auto-centered Plan View, off-set, configurable alarms, many projections/datums, etc.

EZSurv post-processing software automatically post-processes

your GNSS data and provides accurate results.

Effortless --> GNSS post-processing at the touch of a key. All you need is your GNSS field data and an Internet connection. EZSurv automatically performs all proces-sing tasks required to deliver the best results from your field data.

Reliable --> Rigorous algorithms secure the best results for your surveys, from easy to extreme conditions.

(4)

Archer

2

– GEO Mapping Solution

GNSS AT ITS BEST

04

Archer

2

_{- Geo Mapping Solution Technical Specifications}

ARCHER

2

_{- GEO FIELD PC}

Operating System Microsoft Windows Mobile 6.5.3

Processor 1.0 GHz ARM Corte A8 i.MX53

Memory 512MB RAM – 8GB Flash storage, user accessible micro SD/SDHC slot

Display Active viewing area: 4.3” (109mm) WVGA LCD TFT (800x480) – High visibility backlit LCD – Scratch-resistant touchscreen

Keyboard Numeric keypad – Functions- Keys can be user-defined – LED backlight keys

Power Supply • Intelligent rechargeable Li-lon battery 3.7 VDC@10600mAh, 38.16 Whr • Operates for more than 20 hours on one charge

• Charge in 2-4 hours

Dimension Size 7.25” long x 3.6” wide x 1.5” thick (184mm x 91mm x 38mm) – Weight 1.3 lbs (590 g) with battery

Environmental -22ºF to 140ºF (-30ºC to 60ºC); Storage: -22ºF to 158ºF (-30ºC to 70ºC) – Waterproof and dustproof, IP68 – Shockproof: multiple drops from 5ft (1.5m) onto concrete – MIL-STD-810G

Communication • COM1: 9-pin D connector • USB host (Full A) • USB client (Micro B)

• Internal Bluetooth® wireless technology, range greater than 30m • 3.5 mm audio jack

Camera 5 MP resolution with autofocus and LED illuminator + video capture

GNSS Receiver Type GPS and GLONASS, 32 channel, L1 frequency, C/A code carrier phase – Built-in antenna – Update Rate 1Hz

GNSS Receiver Accuracy Real-time (SBAS): 2-5m – Post-processed: sub-meter (code carrier phase)

EZTAG CE FIELD SOFTWARE

Display Vector and raster fi les; measurements (lengths and areas)

Plan View Dynamic (rotative) Plan View, centered on current GNSS position

GIS Data Acquisition Supports simple and relational databases through a data dictionary

Mapping Systems 12 map projection; 62 predefined datums

Other Alarms, navigation tools, GPS quality controls, etc.

EZSURV POST-PROCESSING SOFTWARE

Post-Processing Accuracy Archer2_{– Geo post-processed accuracy: sub-meter}

Automated Processing Scan Internet for base station network, automatic batch processing

Supported Formats RINEX, Altus, Archer2-GEO, CHC, Geneq, Hemisphere GNSS, Javad, Kolida, NavCom, Novatel, NVS Technologies, Pentax, Septentrio, SiRF, South, Stonex, TechGeo, Ublox, Unistrong and others.

Others Loop closure, configurable processing parameters, residual analysis, satellite/time span rejection, network adjustment, mission planning, etc.

Supported Base Networks Over 8,000 base stations including NRCan, US CORS, CDDIS, EUREF, Local and many others (open architecture to add other networks).
