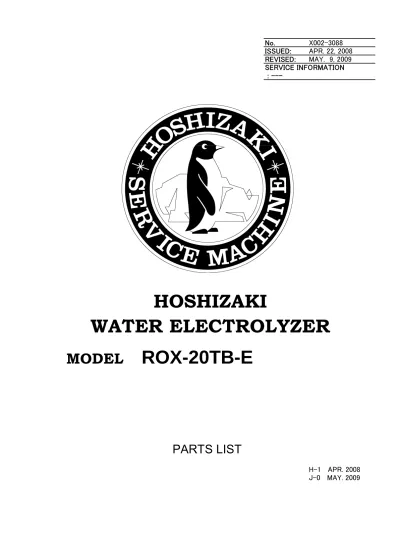

No. X ISSUED: APR. 22, 2008 REVISED: MAY. 9, 2009 SERVICE INFORMATION : --- HOSHIZAKI WATER ELECTROLYZER ROX-20TB-E MODEL PARTS LIST

(1)

No.

X002-3088

ISSUED:

APR. 22, 2008

REVISED:

MAY. 9, 2009

SERVICE INFORMATION

:

---MODEL

ROX-20TB-E

H-1 APR. 2008

J-0 MAY. 2009

HOSHIZAKI

WATER ELECTROLYZER

PARTS LIST

(2)

1 ALUMINUM

AL

=

Aluminum

COPPER

CU

=

Copper

PLASTIC

ABS

=

Acrylonitritrile -butadiene - styrene

AC

=

Polyacetal

EVA

=

Ethylene vinyl acetate

PA

=

Polyamide = Nylon

PC

=

Polycarbonate

PE

=

Polyethylene

PES

=

Polyester

PETP

=

Polyethylene terephthalate = Tetlon

PP

=

Polypropylene

PS

=

Polystyrene

PTFE

=

Polytetrafluoroethylene = Teflon

PUR

=

Polyurethane

PVC

=

Polyvinyl chloride

RUBBER

VN

=

Vinyl Nitrile

EPDM

=

EP rubber

NBR

=

Nitrile butadiene rubber

NR

=

Natural rubber

NP

=

Neoprene

SI.R

=

Silicone rubber

SY.R

=

Synthetic rubber

EPH

=

Epichlorohydrin

STEEL

GS

=

Galvanized steel

SS

=

Stainless steel

PS

=

Plated steel

PAS

=

Primed steel

AUXILIARY CODE

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates significant part changes within the same year. Base is 0 and this number advances for

each change.

Example: P-1

"P" indicates 2004.

"1" indicates the first significant part change for 2004.

MARKS LOCATED UNDER THE AUXILIARY CODE

- = Part deleted.

x = Part deleted and replaced by "o" part.

o = New part in place of "x" part.

(3)

ST

=

Phillips Truss Head Machine Screw

SP

=

Phillips Pan Head Machine Screw

SF

=

Phillips Flat Head Machine Screw

SS

=

Phillips Pan Head Machine Screw with Split Lock Washer

SW

=

Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1

=

Phillips Truss Head Tapping Screw (Correspond to Type A)

T2

=

Phillips Truss Head Tapping Screw (Correspond to Type B)

T3

=

Phillips Truss Head Tapping Screw (Correspond to Type C)

FT

=

Phillips Truss Head Tapping Screw (Special)

BH

=

Hexagon Head Bolt

BC

=

BS

=

Hexagon Bolt with Split Washer

BW

=

Hexagon Bolt with Split Washer and Flat Washer

BF

=

Hexagon Flange Bolt

BR

=

Cross-Recessed Hexagon Head Bolt

BRW

=

Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL

=

Split Lock Washer

WT

=

External Tooth Washer

WF

=

Flat Washer

WS

=

Spring Washer

NH

=

Hexagon Nut

NF

=

Hexagon Flange Nut

NC

=

Hexagon Cap Nut

NS

=

Square Nut

NW

=

Wing Nut

Ex.

S T 0 3 0 8 S (Phillips Truss Head Machine Screw,

3×8,made of stainless steel)

Material

None:Plated Steel

Length (mm)

S: Stainless Steel

Nominal Diameter (mm)

B: Brass

Form of Head

P: Plastic

Description

(Note)

Second character is numerical except the list.

Ex: S1,S2,B3 etc.

And abbreviations and names are shown under the illustration.

FASTENER ABBREVIATION LIST

ⅱ

Socket Head Cap Screw

(4)

(5)

GENERAL

H-1,J-0

B WATER CIRCUIT ASSY 115345A01 1 C CONTROL BOX ASSY 115346A01 1 D OPERATION PANEL ASSY 364518A01 1 E LABEL LOCATION 366561001 1 L ACCESSORIES (S-20865) ACC-01069 1 1 COVER ASSY 361548G01 1 2 BOTTOM PLATE 370590G01 1 3 REAR PANEL 472146M01 1 4 CAP - BOLT 449712-01 2

5 STOPPER - ELECTROLYTIC CELL 467714G01 1 6 TERMINAL BOARD T20C 406251-01 2

7 TIE CV-150 7920-0003 1

8 RUBBER FOOT (W/WASHER) C-30-RK-3215 418767-02 4 9 FRONT COVER ASSY 361546G01 1 10 POWER SUPPLY CORD 459278-01 1 11 CABLE CLAMP 459530-03 1 12 GROMMET BW-12-2 409655-10 1 13 MEMBRANE GROMMET C-30-SG-14A 410666-19 1 14 PANEL (L) ASSY 361547G01 1 15 PANEL (R) ASSY 361551G01 1 16 EARTH WIRE 406280-06 1 17 MAGNET 452228-01 1 18 INSULATION (A) L=255 452227-01 2 19 INSULATION (B) L=240 452227-02 1 20 INSULATION (B) - OPERATION L=275 452230-02 1 21 GASKET 26DIA x 36DIA 467721-02 1 22 GASKET 21DIA x 31DIA 467721-01 2 23 SPACER - WATER SUPPLY 467592-01 1 24 SPACER - DISCHARGE 467593-01 2

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: A. WATER ELECTROLYZER ASSY

(6)

(7)

GENERAL

H-1,J-0

F ELECTROLYSIS BOX (S-9649) 108397A04 1

G JOINT ASSY 370591A01 1

H CHANGE VALVE ASSY 254160A01 1 J UNION - ELBOW 452176A01 6 1 HRP PUMP HRP-54V-1P1 P00372-01 1

2 FRAME ASSY 361554G01 1

3 GASKET- UNION 11DIA x 19.5DIA 448570-01 6 4 HOSE CLAMP CLIC R86-160 460248-01 13 5 VINYL HOSE 12DIA x 16DIA H11216170 2

L=168±2 6 BRAIDED HOSE HB0409H18 1 7 BRAIDED HOSE HB0306720 1 8 HOSE CLAMP 435947-17 2 9 HOSE (L) - IN 452181-01 1 10 HOSE (R) - IN 452181-02 1 11 TEE - WATER SUPPLY DR 363797G01 1 12 JOINT - SADDLE 468686-01 1 13 HOSE CLAMP SK-16 435934-04 1 14 VALVE - FLOW CONTROL T709-210R P00560-01 1 15 JOINT (B) - CONTROL VALVE 235488P01 1 16 "O" RING FLUORINE 7616-P015 1 17 QUICK FASTENER QUICK-16A-R3 456912-04 2 18 JOINT (A) - CONTROL VALVE 361561-01 1 19 "O" RING FLUORINE 7616-P016 1 20 HOSE CLAMP CLIC R86-185 460248-07 2

21 CUSHION 452229-01 2

22 CAP - DRAIN 452876-01 1 23 "O" RING FLUORINE 7616-P020 1

24 FILTER 452674G01 1

25 VINYL TUBE 12DIA x 13DIA H11213H13 1 L=1290

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: B. WATER CIRCUIT ASSY

(8)

H-1,J-0

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: B. WATER CIRCUIT ASSY

26 LEVEL SENSOR - AC FDS-E020B 467583-01 1 27 CONTRACTION TUBE 15mm ID L=250 118648Z01 1

28 TIE CV-150 7920-0003 2

29 HOSE - VALVE 467953-01 1 30 VINYL HOSE 12DIA x 16DIA H11216120 2

L=120

31 VALVE COVER 467850-01 1 32 VINYL HOSE THERMISTOR_ASSY 467737-01 1

(467737G01) 12DIA x 16DIA L=180

33 THERMISTOR THERMISTOR_ASSY 463938-02 1 (467737G01)

34 VINYL TAPE THERMISTOR_ASSY 1 15 ㎜ DEEP

(467737G01)

35 TIE THERMISTOR_ASSY 7920-0003 3 (467737G01)

CV-150

36 INSULATION TUBE THERMISTOR_ASSY 467737-04 1 (467737G01)

L=60

37 BRAIDED HOSE HB0306260 1 38 JOINT (B) - CONTROL VALVE 472148P01 1 39 CLIP BAND (G) 423866-07 1

(9)

(10)

H-1,J-0

K FRONT PANEL - CONTROLLER 370594A01 1

1 BASE - CONTROLLER 370593G01 1 2 MAIN BOARD HS2005001 468425-04 1 (Ver.1.0.3) 3 SWITCHING REGULATOR P00558-01 1 4 SWITCHING REGULATOR 461871-02 1 5 BOARD SUPPORT 449969-01 6 6 NOISE ABSORBER PC05911-2 P00545-01 1 7 BOARD SUPPORT 414929-02 4 8 RELAY LY2F AC12V 406132-09 1 9 CURRENT SENSOR HC-TN020V2PP12 452215-01 1 10 REGULATOR P00544-01 1 11 RELAY - CB ACB13401 P02 467409-01 2 12 COVER - CONTROLLER 370595G01 1 13 MEMBRANE GROMMET C-30-SG-22A 410666-05 1 14 WIRE RETAINER No.4253 427902-05 2 15 MEMBRANE GROMMET C-30-SG-14A C-30-_SG-14A 410666-19 1 16 CARD SPACER 455115-01 2

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: C. CONTROL BOX ASSY

(11)

(12)

H-1,J-0

1 OPERATION PANEL - BOARD 467736-01 1 2 OPERATION LABEL 363461-01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: D. OPERATION PANEL ASSY

(13)

(14)

H-1,J-0

1 LABEL - OUTLET 450933-01 1 2 LABEL - OUTLET 450933-03 1 3 LABEL - WATER SUPPLY 458289-01 1 4 CAUTION LABEL 458290-01 1 5 CAUTION LABEL (C) 458573-01 1 6 WIRING LABEL 370599L01 1 7 LABEL - PENGUIN 448818-02 1 8 LABEL 467702-01 1 9 CAUTION LABEL (B) 458448-01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: E. LABEL LOCATION

(15)

(16)

H-1,J-0

ELECTROLYSIS BOX (S-9649) 108397A04 1

1 BOLT L E SUS 304 448597-01 2 (Included in S-9649) 2 "O" RING P10 7616-P010 2 (Included in S-9649)

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: F. ELECTROLYSIS BOX

(17)

(18)

H-1,J-0

1 BRACKET - DISCHARGE 361553-01 1 2 JOINT - DISCHARGE 361576-01 2 3 WATER VALVE P00546-01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: G. JOINT ASSY

(19)

(20)

H-1,J-0

1 BASE - CHANGE VALVE 370592M01 1 2 FRAME - CHANGE VALVE 333454-01 1 3 CASE - CHANGE VALVE 333455-01 1 4 CAM - CHANGE VALVE 333456-01 1 5 IMPELLER 449698G01 1 6 GEAR MOTOR MP35GU P00373-01 1 7 MICROSWITCH ABV163561 447519-01 2 8 "O" RING FLUORINE S39 7616-S039 1 9 "O" RING FLUORINE P10 7616-P010 1 10 SPACER / CHANGE VALVE 471709M01 1 11 NEEDLE - CHANGE VALVE 370042P01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: H. CHANGE VALVE ASSY

(21)

(22)

H-1,J-0

1 ELBOW 452261-01 1

2 UNION NUT PF 1/2 NUT 448586-01 1

REQ'D NUMBER MODEL

: ROX-20TB-E

INDEX

NO. DESCRIPTION MATERIAL ORMODEL NUMBER NUMBERPART TITLE

: J. UNION - ELBOW

(23)

(24)

H-1,J-0

1 FRONT PANEL - CONTROLLER 254433M01 1 2 OPERATION BOARD 467739-01 1 3 REAKAGE BREAKER GB-15A-1 454325-02 1 4 CONTROL LABEL 363463-01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: K. FRONT PANEL - CONTROLLER

(25)

(26)

H-1,J-0

J UNION - ELBOW 452176A01 2 M REDUCING VALVE ASSY 461883001 1 N REMOTE ASSY 244320A03 1

1 INSTRUCTION MANUAL L188AV111 1 2 INSTALLATION MANUAL L288AV111 1

3 NIPPLE 419534-01 2

4 SALT WATER TANK 345744G01 1 5 BRAIDED HOSE 452268-01 2 6 GASKET - UNION 448570-01 4 7 HOSE CLAMP SUS(19.8mm) 450890-06 4 8 pH TESTER TB 450685-01 1 9 pH TESTER AZY 459665-01 1 10 MEASURING CUP - W/HANDLE 466079-01 1 11 CHLORINE TESTER 450468-01 1 12 CONNECTION HOSE ASSY(1.5M) 414492-03 1 13 OPERATION SHEET 345803-01 1 14 RUBBER DROPPER 459619-01 1 15 CAP 466129G01 2 16 CONNECTOR - SWITCHING 469869G01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

TITLE

: L. ACCESSORIES

(27)

(28)

H-1,J-0

1 REDUCING VALVE P00374-02 1 2 TAG - ELECTROLYZER 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

TITLE

: M. REDUCING VALVE ASSY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

(29)

(30)

H-1,J-0

P REMOTE CONTROLLER ASSY (S-10156) 115347A04 1 Q NOZZLE HOSE - ACCESSORY (S-9922) 467732A01 2 J UNION - ELBOW 452176A01 2

1 HOSE CLAMP 19.8-706R 450890-06 2 2 PLASTIC BAG　0.02PE 70x100 7V90-0001 2 3 GASKET - UNION 448570-01 2 4 AIRBAG #20(7) 300x300 7V98-3030 1 5 AIRBAG #20(7) 200x300 7V98-2030 1 6 TRUSS HEAD MACHINE SCREW_{W/ PLASTIC WASHER} FSG0408S0 3

REQ'D NUMBER

MODEL

: ROX-20TB-E

TITLE

: N. REMOTE ASSY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

(31)

(32)

H-1,J-0

1 BASE - REMOTE 361559-01 1 2 BRACKET - REMOTE 361560-01 1 3 ELBOW 412-005 439661-01 2 4 HOLDER - NIPPLE 452180-01 2 5 OPERATION PANEL 115241-01 1 6 REMOTE BOARD 467740-01 1 7 PLATE (A) - SENSOR 467708-01 1 8 MOTION SENSOR 467731-01 2 9 CABLE - REMOTE 467738G01 1 10 OPERATION LABEL - REMOTE 363464-01 1 11 LABEL - TWIN SENSOR 468587-01 1 12 PLATE (C) - SENSOR 468034-01 1 13 PIPE BRACKET - REMOTE 467706-01 1 14 VINYL HOSE L=25 115347-21 2 15 REMOTE - PLATE 468272-01 1

16 ELBOW 362211-01 2

17 LABEL - MISDETECTION 468579-01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

TITLE

: P. REMOTE CONTROLLER ASSY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

(33)

(34)

H-1,J-0

R NOZZLE ASSY (S-9875) 361608A01 1 1 NOZZLE - STRAIGHT 361577-01 1 2 "O" RING 7616-P018 1 3 NOZZLE - SHOWER 361575-01 1

REQ'D NUMBER

MODEL

: ROX-20TB-E

TITLE

: Q. NOZZLE HOSE - ACCESSORY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART

(35)

(36)

H-1,J-0

1 GASKET - UNION 448570-05 2

REQ'D NUMBER

MODEL

: ROX-20TB-E

TITLE

: R. NOZZLE ASSY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL NUMBER

NUMBER

PART
