Essbase Installation 11.1.1.3 Chapter

(1)

©Business Intelligence Solution Providers | Installation of Essbase 11.1.1.3 learnhyperion.wordpress.com

1

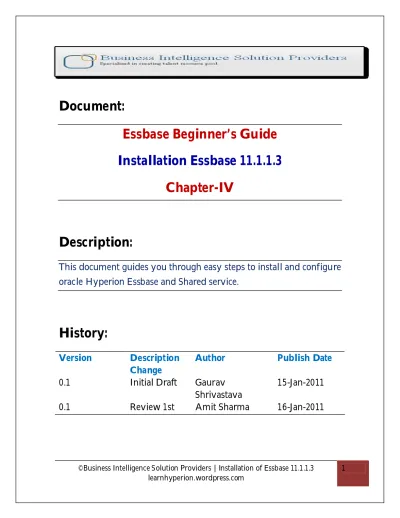

Document:

Essbase Beginner’s Guide

Installation Essbase 11.1.1.3

Chapter-IV

Description:

This document guides you through easy steps to install and configure

oracle Hyperion Essbase and Shared service.

History:

Version

Description

Change

Author

Publish Date

0.1 Initial Draft

Gaurav

Shrivastava

15-Jan-2011

0.1 Review 1st

Amit Sharma

16-Jan-2011

(2)

2

1. Product For download……….3

2. Installation of Hyperion 11.1.1.3………….……….…….5

1) Installation of Foundation Services……….………6

2) Installation of Essbase……….……9

3. Configuring

Hyperion

11.1.1.3………..……12

4. Components

Verification……….…….13

1) Administration Services……….………...14 2) Client Services……….….15 3) Essbase Studio……….…….19

5. Hyperion

11.1.1.3 Environment

Variable………..………….20

6. Multi

Server

Environment………20

(3)

3

.

Product for Download

All Hyperion products are available in http://edelivery.oracle.com/. You need to download the required products from there.

Step1) Open http://edelivery.oracle.com/

Step 2) Required Login

(4)

4

(5)

5

Step 4) Download all the suits those are highlighted

Installation of Hyperion 11.1.1.3

You can download Essbase 11.1.1.3 from the http://edelivery.oracle.com. Once you download all the required components, keep them in a common folder. After all components placed successful,y go back to installer folder and Click the highlighted InstallTool.cmd

(6)

6

After run installing InstallTool.cmd, you will get a bellow command prompt.

Installation of Foundation Services

Specify the language.

Startup Screen wizard will guide you through installation Hyperion product suite.

(7)

7

Select the destination for “Hyperion Home” directory. You can’t change “Hyperion Home” directory once it set during installation. However, the Hyperion Home migration utility can be used to change Hyperion Home.

Select installation type “Choose components individually”. Components are chosen in case of user may not be required all the components. You can select components manually.

Select component to install ( We are going to install Shared service first) 1. Hyperion Foundation (Shared Service only, uncheck all other components)

(8)

8

List of Product to be installed

It registers itself to the .net Architecture

Completion of Installation

(9)

9

Installation of Essbase

Open the folder in which you kept all downloaded files. Run “Install.cmd” file again. The EPM system installer wizard will open.

The “Hyperion Home” directory is already created while installation of foundation services. You can’t change “Hyperion Home” directory path. The new component will install in the same directory.

(10)

10

The “choose components individually” option allows you to select component manually.

(11)

11

When you click on “+” sign, you will get to know what product is going to be installing.

This is the confirmation list of selected components.

(12)

12

Installation status

Click on Finish

You can check that the “Essbase” get installed or not. Start à All Program à Oracle EPM System à Essbase

(13)

13

Configuring Hyperion 11.1.1.3

Launch the EPM Configuration Tool Then steps to connect Oracle 10g with Shared service and registry Database Configuration.

All Programs àOracle EPM System à Foundation Services à EPM System Configuration

Select components those are going to configure.

Enter database type, server name, port number and SID. Default oracle port number and SID are “1521” and “orcl” respectively. It is good to create a separate schema where your all configuration components will store. In my case I have user bisp as schema.

(14)

14

EPM System common settings, Enter SMTP server name which is your computer name. Enter administrator user name and password.

(15)

15

Select application server deployment type “automatic”. However you can select manual as well.

Deployment to Embedded Java Container

(16)

16

By selecting Deploy Essbase as standalone one can login to Essbase without shared service. The user authentication will happen by Essbase.

Status of component installation.

Installation of Essbase server is completed successfully.

After configuration of “Hyperion Essbase” all Hyperion services will show in the services. Keep all Hyperion services manually, so that system services will not get slow.

(17)

17

Components Verification

You can check that Essbase server is working or not.

All Program à Oracle EPM system à Essbase à Administration Services

Click on Start Administration services console

Enter administrator server name, user name and password. This you just specified while configuration.

Administration Services

Click ok

Click on “+” sign, this will show you connected server. You can check server properties and user information.

(18)

18

You can add new server by Right clicking on Essbase server.

Enter server name, user name and password for adding server. Enter local host as server name for connecting Essbase server with local system.

(19)

19

Client Services

When you open MS Excel, the excel spread sheet add-ins comes automatically. This shows Essbase client is working properly.

Hyperion Smart View

Click on Essbase à Connect

Enter server name, user name and password. Click ok then select application name and database.

(20)

20

Here you can analyze Essbase application in Excel.

Essbase Studio

You can check that Essbase studio is up and running. First start server

(21)

21

Enter server name and administrator as user name and “password” as password.

This is Essbase studio startup page.

Hyperion 11.1.1.3 Environment Variable

The below environment variable gets set during Essbase Server installation.The Environment Variable can be viewed from my computer Advance Properties.

(22)

22

Multi Server Environment

In the multiple servers environment one EAS server can connect to multiple Essbase server. This enables you to administer multiple Essbase servers from one EAS Console.

There are two servers in my network one is Essbase server 11.1.1.3 and other Essbase server 9.3.1.3. Multiple Essbase servers can be connected to single EAS console. Below shows adding 2nd_{Essbase server to my EAS Console.}

Connect remote Essbase server “vadminis-064ad2” to existing server EAS “orgbisp”.

(23)

23

You can see connections done successfully both servers are not identical. Similarly you can connect both sever as cross connection. Connect to Essbase server 11.1.1.3 “orgbisp” to Essbase server “vadminis-064ad2”.

Note: - Essbase Server should be on shared mode.

You can access both servers from one EAS console.

Adding Multiple EAS in one EAS Console.

Multiple Essbase admin Services can be connected to one EAS console. Below shows how to add multiple EAS server in one console.

(24)

24

Enter server name.

You can see both servers are up and running.

For connecting other server enter server name and password.

Essbase Installation 11.1.1.3 Chapter

Document:

Essbase Beginner’s Guide

Installation Essbase 11.1.1.3

Chapter-IV

Description:

This document guides you through easy steps to install and configure

oracle Hyperion Essbase and Shared service.

History:

Version

Description

Change

Author

Publish Date

0.1

Initial Draft

Gaurav

Shrivastava

15-Jan-2011

0.1

Review 1st

Amit Sharma

16-Jan-2011

Table of Contents

1.

Product For download……….3

2.

Installation of Hyperion 11.1.1.3………….……….…….5

3.

Configuring

Hyperion

11.1.1.3………..……12

4.

Components

Verification……….…….13

5.

Hyperion

11.1.1.3

Environment

Variable………..………….20

6.

Multi

Server

Environment………20

Product for Download

Step 2) Required Login

Installation of Hyperion 11.1.1.3

Installation of Foundation Services

Installation of Essbase

Configuring Hyperion 11.1.1.3

Components Verification

Client Services

Essbase Studio

Hyperion 11.1.1.3 Environment Variable

Multi Server Environment

Amit Sharma

Hyperion/OBIEE Trainer/Consultant

[email protected]
