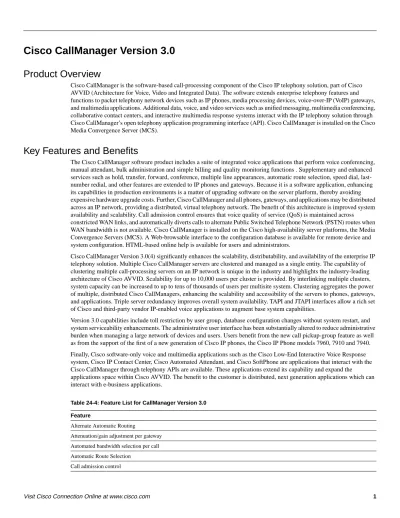

Cisco CallManager Version 3.0
Product Overview
Cisco CallManager is the software-based call-processing component of the Cisco IP telephony solution, part of Cisco
AVVID (Architecture for Voice, Video and Integrated Data). The software extends enterprise telephony features and
functions to packet telephony network devices such as IP phones, media processing devices, voice-over-IP (VoIP) gateways,
and multimedia applications. Additional data, voice, and video services such as unified messaging, multimedia conferencing,
collaborative contact centers, and interactive multimedia response systems interact with the IP telephony solution through
Cisco CallManager’s open telephony application programming interface (API). Cisco CallManager is installed on the Cisco
Media Convergence Server (MCS).
Key Features and Benefits
The Cisco CallManager software product includes a suite of integrated voice applications that perform voice conferencing,
manual attendant, bulk administration and simple billing and quality monitoring functions . Supplementary and enhanced
services such as hold, transfer, forward, conference, multiple line appearances, automatic route selection, speed dial,
last-number redial, and other features are extended to IP phones and gateways. Because it is a software application, enhancing
its capabilities in production environments is a matter of upgrading software on the server platform, thereby avoiding
expensive hardware upgrade costs. Further, Cisco CallManager and all phones, gateways, and applications may be distributed
across an IP network, providing a distributed, virtual telephony network. The benefit of this architecture is improved system
availability and scalability. Call admission control ensures that voice quality of service (QoS) is maintained across
constricted WAN links, and automatically diverts calls to alternate Public Switched Telephone Network (PSTN) routes when
WAN bandwidth is not available. Cisco CallManager is installed on the Cisco high-availability server platforms, the Media
Convergence Servers (MCS). A Web-browsable interface to the configuration database is available for remote device and
system configuration. HTML-based online help is available for users and administrators.
Cisco CallManager Version 3.0(4) significantly enhances the scalability, distributability, and availability of the enterprise IP
telephony solution. Multiple Cisco CallManager servers are clustered and managed as a single entity. The capability of
clustering multiple call-processing servers on an IP network is unique in the industry and highlights the industry-leading
architecture of Cisco AVVID. Scalability for up to 10,000 users per cluster is provided. By interlinking multiple clusters,
system capacity can be increased to up to tens of thousands of users per multisite system. Clustering aggregates the power
of multiple, distributed Cisco CallManagers, enhancing the scalability and accessibility of the servers to phones, gateways,
and applications. Triple server redundancy improves overall system availability. TAPI and JTAPI interfaces allow a rich set
of Cisco and third-party vendor IP-enabled voice applications to augment base system capabilities.
Version 3.0 capabilities include toll restriction by user group, database configuration changes without system restart, and
system serviceability enhancements. The administrative user interface has been substantially altered to reduce administrative
burden when managing a large network of devices and users. Users benefit from the new call pickup-group feature as well
as from the support of the first of a new generation of Cisco IP phones, the Cisco IP Phone models 7960, 7910 and 7940.
Finally, Cisco software-only voice and multimedia applications such as the Cisco Low-End Interactive Voice Response
system, Cisco IP Contact Center, Cisco Automated Attendant, and Cisco SoftPhone are applications that interact with the
Cisco CallManager through telephony APIs are available. These applications extend its capability and expand the
applications space within Cisco AVVID. The benefit to the customer is distributed, next generation applications which can
interact with e-business applications.
Table 24-4: Feature List for CallManager Version 3.0
Feature
Alternate Automatic Routing
Attenuation/gain adjustment per gateway Automated bandwidth selection per call Automatic Route Selection
Comfort Noise Generation (79XX phones, Catalyst 6XXX gateways, IOS gateways)
Digit analysis and call treatment (digit string insertion, deletion, stripping, dial access codes)
Distributed call processing Deployment of devices and applications across an IP network
“Clusters” of Cisco CallManager servers Max 2,500 devices per Cisco Call Manager server
Max BHCC 50,000 per Cisco CallManager server
Six Cisco CallManager servers per cluster Max BHCC 125,000 per Cisco CallManager cluster Max 10,000 IP phones per cluster
Inter-cluster scalability to ten sites/clusters through H.323 gatekeeper
Intra-cluster feature transparency Intra-cluster single point configuration FAX over IP—G.711 pass-through
H.323 interface to selected third party devices Hot line/PLAR
Interface to H.323 gatekeeper for scalability and call admission control Multi-location—dial plan partition
Multiple ISDN protocol support
Multiple remote CallManager platform administration and debug utilities Operating system remote terminal viewer Platform and database debugging tools—‘show’ command using command line interface Real-time and historical application performance monitoring through OS tools and through SNMP Real-time event monitoring and presentation to common syslog
Call trace utility Multi-site (cross-WAN) capability with call admission control
Multi-tenant—dial plan partition Off-premise station (OPX) Outbound call blocking—system Out-of-band DTMF signaling over IP PSTN failover
Redundancy Triple Cisco CallManager redundancy per device (phones, gateway) with automated failover and recovery
Trunk groups
Third-party applications support Broadcast paging—through FXS SMDI for message waiting indication Hook-flash transfer support on FXS gateways TAPI 2.1 service provider (TSP) interface (3.0(4)) JTAPI 1.3 service provider interface (3.0(4)) Billing and call statistics
Shared resource/application management and configuration Transcoder resource Conference bridge resource
Table 24-5: User Features for Cisco CallManager 3.0(4)
Silence suppression, voice activity detection Simplified Non-NANP numbering plan support
Simplified North American Numbering Plan (NANP) support SMDI interface for message waiting indication
Toll restriction—dial plan partition Unified device and system configuration Unified dial plan
Feature
Answer/answer release Auto-answer (30VIP only) Call Connection
Call Forward-All (off-net/on-net) Call Forward-Busy
Call Forward-No Answer Call hold/retrieve Call park/pickup
Call pickup group-directed Call pickup group-universal
Call status per line (state, duration, number) Call waiting/retrieve
Calling Line Identification—CLID Calling Party Name Identification—CNID Direct Inward Dial—DID
Direct Outward Dial—DOD Directory dial from phone (3.0(4)) Distinctive ring (internal vs. external) Distinctive ring per phone
Hands-free, full duplex speakerphone html help access from phone Last Number Redial—(off-net/on-net) Message Waiting Indication
Multi-party conference—Ad-hoc with add-on, Meet-me Multiple line appearances per phone
Mute—speakerphone and handset Off-hook dialing
Operator attendant—Web-browser interface, Loop key notification, Log-on/log-off, Busy/Available, Left/right hand access, Headphone access, Busy Lamp Field, Direct Station Select, Drag and drop transfer, Call status (state, duration, number) (3.0(4))
Privacy
QoS statistics at phone
Table 24-6: Administrative Features for Cisco Call Manager 3.0
Single directory number, multiple phones—bridged line appearances Speed dial—multiple speed dials per phone
Station volume controls (audio, ringer) Transfer—with consultation hold
User configured speed dial, call forward-all through web-access Web services access from phone (3.0(4))
Feature
Application discovery and registration to SNMP manager Call Detail Records
Centralized, replicated configuration database, distributed web-based management consoles Configurable and default ringer WAV files per phone
Database automated change notification Date/time display format configurable per phone Debug information to common syslog file Device addition through wizards
Device downloadable feature upgrades—Phones, hardware transcoder resource, hardware conference bridge resource, VoIP gateway resource
Device groups and pools for large system management Device mapping tool—IP address to MAC address DHCP block IP assignment—phones and gateways
Dialed number translation table (inbound/outbound translation) DNIS—Dialed Number Identification Service
Emergency 911 service
H.323 compliant interface to H.323 clients, gateways, and gatekeepers JTAPI 1.3 computer telephony interface (3.0(4))
LDAP v3 directory interface (post-3.0(4))
MGCP support to Cisco VG200, AS2600 and AS3600 VoIP gateways Native supplementary services support to Cisco H.323 gateways Paperless phone—display driven button labels on phones
Performance monitoring—SNMP statistics from applications to SNMP manager or to operating system Performance Monitor QoS statistics delivery per call, per device
RDNIS—Redirected DNIS, outbound , offnet through DT-24+, DE-30+ Select specified line appearance to ring
Select specified phone to ring Single CDR per cluster
Single point system/device configuration Sortable component list by device and directory
System event reporting—to common syslog or operating system event viewer TAPI 2.1 computer telephony interface (3.0(4))
Specifications
Table 24-7: Requirements for Cisco CallManager
Y2K compliance
Zero cost automated phone moves Zero cost phone adds
Cisco Media Convergence Server Highly available server, suitable for platform mounting in 19-inch racks Cisco CallManager Version 3.0 Call processing and call-control application
Cisco CallManager Version 3.0 configuration database Contains system and device configuration information, including dial plan (included with Cisco CallManager software)
Cisco CallManager administration software Web-browsable application provides the graphical user interface to the Cisco CallManager database (included with Cisco CallManager software) Cisco ConferenceBridge Voice conferencing application (included with Cisco CallManager software) Cisco Web Attendant Console Software-only, Web-browsable manual attendant console (3.0(4)) (included
Ordering Information
Where to buy Cisco products
Visit http://www.cisco.com/public/ordering_info.shtml
Product and Part Numbers
Part Numbers for the Cisco CallManager
Part Description Part Number Cisco CallManager & uOne Hardware/
Software Platforms
Cisco Media Convergence Server 7822 MCS-7822 Cisco Media Convergence Server 7835 MCS-7835 MCS-7835 Server (with Tape Drive) MCS-7835-TD MCS-7835 Server (without Tape Drive) MCS-7835-NTD Cisco CallManager 3.0 Upgrade CD (to
upgrade from CM 2.4)
SW-MCSUPG-2.X-3.0=
Cisco CallManager & uOne Hardware/ Software Platforms SPARES
9.1 GB SCSI Drive Spare for the Media Convergence Server
MCS-SPARE-9GB= 18.2 GB SCSI Drive Spare for the Media
Convergence Server
MCS-SPARE-18GB= DL380 CPU Fan Spare for the Media
Convergence Server
MCS-SPARE-CPUFAN= 12/24 DAT Tape Drive Spare for the Media
Convergence Server
MCS-SPARE-DAT= 1600 I/O Fan with Bracket for the Media
Convergence Server
MCS-SPARE-IOFAN= RIB Card Spare for the Media
Convergence Server
MCS-SPARE-RIB= Redundant Power Supply Spare for the
MCS
MCS-SPARE-RPS= Smart Array Controller 221 Spare for the
MCS
MCS-SPARE-SAC-221= 1600 SPS- 130CFM Fan for the Media
Convergence Server MCS-SPARE-SPSFAN= 256MB SDRAM (100MHz) for MCS-7820/7822 MEM-782X-256-100= 128MB SDRAM (100MHz) For MCS-7820/7822 MEM-782X-128-100= 64 MB SDRAM (100MHz) For MCS-7820/7822 MEM-782X-64-100= 128MB SDRAM (133MHz) For MCS-7835 MEM-7835-128-133= 256MB SDRAM (133MHz) For MCS-7835 MEM-7835-256-133= 512MB SDRAM (133MHz) For MCS-7835 MEM-7835-512-133= 128MB SDRAM (100MHz) For MCS-7830 MEM-7830-128-100=
Documentation
For part numbers for product specific documentation, visit
http://www.cisco.com/univercd/cc/td/doc/pcat/swdo__d1.htm
256MB SDRAM (100MHz) For MCS-7830
