Product Code 3-01-3180K

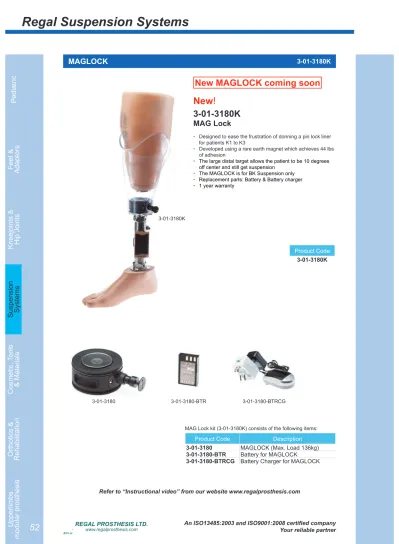

MAGLOCK

3-01-3180K

MAG Lock

• Designed to ease the frustration of donning a pin lock liner for patients K1 to K3

• Developed using a rare earth magnet which achieves 44 lbs of adhesion

• The large distal target allows the patient to be 10 degrees off center and still get suspension

• The MAGLOCK is for BK Suspension only

• Replacement parts: Battery & Battery charger

• 1 year warranty

3-01-3180

Product Code Description

3-01-3180 MAGLOCK (Max. Load 136kg)

3-01-3180-BTR Battery for MAGLOCK

3-01-3180-BTRCG Battery Charger for MAGLOCK

New!

3-01-3180-BTR 3-01-3180-BTRCG

3-01-3180K

MAG Lock kit (3-01-3180K) consists of the following items:
