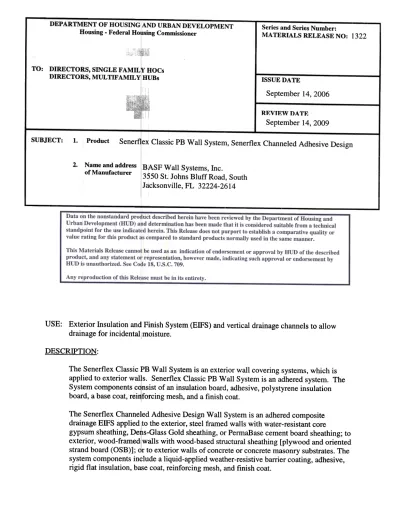

Housing. Federal Housing Commissioner _{MATERIALS RELEASE NO: 1322}

TO: DIRECTORS, SINGLE FAMILN DOCs

DIRECTORS, MUL TIF AMIL yl HUBs _{ISSUE DATE}

September 14, 2006 REVIEW DA TE

September 14, 2009

SUBJECT:

1.

Product

Senerflex

Classic PB Wall System, Senerflex Channeled

Adhesive Design

2. Name and address BASF Wall Systems, Inc.

of Manufacturer 3550 St. Johns Bluff Road, South

Jacksonville, FL 32224-2614

USE:

Exterior Insulation and Finish System (EIFS) and vertical drainage channels to allow drainage for incidental I moisture.

DESCRIPTION:

The Senerflex Classic PB Wall System is an exterior wall covering systems, which is applied to exterior Wal

~

S. Senerflex Classic PB Wall System is an adhered system. The System components c nsist of an insulation board, adhesive, polystyrene insulation board, a base coat, rei forcing mesh, and a finish coat.

The Senerflex Channeled Adhesive Design Wall System is an adhered composite drainage ElF'S applied 10 the exterior, steel framed walls with water-resistant core

gypsum sheathing, De~ S-Glass Gold sheathing, or PermaBase cement board sheathing; to exterior, wood-framed walls with wood-based structural sheathing [plywood and oriented

strand board (OSB)]; r to exterior walls of concrete or concrete masonry substrates. The system components in~lude a liquid-applied weather-resistive barrier coating, adhesive, rigid flat insulation, base coat, reinforcing mesh, and finish coat.

(2)

GENERAL CONDITIO~~:

The Senerflex Classic PB Wall System and Senerflex Channeled Adhesive Design Wall System shall be designed and installed in accordance with Senerflex Classic PB Wall System and Senerflex Channeled Adhesive Design wall specifications and details except where modified by this Material Release (MR). The system shall be installed by an applicator that is approved by BASF Wall Systems, Inc. The approved applicator shall be responsible for certifying that the installed polystyrene insulation board is in

compliance with this MR. BASF shall maintain a current list of approved sealant systems, which are coTpatible with the BASF Wall Systems specifications and details. The Senerflex ClassicrB Wall System shall be in compliance with Table 1.

Field quality control shall be the responsibility of the approved applicator, BASF, upon notification by the gen

~

ral contractor. Field inspections shall be performed by a BASF technical representati~ shall participate in the prejob conference at the beginning of each project. The BASF inpector shall verify the soundness of the structural substrate for acceptance of the Senerflex Classic PB Wall System. All joints shall be designed and constructed on the assumption that a leak can occur in the primary seal. A secondary seal or other defense again#t leaks shall be provided together with a built-in means of

dispensing any water. II I

TABLEt

I Materials Reouirements I Test Method

I Salt spray resistance

I Tensile Bond I Freeze-thaw Tests

I Water Resistance Tests

I Fire Tests

Structural Performance

Tests

ASTM E 330

Wind Driven Rain Resistance ests

Section 1403.2, Exception

2. of the mc

Not required for concrete or masonry

construction.

(3)

INST ALLA TION:

Installation shall be in compliance with Senerflex Classic PB Wall System specifications and details, Senerflex Channeled Adhesive Design specifications and details, HUD Minimum Property Standards (MPS) and all conditions of this MR and shall follow examination, preparation and application guidelines as follows.

Examination:

Examine surfaces to receive Senerflex Classic PB Wall System and Senerflex Channeled Adhesive Design System, and verify that substrate and adjacent material are dry, clean, structurally sound, and free of releasing agents, paint, or other residue

or coatings. Substliate surface shall be free of fins or irregularities greater than 1/4 inch in 10ft.

2. Preparation:

Protect all surrounding areas and surfaces from damage and staining during application of Senerflex Classic PB Wall System.

a.

Protect finished work at end of each day's work to prevent water penetration.

b

Prepare substrates in accordance to Senerflex Classic PB Wall System instruction

c.

3. Application

Senerflex Classic PB Wall System and Senerflex Channeled Adhesive Design System are to be installed in accordance to Senerflex Classic PB Wall System, and Senerflex Channeled Adhesive Design System specification and details.

MANUFACTURING LOCATIONS:

The products covered under this MR will be produced at the following plant(s): BASF Wall Systems, Inc.

1103 Northpointe Parkway Acworth, GA 30102

BASF Wall Systems,

Inc.

Box 1228

Rt. 13 & Beaver Dam Road

Bristol, P A 19007

BASF Wall Systems, Inc. 38403 Cherry Street Newark, CA 94560 BASF Wall Systems, Inc.

2355 W. Longhorn Drive Lancaster, TC 75134

(4)

BASP Wall Systems, l

tc.

9658 State Road 43 Streetsboro, OH 44211 I

CERTIFICATION:

BASF shall furnish each applicator with a certificate stating that the applicator is

approved to perform t

$

e work of installing the Senerflex Classic PB Wall System. BASF shall provide the local UD Office, the owner and the builder with a list of approved applicators upon reque t. A copy of all approvals required by this MR shall be provided to the owner and the local HUD Office by BASF.

Senergy products are manufactured under a comprehensive Quality Control Plan and Management System t~at includes policies, responsibilities, production flow and

methods, specification~,

identification, traceability, etc.

The products used in this MR must be approved

as conforming to this MR and must be

marked with the follo~ing information:

Product Identi

~ catiOn/N ames Manufacturer's name or logo

HUD MR 132

a.

b.

c.

MANUFACTURER'S WARRANTY:

A BASF offers a five-ye't;1f material warranty for Senerflex Classic PB Wall System installations under pro~isions of Section [01700][01740] of the BASF warranty

statement. II

B.

BASF offers a five-year material and labor warranty for Senerflex Classic PB Wall provisions of Section ~p.l700] [0 1740] of the BASF warranty statement.

C. Comply with Senergy

Project Review requirements

and notification procedures

to assure

qualification for warranty.

MANUFACTURER'S RESP([)NSm~ITIES:

Issuance

of this MR c9mrnits the manufacturer

to fulfill, as a minimum, the following:

Produce, label and certify that material, product or system is in strict accordance with the terms of this MR.

(5)

2. Provide necessary

corrective action in a timely manner for all cases

of justified

complaint, poor performance

of failure reported by HUD.

3. When requested, provide the FHA Standards, Office of Manufactured Housing Programs, HUD Headquarters, with a representative list of properties in which the material, product or system has been used, including complete addresses or

descriptions of locations and dates of installation.

4. Inform HUD in advance of change in production facilities, methods, design of the product, company name, ownership or mailing address.

EVALUATION:

This MR shall be valid for a period of three years from date of initial issuance or most recent renewal or revision, whichever is later. The holder of this MR shall apply for a renewal or revision 90 days prior to the Review Date printed on this MR. Submittals for renewal or revision shall be sent to:

U. S. Department of Housing and Urban Development FHA Standards, Office of Manufactured Housing Programs 451 7th Street, SW, Room 9168

Washington, DC 20410-8000

Appropriate user fees shall be sent to:

U. S. Department of Housing and Urban Development

Miscellaneous Income -Technical Suitability of Products Fees Bank of Ameri~a

P. O. Box 198762

Atlanta, GA 30384-8762

The holder of this MR may apply for revision at any time prior to the Review Date. The revision may be in the form of a supplement to the MR.

If the Department determines that a proposed renewal or supplement constitutes a revision, the appropriate User Fee for a revision will need to be submitted in accordance with Code of Federal Regulations 24 CFR 200.934, "User Fee System for the Technical Suitability of Products Program," and current User Fee Schedule.

CANCELLATION:

Failure to apply for a renewal or revision shall constitute a basis for cancellation of the MR. HUD will notify the manufacturer that the MR may be canceled when:

(6)

1

Conditions under which the document was issued have changed so as to affect production of, or to compromise the integrity of the accepted material, product or system,

2: The manufacturer l11as changed its organizational form without notifying HUD, or

3.

The manufacturer has not complied with responsibilities it assumed as a condition of HUD's acceptance.

However, before cancellation, HUD will give the manufacturer a written notice of the specific reasons for cancellation and the opportunity to present views on why the MR should not be canceled. No refund of fees will be made on a canceled document.

******************************************************************************

This Material Release is issued solely for the captioned fiffil and is not transferable to any person or successor entity.
