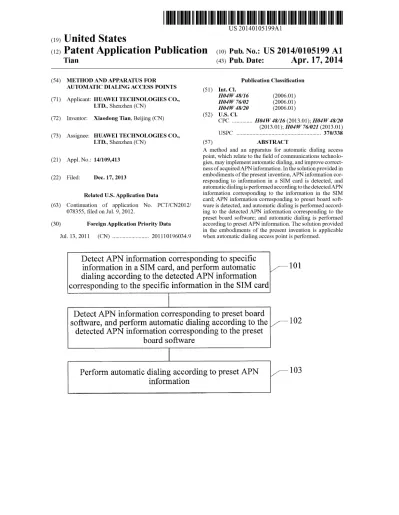

US 20140105199A1
(12) Patent Application Publication (10) Pub. No.: US 2014/0105199 A1
(19) United States
Tian
(43) Pub. Date:
Apr. 17, 2014
(54) METHOD AND APPARATUS FOR AUTOMATIC DIALING ACCESS POINTS
(71) Applicant: HUAWEI TECHNOLOGIES CO.,
LTD., ShenZhen (CN)
(72) Inventor: Xiaodong Tian, Beijing (CN)
(73) Assignee: HUAWEI TECHNOLOGIES CO.,
LTD., ShenZhen (CN)
(21) App1.No.: 14/109,413
(22) Filed: Dec. 17, 2013Related US. Application Data
(63) Continuation of application No. PCT/CN2012/ 078355, ?led on Jul. 9, 2012.
(30)
Foreign Application Priority Data
Jul. 13, 2011 (CN) ... .. 201110196034.9 Publication Classi?cation (51) Int. Cl.H04W48/16
(2006.01)
H04W 76/02 (2006.01) H04W 48/20 (2006.01) (52) US. Cl. CPC ... .. H04W48/16 (2013.01); H04W48/20(2013.01); H04W
76/021 (2013.01)
USPC ... .. 370/338(57)
ABSTRACT
A method and an apparatus for automatic dialing access point, Which relate to the ?eld of communications technolo
gies, may implement automatic dialing, and improve correct
ness of acquiredAPN information. In the solution provided in embodiments of the present invention, APN information cor responding to information in a SIM card is detected, and automatic dialing is performed according to the detectedAPN information corresponding to the information in the SIM card; APN information corresponding to preset board soft ware is detected, and automatic dialing is performed accord ing to the detected APN information corresponding to the
preset board software; and automatic dialing is performed
according to preset APN information. The solution provided in the embodiments of the present invention is applicable When automatic dialing access point is performed.
Detect APN information corresponding to speci?c
information in a SIM card, and perform automatic
dialing according to the detected APN information
corresponding to the speci?c information in the SIM card
Detect APN information corresponding to preset board
software, and perform automatic dialing according to the /*~102
detected APN information corresponding to the preset
board software
information
Patent Application Publication
Apr. 17, 2014 Sheet 1 of4
US 2014/0105199 A1
Detect APN information corresponding to speci?c
information in a SIM card, and perform automatic
dialing according to the detected APN information
corresponding to the speci?c information in the SIM card
/w101
Detect APN information corresponding to preset board
software, and perform automatic dialing according to the /~
102
detected APN information corresponding to the preset
board software
Perform automatic dialing according to preset APN /~103
information
FIG. I
201 —\
First dialing unit
204
202
x Second dialing unit
Control unit
Third dialing unit
FIG. 2
Patent Application Publication
Apr. 17, 2014 Sheet 2 of 4
US 2014/0105199 A1
Detect access point APN information
corresponding to information in a subscriber
301
identity module SIM card, and perform automatic f
dialing according to the detected APN information
corresponding to the information in the SIM card
i303
302
Determine whether
Yes
the dialing succeeds
i304
Detect APN information corresponding to preset
board software, and perform automatic dialing
according to the detected APN information
corresponding to the preset board software
Yes
Start a
Determine whether
browser
the dialing succeeds
306
Perform automatic dialing according to preset APN
information
307
Determine whether
Yes
the dialing succeeds
~ 308
Start a diagnosis function
Patent Application Publication
Apr. 17, 2014 Sheet 3 of4
Acquire an MCC or MNC in a SIM card
401
/_
402
Detect, according
to the acquired MCC or MNC,
Whether APN information
corresponding to the MCC
or MNC exists
Acquire a GID value in the SIM card
Detect whether
APN information corresponding to
the GID value exists
Yes
Acquire a network standard with which the
SIM card is registered
408
Detect whether APN
information corresponding to the
network standard exists
Yes
Dialing fails
FIG. 4
W 403
Perform automatic dialing
according to the detected
APN information
corresponding to the MCC
or MNC
in the SIM card
404
/_
406
Perform automatic dialing
according to the detected
APN information
corresponding to the GID
value in the SIM card
US 2014/0105199 A1
407
f
are 409
Perform automatic dialing
according to the detected
APN information
corresponding to the
network standard with
which the SIM card is
registered
i410
Patent Application Publication
Apr. 17, 2014 Sheet 4 of4
503
504
/_
US 2014/0105199 A1
Lo
gin unit
Second dialing
unit
502
\
501
W
First dialing unit
601'
Control unit
505
x
Third dialing unit
507
/‘
Diagnosis unit
506
r
FIG. 5
/
Acquiring module
602
Detecting module
Control module
604
/_
603
2)
Dialing module
US 2014/0105199 A1
METHOD AND APPARATUS FOR AUTOMATIC DIALING ACCESS POINTS
CROSS-REFERENCE TO RELATED APPLICATION
[0001] This application is a continuation of PCT/CN2012/ 078355, ?led on Jul. 9, 2012, which claims priority to Chinese Patent Application No. 2011101960349, ?led on Jul. 13, 2011, all of which is hereby incorporated by reference in its
entirety.
TECHNICAL FIELD
[0002] Embodiments of the present invention relate to the technical ?eld of communications, and in particular, to a method and an apparatus for automatic dialing access point.
BACKGROUND
[0003] An access point, that is, an APN (Access Point Name), is a parameter which must be con?gured when a
terminal device accesses a network, and determines an access
manner in which the terminal device accesses the network. At present, a terminal may perform a data service in two man ners, namely, a static APN and a dynamic APN.
[0004] When a data service is performed in a manner of static APN dialing, an operator customizes multiple available APNs and store APN information in a terminal ?le, terminal device software provides a manual selection interface, and when a terminal user manually selects a certain APN, a cor
responding GGSN (Gateway GPRS Support Node, gateway
GPRS support node) may be obtained to connect to a data network, so as to execute the data service. If the data network is connected successfully, process the data service, if the data network is not connected successfully, manually select another APN to connect to the data network, and if the data network is still not connected successfully, end the operation. [0005] When a data service is performed in a manner of
dynamic APN
dialing, multiple availableAPNs correspond to
MCCs (Mobile Country Code, mobile country code) or MNCs (Mobile Network Code, mobile network code) of IMSI (International Mobile Subscriber Identi?cation Num ber, international mobile subscriber identi?cation number) number segments in SIM (Subscriber Identity Module, sub scriber identity module) cards, that is to say, SIM cards of different number segments correspond to different APN information. The APN information is stored in a terminal ?le,
and when a terminal user inserts a SIM card, a program in a
terminal queries an MCC or MNC message in the SIM card, and automatically obtains, by adapting, an APN message corresponding to the MCC or MNC in the SIM card, so as to obtain a corresponding GGSN to connect to the data network,
thereby executing the data service.
[0006] With the expansion of operators’ business, each
operator manages multiple sub-brands, and the sub-brands share a same MCC or MNC; however, the sub-brands may have different service types, and different services also have
different APN information; when dialing is performed by
using the prior art, available APN information may not be effectively acquired according to the MCC or MNC.
SUMMARY
[0007] Embodiments of the present invention provide a method and an apparatus for automatic dialing access point,
Apr. 17, 2014
which may implement automatic dialing, and improve cor rectness of acquired APN information.
[0008] In order to achieve the foregoing objective, the embodiments of the present invention adopt the following technical solutions:
[0009] A method for automatic dialing access point includes:
[0010] performing automatic dialing in the following three
manners in any sequence, until the dialing succeeds or the dialing still fails after the three manners are all used: [0011] detecting access point APN information corre sponding to information in a subscriber identity module SIM
card, and performing automatic dialing according to the
detected APN information corresponding to the information in the SIM card;
[0012] detecting APN information corresponding to preset
board software, and performing automatic dialing according
to the detected APN information corresponding to the preset board software; and
[0013] performing automatic dialing according to APN
information preset in client software.
[0014] An apparatus for automatic dialing access point includes:
[0015] a ?rst dialing unit, con?gured to detect APN infor mation corresponding to information in a SIM card, and perform automatic dialing according to the detected APN information corresponding to the information in the SIM
card;
[0016] a second dialing unit, con?gured to detect APN information corresponding to preset board software, and per form automatic dialing according to the detected APN infor mation corresponding to the preset board software;
[0017] a third dialing unit, con?gured to perform automatic dialing according to APN information preset in client soft ware; and
[0018] a control unit, con?gured to trigger any one of the
?rst dialing unit, the second dialing unit, and the third dialing
unit, trigger any one of the other two units when the unit fails in dialing, and when the dialing unit also fails in dialing, trigger the rest dialing unit.
[0019] The method and apparatus for automatic dialing access point provided in the embodiments of the present invention can solve a problem that when sub-brands managed by an operator share a same MCC or MNC but do not share APN information due to different service types, available APN information may not be effectively acquired according
to the MCC or MNC.
BRIEF DESCRIPTION OF DRAWINGS [0020] Drawings described herein are provided for further understanding of the present invention, constitute a part of this application, but do not limit the present invention. In the
drawings:
[0021] FIG. 1 is a ?ow chart of a method for automatic dialing access point according to Embodiment l of the
present invention;
[0022] FIG. 2 is a block diagram of an apparatus for auto matic dialing access point according to Embodiment l of the
present invention;
[0023] FIG. 3 is a ?ow chart of a method for automatic dialing access point according to Embodiment 2 of the
US 2014/0105199 A1
[0024] FIG. 4 is a ?ow chart of performing automatic dial ing according to APN information corresponding to informa tion in a SIM card according to Embodiment 2 of the present
invention;
[0025] FIG. 5 is a block diagram of an apparatus for auto matic dialing access point according to Embodiment 2 of the
present invention; and
[0026] FIG. 6 is a block diagram of a ?rst executing unit according to Embodiment 2 of the present invention.
DESCRIPTION OF EMBODIMENTS
[0027] To make the objectives, technical solutions, and
advantages of the present invention clearer, the following
further describes the present invention in detail with reference to the embodiments and the accompanying drawings. Herein, the exemplary embodiments of the present invention and the description are merely intended to explain the present inven tion, but are not intended to limit the present invention.
Embodiment l
[0028] An embodiment of the present invention provides a method for automatic dialing access point, and as shown in FIG. 1, the method includes: performing automatic dialing in three manners in any sequence as described in the following three steps, until the dialing succeeds or the dialing still fails after the three manners are all used:
[0029] Step 101: Detect APN information corresponding to information in a SIM card, and perform automatic dialing according to the detected APN information corresponding to the information in the SIM card.
[0030] Here, the information in the SIM card includes: an MCC or MNC, a GID (Group Identi?cation, group identi? cation) value, and a network standard with which the SIM card is registered.
[0031] The APN information includes: APN information corresponding to the MCC or MNC, APN information corre sponding to the GID, and APN information corresponding to the network standard, where, the APN information is stored in the SIM card according to a combination sequence of the information in the SIM card, or stored in client software. [0032] Step 102: Detect APN information corresponding to
preset board software, and perform automatic dialing accord
ing to the detected APN information corresponding to the preset board software.
[0033] The preset board software is software directly per forming interaction with hardware. The APN information corresponding to the preset board software mainly depends on APN information corresponding to a parameter written in the preset board software. An operator pre-con?gures APN information in board software of a product, and client soft ware acquires the APN information by sending an AT com
mand, and performs automatic dialing.
[0034] Step 103: Perform automatic dialing according to APN information preset in client software.
[0035] In the method for automatic dialing access point provided in the embodiment of the present invention, auto matic dialing is performed in three manners: detecting APN information corresponding to information in a SIM card, and performing automatic dialing according to the detected APN information corresponding to the information in the SIM card; detecting APN information corresponding to preset
board software, and performing automatic dialing according
to the detected APN information corresponding to the preset
Apr. 17, 2014
board software; and performing automatic dialing according
to APN information preset in client software.
[0036] Compared with the prior art, a problem that when sub-brands managed by an operator share the same MCC or MNC but do not share APN information due to different service types, available APN information may not be effec tively acquired according to the MCC or MNC can be solved.
[0037] An embodiment of the present invention provides an apparatus for automatic dialing access point, and as shown in FIG. 2, the apparatus includes: a ?rst dialing unit 201, a second dialing unit 202, a third dialing unit 203, and a control unit 204.
[0038] The ?rst dialing unit 201 is con?gured to detect APN information corresponding to information in a SIM card, and perform automatic dialing according to the detected APN information corresponding to the information in the SIM card.
[0039] The second dialing unit 202 is con?gured to detect APN information corresponding to preset board software, and perform automatic dialing according to the detected APN information corresponding to the preset board software. [0040] The third dialing unit 203 is con?gured to perform automatic dialing according to APN information preset in client software.
[0041] The control unit 204 is con?gured to trigger any one of the ?rst dialing unit 201, the second dialing unit 202, and the third dialing unit 203, trigger any one of the other two units when the unit fails in dialing, and when the dialing unit also fails in dialing, trigger the rest dialing unit.
[0042] Preferably, the control unit may trigger the three dialing units according to a sequence being the ?rst dialing unit 201, the second dialing unit 202, and the third dialing unit 203. Optionally, if the three dialing units all fail in dialing, the control unit further sends a prompt of dialing failure. [0043] Compared with the prior art, the apparatus for auto matic dialing access point provided in the embodiment of the present invention can solve a problem that when sub-brands managed by an operator share a same MCC or MNC but do not share APN information due to different service types, available APN information may not be effectively acquired according to the MCC or MNC.
Embodiment 2
[0044] An embodiment of the present invention provides a method for automatic dialing access point, and as shown in FIG. 3, the method includes:
[0045] In the solution provided in the embodiment of the present invention, automatic dialing may be performed in the following three manners: performing automatic dialing according to APN information corresponding to information in a SIM card, performing automatic dialing according to APN information corresponding to preset board software, and performing automatic dialing according to APN informa tion preset in client software; the three automatic dialing manners may be randomly ordered and randomly combined. In the present invention, a detailed description is given in a sequence that automatic dialing is performed ?rst according to APN information corresponding to information in a SIM card, automatic dialing is performed according to APN infor mation corresponding to preset board software, and then automatic dialing is performed according to APN information preset in client software.
[0046] Step 301: Detect access point APN information cor responding to information in a subscriber identity module
US 2014/0105199 A1
SIM card, and perform automatic dialing according to the detected APN information corresponding to the information in the SIM card.
[0047] The information in the SIM card includes: a mobile country code MCC/mobile network code MNC, a group iden ti?cation GID value, and a network standard with which the SIM card is registered.
[0048] An APN (Access Point Name, access point) is a parameter which must be con?gured when a terminal device
accesses a network, and determines an access manner in
which the terminal device accesses the network.
[0049] Speci?cally, as shown in FIG. 4, an implementation manner of step 301 is as follows:
[0050] It should be noted that, the APN information corre sponding to the information in the SIM card is preset accord ing to a combination of APN information corresponding to an MCC/MNC, APN information corresponding to a group identi?cation GID value, and APN information correspond ing to a network standard with which the SIM card is regis tered; further, a combination manner of the APN information corresponding to the information in the SIM card may be APN information corresponding to an MCC/MNC, APN information corresponding to a network standard with which the SIM card is registered, and APN information correspond ing to a group identi?cation GID value; or
[0051] APN information corresponding to a group identi ?cation GID value, APN information corresponding to an MCC/MNC, and APN information corresponding to a net work standard with which the SIM card is registered; or [0052] APN information corresponding to a group identi ?cation GID value, APN information corresponding to a net work standard with which the SIM card is registered, and APN information corresponding to an MCC/MNC; or [0053] APN information corresponding to a network stan dard with which the SIM card is registered, APN information corresponding to an MCC/MNC, and APN information cor responding to a group identi?cation GID value; or [0054] APN information corresponding to a network stan dard with which the SIM card is registered, APN information corresponding to a group identi?cation GID value, and APN information corresponding to an MCC/MNC; and
[0055] the APN information is preset according to any combination sequence of APN information as described in the foregoing, and automatic dialing may be performed according to the APN information corresponding to speci?c information. The APN information is stored in a ?le of the SIM card, or stored in client software, and then anAT (Atten tion) command is sent by the client software to query corre sponding APN information.
[0056] Preferably, the APN information corresponding to the MCC/MNC and the APN information corresponding to the information in the GID have a strongest association, the network standard varies correspondingly according to a net work registration situation. Therefore, in an exemplary solu tion of the embodiment of the present invention, dialing according to the APN information corresponding to the infor mation in the SIM card is described in detail according to such a combination of APN information corresponding to an MCC/MNC, APN information corresponding to a group identi?cation GID value, and APN information correspond ing to a network standard with which the SIM card is regis tered.
Apr. 17, 2014
[0057] Step 401 : Acquire an MCC or MNC in the SIM card. [0058] MCC (Mobile Country Code) is a mobile country code, MCC resources are uniformly allocated and managed by the International Telecommunication Union (ITU), the MCC uniquely identi?es a country to which a mobile user belongs, and has a total of 3 digits, and the MCC of China is 460.
[0059] MNC (Mobile Network Code) is a mobile network code, the MNC has a total of 2 digits, a GSM system of China Mobile uses 00 and 02, a GSM system of China Unicom uses 01, a CDMA system of China Telecom uses 03, and a TD system of China Mobile uses 07.
[0060] Speci?cally, the client software queries the MCC or MNC by sending an AT (Attention) command.
[0061] Step 402: Detect, according to the acquired MCC or MNC, whether APN information corresponding to the MCC
or MNC exists.
[0062] Speci?cally, according to the acquired MCC or MNC in the SIM card, it may acquire, in the ?le of the SIM card or the client software, whether APN information corre sponding to the MCC or MNC exists.
[0063] Step 403: If APN information corresponding to the MCC or MNC exists, perform automatic dialing according to the detected APN information corresponding to the MCC or MNC in the SIM card.
[0064] Step 404: If no APN information corresponding to the MCC or MNC exists, acquire a GID value in the SIM card. [0065] If no APN information corresponding to the MCC or MNC exists, in this case, dialing needs to be performed in
another manner.
[0066] GID (Group Identi?cation, group identi?cation)
refers to an identity of a user of a shared resource system, is a
common graphical user interface having strong adaptability and a friendly user interface, which is used for geometrical simulation, data input, model transformation, grid and a visu aliZation result, and is applicable to all types of numerical simulation packets. SIM cards of some GIDs specially rep resent users having speci?c functions, for example, a type of users with a GID being A may be free in short messages, a type of users with a GID being A may be free in multimedia messages, and in this way, an operator may set APN informa tion according to the GID.
[0067] Speci?cally, the client software acquires a GID value in the SIM card ?le by sending an AT command.
[0068] Step 405: Detect, according to the acquired GID value, whether APN information corresponding to the GID value exists.
[0069] According to the acquired GID value, query the ?le of the SIM card or the client software to determine whether APN information corresponding to the GID value exists.
[0070] Step 406: If APN information corresponding to the GID value exists, perform automatic dialing according to the detected APN information corresponding to the GID value in the SIM card.
[0071] Step 407: If no APN information corresponding to the GID value exists, acquire a network standard with which the SIM card is registered.
[0072] The network standard is a type of network, and
frequency bands commonly used by mobile phones in China
mainly include a CDMAlX, 800 MHZ frequency band occu pied by CDMA mobile phones, a 900/ 1800/ 1900 MHZ fre quency band occupied by GSM mobile phones; a 900/1800 MHZ frequency band occupied by GSMlX dual-mode; and a 900/1 800/ 1900/2100 MHZ frequency band occupied by 3G.
US 2014/0105199 A1
[0073] Step 408: Detect, according to the acquired network
standard, whether APN information corresponding to the net work standard exists.
[0074] Step 409: If APN information corresponding to the
network standard exists, perform automatic dialing according
to the detected APN information corresponding to the net work standard with which the SIM card is registered. [0075] Step 410: If no APN information corresponding to the network standard exists, dialing fails.
[0076] If no APN information corresponding to the net work standard exists, a manner of performing automatic dial ing according to the APN information corresponding to the information in the SIM card fails, and automatic dialing needs to be performed in another manner.
[0077] Continuously referring to step 302 in FIG. 3, deter mine whether the dialing succeeds.
[0078] Step 303: If the dialing succeeds, start a browser. [0079] Step 304: When the dialing fails, detect APN infor mation corresponding to preset board software, and perform automatic dialing according to the detected APN information corresponding to the preset board software.
[0080] A board generally refers to a circuit board, and speci?cally may be a PCB board. The preset board software is software directly performing interaction with hardware, and the APN information corresponding to the preset board soft ware mainly depends on APN information corresponding to a parameter written in the preset board software. A product provider pre-con?gures APN information of a user in preset board software, and client software acquires the APN infor mation by sending an AT command, and performs dialing according to the detected APN information corresponding to the preset board software.
[0081] Step 305: Determine whether the dialing succeeds. [0082] If the dialing succeeds, turn to step 303 to start the
browser and perform data processing.
[0083] Step 306: When the previous dialing fails, perform
automatic dialing according to APN information preset in the client software.
[0084] It should be noted that, after being installed, a client stores preset APN information to a PC, and the client software reads the APN information from a con?guration ?le on the
PC, and performs automatic dialing.
[0085] Step 307: Determine whether the dialing succeeds. [0086] If the dialing succeeds, turn to step 303 to start the
browser and perform data processing.
[0087] Step 308: When the dialing fails, start a diagnosis function.
[0088] It should be noted that, when the automatic dialing fails, manual dialing may be performed according to the APN information set by the user, the client software provides an interface for creating APN, and the APN information is acquired from the operator.
[0089] If all dialing manners fail, the client software diag noses information such as signal strength, whether hardware is damaged, and whether the SIM card is damaged, so as to illustrate that the dialing fails.
[0090] It should be noted that, in the solution provided in the embodiment of the present invention, a sequence of the three manners of performing automatic dialing is not strictly ?xed, and the three manners of automatic dialing, namely, performing automatic dialing according to APN information corresponding to information in a SIM card, performing auto matic dialing according to APN information corresponding to
preset board software, and performing automatic dialing
Apr. 17, 2014
according to APN information preset in client software, may be randomly ordered and randomly combined.
[0091] In the method for automatic dialing access point provided in the embodiment of the present invention, auto matic dialing is performed according to the provided three manners, and compared with the prior art, the method can solve a problem that when sub -brands managed by an opera tor share the same MCC or MNC but do not share APN information due to different service types, available APN information may not be effectively acquired according to the
MCC or MNC.
[0092] An embodiment of the present invention provides an apparatus for automatic dialing access point, and as shown in FIG. 5, the apparatus includes: a ?rst dialing unit 501, a determining unit 502, a login unit 503, a second dialing unit 504, a third dialing unit 505, a diagnosis starting unit 506, and a control unit 507.
[0093] The ?rst dialing unit 501 is con?gured to detect APN information corresponding to information in a SIM card, and perform automatic dialing according to the detected APN information corresponding to the information in the SIM card.
[0094] The information in the SIM card includes: a mobile country code MCC/mobile network code MNC, a group iden ti?cation GID value, and a network standard with which the SIM card is registered.
[0095] The login unit 503 is con?gured to: if the dialing succeeds, start a browser and perform data processing. [0096] The control unit 507 is con?gured to trigger any one of the ?rst dialing unit 501, the second dialing unit 504, and the third dialing unit 505, trigger any one of the other two units when the unit fails in dialing, and when the dialing unit also fails in dialing, trigger the rest dialing unit.
[0097] The second dialing unit 504 is con?gured to detect APN information corresponding to preset board software, and perform automatic dialing according to the detected APN information corresponding to the preset board software. [0098] A board generally refers to a circuit board, and speci?cally may be a PCB board. The preset board software is software directly performing interaction with hardware, and the APN information corresponding to the preset board soft ware mainly depends on APN information corresponding to a parameter written in the preset board software. A product provider pre-con?gures APN information of a user in preset board software, and client software acquires the APN infor mation by sending an AT command, and performs dialing according to the detected APN information corresponding to the preset board software.
[0099] The third dialing unit 505 is con?gured to perform automatic dialing according to APN information preset in client software.
[0100] The control unit 507 is further con?gured to: if the three dialing units all fail in dialing, further send a prompt of dialing failure. The diagnosis unit 506 is con?gured to start a diagnosis function when the control unit 507 prompts dialing failure.
[0101] It should be noted that, when the automatic dialing fails, manual dialing may be performed according to the APN information set by the user, the client software provides an interface for creating APN, and the APN information is acquired from the operator.
US 2014/0105199 A1
[0102] If all dialing manners fail, the client software diag noses information such as signal strength, whether hardware is damaged, and whether the SIM card is damaged, so as to illustrate that the dialing fails.
[0103] It should be noted that, in the apparatus for perform ing automatic dialing in the solution provided in the embodi ment of the present invention, a sequence of execution of the ?rst dialing unit, the second dialing unit and the third dialing unit in the apparatus is not strictly ?xed, and the sequence of performing automatic dialing of the three units may be ran domly ordered and randomly combined. Preferably, the con trol unit may trigger the three dialing units according to a
sequence being the ?rst dialing unit, the second dialing unit,
and the third dialing unit.
[0104] Speci?cally, as shown in FIG. 6, the ?rst dialing unit 501 includes: an acquiring module 601, a detecting module 602, a dialing module 603, and a control module 604. [0105] The acquiring module 601 is con?gured to acquire
an MCC or MNC in a SIM card.
[0106] MCC (Mobile Country Code) is a mobile country code, MCC resources are uniformly allocated and managed by the International Telecommunication Union (ITU), the MCC uniquely identi?es a country to which a mobile user belongs, and has a total of 3 digits, and the MCC of China is 460.
[0107] MNC (Mobile Network Code) is a mobile network code, the MNC has a total of 2 digits, a GSM system of China Mobile uses 00 and 02, a GSM system of China Unicom uses 01, a CDMA system of China Telecom uses 03, and a TD system of China Mobile uses 07.
[0108] The detecting module 602 is con?gured to detect, according to the acquired MCC or MNC, whetherAPN infor mation corresponding to the MCC or MNC exists.
[0109] After acquiring the MCC or MNC, query a ?le in the SIM card to determine whetherAPN information correspond ing to the MCC or MNC exists.
[0110] The dialing module 603 is con?gured to: if APN information corresponding to the MCC or MNC exists, per form automatic dialing according to the detected APN infor mation corresponding to the MCC or MNC in the SIM card. [0111] The acquiring module 601 is further con?gured to acquire the GID value in the SIM card.
[0112] GID refers to an identity of a user of a shared resource system, is a common graphical user interface having strong adaptability and a friendly user interface, which is used
for geometrical simulation, data input, model transformation,
grid and a visualization result, and is applicable to all types of numerical simulation packets. SIM cards of some GIDs spe
cially represent users having speci?c functions, for example,
a type of users with a GID being A may be free in short messages, a type ofusers with a GID being A may be free in multimedia messages, and in this way, an operator may set APN information according to the GID.
[0113] The detecting module 602 is further con?gured to detect, according to the acquired GID value, whether APN information corresponding to the GID value exists.
[0114] The dialing module 603 is further con?gured to: if APN information corresponding to the GID value exists, perform automatic dialing according to the detected APN information corresponding to the GID value in the SIM card. [0115] The acquiring module 601 is further con?gured to acquire a network standard with which the SIM card is reg istered.
Apr. 17, 2014
[0116] The network standard is a type of network, and
frequency bands commonly used by mobile phones in China
mainly include a CDMAlX, 800 MHZ frequency band occu pied by CDMA mobile phones, a 900/ 1800/ 1900 MHZ fre quency band occupied by GSM mobile phones; a 900/1800 MHZ frequency band occupied by GSMlX dual-mode; and a 900/1 800/ 1900/2100 MHZ frequency band occupied by 3G. [0117] The detecting module 602 is further con?gured to detect, according to the acquired network standard, whether APN information corresponding to the network standard exists.
[0118] The dialing module 603 is further con?gured to: if APN information corresponding to the network standard
exists, perform automatic dialing according to the detected
APN information corresponding to the network standard with which the SIM card is registered.
[0119] The control module 604 is con?gured to control the acquiring module 601 to acquire any one of three types of information including the MCC or MNC in the SIM card, the GID in the SIM card, and the network standard with which the SIM card is registered, when the dialing module 603 fails in dialing, trigger the acquiring module 601 to acquire any one of the other two types of information, and when the dialing module 603 fails in dialing again, trigger the acquiring mod ule 601 to acquire the rest one type of information.
[0120] It should be noted that, the APN information is preset according to such as a combination of APN informa tion corresponding to an MCC/MNC, APN information cor responding to a group identi?cation GID value, and APN information corresponding to a network standard with which the SIM card is registered, where, the sequence of the APN information corresponding to an MCC/MNC, the APN infor mation corresponding to a group identi?cation GID value, and the APN information corresponding to a network stan dard with which the SIM card is registered is not strictly ?xed, and they can be randomly combined. The APN information is stored in the SIM card.
[0121] Compared with the prior art, the apparatus for auto matic dialing access point provided in the embodiment of the present invention can solve a problem that when sub-brands managed by an operator share a same MCC or MNC but do not share APN information due to different service types, available APN information may not be effectively acquired according to the MCC or MNC.
[0122] Through the foregoing description of the implemen
tation manners, a person skilled in the art can clearly under stand that the present invention can be implemented in a manner of software plus a necessary universal hardware plat
form, and certainly, may also be implemented by hardware;
however, in most cases, the former is a preferred implemen tation manner. Based on such understanding, the technical solution of the present invention or the part that makes con tributions to the prior art can be substantially embodied in a form of a software product. The computer software product may be stored in a readable storage medium such as a ?oppy disk, a hard disk or an optical disc, and includes several instructions used to instruct a computer device (which may be a personal computer, a server, a network device, or the like) to perform the method according to each embodiment of the present invention.
[0123] The foregoing embodiments are merely intended to describe the technical solutions of the present invention, but not to limit the present invention. Although the present inven tion is described in detail with reference to the foregoing
US 2014/0105199 A1
embodiments, persons of ordinary skill in the art should understand that they may still make modi?cations to the technical solutions recorded in the foregoing embodiments or make equivalent replacements to part of technical features of the technical solutions recorded in the foregoing embodi ments; however, these modi?cations or replacements do not make the essence of the corresponding technical solutions depart from the scope of the technical solutions of the embodiments of the present invention.
1. A method for automatic dialing access point, compris mg:
performing automatic dialing in the following three man ners in any sequence, until the dialing succeeds or the dialing still fails after the three manners are all used: detecting access point APN information corresponding to
information in a subscriber identity module SIM card, and performing automatic dialing according to the detected APN information corresponding to the infor mation in the SIM card;
detecting APN information corresponding to preset board
software, andperforming automatic dialing according to
the detected APN information corresponding to the pre set board software; and
performing automatic dialing according to APN informa tion preset in client software.
2. The method for automatic dialing access point according to claim 1, wherein the information in the SIM card com prises: a mobile country code MCC/mobile network code MNC, a group identi?cation GID value, and a network stan dard with which the SIM card is registered.
3. The method for automatic dialing access point according to claim 2, wherein the detecting APN information corre sponding to information in a SIM card, and performing auto matic dialing according to the detected APN information corresponding to the information in the SIM card comprises: performing automatic dialing in the following three man ners in any sequence, until the dialing succeeds or the dialing still fails after the three manners are all used: acquiring the MCC or MNC in the SIM card; detecting
APN information corresponding to the MCC or MNC according to the acquired MCC or MNC; and perform ing automatic dialing according to the detected APN information corresponding to the MCC or MNC in the SIM card;
acquiring the GID value in the SIM card; detecting APN information corresponding to the GID value according to the acquired GID value; and performing automatic dialing according to the detected APN information cor responding to the GID value in the SIM card; and acquiring the network standard with which the SIM card is
registered; detecting APN
information corresponding to
the network standard according to the acquired network
standard; and performing automatic dialing according to
the detected APN information corresponding to the net work standard with which the SIM card is registered. 4. The method for automatic dialing access point according to claim 3, wherein the APN information is stored in the SIM card according to a combination sequence of the information in the SIM card, or is stored in the client software.
5. The method for automatic dialing access point according to claim 1, further comprising:
if the dialing succeeds, starting a browser.
6. An apparatus for automatic dialing access point, com
prising:
Apr. 17, 2014
a ?rst dialing unit, con?gured to detect APN information corresponding to information in a SIM card, and per form automatic dialing according to the detected APN information corresponding to the information in the SIM
card;
a second dialing unit, con?gured to detect APN informa tion corresponding to preset board software, and per form automatic dialing according to the detected APN information corresponding to the preset board software; a third dialing unit, con?gured to perform automatic dial
ing according to APN information preset in client soft ware; and
a control unit, con?gured to trigger any one of the ?rst
dialing unit, the second dialing unit, and the third dialing
unit, trigger any one of the other two units when the unit fails in dialing, and when the dialing unit also fails in
dialing, trigger the rest dialing unit.
7. The apparatus for automatic dialing access point accord ing to claim 6, wherein the ?rst dialing unit comprises:
an acquiring module, con?gured to acquire an MCC or MNC in the SIM card; a detecting module, con?gured to detect APN information corresponding to the MCC or MNC according to the acquired MCC or MNC; and a
dialing module, con?gured to perform automatic dialing
according to the detected APN information correspond ing to the MCC or MNC in the SIM card, wherein the acquiring module is further con?gured to acquire a GID
value in the SIM card; the detecting module is further con?gured to detect APN information corresponding to the GID value according to the acquired GID value; and the dialing module is further con?gured to perform auto matic dialing according to the detectedAPN information corresponding to the GID value in the SIM card; and the acquiring module is further con?gured to acquire a
network standard with which the SIM card is registered; the detecting module is further con?gured to detect APN information corresponding to the network standard according to the acquired network standard; and the dialing module is further con?gured to perform auto matic dialing according to the detectedAPN information corresponding to the network standard with which the SIM card is registered; and
a control module, con?gured to control the acquiring mod ule to acquire any one of three types of information comprising the MCC or MNC in the SIM card, the GID in the SIM card, and the network standard with which the SIM card is registered, when the dialing module fails in dialing, trigger the acquiring module to acquire any one of the other two types of information, and when the
dialing module fails in dialing again, trigger the acquir
ing module to acquire the rest one type of information. 8. The apparatus for automatic dialing access point accord ing to claim 7, wherein the APN information is stored in the SIM card according to a combination sequence of the infor mation in the SIM card, or is stored in the client software.
9. The apparatus for automatic dialing access point accord ing to claim 6, further comprising:
a login unit, con?gured to start a browser if the dialing succeeds.
10. An apparatus for automatic dialing access point, com
prising:
a memory for storing computer executable instructions; a processor con?gured to execute the computer executable
US 2014/0105199 A1
perform automatic dialing in the following three manners in any sequence, until the dialing succeeds or the dialing still fails after the three manners are all used:
detect access point APN information corresponding to information in a subscriber identity module SIM card, and perform automatic dialing according to the detected APN information corresponding to the information in the SIM card;
detect APN information corresponding to preset board
software, and perform automatic dialing according to
the detected APN information corresponding to the pre set board software; and
perform automatic dialing according to APN information preset in client software.
11. The apparatus according to claim 10, wherein the infor mation in the SIM card comprises: a mobile country code MCC/mobile network code MNC, a group identi?cation GID value, and a network standard with which the SIM card is
registered.
12. The apparatus according to claim 11, wherein the pro cessor is con?gured to detect APN information correspond ing to information in a SIM card, and perform automatic dialing according to the detected APN information corre sponding to the information in the SIM card by:
performing automatic dialing in the following three man ners in any sequence, until the dialing succeeds or the dialing still fails after the three manners are all used: acquiring the MCC or MNC in the SIM card; detecting
APN information corresponding to the MCC or MNC according to the acquired MCC or MNC; and perform ing automatic dialing according to the detected APN information corresponding to the MCC or MNC in the SIM card;
Apr. 17, 2014
acquiring the GID value in the SIM card; detecting APN information corresponding to the GID value according to the acquired GID value; and performing automatic dialing according to the detected APN information cor responding to the GID value in the SIM card; and acquiring the network standard with which the SIM card is
registered; detecting APN
information corresponding to
the network standard according to the acquired network
standard; and performing automatic dialing according to
the detected APN information corresponding to the net work standard with which the SIM card is registered. 13. The apparatus according to claim 12, wherein the APN information is stored in the SIM card according to a combi nation sequence of the information in the SIM card, or is stored in the client software.
14. The apparatus according to claim 10, wherein the pro cessor is further con?gured to:
if the dialing succeeds, start a browser.
15. A method for automatic dialing access point, compris
ing:
detecting access point APN information corresponding to information in a subscriber identity module SIM card, and performing automatic dialing according to the detected APN information corresponding to the infor mation in the SIM card;
detecting APN information corresponding to preset board
software, andperforming automatic dialing according to
the detected APN information corresponding to the pre set board software; and
performing automatic dialing according to APN informa tion preset in client software.
