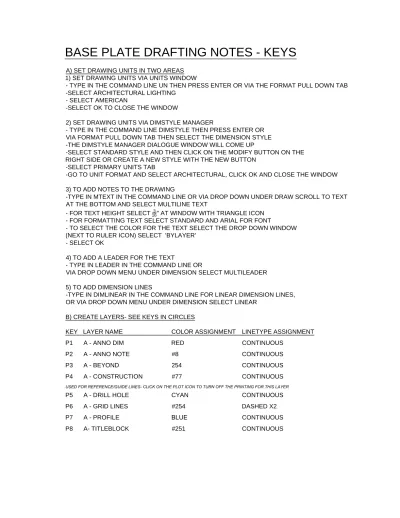

BASE PLATE DRAFTING NOTES - KEYS

(1)

BASE PLATE DRAFTING NOTES - KEYS

A) SET DRAWING UNITS IN TWO AREAS 1) SET DRAWING UNITS VIA UNITS WINDOW

- TYPE IN THE COMMAND LINE UN THEN PRESS ENTER OR VIA THE FORMAT PULL DOWN TAB -SELECT ARCHITECTURAL LIGHTING

- SELECT AMERICAN

-SELECT OK TO CLOSE THE WINDOW

2) SET DRAWING UNITS VIA DIMSTYLE MANAGER

- TYPE IN THE COMMAND LINE DIMSTYLE THEN PRESS ENTER OR VIA FORMAT PULL DOWN TAB THEN SELECT THE DIMENSION STYLE -THE DIMSTYLE MANAGER DIALOGUE WINDOW WILL COME UP

-SELECT STANDARD STYLE AND THEN CLICK ON THE MODIFY BUTTON ON THE RIGHT SIDE OR CREATE A NEW STYLE WITH THE NEW BUTTON

-SELECT PRIMARY UNITS TAB

-GO TO UNIT FORMAT AND SELECT ARCHITECTURAL, CLICK OK AND CLOSE THE WINDOW 3) TO ADD NOTES TO THE DRAWING

-TYPE IN MTEXT IN THE COMMAND LINE OR VIA DROP DOWN UNDER DRAW SCROLL TO TEXT AT THE BOTTOM AND SELECT MULTILINE TEXT

- FOR TEXT HEIGHT SELECT ₁₆³" AT WINDOW WITH TRIANGLE ICON - FOR FORMATTING TEXT SELECT STANDARD AND ARIAL FOR FONT

- TO SELECT THE COLOR FOR THE TEXT SELECT THE DROP DOWN WINDOW (NEXT TO RULER ICON) SELECT 'BYLAYER'

- SELECT OK

4) TO ADD A LEADER FOR THE TEXT

- TYPE IN LEADER IN THE COMMAND LINE OR

VIA DROP DOWN MENU UNDER DIMENSION SELECT MULTILEADER 5) TO ADD DIMENSION LINES

-TYPE IN DIMLINEAR IN THE COMMAND LINE FOR LINEAR DIMENSION LINES, OR VIA DROP DOWN MENU UNDER DIMENSION SELECT LINEAR

B) CREATE LAYERS- SEE KEYS IN CIRCLES

KEY LAYER NAME COLOR ASSIGNMENT LINETYPE ASSIGNMENT

P1 A - ANNO DIM RED CONTINUOUS

P2 A - ANNO NOTE #8 CONTINUOUS

P3 A - BEYOND 254 CONTINUOUS

P4 A - CONSTRUCTION #77 CONTINUOUS

USED FOR REFERENCE/GUIDE LINES- CLICK ON THE PLOT ICON TO TURN OFF THE PRINTING FOR THIS LAYER

P5 A - DRILL HOLE CYAN CONTINUOUS

P6 A - GRID LINES #254 DASHED X2

P7 A - PROFILE BLUE CONTINUOUS

P8 A- TITLEBLOCK #251 CONTINUOUS

(2)

BASE PLATE PLAN

43

4"

61 4"

4"

.75" DIA

.50" DIA

.25" DIA

.38" FILLET 11 4" 2"11 2"3 4"

31 2" 51 2"

1 2"

2"

SECTION

PROJECT: BASE PLATE STUDENT NAME:

SCALE:

DATE:

1

NOTE:

THIS DRAWING IS SHOWN IN COLOR TO INDICATE THE LAYER COLOR.

TYPICALLY THE DRAWINGS ARE PRINTED IN BLACK AND WHITE OR GRAYSCALE.

NORMALLY THE CONSTRUCTION LINES PRINTING WILL BE TURNED OFF AND WILL NOT PRINT. THE LINES ARE SHOWN HERE TO INDICATE HOW THE GUIDES ARE USED

P7

P6 P1 P5

P3

P6 P7

P8 P4

P8

(3)

SPROCKET DRAFTING NOTES - KEYS

- TYPE IN THE COMMAND LINE UN THEN PRESS ENTER OR SELECT UNITS VIA THE FORMAT PULL DOWN TAB

-SELECT ARCHITECTURAL LIGHTING - SELECT AMERICAN

- SELECT OK

P1 A - ANNO DIM RED CONTINUOUS

P2 A - ANNO NOTE #8 CONTINUOUS

P3 A - CONSTRUCTION #77 CONTINUOUS

P4 A - DRILL HOLE CYAN CONTINUOUS

P5 A - GRID LINES #254 DASHED X2

P6 A - INNER SPROCKET BLUE CONTINUOUS

P7 A - OUTER SPROCKET #80 CONTINUOUS

P8 A- TITLEBLOCK #251 CONTINUOUS

(4)

.75 DIA DRILLED HOLE

3 8"

12.25" DIAMETER CIRCLE 11.25" DIAMETER CIRCLE

1

2"

7.44" DIAMETER CIRCLE

3.25" DIAMETER CIRCLE

SPROCKET PLAN

PROJECT: SPROCKET PLAN STUDENT NAME:

SCALE: NTS

DATE:

1 P1 P5 P7

P4 P6

P2 3.25" DIAMETER CIRCLE

P8 P3

NOTE:

TYPICALLY THE DRAWINGS ARE PRINTED IN BLACK AND WHITE OR GRAYSCALE.

P8

(5)

GAZEBO DRAFTING NOTES - KEYS

- SELECT OK

1 A - CONSTRUCTION #77 CONTINUOUS

2 A - GRID LINES #185 DASHED X2

3 A ELEV 0 # 254 CONTINUOUS

4 A ELEV 1 RED CONTINUOUS

5 A ELEV 2 GREEN CONTINUOUS

6 A ELEV 3 MAGENTA CONTINUOUS

7 A ELEV 4 CYAN CONTINUOUS

8 A ELEV 5 BLUE CONTINUOUS

9 A ELEV ANNO DIM RED CONTINUOUS

10 A ELEV ANNO NOTE #8 CONTINUOUS

11 A PLAN CONCRETE BASE CYAN COLOR CONTINUOUS 12 A PLAN MEMBER LOWER MAGENTA CONTINUOUS 13 A PLAN MEMBER UPPER GREEN CONTINUOUS

14 A PLAN ANNO DIM RED CONTINUOUS

15 A PLAN ANNO NOTE #254 CONTINUOUS

16 A- TITLEBLOCK #251 CONTINUOUS

(6)

GAZEBO ROOF FRAMING PLAN

4" THICK CONCRETE SLAB 6'-4" RADI POLYGON

2X4 NOMINAL FRAMING

GAZEBO FRONT ELEVATION

4"4"2'-2" 3'-2"

2"3'-10"10"4"2" 4' 2"

6"

2"

6"

2"

6"

2"

6"

2"

6"

2"

6"

2"

2'-4"

6" RADI POLYGON 2'-0" RADI POLYGON

6'-0" RADI POLYGON

2X4 NOMINAL FRAMING TYPICAL

12'-8"

5'-2"

12'-8"

6"

2"

6"

2" 2"

6" 6"

2"

6"

2"

6"

2"

6"

2"

11

PROJECT: GAZEBO PLAN AND ELEVATION STUDENT NAME:

SCALE: NTS

DATE:

1

13

2 12 14

1

16

15

8 5

6

9 7

10

NOTE:

TYPICALLY THE DRAWINGS ARE PRINTED IN BLACK AND WHITE OR

GRAYSCALE.

16

2"

8'-4"

6 4

(7)

APARTMENT FLOOR PLAN DRAFTING NOTES - KEYS

- SELECT OK

1 A PLAN ANNO DIM 9 CONTINUOUS

2 A PLAN ANNO ROOM NAME CYAN CONTINUOUS

3 A PLAN APPLIANCE 254 CONTINUOUS

4 A PLAN BACKSPLASH 9 CONTINUOUS

5 A PLAN DOOR 252 CONTINUOUS

6 A PLAN DOOR SADDLE 253 CONTINUOUS

7 A PLAN DOOR SWING RED DASHED X2

8 A PLAN GRID LINES 165 DASHED X2

9 A PLAN MILLWORK RED CONTINUOUS

10 A PLAN MILLWORK HIDDEN 8 DASHED X2

11 A PLAN PFIX RED CONTINUOUS

12 A PLAN WALL EXTERIOR CYAN CONTINUOUS 13 A PLAN WALL INTERIOR BLUE CONTINUOUS 14 A PLAN WINDOW FRAME GREEN CONTINUOUS

15 A PLAN WINDOW GLAZING 8 CONTINUOUS

16 A PLAN WINDOW SILL RED CONTINUOUS

17 A TITLE BLOCK RED CONTINUOUS

(8)

BEDROOMLIVINGROOM

KITCHEN BATH

ENTRY

PROJECT: APARTMENT OVERALL PLAN

STUDENT NAME: SCALE:18 "=1'-0"

DATE:

1

12'5"12'8"1'12'5"12'1'10'-10"

1' 62'-4"

25'

1' 1' 22'-4"

8"

7' 25'

8"

1'

4'-812"

1'

19'-312"

6'-1014"

10"

7'-6"

3'-1114"

EQ8"EQ

8"3'

57'

1' 9' 24'

1'

51'-6"

1'

(9)

PROJECT: DETAILED DIMENSION PLAN STUDENT NAME:

SCALE: ¹₄"=1'-0"

DATE:

1 BEDROOM LIVING

ROOM

KITCHEN

12'-0" 12'-0"

16'-11" 5" 6'-0"

8'-0"

5'-6" 5" 14'-10"

12'-0"

24'-5"

8"

7'-0 7 16 " 23'-4"

7'-7" 4'-0"

2'-6"

5"

BATH

ENTRY

2'-1"

12 16

13 1 2

3 4

5 7

6

8 9 11 14

15

17

10

8'-7" 2'-8" 4'-1" 7'-11 9 16 "

1114" 6'-0"

1'-1"

2'-8"

2'-9"

8" 2'-8"

8" 3'-0"

3'-0" 6'-0" 3'-0" 3'-0" 6'-0" 3'-0"

512" 1'-0" 1'-0"

3'-2" 1'-3" 1'-3" 2'-4"

WC

TUB LAVATORY

REF RANGE

SINK

3'-11" 2'-1"

4'-0"

2'-6"

1'-11"

8'-3"

8"

8" 8"

5" 5"

(10)

NOZZLE DRAFTING NOTES - KEYS

- SELECT OK

1 A ANNO DIM RED CONTINUOUS

2 A ANNO NOTE RED CONTINUOUS

3 A BEYOND #253 CONTINUOUS

4 A CONSTRUCTION #77 CONTINUOUS

5 A DRILL HOLES RED CONTINUOUS

6 A GRID LINES #185 DASHED X2

7 A HATCH 254 CONTINUOUS

8 A KEYS #60 CONTINUOUS

9 A PLATE INNER MAGENTA CONTINUOUS

10 A PLATE INTERMEDIATE #253 CONTINUOUS

11 A PLATE OUTER GREEN CONTINUOUS

12 A SECTION PROFILE CYAN CONTINUOUS

13 A TITLEBLOCK #251 CONTINUOUS

(11)

21 2"

11

2" 1

2"

1 2"

34 "

1"

78 "

3 16"

1 4"

1 14 "

1 15

16 "

38 "

11 2"

11 16"

7 16"

1 8"

1 1 2 "

34 "

1 1 8 "

13 8"

1 4"1

8" 1

8"

1 4"

1 8"

7 16"

3 16"

11

16"

NOZZLE PLAN NOZZLE SECTION

2 12 "

1 38 "916 " 916 "

1116 "1516 "1516 "

DATE: PROJECT: NOZLE PLAN, SECTION AND ISOMETRIC

STUDENT NAME: SCALE: 1 3 8 "

1 78 " 116 " 111

2 9105712 3

64

13

ISOMETRIC

14" DIA. DRILLED HOLE³⁸" DIA. DRILLED HOLE¹¹¹⁶" DIA. DRILLED HOLE1 16" DIA. DRILLED HOLE

1 38" DIA. DRILLED HOLE

2 12" DIA. DRILLED HOLE 38 " R 116" 60 DEGREE 45 DEGREE
