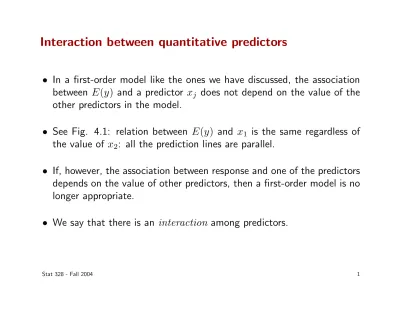

Interaction between quantitative predictors
• In a first-order model like the ones we have discussed, the association between E(y) and a predictor xj does not depend on the value of the other predictors in the model.
• See Fig. 4.1: relation between E(y) and x1 is the same regardless of the value of x2: all the prediction lines are parallel.
• If, however, the association between response and one of the predictors depends on the value of other predictors, then a first-order model is no longer appropriate.
• We say that there is an interaction among predictors.
Interaction (cont’d)
• Example: a company wishes to estimate the association between sales of a beauty product (y) and two potential predictors of sales in each of n markets:
– $ spent on daytime TV ads in ith market (x1) and
– average number of years of education of females in ith market.
• Intuitively, this is what we would expect:
– Advertisement expenses will tend to increase sales (up to a point).
– In cities where women are highly educated (on the average), less of them will be watching TV during the day.
– The effect of $ in ads on sales may then also depend on education of potential consumers.
Interaction (cont’d)
• A figure to represent the association between ads and sales for different levels of education will be drawn in class.
• How do we include an interaction term in the model?
• With k = 2 predictors:
yi = β0 + β1x1i + β2x2i + β3x1ix2i + i,
where the assumptions about the model are the same as before.
• An interaction between two predictors is a second-order term in the model.
Interaction (cont’d)
• In sales example, we would expect that β3 < 0: as education increases (and more women are out working), the strength of the association between daytime TV ads on sales decreases. In other words, daytime ads are expected to be more effective in markets where more women are at home watching TV during the day than in markets where most women are not watching TV.
• In general, with k predictors, we can include pairwise interactions between any two, as appropriate.
• Higher order interactions (e.g. xjxlxt denoting the three-way interaction between the jth, lth and tth predictors) can also be included in the model, but are much harder to interpret from a subject matter point of view.
Interaction (cont’d)
• When predictors interact, the interpretation of all the β’s changes.
• If the model is
yi = β0 + β1x1i + β2x2i + β3x1ix2i + i, – β0 is still interpreted as before.
– (β1 + β3x2) is change in E(y) when x1 increases by one unit and x2 is held fixed.
– (β2 + β3x1) is change in E(y) when x2 increases by one unit and x1 is held fixed.
• Association between E(y) and x1 depends on level of x2, unless β3 = 0, in which case interaction does not exist.
Interaction (cont’d)
• In sales example, suppose we find that: b0 = 5, b1 = 3, b2 = 0.5, b3 =
−0.2. Interpretation?
– Number of units sold can be expected to change by 3 − 0.2x2 when ad expenses increase by $1 given education.
– Number of units sold can be expected to change by 0.5 − 0.2x1 when education of potential customers increases by one year, given ad expenditures.
• In a market with 12 years of average education, we expect that sales will increase by 3-0.2(12) = 0.6 units if ad expenditures increase by $1.
• In a market with average education equal to 8 years, an additional $1 spent on daytime ads would be associated to an increase of about 1.4 units in expected sales.
Interaction (cont’d)
• How do we draw inferences in models with interaction terms?
• Steps would be the same as in any multiple regression model:
1. Do a global F test of the utility of the model. The null hypothesis in this case is
H0 : β1 = β2 = ... = βk = 0,
tested against the alternative that says that at least one of the β’s is different from 0.
2. If F test leads to rejection of H0, then do a t test on each of the β’s associated to interaction terms.
3. If interaction between xj and xk is significant, do not test hypothesis for βj and βk; if the interaction is important, the individual x’s must be important too (some statisticians would argue different here).
Second order model with quadratic predictors
• Sometimes, the association between E(y) and xj is not linear but quadratic.
• A second order model with one predictor is:
yi = β0 + β1x1i + β2x21i + i.
• If β2 > 0: association is concave upwards (bowl shape).
• If β2 < 0: concave downwards (mound shape).
• β2 is known as a rate of curvature parameter.
Quadratic predictors - Example
• Example 4.6, page 198.
• Data: y is immunoglobin in blood (indicator of immunity, in mgrs) and x is maximum oxygen uptake (indicator of fitness, in ml/kg) measured on 30 individuals.
• Range: x ∈ (32, 70).
• See scatter plot of data.
• Model:
yi = β0 + β1xi + β2x2i + i, with usual assumptions.
Quadratic predictors - Example
• Results: b0 = −1, 464, b1 = 88.3 and b2 = −0.54, so that the prediction equation is
ˆ
y = −1, 464 + 88.3x − 0.54x2.
• R2a = 0.93 so about 93% of the variability observed in immunoglobin can be associated to fitness.
• Interpretation of coefficients:
– The intercept is meaningless. Cannot have negative immunoglobin.
– b1 no longer has a simple interpretation. It is NOT the expected change in y when x increases by one.
– The quadratic term b2 is negative: response curves downwards as x increases.
Quadratic predictors - Example
• Be cautious with extrapolations! See Fig. 4.16. Concavity of response implies that for large enough x the E(y) will begin to decrease.
• This makes no sense from a physiology point of view.
• Nonsensical predictions may occur if the model is used outside of the range of the data!
Quadratic predictors - Example
• First test of hypotheses is F -test for entire model. We test:
H0 : β1 = β2 = 0, against Ha : at least one of the two 6= 0.
• In this example, F = 203.16 which we know will be larger than the critical value even without looking at the table.
• We reject H0: maximal oxygen uptake contributes information about immunoglobin levels in the blood.
• Next step is to decide whether curvature is important or not.
Quadratic predictors - Example
• We now test for significance of the quadratic effect: H0 : β2 = 0 against Ha : β2 6= 0 (or we can do a one-tailed test too).
• t−statistic is t = b2/ˆσb2 = −0.536/0.158 = −3.39 which we compare to a table value with α/2 = 0.025 and n − 3 degrees of freedom. We reject H0.
• Interpretation: There is strong evidence that immunoglobin levels increase more slowly per unit increase in maximal oxygen uptake in individuals with high aerobic fitness than in those with low aerobic fitness.
• If we had failed to reject H0 : β2 = 0, we would conclude that the association between y and x is linear.
Estimation and prediction
• Same concepts as before. With the model we might wish to:
1. Estimate the expected mean value of the response at a certain value of the predictor(s).
2. Predict a single response for some value of the predictor.
• In both cases, the point estimator (predictor) is ˆy = b0 + b1xp + b2x2p for x = xp.
• The standard error of ˆy depends on whether we predict a mean or a single value.
• As before, ˆσ(y−ˆy) > ˆσyˆ.
• Calculations are complex, so we use the computer to get these standard errors and CIs.
Estimation and prediction
• In example, suppose we wish to obtain
1. The expected mean immunoglobin levels for people with oxygen uptake of xp = 40 ml/kg.
2. The expected immunoglobin level for a person with xp = 40 ml/kg.
• In both cases, point estimator is ˆ
y = −1, 464.4 + 88.3(40) − 0.536(40)2 = 1, 209.9.
• JMP and SAS will give the (1 − α)% CI for the mean or for a single prediction.
Estimation and prediction
• From CI we can derive ˆσyˆ or ˆσ(y−ˆy) recalling that
(1 − α)% Lower bound of CI = ˆy − tα/2,n−k−1 std error.
Then
Std error = y − Lower boundˆ tα/2,n−k−1 .
• We can also derive the std errors using the upper bound of the CI as follows:
Std error = Upper bound − ˆy tα/2,n−k−1 .
Estimation and prediction
• In example, the 95% CI for the mean immunoglobin at x = 40 ml/kg is (1, 156.2, 1, 263.6). Then:
ˆ
σyˆ = 1, 209.9 − 1, 156.2
2.052 = 26.17.
• Also, since the 95% CI for a single response is (985, 1, 434.8):
ˆ
σ(y−ˆy) = 1, 209.9 − 985.0
2.052 = 112.45.
More complex models: interaction + curvature
• Consider the following complete second-order model with two predictors:
y = β0 + β1x1 + β2x2 + β3x1x2 + β4x21 + β5x22 + .
See Fig. 4.19.
• A complete second order model with three predictors includes 3 first- order terms, 3 squared terms, 3 two-way interactions, and 1 three-way interaction.
• The number of terms in complete models gets out of hand fast.
Samples often not large enough to fit all possible terms.
• Use subject-matter knowledge to decide which terms to include.
More complex models: Example
• Example 4.7, page 213: Study to determine whether weight of package (x1) and distance delivered (x2) are associated to shipping costs (y) in a small regional express delivery service.
• See scatter plots.
• Complete second-order model fitted with JMP. Data ”‘Express”’ on class web site.
• Results: See output.
More complex models: Example
• Interpretation of results:
– Since RMSE = 0.44, about 95% of shipping costs will fall within
$0.89 of their predicted values.
– R2a = 0.99: almost all of the variability in shipping costs can be explained by the model.
– F −statistic = 458.39 on 5 and 14 df. Highly significant, model is useful.
– Weight is associated to cost both linearly and quadratically. Distance only linearly.
– Interaction between weight and cost is positive: effect of weight on cost is not independent of distance.
