3 KRONE s 25-Pair FT Block is the perfect replacement

(1)

Feed-Thru System

3

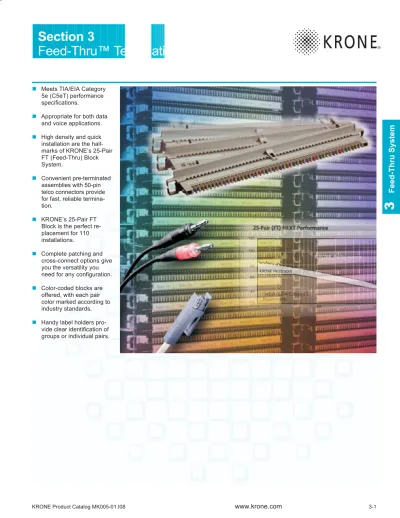

Section 3 Feed-Thru™ Termination Block System

Meets TIA/EIA Category 5e (C5eT) performance specifications.

Appropriate for both data and voice applications.

High density and quick installation are the hall-marks of KRONE’s 25-Pair FT (Feed-Thru) Block System.

Convenient pre-terminated assemblies with 50-pin telco connectors provide for fast, reliable termina-tion.

KRONE’s 25-Pair FT

Block is the perfect re-placement for 110 installations.

Complete patching and cross-connect options give you the versatility you need for any configuration.

Color-coded blocks are offered, with each pair color marked according to industry standards.

Handy label holders pro-vide clear identification of groups or individual pairs.

(2)

Description KRONE No.

Feed-Thru System

3 FT (Feed-Thru)

Wire Termination Blocks

6631 2 135-05 Pack Qty: 1 6631 2 135-06 Pack Qty: 1 6631 2 135-00 Pack Qty: 1

25-Pair FT Block, 4-Pair Color Coded

This FT (Feed-Thru) Block allows high-density termination in a small area. The FT Block is a two-piece assembly, con-sisting of a base and a connector. Includes 4-pair color code marked on the face of the block.

It is used for terminating 4-pair station cables. Each block terminates six 4-pair cables.

Dimensions 1"H x 83/4_{"W x 1}7/8_"D

(25.4mmH x 225.3mmW x 47.6mmD)

Same as above, but with 5-pair color code (orange, blue, green, brown and slate) marked on the face of the block. It is used for terminating 25-pair cable.

25-Pair FT Block, 5-Pair Coded

Same as above, but with color-coding marked in white every fifth pair.

It may be used for terminating riser cables or with PBX systems. Each block terminates 25 pairs.

(25.4mmH x 225.3mmW x 47.6mmD)

3. Flip and snap into place.

2. Move base unit from bot-tom to top.

1. Terminate cables.

TM TM

(3)

Feed-Thru System

3

TIPS

Tech

When installing 25-Pair FT Blocks, it is easier to lace the wire from bottom to top, then terminate the field from top to bottom, followed by flipping all blocks in that field.

FT (Feed-Thru)

Field Assembly Kits

KRONE’s Universal Mounting System provides modularity and three mounting options:

Wall mount as is.

Wall mount with optional UMS Backboard (for greater cabling depth).

Rack mount with UMS Backboard. Includes a Universal Mounting Bracket, two Horizontal Wire Managers and your choice of 4-pair color-coded or 5-pair coded FT Blocks. Route cable from the top, bottom or rear. 4-pair color-coded blocks are marked with TIA color codes in 4-pair groups. 5-pair coded blocks are marked with a white stripe on every fifth pair.

Order labeling accessories, such as label holders and paper labels, separately.

100-Pair 4-Pair Color Coded Kit

Includes four 25-Pair FT Blocks with 4-pair color-coding, two Horizontal Wire Managers and one Universal Mounting Bracket. This kit terminates twenty-four 4-pair station cables.

Add Hinged Label Holders for identifi-cation of stations or pairs.

Dimensions 143/4_{"H x 10}3/4_{"W x 5}1/4_"D

(374.7mmH x 273.1mmW x 133.4mmD)

100-Pair 5-Pair Coded Kit

Same as above, but with 5-pair code marked on the face of the block.

300-Pair 4-Pair Color Coded Kit

Includes twelve 25-Pair FT Blocks with 4-pair color-coding, two Horizontal Wire Managers and one Universal Mounting Bracket. This kit terminates seventy-two 4-pair station cables.

Add Hinged Label Holders for identifi-cation of stations or pairs.

Dimensions 143/4_{"H x 10}3/4_{"W x 5}1/4_"D

(374.7mmH x 273.1mmW x 133.4mmD)

300-Pair 5-Pair Coded Kit

Same as above, but with 5-pair code marked on the face of the block.

6642 1 115-04 Pack Qty: 1 6642 1 115-05 Pack Qty: 1 6642 1 315-04 Pack Qty: 1 6642 1 315-05 Pack Qty: 1

(4)

Feed-Thru System

3

Category 5e (C5eT) FT Patch Cords

These Feed-Thru Patch Cords use KRONE Category 5e cable, which ex-ceeds the requirements for Category 5e.

KRONE’s Patch Cords are available in six colors and in standard lengths of 4, 7, 10, 15, 25 and 50 feet.

FT Plug to FT Plug

These 4-Pair FT Patch Cords are wired straight through. White Cable Red Cable Blue Cable Green Cable Yellow Cable Gray Cable

FT Plug to RJ45 Plug, T568A

These 4-Pair FT Plug to RJ45 (8P8C) Plug Patch Cords are wired T568A. White Cable Red Cable Blue Cable Green Cable Yellow Cable Gray Cable FT Plug to RJ45 Plug, T568B

These 4-Pair FT Plug to RJ45 (8P8C) Plug Patch Cords are wired T568B. White Cable Red Cable Blue Cable Green Cable Yellow Cable Gray Cable TP5ETF-WTXX TP5ETF-RDXX TP5ETF-BLXX TP5ETF-GRXX TP5ETF-YLXX TP5ETF-GYXX Pack Qty: 1 TP5ETB0WTXX TP5ETB0RDXX TP5ETB0BLXX TP5ETB0GRXX TP5ETB0YLXX TP5ETB0GYXX Pack Qty: 1 TP5ETB-WTXX TP5ETB-RDXX TP5ETB-BLXX TP5ETB-GRXX TP5ETB-YLXX TP5ETB-GYXX Pack Qty: 1

Selecting Cable Lengths for Patch Cords

Insert the number of the length required at the end of the part number in place of the XX: 04 = four feet 07 = seven feet 10 = ten feet 15 = fifteen feet 25 = twenty-five feet

50 = fifty feet

TIPS

Tech

When inserting an FT Plug into an FT Block, be sure that the KRONE name is on the top and the clip is on the bottom.

TM

Patch Cords

TrueNet™ Category 5e (C5eT) Cords for Feed-Thru Blocks

R T R T R T R T Wired to Pin # 8 7 6 3 2 1 4 5 Pair No. Pair 4 Pair 3 Pair 2 Pair 1 R T R T R T R T Wired to Pin # 8 7 2 1 6 3 4 5 Pair No. Pair 4 Pair 3 Pair 2 Pair 1 R T R T R T R T Pair No. Pair 4 Pair 3 Pair 2 Pair 1

(5)

Feed-Thru System

3

Category 5e FT (Feed-Thru) Patch Cords

These Feed-Thru Patch Cords Category 5e cable and exceed the requirements for Category 5e.

KRONE Patch Cords are available in three colors and in standard lengths of 4, 7, 10, 15, 25 and 50 feet.

FT Plug to FT Plug, 1 Pair

These 1-Pair FT Plug Patch Cords are wired straight through.

White Cable Red Cable Blue Cable

FT Plug to FT Plug, 2 Pair

These 2-Pair FT Plug Patch Cords are wired straight through.

White Cable Red Cable Blue Cable

Selecting Cable Lengths for Patch Cords

Insert the number of the length required at the end of the part number in place of the XX: 04 = four feet 07 = seven feet 10 = ten feet 15 = fifteen feet 25 = twenty-five feet 50 = fifty feet

5 e

TIPS

Tech

Before ordering patch cords, check the transmit and receive orientation of your hub and network interface card. Some manufacturers require a crossover of T&R conductors; others have either the hub port or NIC card reversed in advance. Some can switch between the two. Call Tech Support at (800) 775-5766 for crossover cable part numbers.

Patch Cords

Category 5e (C5eT) Cords for Feed-Thru Blocks

Pair No. Pair 1 R_T Pair No. Pair 2 Pair 1 R T R T 6645 2 251-XX 6645 2 264-XX 6645 2 265-XX Pack Qty: 1 6645 2 266-XX 6645 2 267-XX 6645 2 268-XX Pack Qty: 1

(6)

Feed-Thru System

3

25-Pair FT Test Shoe

For use with 25-Pair FT (Feed-Thru) Blocks, this Test Shoe can be used to quickly test all 25 pairs at once.

This Test Shoe provides the required spacing for FT Blocks, 25-pair at a time.

It has a 50-pin female connector with hook and loop fastener lock, and fits a variety of test equipment.

(25.4mmH x 225.3mmW x 47.6mmD)

FT Test Cord,

1-Pair with Two Banana Plugs

1-Pair KRONE FT connector to two banana plugs, one-foot length. This test cord may be used to bridge or monitor the circuit. Two banana plugs are pro-vided for connecting to test equipment.

Type 160 Hinged Label Holders

Type 160 label holders are used on the 25-Pair FT Blocks to identify cable groups or individual pairs.

Folds out of the way when punching down wires.

Can be used for 1- to 25-pair configurations.

Label Sheets

for Type 160 Hinged Label Holder

Each 81/2_{" x 11" sheet contains 34}

perforated labels.

The lined label sheet is printed to mark pair groups. The other label sheets contain no additional markings.

Lined Label Sheet, Blue and White

One side is blue and marked in 4-pair increments. The backside is white and marked in 5-pair increments.

Gray/Brown Label Sheet Yellow/Red Label Sheet Orange Label Sheet Purple Label Sheet Blue Label Sheet Green Label Sheet

6631 2 050-00 Pack Qty: 1 6645 2 254-01 Pack Qty: 1 6631 2 003-00 Pack Qty: 1 6631 3 100-26 Pack Qty: 1 6631 3 100-22 6631 3 100-23 6631 3 100-27 6631 3 100-28 6631 3 100-29 6631 3 100-30 Pack Qty: 1

Front (Blue) Back (White)

Type 160 Hinged Label Holder

Label Sheets for Type 160/Hinged (Other Colors)

TIPS

Tech

You can now use your Brady LabelMark software

to print on KRONE’s 81/2_{" x 11" label sheets.}

KRONE has templates available to get you started. The templates can be downloaded from www.kroneamericas.com/Support/templates.cfm.

25-Pair FT Test Shoe

FT Test Cord

Labeling and Accessories

For examples of TIA/EIA color coding, refer to the chart on page 2-12.
