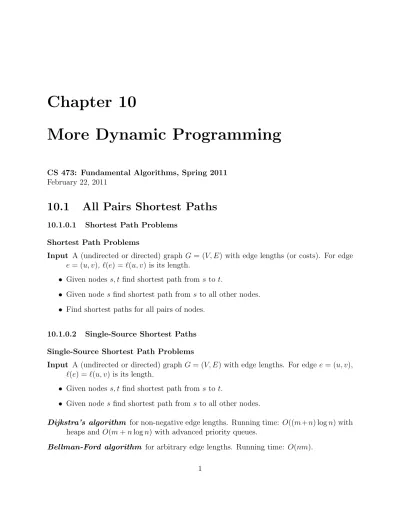

Chapter 10
More Dynamic Programming
CS 473: Fundamental Algorithms, Spring 2011 February 22, 2011
10.1 All Pairs Shortest Paths
10.1.0.1 Shortest Path Problems Shortest Path Problems
Input A (undirected or directed) graph G = (V, E) with edge lengths (or costs). For edge e = (u, v), `(e) = `(u, v) is its length.
• Given nodes s, t find shortest path from s to t.
• Given node s find shortest path from s to all other nodes.
• Find shortest paths for all pairs of nodes.
10.1.0.2 Single-Source Shortest Paths Single-Source Shortest Path Problems
Input A (undirected or directed) graph G = (V, E) with edge lengths. For edge e = (u, v),
`(e) = `(u, v) is its length.
• Given nodes s, t find shortest path from s to t.
• Given node s find shortest path from s to all other nodes.
Dijkstra’s algorithm for non-negative edge lengths. Running time: O((m+n) log n) with heaps and O(m + n log n) with advanced priority queues.
Bellman-Ford algorithm for arbitrary edge lengths. Running time: O(nm).
10.1.0.3 All-Pairs Shortest Paths All-Pairs Shortest Path Problem
Input A (undirected or directed) graph G = (V, E) with edge lengths. For edge e = (u, v),
`(e) = `(u, v) is its length.
• Find shortest paths for all pairs of nodes.
Apply single-source algorithms n times, once for each vertex.
• Non-negative lengths. O(nm log n) with heaps and O(nm + n2logn) using advanced priority queues.
• Arbitrary edge lengths: O(n2m). Can we do better?
10.1.0.4 Shortest Paths and Recursion
• Can we compute the shortest path distance from s to t recursively?
• What are the smaller sub-problems?
Lemma 10.1.1 Let G be a directed graph with arbitrary edge lengths. If s = v0 → v1 → v2 → . . . → vk is a shortest path from s to vk then for 1≤ i < k:
• s = v0 → v1 → v2 → . . . → vi is a shortest path from s to vi
Sub-problem idea: paths of fewer hops/edges
10.1.0.5 Hop-based Recur’: Single-Source Shortest Paths Single-source problem: fix source s.
OP T (v, k): shortest path distance from s to v using at most k edges.
Note: dist(s, v) = OP T (v, n− 1) Recursion for OP T (v, k):
OP T (v, k) = min
u∈V(OP T (u, k− 1) + c(u, v)).
Base case: OP T (v, 1) = c(s, v) if (s, v)∈ E otherwise ∞ Leads to Bellman-Ford algorithm — see text book.
OP T (v, k) values are also of independent interest: shortest paths with at most k hops
10.1.0.6 All-Pairs: recursion on index of intermediate nodes
• Number vertices arbitrarily as v1, v2, . . . , vn
• dist(i, j, k): shortest path distance between vi and vj among all paths in which the largest index of an intermediate node is at most k
i j
1
2 4 3
1
100 1
1 510 2
dist(i, j, 0) = 100 dist(i, j, 1) = 9 dist(i, j, 2) = 8 dist(i, j, 3) = 5
10.1.0.7 All-Pairs: recursion on index of intermediate nodes
i j
dist(i, k, k − 1) k dist(k, j, k − 1)
dist(i, j, k − 1)
dist(i, j, k) = min(dist(i, j, k− 1), dist(i, k, k − 1) + dist(k, j, k − 1))
Base case: dist(i, j, 0) = c(i, j) if (i, j)∈ E, otherwise ∞
Correctness: If i→ j shortest path goes through k then k occurs only once on the path
— otherwise there is a negative length cycle.
10.1.1 Floyd-Warshall Algorithm
10.1.1.1 for All-Pairs Shortest Paths
Check if G has a negative cycle using Bellman-Ford in O(mn) time If there is a negative cycle return
for i = 1 to n do for j = 1 to n do
dist(i, j, 0) = c(i, j) (* c(i, j) =∞ if (i, j) not edge, 0 if i = j *)
for k = 1 to n do for i = 1 to n do
for j = 1 to n do
dist(i, j, k) = min(dist(i, j, k− 1), dist(i, k, k − 1) + dist(k, j, k − 1))
Correctness: Recursion works under the assumption that all shortest paths are defined (no negative length cycle).
Running Time: Θ(n3), Space: Θ(n3).
10.1.2 Floyd-Warshall Algorithm
10.1.2.1 for All-Pairs Shortest Paths
Do we need a separate algorithm to check if there is negative cycle?
for i = 1 to n do for j = 1 to n do
dist(i, j, 0) = c(i, j) (* c(i, j) =∞ if (i, j) not edge, 0 if i = j *)
for k = 1 to n do for i = 1 to n do
for j = 1 to n do
dist(i, j, k) = min(dist(i, j, k− 1), dist(i, k, k − 1) + dist(k, j, k − 1))
for i = 1 to n do
if (dist(i, i, n− 1) < 0) then
Output that there is a negative length cycle in G
Correctness: exercise
10.1.2.2 Floyd-Warshall Algorithm: Finding the Paths Question: Can we find the paths in addition to the distances?
• Create a n × n array Next that stores the next vertex on shortest path for each pair of vertices
• With array Next, for any pair of given vertices i, j can compute a shortest path in O(n) time.
10.1.3 Floyd-Warshall Algorithm
10.1.3.1 Finding the Paths for i = 1 to n do
for j = 1 to n do
dist(i, j, 0) = c(i, j) (* c(i, j) =∞ if (i, j) not edge, 0 if i = j *) N ext(i, j) =−1
for k = 1 to n do for i = 1 to n do
for j = 1 to n do
if (dist(i, j, k− 1) > dist(i, k, k − 1) + dist(k, j, k − 1)) then dist(i, j, k) = dist(i, k, k− 1) + dist(k, j, k − 1)
N ext(i, j) = k
for i = 1 to n do
if (dist(i, i, n− 1) < 0) then
Output that there is a negative length cycle in G
Exercise: Given N ext array and any two vertices i, j describe an O(n) algorithm to find a i-j shortest path.
10.1.3.2 Summary of results on shortest paths Single vertex
No negative edges Dijkstra O(n log n + m) Edges cost might be negative
But no negative cycles Bellman Ford O(nm) All Pairs Shortest Paths
No negative edges n * Dijkstra O(n2logn + nm) No negative cycles n * Bellman Ford O(n2m) = O(n4) No negative cycles Floyd-Warshall O(n3)
10.2 Knapsack
10.2.0.3 Knapsack Problem
Input Given a Knapsack of capacity W lbs. and n objects with ith object having weight wi and value vi; assume W, wi, vi are all positive integers
Goal Fill the Knapsack without exceeding weight limit while maximizing value.
Basic problem that arises in many applications as a sub-problem.
10.2.0.4 Knapsack Example
Example 10.2.1
Item 1 2 3 4 5
Value 1 6 18 22 28
Weight 1 2 5 6 7
If W = 11, the best is {3, 4} giving value 40.
Special Case
When vi =wi, the Knapsack problem is called the Subset Sum Problem.
10.2.0.5 Greedy Approach
• Pick objects with greatest value
– Let W = 2, w1 = w2 = 1, w3 = 2, v1 = v2 = 2 and v3 = 3; greedy strategy will pick {3}, but the optimal is {1, 2}
• Pick objects with smallest weight
– Let W = 2, w1 = 1, w2 = 2, v1 = 1 andv2 = 3; greedy strategy will pick {1}, but the optimal is {2}
• Pick objects with largest vi/wi ratio
– Let W = 4, w1 = w2 = 2, w3 = 3, v1 = v2 = 3 and v3 = 5; greedy strategy will pick {3}, but the optimal is {1, 2}
– Can show that a slight modification always gives half the optimum profit: pick the better of the output of this algorithm and the largest value item. Also, the algorithms gives better approximations when all item weights are small when compared toW .
10.2.0.6 Towards a Recursive Solution
First guess: Opt(i) is the optimum solution value for items 1, . . . , i.
Observation 10.2.2 Consider an optimal solution O for 1, . . . , i Case item i6∈ O O is an optimal solution to items 1 to i − 1
Case item i∈ O Then O − {i} is an optimum solution for items 1 to n − 1 in knapsack of capacity W − wi.
Subproblems depend also on remaining capacity. Cannot write subproblem only in terms of Opt(1), . . . , Opt(i− 1).
Opt(i, w): optimum profit for items 1 to i in knapsack of size w Goal: compute Opt(n, W )
10.2.0.7 Dynamic Programming Solution
Definition 10.2.3 Let Opt(i, w) be the optimal way of picking items from 1 to i, with total weight not exceeding w
Opt(i, w) =
0 if i = 0
Opt(i− 1, w) if wi > w max
(Opt(i− 1, w)
Opt(i− 1, w − wi) +vi
otherwise
10.2.0.8 An Iterative Algorithm for w = 0 to W do
M [0, w] = 0 for i = 1 to n do
for w = 1 to W do if (wi> w) then
M [i, w] = M [i− 1, w]
else
M [i, w] = max(M [i− 1, w], M[i − 1, w − wi] + vi)
Running Time
• Time taken is O(nW )
• Input has size O(n + log W +Pn
i=1(logvi+ logwi)); so running time not polynomial but “pseudo-polynomial”!
10.2.0.9 Knapsack Algorithm and Polynomial time Input size for Knapsack: O(n) + log W +Pn
i=1(logwi+ logvi) Running time of dynamic programming algorithm: O(nW ) Not a polynomial time algorithm.
Example: W = 2n and wi, vi ∈ [1..2n].
Input size is O(n2), running time isO(n2n) arithmetic/comparisons.
Algorithm is called apseudo-polynomial time algorithm because running time is poly- nomial if numbers in input are of size polynomial in the combinatorial size of problem.
Knapsack is NP-hard if numbers are not polynomial in n.
10.3 Traveling Salesman Problem
10.3.0.10 Traveling Salesman Problem
Input A graph G = (V, E) with non-negative edge costs/lengths. c(e) for edge e Goal Find a tour of minimum cost that visits each node.
No polynomial time algorithm known. Problem is NP-Hard.
10.3.0.11 Example: optimal tour for cities of a country (which one?)
10.3.0.12 An Exponential Time Algorithm How many different tours are there? n!
Stirling’s formula: n!'√
n(n/e)n which is Θ(2cn log n) for some constant c > 1 Can we do better? Can we get a 2O(n) time algorithm?
10.3.0.13 Towards a Recursive Solution
• Order vertices as v1, v2, . . . , vn
• OP T (S): optimum TSP tour for the vertices S ⊆ V in the graph restricted to S.
Want OP T (V ).
Can we compute OP T (S) recursively?
• Say v ∈ S. What are the two neighbors of v in optimum tour in S?
• If u, w are neighbors of v in an optimum tour of S then removing v gives an optimum path from u to w visiting all nodes in S− {v}.
Path from u to w is not a recursive subproblem! Need to find a more general problem to allow recursion.
10.3.0.14 A More General Problem: TSP Path
Input A graph G = (V, E) with non-negative edge costs/lengths(c(e) for edge e) and two nodess, t
Goal Find a path from s to t of minimum cost that visits each node exactly once.
Can solve TSP using above. Do you see how?
Recursion for optimum TSP Path problem:
• OP T (u, v, S): optimum TSP Path from u to v in the graph restricted to S (here u, v ∈ S).
10.3.1 A More General Problem: TSP Path
10.3.1.1 Continued...
What is the next node in the optimum path from u to v? Suppose it is w. Then what is OP T (u, v, S)?
OP T (u, v, S) = c(u, w) + OP T (w, v, S− {u}) We do not know w! So try all possibilities for w.
10.3.1.2 A Recursive Solution OP T (u, v, S) = minw∈S,w6=u,v
c(u, w) + OP T (w, v, S− {u})
What are the subproblems for the original problem OP T (s, t, V )?
OP T (u, v, S) for u, v∈ S, S ⊆ V . How many subproblems?
• number of distinct subsets S of V is at most 2n
• number of pairs of nodes in a set S is at most n2
• hence number of subproblems is O(n22n)
Exercise: Show that one can compute TSP using above dynamic program in O(n32n) time and O(n22n) space.
Disadvantage of dynamic programming solution: memory!
10.3.1.3 Dynamic Programming: Postscript
Dynamic Programming = Smart Recursion + Memoization
• How to come up with the recursion?
• How to recognize that dynamic programming may apply?
