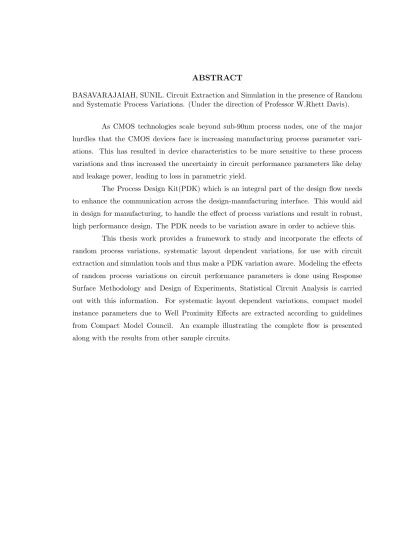

BASAVARAJAIAH, SUNIL. Circuit Extraction and Simulation in the presence of Random and Systematic Process Variations. (Under the direction of Professor W.Rhett Davis).
As CMOS technologies scale beyond sub-90nm process nodes, one of the major hurdles that the CMOS devices face is increasing manufacturing process parameter vari-ations. This has resulted in device characteristics to be more sensitive to these process variations and thus increased the uncertainty in circuit performance parameters like delay and leakage power, leading to loss in parametric yield.
The Process Design Kit(PDK) which is an integral part of the design flow needs to enhance the communication across the design-manufacturing interface. This would aid in design for manufacturing, to handle the effect of process variations and result in robust, high performance design. The PDK needs to be variation aware in order to achieve this.
by
Sunil Basavarajaiah
A thesis submitted to the Graduate Faculty of North Carolina State University
in partial fullfillment of the requirements for the Degree of
Master of Science
Computer Engineering
Raleigh, North Carolina
2008
APPROVED BY:
Dr. Paul Franzon Dr. Doug Barlage
DEDICATION
BIOGRAPHY
ACKNOWLEDGMENTS
I sincerely thank my advisor, Dr. Rhett Davis, for his guidance and supervision of this work and for giving me the opportunity to be part of the MUSE research group. He has been of constant support and inspiration throughout the course of my graduate studies at NCSU and working under him has been a great learning experience in all aspects. I would like to thank Dr. Paul Franzon and Dr. Doug Barlage for agreeing to be on my committee and for their valuable time and feeback on this work.
I would like to thank all my friends in the MUSE research group and a special mention of Ravi Jenkal for all his help and advice throughout this work. I thank the North Carolina State University for providing a great environment, facilities for education and research.
I have been fortunate to make wonderful friends over the past two years who have provided great memories. Thank you for everything ! I Would also like to thank my roomies: Vinod, Kishore, Kav, Kamal and Vinay, who have been of great support to me.
TABLE OF CONTENTS
LIST OF TABLES . . . vii
LIST OF FIGURES . . . viii
1 Introduction . . . 1
1.1 Motivation . . . 1
1.1.1 Design For Manufacturability (DFM) . . . 2
1.1.2 Implications of Process Variation on Microprocessors & ASICs . . . 3
1.2 Goal of this Work . . . 3
1.3 Thesis Organization . . . 4
2 Overview . . . 6
2.1 Process Variations . . . 6
2.1.1 Sources of Variations . . . 6
2.1.2 From Process and Layout to Device I-V . . . 7
2.2 Handling Process Variations . . . 8
2.2.1 Statistical Design vs Corner Case Design Methodology . . . 9
2.3 Statistical Static Timing Analysis (SSTA) . . . 10
2.3.1 Basic SSTA operations . . . 10
2.3.2 Path-based and block-based SSTA . . . 11
2.4 PDK . . . 11
3 Methodology . . . 12
3.1 Modeling of Random Variations . . . 12
3.1.1 Response Surface Methodology (RSM) . . . 12
3.1.2 Design of Experiments (DoE) . . . 14
3.2 Predictive Technology Models (PTM) . . . 15
3.3 Well Proximity Effects (WPE) . . . 15
3.3.1 Netlisting and Modeling WPE . . . 16
3.3.2 Development of LVS rules . . . 20
3.3.3 DELVTO and MULU0 instance parameters . . . 20
4 Design Flow . . . 22
4.1 Introduction . . . 22
4.2 Modeling . . . 22
4.2.1 RSMFlow.pl . . . 28
4.2.2 MonteCarlo.pl . . . 34
5 Examples/Results . . . 38
5.1 Introduction . . . 38
5.2 Inverter Delay Modeling . . . 38
5.2.1 Runtime Comparison . . . 41
5.3 Chain of Inverters . . . 42
5.4 SRAM Bit Cell . . . 43
5.5 Effect of WPE on Standard Cells . . . 44
6 Conclusions and Future Work . . . 47
6.1 Conclusions . . . 47
6.2 Future Work . . . 47
LIST OF TABLES
Table 5.1 Process Variation in tdelayHL and tdelayLH for INVX1. The nominal values
of tdelayHL=5.7510e-12 and tdelayLH=8.0970e-12 . . . 39
Table 5.2 Process Variation in tdelay for INVX1. The nominal value of tdelay=6.9240e-12 . . . 39
Table 5.3 Model Statistics of INVX1 with +/- 10% variation in Vth. . . 39
Table 5.4 Delay Statistics of INVX1 with +/- 10% variation inVth. . . 40
Table 5.5 Runtime Comparison . . . 42
Table 5.6 Read Access Time Statistics of SRAM cell with +/- 10% variation in Vth . . . 45
LIST OF FIGURES
Figure 1.1 Parameter uncertainty and %effect on sign off delay [2] . . . 2
Figure 1.2 Design for Manufacturability Technology Requirements-Near-term Years [2] 2 Figure 1.3 Design for Manufacturability Technology Requirements-Long-term Years [2] 3 Figure 1.4 Design for Manufacturability Potential Solutions [2] . . . 4
Figure 1.5 Microprocessors vs ASIC profit . . . 5
Figure 2.1 From Process and Layout to Device I-V [24] . . . 8
Figure 3.1 The origin of well edge proximity effect [12] . . . 16
Figure 3.2 Typical MOSFET layout showing WPE parameters and maximum search distance [5] . . . 20
Figure 4.1 Over all flow for modeling using RSM/DoE . . . 23
Figure 4.2 Workspace Window . . . 24
Figure 4.3 Experiment Window . . . 25
Figure 4.4 Module Parameter Window . . . 26
Figure 4.5 Run Table . . . 27
Figure 4.6 Design Of Experiment . . . 28
Figure 4.7 Spreadsheet. . . 29
Figure 4.8 Response Surface Modeling . . . 32
Figure 4.9 Overall Strategy for RSM . . . 33
Figure 4.10Model vs Response and Residual plots for tdelay . . . 35
Figure 5.1 PDF of delays of INVX1 with +/- 10% variation inVth . . . 40
Figure 5.3 PDF of delay of INVX1 with +/- 10% variation in Lef f and Tox . . . 42
Chapter 1
Introduction
Today’s chip design is facing several challenges due to increasing circuit complexity and decreasing feature size, currently in nano-meter scale. Apart from the challenges that directly arise as a result of feature scaling (e.g. increasing leakage power and interconnect delay, reliability issues), imperfections in the fabrication process for nano-scale feature sizes have recently become a major design hurdle, as they randomize the electrical properties of the components on the chip.
Worst case and best case SPICE models are used by the designers to verify the de-sign at the extremes of process variations. In this case, the dede-sign can be overly pessimestic. From an IC design perspective, a shift in paradigm, from deterministic to probabilistic, is needed to handle the unpredictable nature of these fabrication variations. Also, the effects of systematic process varitions which can be modeled accurately needs to be taken into account during the design phase.
1.1
Motivation
variation is predicted in shrinking devices [2].
Figure 1.1: Parameter uncertainty and %effect on sign off delay [2]
1.1.1 Design For Manufacturability (DFM)
DFM largely centers on developing methodologies/technologies to improve yield by enhancing the communication across the design-manufacturing interface. The increase in yield in turn increases the overall profitability and return-on-investment of chip makers’. The manufacturability criteria of the chip needs to be considered during the design flow. The key challenges in the manufacturing and its effects is quantified as DFM Technology requirements in Figs. 1.2 and 1.3 [2]. It summarizes the percentage variability in Vth,
critical dimensions and also circuit performance/total power/leakage power variability.
Figure 1.2: Design for Manufacturability Technology Requirements-Near-term Years [2]
To address DFM technology requirements, the DFM solutions described in Fig. 1.4 [2] will be needed. DFM solutions mentioned in Fig. 1.4 will have to directly address and tolerate various dimension of variability. Among these solutions, we are interested in
Figure 1.3: Design for Manufacturability Technology Requirements-Long-term Years [2]
• Tools that consider both systematic and random yield loss.
1.1.2 Implications of Process Variation on Microprocessors & ASICs As an example to illustrate the effect of process variation, the profit functions of Microprocessors and ASIC are given in Fig. 1.5 [17]. The operating frequency is a very important requirement for Microprocessors and ASIC. Across a wafer of microprocessors, some of the manufactured chips are able to operate atb1 while others may have to operate ata1, due to process variations. The chips ata1, although slower, can be still be sold at a lower profit i.e. they can be speed binned at a lower frequency. But in the case of ASICs, chips with clock period>thanb2 needs to be simply discarded.
1.2
Goal of this Work
The major objectives of this work is
• To provide a framework/methodology for statistical analysis using Response Surface Method (RSM) and Design of Experiments (DoE) to model the effects of Random Process Variations on circuit performance parameters.
• To understand the effect of systematic variations due to Well Proximity Effect.
Figure 1.4: Design for Manufacturability Potential Solutions [2]
1.3
Thesis Organization
Figure 1.5: Microprocessors vs ASIC profit
Chapter 2
Overview
2.1
Process Variations
Semiconductor process variation occurs when process parameters deviate from their ideal, as-designed values. Due to these process variations, the electrical properties of the tranistors varies. As technology scales, the importance of understanding the effects of process variations on circuit performance is increasing further.
2.1.1 Sources of Variations
Process Variation can be classified into [18]
• Temporal Variations are time varying and change depending on circuit operating conditions like switching activity and temperature variation. Aging-induced variation has a negative impact on performance.
• Spatial Variation are fixed in time and depend on physical factors such as structural variation in the chip that is based on the circuit layout, neighboring environment, and process conditions.
Random Variations
Random variations are caused by atomic-level differences between devices even though the devices may have identical layout geometry and environment. Some of examples for these variations are dopant profiles, film thickness variation, and line-edge roughness. Variation in the threshold voltage Vth is observed due to placement of random number of
dopants in the channel during manufacturing steps of implant and annealing processes [18]. This phenomenon is called Random Dopant Fluctuation and is one of the variations that will be considered in this study. The other random variations considered are gate oxide thicknessTox and channel length Le.
Systematic Variations
Systematic Variations implies spatial correlation between devices. The electri-cal parameters of the device vary depending on the placement of a device relative to its neighbors. These variations have a well-understood relationship between design instances or layouts and the resulting electrical parameter values. They are predictable that can be modeled and the values are maintained across all corners/distributions. Some of the systematic layout dependent proximty effects are
• Well Proximity Effect
• Stress Proximity Effect
• Optical Proximity Effect
• CMP Proximity Effect
Well Proximity Effect is the systematic variation considered for this study and is explained in detail in Section 3.3.
2.1.2 From Process and Layout to Device I-V
-Stress Field, Dopant field and 3D structure. These physical properties inturn affect the device parameters like mobility, threshold voltage, gate oxide thickness and critical dimen-sions of the transistor. The variation in device parameters has an affect on the electrical behaviour of the transistor like the drain current in linear and saturation regions, leakage current. Electrical Behaviour Device Parameters Physical
Properties Production Variables
Idlin Idsat Ileakage µ Vth Tox L/W Stress Field Dopant Field 3D Structure Process Layout Litho/Etch Implant/Anneal Oxide Growth Deposition Materials CMP Functionality Spec Layout Style Pattern Variation
Figure 2.1: From Process and Layout to Device I-V [24]
2.2
Handling Process Variations
There are three classes of techniques proposed to ensure/enhance yield under vari-ations while incurring minimal impact on design overhead [11]
• Statistical Design approach
In this technique, a circuit performance parameter is modeled as statistical distribu-tion and the circuit is designed to meet a constraint on yield with respect to a target value of the parameter.
• Post-Silicon compensation and correction
compen-sated/corrected by changing operating parameters such as supply voltage, frequency or body bias.
• Variation avoidance
A given circuit is synthesized in such a way that the delay failures due to variations can be indentified in run time and avoided by adaptively switching to two cycle operation.
Given the broad levels of handling process variations, we are interested in pre-fabrication,design time technique of Statistical Design that could potentially reduce the effect of variations. Along with the statistical design approach, systematic layout dependent Well Proximity Effect (WPE) which leads to a fixed variation depending on that particular layout is also handled
2.2.1 Statistical Design vs Corner Case Design Methodology
In the conventional static analysis design flow, worst-case or best-case corner values of all the factors of variations is used in simulation. In actual chips, the likelihood of all factors being at the corner cases is very low. Therefore, it leads to conservative analysis and over-design as it analyzes using excessive margins for perfomance parameter variations [4]. As one of the DFM potential solutions, Statistical Analysis estimates circuit delay and other circuit performances parameters by considering the variations in these parameters statistically.
In a probabilistic design framework, all the varying circuit parameters are modeled as random variables. These random variables may or may not be correlated to each other. At the lowest level, variations happen in the geometries of interconnects (e.g., length, width) and of transistors (e.g., effective channel length,oxide thickness), transistor doping (as well as other possibilities). These low-level factors are modeled as random variables . Given the variations of these low-level factors, one could model the effects of variations at higher levels by finding the Probability Density Function (PDF) of performance metrics of a design such as its frequency and power, as these performance metrics are ultimately a function of the low-level factors.
Statistical Static Timing Analysis, as explained in the next section, considers delay as the circuit performance parameter to be estimated.
2.3
Statistical Static Timing Analysis (SSTA)
In order to analyze circuit delay more accurately considering the random varia-tions, SSTA defines the random variations of the delay as random variables and calulates the probability density funtions (PDF) of circuit delay [19]. A circuit is expressed by a graph that represents the gates and interconnects as nodes. Traversing the graph, the PDF of the delay in each of the node is calculated using the statistical sum and max operations with the delay variations of the gates and interconnects as inputs. Let us consider two inverter gates connected in series and a NAND gate, in which two input signals converge at the output pin of a gate. The two basic operations in SSTA is explained using these two circuits. The delay variation due to variation in interconnects is not considered in this study and is ignored.
2.3.1 Basic SSTA operations
• sum[19] - The delay of the two inverters connected in series is calculated using the statistical sum operation. Let us denote the delay PDF of each of these inverters as f1 andf2. Then the delay PDF at end pointf is calculated as the statistical sum of f1 and f2. The statistical sum is calculated using convolution integration. However, iff1 andf2 have normal distributions, a simple formula can be used. Considerf1 and f2 have normal distributions with average m1, m2 and 3 sigma standard deviations s1, s2 respectively. Then f has a normal distribution with average of m1+m2 and p
s2 1+s22.
2.3.2 Path-based and block-based SSTA
In path-based SSTA [19], the delay of each path or say critical path is calculated individually, traversing from the source to the sink of the path. The advantage of this method is that it accurately calculates the delay PDF of each path delay because it does not use statistical max operations to analyze sequential paths. In block-based SSTA, all paths are analyzed simultaneously by traversing the graph, with the delay of the entire circuit being calculated at the end of the traversal. To reduce the processing time of SSTA, it is recommended to perform SSTA on the critical paths detected by the conventional Static Timing Analysis tool.
2.4
PDK
Process Design Kits (PDKs) provide the data files that are needed to design chips for a given process technology, using a supported set of EDA tools. PDKs include such things as schematic symbols, Spice models, parameterized cells, a layout technology file, de-sign rule check (DRC) and layout-versus-schematic (LVS) deck, Parasitic Extraction Deck, standard cell/pad library and associated characterization files, framework to perform sta-tistical circuit analysis and so on.
Existing PDKs cannot be used in the classroom due to tight intellectual property (IP) controls on them. Also, only fragmented PDKs are available to universities and mod-ification, redistribution of existing PDKs are prohibited. The FreePDK45 is an effort to address these issues and its information may be freely used, modified, and distributed under the open-source Apache License [21] .
Chapter 3
Methodology
3.1
Modeling of Random Variations
Modeling is a essential component of statistical analysis framework. The models need to capture the effect of process variation. One way of building such models is to describe the circuit performance parameters as functions of random variables that represent variations. For example, the circuit delay can be modeled as a random variable described as a function of those random variables representing the varying transistor geometries. Response Surface Methodolgy along with Design of Experiments is used to build these models. These variation aware models can be further used in optimization framework. The theory behind the modeling is explained in the following two sections.
3.1.1 Response Surface Methodology (RSM)
RSM can be defined as a collection of statistical and mathematical techniques use-ful for developing, improving, and optimizing processes. The most extensive use of RSM can be found in situations where several input variables influence some performance measure, called the response, in a way that is difficult or impossible to describe with a rigorous math-ematical formulation. In these situations it might be possible to derive an expression for the performance measure based on the response values obtained from experiments at some particular combination of the input variables. The expression of the performance measure obtained through experiments is called response surface [23]
per-formance variables of simpler blocks constituting the circuit. Due to this the computational effort is greatly reduced because circuits consists normally of only a limited number of dis-tinctly behaving primitives and only one representative of every such primitive needs to be analyzed.
For each of the above described ’primitive’, the following quantities are defined and will be used for modeling the performance parameter of the entire circuit.
Factors - are processing conditions or input variables whose values can be controlled by the experimenter - at least for purposes of a test or an experiment/simulation. Presumably, if one of the factors changes then response variable varies. In this work, Vth,Lef f and Tox
will be taken as factors and its range of values, its variation from its nominal value will be considered.
Response -Y =η+
Y - is the response variable and is the observed value from the output of the simulation of the circuit. The response variables value is affected due to change in the levels of the factors. True value of the response is denoted by the variable η. The observed response is sum of the true response and Experimental error denoted by. If the model is an inadequate representation of the true response, then this error will also contain a non-random error called lack of fit error and is due to the absence of higher degree terms. This lack of fit error must be minimized. The response variable can be circuit performace parameter like delay, power and so on.
Response Function
-η=ϕ((X1, X2, X3, X4. . . Xk))
The relation between the various factors and the response can be represented by a function which is called Response Function η
Response SurfaceThe response function η=ϕ((X1, X2, X3, X4. . . Xk))
can be represented by a surface. With K factors, the response surface is a subset of (K+1) - dimensional Euclidean Space.
3.1.2 Design of Experiments (DoE)
To build the response surface and the model, we need to run the experiments at some values of the factors and the response obtained from this is used in building the model. The values of the factors are called the sampling points and are calculated using the thoery of Design of Experiments. The points chosen using the DoE theory ensures that the entire design space is covered and the best possible precision of the form of the response surface. Some of the widely used sampling methods are given below [20]. In this work, Full-factorial is used as it provides a uniform grid with user-specified density covering the input factors space. Also, other DoE can be experimented with.
• Nominal Design is the simplest one which uses nominal values of all the inputs factors.
• Center point design is similar to Nominal design but uses the midpoint values of all the input factors.
• Axial Design includes center points, and points at the minimum and maximum of each input factor while holding other inputs to their nominal values.
• Box-Wilson design includes the center point, axial points and corner points distributed around a n-dimensional sphere circumscribing the cuboid defined by the input minima and maxima of the factors.
• Box-Wilson (inscribed) modifies the Box-Wilson design by distributing axial and cor-ner points on an n-dimensional sphere inscribed within the cuboid.
• Box-Wilson on a cube stretches the corner points to lie on the cuboid corners to achieve more complete coverage of the input factors space.
• Full-factorial design produces a uniform grid with user-specified density covering the input factors space.
3.2
Predictive Technology Models (PTM)
PTM provides accurate, customizable, and predictive model files for future tran-sistor and interconnect technologies [1]. These predictive model files are compatible with standard circuit simulators, such as SPICE, and scalable with a wide range of process variations. With PTM, competitive circuit design and research can start even before the advanced semiconductor technology is fully developed. As an evolution of previous Berke-ley Predictive Technology Model (BPTM), PTM provides the following novel features for robust design exploration toward the 10nm regime:
• Predictions of various transistor structures, such as bulk, FinFET (double-gate) and ultra-thin-body SOI, for sub-45nm technology nodes.
• New methodology of prediction, which is more physical, scalable, and continuous over technology generations.
• Predictive models for emerging variability and reliability issues, such as NBTI.
These PTM transistor models at 45nm technology node are used in this work. The source code to generate PTM models is available.
3.3
Well Proximity Effects (WPE)
In this section, we will discuss in depth about the origin of WPE, its physical understanding, modeling WPE as a function of layout, extraction of instance parameters and its inclusion in the PTM models
Figure 3.1: The origin of well edge proximity effect [12]
3.3.1 Netlisting and Modeling WPE
over the area of FET as
Z = 1 W L
Z Z
f(d(x, y))dx·dy (3.1)
wheref(d) is the modeling function that determines the additional dose due to a long edge as a function of the distance from the edge [6].
Edges that have a direct line of sight to a given FET is only considered to affect that FET as ions scattered by other edges will be stopped by any region of photoresist between the scattering edge and FET.
For the case of a FET near a single long well edge, the integral in Eqn 3.1 becomes a one-dimensional integral and for multiple well edges that effect the same device, it is assumed that the combined effect is simply the sum of separate effects.
If the well edge is not a single straight edge but contains a jog, then Eqn 3.2 is approximated by dividing the FET active area into and applying the formula twice.
Z = 1 W L
X
i
Wi
Z di+L
di
f(u)du (3.2)
In a general case, there can be multiple scattering edges parallel to any or all four sides of the FET active area and the expression becomes
Z= 1 W L
X
i
Wi
Z di+L
di
f(u)du+X
i
Li
Z di+W
di
f(u)du !
(3.3)
The below set of functions are used to represent f(d)
fA(d) =
1
d2 (3.4)
fB(d) =d exp(−10d)
fC(d) =d exp(−20d)
The new equations for threshold voltage, mobility and the body effect considering the well proximity effect can be described as
V th0 =V th0org+KV T H0W E·(SCA+W EB·SCB+W EC·SCC) (3.5)
K2 =K2org+K2W E·(SCA+W EB·SCB+W EC·SCC) (3.6)
µef f =µef f,org·(1 +KU0W E·(SCA+W EB·SCB+W EC·SCC)) (3.7)
where in, V th0org, K2org, µef f,org are the original values of threshold voltage,
fitting parameters. SCA, SCB and SCC are instance parameters that represent the first/second/third distribution functions for scattered well dopants. For relatively large distances, the effect falls off roughly as the distance squared, as modeled by the SCA term. For technologies whose design rules do not allow well edges close to an active area, only SCA is needed and WEB and WEC may be set to zero else they need to be set to one [5].
The integral forms for the instance parameters are
SCA= 1
Wdrawn·Ldrawn ·
n
X
i=1
Wi·
Z SCi+Ldrawn
SCi
fA(u)du
+
n+m
X
i=n+1
Li·
Z SCi+Wdrawn
SCi
fA(u)du
+corners A (3.8)
fA(u) =
SCref2
u2
SCB = 1
Wdrawn·Ldrawn ·
n
X
i=1
Wi·
Z SCi+Ldrawn
SCi
fB(u)du
+
n+m
X
i=n+1
Li·
Z SCi+Wdrawn
SCi
fB(u)du
+corners B (3.9)
fB(u) =
u SCref
exp
−10· u
SCref
SCC= 1
Wdrawn·Ldrawn ·
n
X
i=1
Wi·
Z SCi+Ldrawn
SCi
fC(u)du
+
n+m
X
i=n+1
Li·
Z SCi+Wdrawn
SCi
fC(u)du
+corners C (3.10)
fC(u) =
u SCref
exp
−20· u
SCref
In the above equations, SCref is SCmax, the maximun search distance beyond
The closed form solutions for the instance parameters obtained from sloving the integral forms are
SCA= 1
Wdrawn·Ldrawn
SCref2
n X i=1 Wi 1 SCi − i
SCi+Ldrawn
+
SCref2
n+m
X
i=n+1 Li 1 SCi − i
SCi+Wdrawn
+corners A (3.11)
SCB= 1
Wdrawn·Ldrawn · n X i=1 Wi SCi 10 + SCref 100 exp
−10 SCi SCref
−
SCi+Ldrawn
10 + SCref 100 exp
−10SCi+Ldrawn SCref + n X i=1 Li SCi 10 + SCref 100 exp
−10 SCi SCref
−
SCi+Wdrawn
10 + SCref 100 exp
−10SCi+Wdrawn SCref
+
corners B
SCC= 1
Wdrawn·Ldrawn · n X i=1 Wi SCi 20 + SCref 400 exp
−20 SCi SCref
−
SCi+Ldrawn
20 + SCref 400 exp
−20SCi+Ldrawn SCref + n X i=1 Li SCi 20 + SCref 400 exp
−20 SCi SCref
−
SCi+Wdrawn
20 + SCref 400 exp
−20SCi+Wdrawn SCref
+
corners C
Let us understand the extracion of these instance parameters from the layout using a typical layout of the MOSFET as shown in Fig. 3.2 with an irregularly shaped well to cover all the aspects of the formula. For each FET in the layout, the LVS tool needs to identify all the well-edges that will affect that FET. The WPE drops off rapidly as the distance fron the edge to the device channel region increases. So a maximum search distance calledSmax is used so that any edge outside ofSmax is ignored during calculations. So for
Figure 3.2: Typical MOSFET layout showing WPE parameters and maximum search dis-tance [5]
3.3.2 Development of LVS rules
Measurement of SCi,Wi and Li is done by extending the Property Function of a
transistor in the Calibre LVS rule deck. There are special commands in Calibre’s Standard Verification Rule Format to obtain these measurements. Once these measurements are done, then computation of instance parameters SCA, SCB and SCC is done using Tcl Verification Format.
3.3.3 DELVTO and MULU0 instance parameters
Once the change in Vth, Body effect and Mobility is calculated using the instance
Chapter 4
Design Flow
4.1
Introduction
The overall flow of modeling using RSM/DoE is given in Fig. 4.1. The steps involved is discussed in detail in the following sections.
4.2
Modeling
To perform the DOE and RSM, we will use the Taurus Workbench from Synopsys. On the NCSU Unity computer system, Taurus workbench is setup by the following command %add synopsys tcad
We need to start taurus workbench with -use dfm option to use the RSM feature as follows. %twb -use dfm &
The first window that appears is called the Workspace [Fig. 4.2].
Create a new project by selectingProject->New. Projects are shown as columns. Each project has a library (a cell with the book icon) and a list of experiments. Each library also contains simulation components(Modules/Tools/Drivers) for reuse in other projects. An experiment consists of a Process Recipe, a Wafer Flow, and all the associated simulation data. Access to a given project is indicated by the book icon; if a pencil is on the book,you have write-access, otherwise, theproject is read-only. In the initial Workspace window you see three read-only projects: templates,standard and dfm work.
(The project can be renamed by right-clicking on the library and Edit name)
START
Taurus Workbench-Generation of Sampling
Points by DOE
O/P text file containing the Sampling Points
RSMFlow.pl – Perl Script to run Hspice
Simulations
O/P text file containing the DOE points appended with the responses from the simulation
Taurus Workbench – RSM and Model
Generation
O/P text file containing the fitted model
EditFormula.pl – Perl Script to change the model formula so that it can be used in Perl
MonteCarlo.pl – Perl script to calculate circuit responses using
RSM model as well as MC circuit simulations
O/P data files to be used in
MATLAB
Further analysis in MATLAB
END
Figure 4.1: Over all flow for modeling using RSM/DoE
do this:
1. Select a cell with an experiment’s name by clicking on it.
2. Drag and drop it into your project.
Figure 4.2: Workspace Window
our starting point and editing it to our requirements. To edit the newly created experiment Expt1, double-click the cell containing the experiment name. An experiment window opens, as shown in figure 4.3. To view the contents of a module “hspice test”, double-click the module object (hspice test). A Module editor opens. We can delete the inbuilt Command “circuit” by selecting the particular cell andCommand->Cut. Lets create a new command called “RSM” byCommand->New->Append. You will get the following warning saying “Saving changes to this module means destroying already completered wafers. Do you want to destroy the modules wafers”. Choose “Destroy”.
Lets consider an example of a two stage, two input Standard Cell Inverter (INVX1). The setup allows us to analyze the effects of process variations considering each of the transistors in the circuit suffer different variations. The parameters that are currently supported whose variation effects can studied areLef f,Tox and Vth.
In this example, Vth is assumed to vary by +/-10% of the nominal value. So we
need to carry out DoE for 4 parameters ofVth(one for each of the transistors). This is done
Figure 4.3: Experiment Window
shown in Fig.4.4
1. The parameter name (Vth1, Vth2,.. Leff1, Leff2.. and Tox1, Tox2,.. so on) and nominal value of the parameter (separated by an = sign).
2. The Parameter label, which is used to reference a parameter value ( % followed by parameter name).
4. A Control checkbox to designate a control parameter (Check this so that this param-eter can be accessed in DoE).
Figure 4.4: Module Parameter Window
We can similarly add other parameters Vth2-Vth4.
The variations, delays, other circuit perfomance parameters and results of statis-tical operations are modeled as Gaussian random variables. A definition of a Gaussian random variable and its probability density function (PDF) is given in Eqn. 4.1 and 4.2 respectively.
X =N µ, σ2
(4.1)
f(x;σ, µ) = 1 σ√2Πexp
"
−(x−µ)
2
2σ2 #
(4.2)
control checkbox for this parameter also. Let’s add three responses - tdelayLH, tdelayHL and tdelay.
In the Experiment window, click on the “Run Table...” under the “Edit” tab. The following window opens as in Fig.4.5 and the rest of the procedure is done from this window. To
Figure 4.5: Run Table
Figure 4.6: Design Of Experiment
4.2.1 RSMFlow.pl
A automation script, RSMFlow.pl is used to do the following
• To use each set of values in the DoE file as inputs to create different PTM models.
• Use these PTM models to simulate a netlist of a circuit using hspice.
Figure 4.7: Spreadsheet
To use the RSMFlow.pl script, the following must be present in the current working directory
• Automation script - RSMFlow.pl
• Netlist of the circuit - .sp file
• DOE file generated by Taurus Workbench - .txt file
Makesure you do ”add hspice” in the terminal window before you run RSMFlow.pl. Usage of RSMFlow.pl
perl RSMFlow.pl -help
Will show the help for this flow as
NOTE: Makesure you do ” add hspice ” in the terminal window before you run RSMFlow.pl To run this flow,the inputs needed are:
• The Hspice Netlist file (-netlist)
• The DoE File (-doe)
• The Design Factors can be Vth, Leff, Tox. If any of the factors is not used, its value must be zero,else should indicate the order it is present in the DOE spreadsheet
• The number of responses in the Experiment (-res)
• If the factors is assumed to vary by the same amount for all tranistors in the netlist then set (-multi) to 0, otherwise 1
• The Name of the output DoE file with the responses appended (-output)
Ex: ” perl RSMFlow.pl -netlist INVX1.sp -doe INVX1DOE.txt -vth 1 -leff 0 -tox 0 -res 2 -multi 1 -output INVX1DOERes.txt
The following is a brief explanation of the inputs to the RSMFlow.pl and its working.
• The hspice netlist file which needs to be simulated is given as input using the -netlist option and the DOE file with -doe option. In this example, since only Vth is being used,value of option -vth is 1 and -leff,-tox are 0. If Vth and Tox were varied in this experiment and if Vth was entered first in the module window and then Tox, then the options would be -vth 1 -leff 0 -tox 1.
• The use of option -multi is as follows - If there is a need to experiment such that all the tranistors in the circuit suffer the same process variations, then we can set -multi to 0 else its value must be 1.
PMOS VTL by PMOS VTL 0, next occurence of PMOS VTL as PMOS VTL 1 and so on.
• Also, if the instance parameter K2 from the Systematic Variations effect (by using the netlist obtained from layout extraction using Well Proximity effects) is present in the netlist, then its value is stored to be used while generating the PTM models. K2 and its value is removed from the netlist.
• It creates a hspice.include file which is included in the hspice netlist and points to transistor models (depending on the number of transistors in the netlist) going to be used in simulations.
• The parameter values from the DOE file is used to generate transistor models. In this case, 4 PTM transistors models are generated and a hspice simulation is done. Another set of 4 PTM transistors models are generated and a hspice simulation is done. This is repeated N number of times depending on the sampling points in DOE. For each of the simulation, the response is got from the .mt0 files and updated in the output DOE file. The INVX1DOERes.txt is the resultant file with responses appended.
INVX1DOERes.txt needs to be opened from spreadsheet window by File->Load. Once this file is loaded, click on the “RSM...” from the spreadsheet and RSM window opens as in Fig.4.8. Delays - tdelayHL, tdelayLH and tdelay which are the response can selected and moved from Factors to Responses as shown. Also delete the control factor ”SubWafer”. This factor is present by default and if not removed, the models cannot be fitted properly. The overall strategy for RSM is shown in Fig. 4.9
The statistics of the factors and responses can be seen under the statistics tab. Orders for the models can bet set in the orders tab. You can choose the model type and assing all the factors the same order or assign the order individually. X-order refers to interaction order between factors. Then click on the “Fit Models”. The model will be fitted and added under the “Polynomial Models”. Select a model and click on the “Open” tab. The poynomial window opens (Fig. 4.10and the measure of fit for the model can be studied. Taurus Workbench uses four statistics to measure the quality of an RSM model:
Figure 4.8: Response Surface Modeling
2. R2 (multiple coefficient of determination or R-Square)
3. ¯R2(adjusted multiple coefficient of determination or adjusted )
START
Divide variables in factors and responses
Select a Response to build model for
Learn the response statistics (Start with the Linear Model)
Fit Model Coefficients
Check fit Measures
Visualize and analyze model
Optimizer
Increase order
Suppress Outliers
Change the DoE
Build and Run new Experiment GOOD BAD
END
Figure 4.9: Overall Strategy for RSM
If the measures are not good, then we can increase the order, interaction order and build new models.Then the best model can be selected by clicking on ”Find Best Model”. The Best Model will be added under the “Polynomial Models”.
Once the best model is found out, choose that model and again click on the “Open” tab. In the “Polynomial Model” window, under the “Polynom” tab, the model equation for the response in terms of the factors is present. This equation can be exported to a .txt file for use in Monte Carlo Flow by selecting Export->Formula and saving it as a .txt file. This is the model equation that will be used in getting the PDFs.
Delete all the models which are not required. Choose the best model and open the Perfomance Analysis Tool.
Increase the number of samples to say 1000 and click on “Sample Models”. We will be able to see a set of plots including the distributions/histograms of the response and the factors.
Unfortunately, the workbench does not have the option to export the data values of the sampled responses using which further statistics could be found. It generates the values of factors according to a certain distribution, finds the response using the model built and shows the graph !!
To overcome this, another script called “MonteCarlo.pl” is used. It also has the ability to do hspice simulations and is used to verify if the model built is correct.
4.2.2 MonteCarlo.pl
The MonteCarlo.pl script was created to allow comparison of the RSM flow to a more traditional Monte Carlo flow for determination of a PDF. The script can launch a set of HSPICE simulations in the same way that RSMFlow.pl can, except that the sample points will be generated randomly. In addition, the script can be invoked to use the results of the RSMFlow.pl HSPICE simulations. This approach was used to verify that the PDFs generated by MonteCarlo.pl were close to the ones generated by Taurus workbench.
Usage of MonteCarlo.pl
perl MonteCarlo.pl -help
Will show the help for this flow as :
Figure 4.10: Model vs Response and Residual plots for tdelay
• The Netlist file (-netlist).
• The Design Factors can be Vth, Leff, Tox. If any of the factors is not used, its value must be zero.
• Number of runs (-runs)
randomly, and HSPICE should be invoked. Setting this option to 0 indicates that the results of previous HSPICE simulations should be used. Note that when this option is 1, the script can be used without the rest of the RSM flow, but when the option is 0, it can be used only after RSMFlow.pl has been executed.
Ex: ” perl MonteCarlo.pl -netlist INVX1.sp -vth 1 -leff 0 -tox 0 -runs 10000 -hspice 1 ”
The model obtained from the previous section which is saved in a .txt file needs to be modified such that it can be used in MonteCarlo.pl perl script. It involves replacement of [ by ( , ] by ) , ** by ˆand vth1, vth2 and so on to variables that MonteCarlo.pl script can recognize.
Usage of Editformula.pl
perl EditFormula.pl -help
Will show the help for this flow as :
perl EditFormula.pl -input INVX1Formula.txt -output INVX1FormulaEdited.txt -input - file which has the model formula obtained from Taurus Workbench -output - generated file which has the model formula edited
By using the -hspice 0 option, a set of random numbers is generated according to a guassion distribution of factor like Vth and these values are used in the model formula to calculate the response delay with out doing the hspice simulations of the circuit. If you need to verify the RSM model, it can be done my setting -hspice 1 option where in not only the response is calculated using the RSM model, hspice simulations is carried out similar to RSMFlow.pl and response calculated. Matlab data files are dumped in each case, which can be used calculate the further statistics like mean, variance, standard deviation and fit model to the data.
The results of the above example along with few others are given in section 5.1
4.3
Extraction and Netlisting with WPE
parameters are calculated for each of the transistors and are present in the layout netlist. The only thing to keep in mind that we need to Flat extraction and not hierarchical so that each of the transistors in extracted along with the corresponding instance parame-ters. If hierarchical option is used then .subcircuit definitions may be used for some of the gates/circuits and effect of WPE on each of the transistors cannot be studied. As an example, a simple inverter netlist obtained from layout during LVS would be
m0 Y A vdd vdd PMOS VTL W=5e-07 L=5e-08 m1 Y A gnd gnd NMOS VTL W=2.5e-07 L=5e-08
With WPE in effect the above netlist would be modified into m0 Y A vdd vdd pmos vtl l=0.05u w=0.5u delvto=-0.0249 mulu0= 1.151 m1 Y A gnd gnd nmos vtl l=0.05u w=0.25u delvto=0.0113 mulu0= 1.069
Because there is no BSIM instance parameter for change in the body-effect coeffi-cient, the change in this variable must currently be done in the transistor model parameters. This capability was added into the RSMFlow.pl but is not documented here.
Since we dont have any silicon data to find out the fitting parameters,KV T H0W E and KU0W E (K2W E was not considered), they were estimated by considering the first order effect, SCA for standard cells. SCA was calculated for a subset of standard cells in the FreePDK standard cell library and the minimum value of SCA was 26.74, maximum value of SCA was 189.25 and the average value of SCA was 92.29. Average SCA value of 100 for standard cell were assumed to have 10% Vth and mobility variation and then
Chapter 5
Examples/Results
5.1
Introduction
In this chapter, we present some examples and results to validate the framework for modeling methodology. The effect of WPE on few of the standard cells in the FreePDK45 kit is also given.
5.2
Inverter Delay Modeling
Lets consider an example of a two stage two input Standard Cell Inverter (INVX1) which was used to explain the modeling methodology in the previous chapter. An input pulse with a rise and fall time of 10ps is applied and the stage delay of the first INVX1 stage at its output is monitored when load with an identical second stage. Delay values for rising(tdelayLH) and falling(tdelayHL) edge transitions at the output are obtained using transient analysis. The average delay (tdelay) is calculated as (tdelayLH + tdelayHL)/2.
The percentage variation in the INVX1 stage delay with respect to the nominal, with variations in process parameters considered, is presented in Table: 5.1 and 5.2. The relative deviation of any parameterx about its nominal value xnom is calculated as ∆x=
(x−xnom)/xnom. A variation of +10% in Vth results in decrease in tdelayHL by -2.45%
and a decrease in tdelayLH by -5.97% with the average delay variation of -4.51%. Similarly, variation in delay values due to +/- 10%, +/- 5% variation in Vth, Tox and Lef f, Tox
Table 5.1: Process Variation in tdelayHL and tdelayLH for INVX1. The nominal values of tdelayHL=5.7510e-12 and tdelayLH=8.0970e-12
Process tdelayHL tdelayLH
Variation Vth Tox Tox,Lef f Vth Tox Tox,Lef f
-10% -2.45% -2.42% -2.92% -5.97% -4.21% -4.41%
-5% -1.25% -1.20% -1.7% -4.29% -3.61% -4.66%
+5% 1.30% 0.33% 1.32% 1.41% -0.78% 1.95%
+10% 2.70% 2.57% 5.13% 3.20% 1.12% 5.95%
Table 5.2: Process Variation in tdelay for INVX1. The nominal value of tdelay=6.9240e-12
Process tdelay
Variation Vth Tox Tox,Lef f
-10% -4.51% -3.47% -3.79%
-5% -3.03% -2.61% -3.43%
+5% 1.36% -0.32% 1.69%
+10% 2.99% 1.73% 5.61%
For a +/- 10% process variation inVth, second order models are built for tdelayHL,
tdelayLH and tdelay and the model statistics is given in Table: 5.3. The delay models have been tested for their validity to predict the response values. For all the delay models, the statistics are very good. Residual RMS is very low in the order of 10−14. R2 , ¯R2, R2press are very close to 1 as required.
The model is verfied by performing 10000 Monte Carlo hspice simulations and com-paring the actual simulation response with the model-predicted response. The correlation coefficient is >0.95 and shows that model accuracy is good.
Table 5.3: Model Statistics of INVX1 with +/- 10% variation inVth
Statistics tdelayHL tdelayLH tdelay
Residual RMS 3.81565e-15 5.78709e-14 2.95530e-14
R2 0.999209 0.971604 0.983209
¯
R2 0.999168 0.965581 0.973134
R2press 0.999113 0.958424 0.956682
F-Value 24011.9 161.308 97.5931
Critical F-value 2.46 1.84 1.59
Correlation 0.9985 0.9596 0.95
coefficient
RSM modeling approach. We observe a good match for all the distributions. The statistics for variations inVth, obtained by analyzing the resulting distributions is presented in Table:
5.4.
5.5 6 6.5 7 7.5 8 8.5 9 9.5 x 10-12 0 0.5 1 1.5 2 2.5
x 1012
Delay D e n s it y MCHL data fit 1 RSMHL data fit 2 MCLH data fit 3 RSMLH data fit 4 MCDelay data fit 5 RSMDelay data fit 6 tdelayHL tdelay tdelayLH
Figure 5.1: PDF of delays of INVX1 with +/- 10% variation in Vth
Table 5.4: Delay Statistics of INVX1 with +/- 10% variation inVth
Statistics RSM Model Monte Carlo Simulation
tdelayHL tdelayLH tdelay tdelayHL tdelayLH tdelay
Distribution Mean 5.7535e-12 7.9904e-12 6.8719e-12 5.7619e-12 7.9608e-12 6.8621e-12
Median 5.7450e-12 7.9790e-12 6.8610e-12 5.7610e-12 7.9760e-12 6.8700e-12
Std.Deviation 1.6283e-13 3.8090e-13 2.1463e-13 1.6295e-13 3.8085e-13 2.1925e-13
Similarly, the PDF of tdelay due to +/- 10% variation in Tox, +/- 10% variation
inLef f and Tox is show in Fig: 5.2 and Fig: 5.3 respectively.
6 6.2 6.4 6.6 6.8 7 7.2 7.4 7.6 7.8 8
x 10-12 0
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
x 1012
Delay
P
D
F
ToxMCDelay data
fit 1
ToxRSMDelay data
fit 2
Figure 5.2: PDF of delay of INVX1 with +/- 10% variation in Tox
5.2.1 Runtime Comparison
6 6.5 7 7.5 8 8.5
x 10-12 0
2 4 6 8 10 12 14
x 1011
Delay
P
D
F
LeffToxMCDelay data
fit 1
LeffToxRSMDelay data
fit 2
Figure 5.3: PDF of delay of INVX1 with +/- 10% variation in Lef f and Tox
Table 5.5: Runtime Comparison
10000 Runs MonteCarlo RSM(approx)
INV 1Hr 3Mins 25Mins
NAND 1Hr 28Mins 35Mins
5.3
Chain of Inverters
obtained in the previous section is used here to further carry out statistical analysis. The nominal delay of the circuit is 201.7ps and the worst case corners considering +/- 10% variation inVthis 211.6ps and 191.8ps respectively. Now let us calculate the delay
of this circuit using the Path Based approach and using stastical sum. The mean of delay for a single stage of INV1 considering +/- 10% variation inVth is 6.861ps and 3 sigma standard
deviation is 0.65775ps (from Table: 5.4). So the path delay for 24 inverters is calculated to be 166.55ps. Comparing this value with worst case delay value of 211.6ps, there is differene of almost 20%. From this we can conclude that, using statistical approach and the models built, the overall circuit of which this circuit could be a part of can be clocked at a higher frequency.
5.4
SRAM Bit Cell
One of the parametric failures in a SRAM cell due to process variations [10] is Read Access Failures. During the read operation, the wordline is activated for a limited duration as determined by the cell access time. Read access failures occur if the contents of the cell cannot be read within this duration. In sense amplifier based memory architectures, the contents of a cell are read by sensing the voltage differential between bitlines. The read operation is successful if a precharged bitline discharges by a value large enough to trigger the sense amplifier within the wordline duration.
In this example, a SRAM cell [22] with a precondition circuit which takes care of precharging the bitlines is used to study effect ofVthvariation on Read Access Failures. The
Vth of transistors m1 and m2 in Fig. 5.4 is made to vary by +/-10% while theVth of other
Figure 5.4: SRAM Bit Cell with Precondition Circuit
5.5
Effect of WPE on Standard Cells
To study the effect of WPE on standard cells, simulations were performed using the netlist obtained from the layout during LVS. The layout was extracted with DELVTO and MULU0 separately to see the individual effects of variation in Vth and mobility. Table
0.7 0.8 0.9 1 1.1 1.2 1.3
x 10-11
0 1 2 3 4 5
x 1011
Access Time
P
D
F
MCAccessTime data
MCAccessTime Fit
RSMAccessTime data
RSMAccessTime Fit
Figure 5.5: The distribution of access time from RSM and MC simulations
Table 5.6: Read Access Time Statistics of SRAM cell with +/- 10% variation inVth
Statistics RSM Model Monte Carlo Simulation
Access Time Access Time
Distribution Mean 1.01e-11 1.01e-11
Median 1.01e-11 1.01e-11
Variance 7.20e-25 7.18e-25
Standard Deviation 8.49e-13 8.47e-13
Table 5.7: Standard cell circuit simulation with and without Well Proximity Effect
delay(ps) No WPE With WPE With WPE
(DELVTO) (MULU0)
25C/1.1V value value ratio value ratio
INVX1 tdelayHL 5.751 5.868 1.02 5.685 0.989
tdelayLH 8.097 8.463 1.045 7.3730 0.911
INVX2 tdelayHL 4.869 4.978 1.022 4.809 0.988
tdelayLH 6.418 6.622 1.032 6.1350 0.956
INVX4 tdelayHL 4.852 4.946 1.019 4.796 0.988
tdelayLH 6.280 6.439 1.025 6.004 0.956
INVX8 tdelayHL 4.523 4.573 1.011 4.489 0.992
tdelayLH 5.902 5.914 1.002 5.441 0.922
NAND2X1 tdelayHL 8.661 9.015 1.041 8.524 0.984
tdelayLH 11.56 12.16 1.052 10.630 0.920
NAND3X1 tdelayHL 11.27 11.50 1.02 11.07 0.963
tdelayLH 7.302 7.516 1.029 6.957 0.926
NOR2X1 tdelayHL 3.670 3.754 1.023 3.620 0.986
tdelayLH 8.596 9.001 1.047 7.9510 0.925
NOR3X1 tdelayHL 4.491 4.5450 1.012 4.462 0.994
tdelayLH 13.82 14.12 1.022 13.09 0.994
MUX2X1 tdelayHL 12.05 12.08 1.002 12.04 0.99
Chapter 6
Conclusions and Future Work
6.1
Conclusions
DFM is a must to handle process variations in the deep sub micron technologies. If random process variations is not taken into account during the design phase using statistical methods, then the design is going to be overly pessimistic. Also, effect of systematic process variations which can be modeled, needs to be considered. To understand the effects of process variations and to handle them, a framework is required. In this work, we have presented a framework to perform RSM/DoE to model the effects of Random Process Variations on circuit performance parameters. Perl scripts have been used to automate most of the steps involved. The complete flow is explained in detail using an example. The modeling methodology is verified for its accuracy and results presented. A two stage inverter is characterized thorougly and the result used in statistical timing analysis of chain of inverters. The methodology is applied to study the effect ofVth variations on read access
time of 6T SRAM cell. To study the effect of WPE, LVS rule deck is extended to extract instance parameters based on layout. The effect of WPE on delay was calculated for few of the standard cells.
6.2
Future Work
Considering the work done in this thesis, future directions for for research and enhancement can be classified into those that
• Involve the application of Statistical Analysis
For improving the accuracy, the following needs to be considered
• While considering a circuit for analysis, the wire delay was not taken into account. Variation in wire dimensions and its effects on the overall propogation delay of a signal needs to be handled [16].
• Effect of Stress and Strain as a systematic proximity effect.
• To do a full blown Statistical Analysis considering correlation.
• Tcad simulations to get the fitting parameters in WPE equations.
• CornerS A B C calculation with support from SVRF to measure corner distances in WPE.
• Ability to handle Non-Gaussian Variation, Non-Linear Sensitivity of circuit perfo-mance parameter.
• To continue the optimization process - by gate sizing and dual-Vth assignment to vary circuit delay or leakage distribution. [11]
• Yield Optimization Process.
Bibliography
[1] Predictive Technology Model, http://www.eas.asu.edu/~ptm/.
[2] International Technology Roadmap for Semiconductors- 2007 Edition, http://www. itrs.net/Common/2007ITRS/Design2007.pdf.
[3] B.P. Harish, Navakanta Bhat, and Mahesh B.Patil, “On a Generalized Framework for Modeling the Effects of Process Variations on Circuit Delay Performance Using Response Surface Methodology”, IEEE Trans. Computer-Aided Design of Integrated Circuits and Systems, vol 26, issue 3, pp 606 - 613, March 2007.
[4] Steven M.Burns, Mahesh Ketkar, Noel Menezes, Keith A.Bowman, James W.Tschanz, and Vivek De, “Comparative Analysis of Conventional and Statistical Design Tech-niques”, 44th Design Automation Conference, June 2007, 48 June 2007 Page(s):238 -243.
[5] M.Basel, J.Xi, J.Watts, P.Humphries, K.Su, and S.Moinian, “Guidelines for Ex-tracting Well Proxomity Effect Instance Parameters”, http://www.eigroup.org/ CMC/proximity_effect_modeling/wpe_guidelines_v2.2.pdf, Revision 2.2 Decem-ber 2006.
[6] Josef Watts, Ke-Wei Su, and Mark Basel, “Netlisting and Modelling Well Proximity Effects”, IEEE Transactions on Electron Devices, Vol. 53, Issue. 9, page(s) 2179- 2186, September 2006.
[8] Michael Orshansky, James C.Chen, and Chenming Hu “A Statistical Performance Simulation Methodology for VLSI Circuits”, 35th Design Automation Conference, June 1998, 15-19 June 1998 Page(s):402 - 407.
[9] Xin Li, Jiayong Le, Lawerence T.Pileggi, and Andrzej Strojwas “Projection-Based Performance Modeling for Inter/Intra-Die Variationsu”, IEEE/ACM International con-ference on Computer-aided design, 2005. , Page(s) :720-727.
[10] Kanak Agarwal, and Sani Nassif “Statistical Analysis of SRAM Cell Stability”, 43rd Design Automation Conference, July 2006, 24-28 July 2006 Page(s):57 - 62.
[11] Swarup Bhunia, Saibal Mukhopadhyay, and Kaushik Roy “Process Variations and Process-Tolerant Design”, IEEE International Conference on VLSI Design, 2007., Page(s):699 - 704.
[12] Yi-Ming Sheu, Ke-Wei Su, Sheng-Jier Yang, Hsien-Te Chen, Chih-Chiang Wang, Ming-Jer Chen, and Sally Liu “Modeling Well Edge Proximity Effect on Highly-Scaled MOS-FETs”, IEEE 2005 Custom Integrated Circuits Conference., Page(s):831 - 834.
[13] G. Hobler et al., “Monte Carlo simulation of ion implantation into two and three dimensional structures”, IEEE Trans. Computer-Aided Design, vol 8, issue 5, pp 450 -459, May 1989.
[14] T.B. Hook, J. Brown, P.Cottrell, E. Adler, D. Hoyniak, J. Johnson, and R.Mann, “Lat-eral Ion Implant Straggle and Mask Proximity Effect”, IEEE Trans. Electron Devices, vol 50, issue 9, pp 1946 - 1951, September 2003.
[15] D. Boning and S. Nassif, “Models of Process Variations in Device and Intercon-nect”, Design of High Performance Microprocessor Circuits, Editors: A. Chandrakasan, W.Bowhill, F. Fox, IEEE Press, 2000.
[16] S.R. Nassif, “Modeling and analysis of manufacturing variations”, IEEE Conference on Custom Integrated Circuits,2001,, pages 223228, San Diego, CA, May 2001.
[17] Shannon Michael Kurtas, “Statistical Static Timing Analysis of Nonzero Clock Skew Circuits”, Masters Thesis, Drexel University, June 2007.,
[19] Izumi Nitta, Toshiyuki Shibuya and Katsumi Homma. “Statistical Static Timing Analysis Tecnology”, FUJITSU Sci. Tech. J, vol 43, Issue 4, pp 516 - 523, October 2007.
[20] Duane S.Boning and P.K. Mozumder., “DOE/Opt: A system for Design of Experi-ments, Response Surface Modeling, and Optimization using Process and Device Simu-lation”, IEEE Trans. on Semiconductor Manufacturing, vol 7, issue 7, pp 233 - 244, May 1994.
[21] James E.Stine et al., “FreePDK: An Open-Source Variation-Aware Design Kit”, IEEE International Conference on Microelectronic Systems Eduaction ,2007,, San Diego, CA, June 2007.
[22] Kiran Gonsalves, Laxminarayan Chavani and Prakash Bangalore Prabhakar, “Design and Layout of a 128-bit Static Random Access Memory”, VLSI Systems Design Course, NCSU, Fall 2007.
[23] Raymond H. Myers and Douglas C. Montgomery, “Response surface methodology : process and product optimization using designed experiments ”, 2nd ed, New York : J. Wiley, c2002.
[24] Xi Wei Lin, “Practical Aspects of coping with Variability - An Electrical overview”,
