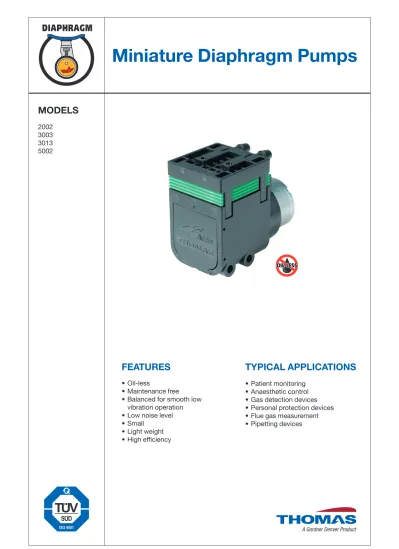

Miniature Diaphragm Pumps
MODELS
2002 3003 3013 5002
FEATURES
• Oil-less
• Maintenance free
• Balanced for smooth low vibration operation
• Low noise level
• Small
• Light weight
• High efficiency
TYPICAL APPLICATIONS
• Patient monitoring
• Anaesthetic control
• Gas detection devices
• Personal protection devices
• Flue gas measurement
• Pipetting devices
Options:
Bearing type Ball bearing
Flow 380 ml/min
Max. pressure 400 mbar Max. vacuum 40%
Pneumatic Data
Description 2002VD/0,5/E/DC
Part number 3,5 V 20020301 (2 to 3,8 V) 4,5 V 20020304 (3,5 to 7 V) 6,0 V 20020307 (5 to 10 V)
Max. flow 380 ml/min
Max. intermittent duty 380 to 400 mbar Max. continuous pressure 150 mbar
Max. restart pressure 150 mbar
Max. vacuum 36 to 40%
Max. restart vacuum 15%
Electrical Data
Motor type Ironless core DC
Rated power 2 to 3,8 V/48 to 53 mA
3,5 to 7 V/32 to 37 mA 5 to 10 V/23 to 25 mA
Protection class IP00
Bearing type Sleeve bearing
General Data
Ambient temperature 10 to 50 °C
Media temperature 10 to 50 °C
Weight 32 g
Port direction D
Wetted Parts Options
Pump head Phenol resin
Diaphragm, valves EPDM FPM (Viton®), Silicone
Drawing17547 Inchesareshownin()
Flow Curves
Model key:
2002VD / 0,5 / E / DC
Type Eccentric Motor type Pressure
Diaphragm, valves Noise suppression for the purpose of guideline 89/336 EWG electromagnetic tolerance.
2002... Stock programme
50 40 30 20 10 0 100 200 300 400 500
400
300
200
100
0
Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
2002VD/0,5/E/DC
Umax
Umin
Vacuum
Diaphragm Pump 2002 VD DC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Drawing11406 Inchesareshownin()
Flow Curves
Flow 500 ml/min
Max. pressure 400 mbar Max. vacuum 40%
Pneumatic Data
Description 2002VD/0,5/E/LC
Part number 3,5 V 20020215 (3,5 to 5 V)
Max. flow 500 ml/min
Max. intermittent duty 380 to 400 mbar Max. continuous pressure 150 mbar
Max. restart pressure 150 mbar
Max. vacuum 36 to 40%
Max. restart vacuum 15%
Electrical Data
Motor type Permanent magnet
Rated power 3,5 to 5 V/90 mA
Protection class IP00
Bearing type Sleeve bearing
General Data
Ambient temperature 10 to 50 °C
Media temperature 10 to 50 °C
Weight 17 g
Port direction D
2002... Stock programme
50 40 30 20 10 0 100 200 300 400 500
600
500
400
300
200
100
0
Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
2002VD/0,5/E/LC
Umax
Umin
Wetted Parts Options
Pump head Phenol resin
Diaphragm, valves EPDM FPM (Viton®), Silicone
Model key:
2002VD / 0,5 / E / LC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
Diaphragm Pump 2002 VD LC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Diaphragm Pump 2002 VD BLDC
Drawing15589 Inchesareshownin()
Flow Curves
Flow 800 ml/min
Max. pressure 600 mbar Max. vacuum 52%
Pneumatic Data
Description 2002VD/0,7/E/BLDC
Part number 20020434
Max. flow 800 ml/min
Max. intermittend duty 550 to 600 mbar Max. continuous pressure 150 mbar
Max. restart pressure 600 mbar
Max. vacuum 50% to 52%
Max. restart vacuum 52%
Electrical Data
Motor type Brushless DC
Power consumption 0,8 W
Protection class (Motor) IP40
Drive electronic integrated
Bearing type Ball bearing
Connector type: Molex 51021-0600 / Terminal 50058-8100 Wiring diagramm:
PIN 1 Vp red Electronics supply 5...18VDC
2 Vmot black Motor supply 5...18VDC (min. 4VDC higher than input voltage on PIN 4) 3 GND black Ground
4 Vnsoll black Speed control 1...4VDC
5 DIR black Direction of rotation: U < 3VDC: CW / ground: CCW 6 FG black Signal / 3 impulses per rotation
General Data
Ambient temperature 10 to 50 °C
Media temperature 10 to 50 °C
Weight 22 g
Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
70 60 50 40 30 20 10 0 100 200 300 400 500 600 700 900
800
700 600
500
400 300
200 100
0
Umax
Umin
Wetted Parts Options
Pump head Phenol resin
Diaphragm, valves EPDM FPM (Viton®), Silicone
Model key:
2002VD / 0,7 / E / BLDC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
2002VD/0,7/E/BLDC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Drawing13256 Inchesareshownin()
Flow Curves Noise suppression for the purpose of guideline 89/336 EWG electromagnetic tolerance.
Flow 1000 ml/min
Max. pressure 650 mbar Max. vacuum 38%
Pneumatic Data
Description 3003VD/0,7/E/DC 3003VD/0,7/E/DC 3003VD/0,7/E/DC
Part number 4,5 V 30030506
6,0 V 30030511
12,0 V 30030509
Max. flow 850 ml/min 850 ml/min 1000 ml/min
Max. intermittent duty 650 mbar 650 mbar 650 mbar
Max. continuous pressure 200 mbar 200 mbar 200 mbar
Max. restart pressure 200 mbar 200 mbar 200 mbar
Max. vacuum 38% 38% 38%
Max. restart vacuum 20% 20% 20%
Electrical Data
Motor type Ironless core DC Ironless core DC Ironless core DC
Rated power 4,5 V/105 mA
6 V/80 mA
12 V/66 mA
Protection class IP00 IP00 IP00
Bearing type Sleeve bearing Ball bearing Sleeve bearing
General Data
Ambient temperature 10 to 50 °C 10 to 50 °C 10 to 50 °C
Media temperature 10 to 50 °C 10 to 50 °C 10 to 50 °C
Weight 40 g 40 g 40 g
Port direction D D D
3003... Stock programme
Wetted Parts Options
Pump head Phenol resin
Diaphragm plate Polyamid
Diaphragm, valves EPDM FPM (Viton®), Silicone
Diaphragm screw V2A
Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
Model key:
3003VD / 0,7 / E / DC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
50 40 30 20 10 0 100 200 300 400 500
1100 1000 900 800 700 600 500 400 300 200 100 0
3003VD/0,7/E/DC/12V 3003VD/0,7/E/DC/4,5/6V
Diaphragm Pump 3003 VD DC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Drawing13257 Inchesareshownin()
Flow Curves
Flow 950 ml/min
Max. pressure 850 mbar Max. vacuum 48%
Pneumatic Data
Description 3003VD/0,7/E/LC 3003VD/0,8/E/LC
Part number 3,5 V 30031505
4,5 V 30030507
Max. flow 850 ml/min 950 ml/min
Max. intermittent duty 650 mbar 850 mbar
Max. continuous pressure 200 mbar 200 mbar
Max. restart pressure 200 mbar 200 mbar
Max. vacuum 38% 48%
Max. restart vacuum 20% 20%
Electrical Data
Motor type Permanent magnet Permanent magnet
Rated power 3,5 V/250 mA
4,5 V/165 mA
Protection class IP00 IP00
Bearing type Sleeve bearing Sleeve bearing
General Data
Ambient temperature 10 to 50 °C 10 to 50 °C
Media temperature 10 to 50 °C 10 to 50 °C
Weight 35 g 35 g
Port direction D D
3003... Stock programme
Wetted Parts Options
Pump head Phenol resin
Diaphragm plate Polyamid
Diaphragm, valves EPDM FPM (Viton®), Silicone
Diaphragm screw V2A
Model key:
2003VD / 0,7 / E / LC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
50 40 30 20 10 0 100 200 300 400 500
1000 900 800 700 600 500 400 300 200 100 0
3003VD/0,8/E/LC 3003VD/0,7/E/LC
Diaphragm Pump 3003 VD LC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Flow Curves
Flow 700 ml/min
Max. pressure 1000 mbar Max. vacuum 48%
Pneumatic Data
Description 3003VD/0,9/E/BLDC
Part number 6 V 30030512
Max. flow 700 ml/min
Max. intermittent duty 1000 mbar Max. continuous pressure 300 mbar
Max. restart pressure 700 mbar
Max. vacuum 48%
Max. restart vacuum 48%
Electrical Data
Motor type Brushless DC
Rated power 6 V/180 mA
Protection class IP00
Drive electronic integrated
Bearing type Ball bearing
General Data
Ambient temperature 10 to 50 °C
Media temperature 10 to 50 °C
Weight 95 g
Port direction D
Wetted Parts Options
Pump head Phenol resin
Diaphragm plate Polyamid
Diaphragm, valves EPDM FPM (Viton®), Silicone
Diaphragm screw V2A
Model key:
3003VD / 0,9 / E / BLDC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
Drawing13233 Inchesareshownin()
800
700
600
500
400
300
200
100
0
60 50 40 30 20 10 0 100 200 300 400 500 600
3003VD/0,9/E/BLDC
Diaphragm Pump 3003 VD BLDC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Drawing16269 Inchesareshownin()
Flow Curves
Flow 1,2 l/min
Max. pressure 450 mbar Max. vacuum 40%
Pneumatic Data
Description 3013VD/0,7/E/DC 3013VD/0,7/E/DC 3013VD/0,7/E/DC
Part number 4,5 V 30130007
6,0 V 30130224
12,0 V 30130006
Max. flow 0,9 l/min 0,85 l/min 1,2 l/min
Max. intermittent duty 450 mbar 450 mbar 450 mbar
Max. continuous pressure 200 mbar 200 mbar 200 mbar
Max. restart pressure 200 mbar 200 mbar 200 mbar
Max. vacuum 40% 40% 40%
Max. restart vacuum 20% 20% 20%
Electrical Data
Motor type Ironless core DC Ironless core DC Ironless core DC
Rated power 90 mA 40 mA 40 mA
Protection class IP00 IP00 IP00
Bearing type Sleeve bearing Ball bearing Sleeve bearing
General Data
Ambient temperature 10 to 40 °C 10 to 40 °C 10 to 40 °C
Media temperature 10 to 40 °C 10 to 40 °C 10 to 40 °C
Weight 32 g 32 g 32 g
Port direction D D D
Stock programme 3013...
Option
Motor BLDC motor
Bearing type Ball bearing Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
Wetted Parts Options
Pump head Polycarbonate Polycarbonate Polycarbonate Ryton®
Diaphragm EPDM EPDM EPDM FPM (Viton®)
Valve/gasket EPDM EPDM EPDM FPM (Viton®)
Model key:
3013VD / 0,7 / E / DC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
50 40 30 20 10 0 100 200 300 400 500
1300 1200 1100 1000 900 800 700 600 500 400 300 200 100 0
3013VD/0,7/E/DC/12V 3013VD/0,6/E/DC 3013VD/0,7/E/DC/4,5V
Diaphragm Pump 3013 VD DC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Drawing15584 Inchesareshownin()
Flow Curves
Flow 1,3 l/min
Max. pressure 600 mbar Max. vacuum 45%
Pneumatic Data
Description 3013VD/0,8/E/LC 3013VD/0,7/E/LC 3013VD/0,7/E/LC
Part number 3,0 V 30130039
4,5 V 30130002
12,0 V 30130003
Max. flow 0,9 l/min 0,9 l/min 1,3 l/min
Max. intermittent duty 600 mbar 450 mbar 450 mbar
Max. continuous pressure 200 mbar 200 mbar 200 mbar
Max. restart pressure 200 mbar 200 mbar 200 mbar
Max. vacuum 45% 40% 40%
Max. restart vacuum 20% 20% 20%
Electrical Data
Motor type Permanent magnet Permanent magnet Permanent magnet
Rated power 180 mA 120 mA 60 mA
Protection class IP00 IP00 IP00
Bearing type Sleeve bearing Sleeve bearing Sleeve bearing
General Data
Ambient temperature 10 to 40 °C 10 to 40 °C 10 to 40 °C
Media temperature 10 to 40 °C 10 to 40 °C 10 to 40 °C
Weight 32 g 32 g 32 g
Port direction D D D
Stock programme 3013...
Flow [ml/min]
Vacuum rel. [%] Pressure [mbar]
Wetted Parts Options
Pump head Polycarbonate Polycarbonate Polycarbonate Ryton®
Diaphragm EPDM EPDM EPDM FPM (Viton®)
Valve/gasket EPDM EPDM EPDM FPM (Viton®)
Option
Motor BLDC motor
Bearing type Ball bearing
Model key:
3013VD / 0,8 / E / LC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
50 40 30 20 100 0 100 200 300 400 500
1400 1300 1200 1100 1000 900 800 700 600 500 400 300 200 100 0
3013VD/0,7/E/LC/12V 3013VD/0,8/E/LC 3013VD/0,7/E/LC/4,5V
Diaphragm Pump 3013 VD LC
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Drawing11982 Inchesareshownin()
Flow Curves
Flow 2,2 l/min
Max. pressure 1,5 bar Max. vacuum 55%
Pneumatic Data
Description 5002VD/0,8/N/DC 5002VD/1,0/N/DC 5002VD/1,2/N/DC
Part number 6 V 50020360 50020397 50020425
12 V 50020368 50020408 50020434
24 V 50020384 50020416 50020444
Max. flow 1,5 l/min 2,0 l/min 2,2 l/min
Max. intermittent duty 0,7 bar 1,2 bar 1,5 bar
Max. continuous pressure 0,3 bar 0,3 bar 0,3 bar
Max. restart pressure 0,7 bar 1,2 bar 1,5 bar
Max. vacuum 35% 50% 55%
Max. restart vacuum 35% 50% 55%
Electrical Data
Motor type Permanent magnet Permanent magnet Permanent magnet
Nominal speed 3000 rpm 3000 rpm 3000 rpm
Rated power 6 V/380 mA 6V/680 mA 6 V/840 mA
12 V/190 mA 12 V/340 mA 12 V/420 mA
24 V/95 mA 24 V/170 mA 24 V/210 mA
Protection class IP00 IP00 IP00
Bearing type Sleeve bearing Sleeve bearing Sleeve bearing
General Data
Ambient temperature 10 to 50 °C 10 to 50 °C 10 to 50 °C
Media temperature 10 to 60 °C 10 to 60 °C 10 to 60 °C
Weight 190 g 190 g 190 g
Port direction D D D
Hold down plate Ø14 Ø18 Ø18
5002... Stock programme Flow [l/min]
Vacuum rel. [%] Pressure [bar]
Options
Bearing type Ball bearing
Model key:
5002VD / 0,8 / N / DC
Type Eccentric Motor type Pressure
Diaphragm, valves Vacuum
Wetted parts Options
Pump head Polyarylamide Polyphenylsulfide (PPS) Diaphragm, valves NBR EPDM, PTFE, FPM (Viton®) Diaphragmplate, screw St, galvanized Stainless steel
60 50 40 30 20 10 0 0,2 0,4 0,6 0,8 1,0 1,2
2,5
2,0
1,5
1,0
0,5
0
5002/VD/1,2/N/DC/18 5002/VD/1,0/N/DC/18 5002/VD/0,8/N/DC/14
The information presented in this material is based on technical data and test results of nominal units. It is believed to be accurate and reliable and is offered as an aid to help in the selection of Thomas products. It is the respon- sibility of the user to determine the suitability of the product for the intended use and the user assumes all risk and liability whatsoever in connection therewith. Thomas does not warrant, guarantee or assume any obligation or liability in connection with this information.
Diaphragm Pump 5002 VD DC
CAUTION! PHASE OUT - PLEASE CONTACT FACTORY
Printed in Germany.
Art.-Nr.: 17000075 02/2013 BHO
Gardner Denver Thomas GmbH
Benzstraße 28 · Gewerbegebiet Nord · D-82178 Puchheim
