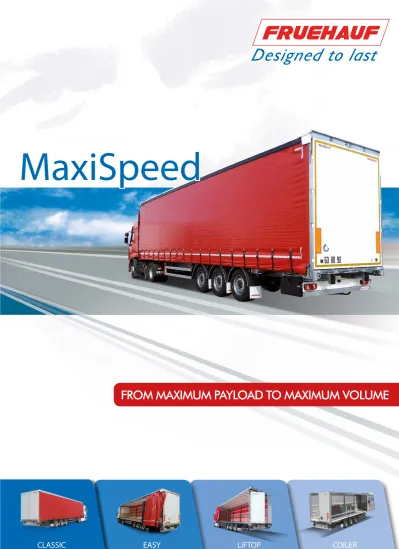

MaxiSpeed
CLASSIC EASY LIFTOP COILER
FROM MAXIMUM PAYLOAD TO MAXIMUM VOLUME
Designed to last
The MaxiSpeed curtainsider represents the ideal answer to the logistical and just in time obligations: ease of loading and discharging, reduction of idle time, increasing productivity. The MaxiSpeed range offers transport solutions from maximum payload to maximum volume:
CLASSIC, Economical multi purpose.
EASY, Polyvalent with variable heights.
LIFTOP, For more loading height.
COILER, Dedicated to steel products.
MaxiSpeed Range
Fully welded platform structure with I-beam cross bearers at a pitch of 400 mm Running gear, the top technology from
the major axle manufacturers Total protection of the rear by large
galvanised buffers
ROBUST
Laminated hardwood floor 35 mm thick
with steel omega profiles Reinforced and corrugated front wall in steel or in aluminium
Side posts in high tensile steel strongly locked onto the siderave
The requirements of the transporters have largely changed these last years and have reverted back to a requirement of robustness, with no premature wear and risk of standstill of the trailers. With vehicles exploited full time, immobilisations are extremely costly.
Since always, FRUEHAUF designs and manufactures vehicles of which the robustness is highly appreciated in the market. Our fully welded chassis frames, our sturdy floors and our strong body design are perfectly adapted to intensive and heavy duty use.
Designed to last
SAFETY OF THE OPERATORS :
Adjustment to dock level
from inside the trailer Automatic actioning of
the parking brake Universal lashing system Safe release of stanchions under pressure M&B Inside ®
Raise and Lower command inside
SafeParking ®
Automatic parking brake
MultiFix ®
Multiple lashing positions in the
side raves Stanchion safety release
The FRUEHAUF style
To design vehicles adapted to the requirements of our clients also means to propose vehicles which can please from an aesthetical viewpoint.
The FRUEHAUF style has always integrated the aesthetics in the design and manufacturing of its products.
MaxiSpeed Range SAFETY
The MaxiSpeed range has been designed for maximum safety around two major aspects : • Safety of the operators in touch with the vehicle, by the ergonomics of the compo- nents and adapted equipment.
• Safety in road behaviour by the integration of electronic driver assistance systems, increasing the passive and active safety of the vehicle.
SAFETY IN ROAD BEHAVIOR :
Electronic operated brakes and stability
system
Protection against
reversing accidents Maintains tyres auto- matically at the correct
pressure
Monitors tyre pressure and temperature EBS & SAS
Electronic Braking System RCP ®
Reverse Collision Protection
APCS ®
Automatic Pressure Control System
TPMS ®
Tyre Pressure and temperature Monitoring System
ADAPTABILITY
FLOOR :
FROM TRADITIONAL TILL MOST DEMANDING
Mixed aluminium/wood for maximum payload
Solid hardwood planks Steel omega profiles resistant against punching
Laminated 35 mm Hardwood
Steel omega profiles
FRONTWALL :
THE CHOICE OF AESTHETICS AND TYPE OF USE
Corrugated steel or aluminium
Smooth plywood
Adjustable
SIDE CURTAINS:
FROM 900 gr/m2 CURTAINS TILL REINFORCED SIDE WALL
WITH DROP SIDES Curtain in 900 gr/m2 Drop sides
Anti theft reinforced curtain with reinforced side
From side loading of light weight products, to frequent loading with heavy forklift trucks on the floor : the diversity of these types of transport requires perfectly adapted trailers.
A single standard model can not optimally fulfil both requirements.
Fruehauf proposes thus in standard several alternatives for floor, front wall and side walls.
The easy handling and the speedy and safe opening and closing make the MaxiSpeed CLASSIC largely multipurpose and perfectly suitable for all traditional types of transports : Industrial supplies, Long distance, Groupage and Distribution.
C L A S S I C
ECONOMICAL MULTI PURPOSE
7 MODELS FROM 2700 TO 2900 MM
SIDE ACCESS HEIGHT / NECK THICKNESS
EUROTRAILER – Coupling height 1100 mm MAXITRAILER – Coupling height 1000 / 1050 MEGATRAILER – Coupling height 950 mm
2700 / 150 mm 2750 / 150 mm
2900 / 90 mm
2750 / 120 mm 2800 / 120 mm
2800 / 90 mm 2850 / 90 mm
ECONOMICAL MULTI PURPOSE THE POLYVALENT CURTAINSIDER
1 POLYVALENT MODEL - MULTIPLE COUPLING HEIIGHTS
SIDE ACCESS HEIGHT / CHASSIS NECK THICKNESS
EUROTRAILER – Coupling 1100 mm MAXITRAILER – Coupling 1000 / 1050 mm MEGATRAILER – Coupling 950 mm
FRONT 2750 to 3050 / 90 mm FRONT 2800 to 3050 / 90 mm FRONT 2900 to 3050 / 90 mm REAR 2900 to 3050 mm REAR 2900 to 3050 mm REAR 2900 to 3050 mm
E A S Y
Multiple coupling heights Fixed height alu doors Height adjustable roof
Liftable roof for loading
The MaxiSpeed EASY is the solution for a large variety of cargo flows, from the maxi-volume of the automotive industry to the maxi-weight of full trailer loads.
Height adjustable from 2,75m to 3,05m on the front wall and from 2,90m to 3,05m at the rear, within the European 4m overall height.
L I F T O P
The mechanical roof lifting system allows to increase the side access height for loads with large heights, in total safety and within the 4 meters overall height.
VOLUMINOUS TRANSPORTS FOR THE AUTOMOTIVE INDUSTRY
2 MODELS FROM 2850 TO 3000 MM Single or dual ride height
SIDE ACCESS HEIGHT / NECK THICKNESS
MAXITRAILER – Coupling height 1000 / 1050 mm MEGATRAILER – Coupling height 950 mm
2850 / 150 mm 2950 / 90 mm
2900 / 90 mm 3000 / 90 mm
Lifting handle in each corner
2 height positions 4 meters and + 50 mm
Roof thickness of 45 mm over the full internal width
Sliding side post with spring compensation
C O I L E R
MAXIMUM PAYLOAD
The rigidity of the chassis needed for transport of coils is assured by the use of high tensile steels.
INTERNAL HEIGHT MAINTAINED
The chassis neck thickness allows a standard side-access height, com- patible with most current palletised freight.
PERFORMANCE IN STEEL PRODUCTS TRANSPORT
Transport of steel products is regulated by extremely severe safety and product protection rules. The MaxiSpeed COILER fulfils all these requirements while guaranteeing optimal productivity for industrial loads.
Coil well with 35° angle Anti roll over
stanchions
7 pairs of lashing rings around the coil well
6,5 tons capacity Strong and light weight
coil well covers
Functional and practical options
Numerous optional accessories can be integrated in our vehicles to make usage easier or to adapt these to specific operational needs :
• Storage of the different accessories
• Securing of the freight
• Protection and additional reinforcements
• Handling of the freight
Plank box in rear
Rein- forced coupling plate Protection of doorlocks
Additional threshold plate
Doos with exte- rior lockrods
STORAGE MEANS
Pallet box
Toolbox
Transversal box
Document holder Sideplank storage rack
REINFORCED PROTECTION
Functional and practical options
SAFETY OF THE CARGO
Side planks with cargo securing rail
80 x 40 Stanchion pockets and stanchions
Drop sides
lift axle Intégral Open Top
Load length indication Spare wheel carrier
Universal cargo
securing ring Pallet retainer strip
TUV certification
ADDITIONAL EQUIPMENT
Brake pad wear indicators MultiFix side raves
Carry on forklift truck Retractable taillift Info Centre
Services
24 à 28, avenue Jean Mermoz - BP 209 - 89002 AUXERRE CEDEX - FRANCE Tél. : + 33 (0) 3 86 94 42 42 - Fax : + 33 (0) 3 86 48 32 11
[email protected] - www.fruehauf.com
Your Fruehauf contact person
FINANCING
In close partnership with the larger finance institutions, our specialised Department will recommend the financing method adapted to your needs:
Hire-purchase, Conventional credit, Financial lease or Operational lease.
www.fruehauf.com/financement
Maintenance, repair, spare parts, used trailers and finance: FRUEHAUF assures you professional assistance and performing services.
MAINTENANCE REPAIRS
500 Service Centres
in E urope
Our network of 500 Service Centres in Europe gives you quick and efficient service on all types of vehicles in your vicinity.
To locate your nearest Service Centre:
www.fruehauf.com/centres-service
SPARE PARTS
The Spare Parts Department guarantees the supply of original manufacturers components, wear parts immediately available from your local Service Point, delivery within 24 hours of specific parts. Identification and ordering on line of all parts for vehicles up to 15 years old.
www.fruehauf.com/servicepro
USED VEHICLES
The used vehicle Department offers a wide choice of vehicles and the professionalism of a leader: complete information on the status of the vehicle, a procedure of intake control covering 30 points (chassis, tyres, brakes, suspension, body) , a specialised workshop to adapt the vehicle to your needs, an on-line offer.
www.fruehauf.com/occasions
Designed to last
Non binding document. Printed on paper from sustainably managed forests. Visual © Fotolia.
