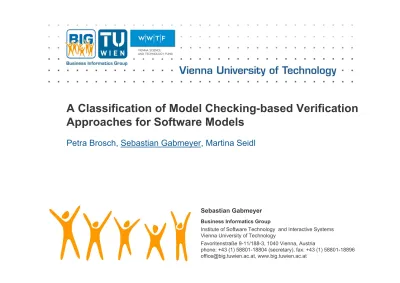

A Classification of Model Checking-based Verification
Approaches for Software Models
Petra Brosch, Sebastian Gabmeyer, Martina Seidl
Background
•
Motivation
•
Why are we doing this?
• Existing Surveys focus on model transformations
• Broaden Scope: Verification approaches for software models
• Software models = formal, abstract representation of software
•
Actually: plethora of different verification approaches
• > 70 different papers
•
Points of Interest
• Influences from techniques used to verify hardware & software
• Any new techniques?
• Successful in practice? – Difficult due to availability of tools
Contributions
•
Classification of Verification Approaches for Software Models
Restricted to Model Checking based approaches
1.
Feature Model
(in the style of Czarnecki and Helsen)• Advantages: flexible, sufficiently expressive, easily extensible
2.
Classification of five verification approaches
Feature Model
Main Features
1.
Verification Goal
•
Aim of the verification, e.g., inter-model consistency
2.
Verification Technique
•
Model Checking, Theorem Proving, Static Analysis
3.
Specification Language
•
Formalism used to define interesting properties of the system
4.
Domain Representation
•
Representation used by the user to create the software models
5.
Verification Representation
Verification Goal
Goals
•
Consistency
•
Intra-model vs. Inter-model
•
Translation Correctness
•
Source/Target Correctness
•
Transformation Correctness
•
Behavioral Correctness
•
Specified by Operation Contracts
•
Specified by Transformations
Consistency
Verification Goal
•
Intra-Model Consistency
•
Example:
1. 1x Metamodel
2. 1x Set of Constraints (e.g.: OCL)
•
Q: Does there exist an instance model
conforming to the metamodel that satisfies
all the constraints?
•
Inter-Model Consistency
•
Example:
1. 1x Model being the Specification
2. ≥1 Model being the Implementation
Translation Correctness
Verification Goal
Goal: Assert that Model A is translated correctly into Model B
•
Source/Target Correctness
Q: Is the Target a correct image of the Source?
Example – Narayanan et al.:
State Charts to Extended Hybrid Automata: verify if all states reachable in the SC are reachable in the EHA
•
Transformation Correctness
Q: Does the Transformation produce a correct Model B?
•
Does the Transformation terminate?
•
Is the Transformation confluent?
Example – Buettner et al.:Behavioral Correctness
Verification Goal
Goal: Does the software described by a model behave as specified?
Examples:
•
Dining Philosophers
• Model: Philosopher + Table + Forks
• Specify: “Every philosopher will eat some time”
•
Users printing over a shared printer
• Model: User + Printer
• Specify: “No two users can print at the same time”
Behavior can be described either by
•
Operation contracts
consist of pre and post conditions
•
Transformations
Verification Technique
•
Theorem Proving
• Interactive: Guided by the modeler
• Automatic: CSP, SAT (modulo theories)
•
Static Analysis
• Sound over-approximation of the real system • Example: Constant Propagation
•
Model Checking
• Automatic, exhaustive testing of all possible “states” of the implementation int a,b = 100; int t = 0; while (a > 0) do a := a – 1; if (a < 51) then t := a; a := b; b := t; fi od
States are triples of <a,b,t> Init: <100,100,0>
<99,100,0>, …, <50,100,0>, <50,100,50>, <100,100,50>, <100,50,50>, …, <0,50,50> Representation
Idea behind Model Checking
•
Verification by Model Checking
•
Generate the state space:
1. Initialize the state space to the initial model
2. Apply all applicable transformations currently in the state space
3. Repeat Step 2 until no more states are added to the state space
•
Then: Check if the specification holds in S, e.g., EG φ
φ
φ
Model Checking
Verification Technique
•
Distinguish approaches by
•
State Space Representation: Enumerative vs. Symbolic
•
Property Types
• Reachability: “Can we reach a state from the initial state s.t. property P
holds?”
• Safety: “Nothing bad happens” , e.g., “No two users print at the same time” • Liveness: “Something good will eventually happen”, e.g., “Every philosopher
Specification Language
A property specifies desirable/undesirable system states
•
First Order Logic
•
Temporal Logic: LTL, CTL, CTL*,…
“From every state it is possible to return to the initial state”
•
Rewriting Logic
“search <P : Philosopher | state : thinking> =>1 <Q : Philosopher | _>”
•
Automata
“There exists a trace to a state such that b always holds”
•
OCL
Domain Representation
•
Domain Representation – used by the modeler
•
Graphs
•
OMG-related: MOF (Ecore), UML, QVT, OCL
•
DSLs , e.g., ATL+Ecore
Verification Representation
•
Verification Representation – used by the verification engine
•
Algebraic Terms
•
Transition Systems
• LTS, GTS, Petri Nets
GROOVE
•
Verifies the behavioral correctness of OO systems
•
Based on Graph Transformation Theory
•
Uses its own Model Checker
•
State Space:
•
User provides initial model
•
User provides a set of transformations that define the behavior
•
GROOVE builds the state space by
• applying the transformations to the initial graph
• then: applies the transformations to all resulting graphs
• stops when no more graphs can be added (or keeps on going indefinitely)
•
Each graph represents a state
•
Each transition corresponds to the application of graph transformation
•
Result: Graph Transition System (GTS)
Classifying GROOVE
Verification Goal
Behavioral Correctness
Behavior specified by
Transformation
Verification Technique
Model Checking
•Enumerative
•Reachability, Safety,
Liveness
Specification Language Temporal Logic
CTL
Domain Representation Graphs
Verification
HUGO
•
Verifies the consistency between multiple UML State Charts and
Sequence Diagrams
•
SDs = Specification
•
SCs = Implementation
•
Derive Interaction Automaton from SDs
•
Message Traces
•
Uses SPIN model checker
•
Translate Interaction Automaton and SCs into Promela
•
Verifies safety properties
•
Specified by LTL
Classifying HUGO
Verification Goal
Consistency
Inter-Model
Verification Technique
Model Checking
•Enumerative
•Safety
Specification Language Temporal Logic
LTL
Domain Representation UML
Verification
Conclusion
•
Survey of Verification Approaches for Software Models
•
Feature Model
• Verification Goal
• Verification Technique: restricted to Model Checking
• Specification Language
• Domain Representation
• Verification Representation
