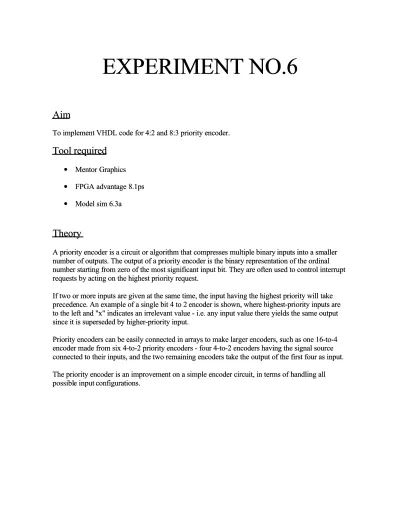

EXPERIMENT NO.6

Aim

To implement VHDL code for 4:2 and 8:3 priority encoder. To implement VHDL code for 4:2 and 8:3 priority encoder.

Tool required

•

• Mentor GraphicsMentor Graphics •

• FPGA advantage 8.1psFPGA advantage 8.1ps •

• Model sim 6.3aModel sim 6.3a

Theory

A priority encoder is a

A priority encoder is a circuitcircuit or or algorithmalgorithm that compresses multiplethat compresses multiple binary binary inputs into a smaller inputs into a smaller number of outputs. The output of a priority encoder is the binary representation of the ordinal number of outputs. The output of a priority encoder is the binary representation of the ordinal number starting from zero of the most significant input bit. They are often used to control

number starting from zero of the most significant input bit. They are often used to control interruptinterrupt requests

requests by acting on the highest priority request.by acting on the highest priority request.

If two or more inputs are given at the same time, the input having the highest priority will take If two or more inputs are given at the same time, the input having the highest priority will take precede

precedencence. An example of a single bit 4 to 2. An example of a single bit 4 to 2 encoder encoder is shown, where highest-priority inputs areis shown, where highest-priority inputs are to the left and "x" indicates an irrelevant value - i.e. any input value there yields the same output to the left and "x" indicates an irrelevant value - i.e. any input value there yields the same output since it is superseded by higher-priority input.

since it is superseded by higher-priority input.

Priority encoders can be easily connected in arrays to make larger encoders, such as one 16-to-4 Priority encoders can be easily connected in arrays to make larger encoders, such as one 16-to-4 encoder made from six 4-to-2 priority encoders - four 4-to-2 encoders having the signal source encoder made from six 4-to-2 priority encoders - four 4-to-2 encoders having the signal source connected to their inputs, and the two remaining encoders take the output of the first four as input. connected to their inputs, and the two remaining encoders take the output of the first four as input. The priority encoder is an improvement on a simple encoder circuit, in terms of handling all

The priority encoder is an improvement on a simple encoder circuit, in terms of handling all possibl

(2)

4:2 priority encoder

A 4-bit priority encoder (also sometimes called a priority decoder). This circuit basically converts the 4-bit input into a binary representation. If the input n is active, all lower inputs (n-1 .. 0) are ignored:

Truth Table

Input Output D3 D2 D1 D0 Q1 Q0 ANY 0 0 0 X 0 0 0 0 0 1 X 0 1 1 0 1 X X 1 0 1 1 X X X 1 1 1

Logic Equation

A1 = D2 + D3 A0 = D1D2’ + D3 ANY = D1 + D2 + D3

(3)

8:3 priority encoder

Truth Table

Digital Inputs Binary Output

D7 D6 D5 D4 D3 D2 D1 D0 Q2 Q1 Q0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 X 0 0 1 0 0 0 0 0 1 X X 0 1 0 0 0 0 0 1 X X X 0 1 1 0 0 0 1 X X X X 1 0 0 0 0 1 X X X X X 1 0 1 0 1 X X X X X X 1 1 0 1 X X X X X X X 1 1 1

Logic Equation

Q2 = D4 + D5 + D6 + D7 Q1 = D5’D4’D2 + D5’D4’D3 + D6 + D7 Q0 = D6’D4’D2’D1 + D6’D4’D3 + D6’D5 + D7

(4)

VHDL code for 4:2 Priority Encoder

LIBRARY ieee;

USE ieee.std_logic_1164.all;

ENTITY PENC4 IS

PORT( D3,D2,D1,D0 : IN STD_LOGIC; A1,A0,ANY:OUT STD_LOGIC);

END ENTITY PENC4;

ARCHITECTURE PENC4_ARCH OF PENC4 IS

BEGIN

PROCESS(D3,D2,D1,D0)

BEGIN

IF(((D3='0' AND D2='0') AND D1='0') AND D0='0') THEN

ANY<='0';

A0<='0';

A1<='0';

ELSIF(((D3='0' AND D2='0') AND D1='0') AND D0='1') THEN

ANY<='1';

A0<='0';

A1<='0';

ELSIF((D3='0' AND D2='0') AND D1='1') THEN

ANY<='1';

A0<='1';

A1<='0';

ELSIF(D3='0' AND D2='1') THEN

ANY<='1';

A0<='0';

A1<='1';

ELSIF(D3='1') THEN

ANY<='1';

A0<='1';

A1<='1';

END IF;

END PROCESS;

END ARCHITECTURE PENC4_ARCH;

(5)

Result window of 4:2 Priority Encoder

VHDL code for 8:3 Priority Encoder

LIBRARY ieee;

USE ieee.std_logic_1164.all; ENTITY PRIORITY IS

port(D7,D6,D5,D4,D3,D2,D1,D0:in std_logic; A2,A1,A0,ANY:OUT STD_LOGIC);

END ENTITY tristate_buffer;

--ARCHITECTURE buffer_data OF tristate_buffer IS BEGIN

process(D7,D6,D5,D4,D3,D2,D1,D0) begin

if(D7='0' AND D6='0' AND D5='0' AND D4='0' AND D3='0' AND D2='0' AND D1='0' AND D0='0') THEN

A2<='0'; A1<='0'; A0<='0'; ANY<='0';

ELSIF(D7='0' AND D6='0' AND D5='0' AND D4='0' AND D3='0' AND D2='0' AND D1='0' AND D0='1') THEN

A2<='0'; A1<='0'; A0<='0'; ANY<='1';

(6)

ELSIF(D7='0' AND D6='0' AND D5='0' AND D4='0' AND D3='0' AND D2='0' AND D1='1')THEN A2<='0'; A1<='0'; A0<='0'; ANY<='1';

ELSIF(D7='0' AND D6='0' AND D5='0' AND D4='0' AND D3='0' AND D2='1') THEN A2<='0';

A1<='1'; A0<='0'; ANY<='1';

ELSIF(D7='0' AND D6='0' AND D5='0' AND D4='0' AND D3='1') THEN A2<='0';

A1<='1'; A0<='1'; ANY<='1';

ELSIF(D7='0' AND D6='0' AND D5='0' AND D4='1') THEN A2<='1';

A1<='0'; A0<='0'; ANY<='1';

ELSIF(D7='0' AND D6='0' AND D5='1') THEN A2<='1';

A1<='0'; A0<='1'; ANY<='1';

ELSIF(D7='0' AND D6='1') THEN A2<='1'; A1<='1'; A0<='0'; ANY<='1'; ELSIF(D7<='1') THEN A2<='1'; A1<='1'; A0<='1'; ANY<='1'; END IF; END PROCESS;

END ARCHITECTURE buffer_data;

(7)

Result Window of 8:3 Priority Encoder
