U"lizing the SDSC Cloud Storage Service

(1)

SAN DIEGO SUPERCOMPUTER CENTER at the UNIVERSITY OF CALIFORNIA, SAN DIEGO

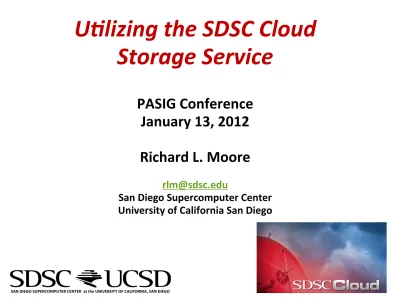

U"lizing the SDSC Cloud

Storage Service

PASIG Conference

January 13, 2012

Richard L. Moore

[email protected]

San Diego Supercomputer Center University of California San Diego

(2)

TradiOonal supercomputer center

storage systems

FuncOonal Systems

•  Tape-‐based archival system

•  Built for capacity

We’ve extended the archive beyond HPC simula9on data to experimental data and other digital assets -‐ and as a node in geographically-‐distributed digital

preserva9on systems (e.g. Chronopolis)

•  High-‐bandwidth parallel ﬁle system

•  Built for speed

•  Transient data, single-‐copy reliability

•  Home directory system (e.g. NFS)

•  Built for robustness and reliability

•  Regular backups

LimitaOons

•  Archival data is diﬃcult to access

-‐ high latency, lower bandwidth, user interfaces

•  Diﬃcult to share archival data by

mulOple users

•  All too oXen archived data,

parOcularly HPC simulaOons, is “write-‐once-‐read-‐never”

•  Not sustainable and no incen;ves

for users to retain only high-‐value data

(3)

AdapOng to emerging requirements and

changing technologies

• ExponenOal data growth -‐ and analysis of that data -‐ are

increasingly important to the research enterprise

• Requires ready access to data, w/ low latency & high bandwidth

• CollaboraOve “team science” demands easy data sharing

• Consumer product development drives prices

•  Disk capaci;es increasing quickly

•  Flash memory becoming more aﬀordable

•  ‘Gordon’ compute system just now being deployed with 0.25 PB of ﬂash -‐ to ﬁll

the “latency gap” between DRAM and spinning disk

• For HPC systems with historical “byte/ﬂop” raOos, storage

would be an increasingly signiﬁcant fracOon of total system cost

•  Can’t aﬀord open-‐ended archival storage … must develop methods to

(4)

SDSC is deploying a new

repertoire of storage systems

SDSC Cloud

!

•  Storage of Digital Data for Ubiquitous Access and High-Durability"

•  Access: Multi-platform web interface, S3 interfaces, backup SW"

Data Oasis (PFS)

!

•  High-Performance Transient Parallel File System for HPC "

•  Access: Lustre on HPC Systems (Gordon, Trestles, Triton)"

Project Storage

!

•  Purpose: Typical Project / User File Server Storage Needs"

(5)

A

Paradigm ShiX for Long-‐Term Storage:

Access, Sharing and CollaboraOon

SDSC Cloud

•  hcp://cloud.sdsc.edu

•  Launched September 2011

•  Largest, highest-‐performance

known academic cloud

•  5.5 Petabytes (raw), 8 GB/sec

•  System can upload 500GB in ~1 min

•  AutomaOc dual-‐copy and veriﬁcaOon

•  Capacity and performance scale

linearly to 100’s of petabytes

•  Open source plagorm based on

NASA and RackSpace soXware

(6)

Key Features of SDSC Cloud

•  “Always-‐there” disk-‐based availability of data

•  Tape latency and mul;-‐user issues addressed

•  High reliability

•  Disk RAID; automa;c dual-‐copy; con;nuous background checksum veriﬁca;on/

restora;on; oﬀsite replica;on soon

•  Simple data owner user interfaces to data, its management, its access and

seing permissions for sharing data

•  Easy access to shared data for any users with permission under range of

mechanisms (hcp, APIs, portals, gateways …)

•  EncrypOon readily incorporated – and addresses issues of storing HIPAA/

proprietary data

•  TransacOon history is logged – track usage, assess uOlity, support provenance

•  Scalable system in both capacity and bandwidth

(7)

ApplicaOons of SDSC Cloud

Shared/published/curated data collections

"

HPC simulation data storage and sharing

"

Web/portal applications and site hosting

"

Application integration using supported APIs

"

Serving images/videos

"

(8)

Why Openstack SwiX Cloud SoXware?

Industry Standard !

!

More than 100 leading companies from over a dozen countries are

participating in OpenStack, including Cisco, Citrix, Dell, Intel

and Microsoft."

Proven Software !

Running the OpenStack cloud operating system is

same software that powers many large public and private

clouds, including RackSpace Cloud Storage." Highly Compatible! Compatibility w/ public OpenStack clouds means itʼs easy to

migrate data and apps to public clouds when

desired—based on security policies, economics, and other

key business criteria."

Control & Flexibility"

Open source platform means not locked to a proprietary vendor, and

modular design can integrate with legacy or

3rd-party technologies. "

OpenStack project provided under Apache

2.0 license." Evaluated Software! ! OpenStack Swift! •  Open Source" •  Community Support" •  Highly Configurable" ! Eucalyptus! •  Highly Flexible" •  Compute Focused" ! Caringo Castor! •  Commercial Software"

(9)

SAN DIEGO SUPERCOMPUTER CENTER at the UNIVERSITY OF CALIFORNIA, SAN DIEGO Commercial Products! Commvault" Amanda Backup Tools" Crashplan" Traditional Clients! GUI Applications" Command Line" SDSC Web I/F"

Web Services API!

Amazon S3" Rackspace CloudFiles /" Openstack API"

SDSC Cloud Interfaces

Swift Object Storage Cluster" Load Balanced Proxy Servers" ! User- Developed Web Portals/ Gateways! ! Data Owners! External Users!

(10)

(11)

Rates and Funding Mechanisms

•  See h7ps://cloud.sdsc.edu/hp/pricing.php for current pricing; HW costs subject

to market vola"lity; contact [email protected] if interested in service

•  “On Demand” Cloud Storage

•  Pay monthly per GB used (water-‐mark)

•  U California users: $X/TB-‐Year dual-‐copy + applicable indirect costs

•  + 50% premium for addi;onal oﬀ-‐site copy (when available)

•  Users external to UC: 2*$X/TB-‐year dual-‐copy, 3*X for dual-‐copy + 1 oﬀ-‐site copy

•  “Condo” Cloud Storage

•  Recipient buys HW that is integrated into the storage service and pays annual

opera;ng costs for maintenance and system administra;on

•  Purchase condo HW at $Y market price (pre-‐conﬁgured head node and disk array -‐

currently 2TB drives with 8.5 TB usable dual-‐copy; space will increase over ;me)

•  Annual opera;ng cost: $Z/year/condo + applicable indirect costs & UC-‐external factors

•  User has right to use condo for 5 years; TCO/condo = $Y + 5*Z over 5 years
