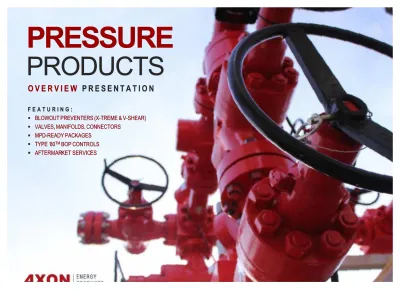

2APP Overview Presentation v2015 06 12 Axs

PRODUCTS

PRODUCTS

PRESSURE

PRESSURE

 BLOWOUT PREVENTERS (X-TREME & V-SHEAR)BLOWOUT PREVENTERS (X-TREME & V-SHEAR)



 VALVES, MANIFOLDS, CONNECTORSVALVES, MANIFOLDS, CONNECTORS



 MPD-READY PACKAGESMPD-READY PACKAGES



 TYPE ‘80TYPE ‘80TMTM BOP CONTROLS BOP CONTROLS



OVERVIEW

OVERVIEW

PACKAGE SOLUTIONS FOR SURFACE & SUBSEA NEEDS PACKAGE SOLUTIONS FOR SURFACE & SUBSEA NEEDS

Pressure Products

Pressure Products ▪▪ _{Downhole ProductsDownhole Products}

Well Intervention Products

Well Intervention Products ▪▪ _{Drilling ProductsDrilling Products}

Corporate Footprint

Corporate Footprint

AXON maintains 34 global facilities across

Manufacturing / Facilities

 USA (Texas, Louisiana, Oklahoma)

 Canada  (Nisku)

 France  (Noyelles-sous-Lens)

 United Arab Emirates (Dubai)

 Singapore

ADVANTAGES

We have 10+ global facilities that

are specific to Pressure Products

 Automated welding

 In-house testing facilities

 Parts-specific warehouses

for aftermarket support REGIONS

Quality Assurance

Third party inspection and qualification available.

PRESSURE PRODUCTS

Washington Rd. Facility (Houston)

  API 6A-0622   API 16A-0145   API 16C-0045

  API ISO 9001:2008 ISO-2358   API Spec Q1 Q1-2262

N. Houston Rosslyn Facility (Houston)

  API 6A-1470   API 16A-0358   API 16C-0244

  API ISO 9001:2008 ISO-1828   API Spec Q1 Q1-1680

Jackrabbit Rd. Facility (Houston)

  API 16D-0007

  API ISO 9001:2008 ISO-2359   API Spec Q1 Q1-2263

Houma Facility (Houma)

  API 6A-1359   API 16A-0314   API 16C-0208

  API ISO 9001:2008 ISO-1685   API Spec Q1 Q1-1524

France Facility (Noyelles-Sous-Lens)

  Apave ISO 9001:2008 SM/13-047   API 6A-0208

DRILLING PRODUCTS

Jackrabbit Rd. Facility (Houston)

  API 8C-0196

  API ISO 9001:2008 ISO-2359   API Spec Q1 Q1-2263

WELL INTERVENTION PRODUCTS

UK Facility (Arbroath)

 LRQ ISO 9001:2008 LRQ 0963651

RIG CONCEPT & DESIGN

Electrical Products

 CompEx  NEC 505

Product Development

Commitment to technology-focused product expansion

PRODUCT DEVELOPMENT

 18” 15M Type 62 BOP  13” Type 50 VBR Packers

 4” 10M Type 52 Packing Element  21 ¼” 2M Type 52 Packing Element  20k Type 41 Gate Valve

Sampling of our pressure products currently under development:

We continually evolve for customers by Reviewing, Reacting, Rethinking & Redesigning

R

4

In 2013, our Gateshead R&D facility was established to streamline product development throughout AXON

In addition to innovations based on industry demands, AXON also works with customers to design and develop customized solutions.

Product Testing

We conduct stringent testing to deliver industry-leading

performance, even in the harshest drilling environments

AXON TYPE 41 GATE VALVE

IN-HOUSE CAPABILITIES AXON’S R&D FACILITY FOR API 6A PR-2 ANNEX F DESIGN VALIDATION

API 6A PR-2 Annex F Design Validation

 Bore sizes from 1.81” to 4.06”

 Pressure ratings 15,000PSI & below  200+ cycles at differential pressure  Valves tested from -20ºF to 350ºF

(P – X temperature class)

  Actuators tested from -20ºF to 250ºF  Manual and double acting hydraulic

actuation

  Addition of 3rd party witness

Product Line Summary

Pressure Control

  Annular BOPs  Ram BOPs

 Coiled Tubing BOPs  Diverters  Connectors  Elastomer Products Flow Control  Valves  Chokes  Manifolds  Frac trees Aftermarket Support  Repair  Remanufacture  Recertification  Field Services  Parts

PRESSURE PRODUCTS OFFERINGS

From system designs to technical support, our pressure products

group offers a wide variety of surface and subsea solutions

Wellhead & Well Test

 Valves   Actuators  Chokes  X-mas Trees  Welltest Manifolds  Flowheads  SSVs

Valves, Chokes, Actuators

Our comprehensive line of flow control valves, chokes,

actuators & fittings, coupled with expert engineering,

 Valves

 Type 20 Check Valve  Type 21 Check Valve

 Checkmaster ™ Check Valve  Type 23 Lift Check Valve  Type 41 Gate Valve  Type 43 Gate Valve

 Type 44 Full Bore Gate Valve  Type 46 Mud Service Gate Valve  Type 47 Gate Valve

 Type G Gate Valve

 Plugmaster ™ Plug Valve

result in superior designs, quality & scheduling for your complex manifold systems.

 Type PY Actuator  Type HC/HA Actuator  Chokes

 Type 30 Choke

 Type 31 Drilling Choke  Type 32 Drilling Choke

 Chokemaster ™ Drilling Choke

 Type P1/P2 Adjustable/Positive Choke  Type PA/PB Cage Choke

Chokemaster

AXON’s Chokemaster

 _{Drilling Choke is available in manual,}

hydraulic and electric servo motor actuation options

  Allows for customization to specific rig

requirements, as well as easy adaptation when these requirements evolve

 Complete spares can be maintained

interoperability within the equipment fleet MODULAR DESIGN

SUPERIOR SERVICE LIFE

 Gate and seat assemblies are reversible

for two complete seal and wear areas

 Improved bonnet design allows for

Type 41 Gate Valve

Our Type 41 utilizes bi-directional sealing and a non-rising stem,

making it ideal for drilling manifold and production operations

 Precise manufacturing controls are employed to

achieve reliability and performance

  Available for operating pressures up to 20,000

PSI, which meets all API 6A PSL levels.

 Can be equipped with hydraulic actuators for

manifold or subsea service FEATURES / BENEFITS

Type 43 Gate Valve

Designed especially for harsh environments, our compact frac

valves are lower in weight than similar valves in the market

 Bore sizes: 4-1/16", 5-1/8", and 7-1/16"  Pressure ratings up to 20,000 psi

 Solid one-piece gate construction  Metal-to-metal seal surfaces

 Forged body construction

 Cobalt alloy seat rings

Blowout Preventers

BOP STACK DURING PRESSURE ON-SITE FACILITY TESTING

 Ram BOPs

 Type 50 Ram BOP  Type 53 Ram BOP

 Type 58 CT / Workover BOP  Type 59 CT / Workover BOP  Type 62 Ram BOP

 Annular BOPs

 Type 51 Annular BOP  Type 52 Annular BOP  Type 55 Annular BOP  Subsea Connectors

 Type 90 Subsea Wellhead Connector  Type 91 Subsea Collet Connector  Diverters

 Transportation & Test Auxiliary Equipment

AXON BOPs are interchangeable with other common OEM brands

to allow for easy retrofitting into our customer’s existing fleets

Type 52 Annular BOP

All components in our Type 52 annular BOP are designed and

built for ease of maintenance and ultimate reliability

 Standard operating pressure of 1500 psi

(10,34 Mpa)

 Forged materials rated for H2S service

 Designed and manufactured to ISO

13533 and API specification 16A

  Available in all standard bore and

pressure ratings

 Special rubber materials available for

non-standard environments FEATURES / BENEFITS

Type 55 Annular BOP

The AXON Type 55 Annular Blowout Preventers are available

with 20-3/4” 3,000 or 21-1/4” 2,000 flanged bottom connections

 Steel inserts prevent extrusion of the

rubber and feed inward to close on any pipe or tubular in the well bore

 Special rubber materials available for

non-standard environments

 Standard operation pressure of 1500 psi

(10,34 Mpa)

 Forged materials rated for H2S service

Type 51 Annular BOP

AXON’s Type 51 annular BOP is designed for safe well

pressure control during drilling and workover operations

 Standard operating pressure of 1500 psi

(10,34 Mpa)

 Forged materials rated for H2S service

 Designed and manufactured to ISO

13533 and API specification 16A

  Available in all standard bore and

pressure ratings

 Special rubber materials available for

non-standard environments FEATURES / BENEFITS

Type 58 CT / Workover BOP

AXON’s Type 58 and Type 59 coiled tubing / workover BOPs are

engineered with ease of maintenance and serviceability in mind

Type 50 Ram BOP

Designed and manufactured to API-16A Can be fitted with large bore shear

bonnets & tandem boosters Mechanical locks standard

 Hydraulically actuated

locks also available

One-piece ram assembly provides

pressure-energized seal with maximum contact area to drill pipe, casing, or tubing

 Result: Lower rubber pressure

to the pipe & increased seal life

The AXON Type 50 Ram BOP features a simple, compact

design that delivers fast & reliable closure of the well bore

Type 53 Ram BOP

AXON’s Type 53 Ram BOP is designed for safe well pressure

control during surface drilling and workover operations

 Designed and manufactured to ISO

13533 and API Specification 16A

 Shorter in height and reduced weight

when compared to other BOPs

 5000 psi (34.47 Mpa) maximum

working pressure

 Standard operation pressure of

1500 psi (10,34 Mpa)

 Large assortment of Ram sizes

and types available FEATURES / BENEFITS

X-Treme BOP Design

 REDUCED WEIGHT / HEIGHT: Engineered with innovative pattern that

substantially reduces weight and height

 IMPROVED OPERATION: Cutting-edge design also improves body

stress to achieve longer service life

 VERSATILE: Configurable to virtually any BOP type and size

 HIGHLY COMPACT: Especially useful in coiled tubing and other operations

with space restrictions (reduction approx. 25% - see following slide for details)

*patent pending

INTRODUCING AXON’S NEW

X-Treme BOP Design

25

%

* Results are typical but may vary according to BOP size. Comparison using AXON’s Type 50 11-5M Quad BOP with 3 standard operators & upper shear with booster.

Left: Current Design 24,893 lbs Right: Concept Design 22,902 lbs

HEIGHT

 WEIGHT

REDUCTION

*

_{The Next Level of X-TREME Technology}

V-Shear Advantages

 IMPROVED CENTERING: Design allows pipe to be pulled closer to the center

 HIGHLY VERSATILE: Capable of shearing wide range of pipe sizes & diameters

 PREMIUM SEALING: Utilizes innovative lateral seal design

 SUPERIOR EFFICIENCY: Higher pipe stress concentration for quicker shearing

Our versatile, pipe-centering V-Shear

 meets industry demands

for shear rams with enhanced performance and reliability

*patent pending

LATERAL SEAL

Features HIGHER shear force and LOWER operator pressure

Additional AXON Elastomer Products:

 Fixed Bore Pipe Rams  Top Seals

 Shear Rams

 Variable Bore Rams

 Seal Kits

 Connector Hydrate Seal

 Gate Valve Stem Packing Seals

BOP Packing Elements

AXON OEM packing elements exceeded API 16A fatigue test

standards by 160% and stripped over 13,500 tool joints

 Compatible with AXON and most major annular BOPs  Molded from proprietary synthetic rubber formulation

 Geometrically designed for advanced fatigue & stripping performance  Complete pre-production material & process validation

 Extensive fluid immersion & temperature testing on each formula  Seal of Authenticity & test results included in documentation package

Subsea Connectors

TYPE 91 COLLECT CONNECTOR

Delivers robust connection to withstand

high bending stresses & separation forces

 Hydraulically actuated  Utilize an AX type gasket  Strong, metal-to-metal seal

TYPE 90 WELLHEAD CONNECTOR

Features superior interchangeability of

components between connectors that

are different sizes

 Reliable and field proven with

pressure-tight seal

 Includes secondary hydraulic

system as back-up for actuating locking mechanism

Managed Pressure Drilling

MPD-READY PACKAGE BENEFITS

 FULLY CUSTOMIZED: Designed to

fully align with customer’s specific

operational goals & safety requirements

 ELIMINATES RETROFITTING: System

is modularized & simplified; also allows for faster and easier maintenance

 AFTERMARKET SERVICES: 24/7 onsite

and technical services available, adding to AXON’s extensive global repair and service center network

 Pressure Control Expertise

 Integrated Controls – MUX / Hydraulic  RCD Solution (customer-supplied)  RGH Solution  Rig Integration   Aftermarket Services MPD-READY EQUIPMENT AXON DOUBLE ANNULAR RISER GAS HANDLER AXON MPD CHOKE & KILL MANIFOLD

OUR MPD-READY PACKAGES MAXIMIZE CONTROL OF YOUR WELLBORE’S PRESSURE PROFILE

TYPE ‘80TM

 BOP Controls

Our TYPE ‘80™ BOP Controls are the legacy of Paul Koomey’s

industry-leading surface and subsea drilling innovations

CLOSING UNITS

for Land and Shallow Water

PILOTED HYDRAULIC SYSTEMS for Mid-depth Water

MULTIPLEX SYSTEMS

for Deep and Ultra-deep Water

Full range of auxiliary equipment, including proprietary SPM valves, TR™ Regulators and packer seals, add to the overall reliability of our field-proven BOP control systems.

AXON’s surface closing units feature a modular design with

standardized components, dimensions and weights

Based on customer

requirements, our closing units are available with the following interface options:

 Pneumatic

 Electric Pneumatic

 Pneumatic Hydraulic

FEATURED CLOSING UNITS

Mid-Depth Water



 AXON Piloted Pods

 Hose Down Riser  Hose Down Wireline



Hydraulic Power Units

Fluid Mixing Systems



Hydraulic Control Manifolds

Remote Control Panels



Deadman Autoshears

Reels



Diverter Control Panels



Surface Accumulator Racks

Stack-Mounted Accumulators

Deep / Ultra-Deep Water



Multiplex Control PODs

 Acoustic Control PODs

Central Control Units



Power Distribution Panels



Uninterruptable Power Supplies

Remote Control Panels



 Accumulator Racks

Reels



Umbilicals



Deadman Autoshear



Charge & Dump Assemblies

Fail-Safe Assist Assemblies

Repair, Remanufacture, Recertification, Commissioning, Field Services & Parts

ADVANTAGES

AVAILABLE SERVICES

 Global repair and service center network  Highly trained technicians that can repair

all AXON OEM and most leading manufacturers’ equipment

 Weekly customer asset reporting

 Field service technicians and engineers  Replacement parts with local distribution  Repair / remanufacture / recertification  Product-specific commissioning

 Reconditioned equipment purchase

and equipment trade-ins

24/7 ON-SITE SERVICE

Aftermarket Services

Authorized Repair Facilities

All AXON authorized repair facilities are API-certified

AXON delivers the aftermarket service level you expect,

regardless your equipment is AXON OEM or another major brand

Aftermarket Services

RAM AND ANNULAR BLOWOUT PREVENTERS

BLOWOUT PREVENTER

DRILLING CONTROL SYSTEMS

MANIFOLDS, CHOKES & VALVES: DRILLING & WELL SERVICING   All AXON Type BOPs

 CIW Type U Ram BOPs  GE/Hydril Type GK-GL-MSP

 Annular BOPs

 GE/Hydril Type V-X Ram BOPs  Shaffer Spherical Annular BOPs  Shaffer Type SL/LWS/LWP

Sentinel Ram BOPs

  All AXON TYPE 80™ Systems  CAD Oilfield

 Consolidate Pressure Control  Koomey, Inc.

 Shaffer

 Stewart & Stevenson

 NOV/T3 Energy Services Oilco  Valvcon

  All AXON OEM Valves and

OEM Manifolds

 CIW Model FC/F/FLS

 Stewart & Stevenson Model QS  NOV/T3 Energy Service FC

and HPT

 NOV/T3 Energy Services Oilco  Valvcon Model VFC

Aftermarket Services

REPLACEMENT PARTS

 FULL LINE of aftermarket replacement parts  OEM PARTS for your specific needs

 OEM QUALITY MANAGEMENT SYSTEM to ensure continued operation success  INVENTORY ON-HAND to support operations, minimizing down time

AXON LOCAL SERVICE CENTERS STOCK REPLACEMENT PARTS BASED ON THE ANTICIPATED REQUIREMENTS OF REGIONAL CUSTOMERS

Equipment Package Solutions

DOWNHOLE PRODUCTS

United States, Middle East  Coiled Tubing Orienter

 Pressure-While-Drilling (PWD)

 Gorilla Drilling Motors™

 Drilling Jars

 MWD & LWD

 Survey and Shock Tools

CONTACT:

Fred Pittard, President  AXON Downhole Products

281.750.1051

[email protected]

DRILLING PRODUCTS

United States, Canada

 Top Drives

 Makeup / Breakout Units

 Pipe Handling

 Rig Floor Controls

 DM-2 Automatic Driller

 Hydraulic Power Units

CONTACT:

Jorge Sanchez, President  AXON Drilling Products

281.627.1627

 [email protected]

Our pressure products group collaborates closely with

AXON’s other divisions to deliver package solutions

WELL INTERVENTION PRODUCTS

United States, United Kingdom

 Coiled Tubing Units

 Frac & Well Service Units

 Modular Fluid Ends

 Fluid Pumps and Units

 Nitrogen Pump Units

CONTACT:

Jeff Moseley, President

 AXON Well Intervention Products 832.247.7144

 [email protected]
