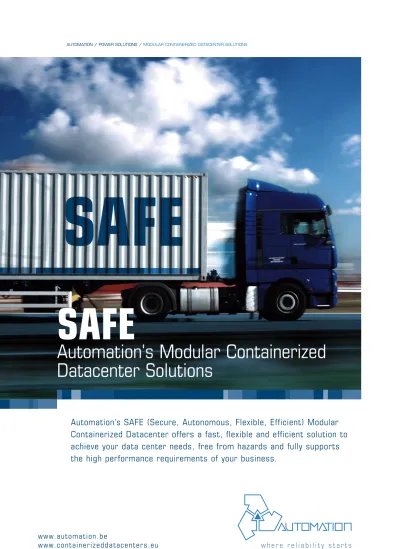

Automation's SAFE (Secure, Autonomous, Flexible, Efficient) Modular
Containerized Datacenter offers a fast, flexible and efficient solution to
achieve your data center needs, free from hazards and fully supports
the high performance requirements of your business.
SAFE
Automation's Modular Containerized
Datacenter Solutions
AUTOMATION / POWER SOLUTIONS / MODULAR CONTAINERIZED DATACENTER SOLUTIONS
SAFE
Modular Containerized
Datacenter Solutions
The datacenter landscape is witnessing an
unprecedented growth and the domain of Modular
Containerized Datacenter Solutions is confronted with
an increased interest across the globe. This is due
to the technology trends which are leading to a new
economic model: cost-efficient solutions, efficiency of
scale (cloud computing - colocation), standardization
and energy consciousness.
The need for Modular Containerized Datacenter
Solutions evolved with the need for additional
datacenter capabilities and the need for faster
deployment.
The main challenge is to develop capabilities in the
modular containerized datacenters considering the
limitation of space and the extent of product portfolio.
Industry experts state that Power and Cooling
modules, also referred to as Facility Modules,
are part of a general trend towards a complete
shift away from the traditional way of deploying
datacenter capacity.
Datacenter designers start to shift their conceptual
thinking from a customized “construction” approach
to a standardized “site integration”.
Furthermore Facility Modules are at least 60%
faster and 20-30% cheaper to deploy than traditional
datacenter power and cooling infrastructure.
Automation’s Containerized Datacenter is a fully
integrated modular solution that provides best-in-class
technology to provide secure, autonomous, flexible
and efficient business support whenever ... and
where-ever there is a business need.
In as little as six weeks, this powerful datacenter
offers performance configurations optimized for
power and density allowing you to adapt the capacity
of your physical infrastructure quickly.
SAFE helps you to build your datacenter at the speed
your business demands it in a granular way. Different
"of the shelf" modular designs help you spread the
investment in line
with your growth.
New opportunity support or hazard prevention?
Whether a new regional business venture (relocation,
new market entry…) with high necessity to expand
short term or an ageing datacenter infrastructure
in need of replacement, a mission critical business
centre in distress (fire, hurricane, floods…) several,
disaster recovery scenario’s can indicate the need for
a SAFE Modular Containerized Datacenter.
Our SAFE Modular Containerized Datacenter offers
fast, flexible and efficient solutions to achieve optimum
return on investment, hazardfree and ensuring you
meet your business performance targets.
The benefits of SAFE
Secure
The most extreme conditions have no impact on
this reliable, weather tight datacenter solution;
thermally insulated our datacenter is air- and
water-tight and robust!
Autonomous
This self-sufficient system is capable of running at
a remote location with low resource consumption
and includes built-in power and cooling redundancy
that power the racks and their units.
Flexible
In as little as 6 weeks, the rapid deployment of
this standalone data center can also be used to
augment the capacity of an existing site. SAFE
can cater for all rack and server types without the
need to modify the standard execution.
Efficient
We guarantee a Power Usage Effectiveness ratio
well below 1.35 for your SAFE Mobile Datacenter
by engineered cooling & power optimization
solutions. Figure based on measurements during
a whole year in central Europe.
Environmentally friendly
Compared to a traditional brick & mortar datacenter,
SAFE will achieve a 27% reduction in energy
consumption. This is not only beneficial for your
energy bill, but also impressively reduces your
carbon footprint. With the power configuration CO2
emissions can be reduced by 30% or more!
/
Far better PUE !
w h e r e r e l i a b i l i t y s t a r t s
AUTOMATION / POWER SOLUTIONS / MODULAR CONTAINERIZED DATACENTER SOLUTIONS
About
Automation
With a complete package of power
management solutions, Automation
actively guides its customers in
reaching a significantly reduced
energy consumption for their
business. Highly skilled employees
and thoroughly selected A brands
help the managers in realizing
business critical service levels
such as electrical effectiveness,
power quality and availability.
Automation's acknowledged
expertise encompasses the following
disciplines: power distribution and
conversion, availability design,
supervision, management and
datacenter design and construction.
Within the area of Modular
Containerized Datacenter Solutions,
Automation can be considered a
Competence Center, having built
a strong experience in the field of
Telecom (Cable Landing Stations,
Repeater Sites and Disaster
Recovery sites) covering more than
600 installations in Europe.
Automation has its own production
facility to allow for independence
and flexibility. Moreover it can boast
its own test environment and design
centre. Last but not least, a fully
equipped network operating centre
(NOC) provides our customers with
a 24/7 maintenance service.
Automation employs more than 50
people and has offices in Belgium
and the United Kingdom.
Features
www.automation.be
www.containerizeddatacenters.eu
Automation BE
Zinkstraat 2
Industriezone 4A Dassenveld B-1502 Halle
Belgium
Tel +32 (0)2 358 35 75 Fax +32 (0)2 358 36 09 [email protected]
Automation UK
Lillieburn House 5, Pump CLose Leybourne Kent ME195HH England
Tel +44 (0) 7795 987844 [email protected]
All-in-One container Cooling container Generator container Power container MUP
APPLICATIONS
If you are an IT Manager, Modularity and Containerized Datacenter
Solutions will help you to:
/
Develop in-house managed disaster recovery DC
/
Solve shortage of physical space
/
Answer your need for quick deployment
/
Handle the limitations of existing buildings or high cost of build out
/
Offer temporary datacenter (events, move)
/
Have an energy efficient datacenter
/
Answer the need for high density computing
/
Offer a fully transportable solution (the datacenter goes where you go)
/
Provide safe and solid space in harsh conditions (oil platforms, extreme heat, conflict
zones, etc.)
If you are a Telecom Operations Manager, Modular Containerized
Solution will help you to:
/
Build PoP, regenerator and amplifier sites at a faster pace
/
Install telecom shelters for mobile telephony and data applications
/
Quickly recover networks to meet your SLA’s.
PRODUCTS
All-in-One Containerized Datacenter, which typically comprises:
/
A container or re-enforced shelters (different sizes available)
/
Power distribution and availability equipment (UPS, GenSet, etc.)
/
Various kinds of facility equipment (cooling, fire detection and suppression, liquid
detection, intrusion detection, etc.)
/
Customer equipment (telecom switches, fiber optics, servers, etc.)
/
Web based monitoring and management platform (PEMM suite).
Facility Modules:
/
ICT-container
/
Power container
/
Cooling container or platform
/
Generator container or platform
MUP-Modular Utility Platform:
Technical facts
CDC20-
ISX16K7R600 ISX32K6R600CDC20- ISX48K4R600CDC20- ISX16K4R600CDC20G- ISX29K4R600CDC20G- ISX43K14R600CDC40- ISX90K12R600CDC40- ISX43K12R600CDC40G- Customized
POWER
Max IT Load (kW) 16 32 48 16 29 43 90 43 Maximum density per single rack
(kWatt)
10 10 20 10 20 10 20 10 50 Average power per rack (kW) 2,29 5,33 12,00 4,00 7,25 3,07 7,50 3,58 <=50 Number of feeds 1 1 or 2 Mains isolator rating 4P-63A 4P-125A 4P-200A 4P-63A 4P-125A 4P-160A 4P-320A 4P-160A
Input power voltage 3 x 400V + N - 50Hz Voltage to rack 1 x 230V + N - 50Hz Autonomy approx. 25 min
Type of UPS Modular Modular Modular Modular Modular Modular Modular Modular Mod or mono UPS configuration N+1 N / N+1 / 2N Emergency power off (EPO) switch • • • • • • • • • Genset • • • • Genset configuration N N N N / N+1 / 2N Autonomy (hours) 90 50 30
Electrical tiering (I-IV) 2 2 / 3 / 4 Mains voltage surge suppression • • • • • • • • • Ground & Neutral • • • • • • • • •
COOLING
Cooling technology direct expansion • • • • • • • • • Cooling technology liquid cooling • Internal cooling in-row in-row in-row in-row in-row in-row in-row in-row in-row Cooling configuration N+1 N / N+1 / 2N Hot/cold aisle • • • • • • • • • Flow rate chilled water NA NA NA NA NA NA NA NA TBD Air temperature (Max Inlet) 29°C or 35°C or 40°C
Flange/pipe diameter 22 mm
Airflow per cooling unit l/s 1147 1147 2170 1147 2170 1147 2170 1147
Airfiltering optional optional optional optional optional optional optional optional optional
RACK CONFIGURATION
Rack type 42U 42U / 48U Rack width 600mm 600 / 750 mm Rack depth 1200mm 1070 /1200mm Support for 3rd party IT Equipment • • • • • • • • • Cold aisle access • • • • • • • • • Hot aisle access • • • • • • • • • Max number server racks 7 6 4 4 4 14 12 12 infinite Available U space per rack 42 42 42 42 42 42 42 42 42 - 48 Total supported rack space 294 252 168 168 168 588 504 504 infinite Number of feeds per rack A-feed & B-feed
Number of outlets available per rack 230V - 16A : 20 x C13 & 4 x C19 230V - 32A : 20 x C13 & 4 x C19 3 x 400V - 16A : 36 x C13 & 6 x C19 3 x 400V - 32A : 6 x C13 & 12 x C19 Type of outlets available per rack basic - metered - switched Weight capacity static load (kg) 1350 Weight capacity dynamic load (kg) 1000
SAFE (Secure, Autonomous, Flexible, Efficient) Automation's Mobile Datacenter
Technical facts
www.automation.be
w h e r e r e l i a b i l i t y s t a r t s
AUTOMATION / POWER SOLUTIONS / MODULAR CONTAINERIZED DATACENTER SOLUTIONS
CDC20-
ISX16K7R600 ISX32K6R600CDC20- ISX48K4R600CDC20- ISX16K4R600CDC20G- ISX29K4R600CDC20G- ISX43K14R600CDC40- ISX90K12R600CDC40- ISX43K12R600CDC40G- Customized
CABLING
Copper & fiber In function of network design Conduits In function of network design Wiring In function of network design Junction boxes In function of network design
FACILITIES FUNCTIONALITY
Smoke detection • • • • • • • • • Fire suppression • • • • • • • • • Type of fire suppression IG55 IG55 IG55 IG55 IG55 IG55 IG55 IG55 IG55 Humidity monitoring • • • • • • • • • Humidity control optional optional optional optional optional optional optional optional optional BMS • • • • • • • • • Lighting • • • • • • • • •
SECURITY
Access control - key pad • • • • • • • • • Door locks • • • • • • • • • Crash bars • • • • • • • • • Internal horn and/or strobe • • • • • • • • •
DIMENSIONS
Internal
Length (plus clearance) (mm) 5770 5770 5770 4330 4330 11900 11900 10500 Width (mm) 3200 3200 3200 3200 3200 3200 3200 3200 Height (mm) 2550 2550 2550 2550 2550 2550 2550 2550 External
Length (plus clearance) (mm) 7600 7600 9200 7600 7600 13800 15400 13800 Width (mm) 3450 3450 3450 3450 3450 3450 3450 3450 Height (mm) 2890 2890 2890 2890 2890 2890 2890 2890 Site
Site length requirement (mm) 10600 10600 12200 10600 10600 16800 18400 16800 Site width requirement (mm) 6450 6450 6450 6450 6450 6450 6450 6450 Weight (kg)
Number of containers 1 infinite
ENVIRONMENTAL REQUIREMENTS
Operating min/max temperature (°C/°F) -20°C / +40°C Operating humidity range (%) up to 100% Operating altitude (m/ft) 1000m without derating
SERVICES
Help desk 24 x 7
On-site services preventive & corrective - 4hrs, next business day Monitoring 24 x 7
ASP monitoring on request
