Three Tier Web Application and Internal
Database Protection by Double Guard
Gade Shweta S. Fulsoundar Jyoti C.
BE Student BE Student
Department of Computer Engineering Department of Computer Engineering SCSCOE, Rahuri Factory SCSCOE, Rahuri Factory
Kharde Urmila B. Shaikh Sagupta G.
BE Student BE Student
Department of Computer Engineering Department of Computer Engineering SCSCOE, Rahuri Factory SCSCOE, Rahuri Factory
Prof. Dighe Mohit S.
Assistant Professor
Department of Computer Engineering SCSCOE, Rahuri Factory
Abstract
Web applications are known normal for various associations because of their utilization of getting to data and operation without knowing time confinement and topographical limitation. Presently a day, for a superior execution web application are made or worked in multi-level engineering. By and large there is diverse level accessible like information level, web level and customer level. The web program contains in customer level while web server and web asset contain in web level design. Information base contains in information level. As of now there exist Intrusion Detection System (IDS) just for either web server or database server. There is impractical to give end to end security to whole web server and database server all the while. In current paper we actualize the component which gives insurance to database server and in addition web server in multitier application by utilizing java as a part of front end and SQL server in back end side.
Keywords: Intrusion detection system, container architecture, pattern mapping, SQL injection, privilege escalation attack ________________________________________________________________________________________________________
I. INTRODUCTION
Following are network detection system. 1) Anomaly location
2) Misuse detection[1][2][3]
Intrusion Detection System (IDS) think about the activity design for identifying the known risk [4] however in the event that any aggressor utilizes the ordinary movement example to attack database server and web server. At that point this sort of attack is exceptionally troublesome for recognizing to typical Intrusion Detection System (IDS).These sorts of IDS create a ready when any sort of attack found. IDS utilized the review information for choice making whether recognition is right or wrong. It likewise choose the about reasonable activity in the given environment taking after are some measure to adequacy in Intrusion Detection System.
- Accuracy: - If any unusual move is made in any given environment then IDS demonstrate that incorrectness is happened. - Performance: - It will demonstrate the nature of that framework. In the event that execution is low then it implies that
continuous identification is impractical.
- Completeness: - If any Intrusion Detection System neglects to recognize the attack then it implies it is deficient framework yet because of tremendous worldwide learning about all sort of attack, it is difficult to assess the system for inadequacy.
About Multitier Web Application:
In classical three tier architecture model we can't say in regards to which exchange request is relates to which customer request since correspondence in the middle of database server and web server is not known [1].
Fig. 2: Simple intrusion detection system.
System Container Architecture:

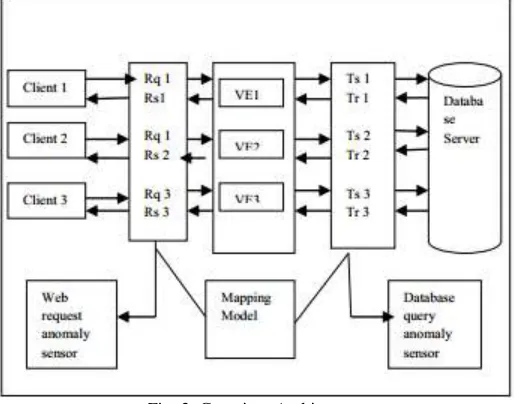

Container architecture is exceptionally helpful for distinguishing interruption in both side i.e. web server side and database server side. Container architecture is more valuable to identify both classification and intrusion like behavioral intrusion detection system and mark based intrusion system. We can likewise call it as crossover classification of intrusion detection system.
In this design we makes typicality model which separate every client solicitation to various session which incorporate web request(http solicitation) and database query(SQL query). For this reason a lightweight virtualization method is utilized for allotting every client's session in new compartment. We are doling out holder ID number to every user request with its ensuing database queries,
Typical dataflow will be as:-
1) Source and destination IP address. 2) Source to destination TCP or UDP ports.
3) No of packets and no of bytes transmitted in one session. 4) Timestamp for start and end of each session.
Here we are going to pick allotting every user to another separate holder. We can do this with by appointing every IP location of customer to new separate holder. In this usage holder are reused when session time out or occasion is end. Since lightweight virtualization holder does not prepared to do high memory and capacity, we can utilize same usage on apache server, with the goal that we can keep up substantial no of examples which are parallel running. On the off chance that session time is over that apache case will likewise end alongside its container .Figure demonstrates container architecture [20] [21] which delineate the correspondence between web server to database server.
II. LITERATURE SURVEY
About Three-Tier Architecture:
Principle tenet of three tier architecture that customer level never straightforwardly imparts to the information base level. This correspondence must be done through the center – level i.e. web level.
About Intrusion Detection System:
From most recent couple of year’s security of register turn into the essential goal of human life. Today most significant choice is focused about the distinctive methods and devices utilized for shielding PC system from interlopers. In October 1972, Jame p. Anderson distributed a USAF paper. In this paper he portray the how PC security issue are expansions in each part of USAF operation and organization. Forty years prior made this issue is presently with us that how we can ordered of isolated area on the same system in securely and security .James P.Anderson again in 1980 distribute a study diagram for enhance PC security and reconnaissance at user site. The primary principle undertaking was the manner by which to existed dangers can be characterized. Before setting up an intrusion detection system, it was critical to comprehend the sort of attack and which kind of danger could be confronted to PC framework and how to recognize them in review information .In the middle of 1984 and 1986 first model of constant intrusion detection system was created by Dorothy Denning and Peter Neumann. This was called as intrusion detection expert system (IDES). It was master to distinguish the known hurtful action.
Three - level design rises in1990 from taking perception from appropriated framework, where information level customer level and center were diversely keep running on discrete stage. Presently this framework is enhance and refined from which is today's cutting edge intrusion detection expert system (IDES) Throughout the year 1980 and 1990 a great part of the exploration has been completed for this reason U.S. government likewise give store for it.IDS like multicast intrusion location and cautioning framework (MIDAS), revelation, bundle, were created for the recognizing intrusion as system is extended and turn out to be speedier. Today there are more sellers who can be process in fast, similar to Internet Security System (ISS) system ICE and intrusion.com. To take care of the issue handling in fast merchants discover arrangement that introduce host based IDS , with the goal that information can be investigations progressively. Such kind of IDS are tip wrapper, tripwire and free instrument grunt [8].Grunt is lightweight intrusion detection system with various stage. This framework can be utilized as a part of system based and in addition host based however when it was discharged in 22 December 1998, it was just Unix based and restricted capacity. In Jun 2000 Michael Davis make it for windows for first time.
An intrusion detection system [7] utilizes transitory data for distinguishing attack or intrusion, yet in our two fold ground framework it is not identified with time premise following these time premise occasion, If happen simultaneously then it will feel corresponded occasion thought they are partitioned. Two fold monitor utilizes contained ID every occasion or request. There is no issue whether they happen simultaneously or independently. Database ought to be secured with larger amount insurance since it contains extremely important and unfathomable data. For this such a large number of exploration has happen a database like [9] [10] [11]. This intrusion detection system like green SQL [4] go about as converse intermediary to association for database. Web application initially associated with the database firewall, not specifically interfaces with database server. At that point web question is labeled for intrusion detection system clarified in [12] create for web intrusion detection system for get more exact result or discovery. Be that as it may, for this situation additionally we found some typical attack which is look like ordinary activity however can't recognize in both web and database interruption location framework. On the off chance that assault is corresponded then likewise no caution is produced by them.
is not requires to break down the source code of use rationale. Information approval is extremely helpful for SQL or XSS infusion assault [18] [19] to evading. However, in our methodology we can discover the interruption or SQL infusion attack by getting just structure of web request and database query. No compelling reason to approval or investigating estimation of information parameter.
III. CASE STUDY ON TYPE OF ATTACK
Privilege Escalation Attack:
Think about that as a site which is utilized by both sort of user i.e. normal user and administrator user. Presently general user will trigger web request to web server with consistent or ordinary user level request, while manager will trigger administrator level request to web server. We should consider any rival or attacker sign on as typical user on web server and adjusted his point of interest and attempt to triggering so as to bring the overseer information administrator level queries. For this situation web server intrusion detection system or database intrusion detection system won't ready to distinguish such sort of attack on the grounds that both queries are reasonable. Be that as it may, this sort of attack can undoubtedly distinguish by our mapping model as database query does not coordinate any comparing request.

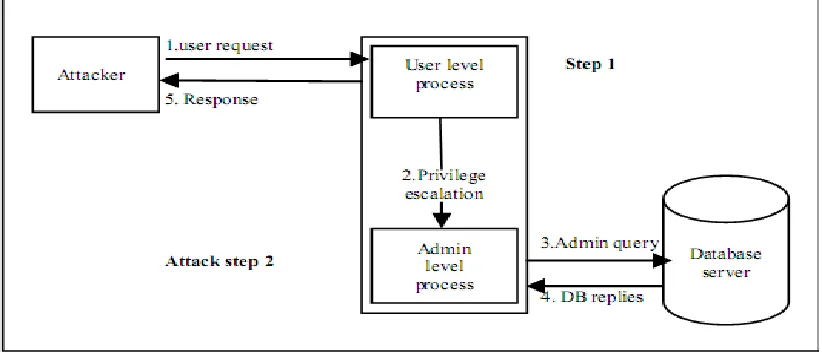

Fig. 4: Privilege Escalation Attack
SQL Injection Attack:
This sort of attack is exceptionally learned kind of attack. Have adversary or attacker just utilize existing uncover vulnerabilities in web server. Here the information or substance of string which contains some kind of objective and request the web server for controlling objective to attack on database server. This sort of attack changes the SQL query structure.
Hijack Future Session Attack:
This is an attack which is for the most part occur at the web server side. Adversary attacker first take the control over the server and after that the all reasonable user session for attacking reason. This can likewise be portrayed as man in the center attack since attacker can be listening sent satirize answered or other user request can be dropped.
Fig. 6: Hijack future session attack
Direct Database Attack:
For this situation of attack, aggressor maintain a strategic distance from the all sort of firewall or web server and interface direct to back end database. Adversary can be presenting his query straightforwardly with no web request send through web server. Since there is no any web demand seen, web server intrusion detection system can't recognize such sort of attack. Same time at the database side intrusion detection system identify the queries which is from the arrangement of passable query put together by aggressor. So database side IDS likewise not give any alarm about attack. This sort of attack can be recognized by our model since we not found any coordinating request for relating database inquiries figure demonstrates how aggressor can present the database query by staying away from the web server.
Fig. 7:Direct Database Attack
Brute Force Attack:
password is intricate and attacker knows about the password sender or target. To avert or maintain a strategic distance from brute force attack extensive number of framework permit the client to go into framework with wrong password by entering both three to four time after that framework might be piece or denied to all sort of client for set measure of time.
Fig. 8: Brute Force Attack
IV. PATTERN MAPPING APPROACH
Deterministic Mapping:
Fig. 9: Deterministic mapping
This is immaculate match design. On the off chance that web request Rm and SQL inquiries set Qn and afterward Rm->Qn (Qn≠ф)or (Rm≠ф) for testing stage with Rm if Qn is missing then it will be show conceivable intrusion.
Empty Query Set:
Fig. 10: Empty query set
Now and again web request is available however it not causes to produce any new query e.g. In the event that any web request which need to bring a picture GIF document from same server, then mapping connection is not made. All things considered (Rm->ф) we can take this kind of web request in EQS (Empty Query Set).
No Matched Request:
Sometime web server itself present a few queries intermittently to database server for some sort of planned undertaking like taking of reinforcement. Here no any web request is produced by any user or customer. Such kind of queries is kept in NMR (No Match Request).
Non Deterministic Mapping:
Fig. 12: Non deterministic mapping
Sometimes web request might be the cause to deliver diverse SQL inquiry set. Have Rm->Qi (Qi={Qn,Qp,Qq… ..}). This is conceivable in sites for discussion site i.e. dynamic site.
Algorithm: Static Model Building Algorithm Require: Training Data set, Threshold t Ensure: The Mapping Model for static website 1) for each session separated traffic Ti do
2) Get different HTTP requests r and DB queries q in this session 3) for each different r do
4) if r is a request to static file then 5) Add r into set EQS
6) else
7) if r is not in set REQ then 8) Add r into REQ
9) Append session ID i to the set ARr with r as the key 10) for each different q do
11) if q is not in set SQL then 12) Add q into SQL
13) Append session ID i to the set AQq with q as the key 14) for each distinct HTTP request r in REQ do
15) for each distinct DB query q in SQL do 16) Compare the set ARr with the set AQq 17) if ARr = AQq and Cardinality(ARr) > t then 18) Found a Deterministic mapping from r to q 19) Add q into mapping model set MSr of r 20) Mark q in set SQL
21) else
22) Need more training sessions 23) return False
24) for each DB query q in SQL do 25) if q is not marked then
26) Add q into set NMR
27) for each HTTP request r in REQ do
28) if r has no deterministic mapping model then 29) Add r into set EQS
30) return True
V. DISPLAYING FOR STATIC AND DYNAMIC WEBSITES
session and the other route around. Some web asks for that are freely are still present as a unit. Instead of static page, dynamic site page allow customer to create same web ask for with various parameter additionally rapid pages consistency used POST of GET method to present customer include. In perspective of the server application rationale differing info would be achieve particular database queries. By setting each Rm or the game plan of related demand Rm in confined session with a extensive variety of conceivable inputs we procure the same number of hopefuls demand set {Qn, Qp,Qq… … ..}as would be reasonable. This mapping models both deterministic and non-deterministic mapping and set EQS still used to hold static record request.
Implementation Architecture:
Web server and back end database is the principle model in our usage. Static and dynamic site we use for testing. We separate three class of assault and measured the false positive rate for each of the two web locales. For various arrangement of client at last we looked at customer for conduct every session. Taking after is the representation of execution of our model and assault perceive rate. In our display we make such conformity like appoint or utilize each client session to confined holder as purpose of security. Along these lines we are fit for running distinctive case in a lone server. The underneath figure depicts the building outline and session organization of our model, where the host web server goes about as the dispatcher. Because of static site, we served 15 intriguing pages and accumulated virtuoso activity to this site and gained 350 customer session because of dynamic destinations the locales visitor are allowed to individual post what's more, comment on article.

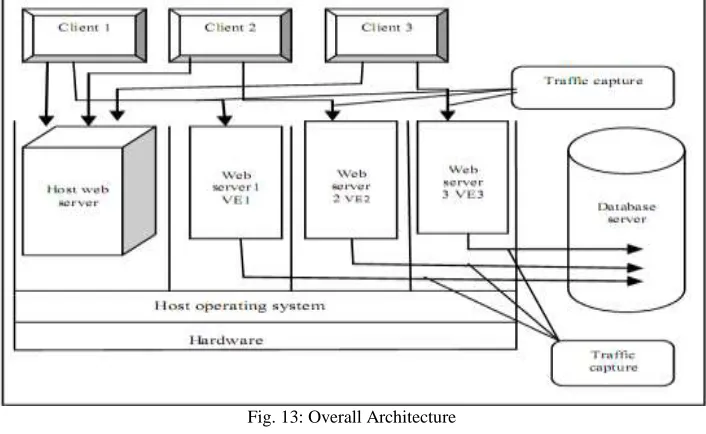

Fig. 13: Overall Architecture
VI. RESULT AND TEST
The primary point of this paper was to be approached and turn away the intrusion in multitier web utilization of the customer, in front end (HTTP web ask for) and back end database (SQL queries).One of basic thing in security will be the recognize assault while web server will be constantly attacked by the assailant. We have test the methodology by continually attacking the web server. Therefore we have considered pool of 10 ambushes is performed by each customer. Five customers always strike the web server i.e. in each pool among the four ambushes every strike is performed on 10 times. We can decide these ambushes in taking in the wake of taking after number of times.
Data set:
Table – 1 Data Sets
User ID Brute Force Attack
Privilege Escalation Attack
SQL Injection Attack
Hijack Future Session Attack
Direct Database Attack
User 1 9 6 7 8 7
User 2 8 9 7 7 8
User 3 9 8 8 9 7
User 4 9 7 8 5 6
User 5 9 7 6 7 6
Results:
Fig. 14: User to data relation
Future Scope:
To make framework more proficient and successful, some adjustment in the framework is conceivable. Framework can be introduced on extensive variety of working framework and stage. For changing over the English sentences into SQL queries we can apply Natural Language Processing (NLP) in query preparing.
VII. CONCLUSION
Our model is for intrusion detection system which fabricates an ordinariness model for three-level web application. This methodology structure holder based design where it will acknowledge various data and delivered caution if connected information is suspicious. There is lightweight virtualization strategy is accustomed to doling out the session ID for particular container. This different holder is only a segregated virtual registering environment for every web request and web query. With the assistance of this environment we can recognize the attack, for example, Privilege Escalation Attack, Direct Database Attack, Hijack Future Session Attack, SQL Injection Attack and Brute Force Attack. We can likewise produce log report of these attack and square such sort of virtual environment and session ID.
ACKNOWLEDGEMENT
Authors would like to say thanks to all persons who are directly or indirectly part f this paper.
