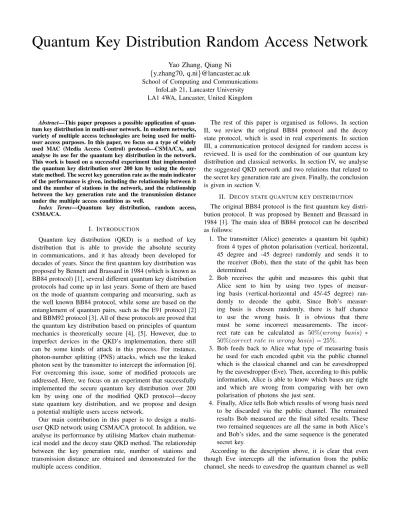

Quantum Key Distribution Random Access Network

Quantum Key Distribution Random Access Network

Yao Zhang, Qiang Ni

{

y.zhang70, q.ni

}

@lancaster.ac.uk

InfoLab 21, Lancaster University LA1 4WA, Lancaster, United Kingdom

Abstract—This paper proposes a possible application of quan-tum key distribution in multi-user network. In modern networks, variety of multiple access technologies are being used for multi-user access purposes. In this paper, we focus on a type of widely used MAC (Media Access Control) protocol—CSMA/CA, and analyse its use for the quantum key distribution in the network. This work is based on a successful experiment that implemented the quantum key distribution over 200 km by using the decoy-state method. The secret key generation rate as the main indicator of the performance is given, including the relationship between it and the number of stations in the network, and the relationship between the key generation rate and the transmission distance under the multiple access condition as well.

Index Terms—Quantum key distribution, random access, CSMA/CA.

I. INTRODUCTION

Quantum key distribution (QKD) is a method of key distribution that is able to provide the absolute security in communications, and it has already been developed for decades of years. Since the first quantum key distribution was proposed by Bennett and Brassard in 1984 (which is known as BB84 protocol) [1], several different quantum key distribution protocols had come up in last years. Some of them are based on the mode of quantum comparing and mearsuring, such as the well known BB84 protocol, while some are based on the entanglement of quantum pairs, such as the E91 protocol [2] and BBM92 protocol [3]. All of these protocols are proved that the quantum key distribution based on principles of quantum mechanics is theoretically secure [4], [5]. However, due to imperfect devices in the QKD’s implementation, there still can be some kinds of attack in this process. For instance, photon-number splitting (PNS) attacks, which use the leaked photon sent by the transmitter to intercept the information [6]. For overcoming this issue, some of modified protocols are addressed. Here, we focus on an experiment that successfully implemented the secure quantum key distribution over 200 km by using one of the modified QKD protocol—decoy state quantum key distribution, and we propose and design a potential multiple users access network.

Our main contribution in this paper is to design a multi-user QKD network using CSMA/CA protocol. In addition, we analyse its performance by utilising Markov chain mathemat-ical model and the decoy state QKD method. The relationship between the key generation rate, number of stations and transmission distance are obtained and demonstrated for the multiple access condition.

The rest of this paper is organised as follows. In section II, we review the original BB84 protocol and the decoy state protocol, which is used in real experiments. In section III, a communication protocol designed for random access is reviewed. It is used for the combination of our quantum key distribution and classical networks. In section IV, we analyse the suggested QKD network and two relations that related to the secret key generation rate are given. Finally, the conclusion is given in section V.

II. DECOY STATE QUANTUM KEY DISTRIBUTION

The original BB84 protocol is the first quantum key distri-bution protocol. It was proposed by Bennett and Brassard in 1984 [1]. The main idea of BB84 protocol can be described as follows:

1. The transmitter (Alice) generates a quantum bit (qubit) from 4 types of photon polarisation (vertical, horizontal, 45 degree and -45 degree) randomly and sends it to the receiver (Bob), then the state of the qubit has been determined.

2. Bob receives the qubit and measures this qubit that Alice sent to him by using two types of measur-ing basis (vertical-horizontal and 45/-45 degree) ran-domly to decode the qubit. Since Bob’s measur-ing basis is chosen randomly, there is half chance to use the wrong basis. It is obvious that there must be some incorrect measurements. The incor-rect rate can be calculated as 50%(wrong basis) ∗

50%(correct rate in wrong basis) = 25%.

3. Bob feeds back to Alice what type of measuring basis he used for each encoded qubit via the public channel which is the classical channel and can be eavesdropped by the eavesdropper (Eve). Then, according to this public information, Alice is able to know which bases are right and which are wrong from comparing with her own polarisation of photons she just sent.

4. Finally, Alice tells Bob which results of wrong basis need to be discarded via the public channel. The remained results Bob measured are the final sifted results. These two remained sequences are all the same in both Alice’s and Bob’s sides, and the same sequence is the generated secret key.

to get the whole information restored. However, if she did so, the state of the transmitted photon would be destroyed and this would result in that the error rate increases rapidly and becomes much higher than the threshold, so that legal users in the communication are able to perceive its existance. Thus, benefitting from the no-cloning theorem of quantum mechanics, the BB84 protocal can build an absolutely secure communication system theoretically.

In contrast with the principle’s simplicity, the implementa-tion of QKD in real-life is really difficult. Since the BB84 protocol requires exact single-photon as the quantum source, it can hardly achieve this requirement due to devices’ imper-fection. Obviously, single photon cannot be splitted, but if the light that sent by the quantum source contains more than one photon, it is quite possible to make PNS attacks. That is, the eavesdropper can intercept one of photons in the light and make the rest of photons pass to the receiver. Due to the high loss of the channel, the eavesdropper may not be found by pretending that the lost photon is annihilated by the channel. This description is detailed in [6].

Although there exists a lower bound of the key generation rate to make sure the QKD’s security in the environment with small imperfections [7], a modified protocol using decoy state provides better performance. The decoy state method was originally addressed in 2003 [6], and more detailed analyses are in [8]–[10]. The basic idea of the decoy state method is illustrated as follows. Insert the decoy state pulse into the signal pulse sequence randomly and send it to the receiver. The average numbers of the photon in the decoy state pulse and the signal pulse are different. Thus the counting rates (also called ”yield” in some papers [8]) of single-photon pulses and multi-photon pulses must be quite different. Because of these two kinds of pulses are the same except the number of photons, Eve cannot distinguish the pulse she intercepted if it is the signal state or the decoy state. After the quantum communication processing, whether there exists the PNS attack can be detected by comparing counting rates of these two different pulses.

From the analysis of the decoy state method, the secure key generation rate is given by [8]:

R≥q{−Qµf(Eµ)H2(Eµ) +Q1[1−H2(e1)]}, (1) whereµrepresents the average number of photons in a pulse,

q is a factor that represents the protocol’s efficiency, for example, for BB84 protocol, this factor is 0.5 because of there is 50% chance that Alice and Bob use different measuring bases. Qµ is the ratio of the number signal state detections

to the total number of sent signal state pulses, which is also called the gain of the signal state. In addition,Q1 is the gain of single-photon pulses, e1 is the error rate associated with single-photon pulses, Eµ is signal state quantum bit error

(QBER), H2 is the binary Shannon entropy which is given by H2(x) = −xlog2(x)−(1−x) log2(1−x), and f(Eµ)

is another factor that represents the error correction efficiency which is usually determined by the specific experiment [8], [9].

III. RANDOMACCESSNETWORK

In data communication networks, there is a widely used method to access the shared channel for multiple users, which is associated with random access protocols. For instance, in the 802.11 standard, it adopts a fundamental mechanism called distributed coordination function (DCF) to access the medium. This is a random access scheme and based on the carrier sense multiple access with collision avoidance (CSMA/CA) protocol [11]. The CSMA/CA protocol is designed for the wireless local area network (WLAN), but the basic mechanism is really able to be used on all types of shared channels. In this paper, we use this medium access control (MAC) protocol for reference to analyse the performance of the multi-access QKD network.

Collisions that come from more than one signals sent by different stations at the same time cannot be detected on wireless network. Thus, the CSMA/CA protocol is right for this kind of networks (collisions cannot be detected). The completed and detailed information of the CSMA/CA protocol can be found in 802.11 standards. Here in this paper, we just focus on the performance analysis.

In data communications, one of the most significant indi-cators of the performance is the throughput. However, in our work, only the collision probability is expected. A valuable sat-uration throughput analysis is given in [11]. In this throughput analysis, the probability that a station transmits in a randomly chosen slot time is given as

τ= 2(1−2p)

(1−2p)(W+ 1) +pW(1−(2p)m₎, (2)

whereW is the backoff window,m is the maximum backoff stage which determines the maximum backoff window by

CWmax= 2mW, andpis the conditional collision probability

which means that this is the probability of a collision seen by a packet being transmitted on the channel. Actually, the probabilitypdepends on the probability of remaining station transmits a packet, which is τ. Because prepresents that in a time slot, when a station is transmitting a packet, at least one of the n−1 remaining stations is transmitting as well. With the assumption that each transmission ”sees” the system in the same state (Markov chain mathematical model, detailed in [11]), it gives thepas

p= 1−(1−τ)n−1. (3) These two unknowns τ and p of independent equations (2) and (3) can be solved by using numerical techniques.

When the probabilityτ has been achieved, consider another probability that there is at least one transmission in the considered slot time, which is denoted byPtr. Obviously it is

Ptr= 1−(1−τ)n. (4)

In addition, the probability that a successful transmission given by the probability that exactly one station transmits on the channel, denoted as Ps, is given by

Ps=

nτ(1−τ)n−1

Ptr

Now all the definitions of different cases are obtained: with the probability 1 −Ptr, the time slot is empty; with the

probabilityPtrPs, there is a successful transmission; and with

the probabilityPtr(1−Ps), the time slot contains a collision.

IV. QKDIN RANDOM ACCESS NETWORK

From 2005, many experiments have successfully performed the decoy state QKD [12]–[15]. The experiment in [15] is a typical experiment that implements the QKD over 200 km with photon polarisation transmitted by optical fiber cable by using a 3-state decoy state protocol proposed by Wang [16]. All the specifications in this experiment are treated as assumptions in our work and the data for simulation is from the result of this experiment.

As the weak coherent light is used as the quantum source, the state emitted from Alice is given by

ρ= ∞ X

n=0

µne−µ

n! |ni hn|.

Thus, states with average photon number0,µandµ0(represent the vacuum pulses, signal pulses and decoy pulses separately) are denoted byρ0 (which is0),ρµandρ0µ, and corresponding

number of counts are C0, Cµ and Cµ0. With another set of

numbers, N0, Nµ and Nµ0, which are the pulse numbers of

intensity 0,µandµ0 that Alice sent out, the counting rates of each different intensity pulses can be calculated as S0= NC00,

Sµ= Cµ Nµ andS

0

µ= C0_µ N0

µ.

Another concept or definition distinguished from the count-ing rateS(S0, Sµ, Sµ0)is the counting rates of vacuum pulses,

single-photon pulses and multi-photon pulses from signal states (decoy) states, which are denoted as s0(s00), s1(s01) and sc(s0c). Particularly, the single-photon counting rate is

important for the calculation. The relationship between these two types of counting rate can be expressed by a set of equations which is detailed in [15]. Actually, the counting rate S andsare corresponding to the concept of ”Gain” and ”Yield” in previous paper of the decoy state method theory [8]–[10].

For simplifying the explanation, here we focus on the notation of signal states (the decoy states can be easily denoted by adding the ”prime”). Then the theoretical key generation rate is given directly here, as

Rµ=qSµ{−H(Eµ) + ∆µ1[1−H(E

µ

1)]}. (6) This equation is based on Eq. (1) and proposed by Wang in his work [9], [16], where q and function H(·) have the same meanings as Eq. (1), and∆µ₁ is the remaining bits in the sifted key that defined in [7]. However, Eq. (6) is a theoretical value of the key generation rate under the condition of that the QBER has been known. In the real experiment, the value of the QBER needs to be estimated by using a part of the whole qubits. Therefore, the final key generation rate should be updated to

Kµ =Rµ·δe, (7)

TABLE I

SPECIFICATIONS OF THE EXPERIMENT.

Parameters Description Values

l Transmission distance. 200 ηDetect Detection efficiency. 0.75

S0 Counting rate from vacuum states. 1.3204×10−8

C0 Number of counts from vacuum

pulses.

3263

s1 Single photon counting rate from

signal states.

1.2788×10−6

s01 Single photon counting rate from

decoy states.

1.3707×10−6

Cµ Number of counts fromµphotons pulses.

449467

Cµ0 Number of counts fromµ0photons pulses.

77157

Lµ Fraction of count bits in signal states.

0.1

L0µ Fraction of count bits in decoy states.

0.1

Sµ Counting rate from signal states. 9.0941×10−7

S0

µ Counting rate from decoy states. 3.1223×10−7

µ Average photon number of signal states.

0.6

µ0 Average photon number of decoy states.

0.2

EU

µ QBER upper bound of signal states.

0.0263

EU

µ0 QBER upper bound of decoy

states.

0.6

Eµ Tested (observed) QBER of signal states.

0.0196

Eµ0 Tested (observed) QBER of decoy states.

0.0404

where δe represents the length of the bits that is used for

generating the actual quantum key, and it can be expressed as

δe=

(1−Lµ) Cµ Sµ

T , (8)

whereLµ is the fraction of the count bits in signal states used

for QBER tests, which is provided by the experiment;Cµ and Sµ are the number of counts which comes from the intensity µand the counting rate of pulses of intensityµ. According to the previous talk in this paper,δeincludes all the neccessary

information for the calculation with the data of the experiment. The useful data for the calculation from the experiment [15] is listed in the table.

Fig. 1. Topology of all optical fiber connected QKD network. The line is the logical classical channel, and the dash line is the logical quantum channel. Usually, the channel will be multi-used since the quantum source is also the weak coherent light.

generation rate per user should be expressed as

KCSM A=KQKD∗P, (9)

where KQKD is the key generation rate of two-terminals

QKD, P is the probability of a successful transmission. Combine the QKD protocol that experiment used with the CSMA protocol, the secret key generation can be expressed as

KCSM A=KµPtrPs, (10)

and the numerical result is shown as Fig. 2.

Follow this result, we will discuss the relationship between the key generation rate and the communication distance under the multi-access condition. Even though some parameters are not given in the experiment [15], the analysis is still able to be done according to the principle of the decoy method. Refer to [9], there is an internal correlation betweenSn andsn, which

is

Sn=sn µn

n!e −µ_,

the overall counting rate and overall QBER can be expressed as

Sµ =

∞ X

n=0

sn µn

n!e −µ

= s0+ 1−e−ηµ (11)

and

Eµ=E0s0+edetector(1−e−ηµ), (12)

where n is the photon numbers included in pulses, Sn is

the counting rate of n-photon pulses, sn is the counting rate

of n-photon pulses from signal states, η is the transmission

(a)

(b)

Fig. 2. The average key generation rate (bits/s/user) with different numbers of stations.

efficiency that depends on the transmittance and the detection efficiencyηDetect, andedetectoris the probability that a photon

is detected by the imperfect detector. The parameters η and

edetector can be calculated by solving Eq. (11) and (12).

The parameter η affects most observed data in an ex-periment, such as the counting rate S and the QBER E. Meanwhile, η is affected by the loss coefficient α, which represents the light pulse attenuation with the increment of the distance. The relation between them can be expressed as

Fig. 3. Relationship between the transmission distance and the key generation rate. This is a calculated theoretical result based on the experiment [15] partly, since some estimated values instead of parameters not given in that experiment.

After calculating these parameters not given directly, the QBER Eµ can be re-estimated by using Eq. (14), which

is independent with Eq. (12), and Eq. (15), which is an approximate estimate of sµ.

Eµ=

e0s0+edetectorη sµ

, (14)

sµ .

=s0+η. (15)

For simplifying the analysis, Eq. (11)-(15) simply connects the transmission distance and the counting rate and the QBER. Thus, by using Eq. (6), (7), (8) and (10), the relationship between the transmission distance and the key generation rate will be found. The numerical result is shown in Fig. 3.

V. CONCLUSION

Based on the theory of random access network and the suc-cessful experiment of the decoy state quantum key distribution, a possible scheme of QKD random access network is proposed and the main performance of QKD—key generation rate is analysed in this paper. Because of the difference between tha classical data packets and quantum source pulses, all the methods rely on the physical implementation cannot be simply used in quantum communications except the methods of logical analysis. In this paper, because of the method of the accessing refers to the classical communications, which is CSMA protocol, the quantum secret key generation rate is related to the pulse transmitting, so that it is affected by the probability of successful transmissions in the channel. The relationship between the quantum secret key generation rate and the number of stations on a shared channel random access network is studied. Since most work on QKD tries to enhance

the distance of quantum communications, the relationship be-tween the transmission distance and the secret key generation rate under the multi-access condition is considered as well.
