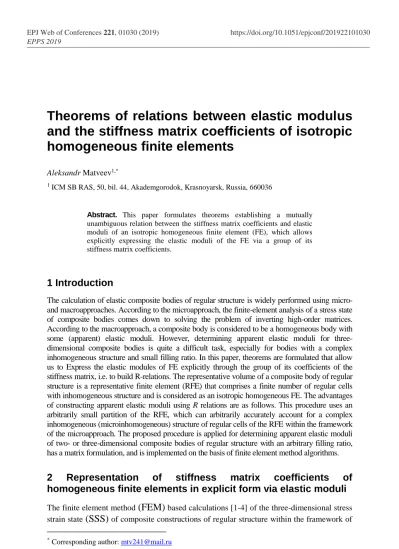

Theorems of relations between elastic modulus and the stiffness matrix coefficients of isotropic homogeneous finite elements

Theorems of relations between elastic modulus

and the stiffness matrix coefficients of isotropic

homogeneous finite elements

Aleksandr Matveev1,*

1 _{ICM SB RAS, 50, bil. 44, Akademgorodok, Krasnoyarsk, Russia, 660036}

Abstract. This paper formulates theorems establishing a mutually unambiguous relation between the stiffness matrix coefficients and elastic moduli of an isotropic homogeneous finite element (FE), which allows explicitly expressing the elastic moduli of the FE via a group of its stiffness matrix coefficients.

1 Introduction

The calculation of elastic composite bodies of regular structure is widely performed using micro- and macroapproaches. According to the microapproach, the finite-element analysis of a stress state of composite bodies comes down to solving the problem of inverting high-order matrices. According to the macroapproach, a composite body is considered to be a homogeneous body with some (apparent) elastic moduli. However, determining apparent elastic moduli for three-dimensional composite bodies is quite a difficult task, especially for bodies with a complex inhomogeneous structure and small filling ratio. In this paper, theorems are formulated that allow us to Express the elastic modules of FE explicitly through the group of its coefficients of the stiffness matrix, i.e. to build R-relations. The representative volume of a composite body of regular structure is a representative finite element (RFE) that comprises a finite number of regular cells with inhomogeneous structure and is considered as an isotropic homogeneous FE. The advantages of constructing apparent elastic moduli using R relations are as follows. This procedure uses an arbitrarily small partition of the RFE, which can arbitrarily accurately account for a complex inhomogeneous (microinhomogeneous) structure of regular cells of the RFE within the framework of the microapproach. The proposed procedure is applied for determining apparent elastic moduli of two- or three-dimensional composite bodies of regular structure with an arbitrary filling ratio, has a matrix formulation, and is implemented on the basis of finite element method algorithms.

2

Representation

of

stiffness

matrix

coefficients

of

homogeneous finite elements in explicit form via elastic moduli

The finite element method

(FEM)

based calculations [1-4] of the three-dimensional stress strain state

(SSS)

of composite constructions of regular structure within the framework of

the macroapproach [5] come down to forming discrete models with a very high dimension. The dimensions of discrete models are reduced using multigrid finite elements

(

MgFE

)

[6-8]. However, the analysis of the SSS of constructions with complex microinhomogeneous structures using MgFE is very complicated. Determining apparent elastic moduli for three-dimensional composite constructions is quite a difficult task, especially for bodies with a complex inhomogeneous structure and small filling ratio. Different approximate approaches to calculating the SSS of composite constructions [9-15] are applied, based on hypotheses, which generates approximate solutions with an inherent error. In this paper, it is proposed to determine apparent elastic moduli of composite bodies of regular structure using R relations, which explicitly represent the elastic moduli of an isotropic homogeneous finite element (FE

)

via a group of its stiffness matrix coefficients. The representation of the stiffness matrix coefficients of homogeneous linear-elastic FE in explicit form via elastic moduli is shown below.

Let there be an arbitrarily shaped homogeneous FE V_e of any order in a three-dimensional problem of the elasticity theory, located in a Cartesian coordinate system

Oxyz, for which the Hooke and Cauchy expressions are fulfilled [16], i.e.,

 

{} }

{



 D



, (1)

x u

x _

 

 ,

y v

y _

 

 ,

z w

z _

 

 ,

x v y u

xy _

    

 ,

x w z u

xz _

    

 ,

y w z v

zy _

    

 , (2)

where {}{_x,_y,_z,_yz,_xz,_xy}Tand {}{_x,_y,_z,_yz,_xz,_xy}T are the stress and strain vectors; u, v, and ware the displacement vectors of the element V_e;

 

D is the matrix of the elastic moduli C_ij of the FE V_e; C_ijC_ji, i,j1,...,6; Tdenotes transposition.

Based on the FEM, the approximating displacement functions u, v, and w of the element V_e are represented by the equation

 

N {}

w v u

    

   

, (3)

where {



}{



₁,...,



_3n}T denotes the vector of nodal unknowns of the FE V_e, 1,...,_n denotes the nodal values of the displacements u, _n₁,...,_2n denotes the nodal values of the displacements v, _2n1,...,_3n denotes the nodal values of the displacements w, and

]

[N is the shape function matrix of the form

  

 

  

  

n n

n

N N N N N N N

,..., 0,...,0, , 0 ,..., 0

0,...,0 , ,..., , 0 ,..., 0

0,...,0 0,...,0, , ,..., ]

[

1 1

1

, (4)

where N_ refers to the shape functions of the FE V_e and 1,...,n, where n is the total number of shape functions.

       ) 2 1

( _{11 x 12 y 13 z 14 yx 15 xz 16 xy}

x

e C C C C C C

W















      ) 2 1

( _{22 y 23 z 24 yx 25 xz 26 xy}

y C



C



C



C



C





     ) 2 1

( _{33 z 34 yx 35 xz 36 xy}

z C



C



C



C





  )

2 1

( _{44 yx 45 xz 46 xy}

yz C



C



C





xy xy

xy xz

xz C



C





C





_{55 56 66}

2 1 ) 2 1 (  

 . (5)

Expressions (1) – (3) in system (5) yield W_e W_e({}). The fulfilled condition

ij i e k W _    }) ({

, where i1,...,3n and ji,...,3n, is applied to determine the coefficients

ij

k of the top triangular part of the stiffness matrix (a dimension of 3n3n) of the

three-dimensional FE V_e , which, based on Eq. (4), are written as

      

 _{11  15}( _{ }) ₁₆( _{ }) ₅₆( _{ })

 C A C P P C D D C F F

k

  C B

Q

C₅₅  ₆₆

 ,         

 , 22  24(  ) 46(  ) 26(  )

 C B C F F C P P C D D

k _{n n}

  C A

Q

C₄₄  ₆₆

 ,         

2 , 2 33  34(  ) 35(  ) 45(  )

 C Q C F F C P P C D D

k _{n n}

  C A

B

C₄₄  ₅₅

 ,

n ,..., 1 

 ,







,...,n; (6)

              

 C D C P C P C F C B C Q

k _{, n 12 14 56 25 26 45}

 

 C D C F

A

C₁₆  ₆₆  ₄₆

 ,               

 C P C D C A C Q C F C F

k _{, 2n 13 14 15 35 36 45}

 

 C P C D

B

C₄₆  ₅₅  ₅₆

 ,                

 C F C B C D C Q C P C P

k _{n, 2n 23 24 25 34 36 45}

 

 C F C A

D

C₄₆  ₄₄  ₅₆

 , 1,...,n,



1,...,n;

dV x N x N A e V     



 

 , dV

y N y N B e V     



   , dV z N z N Q e V     



 

 , 1,...,n,







,...,n; (7)

dV z N x N P e V     



 

 , dV

y N x N D e V     



   , dV z N y N F e V     



 

 , 1,...,n,



1,...,n;

where C_ij denotes the elastic moduli and V_e is the domain of the FE V_e.

Let there be an arbitrarily shaped homogeneous FE S_e of any order in a plane problem of the elasticity theory, located in a Cartesian coordinate system Oxy. The stresses _x,

y



, and



_yz, deformations _x, _y, and



_yx, and displacements u and v of the element

e

S are related by the Hooke and Cauchy expressions [16]

 

{ } }

{



D



,

x u

x _

 

 ,

y v

y _

 

 ,

x v y u

xy _

    

 , (8)

where {}{_x,_y,_xy}T and {}{_x,_y,_xy}T denotes the stress and strain vectors, u and v are the displacement vectors of the element S_e,

 

D is the matrix of the elastic moduli C_ij of the FE S_e, and C_ij C_ji, i,j1,...,3.

Based on the FEM, the approximating displacement functions u and v of the element

e

S are determined from the expression

 

N {}

v u

      

, (9)

where {



}{



₁,...,



_2n}Tis the vector of the nodal unknowns of the FE S_e,

n



1,..., denotes the nodal values of the displacements u, and n1,...,2n denotes the

nodal values of the displacements v, i.e., the matrix of the shape functions [N] has the form

   

  

n n

N N N N N

,..., , 0 ,..., 0

0,...,0 , ,..., ]

[

1 1

, (10)

where N_ denotes the shape functions of the FE S_e and  1,...,n, where n is the total number of shape functions.

The strain energy W_e of the element S_e, which is used to determine the stiffness matrix of the FE S_e, can be written in the form

 



 )

2 1

( _{11 x 12 y 13 yx}

x

e C C C

W









 )

2 1

( _{22 y 23 yx}

y C



C





xy C33xy

2 1

. (11)

Expressions (8) and (9) in the representation (11) yield We We({}). The fulfilled

condition _ij

i e

k

W _

 

 }) ({

, where i1,...,2n and ji,...,2n, is used to determine the

coefficients k_ij of the top triangular part of the stiffness matrix (a dimension of 2n2n) of the FE S_e in the plane problem of the elasticity theory, which, based on Eq. (14), are written as

k_ C₁₁A_ C₁₃(D_ D_)C₃₃B_,

k_n,_nC22B_ C23(D D)C33A, 1,...,n,







,...,n;

 

 



 C D C A C B C D

k _{, n}  ₁₂  ₁₃  ₂₃  ₃₃ ,



,



1,...,n, (12)

dS

x N

x N A

e

S 

  





 

 , dS

y N

y N B

e

S 

  





 

dS y N

x N D

e

S 

  





 

 ,



,



1,...,n, (13)

where C_ij denotes the elastic moduli and S_e is the domain of the FE S_e.

The coefficients of the bottom triangular part of the stiffness matrix of the element S_e are determined from the condition of its symmetry, i.e., k_ k_, where 1,...,2n and

n

2 ,...,





 .

3 Formulations of the Theorems for Isotropic Homogeneous

Finite Elements. Construction of R

Relations

Two- and three-dimensional composite constructions of regular structure, which, according to the macroapproach, can be considered as isotropic homogeneous bodies and whose regular cells are cube-shaped (square-shaped) are frequently used in practice. Based on expressions (6), (7), (12), and (13), mutually unambiguous relations are established between the elastic moduli and stiffness matrix coefficients of isotropic homogeneous FE, which are reflected in the following theorems.

Theorem 1. Let Hooke’s law and Cauchy expressions be valid for the square-shaped linear-elastic isotropic homogeneous FE S_e of the first order in the plane problem of the elasticity theory, located in the Cartesian coordinate system Oxy. Then parameters ₁, ₂,

3

 , and ₄ can be selected from the vector of the nodal unknowns of the FE S_e and the shape function of the FE S_e of the form (9), (10), n4, and Eqs. (12) and (13) can be used to construct square matrices [H1] and [H2] such that {K1}[H1]{C1} and

} ]{ [ }

{K₂  H₂ C₂ or

} { ] [ }

{C₁  H₁ 1 K₁ , {C₂}[H₂]1{K₂}, (14) where {C₁}{C₁₁,C₁₃,C₃₃}T, {C₂}{C₂₂,C₂₃,C₃₃}T, {K₁}{k₁₁,k₁₂,k₂₂}T,

T

k k k

K } { , , }

{ ₂  _{33 34 44} ; [H₁]1 and [H₂]1 are the matrices inverse to [H1] and [H2];

ij

k denotes the coefficients of the stiffness matrix of the

FE

S_e, which satisfies a system of relations of the FEM of the form

      

      



      

      

    

 

    

 

4 3 2 1

4 3 2 1

44 43 42 41

34 33 32 31

24 23 22 21

14 13 12 11

, , ,

, , ,

, , ,

, , ,

R R R R

k k k k

k k k k

k k k k

k k k k

   

, (15)

where R_i denotes the nodal forces of the FE, i1,...,4, corresponding to the nodal displacements ₁, ₂, ₃, and ₄.

In other words, the stiffness matrix of the square-shaped linear-elastic isotropic homogeneous

FE

of the first order in the plane problem of the elasticity theory always contains six coefficients such that can be used to determine five elastic moduli C₁₁, C₁₃,

22

C , C₂₃, and C₃₃ of this FE.

where {C₃}{C₁₂,C₁₃,C₂₃,С₃₃}T, {K₃}{k₁₃,k₁₄,k₂₃,k₂₄}T, and [H₃] is the 4

4 matrix.

Let h_ij3 be denoted by the coefficients of the matrix [H₃], i,j1,...,4. For example, let 0

3 1

i

h (i1,...,4). Then, according to Eq. (16), the elastic modulus C₁₂ is expressed via

13

C , C₂₃, and C₃₃ according to the equation

3 1 3

4 33 3

3 23 3

2 13 *

12 (ki C hi C hi C hi )/hi

C     , (17)

where i1,...,4, k₁*k₁₃, k₂*k₁₄, k₃*k₂₃, and k₄*k₂₄.

Expressions (14) and (17) represent R relations. These relations are used to determine apparent elastic moduli for two-dimensional composite bodies with square-shaped regular cells. The procedure of calculating the apparent elastic moduli for such two-dimensional composite bodies is described in detail in [17, 18].

Note 1. It is noteworthy that constructing the relations (14) and (17) (i.e., R relations) only requires determining the matrices [H1], [H2], and [H3], which can be formed using

the shape functions of the FE S_e of the form (9), (10), n4, and expressions (12) and (13). The coefficients of the matrices [H1], [H2], and [H3] are determined using

expressions (13).

Theorem 2. Let Hooke’s law and Cauchy expressions be valid for the cube-shaped

linear-elastic isotropic homogeneous FE V_e of the first order in the three-dimensional problem of the elasticity theory, located in the Cartesian coordinate system Oxyz. Then the nodal parameters ₁, ₂, ₃, ₄, ₅, ₆, ₇, ₈, and ₉ can be selected from the vector of the nodal unknowns of the FE V_e, and the shape functions of the FE of the form (3), (4), n8, and expressions (6) and (7) can be used to construct such square matrices

]

[H1 , [H2], and [H3], for which the following equalities are valid:{K1}[H1]{C1},

} ]{ [ }

{K₂  H₂ C₂ , and {K3}[H3]{C3} or

} { ] [ }

{C1 H1 1 K1



 , {C2} [H2] 1{K2}



 , {C₃}[H₃]1{K₃}, (18) where {C₁}{C₁₁,C₁₅,C₁₆,C₅₅,C₅₆,C₆₆}T, {C₂}{C₂₂,C₂₄,C₂₆,C₄₄,C₄₆,C₆₆}T,

T

C C C C C C

C} { , , , , , }

{ ₃  _{33 34 35 44 45 55} ,{K₁}{k₁₁,k₁₂,k₁₃,k₂₂,k₂₃,k₃₃}T,

T

k k k k k k

K } { , , , , , }

{ ₂  _{44 45 46 55 56 66} ,

{

K

₃

}



{

k

₇₇

,

k

₇₈

,

k

₇₉

,

k

₈₈

,

k

₈₉

,

k

₉₉

}

T, [H₁]1,

1 2]

[H  and [H₃]1 are the matrices inverse to [H1], [H2], and [H3], and kij denotes

the stiffness matrix coefficients of the FE V_e, which satisfy the system of FEM expressions of the form

      

      



      

      

    

 

    

 

9 2 1

9 2 1

99 92 91

29 22 21

19 12 11

. . ..., , ,

. ..., , . , .

..., , ,

..., , ,

R R R

k k k

k k k

k k k

  

,

where R_idenotes the nodal forces of the FE V_e, in which the FEM parameters _i, 9

,..., 1 

i are determined.

coefficients such that can be used to determine 15 elastic moduli of this FE: C₁₁, C₁₅, C₁₆,

22

C , C₂₄, C₂₆, C₃₃, C₃₄, C₃₅, C₄₄, C₄₅,

C

₄₆, C₅₅, C₅₆, and C₆₆.

The remaining six elastic moduli of the FE V_e are unambiguously determined via the elastic moduli (18) as follows. Equations (6) and (7) are used to construct expressions

}, { ] [ } { ] [ } { }, { ] [ } { ] [ }

{ 5 5 5 5 5*

* 4 4 4 4

4 H C G C K H C G C

K     (19)

where {K₄}{k₁₄,k₁₅,k₁₆}T; {K₅}{k₄₈,k₄₉,k₅₇}T; {C₄}{C₁₂,C₁₄,C₂₅}T;

T

C C C

C } { , , }

{ ₅  _{23 25 36} ; {C₄*}{C₁₆,C₂₆,C₄₅,C₄₆,C₅₆,C₆₆}T;

; } , , , , , { }

{ 5* _{24 34 44 45 46 56}

T

C C C C C C

C  [H₄] and [H₅] denote 33 matrices, and [G4]

and [G₅] are 36 matrices.

The calculations show that det

 

H4 0 and det

 

H5 0. Then expressions (19) yield

vectors {C₄} and {C₅} using equations

} { ] [ ] [ } { ] [ }

{ 4 4*

1 4 4 1 4

4 H K H G C

C     ,

} { ] [ ] [ } { ] [ }

{ 5 5*

1 5 5 1 5

5 H K H G C

C     , (20)

where [H₄]1 and [H₅]1 are the matrices inverse to [H4] and [H5].

Note that the elastic moduli vectors {C₄*} and {C₅*} in expressions (20) are known (see

Eqs. (18)). Thus, only С₁₃ is left to be determined. For that purpose, Eqs. (6) and (7) are used to construct an expression

} ]{ [ }

{K₆  H₆ C₆ , (21)

where [H₆] denotes a 99 matrix, {K₆}{k₁₇,k₁₈,k₁₉,k₂₇,k₂₈,k₂₉,k₃₇,k₃₈,k₃₉}T, and

T

C C C C C C C C C

C } { , , , , , , , , }

{ ₆  _{13 14 15 35 36 45 46 55 56} .

Let h_ij6 denote the coefficients of the matrix [H₆], i,j1,...,9. For example, let 0

6 1

i

h . Then, according to Eq. (21), the elastic modulus C₁₃ is calculated from  

 

 

 6

6 45 6

5 36 6

4 35 6

3 15 6

2 14

13 (ki C hi C hi C hi C hi C hi

C

6 1 6

9 56 6 8 55 6

7

46hi C hi C hi )/hi

C  

 , (22)

where k_i*- denotes the parameter of the vector {K₆}, i1,...,9, k₁*k₁₇, k*₂k₁₈,

19 * 3 k

k  , …, k₉*k₃₉.

Expressions (18), (20), and (22) represent the R relations. These relations are used to determine the apparent elastic moduli for three-dimensional composite bodies with square-shaped regular cells. How apparent moduli for these three-dimensional composite bodies can be determined is described in detail in [19].

Note 2. It is noteworthy that constructing relations (18), (20), and (22) (i.e., R relations) only requires determining the matrices [H1], [H2], [H3], [H4], [H5], [H6], [G4], and

]

[G₅ , which are formed using the shape functions of the FE V_e of the form (3), (4), n8, and expressions (6) and (7). The coefficients of the matrices [H1],…, [G5] are determined

using Eqs. (7).

to use the first-order FE to determine the apparent elastic moduli as the increase in the order of the FE S_e and V_e makes the volume of computations larger.

4 Main provisions for determining apparent elastic moduli

Main provisions for determining apparent elastic moduli are considered on the example of a two-dimensional composite body S_p of regular structure, which is subjected to a plane stress state and located in the Cartesian coordinate system Oxy. The presence of ideal relations between the components of the composite body S_p is assumed. According to the macroapproach, the body S_p can be regarded as an isotropic homogeneous body. A representative FE (RFE) comprised of a finite number of square regular cells of inhomogeneous structure of the body S_p is used a representative volume of the composite body S_p. Let the RFE be square-shaped with side a. The domain of the RFE is represented by a basic partition R_h consisting of a square-shaped FE S_ih of the first order with side h, i1,...,N, where Nis the total number of the FE S_ih. The basic partition accounts for the inhomogeneous structure of the RFE and generates a square fine grid S_h with cell h. The functional W_p of the total potential energy of the RFEis written as

, }) { } { } ]{ [ } { 5 , 0 (

1







 N

i

i T i i i T i

p q K q q R

W (23)

where [K_i] - denotes the stiffness matrix of the element S_ih, and {q_i}, {R_i} are the vectors of the nodal unknowns and nodal forces of the element S_ih.

A coarse grid S_H is determined in the fine grid S_h, and the nodes of the coarse grid are the apexes of the RFE, i.e., the grid S_H has four nodes. In the coarse grid S_H, the FEM is used to determine the approximating displacement functions u and v of the form (9), (10),

4 

n . The resulting representations





 4

1

i

H i i

N

u  and



 

 4

1 4

i

H i i

N

v  (where

H i



denotes the nodal unknowns of the coarse grid S_H, i8) are used to express the vector {q_i} of the nodal unknowns of the FE S_ih via the vector {q_H} of nodal unknowns of the coarse grid S_H of the RFE. Thus, the following equation is obtained:

},

]{

[

}

{

q

i



A

i

q

H (24)

where

[

A

_i

]

denotes an 88 square matrix. Equation (24) is substituted into Eq. (23), and condition Wp({qH})/{qH}0 yields

] [ ] [ ] [ ] [

1

i N

i

i T i

p A K A

K





 , { } [ ] { }

1

i N

i T i

p A R

F





 , (25)

where [K_p],{F_p} are the stiffness matrix and the vector of nodal forces of the RFE.

and R_h is the basic partition of the 2gFE

.

The latter, i.e., RFE is known to be arbitrarily small, so it can arbitrarily accurately account for the inhomogeneous (microinhomoge- neous) structure of the RFE. One should pay attention to the provisions on the basis of which the apparent elastic moduli are determined. Accor ding to the macroapproach, the RFE is regarded as a square-shaped isotropic homogeneous FE of the first order (i.e., square-shaped 2gFE of the first order) with apparent elastic

moduli C_ijp. Expressions (23)-(25) are used to determine the coefficients k_ijp of the stiffness matrix [K_p] of the RFE, i,j1,...,8. Then, according to Theorem 1, the

elastic moduli C_ijp and six coefficients k_ijp of the stiffness matrix [K_p] of the RFE are related by R relations of the form (14), (17). Consequently, the apparent elastic

moduli C_ijp for the RFE (i.e., composite body S_p) are calculated using Eqs. (14) and (17), in which the elastic moduli C_ij and coefficients k_ij are respectively replaced by

the apparent elastic moduli C_ijp and coefficients k_ijp, i.e.,

} { ] [ }

{ 1 1 1 ₁

p p

K H

C   , {C₂}[H₂]1{K₂},

3 1 3

4 33 3

3 23 3

2 13 *

12 ( i )/ i

p i p i p i p

h h C h C h C k

C     , (26)

where {K₁p}{k₁₁p,k₁₂p,k₂₂p}T, {K₂p}{k₃₃p,k₃₄p,k₄₄p}T; {C₁p}{C₁₁p,C₁₃p,C₃₃p}T,

T p p p p _{C C C}

C } { , , }

{ ₂  _{22 23 33} , i1,2,3, k₁*k₁₃p, k2* k₁₄p ,

p

k

k₃*  ₂₃,

h

i31



0

.

The procedures of constructing the matrices [H1], [H2], and [H3] are briefly

described in Note 1. It is well-known [14] that the elastic moduli C_ij, C_ji С_ij, i1,..,3, 3

,...,

i

j , of isotropic homogeneous two-dimensional bodies subjected to a plane stress state satisfy the conditions

22 11 C

C  , C₁₃ C₂₃0. (27)

The calculations show that, as a increases, C_ijp tend to the limiting values of C_ij0, i.e.,

0

ij p ij C

C  as aa₀, i,j1,...,3. Then

for aa₀: C_ijpC_ij0, i,j1,2,3. (28) According to the calculations, for the two-dimensional composite bodies S_p of regular structure, with square-shaped regular cells, there is such a small value 0 that

. ,

,

/ ₂₂0 ₁₃0 ₂₃0

0 22 0

11C C  C C 

C (29)

5 Conclusion

In this paper the procedure is proposed for determining apparent elastic moduli of two- or three-dimensional composite bodies of regular structure with an arbitrary filling ratio, which has a matrix formulation, and is implemented on the basis of finite element method algorithms. It is shown that apparent elastic moduli determined for a certain class of composite bodies of regular structure satisfy the conditions of isotropic homogeneous bodies.

References

1. D.H. Norrie, G. de Vries. An Introduction to Finite Element Analysis (Academic Press, New York; San Francisco, London, 1978)

2. O.C. Zienkiewicz. The Finite Element Method in Engineering Science (McGraw-Hill, London, 1971)

3. K.-J. Bathe, E.L. Wilson. Numerical Methods in Finite Element Analysis (Prentice Hall, Inc., 1976)

4. M. Sekulovich. Finite Element Method (Stroiizdat, Moscow, 1993) [in Russian] 5. T. Fuji and J. Jako. Mechanics of the Fracture of Composite Materials (Mir, Moscow,

1982)

6. A.D. Matveev. IOP Conf. Ser.: Mater. Sci. Eng. 158, 1, 012067, 1-9 (2016) 7. A.D. Matveev, Vestnik KrasGAU, 12, 93-100 (2016)

8. A.D. Matveev. Uchen. Zap. Kazan. Univ. Seriya: Fiz.-Matem. Nauki 158 (4), 530-543 (2016)

9. N.A. Alfutov, P. A. Zinov’ev, and B.G. Popov. Calculation of Multilayer Plates and Shells Made of Composite Materials (Mashinostroenie, Moscow, 2008)

10. S.K. Golushko, Yu.V. Nemirovskii. Direct and Inverse Problems of Mechanics of Elastic Composite Plates and Shells of Revolution (Fizmatlit, Moscow, 2008)

11. A. Ahmed A, S. Kapuria, Composite Structures, 158, 112–127 (2016) 12. M. Cinefra, E. Carrera, Int. J. Num. Meth. Eng. 93, 2, 160-182 (2013)

13. E. Carrera, A. Pagani, S. Valvano. Composites Part B: Engineering 111, 294 –314 (2017)

14. M.Y. Yasin, S. Kapuria. Composite Structures 98, 202–214 (2013)

15. M.F. Сaliri, A.J.M. Ferreira, V. Tita, Composite Structures 156, 63-77 (2016)

16. V.I. Samul’, Fundamentals of the Theory of Elasticity and Plasticity (Vyssh. Shk., Moscow, 1970)

17. A.D. Matveev. Vestnik KrasGAU, 12, 212-222 (2006)

18. A.D. Matveev, Proceedings of the XXI All-Russia Conference “Numerical Methods for Solving the Problems of Elasticity and Plasticity”. Parallel, Novosibirsk, 158-167 (2009)
