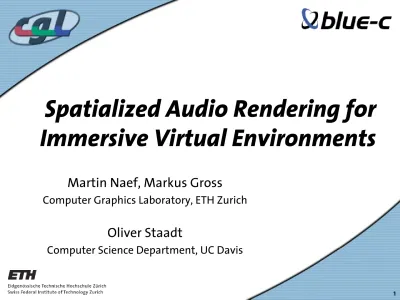

Spatialized Audio Rendering for

Immersive Virtual Environments

Martin Naef, Markus Gross

Computer Graphics Laboratory, ETH Zurich

Oliver Staadt

Context: The blue-c

• Collaborative Immersive Virtual Reality Environment • Provide remote collaboration features

– Shared, synchronized virtual world

– Render partners using 3D video streams – Concurrent rendering and acquisition

Audio for VR

• Increase the sense of presence

• Guide the interest of the user

• Provide cues for orientation

• Requires 3D sound rendering

Overview

• Available systems and technology

• System overview

• Audio rendering pipeline

– Sound sources

– Simulation of physical effects – 3D positioning and mixdown

• API integration

• Experiments

Rendering Options

• Using headphones

– Model head/pinnae using HRTF

– Head-tracking for each user required

– Calibration for individual users required

• Using multiple speakers

– Multi-channel hardware required – Speaker placement is critical

Available Systems

• High-end systems

– Offline calculation of impulse responses

• E.g. CATT-Acoustics

– Convolution processors

• E.g. Lake

Available Systems

• Low-end systems

– PC sound cards

• Direct Sound, EAX, OpenAL

– Speaker placement

Design Goals

• Good sound quality at moderate cost • Believable results

– Not necessarily physically correct

• Support for networked sound

– Needed for remote collaboration

• Flexible speaker placement

• Efficient implementation on standard hardware

System Overview

• Part of the blue-c software core

Sound System Graphics System sync Source Localization Pipeline Reverb 11 1 n n nn Mix Bus Application Scene Graphics• Pipeline

Audio Rendering

Pipeline

Audio Sources

• Recorded audio

– Mono samples or loops for effects

– Multi-channel files for background music

• Live input

– Microphones

– External synthesizer or sampler

• Networked input

– Remote microphones for collaboration Source Distance Delay Air Absorption Distance Gain 3D Positioning Projection Room-EQ LPF Reverb Head Tracking

Audio Sources

• Keep all state information

– 3D position

– Reference distance – Gain

– Temporary rendering data

• Filter coefficients and state • Delay lines

• Mixdown matrix Distance DelaySource Air Absorption Distance Gain

Distance Delay

• Simulate propagation speed of sound (300 m/s) • Store and delay samples in a memory buffer

• Keep independent write and read pointers • Read pointer is moved according to distance

– Linear interpolation of time and samples – Results in a frequency shift (Doppler effect)

Source Distance Delay Air Absorption Distance Gain 3D Positioning Projection Room-EQ LPF Reverb Head Tracking Delay Line Write Data Read Data P cur P cur+ td.last P

Air Absorption

• Frequency-dependant power loss

– Higher frequencies are attenuated more – Only perceivable for large distances

(approx. -4 dB per 1000 m at 1 kHz)

• Simplified model

– High-shelving filter (bi-quad)

Source Distance Delay Air Absorption Distance Gain

Distance Gain

• Power loss according to distance

• Uses reference distance

Source Distance Delay Air Absorption Distance Gain 3D Positioning Projection Room-EQ LPF Reverb Head Tracking s ref d

D

D

L

=

3D Positioning

• Simulate source direction using a discrete, small number of speakers

• Distribute mono-stream onto multiple speaker channels

Source Distance Delay Air Absorption Distance Gain

3D Positioning

• Calculate channel gains with dot-product

• Open up "active angle" to avoid differences in perceived spread

• Normalize gain factors

Source Distance Delay Air Absorption Distance Gain 3D Positioning Projection Room-EQ LPF Reverb Head Tracking













⋅

+

=

,

0

1

.

1

1

.

0

max

v

v

L

Loudness Projection

• Correct the individual channels

to move "sweet spot"

• Use head-tracking information

• Allows irregular distances to

the listener for individual

speaker

D

D

L

=

Room Simulation

• Simulate room echo

• Provide a sense of the size and material of the acoustic space

• Two fundamental approaches

– Simulated impulse response (large FIR filters) – Parameterized reverberation algorithms

Source Distance Delay Air Absorption Distance Gain 3D Positioning Projection Room-EQ LPF Reverb Head Tracking

Room Simulation

• Separate send channel to studio effect processor (t.c. M-ONE XL)

– Provides smooth, pleasing reverb – Intuitive parameterization

– Mix reverb output onto the mix bus

• Use effect send gain as additional distance cue

– High direct-sound to room echo ratio for close sounds Source Distance Delay Air Absorption Distance Gain 2 ref 1−_ _ = D L

Room EQ and LF

Management

• Parametric equalizer in the mixing bus

allows to adjust to acoustic environment

– Attenuate resonant frequencies

– Account for non-linear speaker response

• Low-frequency management

– low-pass filter a sum signal to drive subwoofer Source Distance Delay Air Absorption Distance Gain 3D Positioning Projection Room-EQ LPF Reverb Head Tracking

Fused Pipeline

• Mix signal onto main bus using a single mixdown-matrix

– Source gain – Distance gain

– Position and projection gain for each speaker channel

• Steps are reduced into a single vector-matrix multiplication Source Distance Delay Air Absorption Mix Matrix Speakers Rev. 3D Positioning Sub f g Room-EQ LPF Source Distance Delay Air Absorption Distance Gain

Fused Pipeline

• Mixdown matrix

– Calculated at audio block boundaries – Linear interpolation between last and

current matrix (every 32 samples)

– Provides smooth transition between different positions Source Distance Delay Air Absorption Mix Matrix Rev. 3D Positioning f g Room-EQ LPF

API Integration

• Sound service in the blue-c API core

– Control sound sources and system

• Audio nodes in the scene graph

– Sound as object attribute

– Support transformation nodes

– Provide translation between virtual (scene) and real coordinate systems (physical setup)

Benchmarks

• Single MIPS R12000 CPU, 400 MHz

• 44.1 kHz sampling rate, 20 ms latency, 8 channel ADAT input/output

• Delay-line is expensive

• Latency has little influence

33 sources 31 sources 65 sources Stream 30 sources 25 sources 54 sources Live 37 sources 33 sources 78 sources Preload Localized Stereo Mono Source

Applications

• Used for several applications

– Landscape (ship seeking test) – Infoticles

– "Fashion show" blue-c feature demo – Collaborative chess

Conclusions

• High quality sound system

• Based on standard components

• Moderate cost

– ~ US$5000 for audio system

Future Work

• Integration into area management

– Culling of sound sources – Portal effects

– Assign reverberation parameters to areas

• Linux port

http://blue-c.ethz.ch

Related Work - Acoustics

• [Begault:94] Overview

• [Gardner:92] Virtual Acoustics / Reverb • [Krockstadt:68] Ray-tracing

• [Funkhouser:99] Beam-tracing

• [Gardner:94] HRTF • [Pulkki:99] VBAP

Related Work - VR

• [Takala:92] Sound Rendering

• [Tsingos:97] Soundtracks for animation

• [Eckel:99] Cyberstage Sound Server

• [Jot:99] IRCAM Spatialisateur

• [Huopaniemi:99] DIVA

Implementation Notes

• Rendering runs in its own process

– Sound sources can be added and modified at any time

– Parameter updates only at block boundaries

• Runs on

– SGI Onyx 3200 (MIPS R12000, 400 MHz)

– I/O through 8 channel ADAT

– Inexpensive studio hardware and speakers

– ~ US$5000 for audio system

SoundService SoundSource PreloadSource LiveInputSource StreamSource PreloadData LiveInput 3DPositioning ReverbControl

Speaker Placement

• More speakers means better localization

– 6 speaker provide good results – 8 speakers almost "equal power"

distribution Source Distance Delay Air Absorption Distance Gain 3D Positioning Projection Room-EQ LPF Reverb Head Tracking
