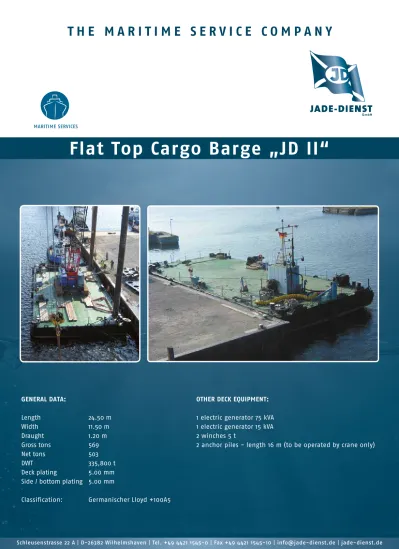

Flat Top Cargo Barge „JD II“

GENERAL DATA: Length 24.50 m Width 11.50 m Draught 1.20 m Gross tons 569 Net tons 503 DWT 335,800 t Deck plating 5.00 mm Side / bottom plating 5.00 mm

Classification: Germanischer Lloyd +100A5

OTHER DECK EQUIPMENT:

1 electric generator 75 kVA 1 electric generator 15 kVA 2 winches 5 t

2 anchor piles - length 16 m (to be operated by crane only)

T H E M A R I T I M E S E R V I C E C O M P A N Y

(2)
(3)

Flat Top Cargo Barge „JD III“

GENERAL DATA: Length 24.46 m Width 7.00 m Draught 1.60 m DWT 146,000 t Deck plating 3.00 mm Side / bottom plating 3.75 mm

Classification: Germanischer Lloyd +100A5

Other Deck Equipment:

1 hydraulic crane, type Atlas AK 6000 V-15180 1.6 t / 11.67 m – 1.1 t / 15.00 m

4-point mooring

A-frame portside with 5 t winch

T H E M A R I T I M E S E R V I C E C O M P A N Y

(4)
(5)

F l o a t i n g C r a n e „ J A D E - L I F T I “

Callsign: DQEE GENERAL DATA: Length o. a. 36.50 m Width o.a. 24.00 m Depth moulded 2.00 m Draught 3.50 m Gross tons 865 Tons dead weight 259 Max. lifting capacity 100 to

Classification: Classification: GL + 100A5k (20) E, Floating Crane + MC E

Crane

Lifting capacity – jib length (distance of crane approx. 12 m to ship´s side):

100 to – 27 m 70 to – 35 m 40 to – 40 m

Auxiliary hoist: max. 20 to – max. 42.50 m jib length Crane unit fitted with turntable

Crane operation entirely by three-phase current Boomhoist geared by 2 screw drives

Accommodation Sufficient accommodations available

Main Engines 2 Main engines, 8-cylinder diesel, (SKL - Schwermaschinenbau Karl Liebknecht, Magdeburg)

Power: 300 kW (408 hp)

T H E M A R I T I M E S E R V I C E C O M P A N Y

(6)

F l o a t i n g C r a n e „ J A D E - L I F T I “

AUXILIARY ENGINES

2 Auxiliary engines, 6-cylinder diesel by SKL with 1 three-phase generator each, 250 kVA / 750 rpm 3 phase 390 Volt, 370 Amps

ANCHOR PILES

2 anchor piles (max. 20.00 m) with winches

EQUIPMENT

Control room equipped with compass and satellite navigation, radar and VHF communication

SERVICES

High-precision load lifting and lowering Perfect for salvage and shipbuilding

(7)

Shallow Water Tug

„ J A D E T U G “

CALLSIGN: D D B Q TELEFON: 0171 - 30 22 036 GENERAL DATA: Length o.a. 16.50 m Width o.a. 5.34 m Moulded depth 2.20 m Max. draught 1,65 m Clearance height 5.20 m Gross tons 37 Speed 9.5 knots

Classification: GL + 100 A4 K (Coastal Service) E Tug + MC

Propulsion: 2 propellers in jets, 2 X 285 hp Bollard Pull: 7.4 tons

Equipment: Pushbow with rubber fender Towing hook

Flying bridge

Generator 12 kVA ONAN Hydraulic deck winch 8 tons

T H E M A R I T I M E S E R V I C E C O M P A N Y

(8)
(9)

T H E M A R I T I M E S E R V I C E C O M P A N Y

MAIN DIMENSIONS: Length O.A. 23.90 m Length B.P. 22.39 m Beam Moulded 8.00 m Depth Moulded 3.30 m Max Draft Aft 2.80 m Working Draft 2.50 m Gross Tonnes 175 Net Tonnes 52 Deadweight Approx 105 t Displacement Approx 280 t Fuel Capacity 87.0 m³ GENERAL DATA: IMO Nr.: 9507386 Callsign DDEV

Classification BV + Hull. Mach Tug Unrestricted

navigation Flag Europe/Germany Port of Registry Wilhelmshaven

PERFORMANCE:

Free Running Speed 12,5 knots Bollard Pull 21 t approx

Tug

„JADE-SERVICE I”

24 m Multipurpose Anchor Handling Tug

General Plan

(10)

Tug

„JADE-SERVICE I”

24 m Multipurpose Anchor Handling Tug

General Plan

PROPULSION:

Main Engines 2 x 540 KW

Propellers 2 x propellers with fixed pitch in fixed nozzies Bow-thruster 118 KW

AUXILIARY ENGINES:

Generators 2 x 107 KVA/ 92 KW

DECK MACHINERY:

Towing Winch 30 t, Brake Holding 60 t first layer, 400 m x 36 mm wire - Dual Conrtol

Anchor Handking Drum 30 t, Brake Holding 60 t first layer 100 m x 36 mm wire - Dual Control Towing Pins Hydraulic double pin 18 t SWL

- Dual Cobtro

Tugger Winch 5 t, 100 m x 14 mm wire Towing Hook 20 t SWL - qiuck release Capstan 3 t hydraulic

Crane Deck Crane - SWL 5 t/11,5 m Bow Pusher Bow Pusher with double moulded

rubber fenders as per GA

GMDSS Area A3 - All with COMMUNICATION: IMO/IEC/CE Approved

(11)

Small Harbour Tugboat „MAKER I“

Call Sign: DG 3794 Year Built: 1996 Displacement: 29,50 m3 Length: o.a.11.95 m Width: o.a. 4.30 m Draught: 1,90 m

Propulsion: 6-cylinder 260 hp (MAN Diesel) Equipment: Radar / VHF

T H E M A R I T I M E S E R V I C E C O M P A N Y

(12)
(13)

T H E M A R I T I M E S E R V I C E C O M P A N Y

„ M A K E R B O A T S “

„MAKER III, V, VI, Vll, IX, Xl“

GENERAL DATA

Length:

approx. 12.00m

Width:

approx. 3.20 m

Draught:

approx. 1.20 m

Propulsion:

120 – 220 hp

MARITIME SERVICES

(14)

„ M A K E R B O A T S “

„ M A K E R X I “

(15)

MARITIME SERVICES

T H E M A R I T I M E S E R V I C E C O M P A N Y

„ M S Ö S K I “

CALLSIGN: DBBK

GENERAL DATA: Length o. a. 25.00 m

Width o. a. 8.10 m Moulded depth 2.65 m Max. draught 1.54 m Gross tons 73 Net tons 22 CLASSIFICATION: GL + 100 A5 M + MC A

OWNER: NWLK – Niedersächsischer Landesbetrieb für Wasserwirtschaft und Küstenschutz (Lower Saxony State Office for Water Economy, Coastal and Environmental Protection)

SHIP MANAGER: Jade-Dienst GmbH, Wilhelmshaven, Germany PORT OF REGISTRY: Brake, Germany

SERVICES: Marine pollution clearance vessel / Oil recovery vessel

(16)
(17)

T H E M A R I T I M E S E R V I C E C O M P A N Y

Flat top cargo B A R G E „ J D I “

GENERAL DATA: Length 52.67 m Width 17.07 m Draught 3.66 m Gross tons 828 Net tons 249 DWT 1.900,000 to Deck plating 12.00 mm

Side / bottom plating 9.50 mm Deck loading 10 to m²

OTHER DECK EQUIPMENT:

6 double bollards

1 anchor winch with 1 anchor 1 pole with navigation lights 23 deck supports (6ft x 8” x 8”) 2 stern winches

CLASSIFICATION: Germanischer Lloyd + 100A5

(18)

Flat top cargo B A R G E „ J D I “

(19)

MARITIME SERVICES

T H E M A R I T I M E S E R V I C E C O M P A N Y

T e n d e r

„ R Ü S T R I N G E N “

CALLSIGN: DDCZ GENERAL DATA: Length o. a. 3.50 m Width o. a. 5.69 m Moulded depth 2.64 m Max. draught 1.50 m Gross tons 66 Speed 18 knots CLASSIFICATION: GL + 100 A5 K (Pilot Boat) + MC Navigation area: Coastal areas / duration max. 10 hrs.

FURTHER REGULATIONS:

SBG, SOLAS 1974 + 1983, Marpol etc.

(20)

T e n d e r

„ R Ü S T R I N G E N “

PROPULSION:

Two water-cooled 4 stroke diesel engines (MWM)

Type TBD 234 V12

In total 1644 hp / 2200 rpm

EQUIPMENT:

Radar unit Furono, compass system, autopilot system, echograph,

AP navigator, 2 X VHF transmitter

SERVICES:

Crew changes, Pilot Boat, transfer of spare parts

(21)

T H E M A R I T I M E S E R V I C E C O M P A N Y

Diving Boat

„ J A D E T A U C H E R “

CALLSIGN: DDAS GENERAL DATA: Length o. a. 16.40 m Width 4.60 m Moulded depth 2.18 m Draught 1.50 m Gross tons 33 Speed 9 knots

Accommodation for 2 – 3 persons

CLASSIFICATION:

G L + ZSUK Zone 2

FURTHER REGULATIONS:

Seezulassung BG Verkehr

PROPULSION:

6-cylinder diesel engine 450 hp, Volvo Penta D12 MH

EQUIPMENT:

Radar, GPS, sonar

90 KW/h power generator Towing hook

Towing winch with 20 m wire rope

Bollard pull 5.00 t

(22)
(23)

OFFSHORE SERVICE DIVING | HYDRAULIC ENGINEERING

T H E M A R I T I M E S E R V I C E C O M P A N Y

TAUCHEREI

|

WASSERBAU DIVING

|

HYDRAULIC ENGINEERING

Druckkamer Hytech Deco 1600 X 3600 Kapazität Hauptkammer: 3 Personen Kapazität Vorkammer: 1 Person

Chamber System Hytech Deco 1600 X 3600 Main-chamber capacity: 3 persons Entry-chamber capacity: 1 person Druckkammer Kontroll-Tafel Chamber System Control Panel Taucher bei Unterwasserarbeiten Diver at Work

Beginn eines Tauchgangs für Offshore Service-Arbeiten Start of a diving Job for Offshore Services

Tauchcontainer Jade-Dienst Gmbh Dive Control Container Jade-Dienst GmbH

Wartungsarbeiten für eine Seeschleuse Maintenance Work for a Sea Lock

(24)

TAUCHEREI

|

WASSERBAU DIVING

|

HYDRAULIC ENGINEERING

Taucherei/Diving

Assistenz und Inspektionen bei Seekabel- und Pipelineverlegungen

Services and inspections for offshore cable laying and pipeline laying

Untersuchungs- und Bergungsarbeiten von Wracks und Schiffahrts-Hindernissen

Inspection and salvage of wrecks and underwater obstacles,

Inspektion und Gutachten von Wasserbauwerken, Kaianlagen und Unterwassergeräten

Inspection and survey of underwater constructions, piers, underwater equipment and devices

Unterwasserstemmen, -bohren, -schweißen, -brennen, -sandstrahlen

Underwater demolition, drilling, welding, cutting, sandblasting, jetting

Unterwasserbetonarbeiten, Unterwassermontagearbeiten

Underwater concrete construction and underwater assembly works

Spundwandsanierung und –instandsetzung

Sheet piling maintenance and reconstruction

Entnahme von Bodenproben

Soil / sediment sampling

Unterwasser-Neigungswinkelmessungen und –farbvideoaufnahmen

Underwater inclinometer measuring and color video recording

Ultraschall-Wand- und Schichtdickenmessungen

Ultrasonic wall thickness and layer thickness measuring

Nitrox-Tauchen, Germanischer Lloyd-Zertifikat auf Nitrox-Anlage und –system, Verlängerung der möglichen Tauchzeiten durch Einsatz von Mischgas in verschiedenen Varianten

Nitrox diving; Nitrox system certified by Germanischer Lloyd. Extension of possible diving times by use of different types of gas mix

Wasserbau/Hydraulic Engineering

Planung und Durchführung von Wasserbauprojekten

Design and execution of hydraulic engineering projects

Rammen von Dalben – Verwendung von Rüttlern

Driving of pilings with hydraulic hammer

Assistenz, Decks- und Schlosserarbeiten bei Seekabel- und Rohrverlegearbeiten

On-deck support, services and metal work for offshore cable and pipe laying operations

Schwimmkran mit Traglast bis 100 to

Floating crane with up to 100 to lifting capacity

Arbeitsponton mit 65 to Gittermast-Raupenkran

(25)

T H E M A R I T I M E S E R V I C E C O M P A N Y

Supply Vessel and Sludge Carrier

„ T R A N S P O R T E R I I “

SUPPLY VESSEL AND SLUDGE CARRIER „TRANSPORTER II“

Callsign: DDBE Flag: Germany Port of Registry: Wilhelmshaven General Data: Length o.a. 37.62 m

Width o.a. 7.50 m Draught 2.69 m Gross tons 202 DWT 325.000 tons

Classification: Germanischer Lloyd GL + 100 A5 K + MC

TANKS:

SLOP: 1 x 75 m³ Gasoil: 3 x 75 m³ Lubeoil: 4 x 11 m³

(26)
(27)

T H E M A R I T I M E S E R V I C E C O M P A N Y

MARITIME SERVICES

B M S „ T R A N S P O R T E R I I I “

TANKER FOR LUBE OIL „TRANSPORTER III“ Callsign: DF 6623

General Data: Length o. a. 33.12 m Width o. a. 5.86 m Max. draught 2.03 Gross tons 149

Dead weight tonnage 202.304 to. Classification:

-Propulsion: 6-cylinder diesel (MAN) 155 hp Tanks: Lubeoil 4 x 23³

(28)

B M S „ T R A N S P O R T E R I I I “

TANKER FOR LUBE OIL ”TRANSPORTER III“

Callsign: DF 6623

General Data: Length o. a. 33.12 m

Width o. a. 5.86 m Max. draught 2.03 Gross tons 149

Dead weight tonnage 202.304 to

Operation Area Jade – Zone 2

Propulsion: 6-cylinder diesel (MAN) 155 hp

Tanks: Lubeoil 4 x 23³

Electrical Equipment 24 Volt (220 Volt only by shore connection)

Radar Type: Hagenuk MD 503

Radio Type: DEBEG 6310

Spark Arrestor TIO BV

Type: Krimpen a/d/ Ijssel VKV 5 02.2121

Other Equipment Complete as per regulations

Decks 1 main deck

Masts 1 signal mast with 300 kg derrick and 1 board

/ board handover extension ladder

Anchor Equipment Bow: 1 manual twin-winch, 2 folding

stockless anchors, 2 chains

Stern: 1 manual winch, 1 folding stockless anchor, 1 wire rope

Steering Gear 3 control surfaces, manually operated

Deckhouse On the aft deck, 1 crew cabin and 1 WC, access

to engine room and stowage space by ladder
