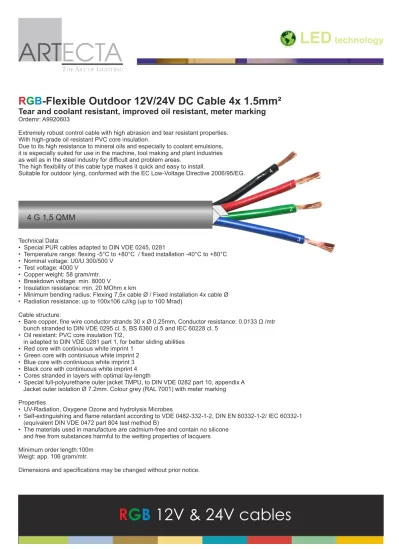

12V & 24V cables

LED

technology

T

HE

A

RTOF

L

IGHTING

-Flexible Outdoor 12V/24V DC Cable 4x 1.5mm²

R

G

B

Tear and coolant resistant, improved oil resistant, meter marking

Ordernr: A9920603

Extremely robust control cable with high abrasion and tear resistant properties.

With high-grade oil resistant PVC core insulation.

Due to its high resistance to mineral oils and especially to coolant emulsions,

it is especially suited for use in the machine, tool making and plant industries

as well as in the steel industry for difficult and problem areas.

The high flexibility of this cable type makes it quick and easy to install.

Suitable for outdoor lying, conformed with the EC Low-Voltage Directive 2006/95/EG.

Technical Data:

• Special PUR cables adapted to DIN VDE 0245, 0281

• Temperature range: flexing -5°C to +80°C / fixed installation -40°C to +80°C

• Nominal voltage: U0/U 300/500 V

• Test voltage: 4000 V

• Copper weight: 58 gram/mtr.

• Breakdown voltage: min. 8000 V

• Insulation resistance: min. 20 MOhm x km

• Minimum bending radius: Flexing 7,5x cable Ø / Fixed installation 4x cable Ø

• Radiation resistance: up to 100x106 cJ/kg (up to 100 Mrad)

Cable structure:

• Bare copper, fine wire conductor strands 30 x Ø 0.25mm,

Conductor resistance:

0.0133

Ω

/mt

r

bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl.5 and IEC 60228 cl. 5

• Oil resistant: PVC core insulation TI2,

in adapted to DIN VDE 0281 part 1, for better sliding abilities

• Red core with continiuous white imprint 1

• Green core with continiuous white imprint 2

• Blue core with continiuous white imprint 3

• Black core with continiuous white imprint 4

• Cores stranded in layers with optimal lay-length

• Special full-polyurethane outer jacket TMPU, to DIN VDE 0282 part 10, appendix A

Jacket outer isolation

Ø 7.2mm. C

olour grey (RAL 7001) with meter marking

Properties

• UV-Radiation, Oxygene Ozone and hydrolysis Microbes

• Self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC 60332-1

(equivalent DIN VDE 0472 part 804 test method B)

• The materials used in manufacture are cadmium-free and contain no silicone

and free from substances harmful to the wetting properties of lacquers

Minimum order length:100m

Weigt: app. 106 gram/mtr.

Dimensions and specifications may be changed without prior notice.

4 G 1,5 QMM

4

1

2

(2)

Recommended cable conductor surface (mm²) with cable lengths of 1-50 meters.

for parallel connected 24 volt LED fixtures.

Note; This table is an obligation and not a binding opinion. If necessary, make a electrical resistance

calculation (Pouillet A x R = p x l )

Watt

Cable inner conductor 1.5mm°

Cable inner conductor 2.5mm°

Cable inner conductor 4mm° Kabel-lengte (m) 1 1 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 Ampere

24 Volt

As much as possible shortest path for the 12V cables Branching cables without interrupting the main cable

Transformer must be placed in centre of the connected fixtures Polarity: positive (+) = red or brown, minus (-) = black or blue Transformer-capacity 25% greater than the sum of conected fixtures

short range, low power

cable section calculation to the

sum of the connected fixtures

fixtures evenly connected

calculate each line separately

fixtures evenly connected

calculate each line separately

longe range, low power

longe range, high power

short range, high power

230V

Transformer 24V

230V

Transformer 24V

230V

Transformer 24V

230V

Transformer 24V

230V

Transformer 24V

(3)

Watt Kabel-lengte (m) 1 1 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 Ampere Vermogen (Watt) Kabelgeleider

1.5mm²

Kabelgeleider

2.5mm²

Kabelgeleider

4mm²

24 48 72 96 120 144 168 192 216 240 264 288 312 336 360

24 Volt

Geadviseerd kabelgeleider-oppervlak (mm²) bij kabellengtes van 1-50 mtr.

voor 24 Volt parallel aangesloten LED armaturen.

Note; Deze tabel is een vrijblijvend en geen dwingend advies. Maak indien nodig een berekening van

elektrische weerstand en geleidbaarheid met de wet van Pouillet (A x R = p x l )

230V

Trafo 24V

230V

Trafo 24V

230V

Trafo 24V

230V

Trafo 24V Trafo 24V

Zoveel mogelijk kortste weg voor de 24V kabels Kabels aftakken zonder de hoofdkabel te onderbreken Trafo mogelijk in het midden plaatsen

Polariteit: plus(+) = rood of bruin, min(-) = zwart of blauw Trafo-capaciteit 25% hoger kiezen dan de som der belastingen

korte afstanden, laag vermogen

kabel sectie berekenen

op de som der belastingen

korte afstanden, hoog vermogen

belastingen zoveel mogelijk

gelijkmatig verdelen

sectie van elke lijn

afzonderlijk berekenen

lange afstanden, laag vermogen

sectie van elke lijn

afzonderlijk berekenen

lange afstanden, hoog vermogen

belastingen zoveel mogelijk

gelijkmatig verdelen

Watt Kabel-lengte (m) 1 1 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 Ampere

(4)

Watt Kabel-lengte (m) 1 1 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 Ampere Kabelinnenleiter

1.5mm²

Kabelinnenleiter

2.5mm²

Kabelinnenleiter

4mm²

24 48 72 96 120 144 168 192 216 240 264 288 312 336 360

24 Volt

So viel wie möglich dem kürzesten Weg für die 24V-Leitungen Kabel abzweigen ohne Unterbrechung der Hauptleitung Trafo wenn möglich in der Mitte montieren

Polarität: positiv(+) = rot oder braun, minus(-) = schwarz oder blau Trafo-Kapazität immer 25% größer wählen als die Summe der Last

230V

Trafo 24V

230V

Trafo 24V

230V

Trafo 24V

230V

Trafo 24V

230V

Trafo 24V

kurze Leitungen, niedriger Stromverbrauch

Kabelquerschnitt berechnen

nach der Summe der Last

kurze Leitungen, hoher Stromverbrauch

Last möglichst gleichmäßig

verteilen

jeder Abschnitt

separat berechnen

lange Leitungen, niedriger Stromverbrauch

jeder Abschnitt

separat berechnen

lange Leitungen, hoher Stromverbrauch

Last möglichst gleichmäßig

verteilen

Empfohlener Querschnitt vom Kabelinnenleiter in mm² bei Kabellängen

von 1-50 Meter für parallel geschaltete 24-Volt-LED-Leuchten.

Bitte beachten: Diese Tabelle ist eine unverbindliche Beratung. Falls erforderlich, eine

Berechnung vom elektrischen Widerstand und Leitfähigkeit mit der Formel von Pouillet machen

(5)

Watt Kabel-lengte (m) 1 1 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 Ampere 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360

24 Volts

Surface recommandée conducteur de câble (mm²) 1-50 m longueurs de câble.

connectés en parallèle pour 24 volts luminaires à LED.

Remarque, Ce tableau est un des conseils informels et non contraignants. Si nécessaire, un calcul de

résistance électrique et la conductivité avec la loi de Pouillet (A x R = p x l )

230V

230V

230V

230V

Transfor-mateur

24V

Transfor-mateur

24V

Transfor-mateur

24V

Transfor-mateur

24V

Transfor-mateur

24V

Choisir le chemin le plus court pour les câbles 24V Éclaircie câbles sans interrompre le câble principal Transformer peut être centrée

Polarité: positive (+) = rouge ou brun, moins (-) = noir ou bleu Transformateur-capacité de 25% de plus que de choisir la charge LED-lampes Parallèlement interrupteur

courte portée, de faible puissance

Calcul de la section de câble

la somme des luminaires

connectés

courtes distances, de forte puissance

luminaires raccordés

possible uniformément

section de chaque ligne

calculer séparément

Les longues distances, de faible puissance

section de chaque ligne

calculer séparément

Les longues distances, de forte puissance

luminaires raccordés

possible uniformément

Conducteur de câble

1.5mm²

Conducteur de câble

2.5mm²

Conducteur de câble

4mm²

Puissance (Watt)

(6)

Watt Kabel-lengte (m) 1 1 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 Ampere 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360

24

Voltios

Sección de cable recomendada en mm² con longitudes de cable 1-50 metros.

para conectar en paralelo de 24 voltios LED fixtures.

Note; Este cuadro es un consejo informal y no vinculante. Si es necesario, un cálculo de

resistencia eléctrica y la conductividad con la ley de Pouillet (A x R = p x l )

230V

230V

230V

230V

230V

24V fuente de alimentación 24V fuente de alimentación 24V fuente de alimentación 24V fuente de alimentación 24V fuente de alimentación

Intente utilizar la mínima distacia de cable en lineas de 12V.

Intente utilizar una linea pricipal sin cortarlo y sacar de el derivaciones individuales

Si es posible coloque la fuente de alimentación en el centro de la linea [pricipal de distribución

Polaridad: positivo (+) = rojo o marrón, negativo (-) = negro o azul

La fuente de alimentación debe ser 25% mayor que la suma de las luiminarias a conectar

distancias cortas, de baja potencia

cable de cálculo

de la sección que la suma

de las luiminarias a conectar

distancias cortas, de alta potencia

la suma de las luiminarias

posibles uniformemente

sección de cable

calcular por separado

distancias largas, de baja potencia

sección de cable

calcular por separado

distancias largas, de alta potencia

cable de cálculo

de la sección que la suma

de las luiminarias a conectar

Watt Sección de cable

1.5mm²

Sección de cable

2.5mm²

Sección de cable

4mm²
